Summary

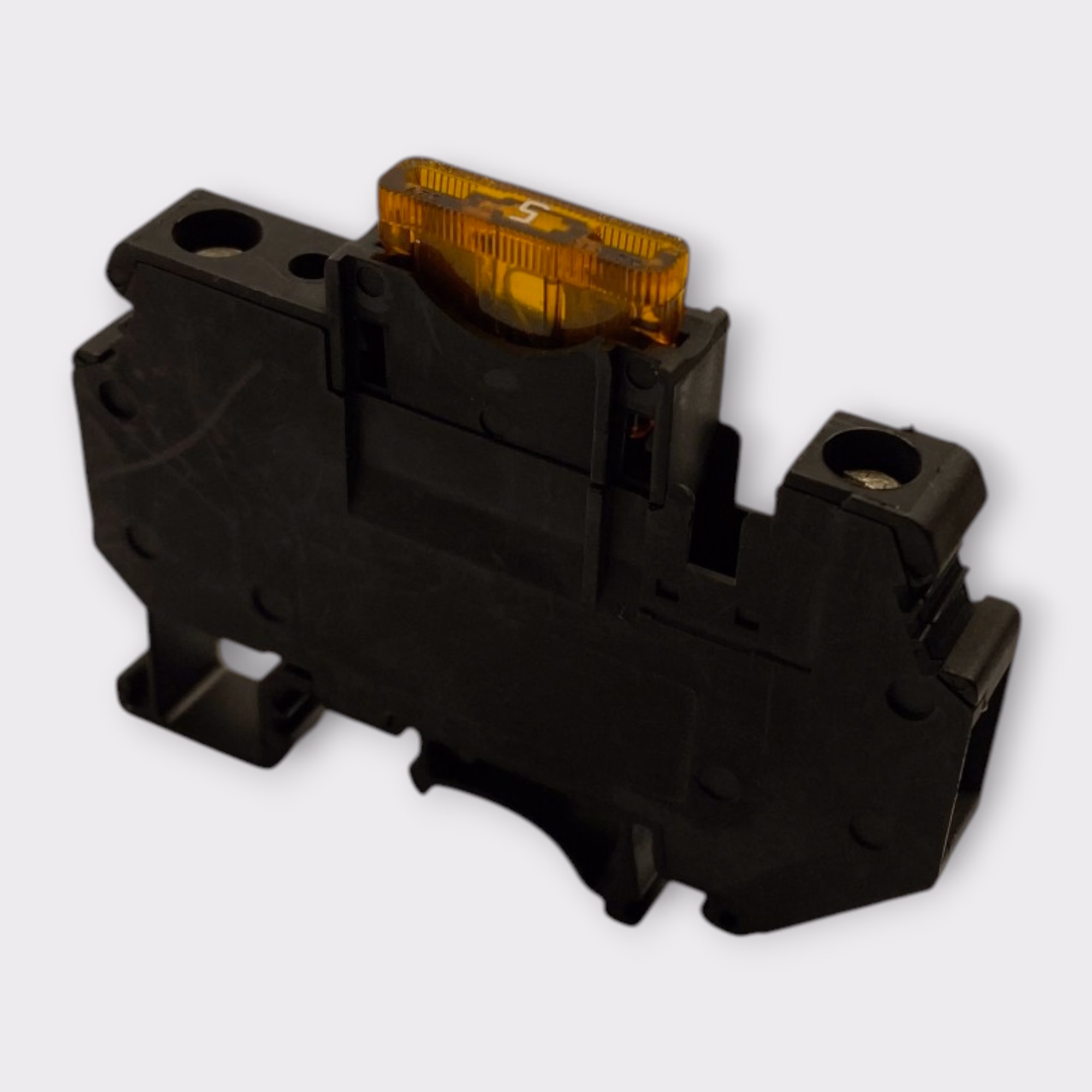

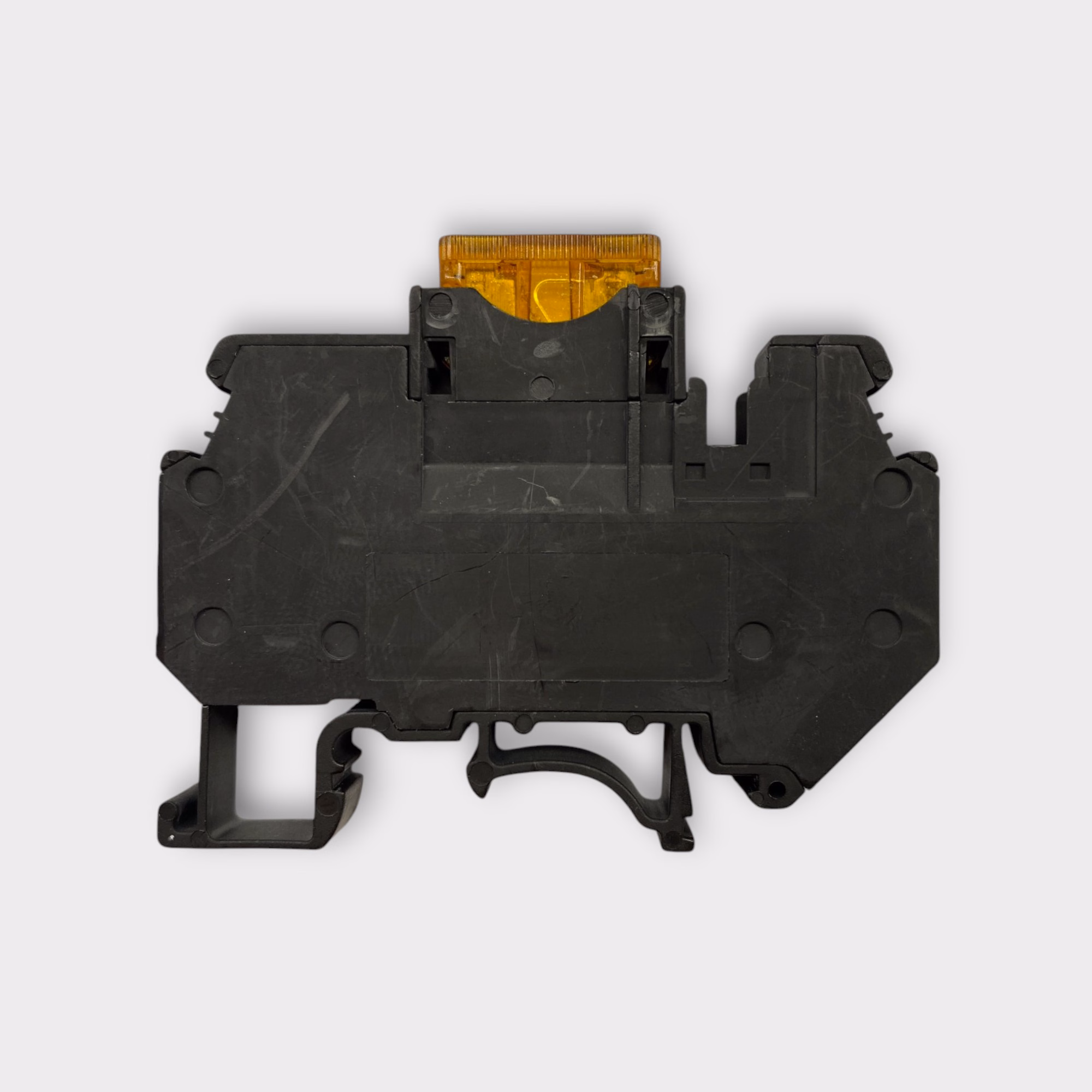

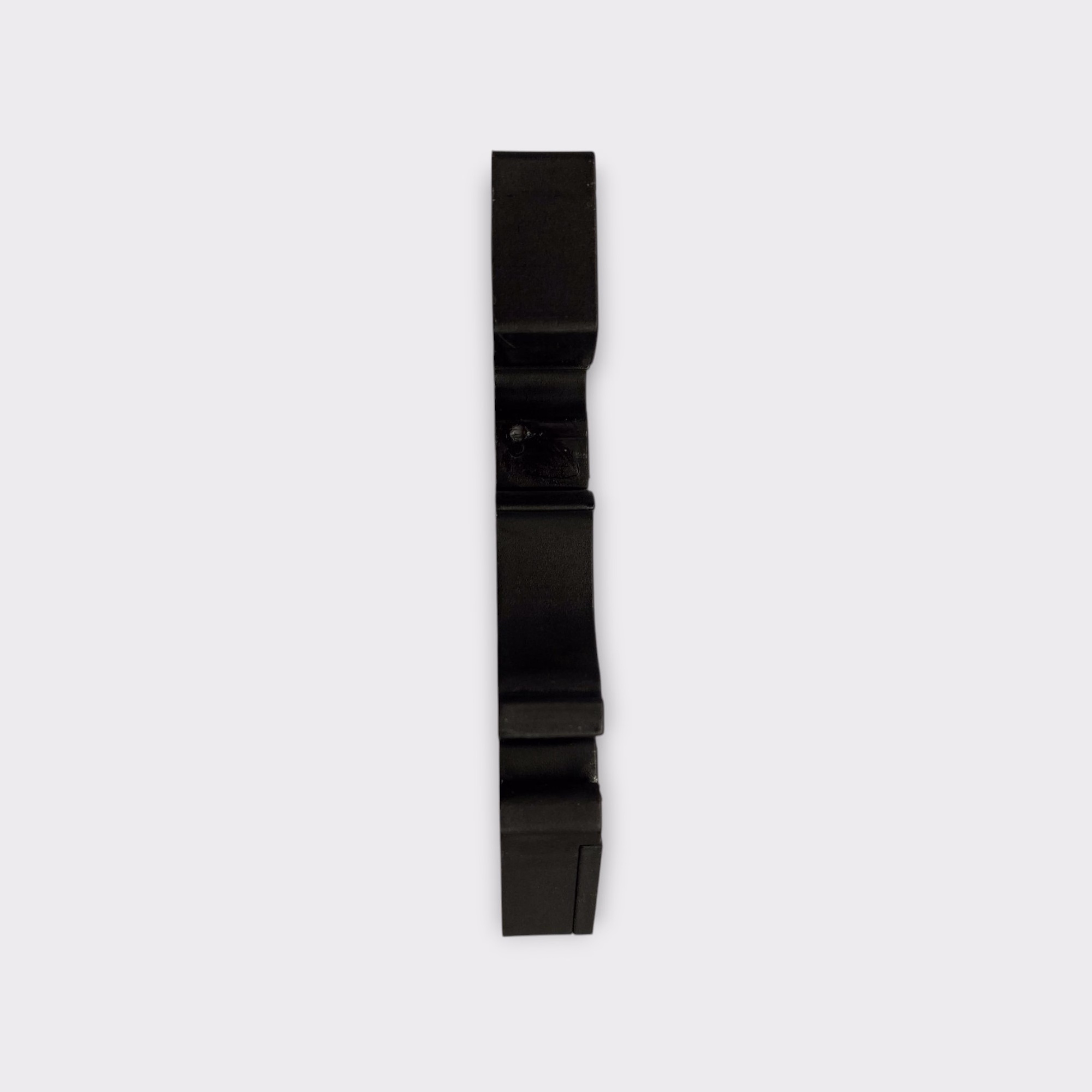

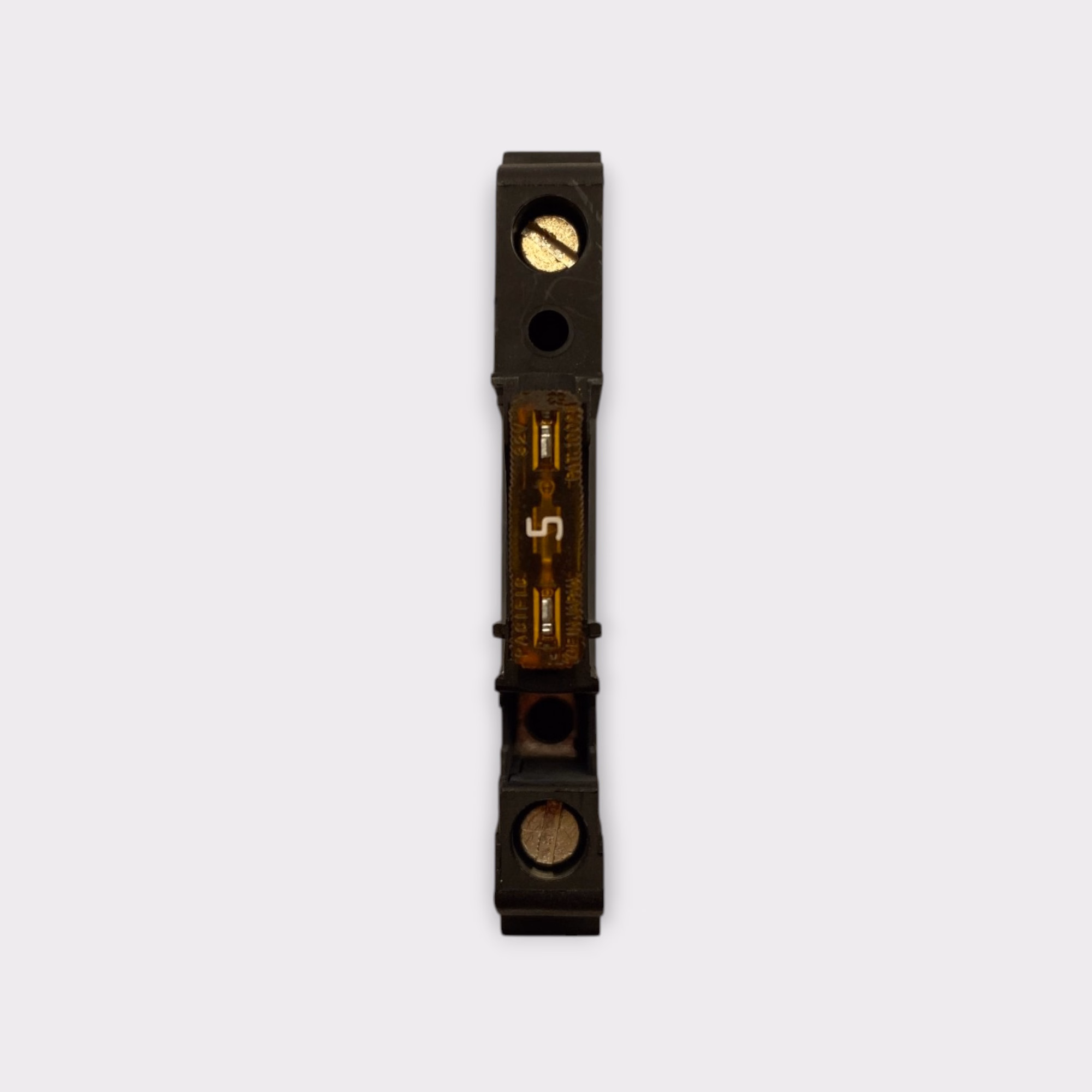

• Phoenix Contact UK 6-FSI/C (3118203) DIN rail fuse terminal block, including one 5 Amp flat-blade fuse. This black UK Series fuse terminal features screw-clamp connections, a 4 mm² nominal conductor cross-section, and a manufacturer-specified maximum rating of 30 A / 250 V for compatible circuit protection applications.
• The terminal block is designed for Type C flat-blade automotive-style fuses and provides two conductor connection points within a compact 8.2 mm housing.
• This listing includes 1 Phoenix Contact UK 6-FSI/C fuse terminal block with 1 installed 5 Amp fuse. No original box, instructions, manuals, DIN rail, wiring, or additional accessories are included. Please review all photos for the exact item, condition, and components included.
• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service.

Product Description

• The Phoenix Contact UK 6-FSI/C is a DIN rail-mounted fuse terminal block designed to integrate flat-blade fuse protection into industrial electrical control panels, machinery, and electrical distribution systems.
• Each terminal block features two screw-clamp conductor connections and a plug-in fuse holder designed for Type C flat-blade fuses in accordance with DIN 72581-3.
• This listing includes a 5 Amp fuse, providing a convenient replacement or installation component for compatible circuits requiring 5 A fuse protection.
• The UK 6-FSI/C features Phoenix Contact's screw connection technology for secure conductor termination and supports rigid conductors ranging from 0.2 mm² to 10 mm² and flexible conductors ranging from 0.2 mm² to 6 mm².
• Designed for standard NS 35/7.5, NS 35/15, and NS 32 mounting rails, this terminal block features a compact 8.2 mm width and supports compatible FBI fixed bridges for terminal strip configurations.
• The black insulating housing is manufactured from polyamide (PA) and features a UL 94 V-0 flammability classification.
• The terminal block has a manufacturer-specified nominal voltage of 250 V and a maximum current rating of 30 A for applicable configurations. Actual circuit protection is determined by the installed fuse and its voltage and current ratings.
• This model is suitable for industrial automation, machinery wiring, electrical distribution cabinets, equipment control panels, and compatible marine electrical systems.

Product Information

- Brand: Phoenix Contact
- Model: UK 6-FSI/C
- Series: UK Series
- MPN: 3118203
- Type: Fuse Terminal Block
- Number in Pack: 1
- Number of Ports: 2
- Number of Poles: 1
- Number of Levels: 1
- Connector Style: DIN Rail Fuse Terminal Block
- Termination Type: Screw Clamp
- Compatible Mounting Type: DIN Rail
- Compatible DIN Rails: NS 35/7.5 / NS 35/15 / NS 32
- Material: Polyamide (PA)
- Color: Black (RAL 9005)
- Fuse Type: Type C Flat-Blade Fuse
- Fuse Standard: DIN 72581-3
- Included Fuse Current Rating: 5 A
- Terminal Maximum Current Rating: 30 A
- Nominal Voltage Rating: 250 V
- Rated Surge Voltage: 4 kV
- Nominal Conductor Cross-Section: 4 mm²
- Compatible Wire Gauge (AWG): 8–24 AWG
- Rigid Conductor Range: 0.2–10 mm²
- Flexible Conductor Range: 0.2–6 mm²
- Flexible Conductor with Ferrule Range: 0.25–4 mm² (With Plastic Sleeve)
- Screw Thread: M4
- Tightening Torque: 1.5–1.6 Nm
- Stripping Length: 10 mm
- Item Length (Height): 64 mm
- Item Width: 8.2 mm
- Item Depth: 52.6 mm
- Depth on NS 35/7.5 Rail: 53.8 mm
- Depth on NS 35/15 Rail: 61.3 mm
- Depth on NS 32 Rail: 58.8 mm
- Net Weight: 19.5 g (Terminal Block Only)
- Flammability Rating: UL 94 V-0
- Standard: IEC 60947-7-3
- UL File Number: E60425
- Country/Region of Manufacture: Turkey
- EAN / GTIN: 4017918100605

Package Contents

- 1x Phoenix Contact UK 6-FSI/C Fuse Terminal Block (3118203)
- 1x 5 Amp Flat-Blade Fuse (Installed)

Total: 1 Fuse Terminal Block with 1 Included 5 Amp Fuse.
