Summary

• 20-pack of Phoenix Contact ST 2,5/1P (3040012) gray feed-through terminal blocks with spring-cage/plug-in connections, supplied with 2 matching D-ST 2,5 (3030417) gray end cover plates.
• Designed for 35mm DIN rail installation, each terminal block features two connections, a nominal conductor cross-section of 2.5mm², and an IEC nominal rating of 500V and 24A.
• Listing is for 20 Phoenix Contact ST 2,5/1P terminal blocks and 2 D-ST 2,5 end cover plates only, does not include any instructions, installation screws, or original box. Please review all photos for the exact item, condition, and components included.
• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service.

Product Description

• The Phoenix Contact ST 2,5/1P is a compact, single-level feed-through terminal block from the ST-COMBI series, designed for industrial wiring, control panels, machine building, and automation applications.
• Its spring-cage connection and plug-in interface allow convenient wiring and connection of compatible COMBI plugs. The 5.2mm terminal width helps conserve DIN rail space while providing secure, vibration-resistant electrical connections.

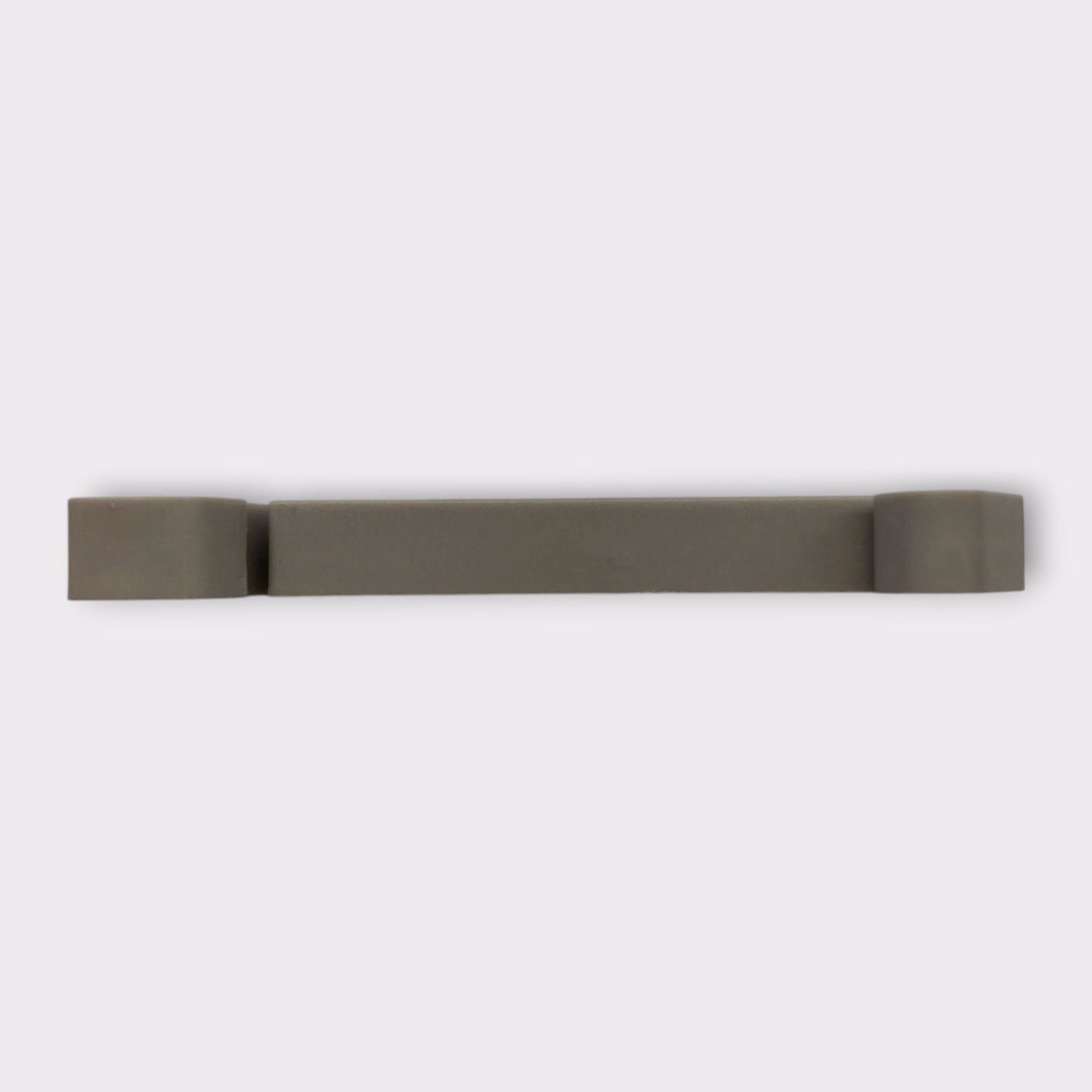

• The included D-ST 2,5 end cover plates provide insulation and protection for exposed terminal block sides when installed in an assembly.
• This package includes 20 feed-through terminal blocks and 2 compatible end covers, making it suitable for creating or expanding industrial control cabinet terminal assemblies.

Product Information

Manufacturer: Phoenix Contact
Series: ST / CLIPLINE Complete / ST-COMBI
Product Type: Plug-In Feed-Through Terminal Blocks with End Covers
Primary Model Number: ST 2,5/1P
Primary MPN: 3040012
End Cover Model Number: D-ST 2,5
End Cover MPN: 3030417
Terminal Block Quantity: 20
End Cover Quantity: 2
Total Components: 22
Color: Gray (RAL 7042)
Country of Origin: Germany

Terminal Block Specifications - 3040012

Manufacturer: Phoenix Contact
Model Number: ST 2,5/1P
Series: ST-COMBI
MPN: 3040012
Product Type: Feed-Through Plug-In Terminal Block
Connection Technology: Spring-Cage / Plug-In Connection
Number of Connections: 2
Number of Levels: 1
Number of Potentials: 1
Nominal Conductor Cross-Section: 2.5mm²
Rigid Conductor Cross-Section: 0.08–4mm²
Flexible Conductor Cross-Section: 0.08–2.5mm²
Compatible Wire Gauge: 28–12 AWG (Rigid Conductors)
Nominal Current (IEC): 24A
Nominal Voltage (IEC): 500V
Rated Surge Voltage: 6kV
Wire Stripping Length: 8–10mm
UL Rated Current: 20A (Classes B/C/F)
UL Rated Voltage: 300V (Classes B/C), 500V (Class F)
Mounting Type: DIN Rail
Compatible DIN Rail: NS 35/7.5 and NS 35/15
Terminal Width: 5.2mm
Terminal Height: 48.5mm
Terminal Depth on NS 35/7.5: 36.5mm
Terminal Depth on NS 35/15: 44mm
Housing Material: Polyamide (PA)
Housing Color: Gray (RAL 7042)
Flammability Rating: UL 94 V-0
Manufacturer GTIN / EAN-13: 4017918832612
Country of Origin: Germany
Quantity Included: 20

End Cover Specifications - 3030417

Manufacturer: Phoenix Contact
Model Number: D-ST 2,5
Series: ST
MPN: 3030417
Product Type: DIN Rail Terminal Block End Cover
Compatible Terminal Block: ST 2,5/1P
Function: Insulating End Cover for Open Terminal Block Sides
Material: Polyamide (PA)
Color: Gray (RAL 7042)
Width: 2.2mm
Height: 48.6mm
Depth: 29.1mm
Flammability Rating: UL 94 V-0
Manufacturer GTIN / EAN-13: 4017918188047
Country of Origin: Germany
Quantity Included: 2
