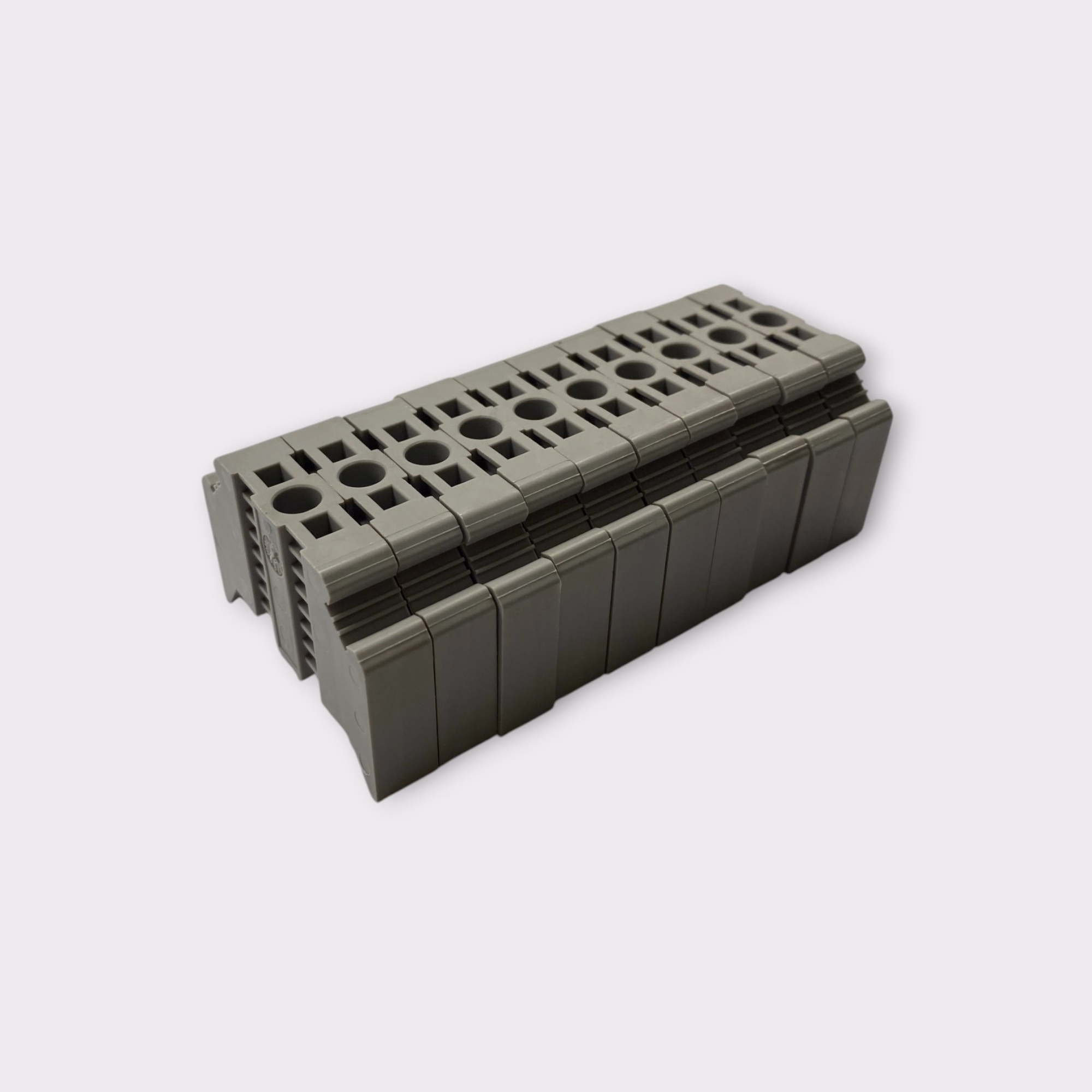

Summary

• Phoenix Contact E/NS 35 N (0800886) gray DIN rail end brackets, sold as a pack of 22. These end clamps are designed to secure terminal block assemblies on 35 mm DIN rails, helping prevent lateral movement in electrical control panels and distribution enclosures.
• This listing includes 22 Phoenix Contact E/NS 35 N end brackets only. No original box, instructions, manuals, DIN rails, terminal blocks, or additional accessories are included. Please review all photos for the exact item, condition, and components included.
• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service.

Product Description

• The Phoenix Contact E/NS 35 N is a screw-tightened end bracket designed to securely position and retain terminal blocks and other compatible components on standard 35 mm DIN rails.
• Manufactured from durable gray polyamide (PA), these end clamps feature a compact 9.5 mm width, an integrated M3 fastening screw, and a flame-retardant housing rated UL 94 V-0.
• Compatible with NS 35/7.5 and NS 35/15 mounting rails, these brackets are suitable for electrical distribution systems, industrial automation panels, marine electrical installations, and control cabinet assemblies.

Product Information

• Manufacturer: Phoenix Contact
• Model Number: E/NS 35 N
• Series: E/NS
• MPN: 0800886
• Product Type: DIN Rail End Bracket / End Clamp
• Quantity Included: 22 Pieces
• Color: Gray (RAL 7042)
• Material: Polyamide (PA)
• Mounting Type: DIN Rail
• Compatible DIN Rails: NS 35/7.5 and NS 35/15
• Width: 9.5 mm
• Height: 48.6 mm
• Depth: 32.8 mm
• Screw Thread: M3
• Tightening Torque: 0.6–0.8 Nm
• Flammability Rating: UL 94 V-0
• Operating Temperature: -60°C to +105°C (manufacturer-specified maximum short-term temperature)
• Country of Origin: Germany
• Manufacturer Part Number: 0800886
• GTIN / EAN: 4017918129309
