Summary

• 4 Pack of Phoenix Contact PT 4-QUATTRO (3211797) multi-conductor feed-through terminal blocks with one matching D-PT 4-QUATTRO (3208979) end plate. Each terminal block features four push-in conductor connections, a nominal current rating of 32A, an 800V nominal voltage rating, and a 4 mm² nominal conductor cross section. Designed for 35 mm DIN rail installation in industrial automation, electrical control cabinets, and power distribution systems.

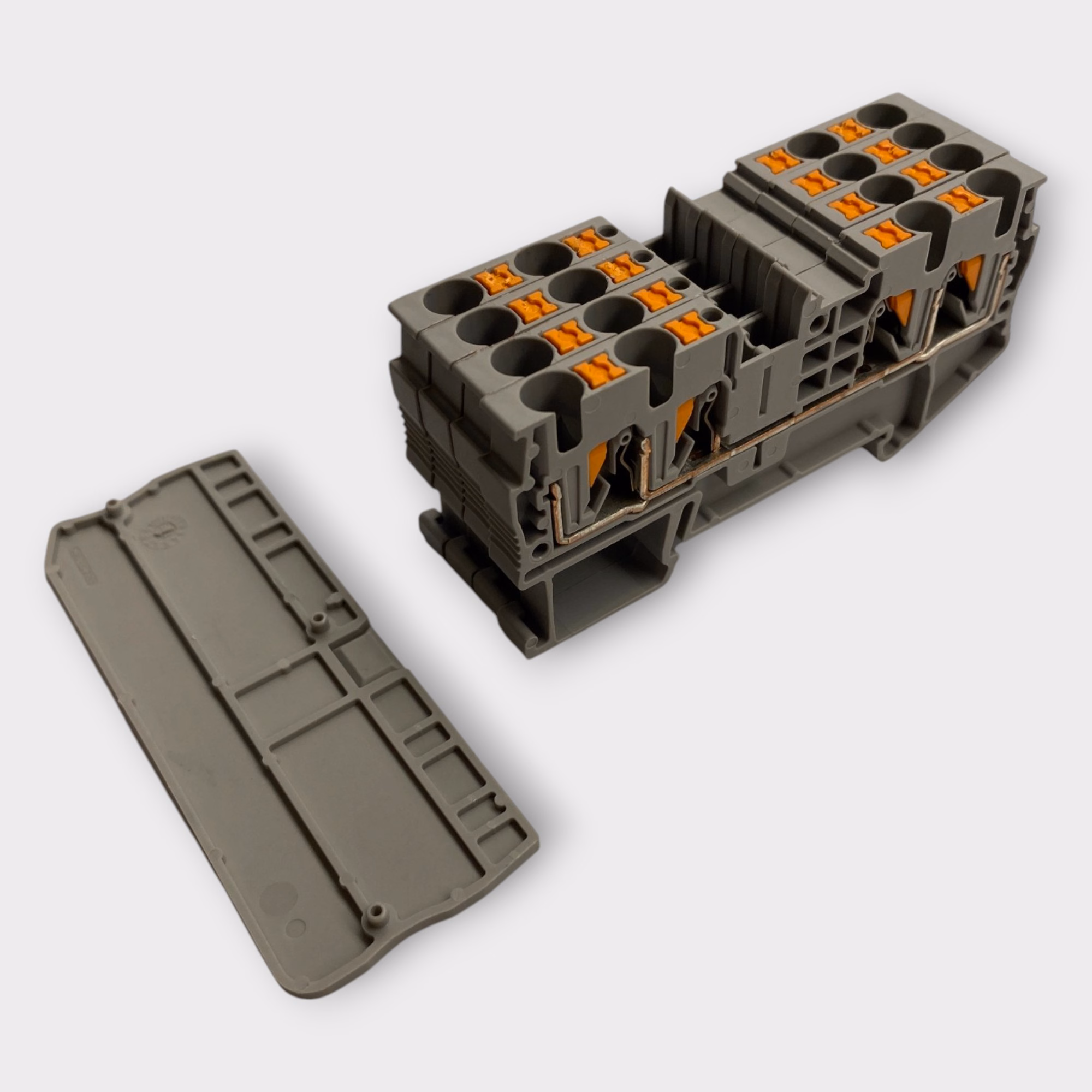

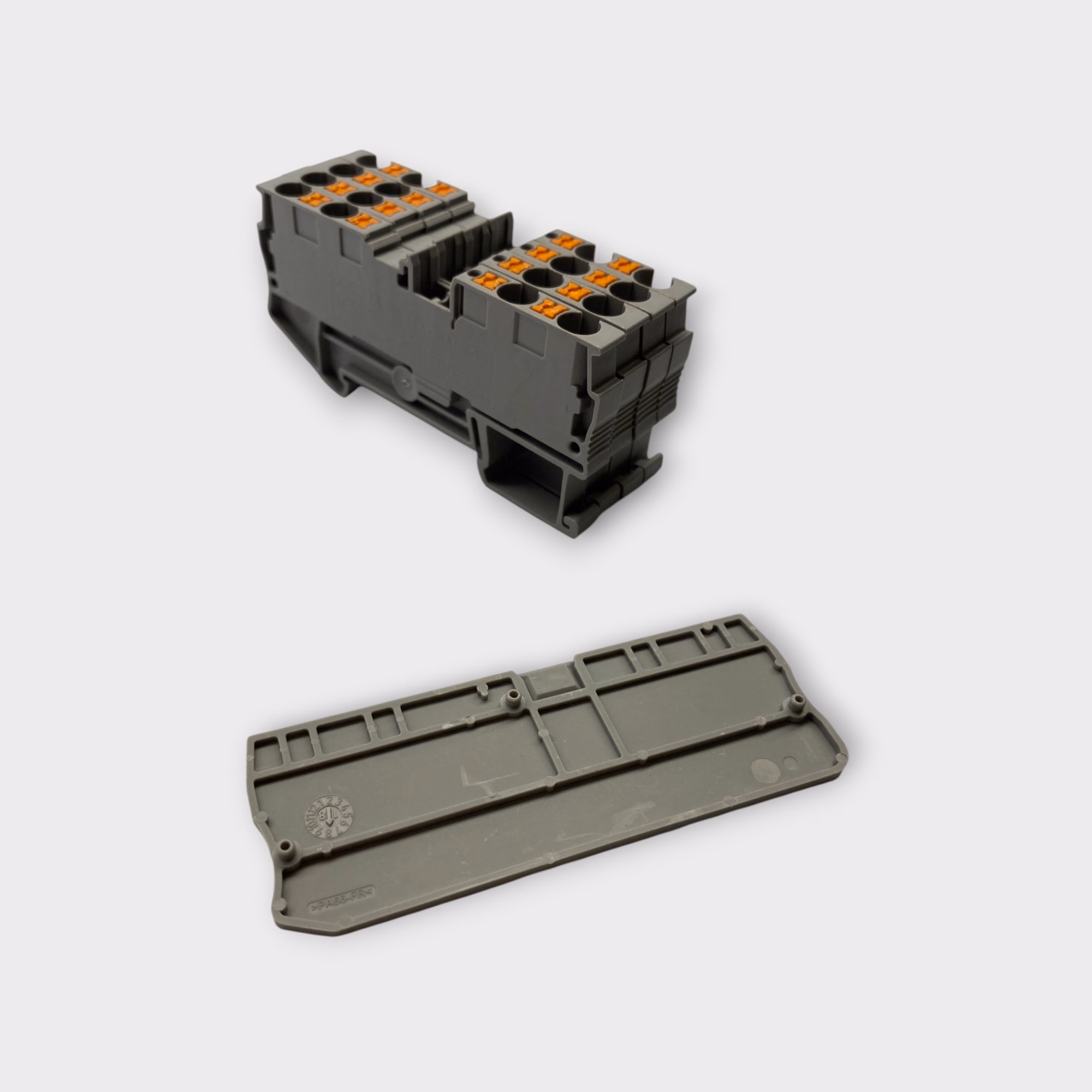

• Package includes 4 terminal blocks and 1 matching end plate, for a total of 5 components.
• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service. Please review all photos for the exact item, condition, and components included.

Product Description

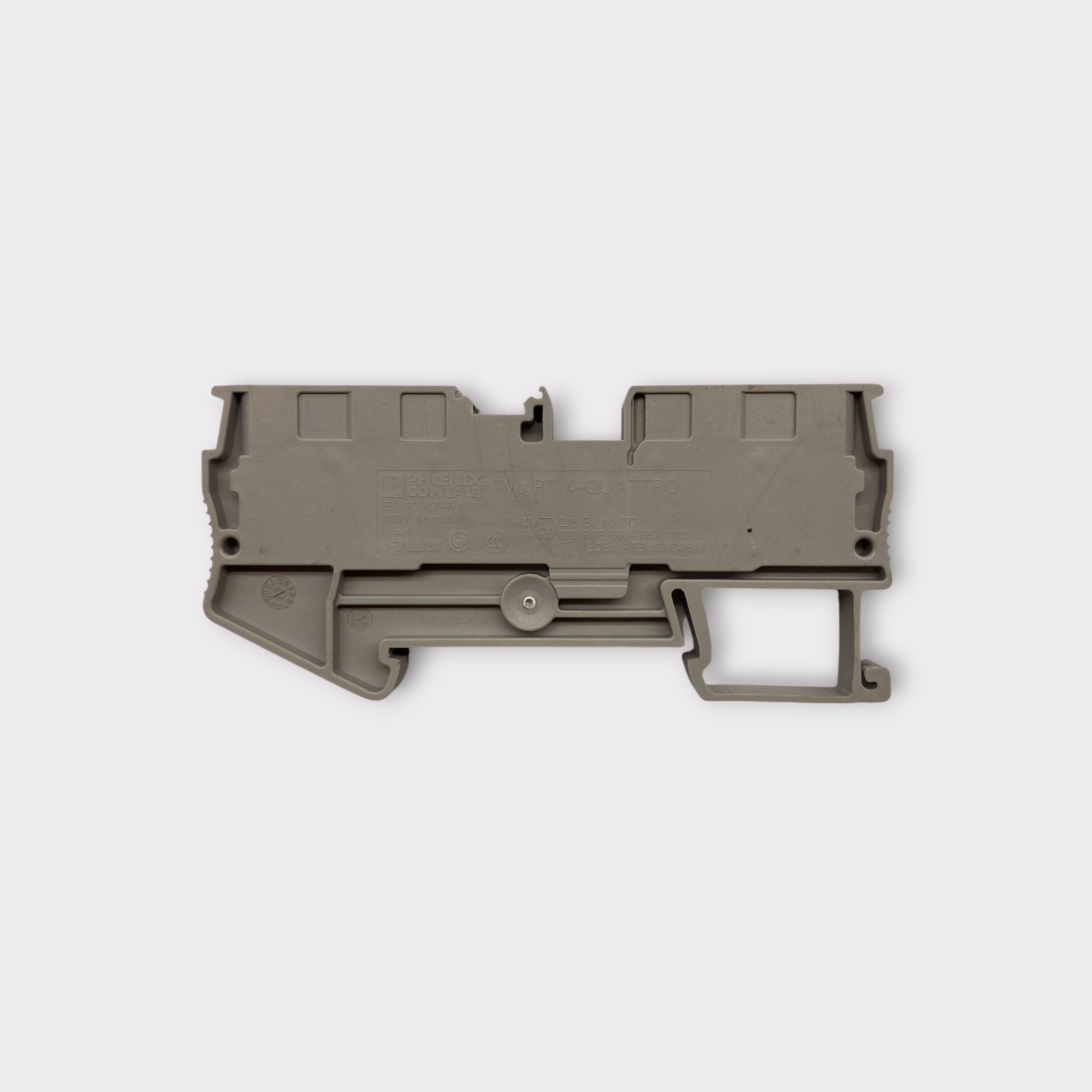

• The Phoenix Contact PT 4-QUATTRO is a multi-conductor feed-through terminal block from the CLIPLINE Complete PT series, designed to provide reliable electrical connections in industrial automation, machinery, and control panel applications.

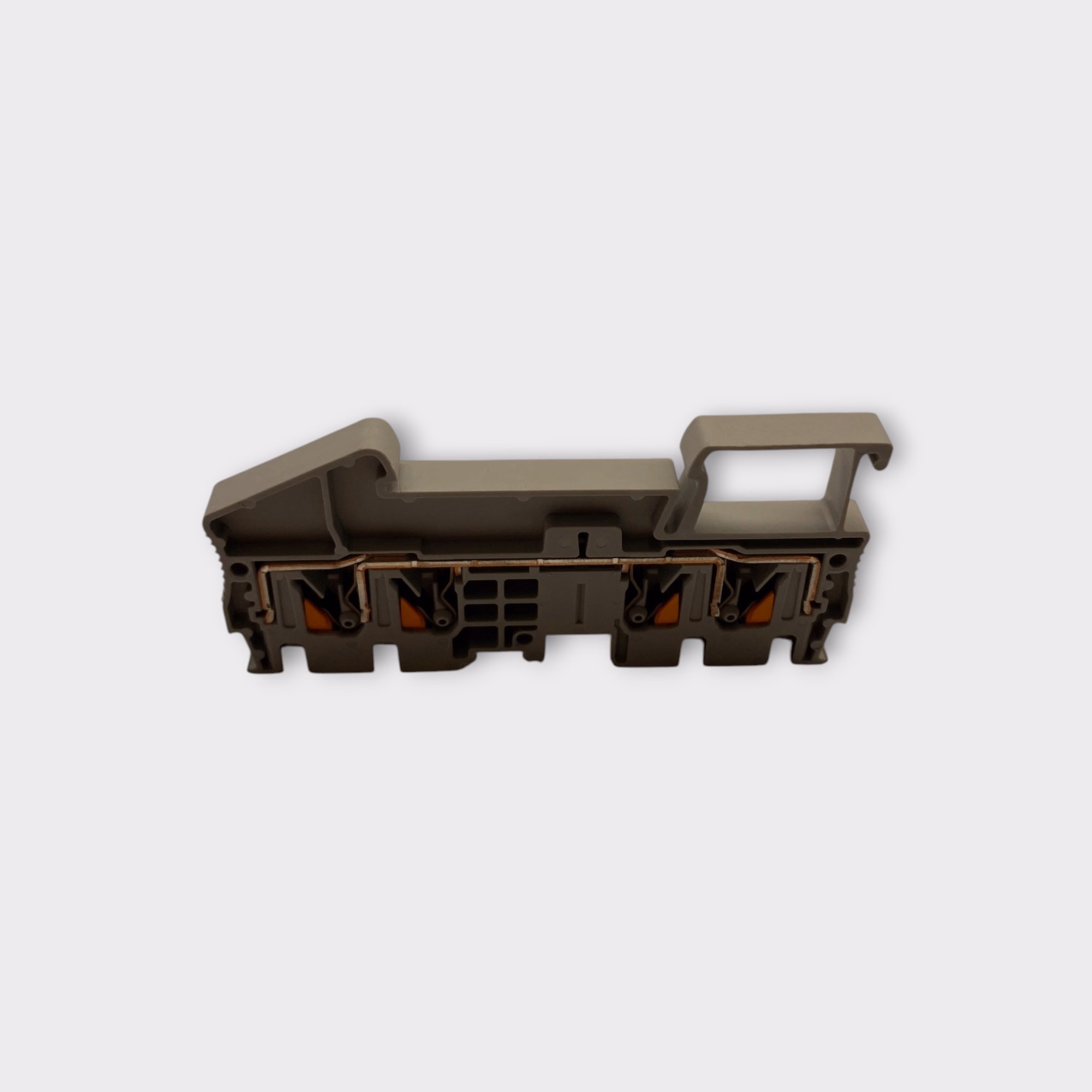

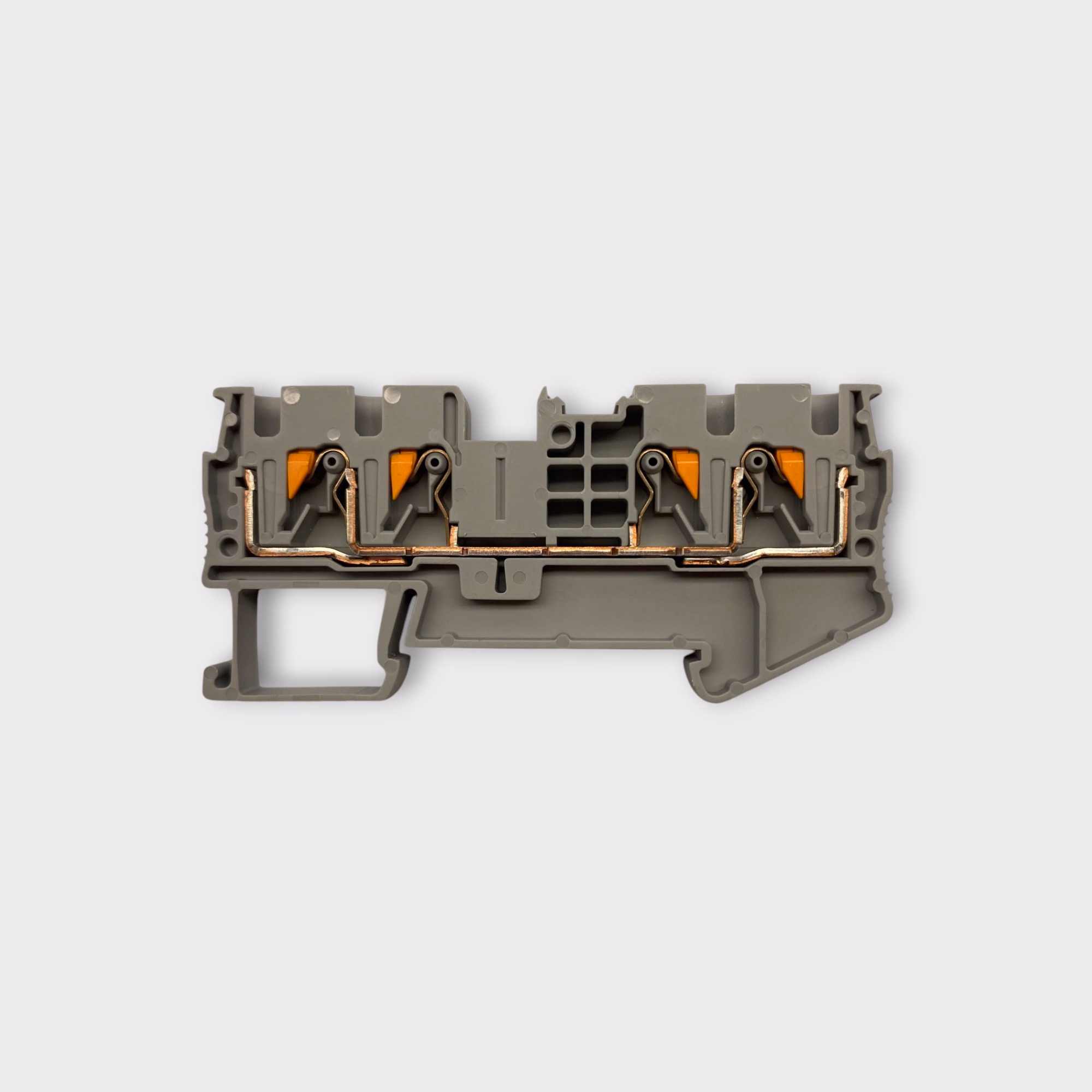

• Each terminal block features four push-in connection points arranged on a single level, allowing multiple conductors to share one electrical potential. Push-in technology enables fast, tool-free installation of suitable solid conductors and ferrule-equipped wires, helping reduce wiring time during panel assembly and maintenance.
• With a nominal current rating of 32A, a nominal voltage rating of 800V, and a 4 mm² nominal conductor cross section, these terminal blocks are suitable for a wide range of industrial electrical installations. The compact 6.2 mm housing width helps conserve DIN rail space.

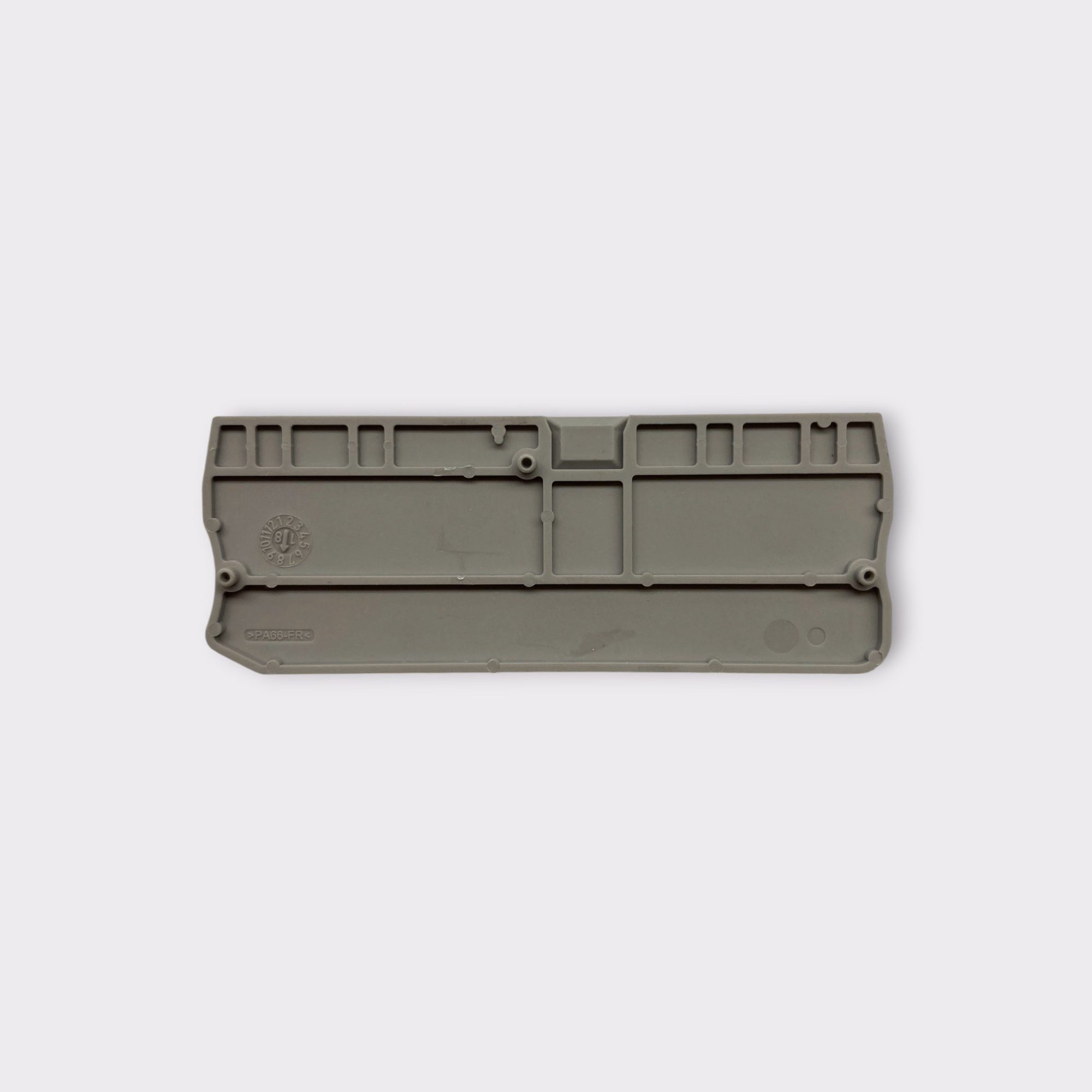

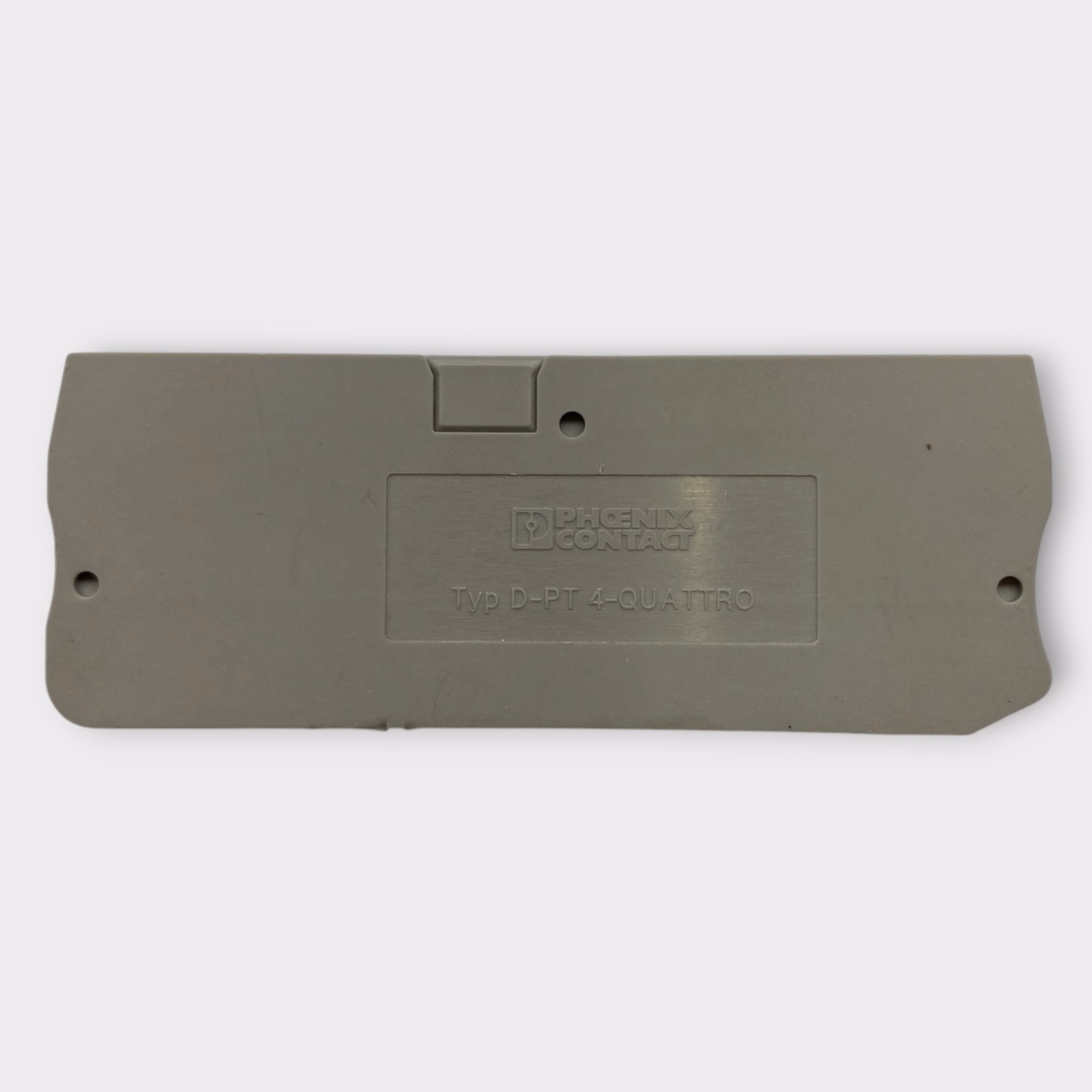

• The included Phoenix Contact D-PT 4-QUATTRO end plate (3208979) is designed to cover the open side of a compatible terminal block, providing insulation and a finished terminal strip assembly.
• This listing contains four PT 4-QUATTRO terminal blocks and one matching end plate, sold together as a single package.

Product Information

• Manufacturer: Phoenix Contact
• Model Number: PT 4-QUATTRO
• Series: CLIPLINE Complete / PT
• MPN: 3211797
• End Plate Model: D-PT 4-QUATTRO
• End Plate MPN: 3208979
• Product Type: Multi-Conductor Feed-Through Terminal Block
• Quantity Included: 4 Terminal Blocks + 1 End Plate
• Total Components: 5
• Connection Technology: Push-In Connection
• Number of Connections: 4 Per Terminal Block
• Total Connection Points: 16 Across 4 Terminal Blocks
• Number of Rows: 1 Per Terminal Block
• Number of Potentials: 1 Per Terminal Block
• Nominal Voltage: 800 V
• Nominal Current: 32 A
• Maximum Load Current: 36 A (With 6 mm² Rigid Conductor)
• Rated Surge Voltage: 8 kV
• Nominal Conductor Cross Section: 4 mm²
• Conductor Cross Section Range: 0.2–6 mm²
• Compatible Wire Gauge: 24–10 AWG
• Wire Stripping Length: 10–12 mm
• Mounting Type: DIN Rail NS 35/7.5 or NS 35/15
• DIN Rail Size: 35 mm
• Terminal Block Width: 6.2 mm
• Terminal Block Height: 77 mm
• Terminal Block Depth: 35.3 mm
• Depth on NS 35/7.5: 36.5 mm
• Depth on NS 35/15: 44 mm
• End Plate Width: 2.2 mm
• End Plate Height: 77 mm
• End Plate Depth: 29 mm
• Combined Width of 4 Blocks + End Plate: Approximately 27 mm
• Color: Gray (RAL 7042)
• Insulating Material: Polyamide (PA)
• Flammability Rating: UL 94 V-0
• Connection Standard: IEC 60947-7-1
• Country of Origin (Terminal Blocks): Poland
• Country of Origin (End Plate): Germany
• Package Contents: 4x Phoenix Contact PT 4-QUATTRO (3211797) Terminal Blocks and 1x Phoenix Contact D-PT 4-QUATTRO (3208979) End Plate
