Summary

• 4 Pack of Phoenix Contact PT 2,5-QUATTRO-PE (3209594) protective earth grounding terminal blocks with 2 compatible D-ST 2,5-QUATTRO (3030514) end plates. Each terminal block features four push-in conductor connections, an integrated DIN rail grounding foot, and a nominal conductor cross section of 2.5 mm². Designed for protective earth wiring in industrial automation equipment, electrical control cabinets, and machinery.

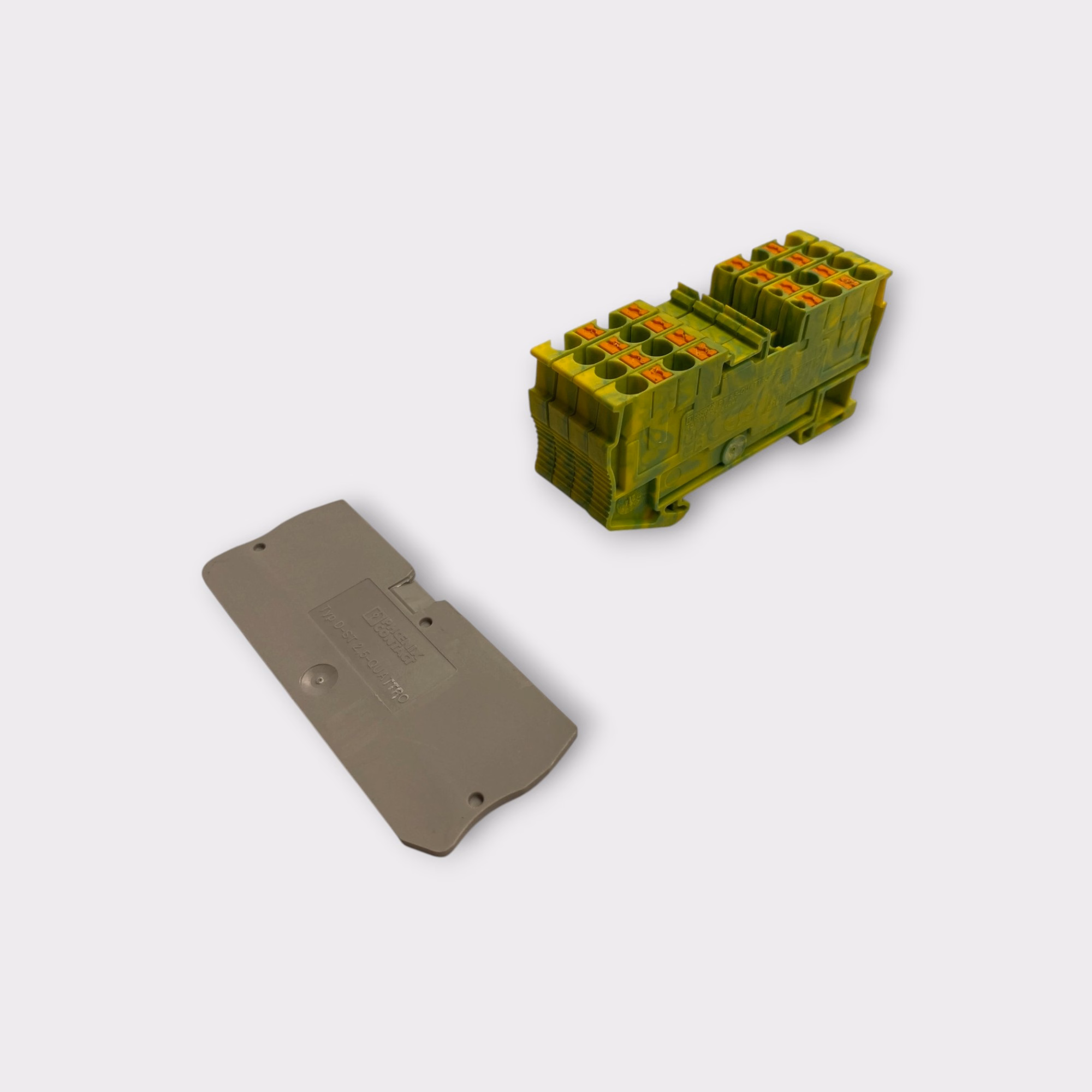

• Package includes 4 green/yellow grounding terminal blocks and 2 gray end plates, for a total of 6 components.
• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service. Please review all photos for the exact item, condition, and components included.

Product Description

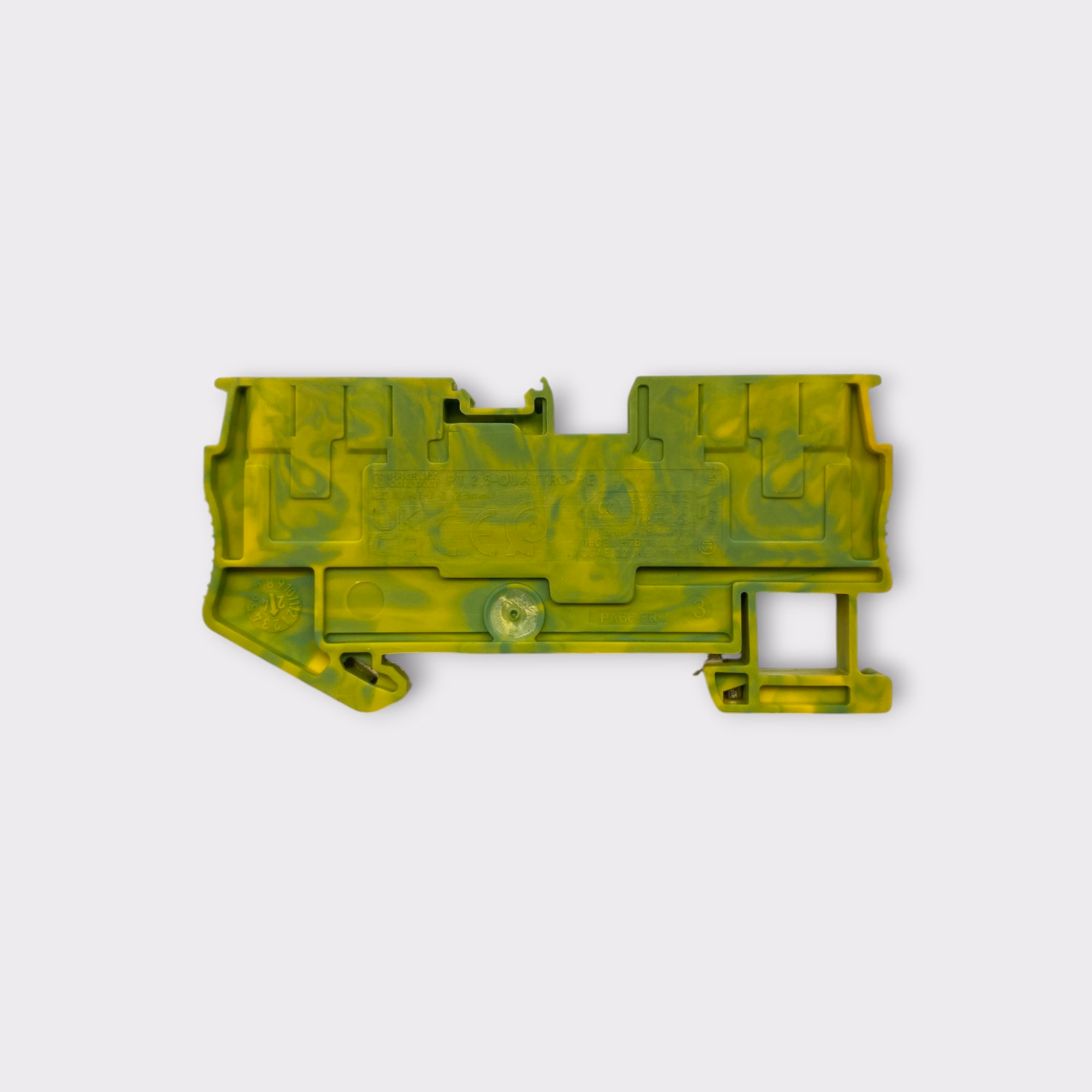

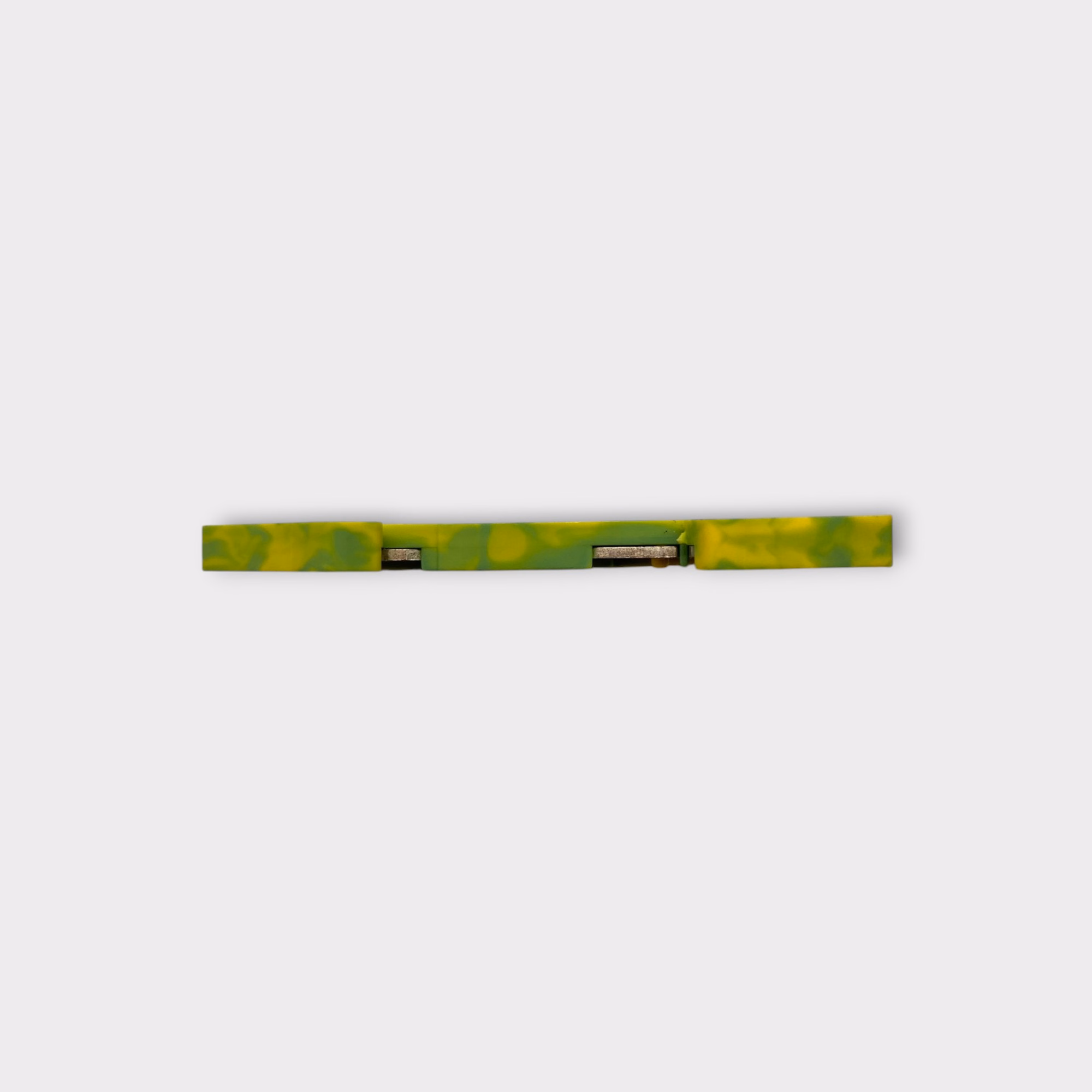

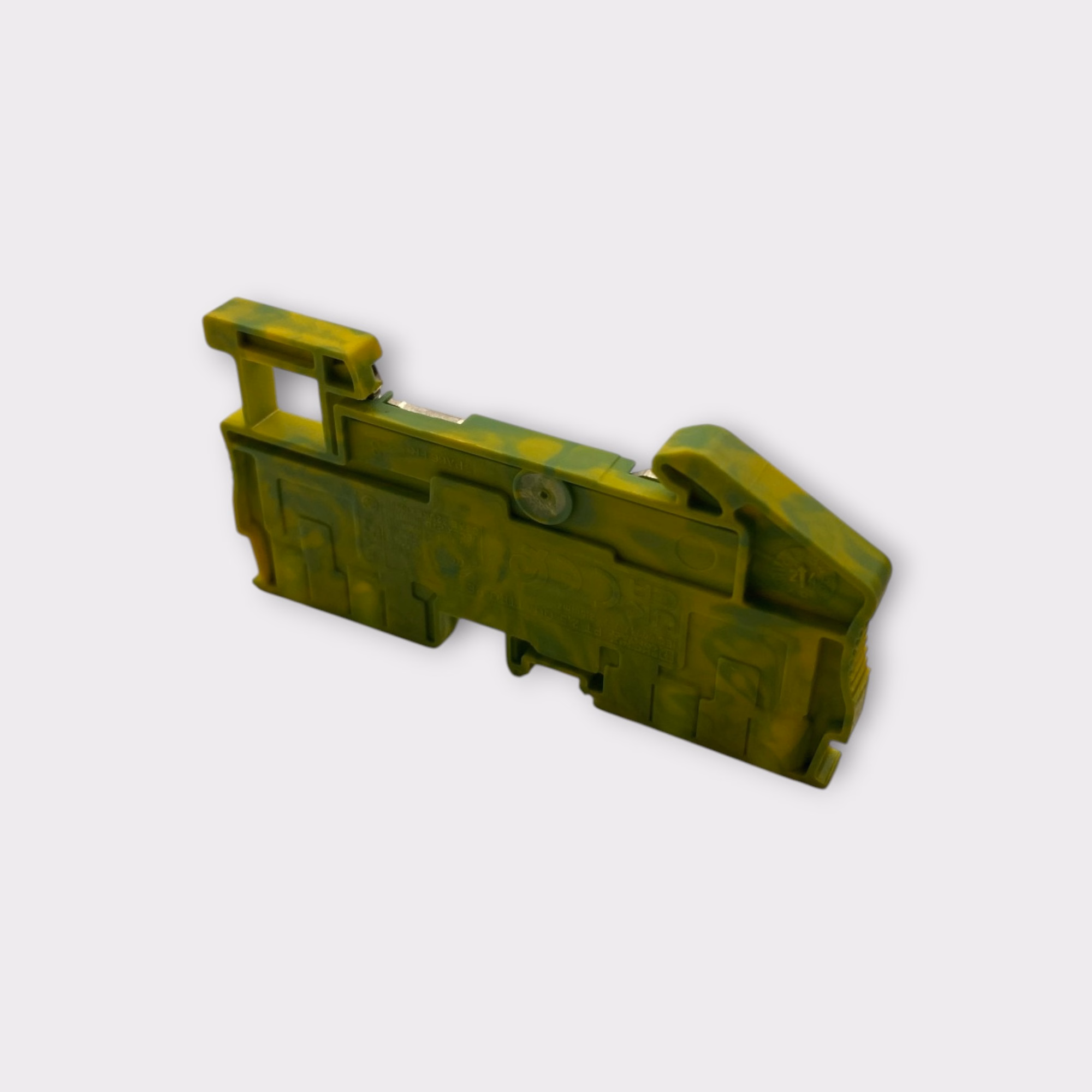

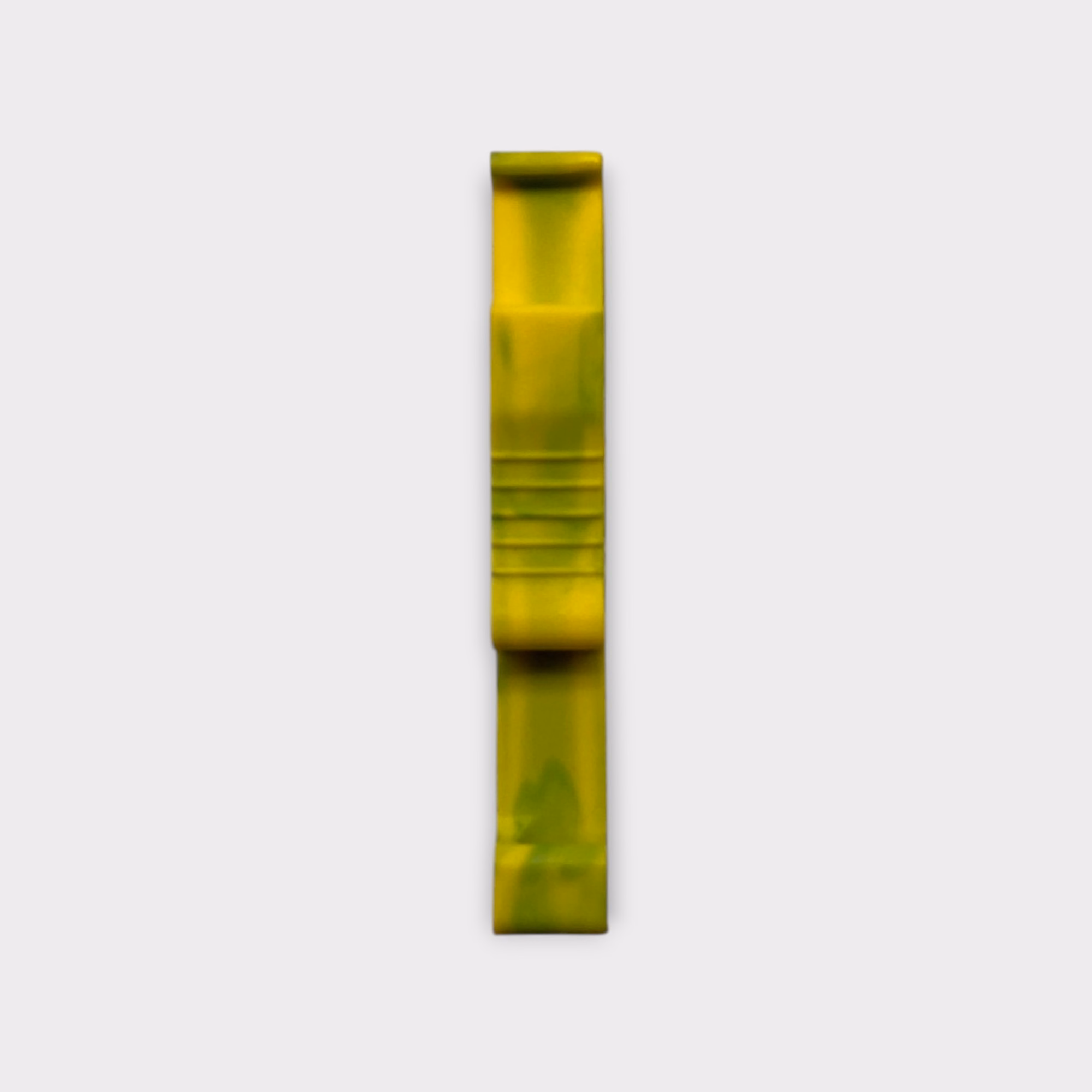

• The Phoenix Contact PT 2,5-QUATTRO-PE is a four-conductor protective earth terminal block from the CLIPLINE Complete PT series, engineered for reliable grounding connections in industrial electrical installations, automation systems, and control panels.

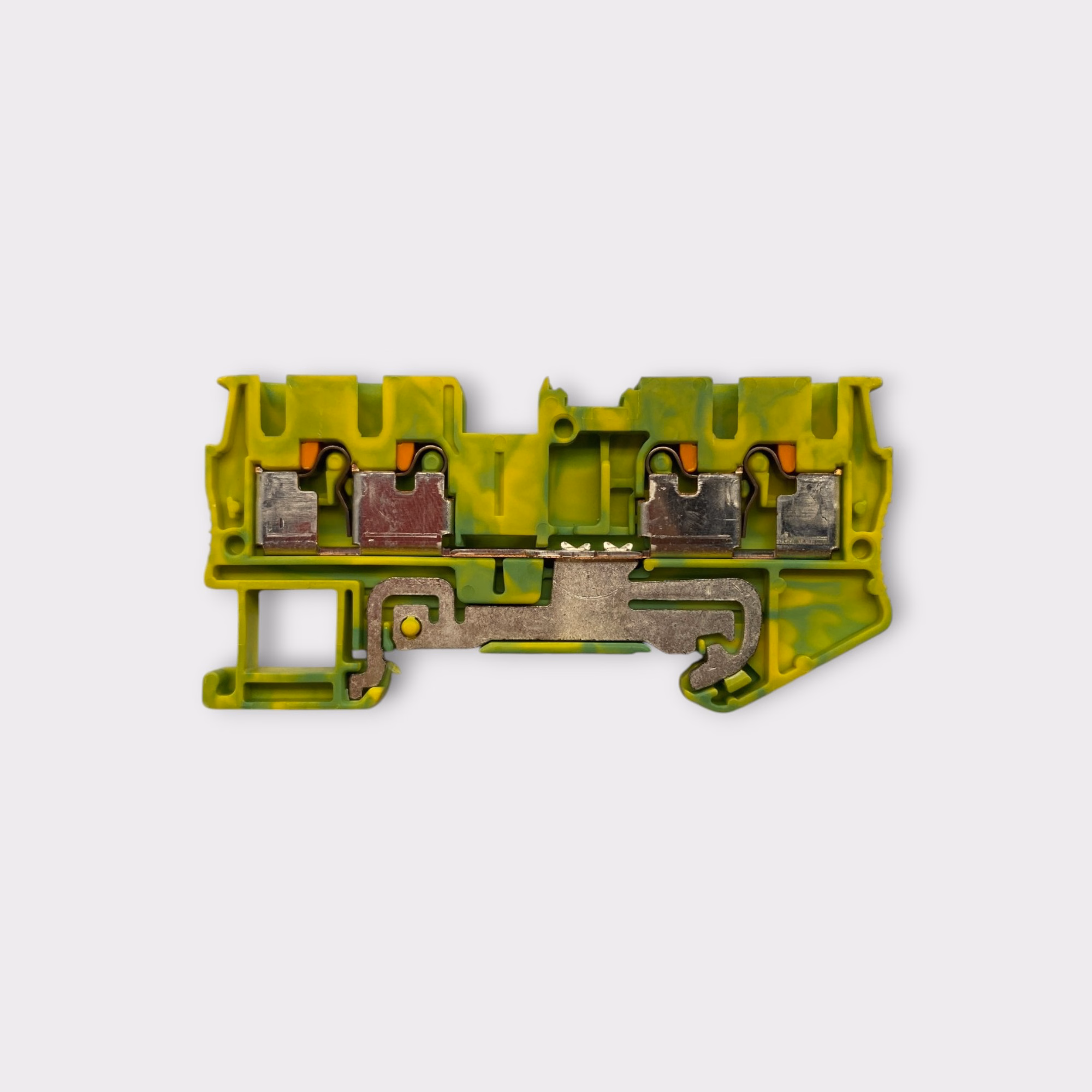

• Each terminal block features four push-in conductor connection points arranged on a single level. Its integrated grounding foot establishes direct electrical contact with a compatible 35 mm DIN rail, providing a low-resistance connection to the protective earth system.
• Phoenix Contact's push-in connection technology enables quick wiring of suitable solid conductors and stranded conductors fitted with compatible ferrules, reducing installation time and eliminating the need for conventional screw tightening.
• The terminal blocks feature a 2.5 mm² nominal conductor cross section, support conductor sizes from 0.14 to 4 mm² depending on conductor construction, and have compact 5.2 mm-wide housings.

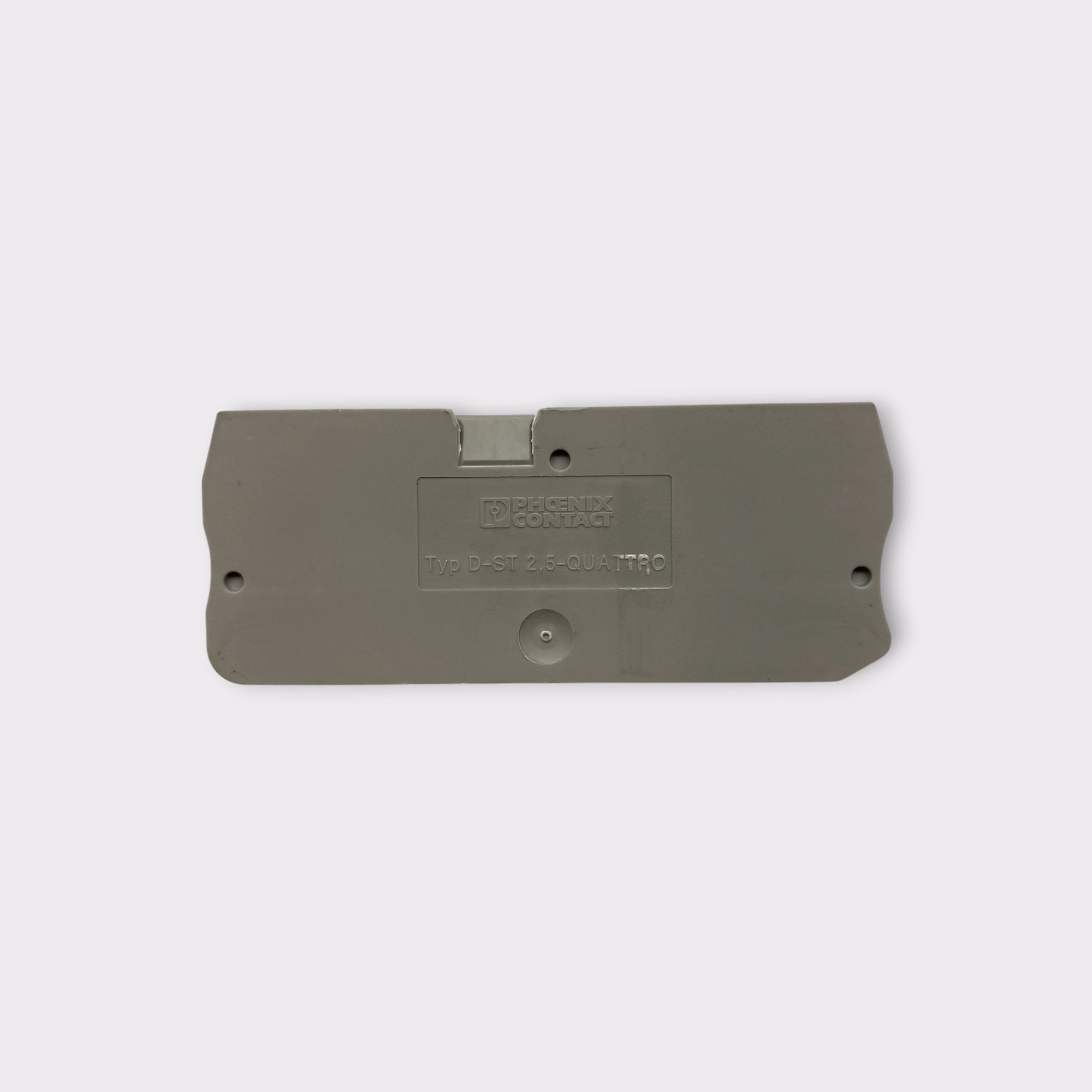

• The two included Phoenix Contact D-ST 2,5-QUATTRO end plates (3030514) are matching insulating covers used to close exposed sides of compatible terminal block assemblies.
• This listing contains four PT 2,5-QUATTRO-PE grounding terminal blocks and two D-ST 2,5-QUATTRO end plates, sold together as one six-piece package.

Product Information

• Manufacturer: Phoenix Contact
• Model Number: PT 2,5-QUATTRO-PE
• Series: CLIPLINE Complete / PT
• MPN: 3209594
• End Plate Model: D-ST 2,5-QUATTRO
• End Plate MPN: 3030514
• Product Type: Protective Earth / Ground Terminal Block
• Package Quantity: 4 Terminal Blocks + 2 End Plates
• Total Components: 6
• Connection Technology: Push-In Connection
• Number of Connections: 4 Per Terminal Block
• Total Conductor Connections: 16 Across 4 Terminal Blocks
• Number of Levels: 1
• Connections Per Level: 4
• Number of Rows: 1
• Grounding Foot: Integrated
• Grounding Method: Direct DIN Rail Contact
• Rated Surge Voltage: 8 kV
• Nominal Conductor Cross Section: 2.5 mm²
• Conductor Cross Section Range: 0.14–4 mm² (Depending on Conductor Type)
• Compatible Wire Gauge: 26–12 AWG (IEC-Converted)
• Wire Stripping Length: 8–10 mm
• Mounting Type: DIN Rail NS 35/7.5 or NS 35/15
• DIN Rail Size: 35 mm
• Terminal Block Width: 5.2 mm
• Terminal Block Height: 72.2 mm
• Terminal Block Depth: 35.3 mm
• Depth on NS 35/7.5: 36.8 mm
• Depth on NS 35/15: 44.3 mm
• Terminal Block Color: Green / Yellow
• End Plate Width: 2.2 mm
• End Plate Height: 72.2 mm
• End Plate Depth: 29.1 mm
• End Plate Color: Gray (RAL 7042)
• Combined Width of 4 Blocks + 2 Plates: Approximately 25.2 mm (If Installed Side by Side)
• Insulating Material: Polyamide (PA)
• Flammability Rating: UL 94 V-0
• Connection Standard: IEC 60947-7-2
• Operating Temperature Range: -60°C to +110°C
• Country of Origin (Terminal Blocks): Germany
• Country of Origin (End Plates): Germany
• Package Contents: 4x Phoenix Contact PT 2,5-QUATTRO-PE (3209594) Ground Terminal Blocks and 2x Phoenix Contact D-ST 2,5-QUATTRO (3030514) End Plates
