Manufacturer: Phoenix Contact
Model Number: PT 2.5-PE
Series: CLIPLINE Complete / PT
MPN: 3209536
Listed Item Condition: New/New Other
Product Details:
Summary

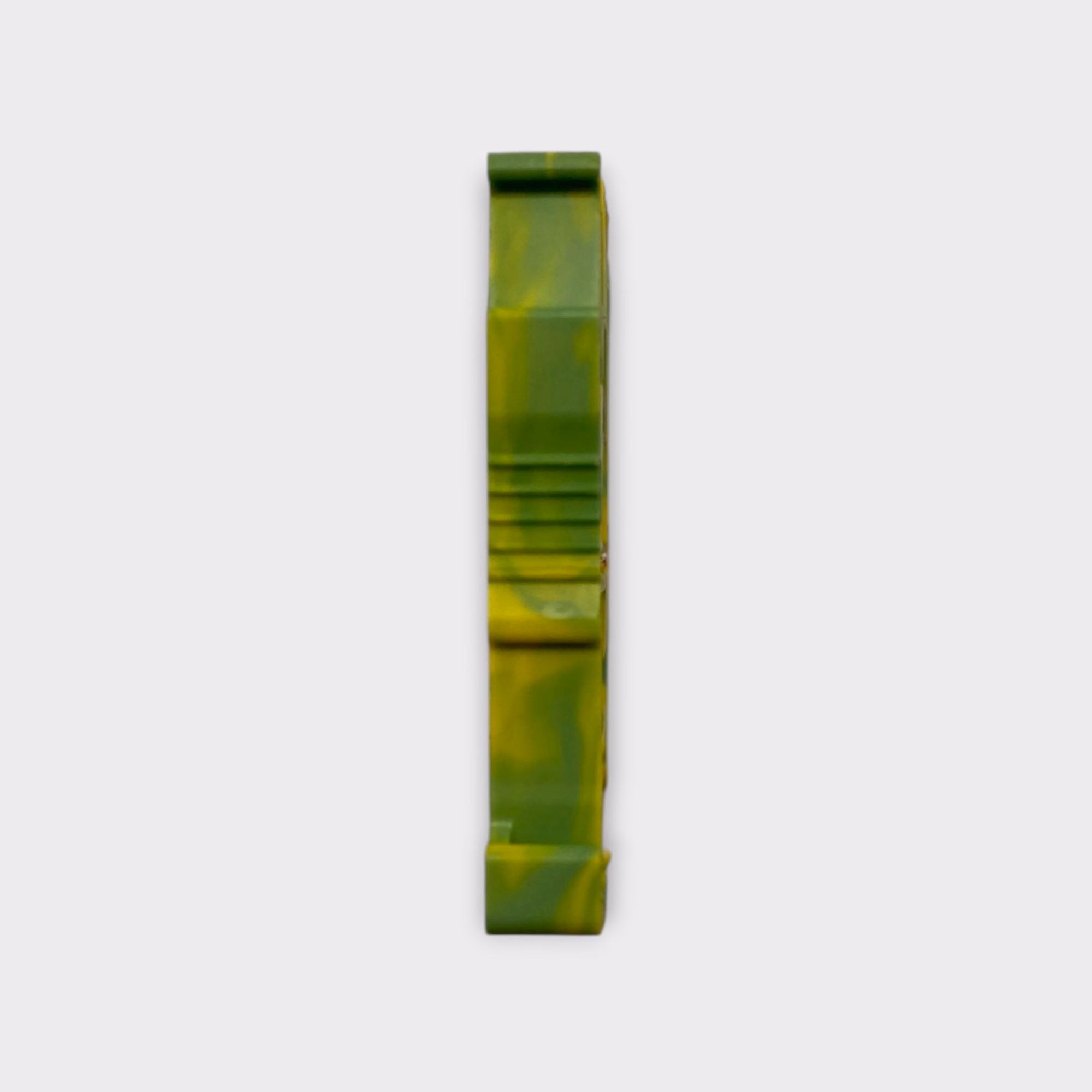

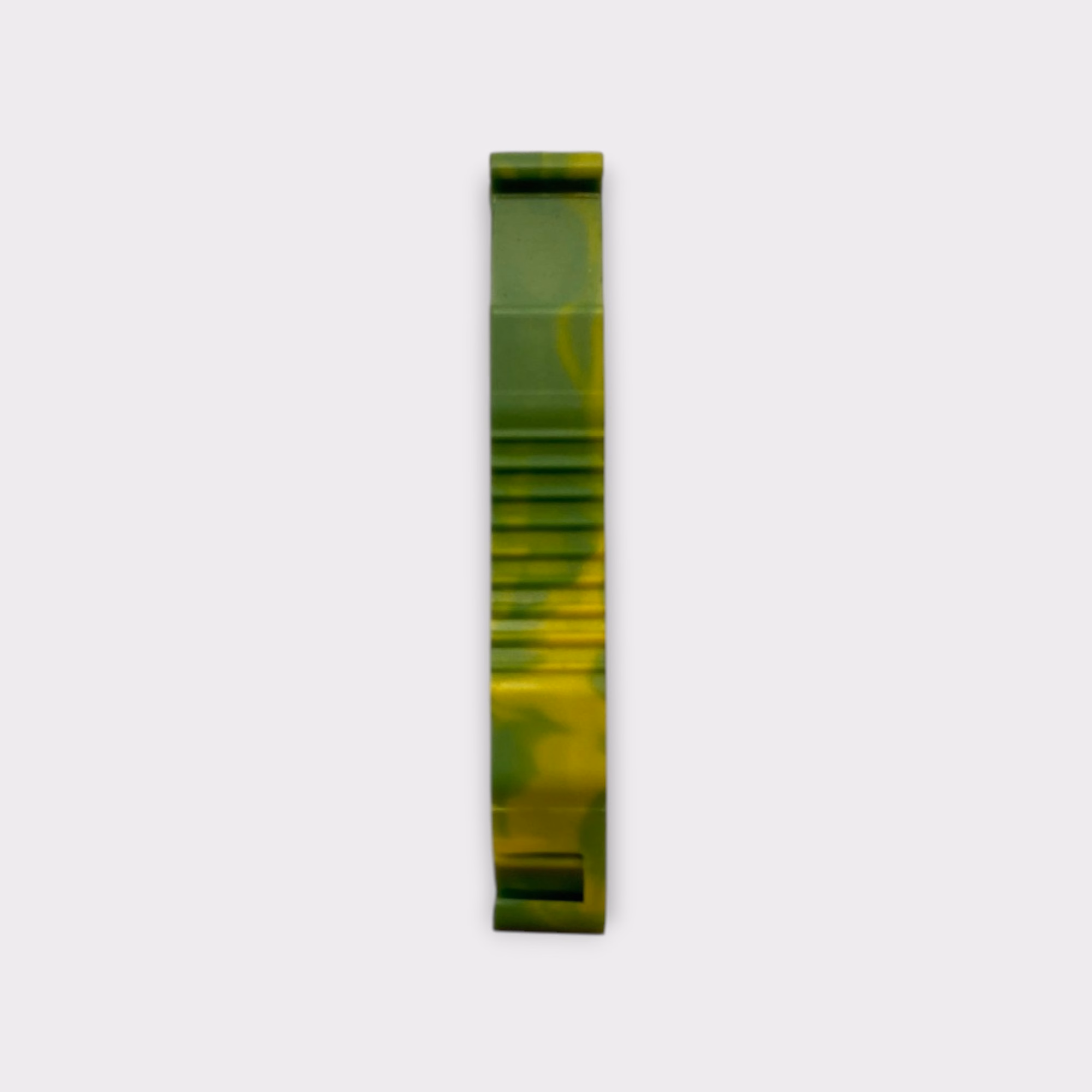

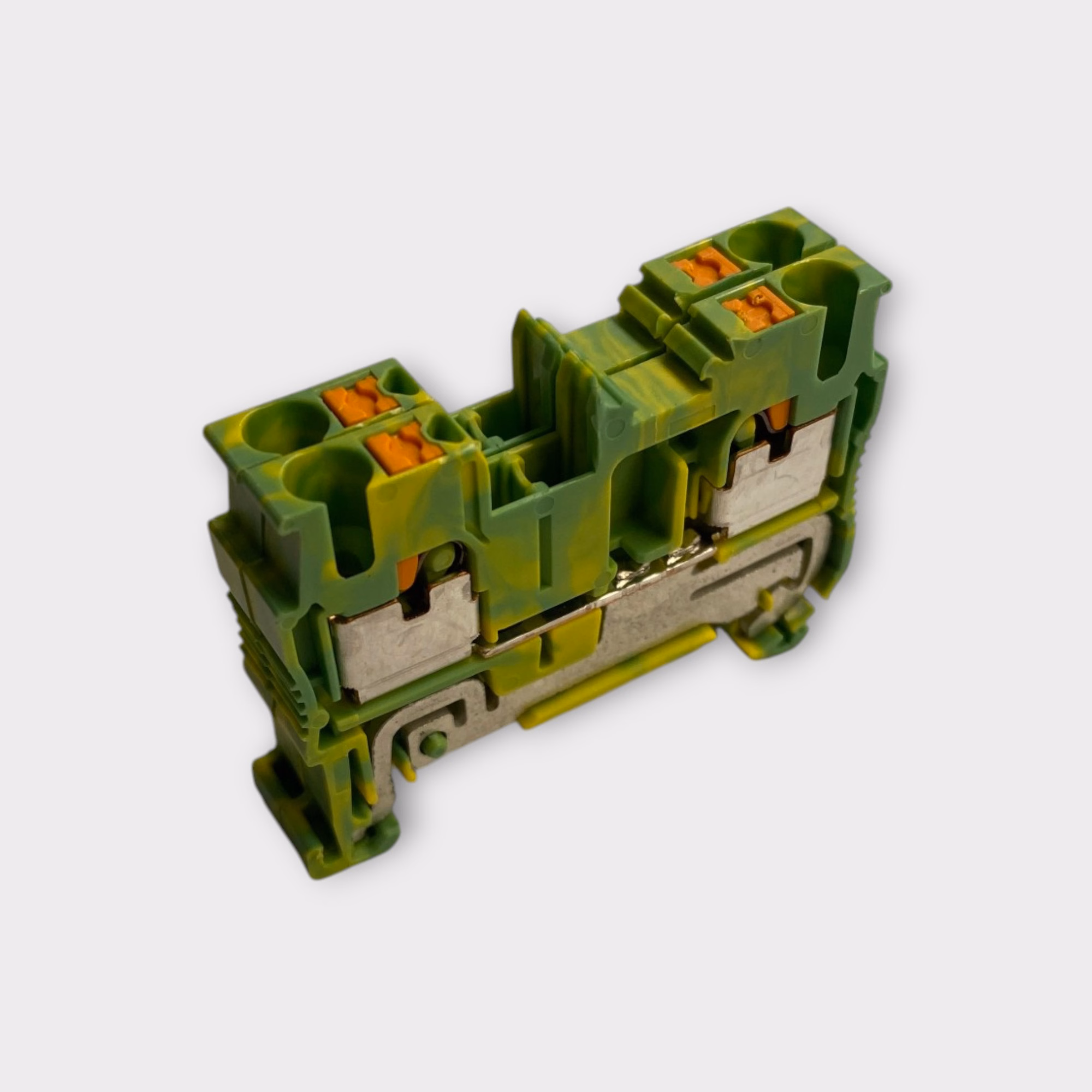

- 2 Pack of Phoenix Contact PT 2,5-PE (3209536) protective earth grounding terminal blocks featuring push-in connection technology and a compact 5.2 mm-wide design. These green/yellow terminal blocks provide protective conductor connections directly to the DIN rail ground potential and are designed for industrial electrical panels, automation equipment, and control systems.
- This listing includes 2 Phoenix Contact PT 2,5-PE ground terminal blocks.

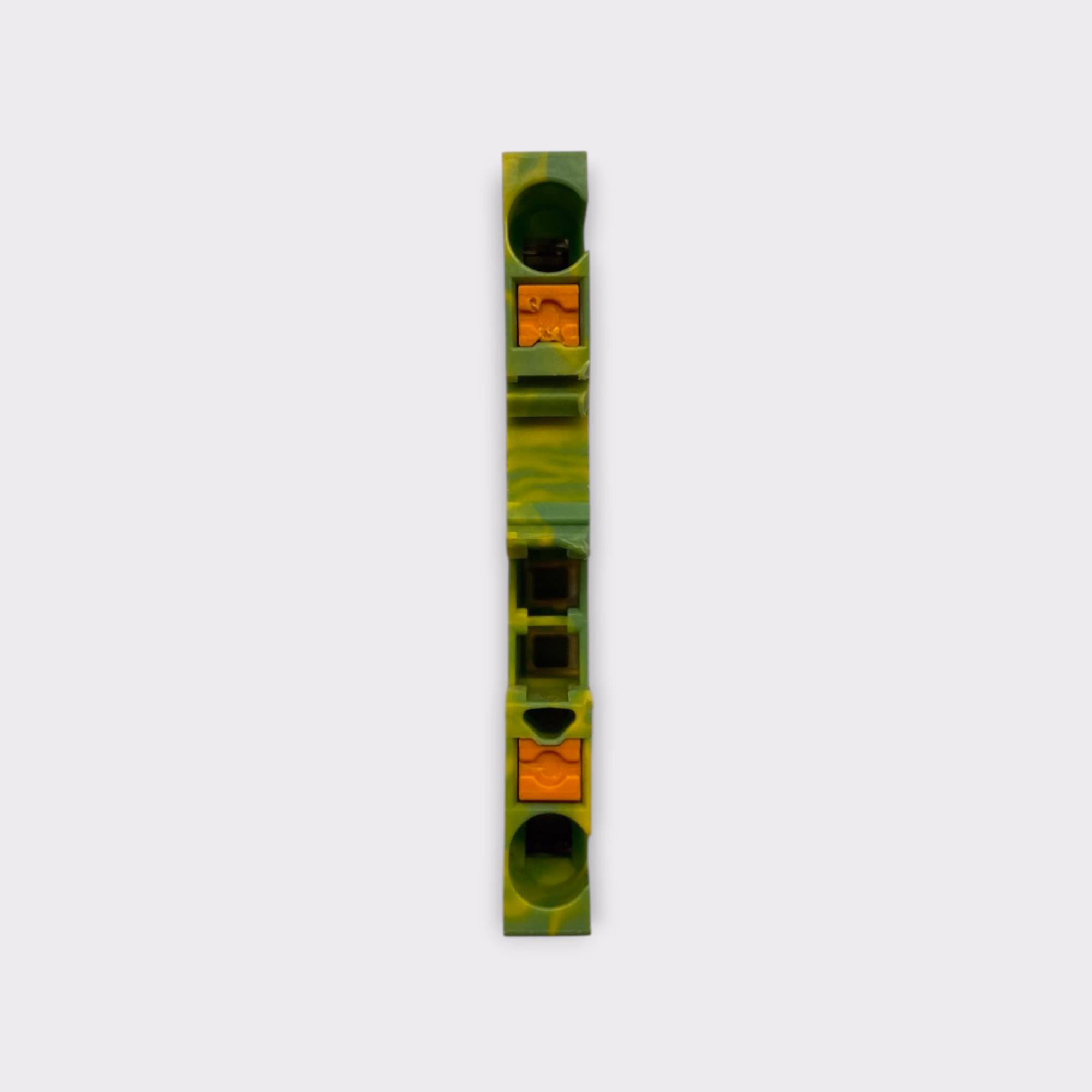

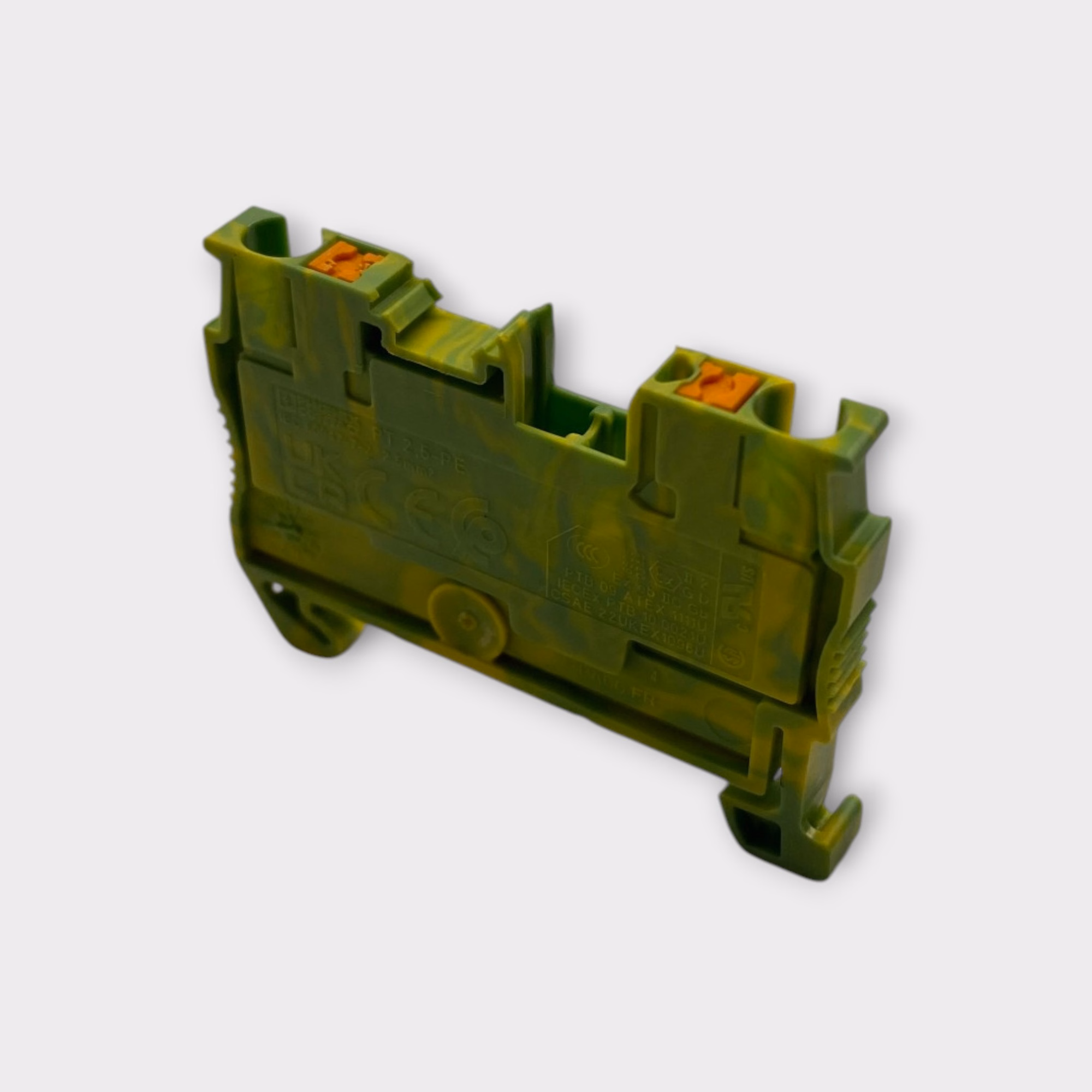

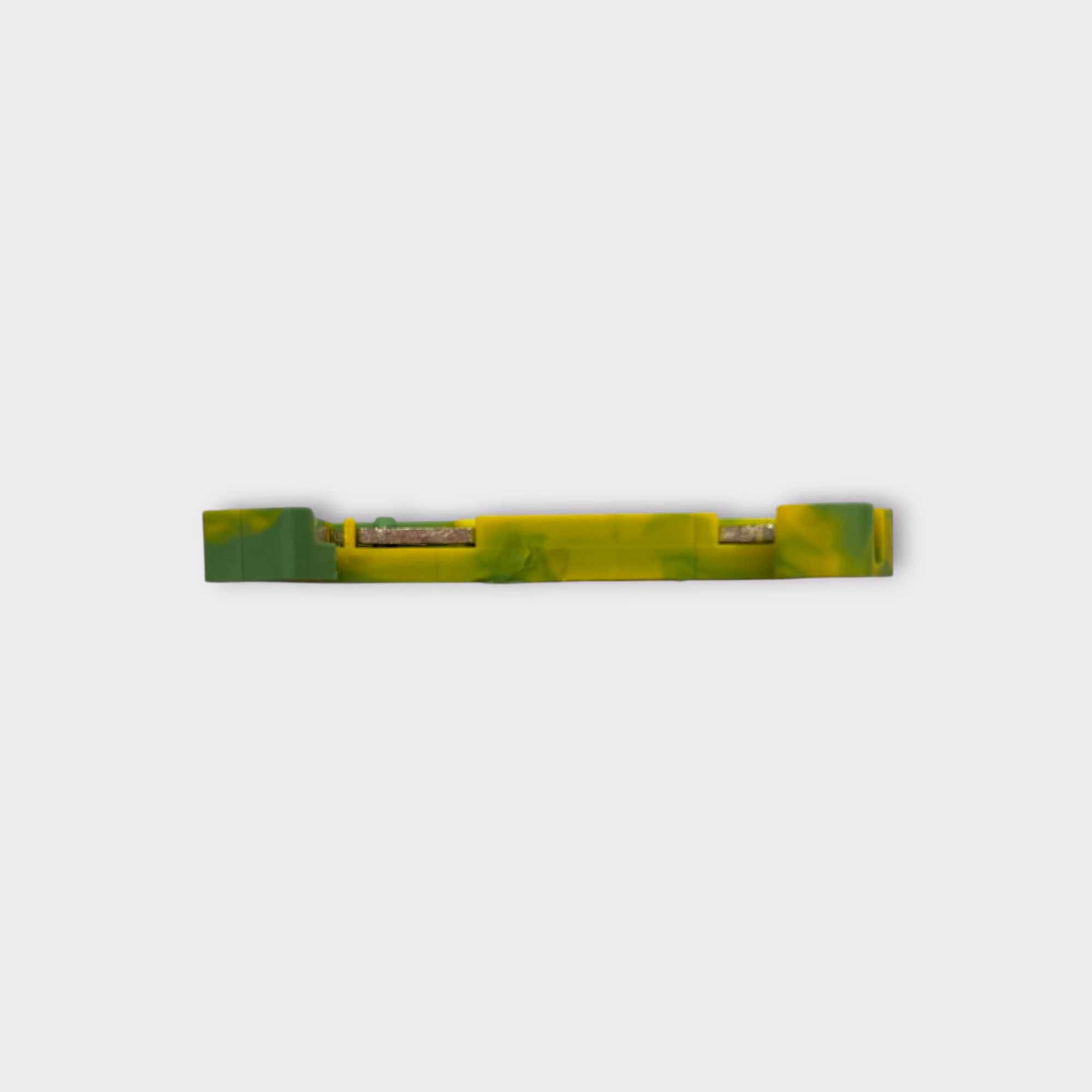

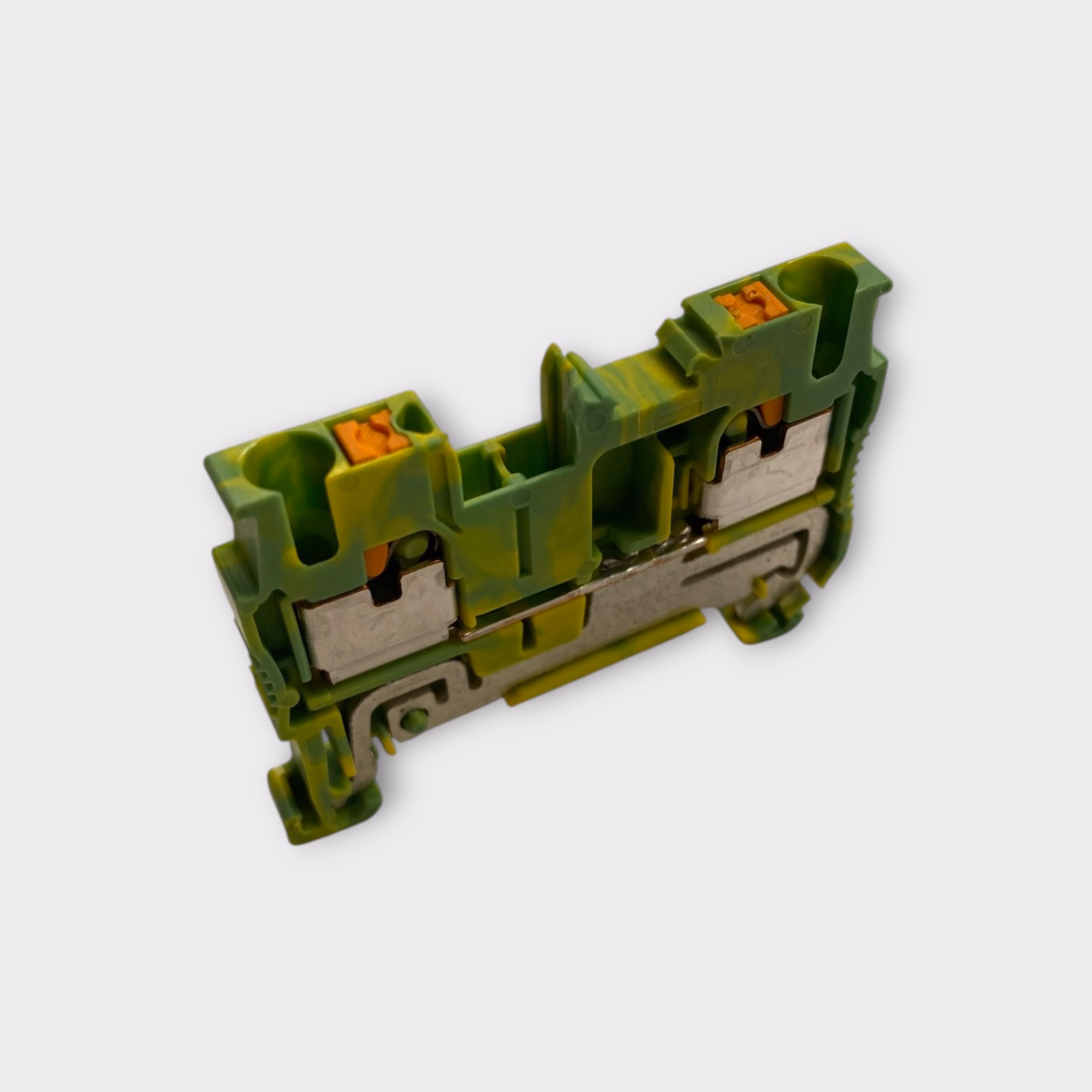

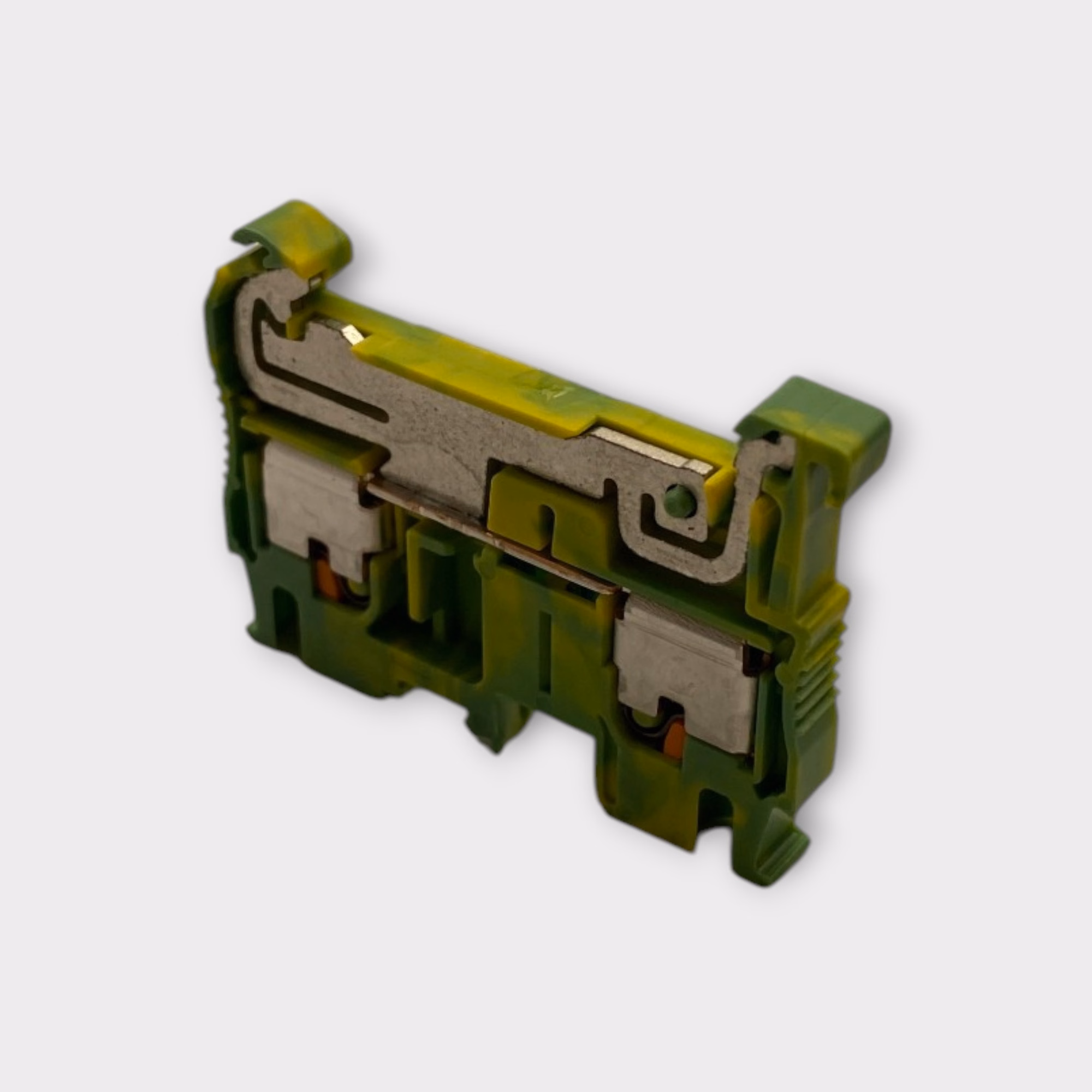

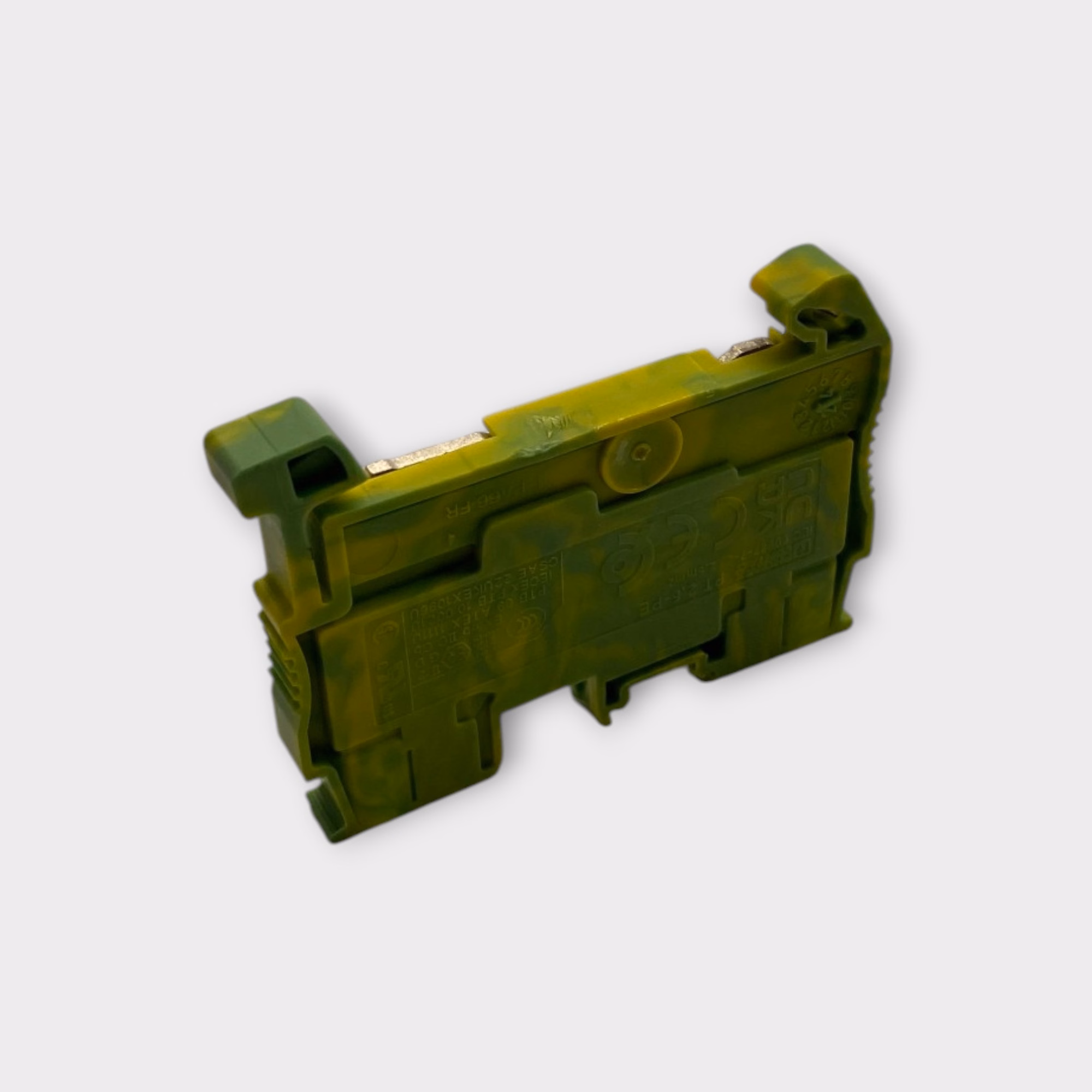

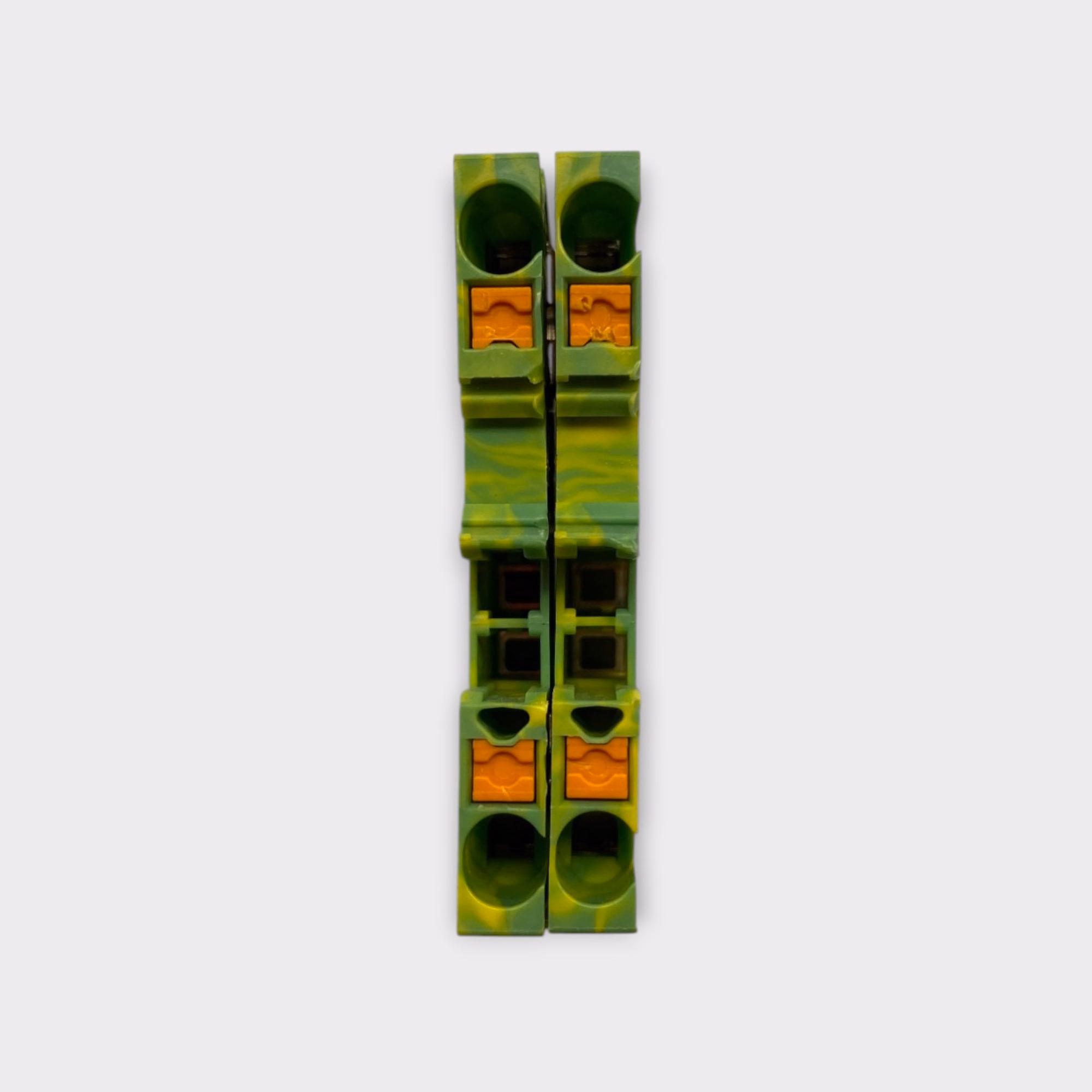

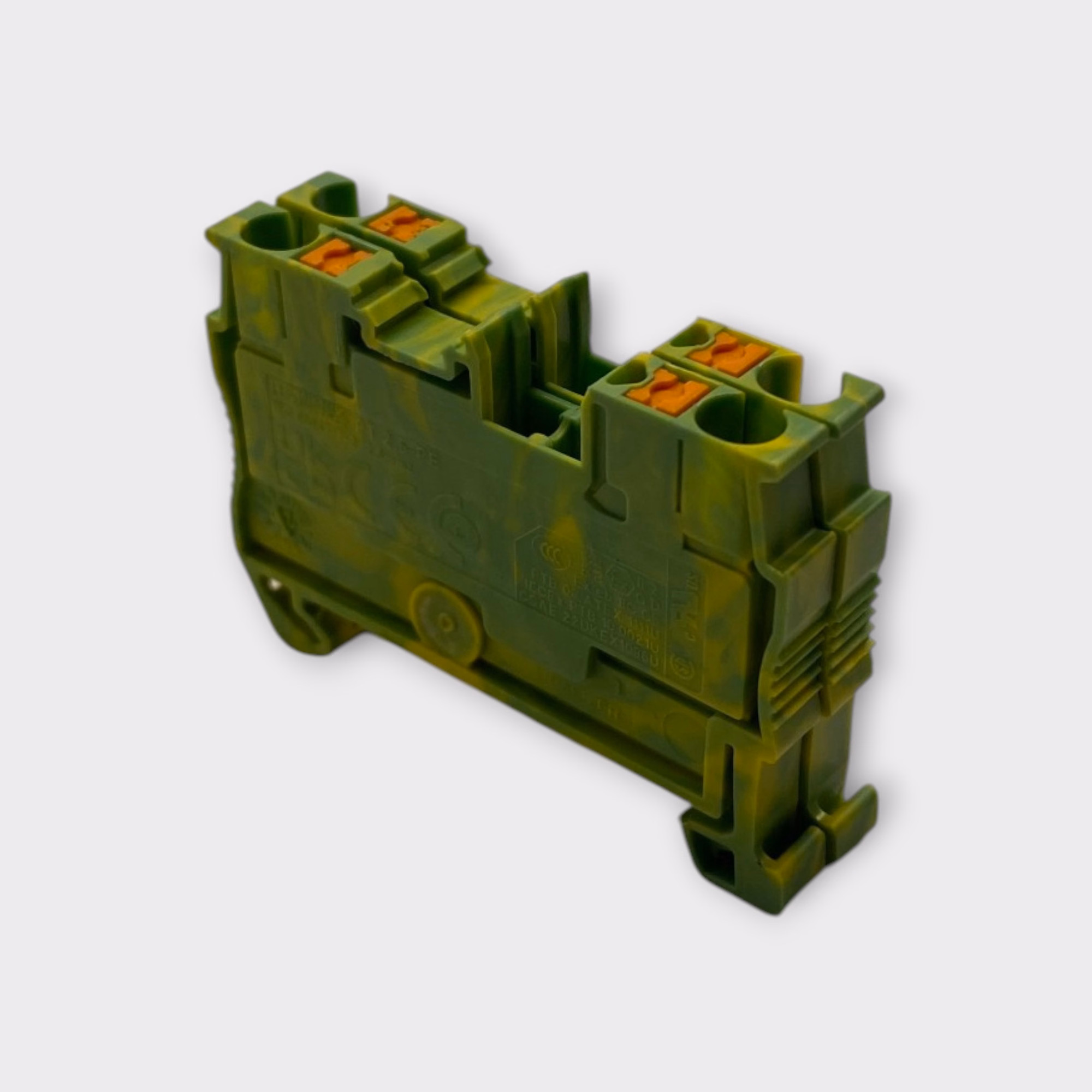

- This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service. Please review all photos for the exact item, condition, and components included.
Product Description
- The Phoenix Contact PT 2,5-PE is a protective earth terminal block from the CLIPLINE Complete PT series, designed to establish secure grounding connections in industrial control cabinets, machinery, and electrical distribution systems.

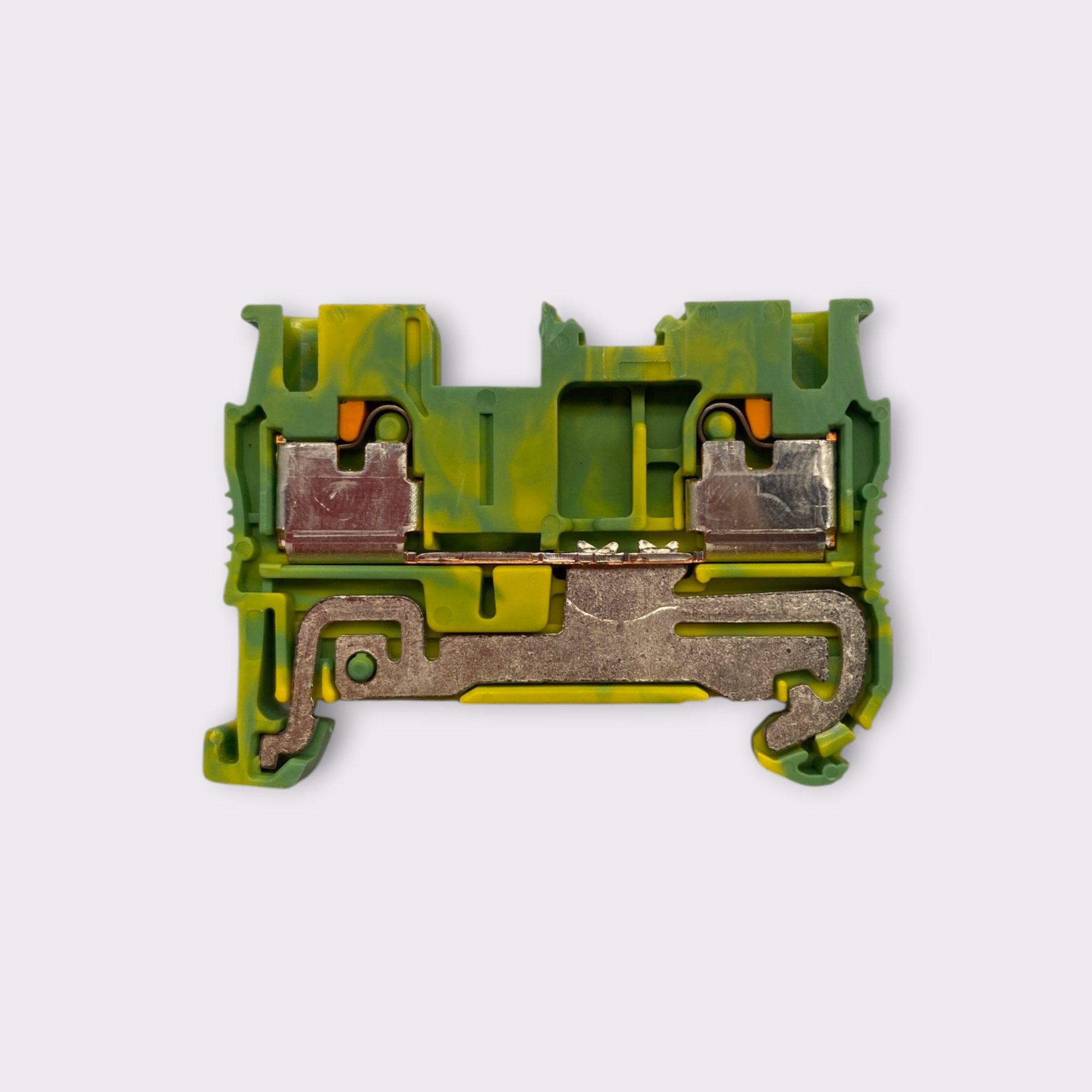

- Featuring push-in connection technology, these terminal blocks allow quick conductor installation without traditional screw tightening. Their integrated grounding foot creates direct electrical contact with compatible 35 mm DIN rails, providing a low-resistance connection to the protective earth system.
- Each terminal block features two conductor connections, a nominal cross section of 2.5 mm², and conductor compatibility ranging from 0.14 to 4 mm². The green/yellow polyamide housing provides clear identification of protective earth connections.
- The compact 5.2 mm-wide construction helps maximize available DIN rail space. These terminal blocks comply with IEC 60947-7-2 requirements for protective conductor terminal blocks.
- This listing includes two individual Phoenix Contact PT 2,5-PE terminal blocks, sold together as one 2-pack.
Product Information
- Manufacturer: Phoenix Contact
- Model Number: PT 2,5-PE
- Series: CLIPLINE Complete / PT
- MPN: 3209536
- Product Type: Protective Earth / Ground Terminal Block
- Quantity Included: 2 Terminal Blocks (2 Pack)
- Connection Technology: Push-In Connection
- Number of Connections: 2 Per Terminal Block
- Total Connection Points: 4 Across 2 Terminal Blocks
- Number of Rows: 1 Per Terminal Block
- Number of Levels: 1 Per Terminal Block
- Grounding Foot: Integrated
- Grounding Method: Direct DIN Rail Contact
- Rated Surge Voltage: 6 kV
- Nominal Conductor Cross Section: 2.5 mm²
- Conductor Cross Section Range: 0.14–4 mm²
- Compatible Wire Gauge: 26–12 AWG
- Wire Stripping Length: 8–10 mm
- Mounting Type: DIN Rail NS 35/7.5 or NS 35/15
- DIN Rail Size: 35 mm
- Terminal Block Width: 5.2 mm
- Terminal Block Height: 48.5 mm
- Terminal Block Depth: 35.3 mm
- Depth on NS 35/7.5: 36.8 mm
- Depth on NS 35/15: 44.3 mm
- Color: Green / Yellow
- Insulating Material: Polyamide (PA)
- Flammability Rating: UL 94 V-0
- Connection Standard: IEC 60947-7-2
- Operating Temperature Range: -60°C to +110°C
- GTIN / EAN: 4046356329804
- Country of Origin: Germany
- Package Contents: 2x Phoenix Contact PT 2,5-PE (3209536) Protective Earth Terminal Blocks
What's Included:
- 2x Phoenix Contact PT 2,5-PE (3209536) Protective Earth Terminal Blocks
