Phoenix Contact 3064140 UT 2.5-MTD-DIO/R-L Gray Diode Terminal Block and Plate NOS

$15.99

Phoenix Contact

SKU: 864181

In stock (1 available)

Buy Now

Free Shipping Lower 48
30-Day Returns
90-Day Warranty

Description
Additional information

Manufacturer: Phoenix Contact

Model Number: UT 2.5-MTD-DIO/R-L

Series: CLIPLINE Complete / UT Series

MPN: 3064140

Listed Item Condition: New/New Other

Product Details:

Summary

Phoenix Contact UT 2,5-MTD-DIO/R-L (3064140) component terminal block with integrated 1N4007 diode, designed for DIN rail mounting in industrial automation, electrical control panels, and signal wiring applications. Features screw connections, a nominal current rating of 0.5A, and a rated insulation voltage of 800V.
Includes one Phoenix Contact D-UT 2,5/4-TWIN end plate (3047141).
This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service. Please review all photos for the exact item, condition, and components included.

Product Description

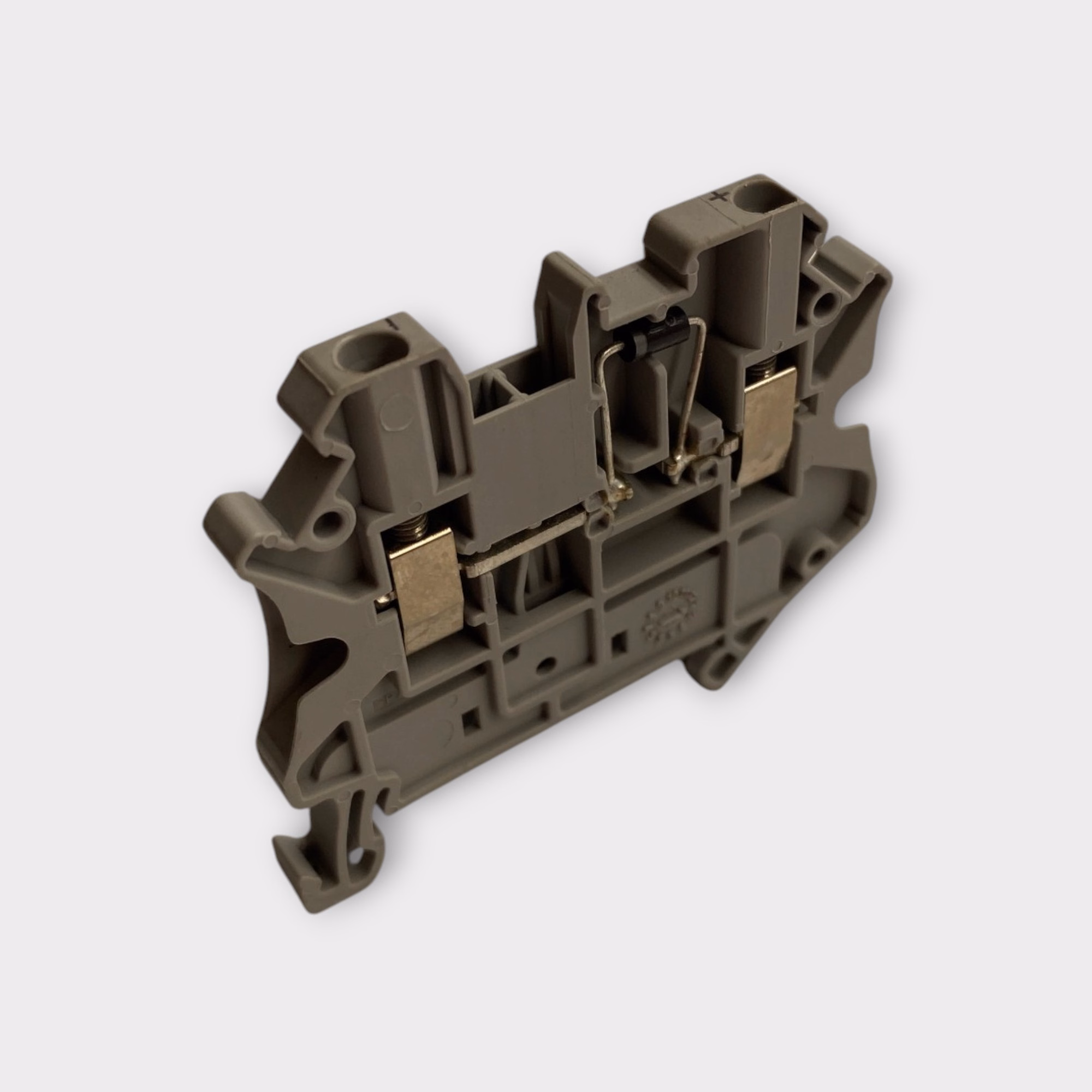

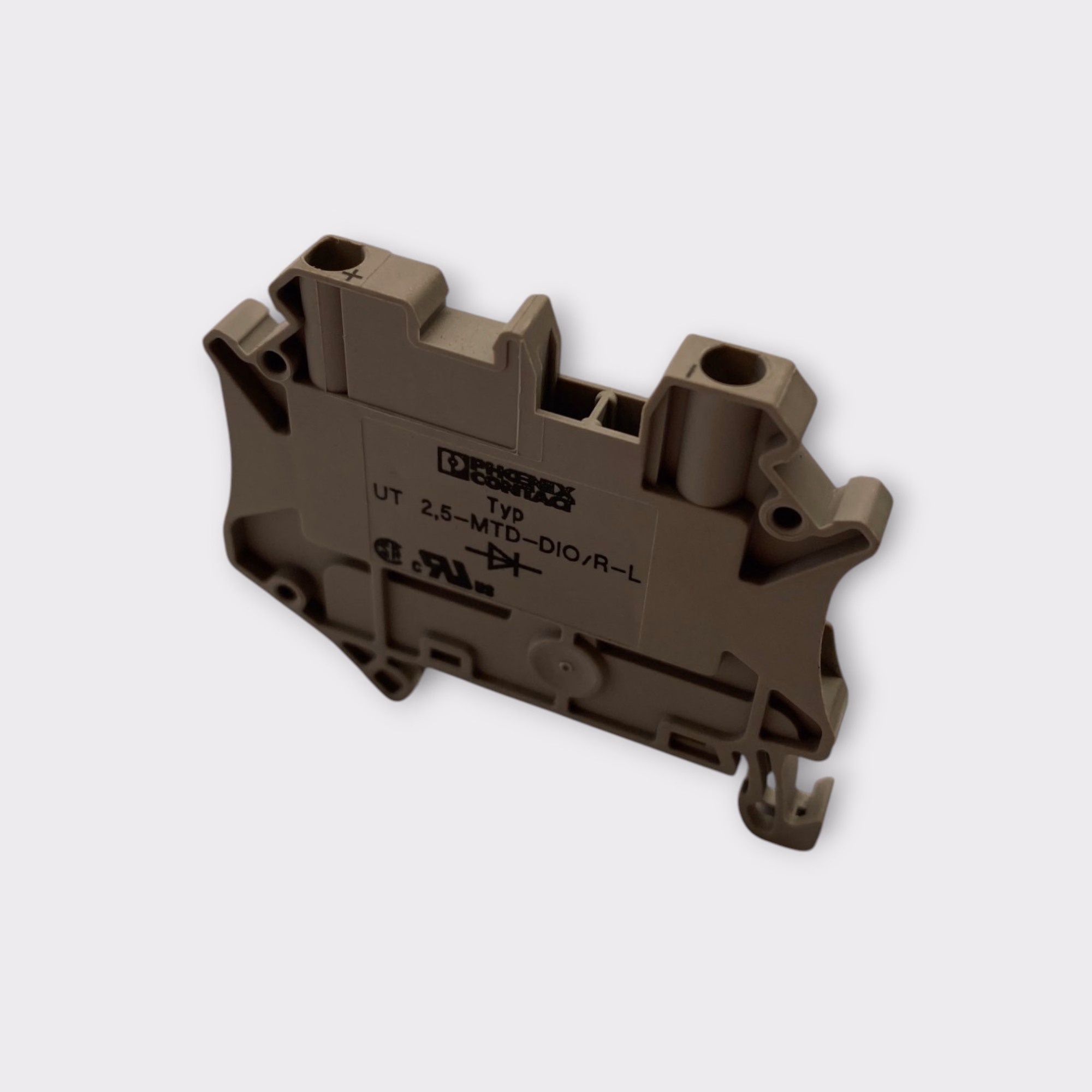

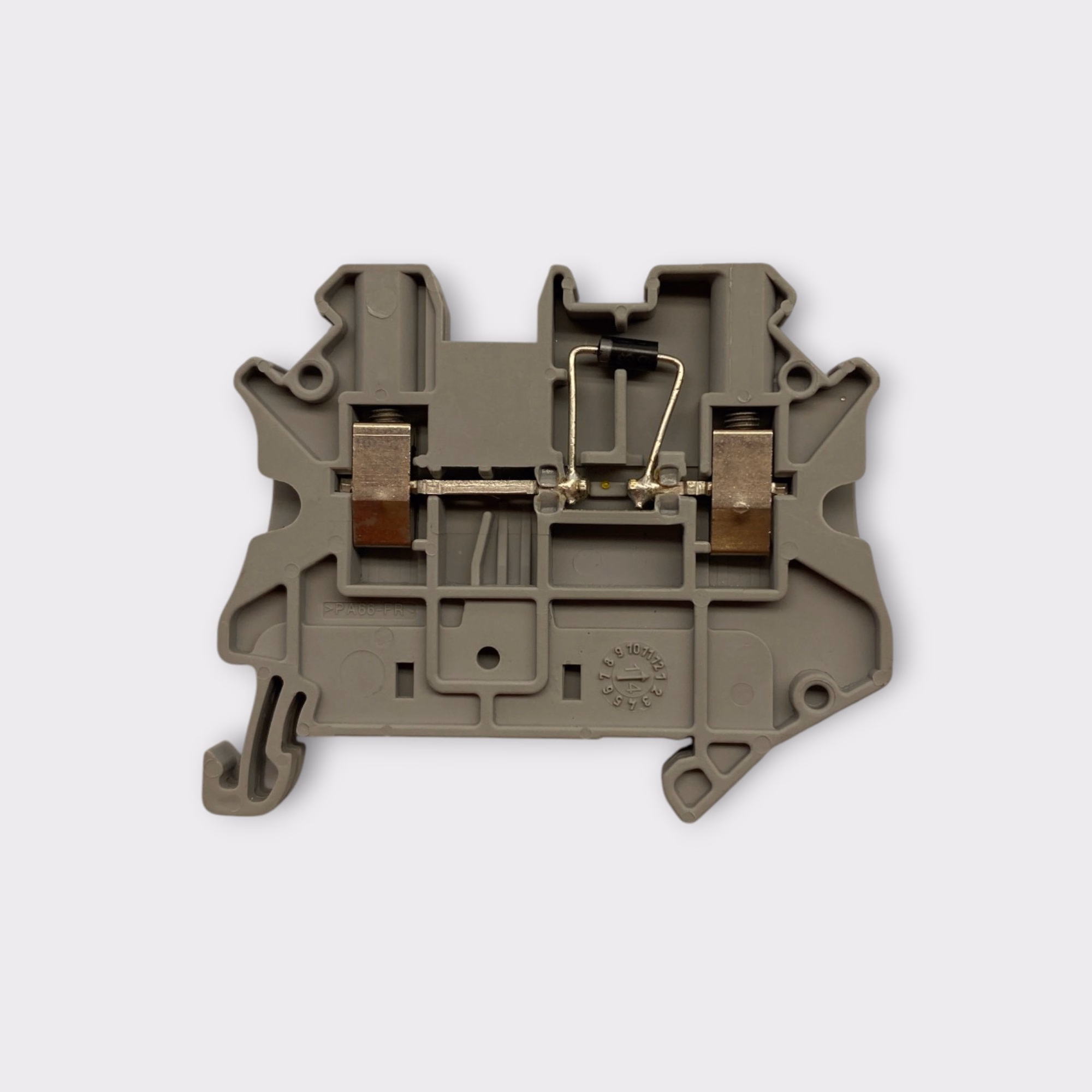

The Phoenix Contact UT 2,5-MTD-DIO/R-L is a DIN rail-mounted component terminal block from the CLIPLINE Complete UT series. Featuring an integrated 1N4007 diode with right-to-left conducting direction, it is designed for industrial control circuits requiring directional current flow and diode-based signal isolation.
The terminal block incorporates two screw connection points for secure conductor termination and supports wire sizes from 26 to 12 AWG. Its compact 5.2 mm-wide housing allows efficient installation in electrical control cabinets and automation equipment.

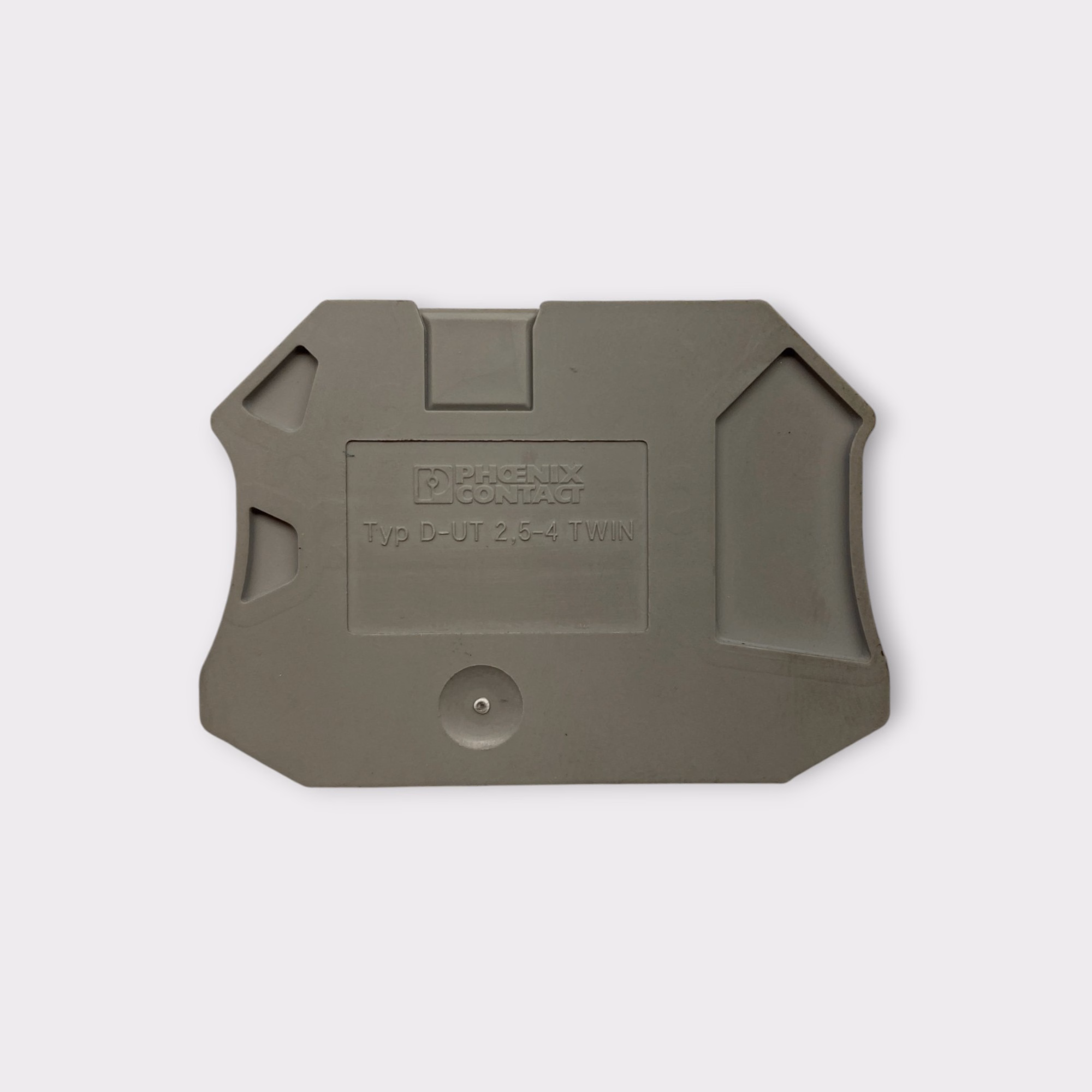

The included Phoenix Contact D-UT 2,5/4-TWIN end plate (3047141) provides an insulating cover for the open side of the terminal block.

Product Information

Manufacturer: Phoenix Contact
Model Number: UT 2,5-MTD-DIO/R-L
Series: CLIPLINE Complete / UT
MPN: 3064140
End Plate Model: D-UT 2,5/4-TWIN
End Plate MPN: 3047141
Product Type: Component Terminal Block with Integrated Diode
Connection Technology: Screw Connection
Number of Connections: 2
Number of Levels: 1
Number of Potentials: 1
Diode Type: 1N4007
Diode Conducting Direction: Right to Left
Diode Reverse Voltage: 1300 V
Nominal Current: 0.5 A
Maximum Load Current: 0.5 A
Rated Insulation Voltage: 800 V
Rated Surge Voltage: 8 kV
Nominal Conductor Cross Section: 2.5 mm²
Conductor Cross Section Range: 0.14–4 mm²
Compatible Wire Gauge: 26–12 AWG
Screw Thread: M3
Tightening Torque: 0.5–0.6 Nm
Wire Stripping Length: 9 mm
Mounting Type: DIN Rail NS 35/7.5 or NS 35/15
Terminal Block Width: 5.2 mm
Terminal Block Height: 57.8 mm
Terminal Block Depth: 47.5 mm (NS 35/7.5)
End Plate Width: 2.2 mm
End Plate Height: 56.8 mm
End Plate Depth: 39.8 mm
Insulating Material: Polyamide (PA)
Flammability Rating: UL 94 V-0
Color: Gray (RAL 7042)
Country of Origin (Terminal Block): Poland
Country of Origin (End Plate): Germany
Package Contents: 1x Phoenix Contact 3064140 Terminal Block and 1x Phoenix Contact 3047141 End Plate

What's Included:

1x Phoenix Contact 3064140 Terminal Block
1x Phoenix Contact 3047141 End Plate

Compatible Parts:

DIN Rails
