Summary

• Phoenix Contact UT 2,5-MTD (3064085) feed-through terminal block designed for DIN rail mounting in industrial electrical control panels, automation systems, and power distribution applications. Features screw connection technology, a nominal current rating of 24A, an 800V nominal voltage rating, and a compact 5.2 mm-wide housing.

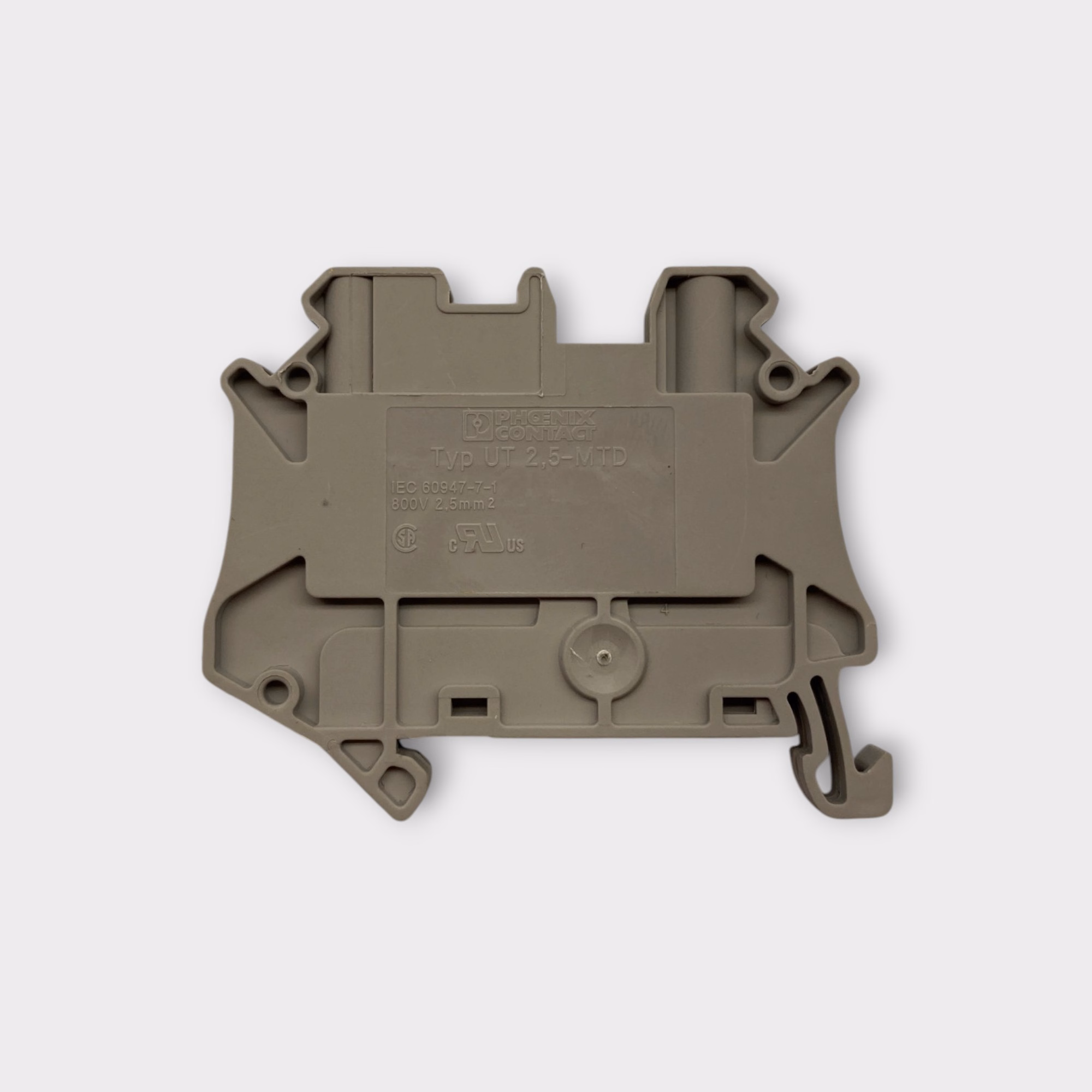

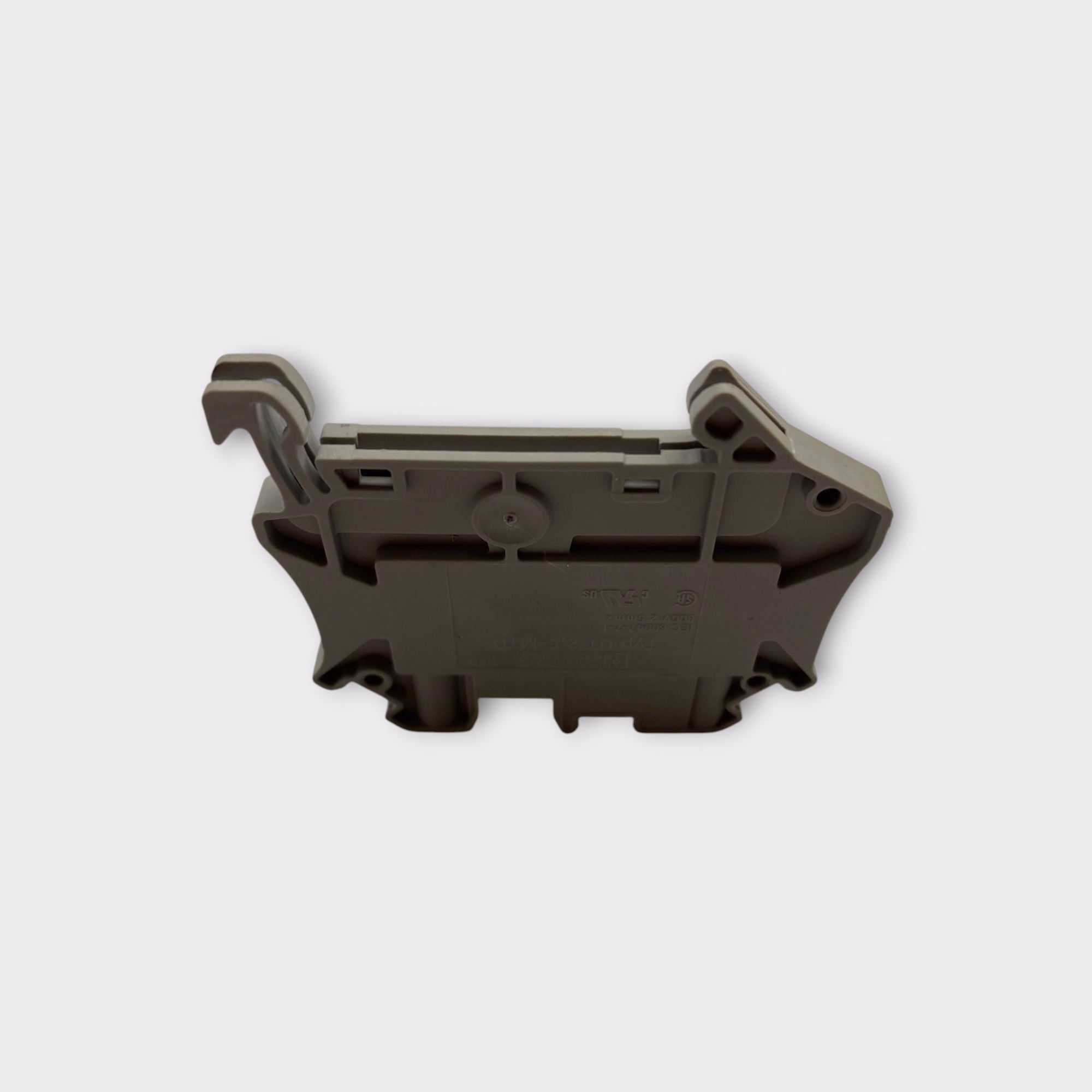

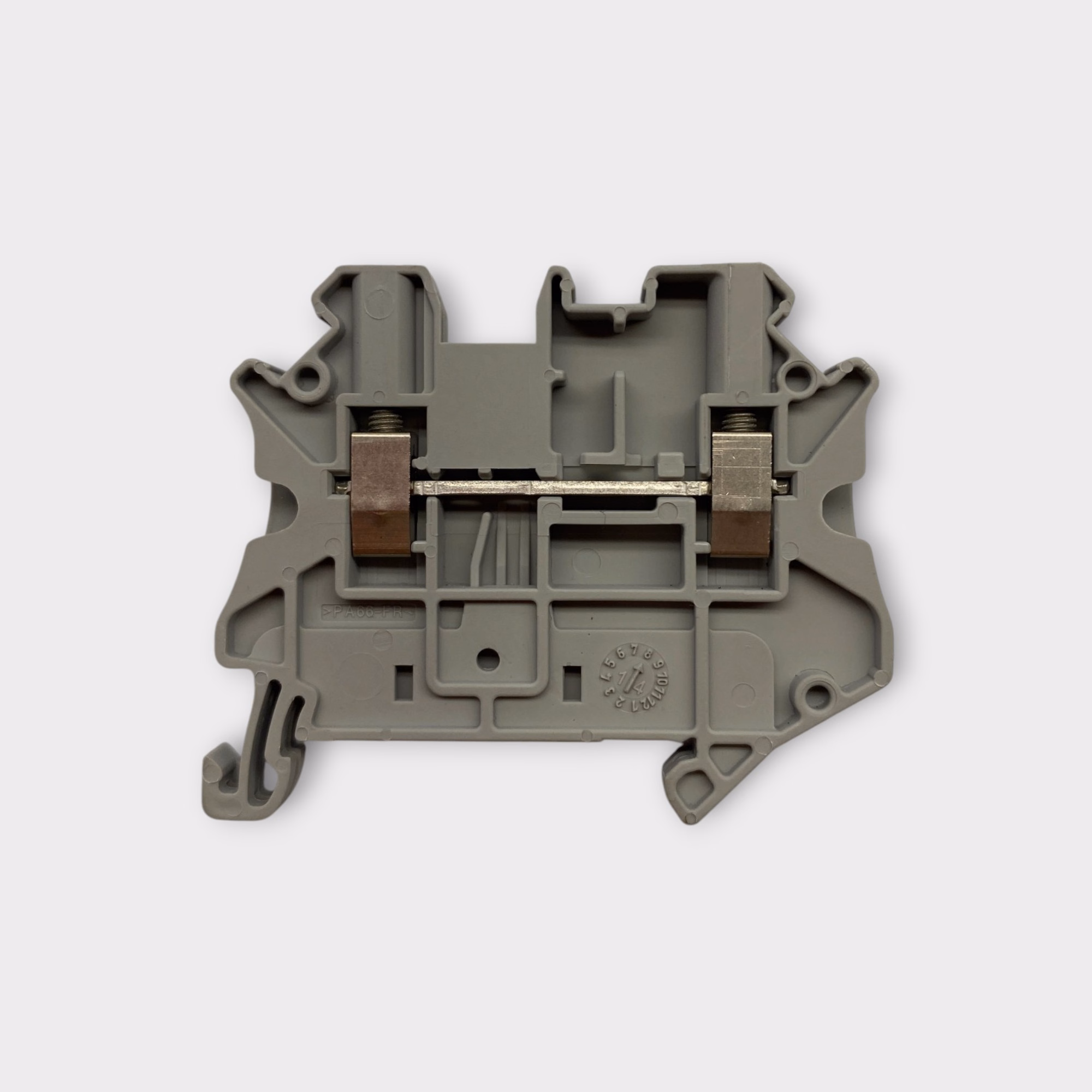

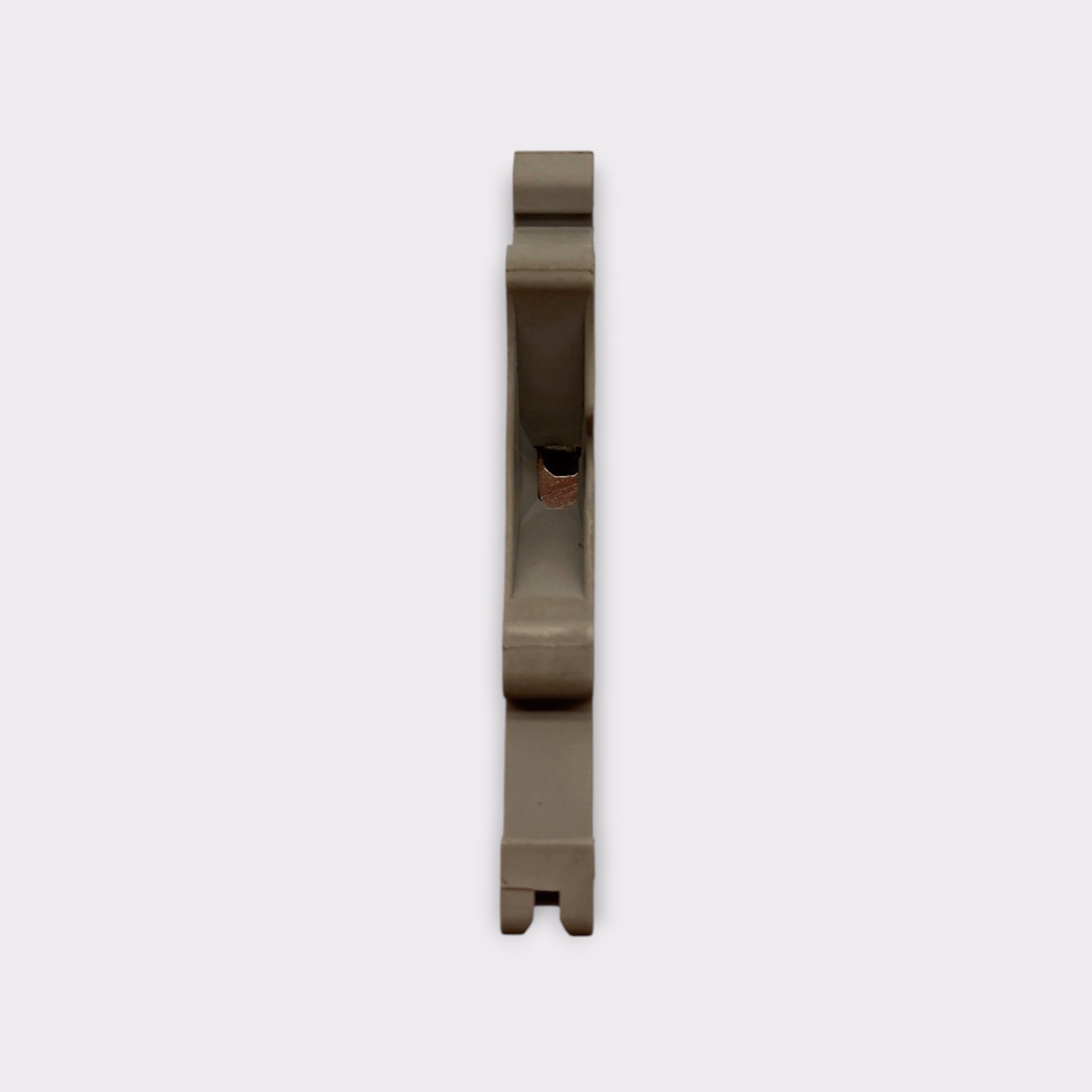

• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service. Please review all photos for the exact item, condition, and components included.

Product Description

• The Phoenix Contact UT 2,5-MTD is a compact feed-through terminal block from the CLIPLINE Complete UT series, engineered for secure electrical connections in industrial automation systems, control cabinets, and electrical distribution assemblies.
• Featuring Phoenix Contact's screw connection technology with the vibration-resistant Reakdyn principle, the terminal block provides reliable conductor clamping and long-term electrical connection stability.
• The single-level, two-connection design supports conductor cross sections from 0.14 to 4 mm² (26–12 AWG), with a nominal cross section of 2.5 mm². The terminal block mounts directly onto standard 35 mm DIN rails and supports Phoenix Contact's compatible bridging, marking, and testing accessories.
• Its slim 5.2 mm profile makes it suitable for space-efficient terminal strip installations in industrial control and electrical equipment.

Product Information

• Manufacturer: Phoenix Contact
• Model Number: UT 2,5-MTD
• Series: CLIPLINE Complete / UT
• MPN: 3064085
• Product Type: Feed-Through Terminal Block
• Connection Technology: Screw Connection
• Number of Connections: 2
• Number of Positions: 1
• Number of Rows: 1
• Number of Levels: 1
• Number of Potentials: 1
• Nominal Voltage: 800 V
• Nominal Current: 24 A
• Maximum Load Current: 32 A (With 4 mm² Conductor)
• Rated Surge Voltage: 8 kV
• Nominal Conductor Cross Section: 2.5 mm²
• Conductor Cross Section Range: 0.14–4 mm²
• Compatible Wire Gauge: 26–12 AWG
• Screw Thread: M3
• Tightening Torque: 0.5–0.6 Nm
• Wire Stripping Length: 9 mm
• Mounting Type: DIN Rail NS 35/7.5 or NS 35/15
• DIN Rail Size: 35 mm
• Width: 5.2 mm
• Height: 57.8 mm
• Depth: 47.5 mm (NS 35/7.5)
• Depth on NS 35/15: 55 mm
• Color: Gray (RAL 7042)
• Insulating Material: Polyamide (PA)
• Flammability Rating: UL 94 V-0
• Connection Standard: IEC 60947-7-1
• Operating Temperature: -60°C to +110°C
• GTIN / EAN: 4046356285919
• Country of Origin: Poland
• Package Contents: 1x Phoenix Contact UT 2,5-MTD (3064085) Terminal Block
