Summery Description

154-pack of Phoenix Contact UT 2,5 (3044076) gray feed-through terminal blocks with screw connections, supplied with 26 matching D-UT 2,5/10 end cover plates and 2 FBS 20-5 red plug-in jumper strips.

Designed for 35mm DIN rail installation, each terminal block features two screw connection points, a 2.5mm² nominal conductor cross-section, and an IEC nominal rating of 1000V and 24A.

The included end plates provide insulation for exposed terminal block sides, while the red jumper strips allow electrical connections between compatible adjacent terminals. The two FBS 20-5 jumper strips have been shortened from their original 20-position configuration to approximately 13 positions each, as pictured.

• Listing is for 154 Phoenix Contact UT 2,5 terminal blocks, 26 end cover plates, and 2 jumper strips only, does not include any instructions, installation screws, or original box. Please review all photos for the exact item, condition, and components included.
• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service.

Product Description

The Phoenix Contact UT 2,5 is a single-level feed-through terminal block from the CLIPLINE Complete series, designed for dependable electrical connections in industrial automation systems, control cabinets, machinery, and electrical distribution applications.

The UT 2,5 uses a screw-clamp connection system to securely terminate solid and stranded conductors. Its compact 5.2mm width conserves DIN rail space, while the enclosed screw shafts provide guided tool access during installation.

Each terminal block supports conductors from 0.14mm² to 4mm², depending on conductor type, with a nominal current rating of 24A and nominal voltage rating of 1000V under IEC specifications.

The included D-UT 2,5/10 end covers are designed for compatible UT terminal blocks and help provide insulation where exposed terminal block sides require protection.

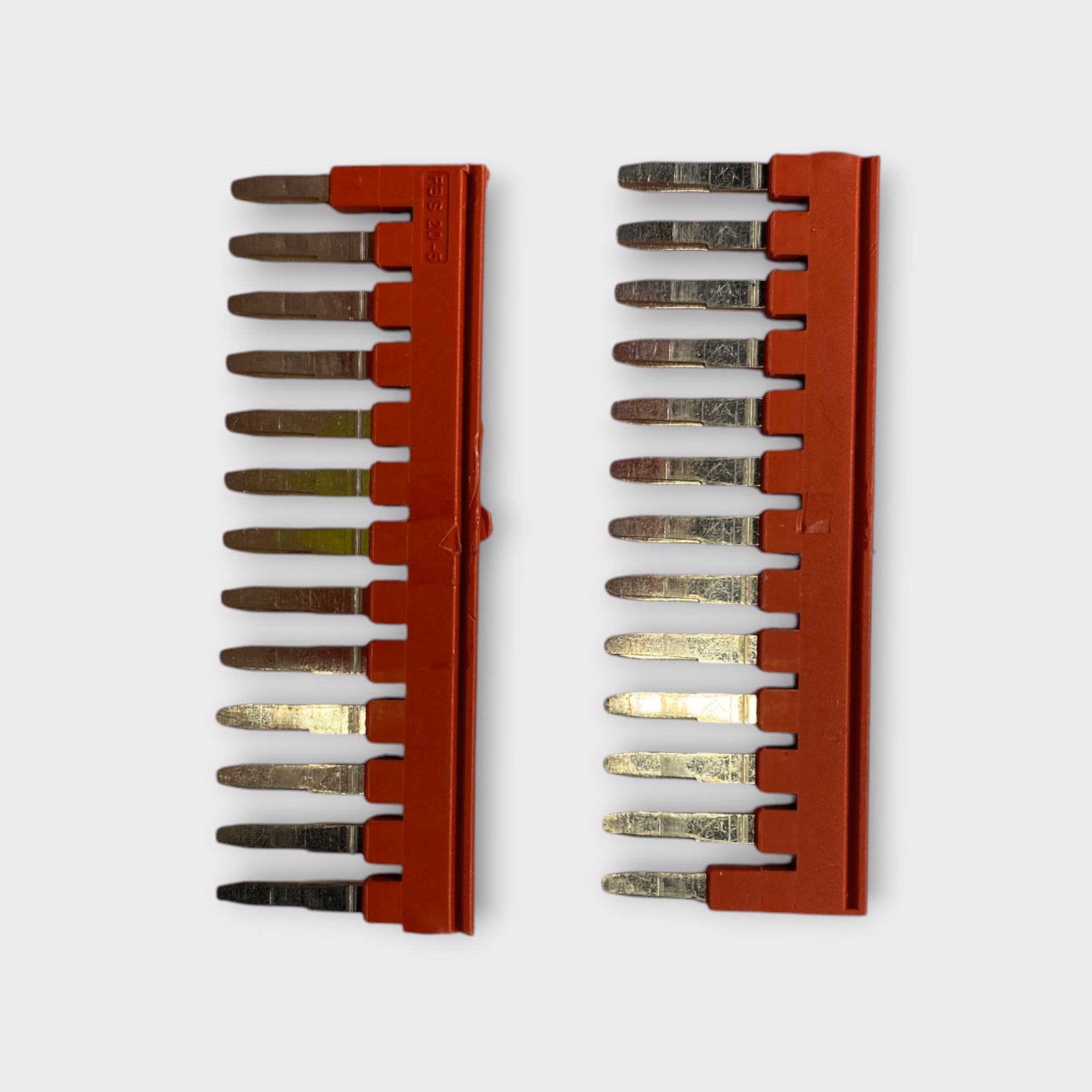

The two red FBS 20-5 plug-in jumper strips provide a convenient method of electrically bridging compatible terminal blocks. They feature a 5.2mm pitch and have been shortened to approximately 13 positions per strip.

This 154-terminal package, together with its 26 end covers and 2 jumper strips, is suitable for industrial control panel construction, cabinet assembly, replacement applications, and maintenance inventory.

Product Information

• Brand: Phoenix Contact
• Model Number: UT 2,5
• Series: UT / CLIPLINE Complete
• MPN: 3044076
• SKU: 3044076
• Type: Feed-Through Terminal Block
• Number of Pins: 0 (No Pin Contacts)
• Number of Ports: 2
• Number of Poles: 1
• Connector Style: DIN Rail Terminal Block
• Compatible Mounting Type: NS 35/7.5 and NS 35/15 DIN Rail
• Material: Polyamide (PA)
• Color: Gray (RAL 7042)
• Termination Type: Screw Clamp
• Compatible Wire Gauge (AWG): 26–12 AWG
• Nominal Conductor Cross-Section: 2.5mm²
• Conductor Cross-Section Range: 0.14–4mm²
• Nominal Current (IEC): 24A
• Nominal Voltage (IEC): 1000V
• Rated Current (UL): 20A
• Rated Voltage (UL): 600V
• Rated Surge Voltage: 8kV
• Number of Connections: 2
• Number of Levels: 1
• Screw Thread: M3
• Recommended Tightening Torque: 0.5–0.6 Nm
• Wire Stripping Length: 9mm
• Terminal Width: 5.2mm
• Terminal Height: 47.7mm
• Terminal Depth: 46.9mm
• Housing Flammability Rating: UL 94 V-0
• Country of Origin: Germany
• Quantity: 154 Terminal Blocks

Included End Cover Specifications

• Brand: Phoenix Contact
• Model Number: D-UT 2,5/10
• MPN: 3047028
• Type: DIN Rail Terminal Block End Cover
• Compatible Series: UT
• Material: Polyamide (PA)
• Color: Gray (RAL 7042)
• Width: 2.2mm
• Height: 47mm
• Depth: 39.8mm
• Flammability Rating: UL 94 V-0
• Quantity: 26 End Covers

Included Jumper Specifications

• Brand: Phoenix Contact
• Model Number: FBS 20-5
• MPN: 3030226
• Type: Plug-In Terminal Block Bridge / Jumper
• Original Manufacturer Configuration: 20 Positions
• Included Configuration: Approximately 13 Positions Per Strip
• Pitch: 5.2mm
• Maximum Nominal Load Current: 24A (Application Dependent)
• Contact Material: Copper
• Insulating Material: Polyamide (PA)
• Color: Red (RAL 3001)
• Quantity: 2 Shortened Jumper Strips

Included

• 154x Phoenix Contact UT 2,5 Feed-Through Terminal Blocks (3044076)
• 26x Phoenix Contact D-UT 2,5/10 End Cover Plates (3047028)
• 2x Phoenix Contact FBS 20-5 Plug-In Jumper Strips (3030226), shortened to approximately 13 positions each
• Total: 182 Components

What's Not Included

• DIN Rails
• DIN Rail End Stops
• Mounting Screws
• Installation Instructions
• Original Manufacturer Packaging
• Additional Wiring or Electrical Accessories
• Please review all photos for the exact item, condition, and components included.
