Description

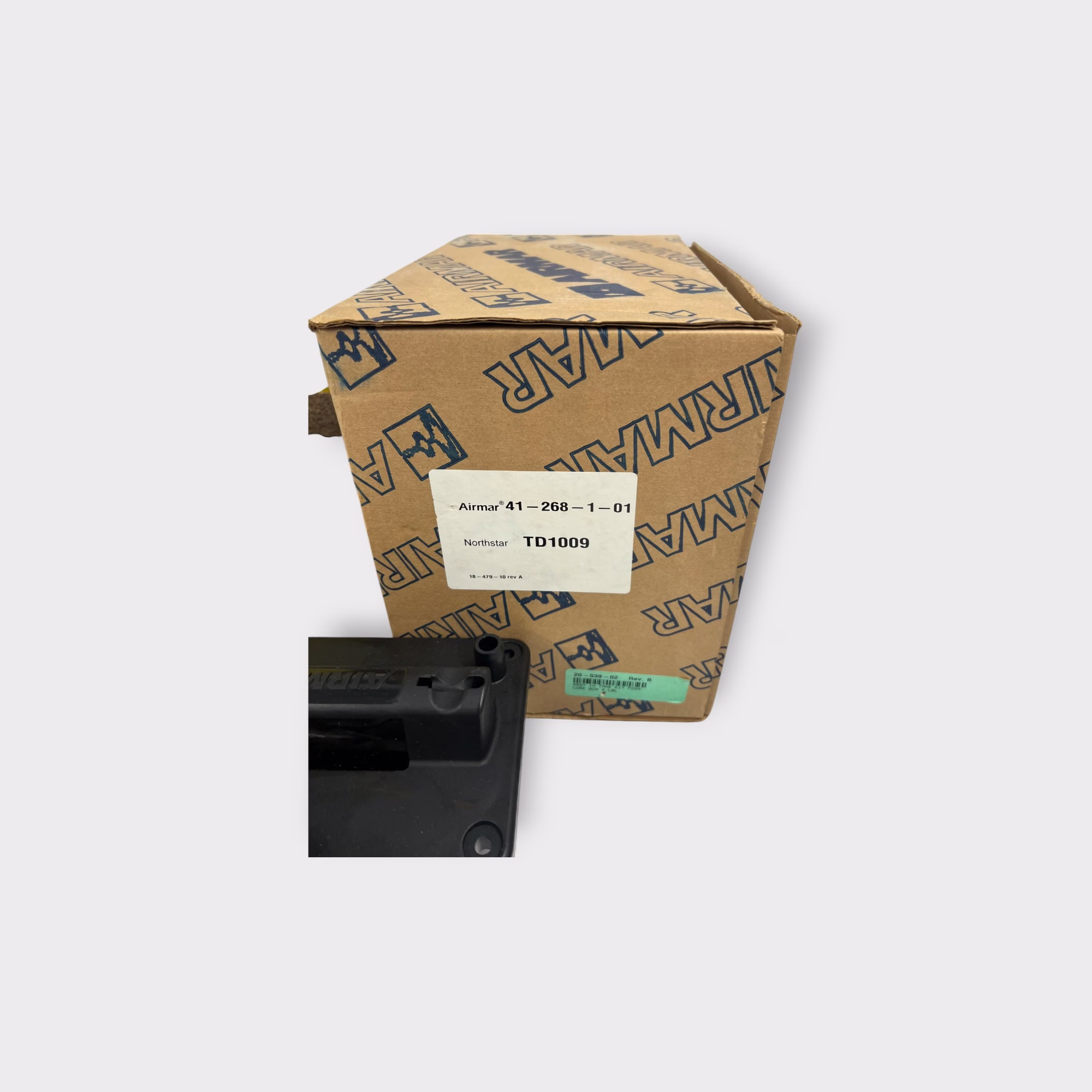

Manufacturer: Northstar
Model Number: TD1009
Series: Transducer

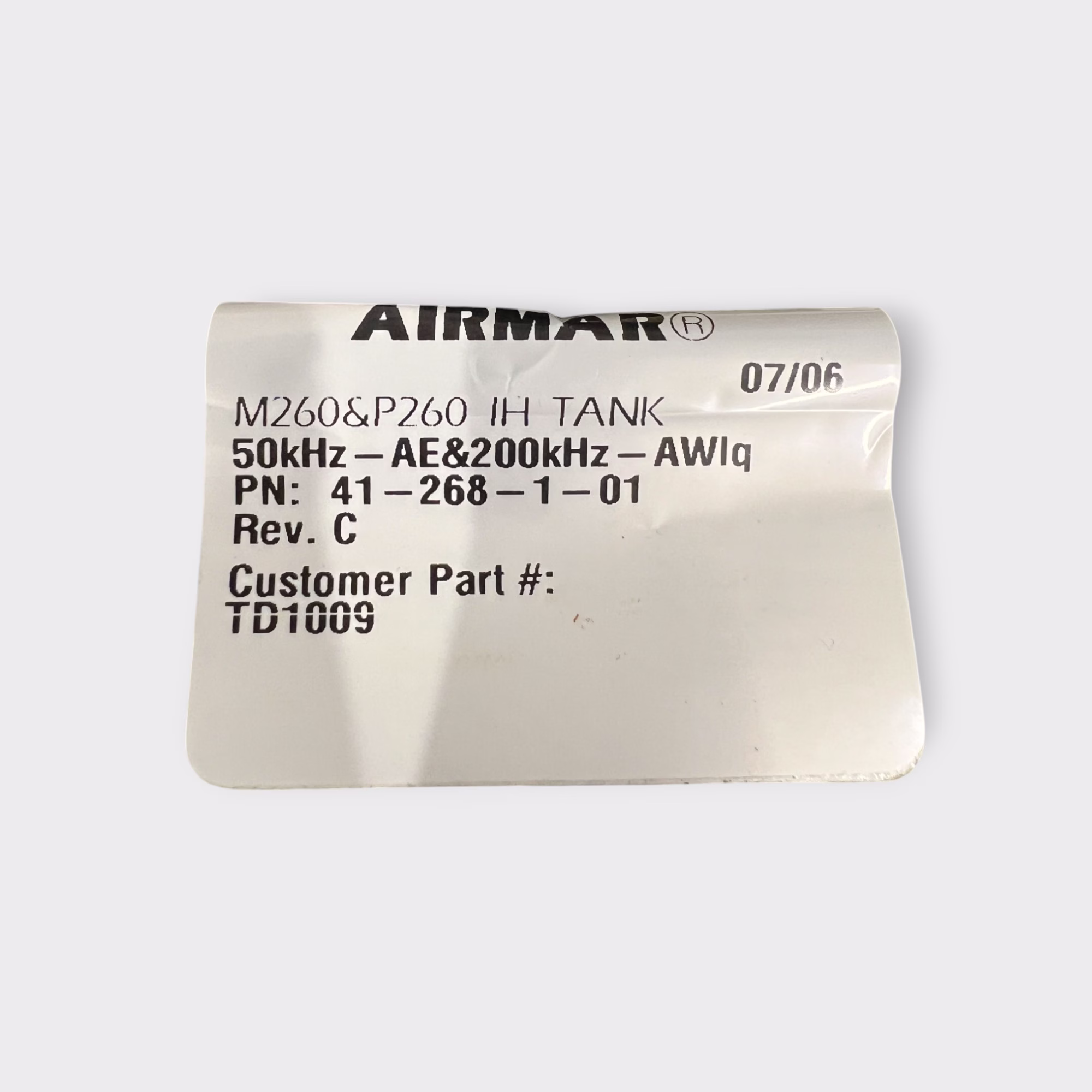

MPN: 41-268-1-01
Condition: New
Additional Notes: This transducer is new in box, and is for the models listed in “compatible parts.” It is an in-hull/shoot-thru transducer, intended for non-cored solid fiberglass boats. It comes complete with tank, cork liner, install materials, and trasnducer itself.
For Northstar: The 10-pin connector comes un-attached/un-soldered. This is because the connector is so big it will not allow the cable to be run through certain bulkheads, wire chases, etc. The connector will need to be soldered on board once the wire is run by a qualified person. We have included an annotated pinout of the connector so there is no mistaking which wires go to which pins. If you prefer to have us solder the connector on here, we are happy to do so, but we must be informed after purchase that this is what you need both by order note and a seperate message/email after purchase.
Attention customers wishing to connect to other brands: Please know that while the 50khz side is equivalent to a 50khz dual line M260 generic transducer, the 200khz side is a special low impedance element for Northstar. We feel it is best if it is only used on Northstar units, as the risk of impedance mismatch and subsequent damage to transducer or sounder is possible.

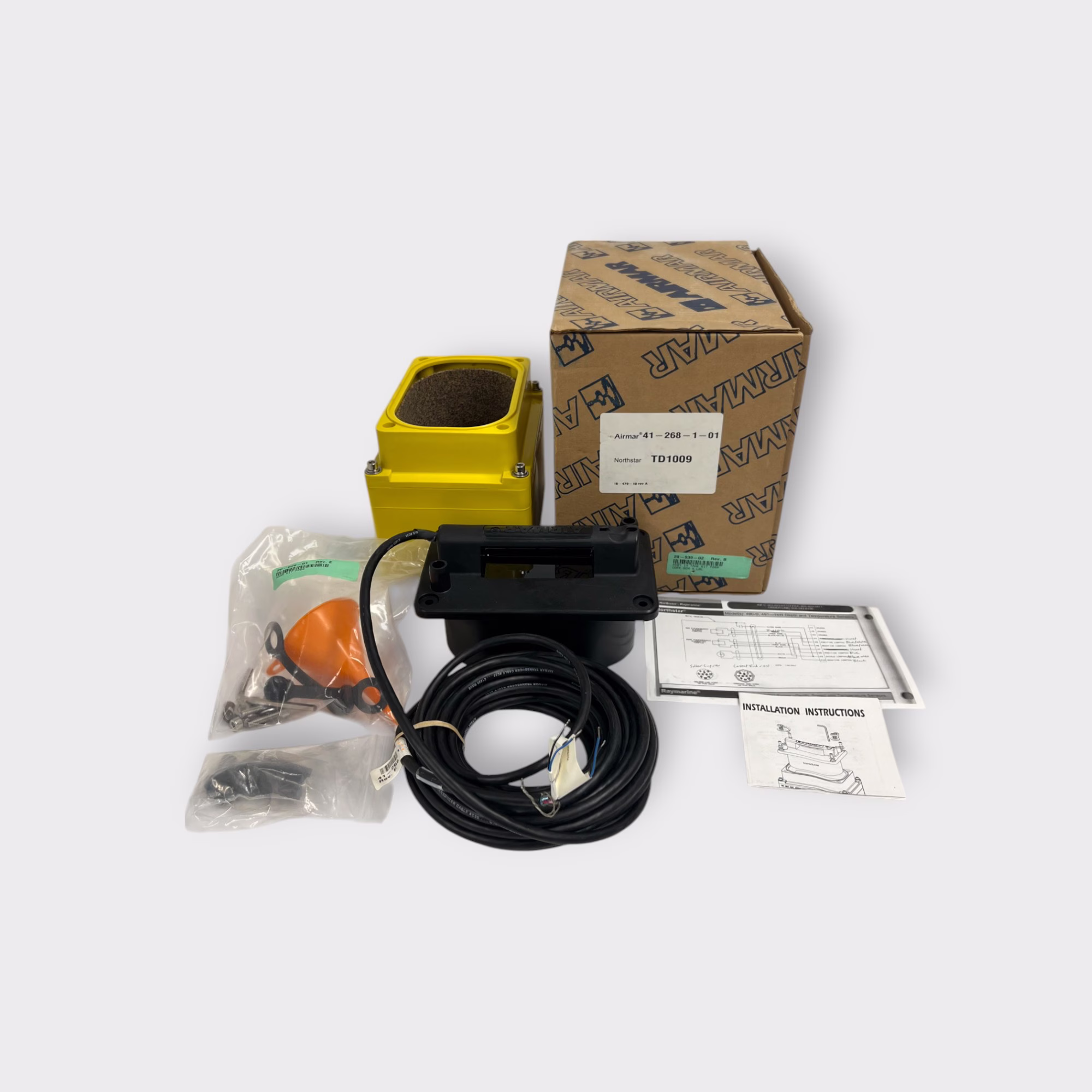

What’s Included:

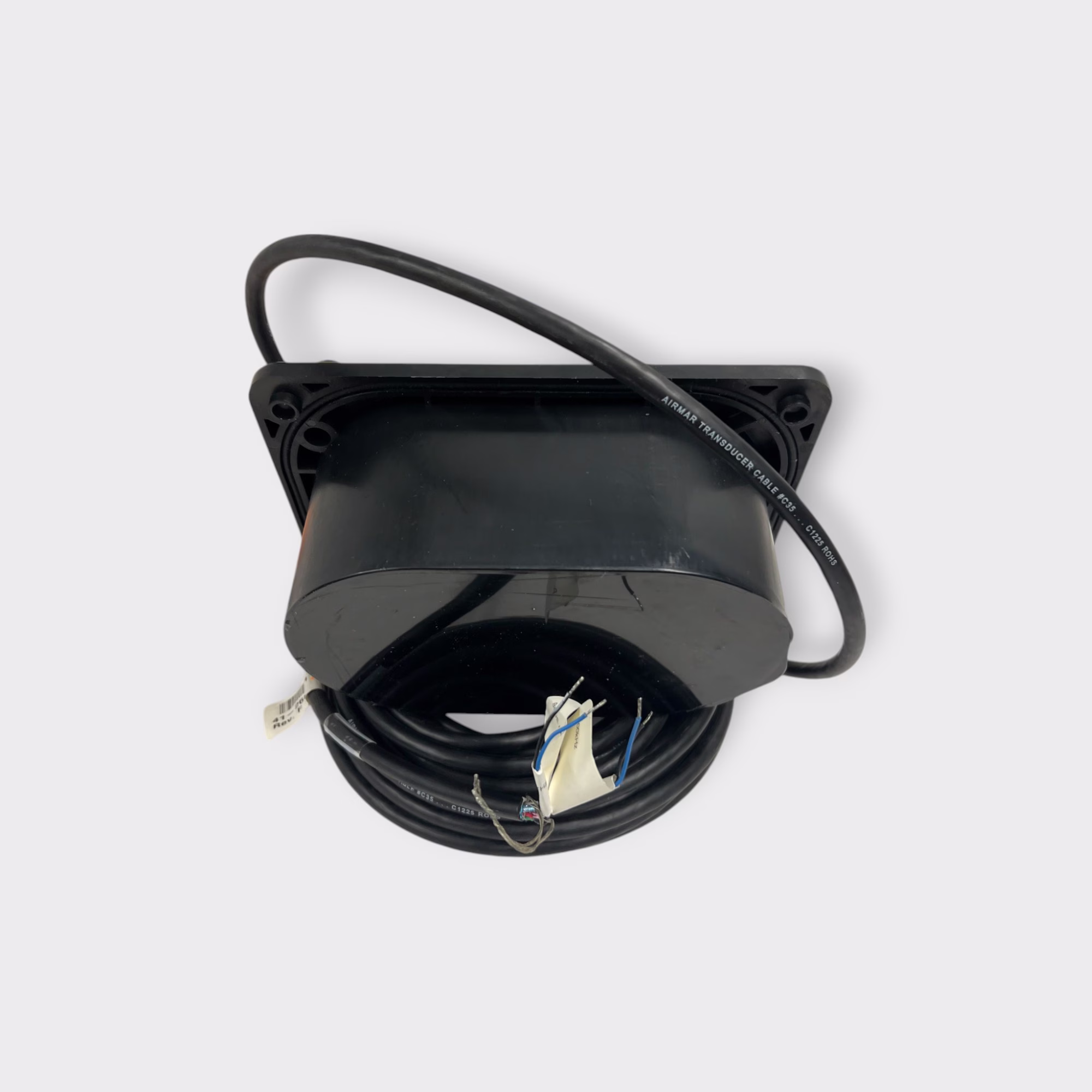

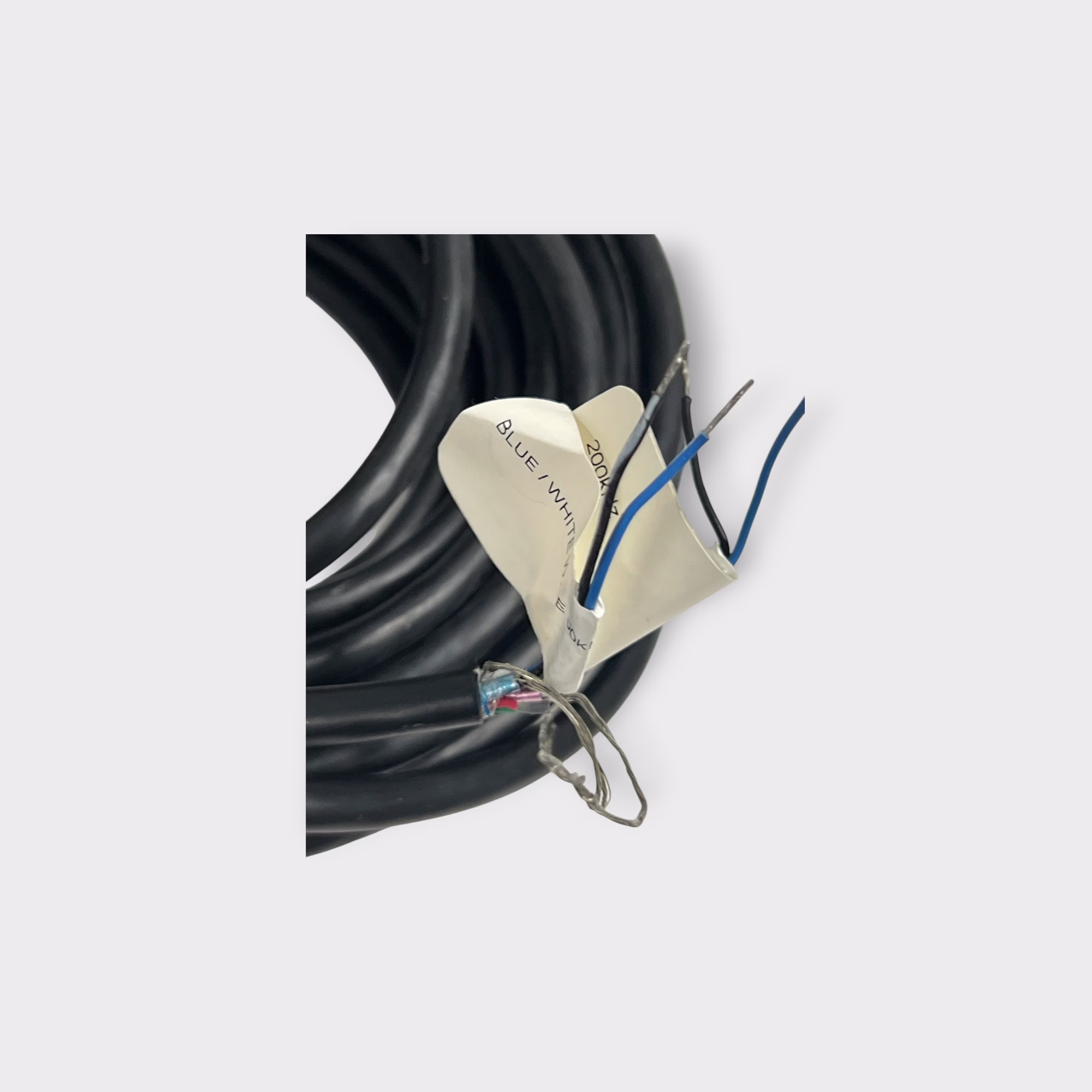

- TD1009 Transducer

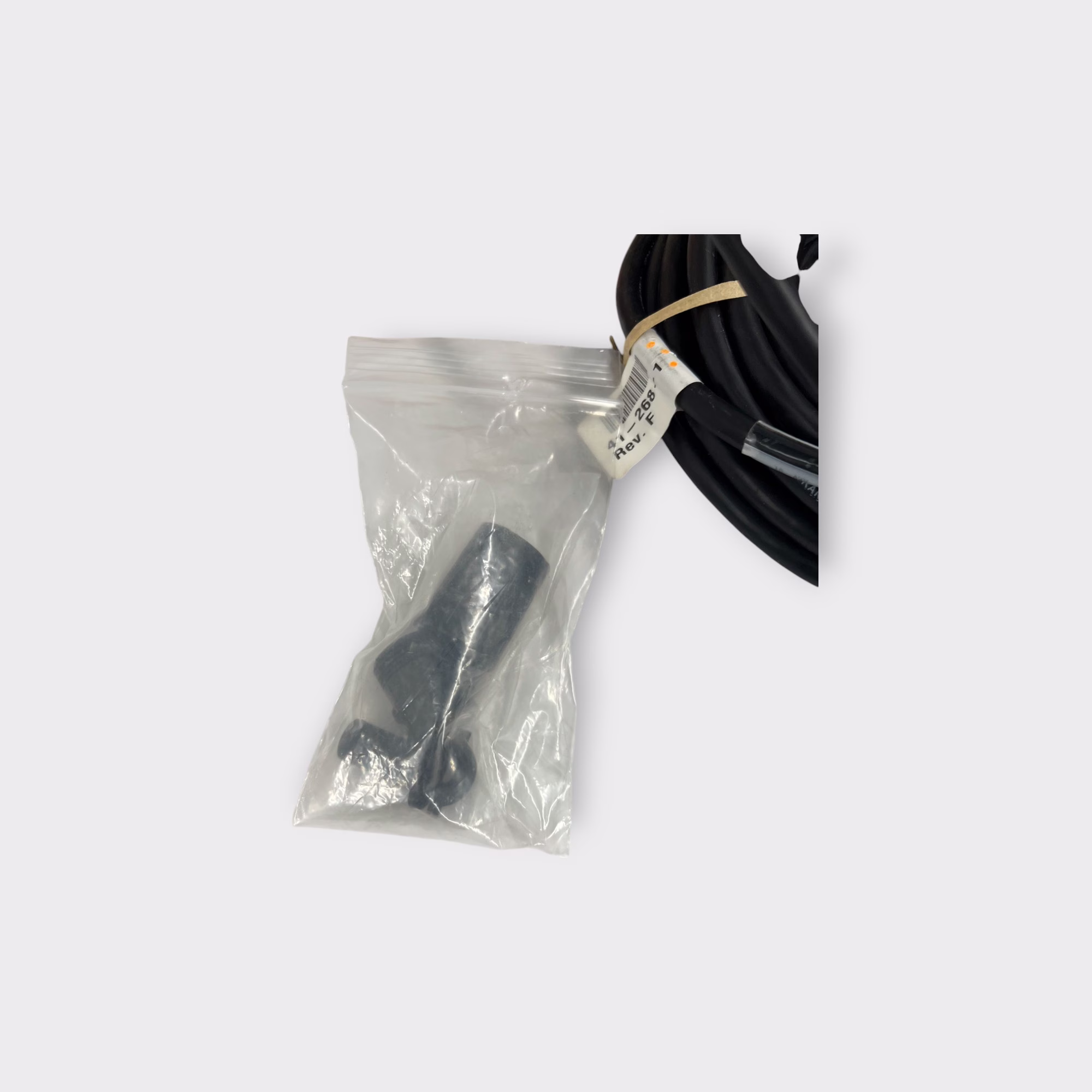

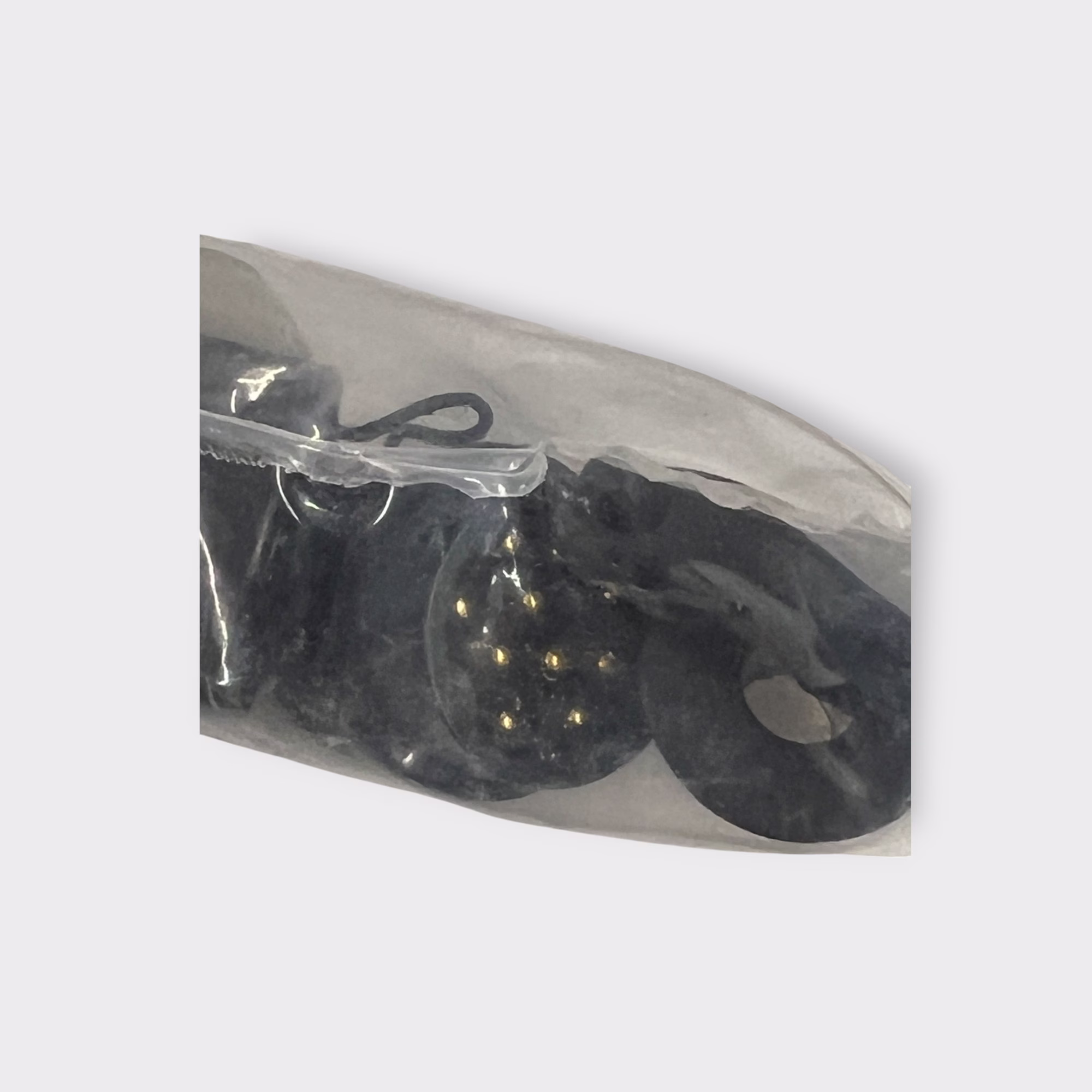

- 10-Pin Connector Kit

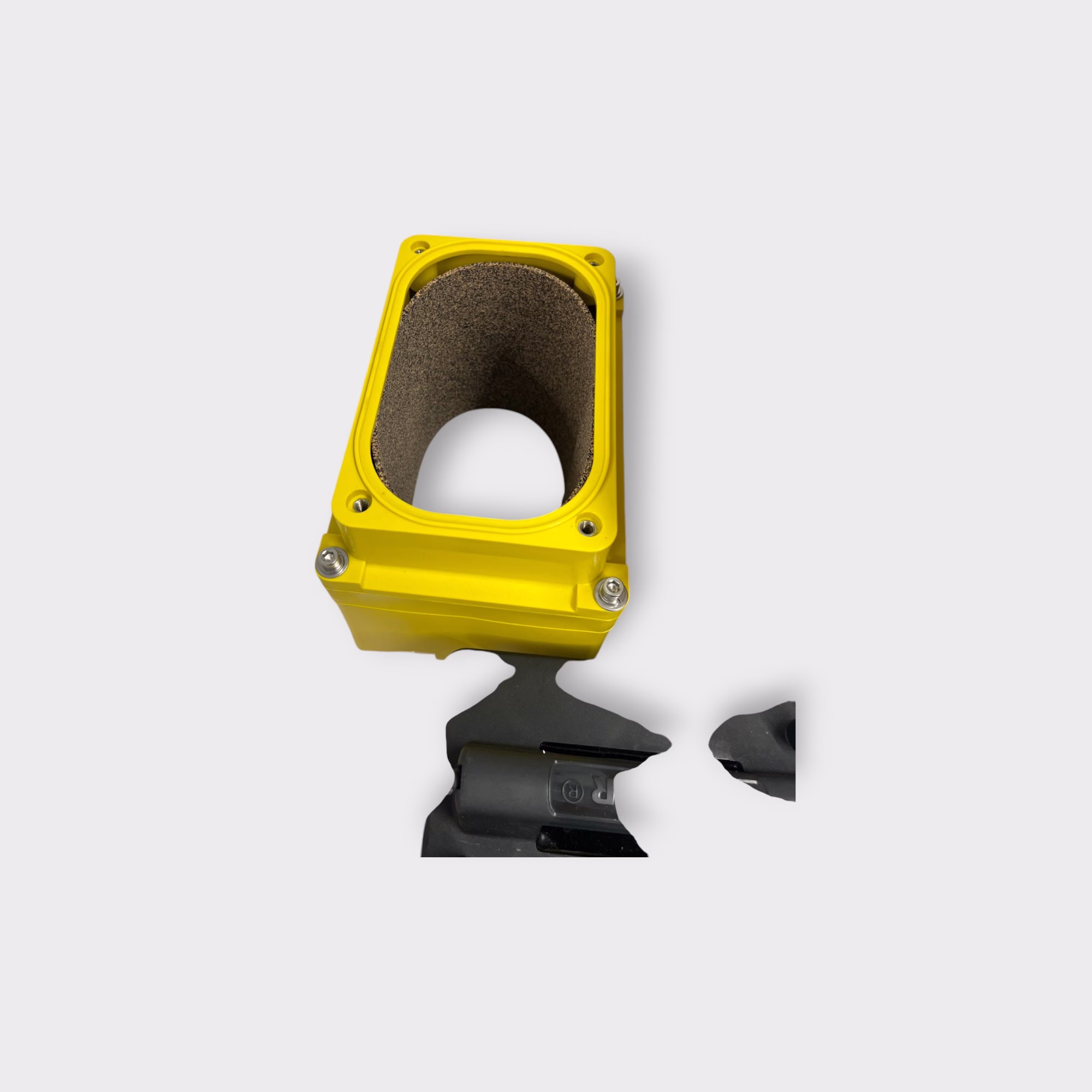

- Tank
- Cork Liner

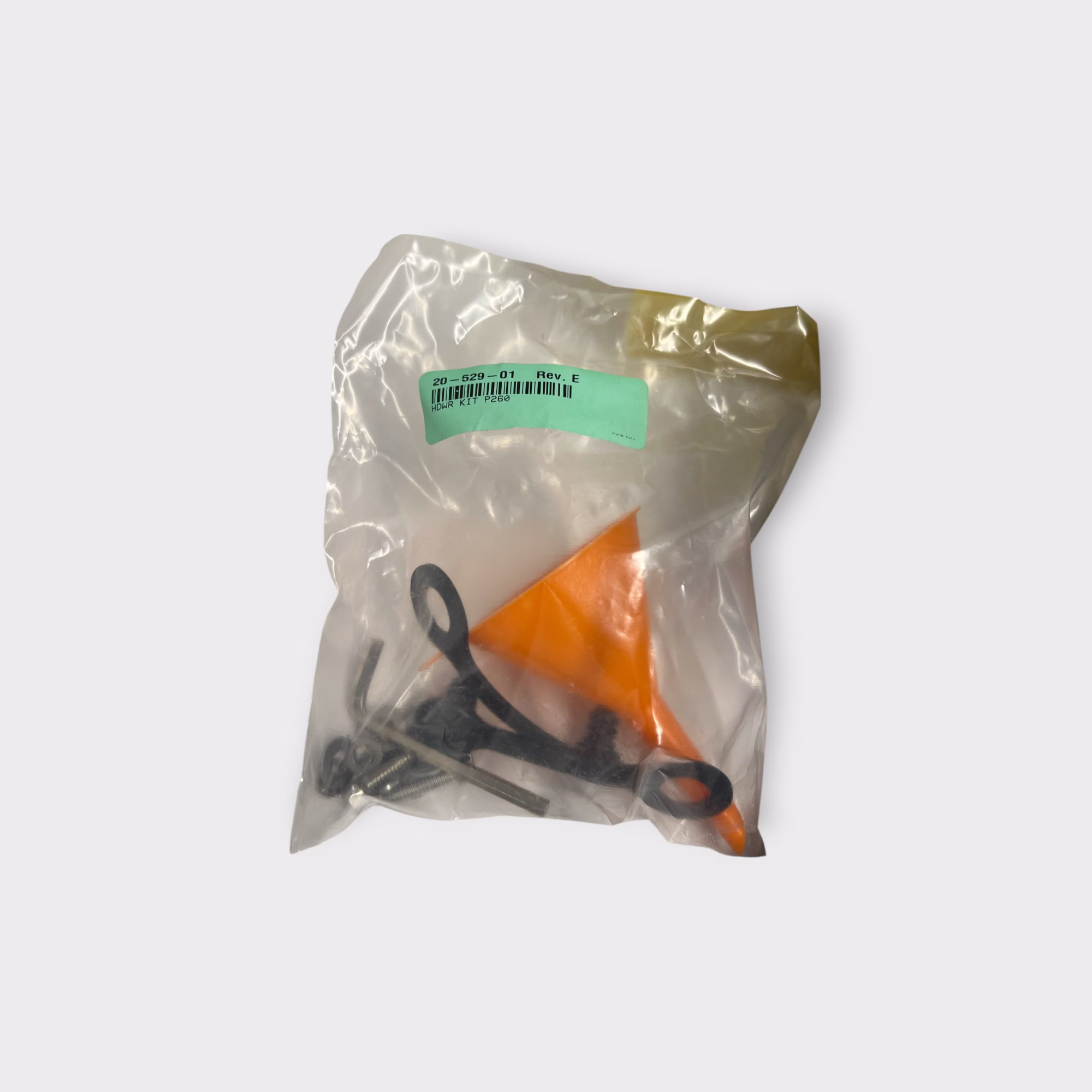

- Install Kit

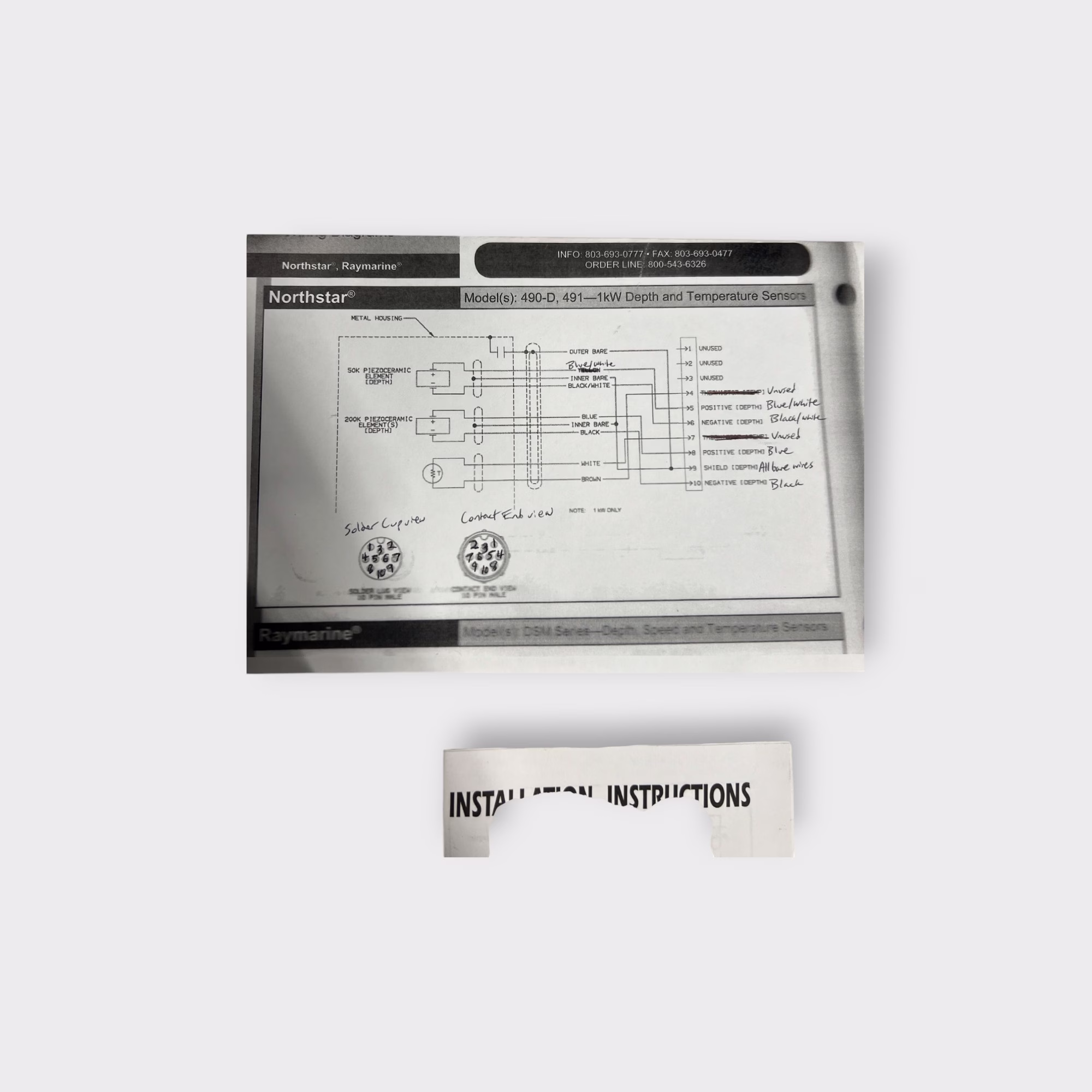

- Connector Pinout
Compatible Parts: Northstar 491 and 490-D Sounder Modules (requires soldering)
Dimensions (L x W x H): 16 x 14 x 9 in, Weight: 20 lbs
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
