Summary

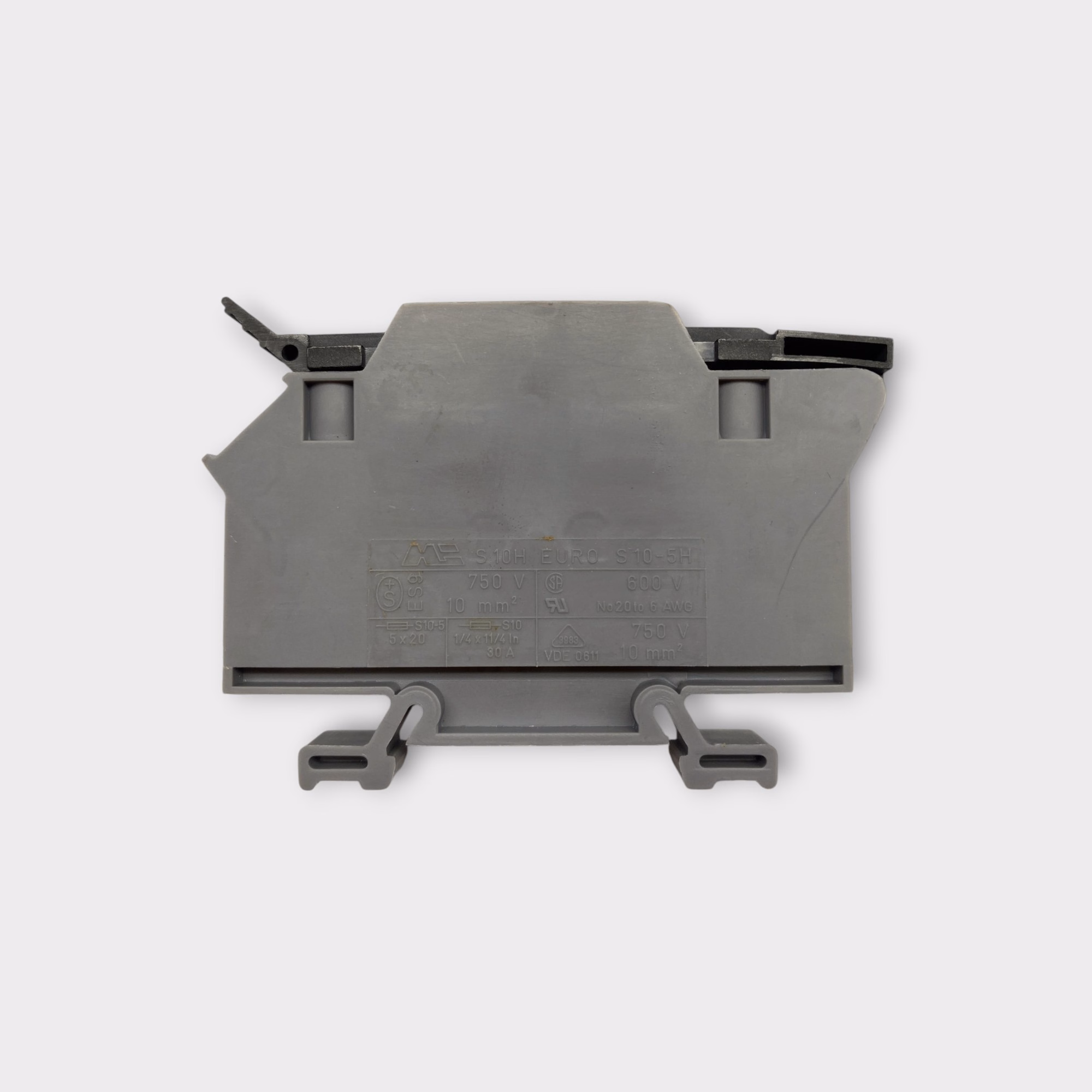

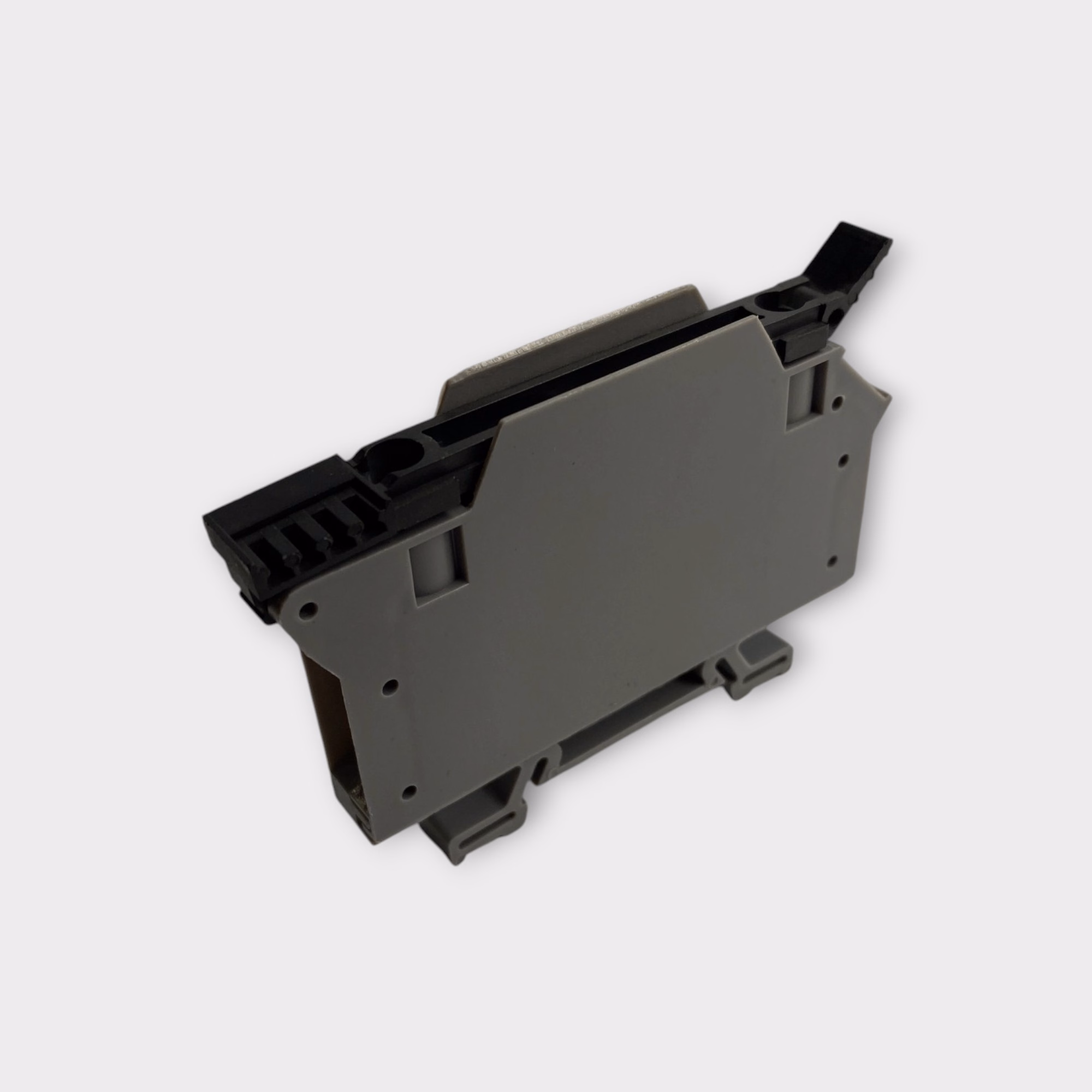

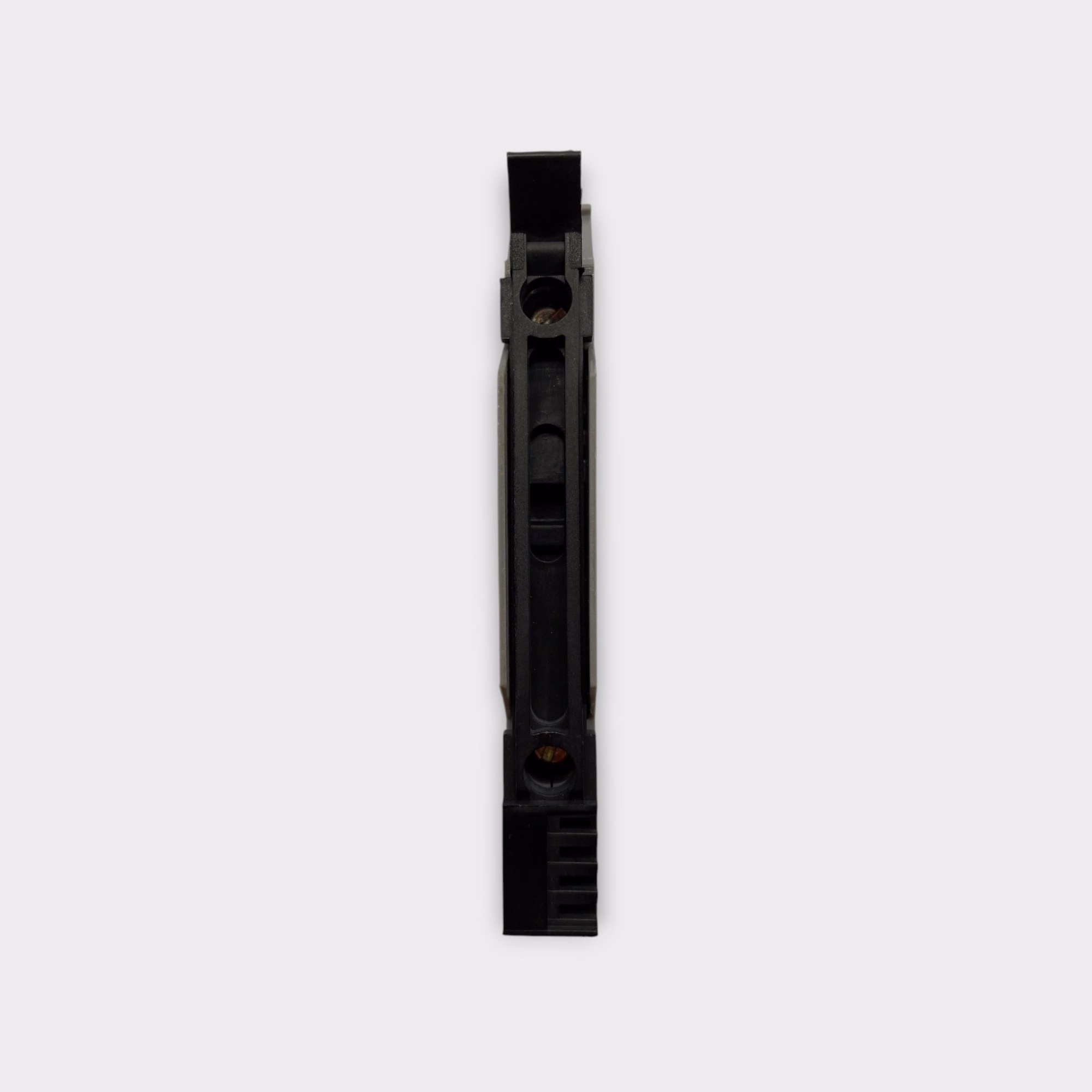

• Morsettitalia EURO S10 H (43433 H) DIN rail fuse terminal block, featuring screw-clamp connections, a lever-operated fuse holder designed for 6.3 x 32 mm glass cartridge fuses, and a nominal conductor cross-section of 10 mm².
• This gray terminal block is designed for installation on standard 35 mm DIN rails and provides a compact solution for individual circuit protection in industrial electrical control panels, distribution cabinets, and automation systems.
• This listing includes 1 Morsettitalia EURO S10 H fuse terminal block only. No original box, instructions, manuals, DIN rail, wiring, or additional accessories are included. Please review all photos for the exact item, condition, and components included.
• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service.

Product Description

• The Morsettitalia EURO S10 H is a DIN rail fuse terminal block designed to incorporate cartridge fuse protection into industrial electrical distribution and control systems.
• Each terminal block features screw-clamp connections and a hinged, lever-operated fuse holder designed to accommodate standard 6.3 x 32 mm (1/4 x 1-1/4 inch) cylindrical glass cartridge fuses.

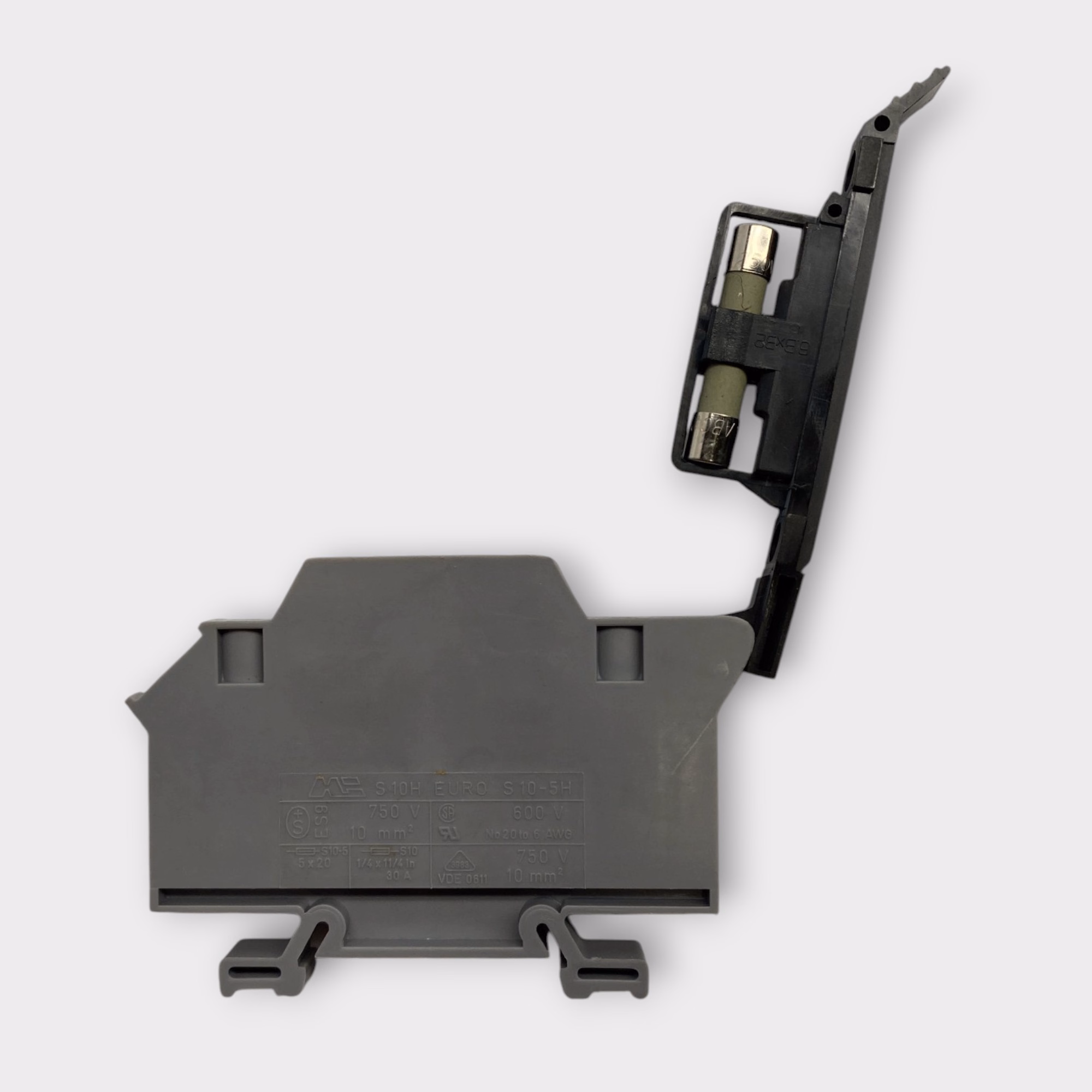

• The pivoting fuse holder provides convenient access to the fuse for replacement and maintenance while maintaining a compact installation within a DIN rail terminal assembly.
• Designed for standard TH35 DIN rails conforming to EN 60715, this terminal block features a 10 mm housing width, an 82 mm length, and a 53 mm height.
• The terminal block supports solid conductors from 1.5 mm² to 16 mm² and stranded conductors from 1.5 mm² to 10 mm², with a manufacturer-specified wire gauge range of 20–6 AWG.
• The housing and fuse holder lever are manufactured from polyamide (PA) insulating material with a UL 94 V-0 flammability classification.
• Electrical ratings depend on the applicable standard and fuse configuration. The manufacturer specifies a fuse terminal rating of 250 V and up to 6.3 A under EN 60947-7-3, with separate terminal connection ratings of 750 V and 30 A under EN 60947-7-1.
• Additional construction features include M4 zinc-plated steel terminal screws, zinc-plated steel clamps, and tin-plated copper alloy current bars.
• The EURO S10 H is suitable for industrial automation, electrical distribution panels, machinery wiring, control cabinet assemblies, and compatible marine electrical installations.

Product Information

- Brand: Morsettitalia
- Model Number: EURO S10 H
- Series: EURO S10 H
- MPN: 43433 H
- Type: Fuse Terminal Block
- Number in Pack: 1
- Number of Ports: 2
- Number of Poles: 1 (Fused Circuit)
- Connector Style: DIN Rail Terminal Block
- Termination Type: Screw Clamp
- Compatible Mounting Type: DIN Rail
- Mounting Standard: EN 60715
- Compatible DIN Rail: Omega TH35 (35 mm)
- Material: Polyamide (PA)
- Contact Material: Tin-Plated Copper Alloy
- Color: Gray
- Rated Conductor Cross-Section: 10 mm²
- Compatible Wire Gauge (AWG): 20–6 AWG
- Solid Conductor Range: 1.5–16 mm²
- Stranded Conductor Range: 1.5–10 mm²
- Compatible Fuse Size: 6.3 x 32 mm (1/4 x 1-1/4 Inch)
- Fuse Type: Glass Cartridge Fuse
- Fuse Holder Type: Lever-Operated
- Fuse Terminal Rating (EN 60947-7-3): 250 V / Maximum 6.3 A
- Terminal Connection Rating (EN 60947-7-1): 750 V / 30 A
- Maximum Load Current: 30 A (Subject to Fuse Rating)
- UL Voltage Rating: 600 V
- UL Current Rating: 30 A (Subject to Fuse Rating)
- Item Length: 82 mm
- Item Width: 10 mm
- Item Height: 53 mm
- Weight: 34 g
- Stripping Length: Maximum 12 mm
- Terminal Screw Size: M4
- Screw Material: Zinc-Plated Steel
- Clamp Material: Zinc-Plated Steel
- Tightening Torque: 0.8 Nm
- Flammability Rating: UL 94 V-0
- Insulation Material Temperature Index: 85°C
- Pollution Degree: 3
- Overvoltage Category: III
- Standards: EN 60947-7-3 / EN 60947-7-1 / UL 1059
- UL File Number: E203985
- Salt Mist Test: EN 60068-2-11 (96 Hours)

Package Contents

- 1x Morsettitalia EURO S10 H Fuse Terminal Block (43433 H)

Total: 1 Fuse Terminal Block.
