Manufacturer: MFJ
Model Number: MFJ-915
Condition: Used

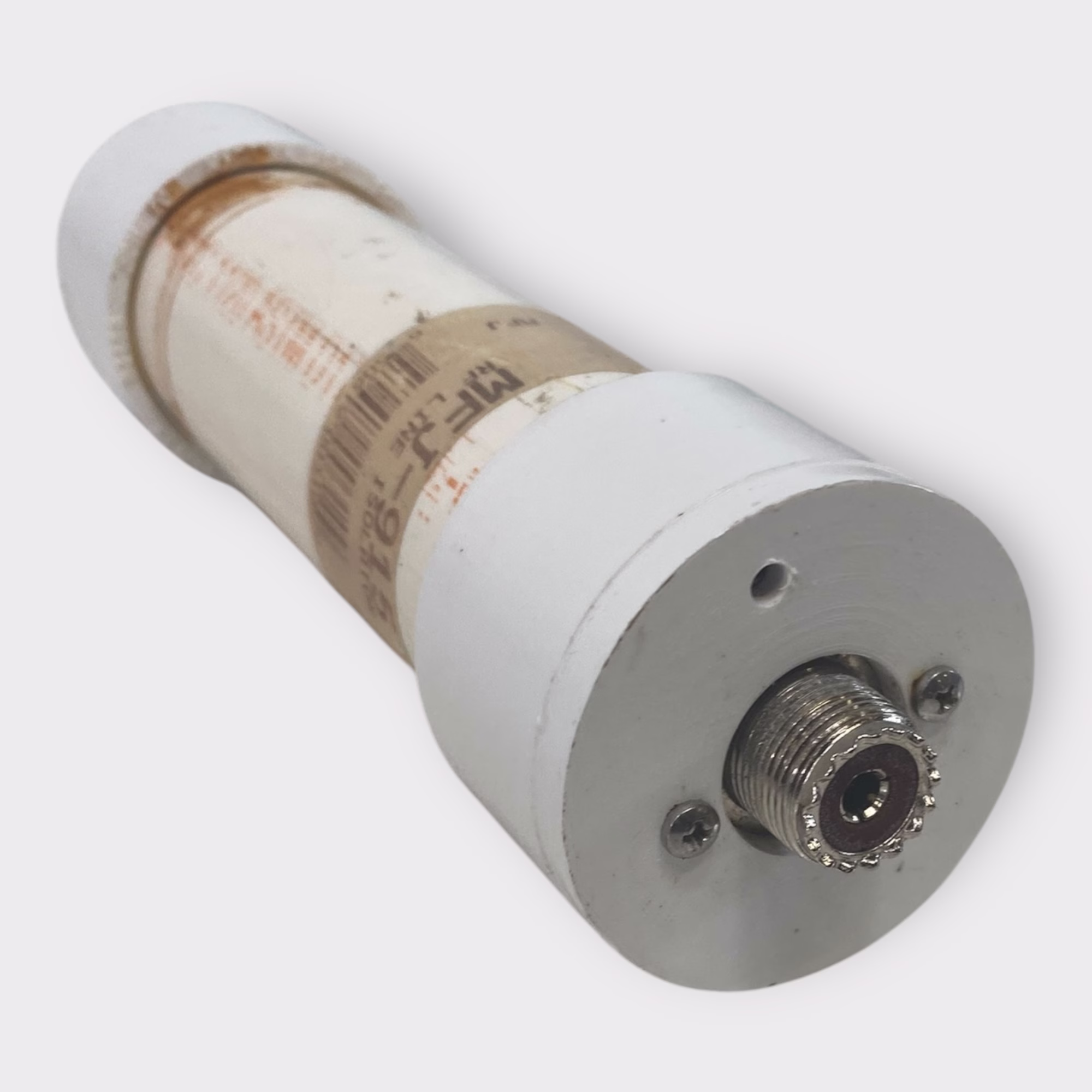

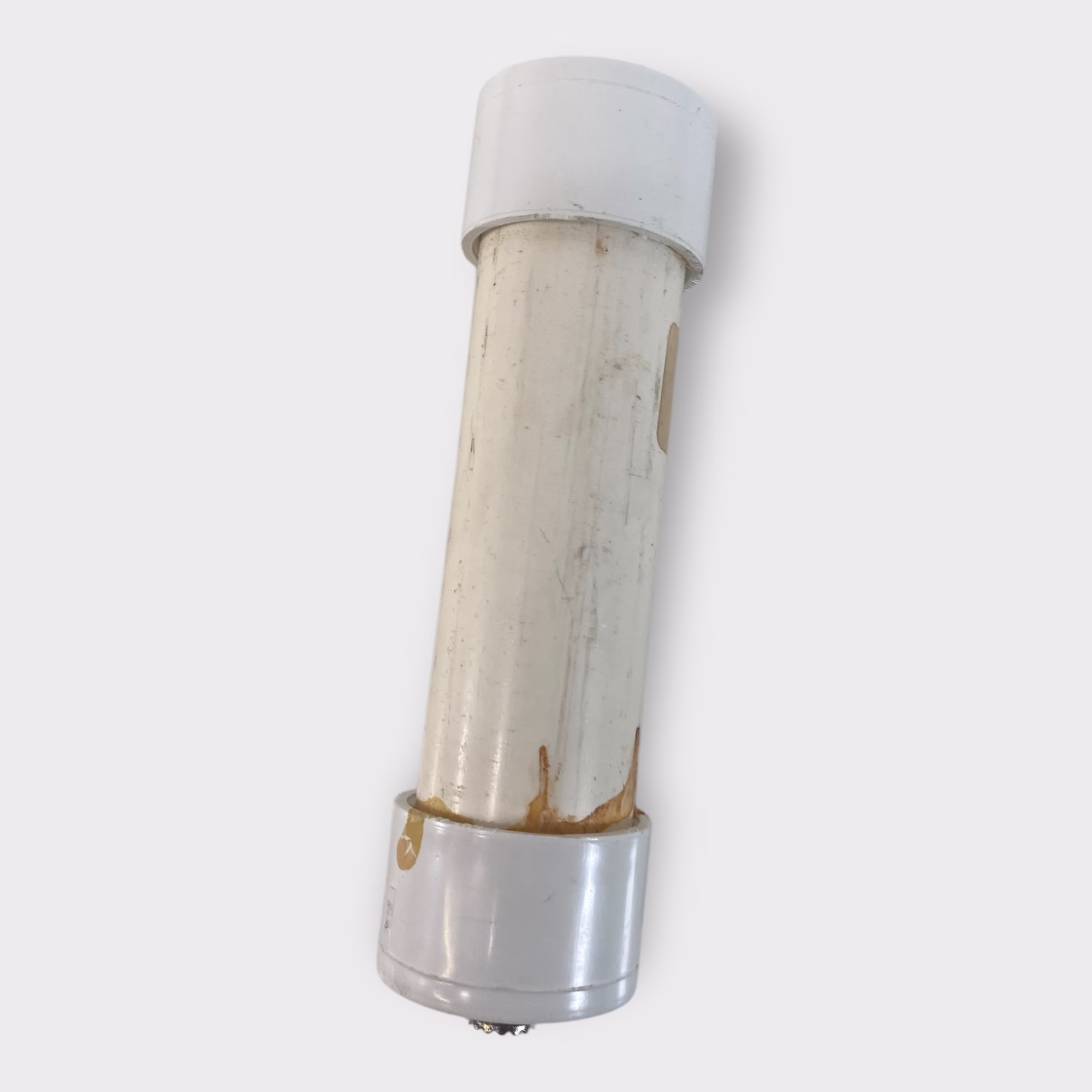

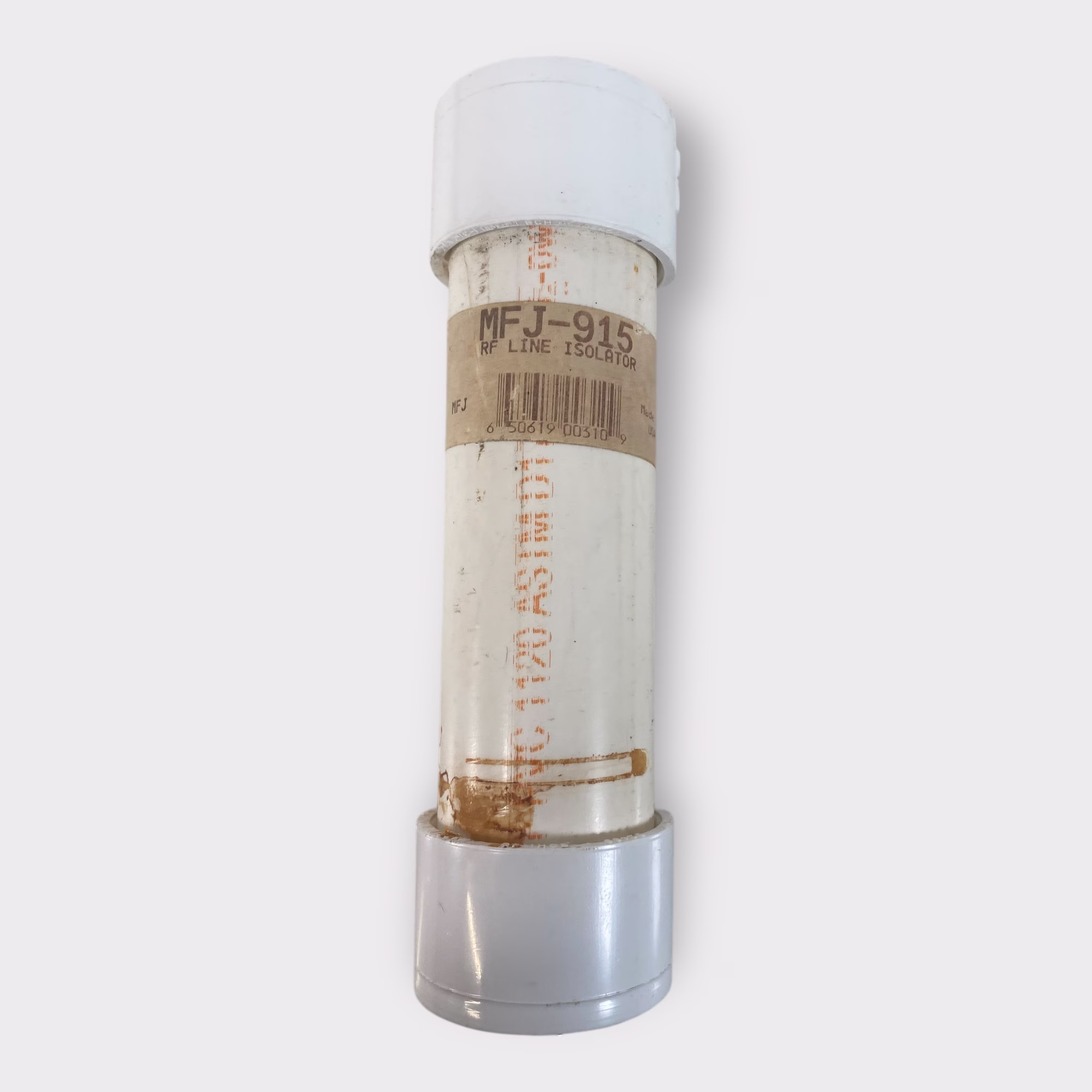

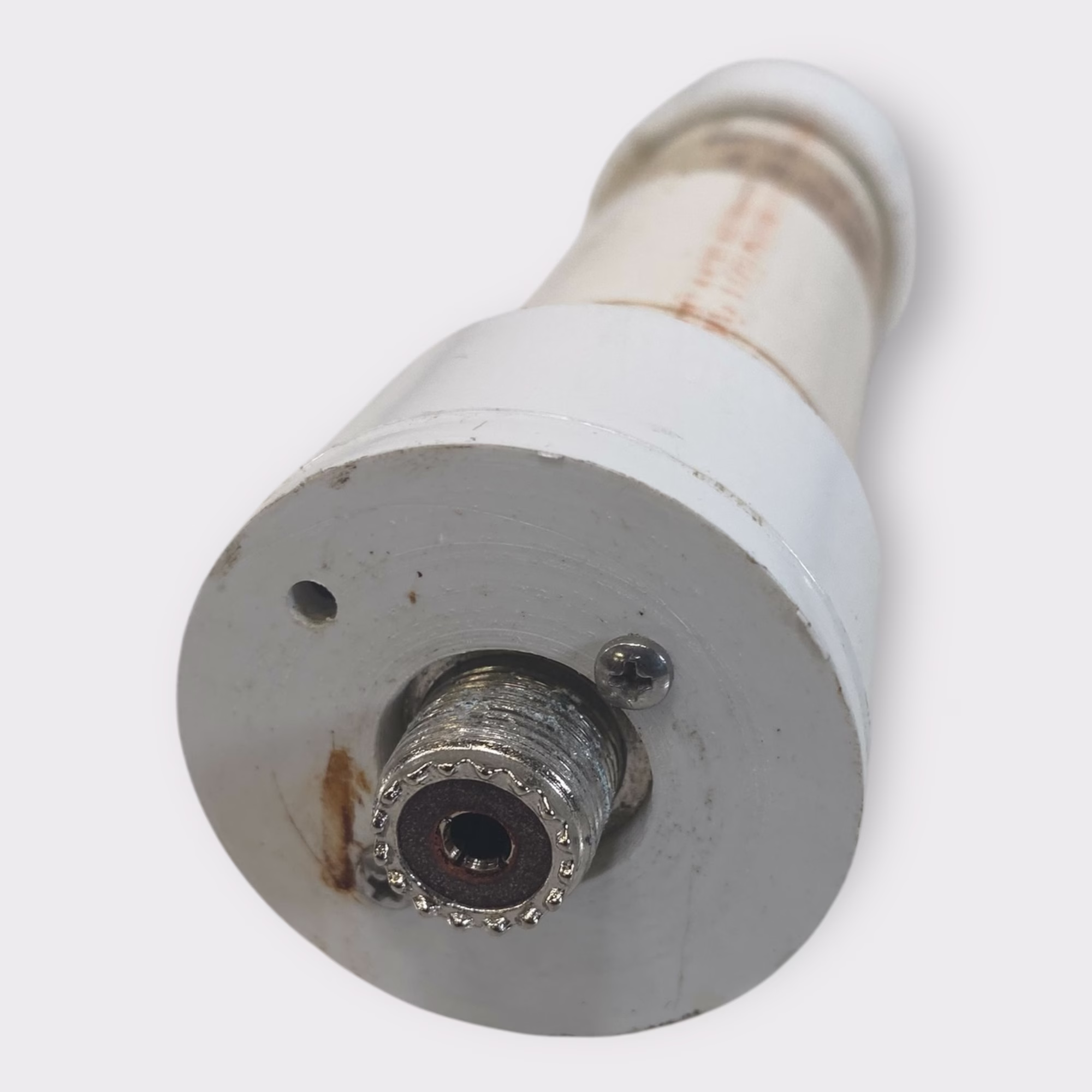

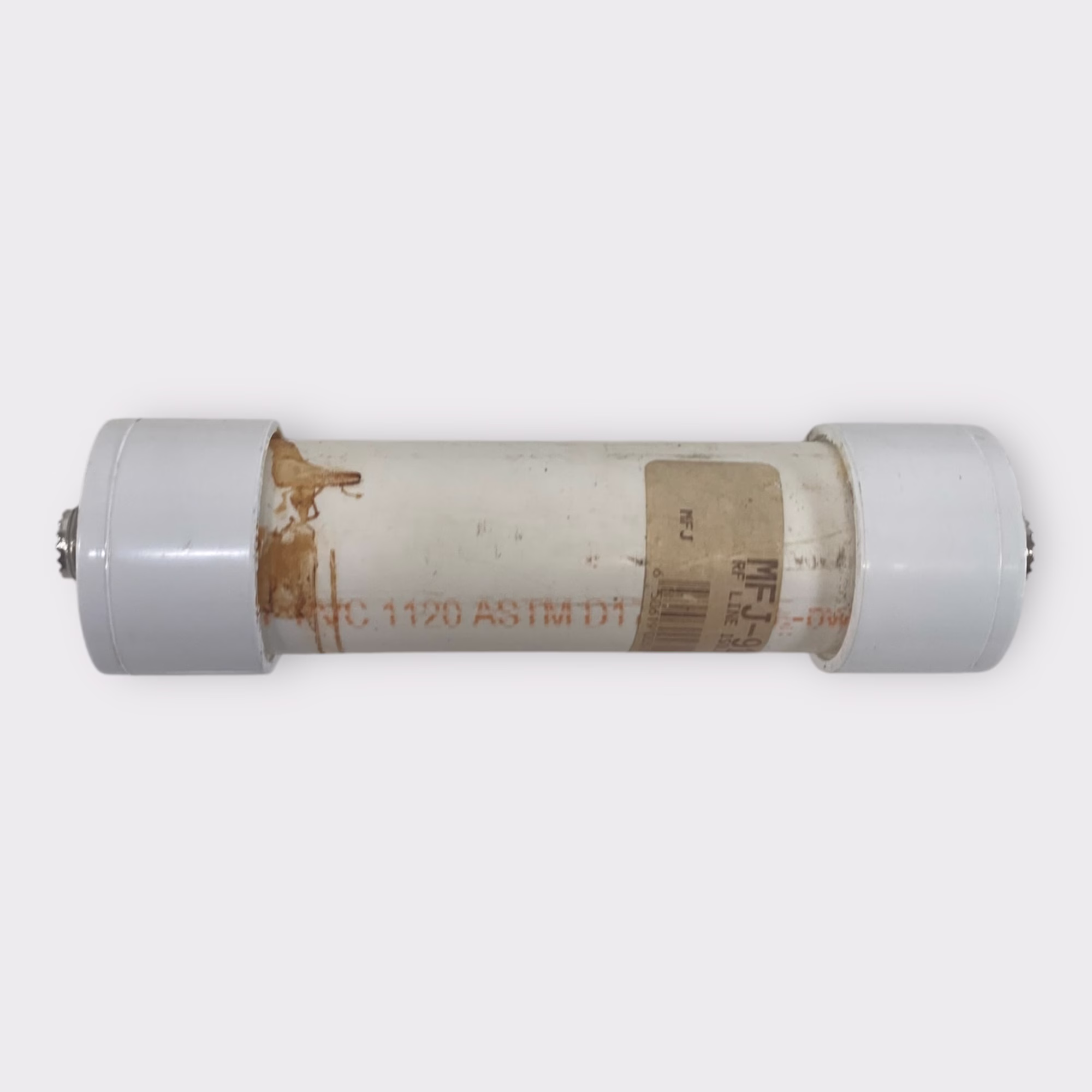

Additional Notes: This listing is for a MFJ MFJ-915 RF Line Isolator 1.8-30MHz 1500W PEP For 50-OHM Amatuer Radios
The MFJ-915 RF Isolator is a 1:1 Current Balun designed to be placed in line with a 50-Ohm coax. The RF Isolator is effective from 1.8 to 30 MHz. It was designed to improve the performance of all amateur stations, fixed or mobile.
MFJ-915 will reduce or eliminate stray RF often found on coax. This stray RF can cause burns and other problems with electronic equipment in ham-shacks and vehicles. Stray RF also results in a loss of radiated power from the antenna, which will lead to a great reduction in signal strength. The use of the MFJ-915 will increase the efficiency of all amateur stations.
It is made of 50 Ferrite Core Beads and placed onto a 13-inch piece of RG-303 coax. The coax and SO-239 connectors have Teflon(R) for maximum insulation and extended life of the product. The RF Isolator is enclosed in schedule 40 PVC pipe for maximum strength and protection.
Specifications
-
Frequency Range: 1.8-30 MHz
-
Ratio: 1:1
-
Termination Impedance (Ohms): 50
-
Termination Type: UHF female, SO-239
-
Enclosure Type: Schedule 40 PVC tube
-
Enclosure Material: Plastic
-
Core Type: Beads on coax
-
Power Handling (SSB/CW): 1.5kW/800W
-
Antenna Type Compatibility: 50 ohm feedline system
-
Lowest Band of Operation: 1.8 MHz
-
Highest Band of Operation: 30.00 MHz
What’s Included:
- QTY 1 MFJ MFJ-915 RF Line Isolator 1.8-30MHz 1500W PEP For 50-OHM Amatuer Radios
Dimensions (L x W x H): 7 x 2 x 2 in, Weight: .75 lbs
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
