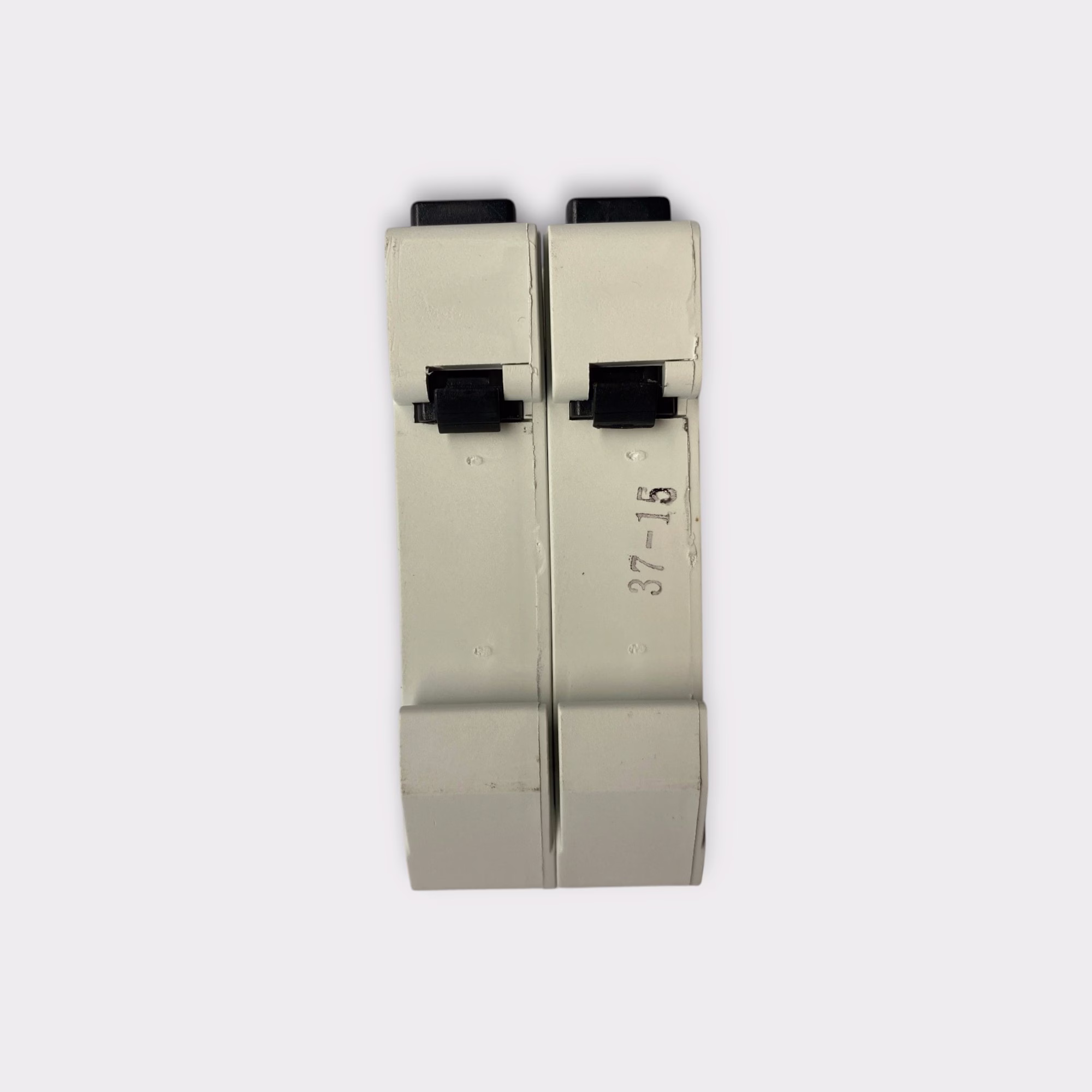

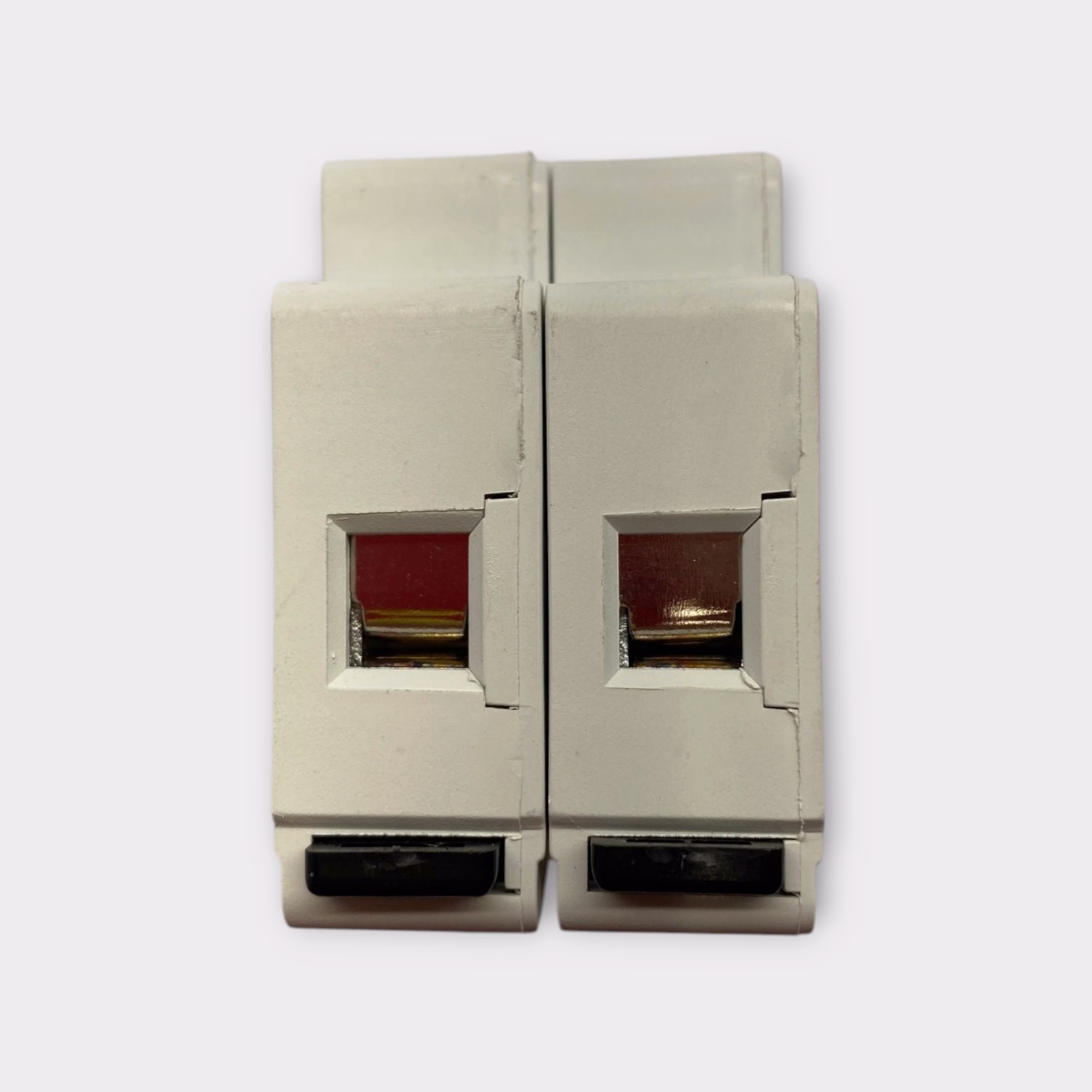

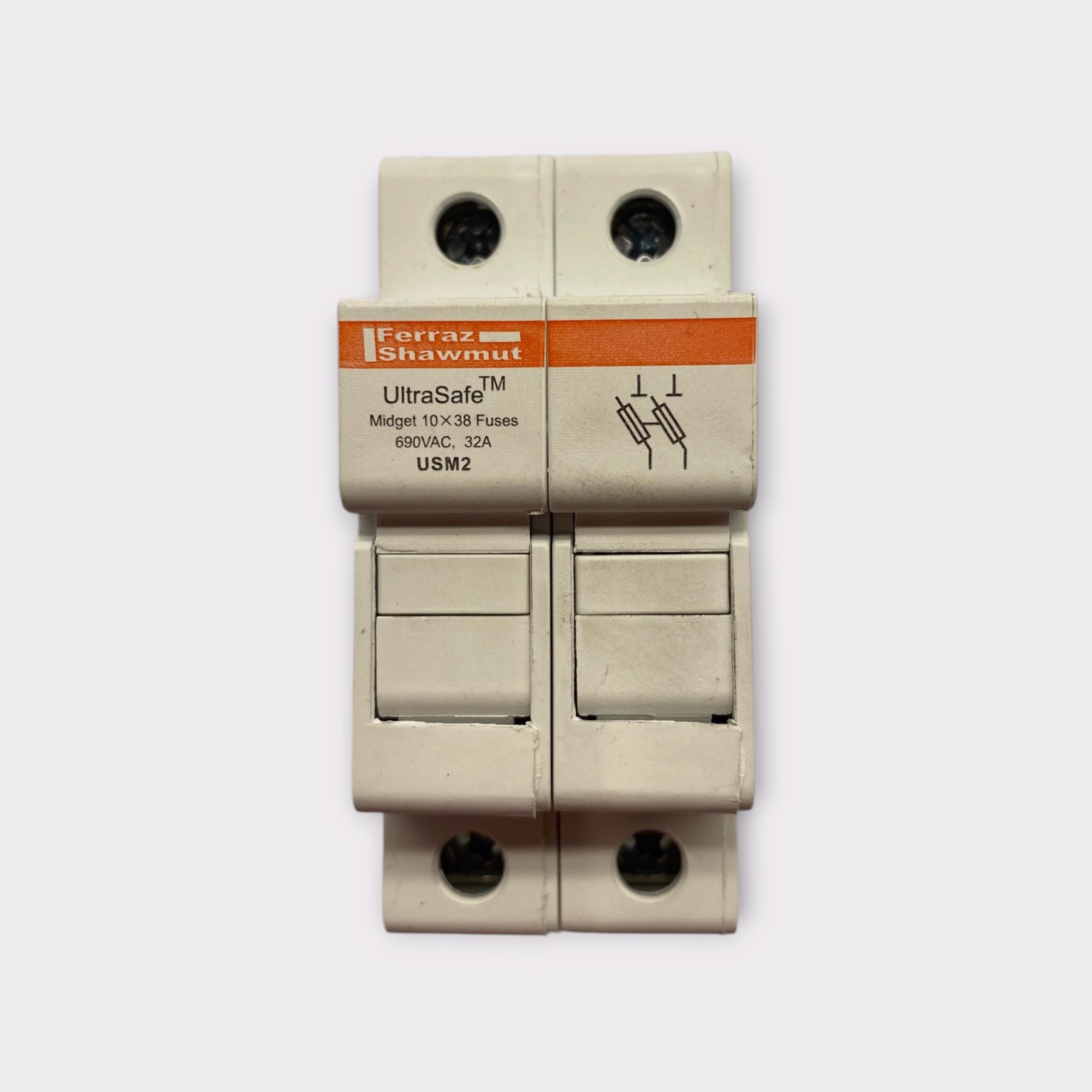

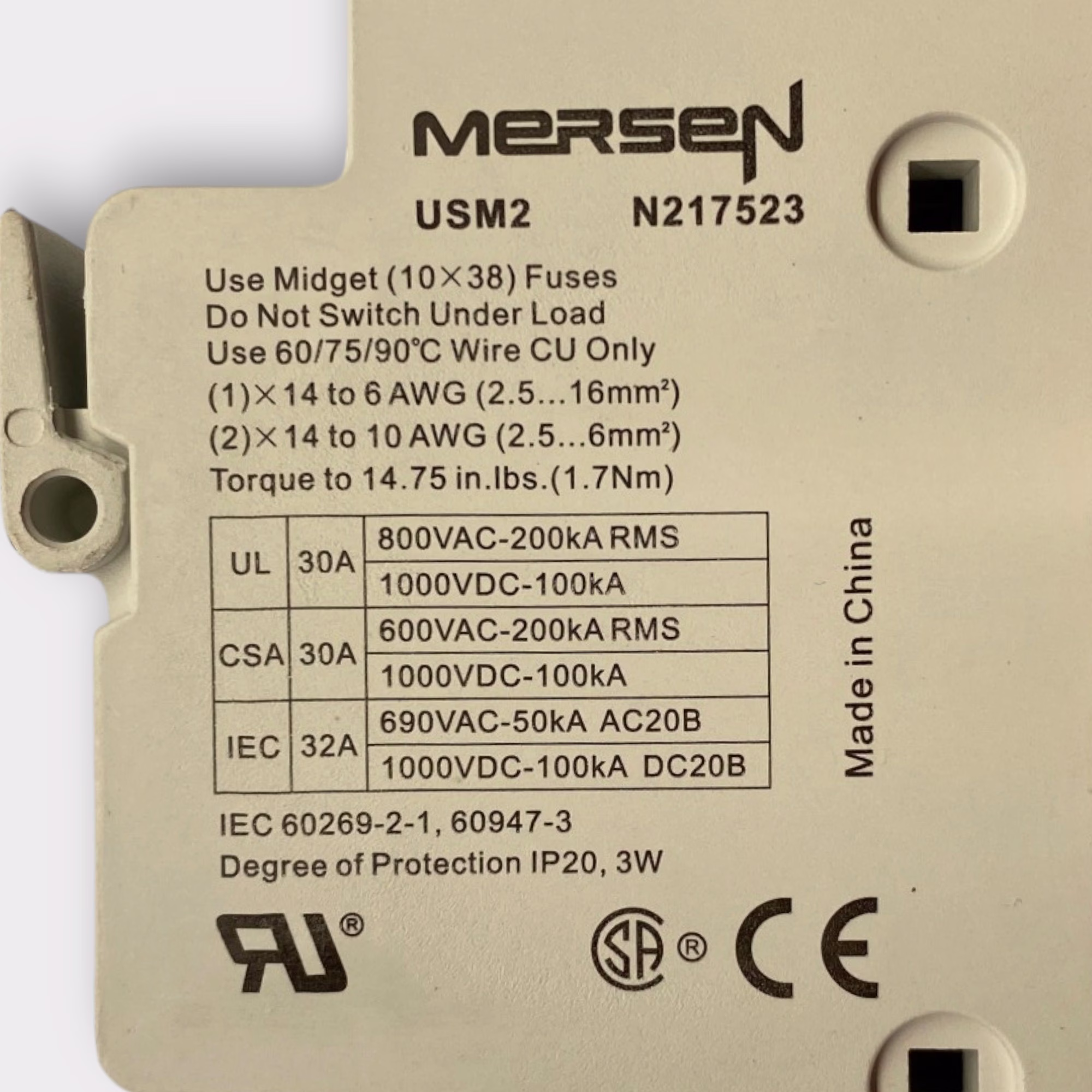

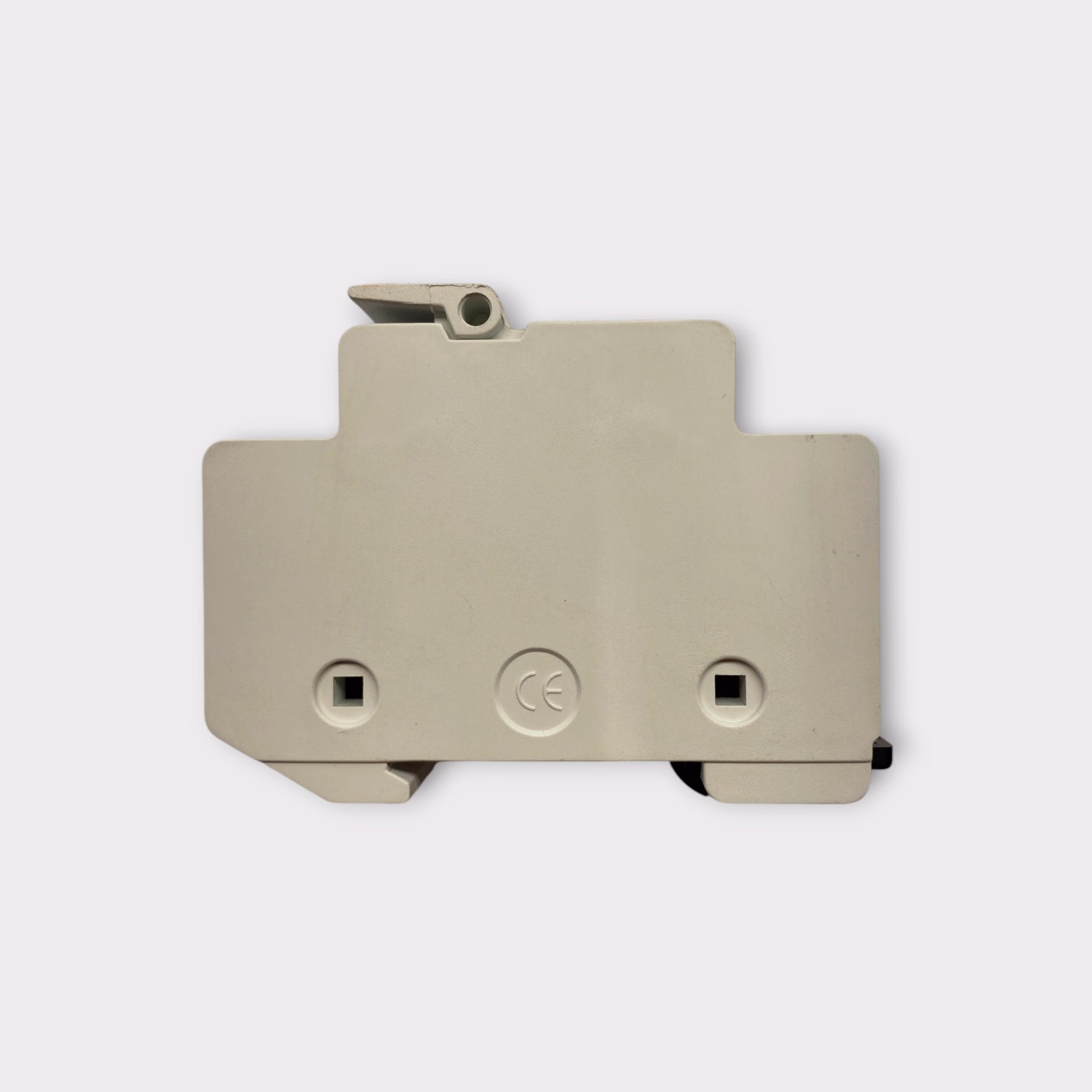

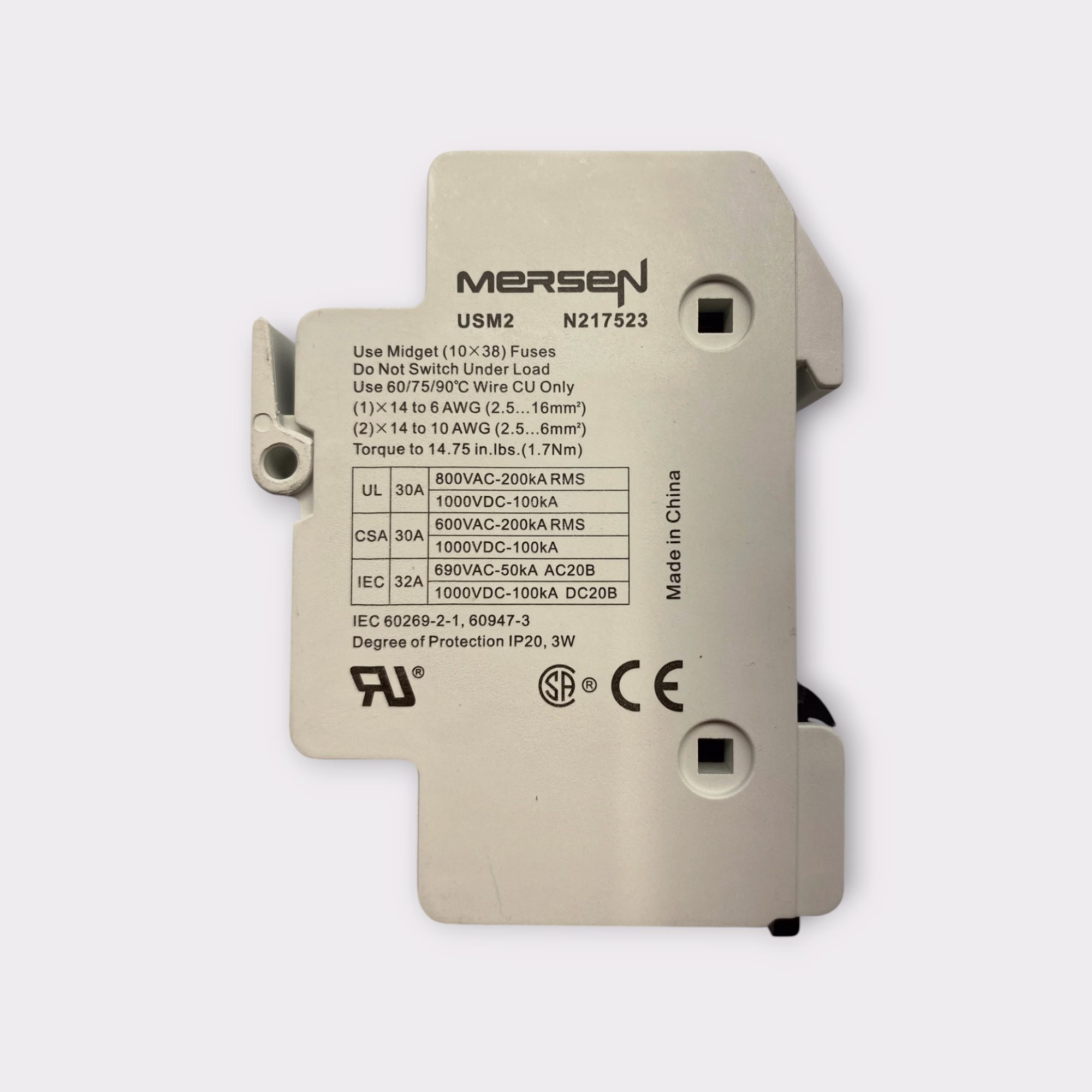

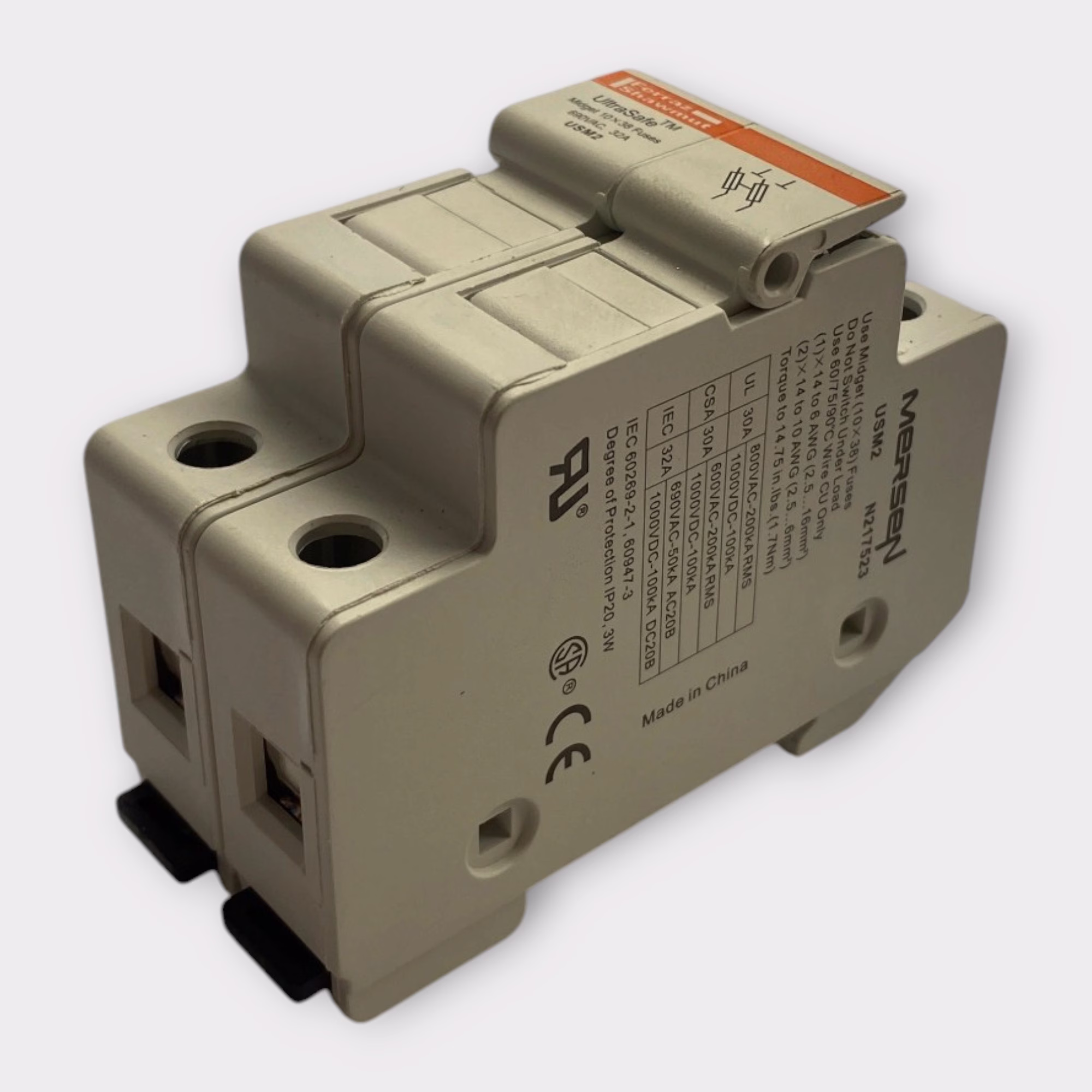

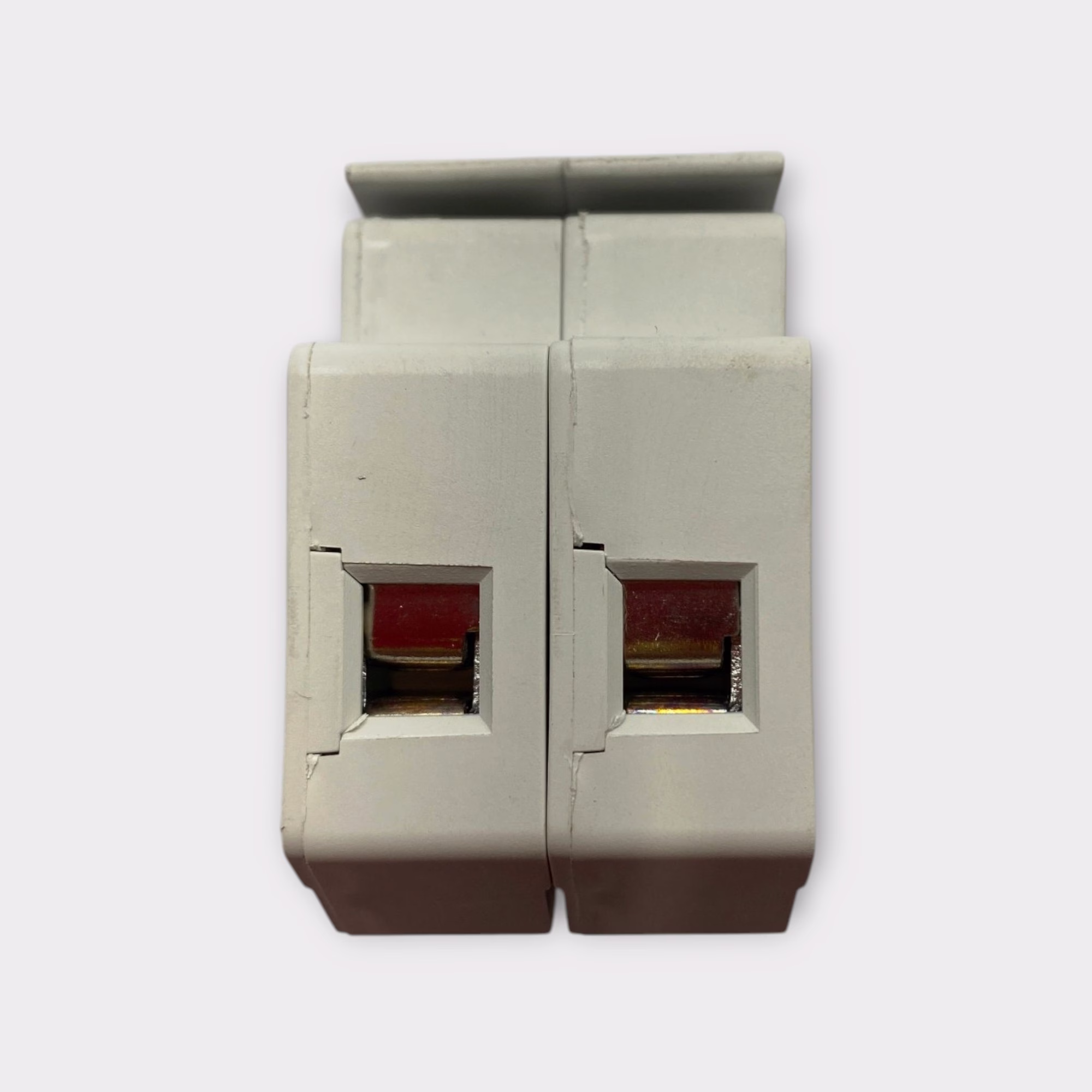

This listing is for a Mersen N217523 USM2 UltraSafe 2-Pole 30A 800VAC 1000VDC Fuse Holder - USED. Mersen N217523 USM2 UltraSafe 2-pole midget fuse holder designed for AC and DC circuit protection applications. Features a 30A rating, 800VAC/1000VDC capability, IP20 protection, and compatibility with 10 x 38mm midget fuses. Includes only fuse holder, no box or instructions, please view photos for condition. This is a multiple quantity listing and the unit that you e will receive may be different than the unit shown, but is in the same cosmetic condition.

This was part of a custom electrical/electronics cabinet that was mounted on a yacht. As the cabinet was customized for the exact application on this vessel, we have disassembled/parted the cabinet out. All parts were reported to be working, but we lack the proper equipment to test them and confirm this. As such, we are selling them as working with a 30 day period for customers to test and ensure functionality and a 90 day warranty for peace of mind.

Product Information:
- Manufacturer - Mersen
- Reference Number - N217523
- Catalog Number - USM2
- Series - UltraSafe USM
- Product Type - Midget Fuse Holder
- Number of Poles - 2
- Ampere Rating - 30A
- Rated Voltage AC - 800VAC
- Rated Voltage DC - 1000VDC
- Fuse Size - Midget 10 x 38mm
- Frequency - 50/60 Hz
- Mounting - 35mm DIN Rail
- Connection Type - Pressure Plate
- Protection - IP20 Finger-Safe
- Body Material - Polyamide
- Wire Size - (1) x 14 to 6 AWG (2.5–16mm²)
- Dual Wire Size - (2) x 14 to 10 AWG (2.5–6mm²)
- Terminal Torque - 14.75 in-lbs (1.7Nm)
- UL Rating - 30A
- UL Interrupt Rating - 800VAC - 200kA RMS / 1000VDC - 100kA
- CSA Rating - 30A
- CSA Interrupt Rating - 600VAC - 200kA RMS / 1000VDC - 100kA
- IEC Rating - 32A
- IEC Interrupt Rating - 690VAC - 50kA AC20B / 1000VDC - 100kA DC20B
- Degree of Protection - IP20
- Power Dissipation - 3W
- Country of Origin - China
