Description
Manufacturer: Mercury
Series: Transducer Accessories
Listed Item Condition: New
Additional Notes: We are selling the connector and wiring diagram for Mercury Smartcraft transducers, both depth and speed/temp. We noticed a lot of listings on eBay that do not include this part, so we decided to provide a genuine replacement. We also noticed that there are 3 different possible color combinations of the harness wires, which is a function of both the functionality of the transducer (depth vs speed/temp) and a function of what multi-core cable Airmar was using at the time. We have included all 3 combinations in our diagram.
What’s Included:

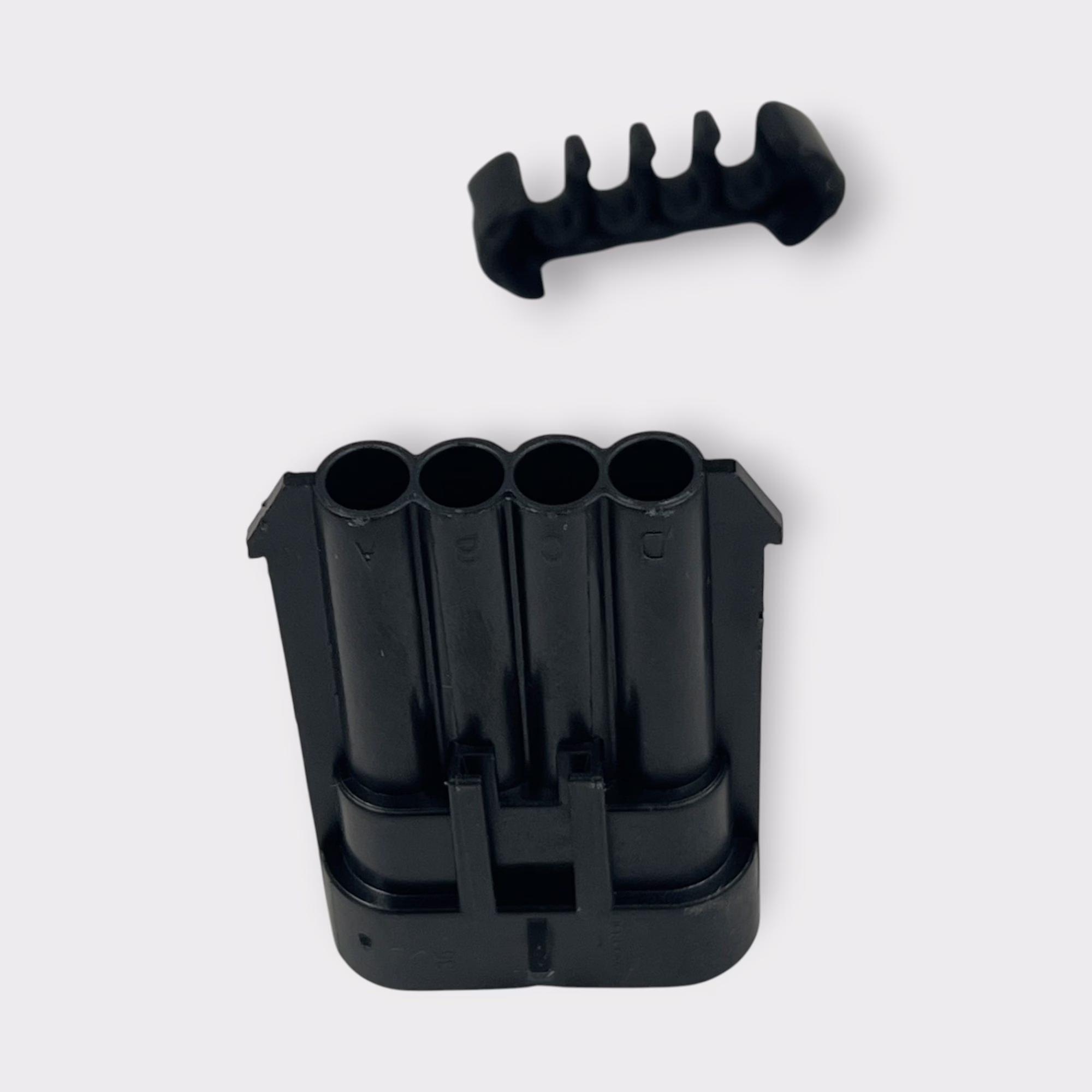

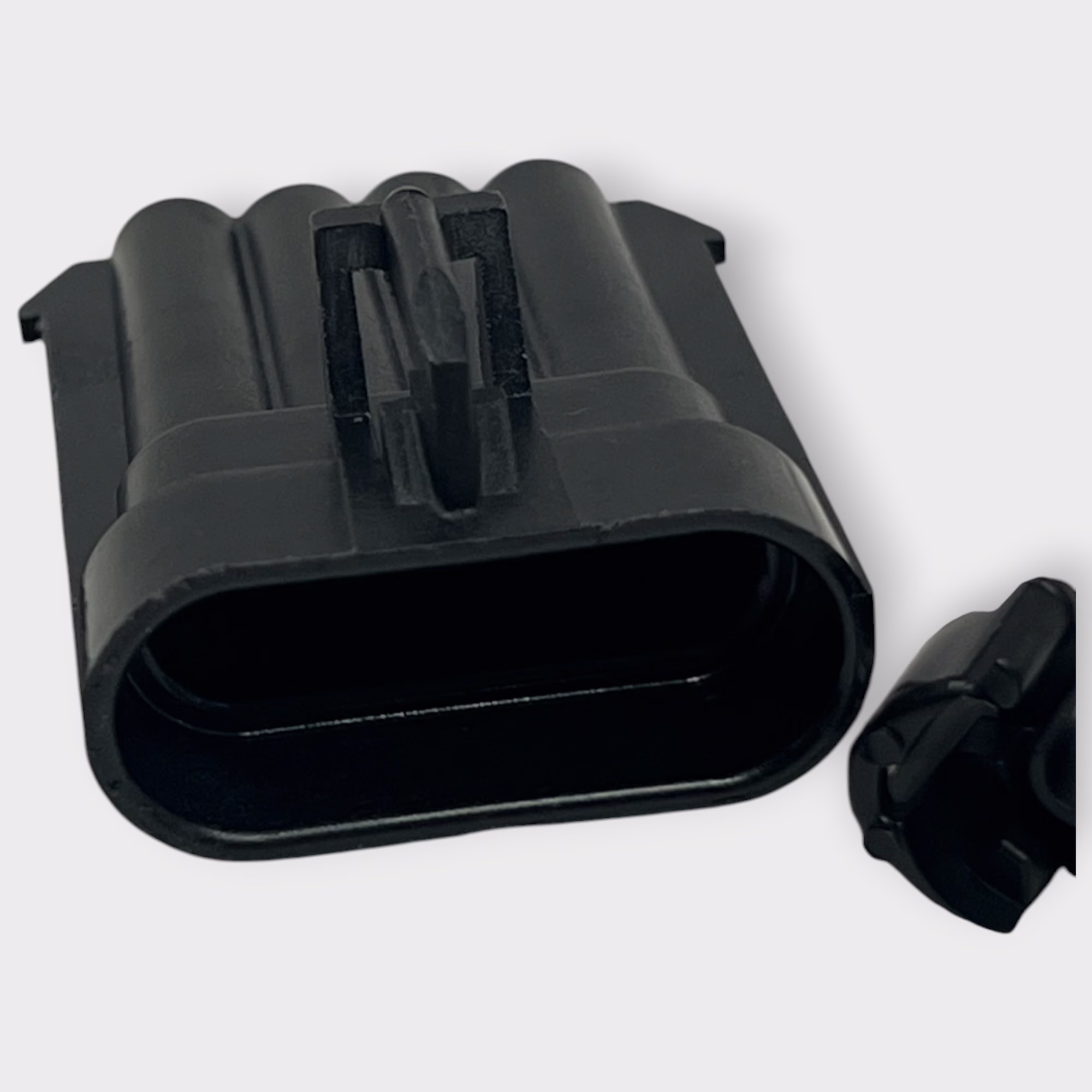

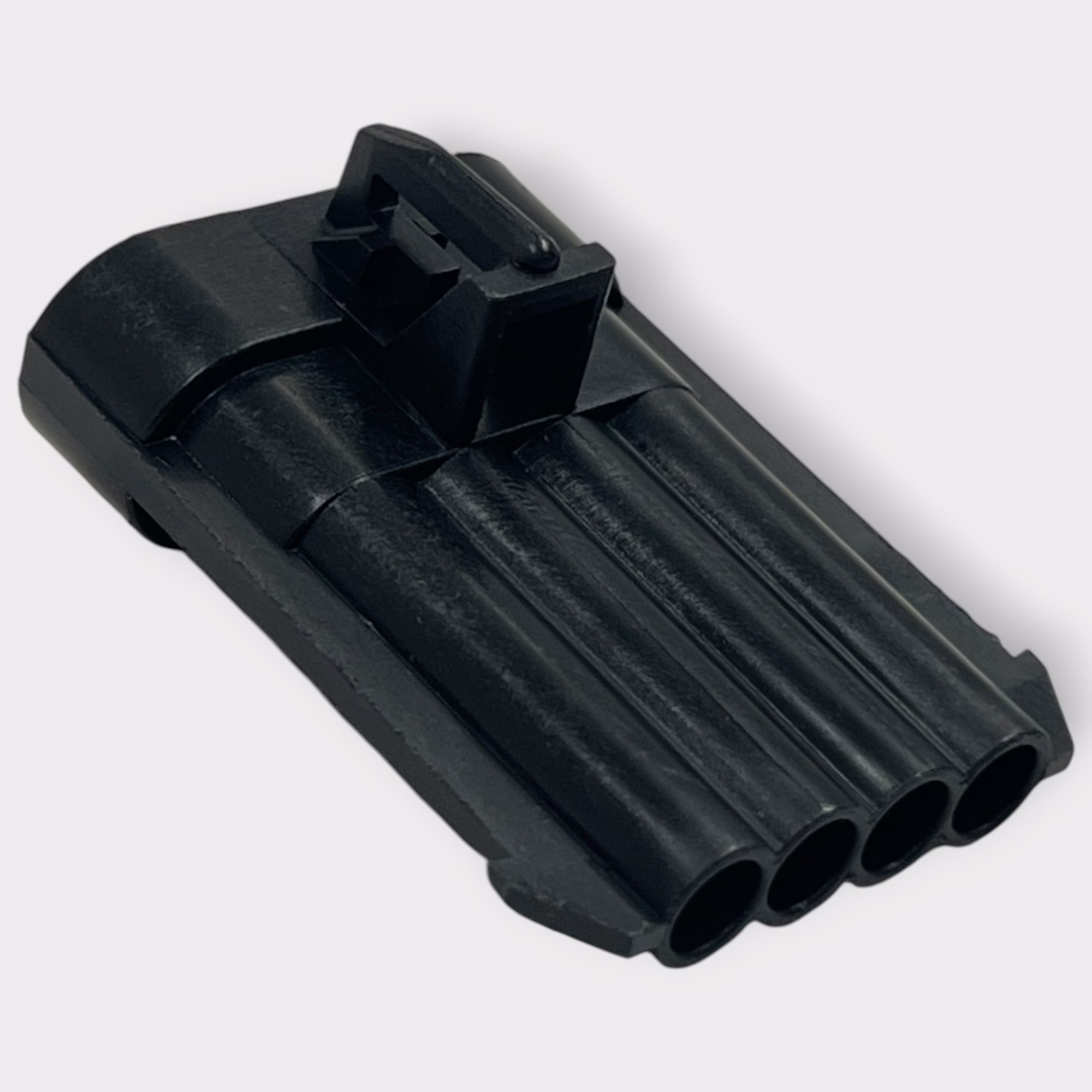

- 4 Pin Connector Housing

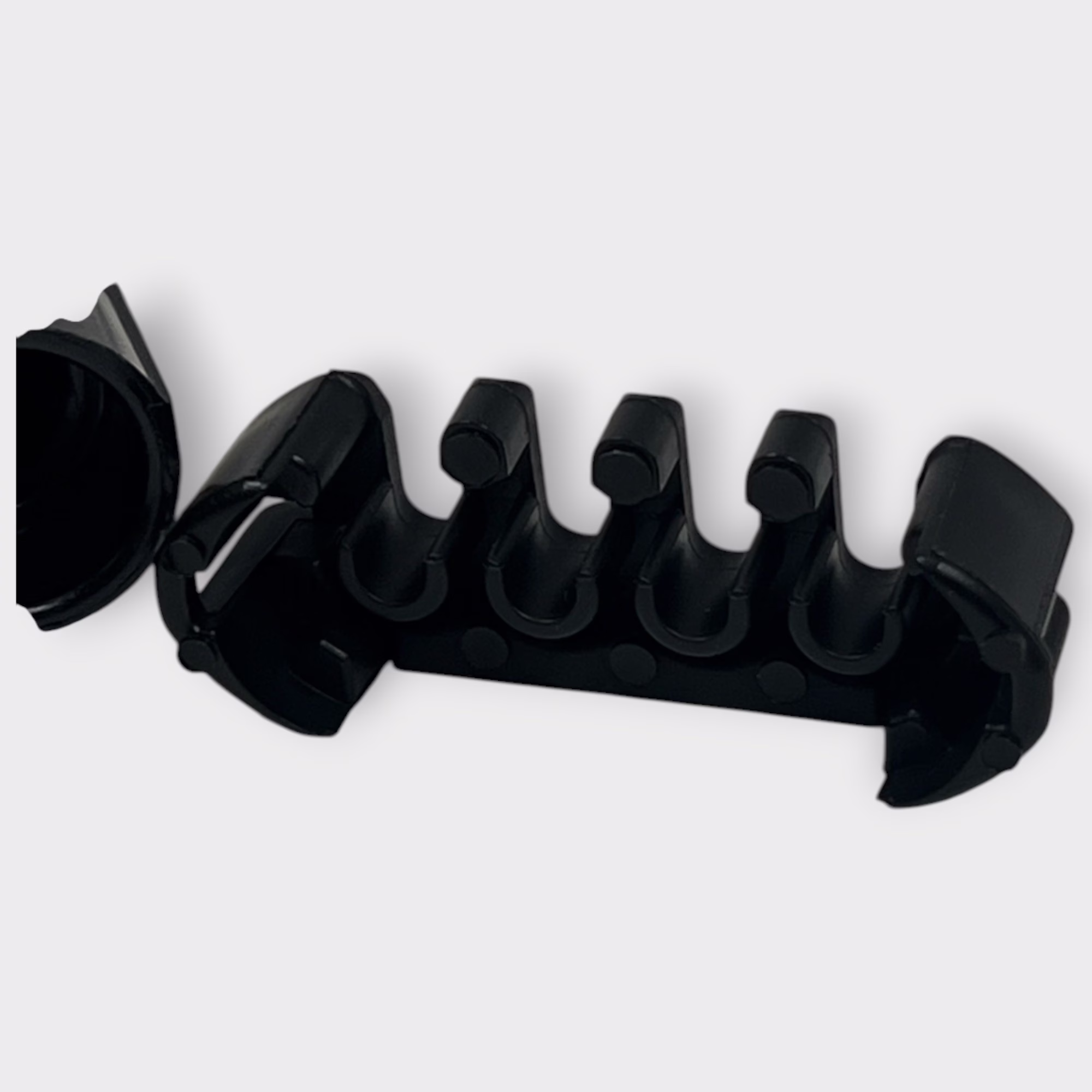

- Locking Clip

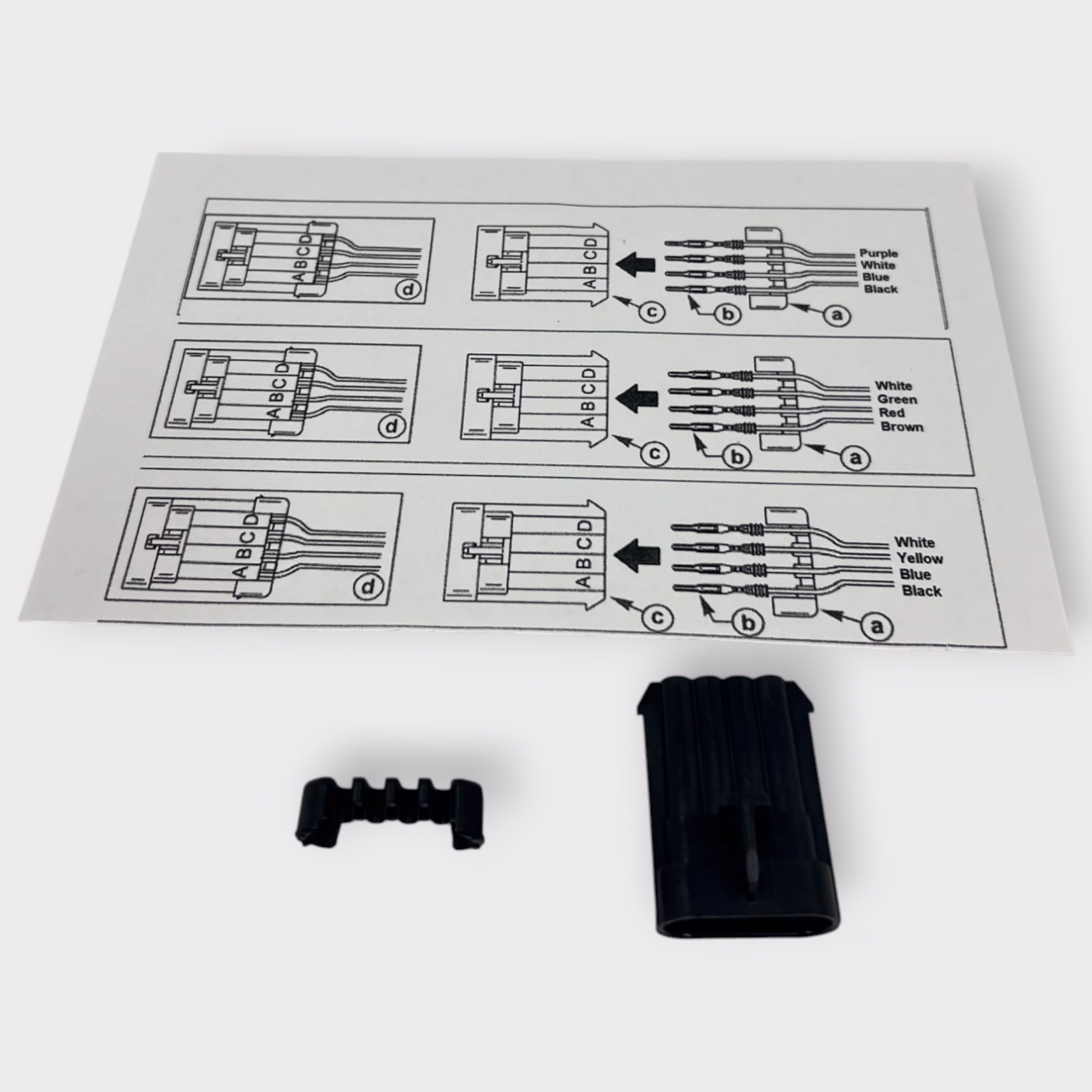

- Wiring Diagram
Compatible Parts: Mercury Smartcraft Depth & Speed/Temp Transducers that utilize the 4-pin transducer/sensor connection
Dimensions (L x W x H): 3 x 2 x 1 in, Weight: .1 lbs
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.
Return Info: 30-Day Returns
Warranty Info: Not Applicable (Warranty information not included in product description)
