Manufacturer: Maretron
Model Number: FA-CF-90
Series: Micro/Mid NMEA 2000
MPN: FA-CF-90
Listed Item Condition: New/New Other
Summary
- Maretron FA-CF-90 Micro/Mid NMEA 2000 90-degree female field-attachable connector designed for creating custom marine network cable assemblies and terminating compatible NMEA 2000 bulk cable. This five-contact right-angle connector features color-coded screw terminals, a rugged black nylon housing, and an IP67 environmental protection rating.
- This item is new old stock (NOS), unused and uninstalled. Minor cosmetic blemishes or packaging wear from long-term storage and handling may be present. Please review all photos for the exact item, condition, and components included.
- Listing is for one Maretron FA-CF-90 90-degree female connector only.
Product Description

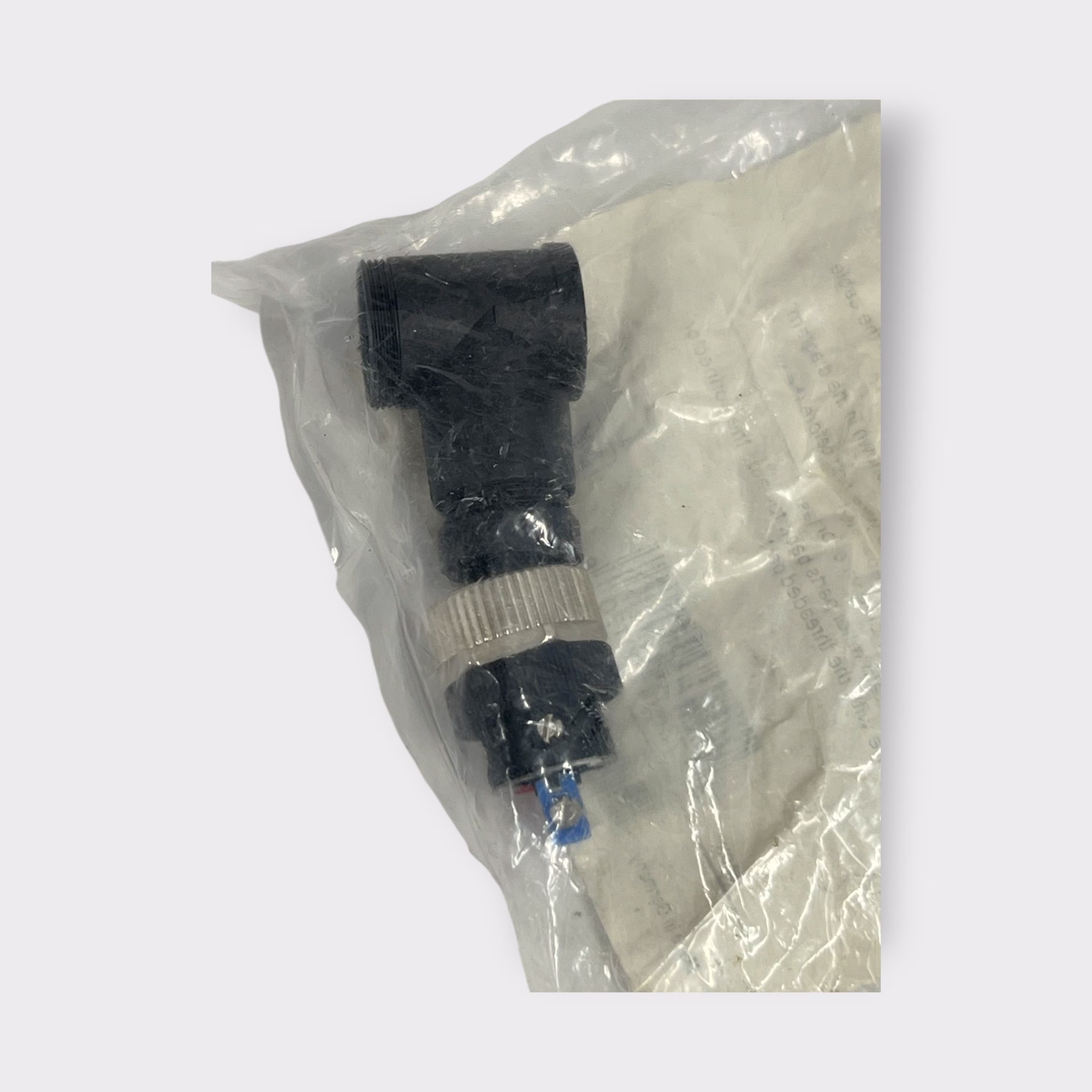

- The Maretron FA-CF-90 is a professional marine networking connector designed for field installation onto compatible NMEA 2000 Micro/Mid bulk cable. Its 90-degree female configuration provides a compact cable connection where installation space is limited or where routing a straight connector would require an undesirable cable bend.
- This design is especially useful behind marine multifunction displays, navigation equipment, electronic enclosures, and other NMEA 2000 network devices requiring a right-angle female connection.
- The connector features five electrical contacts and color-coded screw terminals that correspond to the conductors in NMEA 2000 network cable. The screw-terminal design enables custom cable fabrication and repair without soldering.
- Maretron specifies a black nylon housing, Optaloy-plated brass contacts, and a nickel-plated brass coupling nut. The connector accommodates cables measuring 6–8 mm in outside diameter and conductor sizes up to 18 AWG.
- The FA-CF-90 is rated for 4 amps, with a maximum voltage rating of 30V AC or 36V DC. Its IEC IP67 environmental protection rating and operating temperature range of -40°C to +85°C make it suitable for properly assembled marine network installations.
- The connector is NMEA 2000 approved and conforms to IEC 61162-3. It can be used in compatible NMEA 2000 network installations for custom-length cable assemblies, replacement connectors, and cable routing in confined spaces.
- Proper installation requires preparing compatible bulk network cable and securing each conductor to its corresponding terminal following Maretron's wiring instructions. The specified environmental protection rating applies when the connector is correctly assembled and installed.
- Please verify connector gender, cable dimensions, and network compatibility before purchasing.
Product Information
- Manufacturer: Maretron
- Model Number: FA-CF-90
- Series: Micro/Mid NMEA 2000
- MPN: FA-CF-90
- Product Type: Marine Network Field-Attachable Connector
- Connector Type: NMEA 2000 Micro/Mid Female
- Connector Orientation: 90 Degree Right Angle
- Number of Contacts: 5
- Termination Type: Color-Coded Screw Terminals
- Mounting Type: Cable Mount / In-Line
- Compatible Network: NMEA 2000
- Maximum Wire Size: 18 AWG (1.02 mm)
- Compatible Cable Outside Diameter: 6–8 mm
- Rated Current: 4 A
- Rated Voltage: 30 V AC / 36 V DC
- Environmental Protection Rating: IEC IP67
- Operating Temperature: -40°C to +85°C
- Housing Material: Nylon
- Housing Color: Black
- Contact Material: Brass
- Contact Finish: Optaloy
- Coupling Nut Material: Brass
- Coupling Nut Finish: Nickel Plated
- NMEA Approval: NMEA 2000 Approved
- IEC Standard: IEC 61162-3
- Manufacturer Drawing Dimensions: Approximately 40 mm x 39.4 mm
- Country of Origin: Not Verified
- UPC: 873804001708
- Condition: New Old Stock
Included

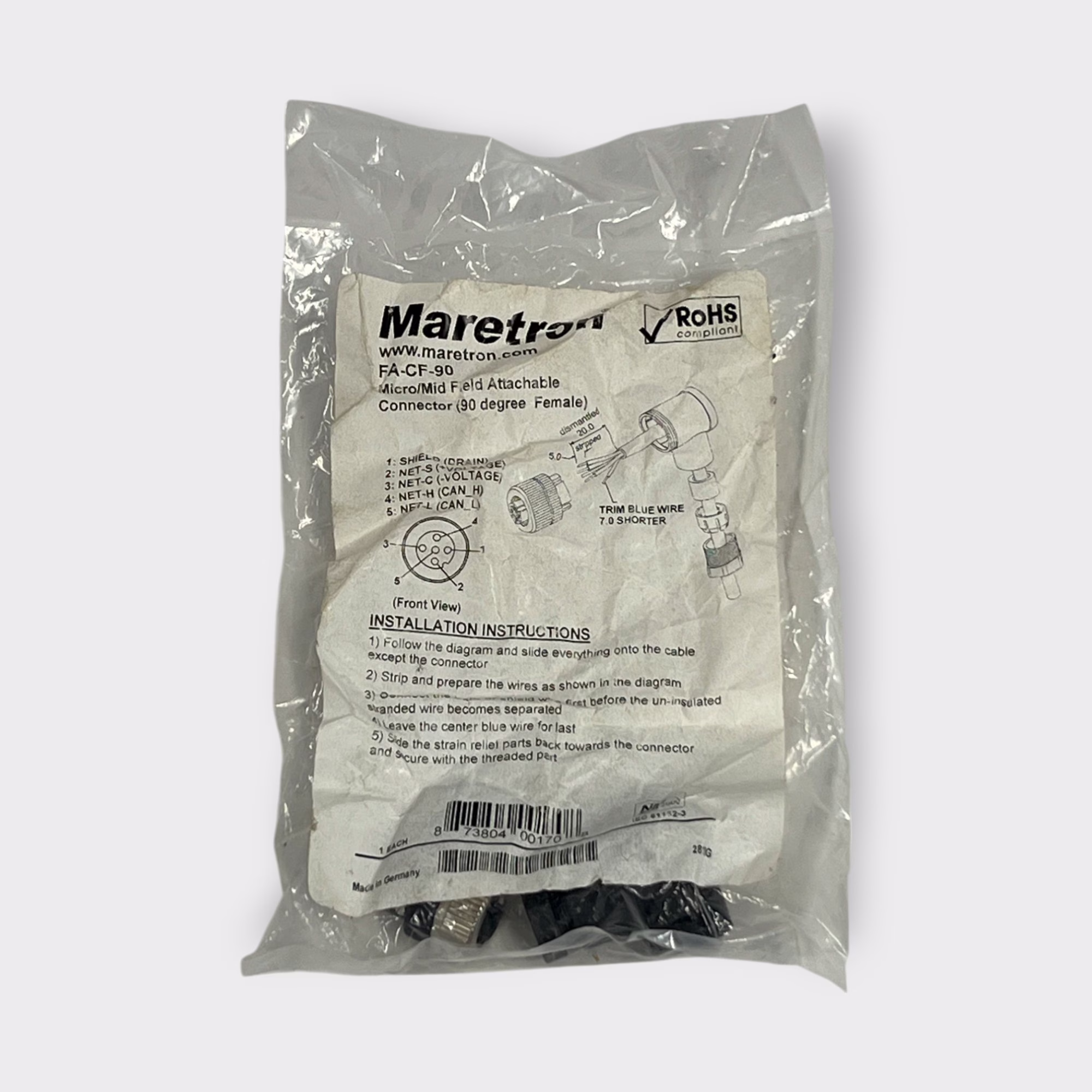

- (1) Maretron FA-CF-90 Micro/Mid NMEA 2000 90-Degree Female Field-Attachable Connector
- Connector Components as Shown in Product Photos
Not Included
- NMEA 2000 Bulk Cable
- NMEA 2000 Network Devices
- Cable Installation Tools
- Additional Connectors or Accessories Not Shown in Photos
What's Included:
- (1) Maretron FA-CF-90 Micro/Mid NMEA 2000 90-Degree Female Field-Attachable Connector
- Connector Components as Shown in Product Photos
