Manufacturer: Lowrance

Model Number: HDS7 Gen2 Touch

Series: Gen2 Touch

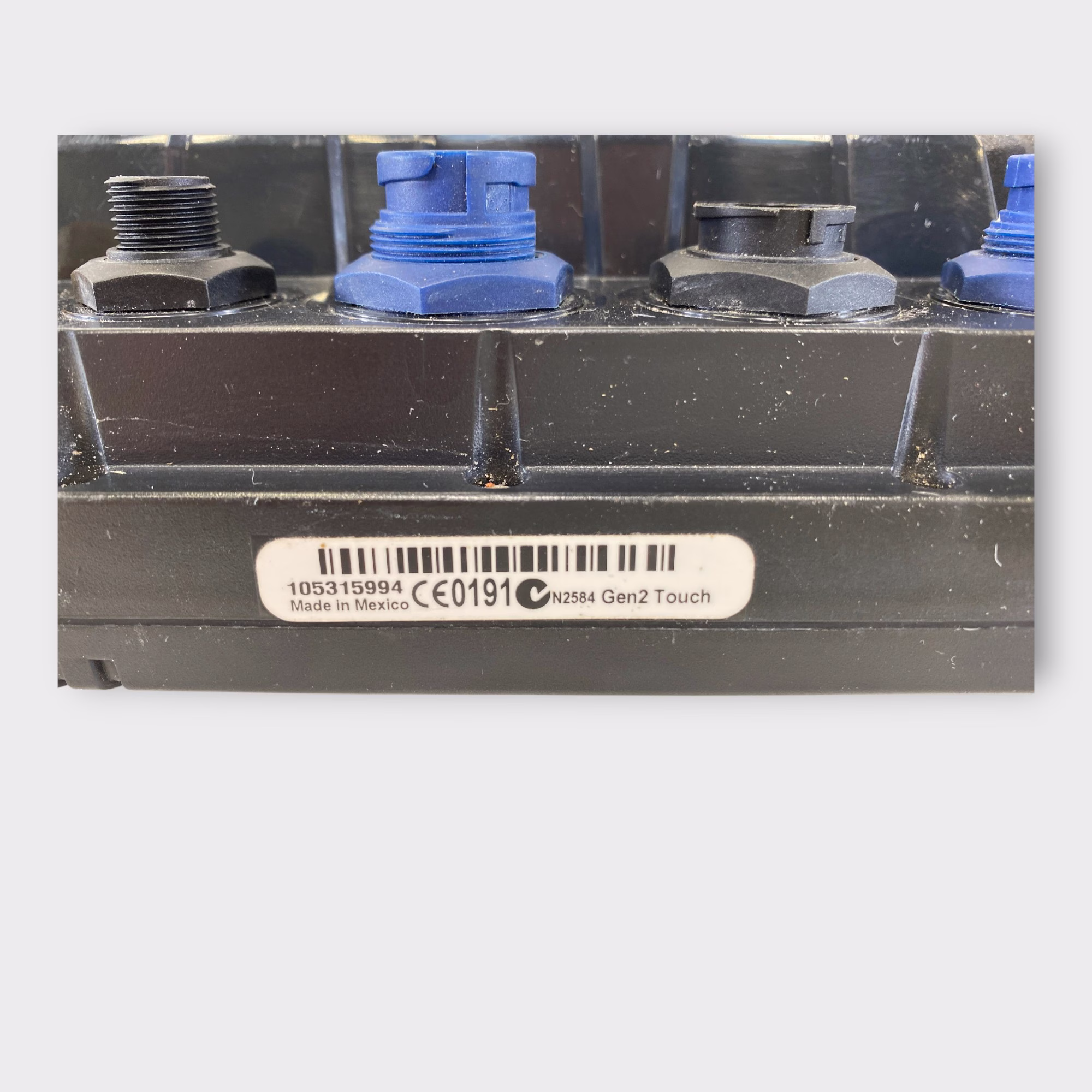

MPN: 000-10778-001

Listed Item Condition: Used

Additional Notes:

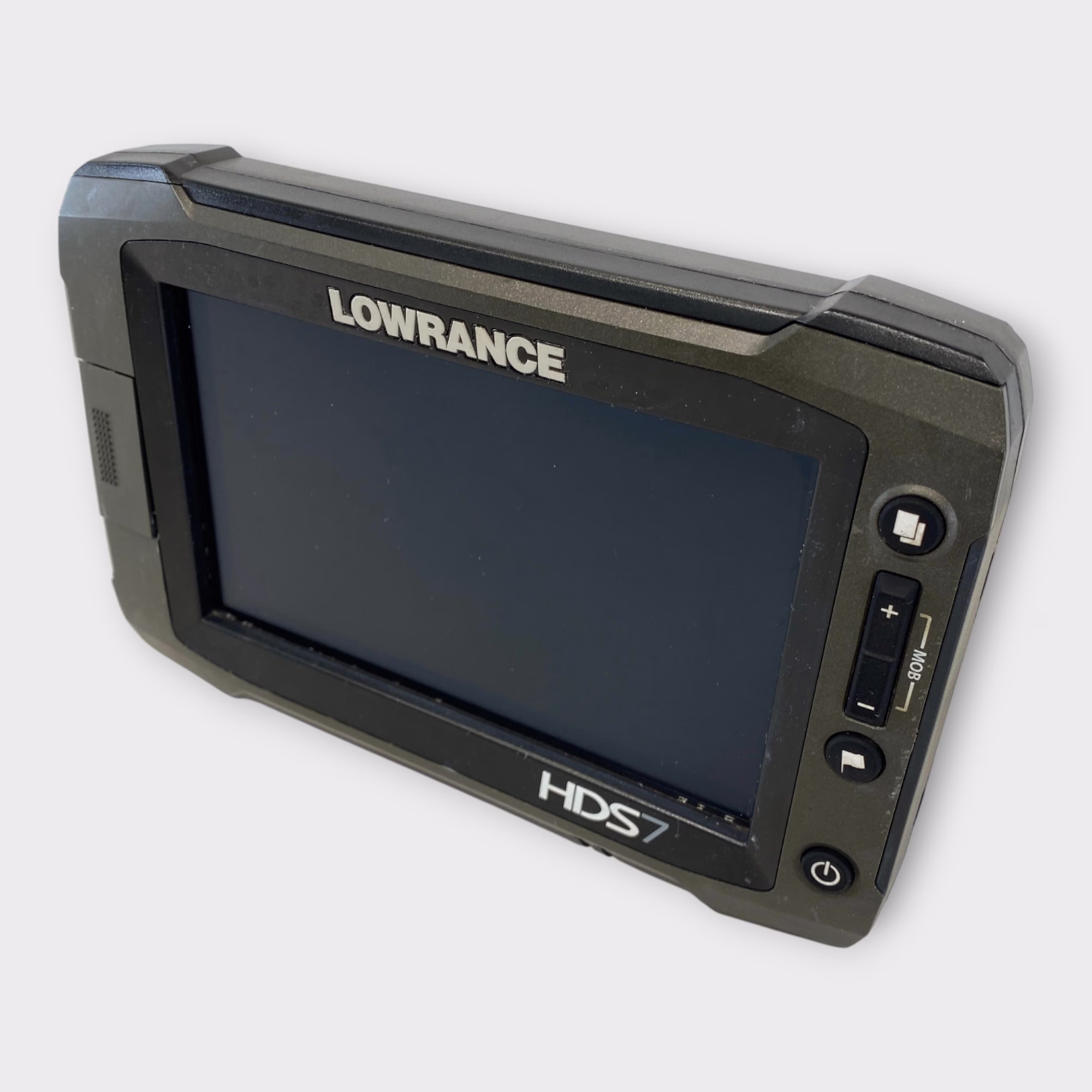

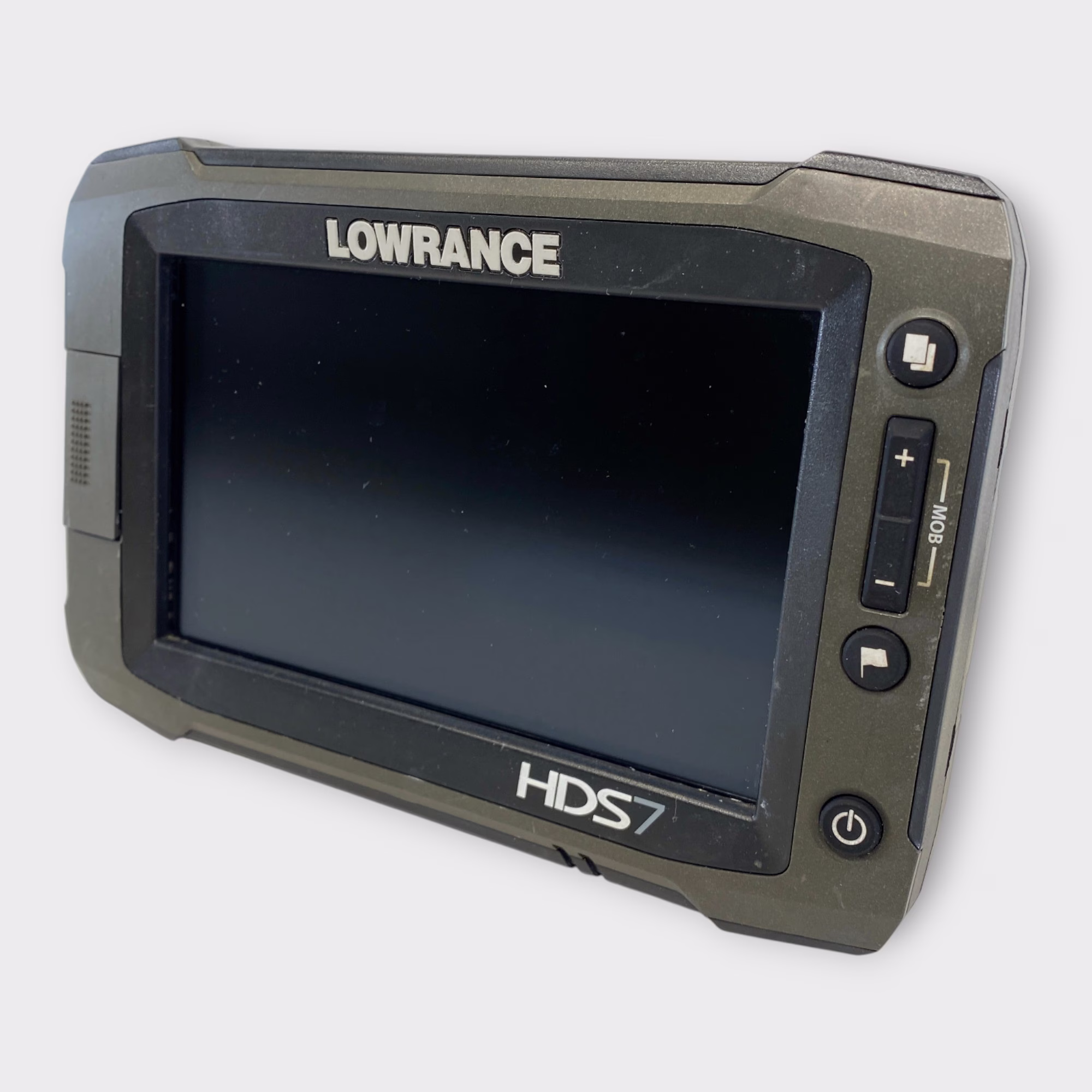

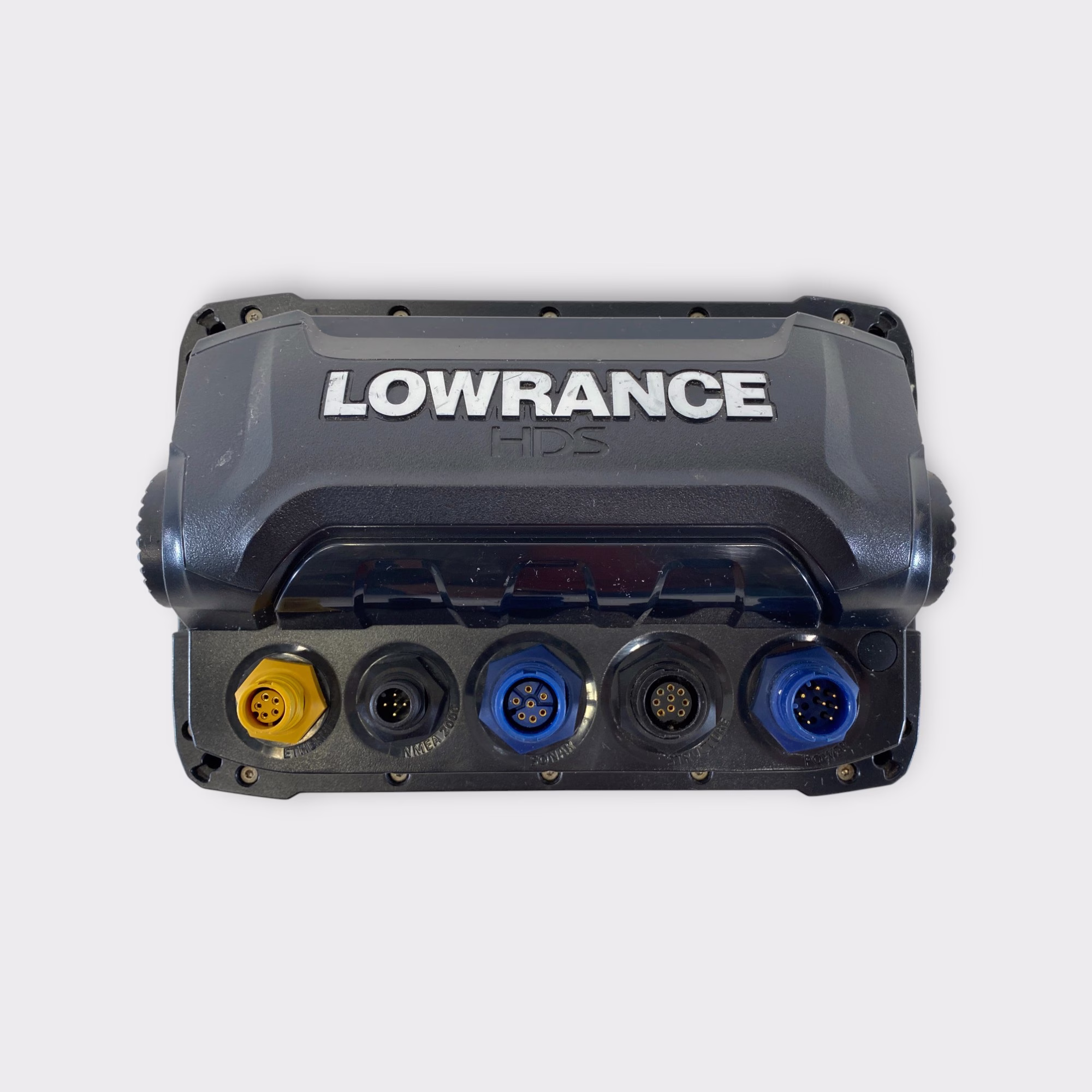

This is a Lowrance HDS7 Gen2 Touch Multifunction Display. The unit has undergone a comprehensive functionality and performance evaluation to ensure all features operate to manufacturer specifications. During testing, all primary interfaces were inspected and verified, including the chart card slot, NMEA2000 network connectivity, Ethernet/network port, power input, sonar, and StructureScan ports. Each function was individually tested under load conditions to confirm stable and consistent operation.
Chart card slot successfully recognized, read, and displayed data from multiple compatible Navionics and Lowrance chart cards without errors.
NMEA2000 interface was verified by connecting to an active network with multiple devices, confirming proper communication and data sharing across the system.
Ethernet/network port maintained stable and reliable data transmission, ensuring smooth integration with other compatible Lowrance modules.
The sonar and StructureScan ports delivered accurate signal output and return, producing clear, detailed readings across the supported frequency ranges.
Both the touchscreen and keypad controls responded quickly and smoothly, demonstrating excellent sensitivity and reliability.

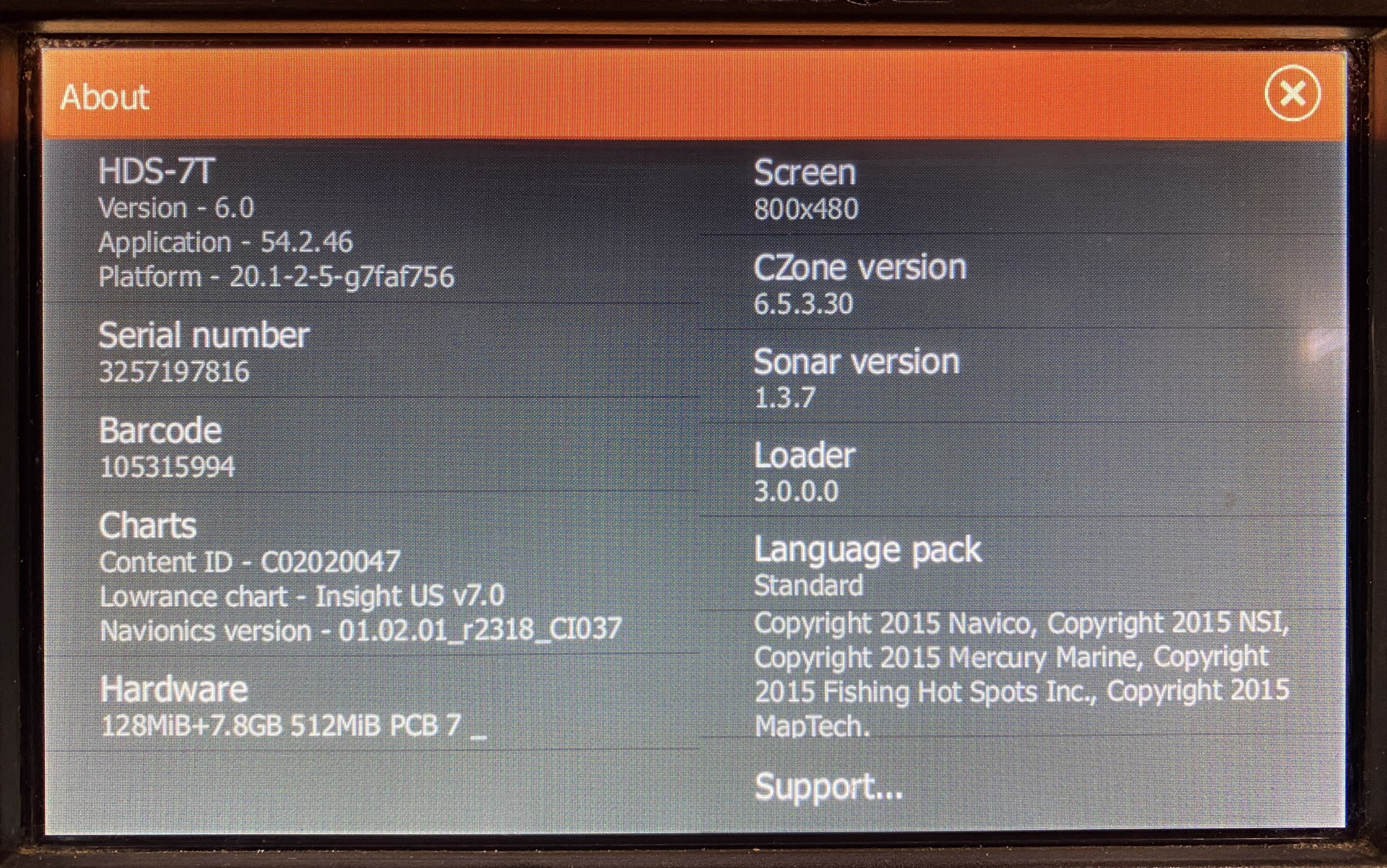

Additionally, the unit has been updated to the latest available software version, ensuring optimal performance, improved user interface functionality, and full compatibility with other Lowrance systems and accessories.

This HDS7 Gen2 Touch has passed all inspection points and is fully operational, ready for immediate use.

Please Note: The chart card door does not sit completely flush with the housing and opens with slight resistance. Despite this, the door locks securely in place and operates as intended for chart card insertion and removal. This is considered a cosmetic defect only and does not compromise the integrity or water resistance of the chart compartment. (Picture is provided)

Overview:
Display Type: Color TFT LCD touchscreen, widescreen 16:9
Screen Size: 7″ diagonal
Screen Resolution: 800 x 480
Receiver Type: Internal, high-sensitivity w/WAAS
Preloaded Cartography: Insight USA
Optional Cartography: Navionics
Transmit Power: Max. 31W (RMS actual) 250W peak
Max. Depth: 5,000′
Frequency: 83/200kHz + 455/800kHz
Data Interface: NMEA 2000, NMEA 0183, Ethernet
Voltage: 12V DC
Draw: 0.9A @ 13V DC
Dimensions: 5 3/4″H x 8 7/16″W x 3 1/4″D
Waterproof Rating: IPX7

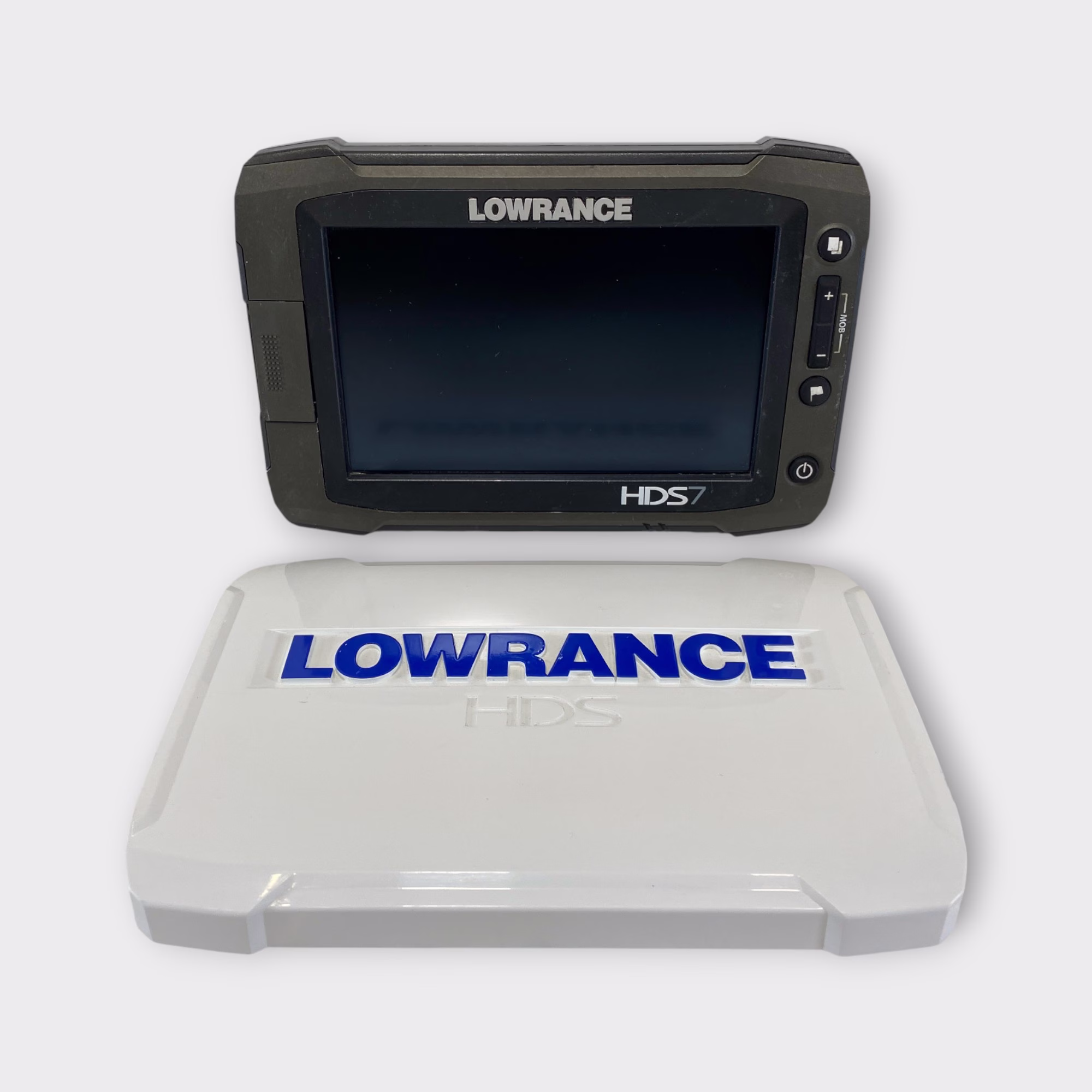

What’s Included:

• Lowrance HDS7 Gen2 Touch
• Trim Bezel
• Suncover

Compatible Parts:
WIFI-1 module, Point-1 antenna, Navionics cartography simultaneously with the charts of your choice, in 2D or 3D perspective view and many other Lowrance devices.

Dimensions (L x W x H): 9 x 4 x 6 in, Weight: 3 lbs
