Description
Manufacturer: Unknown
Model Number: Large Satellite Dome Top Plate
Condition: Used
Additional Notes: This is a plate that fits several KVH, Sea Tel, Intellian, Raymarine, and Sea King 24″ Domes. We have compiled a more detailed list of compatible domes below.
Usually the plates are designed for a modular base mount from companies like SeaView, Edson or Scanstrut, however, this doesn’t appear to be from any of those companies. This may be some sort of a retrofit plate to mount on top of a smaller plate to accept to larger satellite antenna.

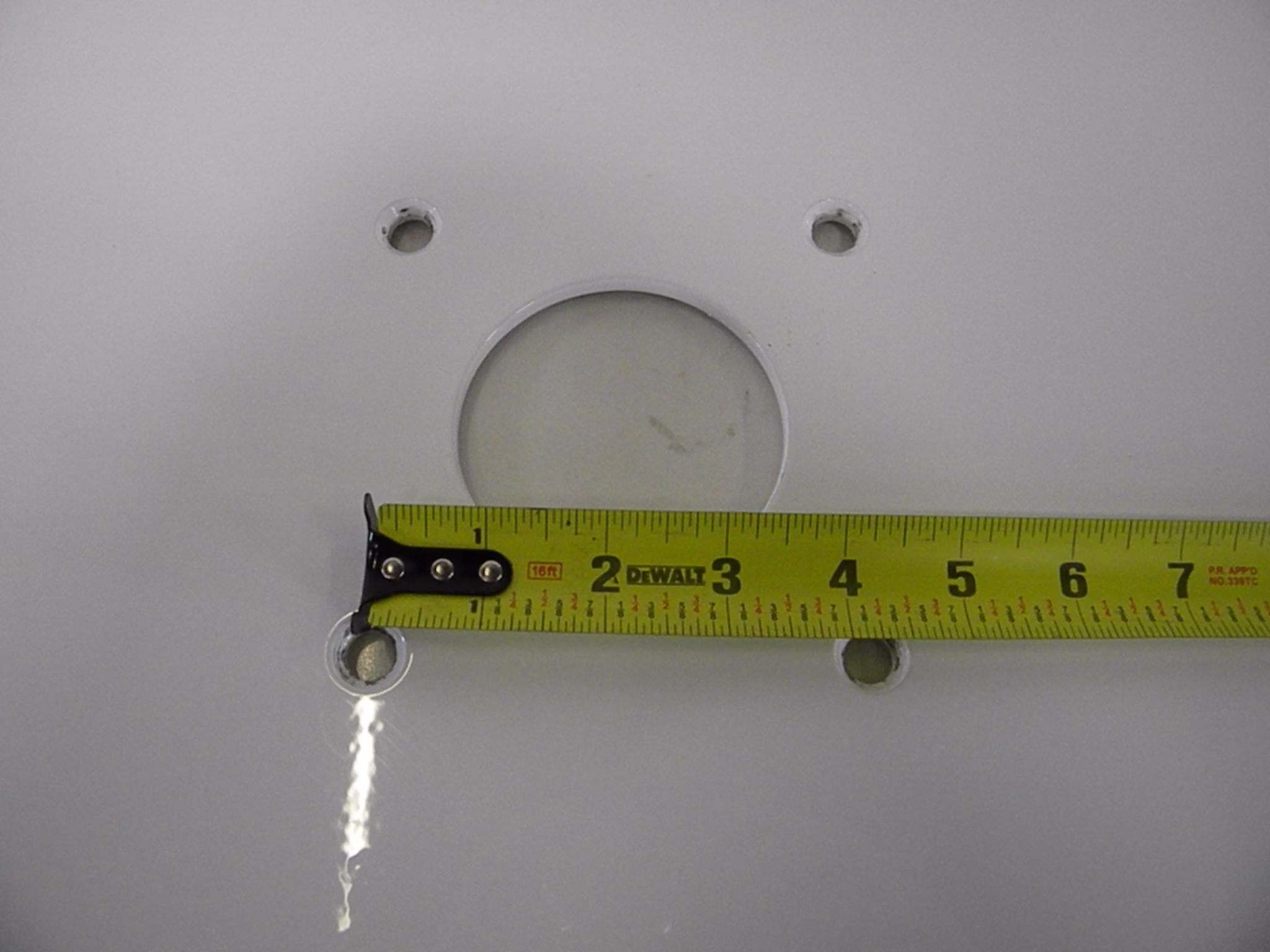

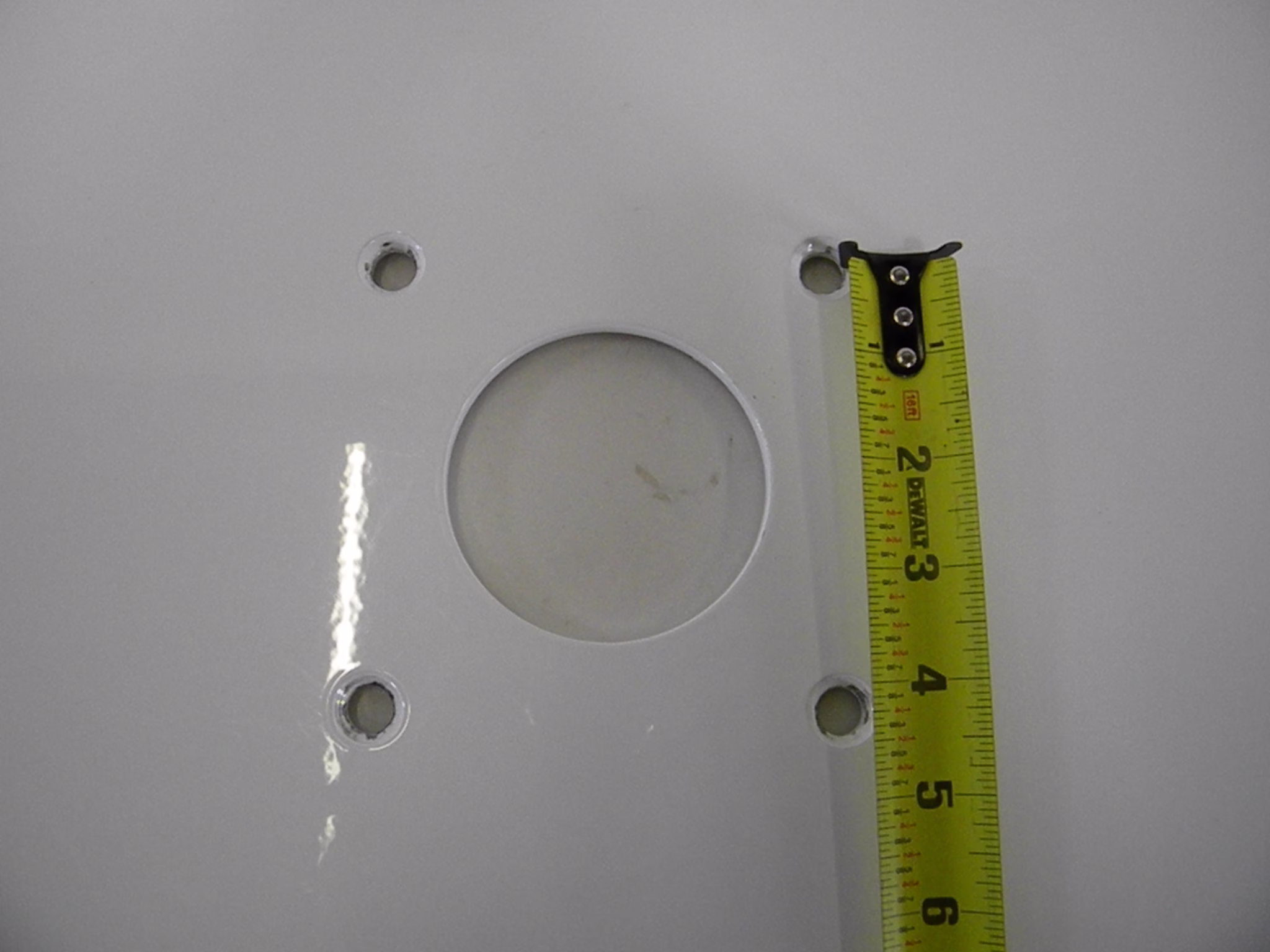

The center 4-hole pattern are spaced 4 1/4″ apart from eachother and are tapered to accept flat headed screws.

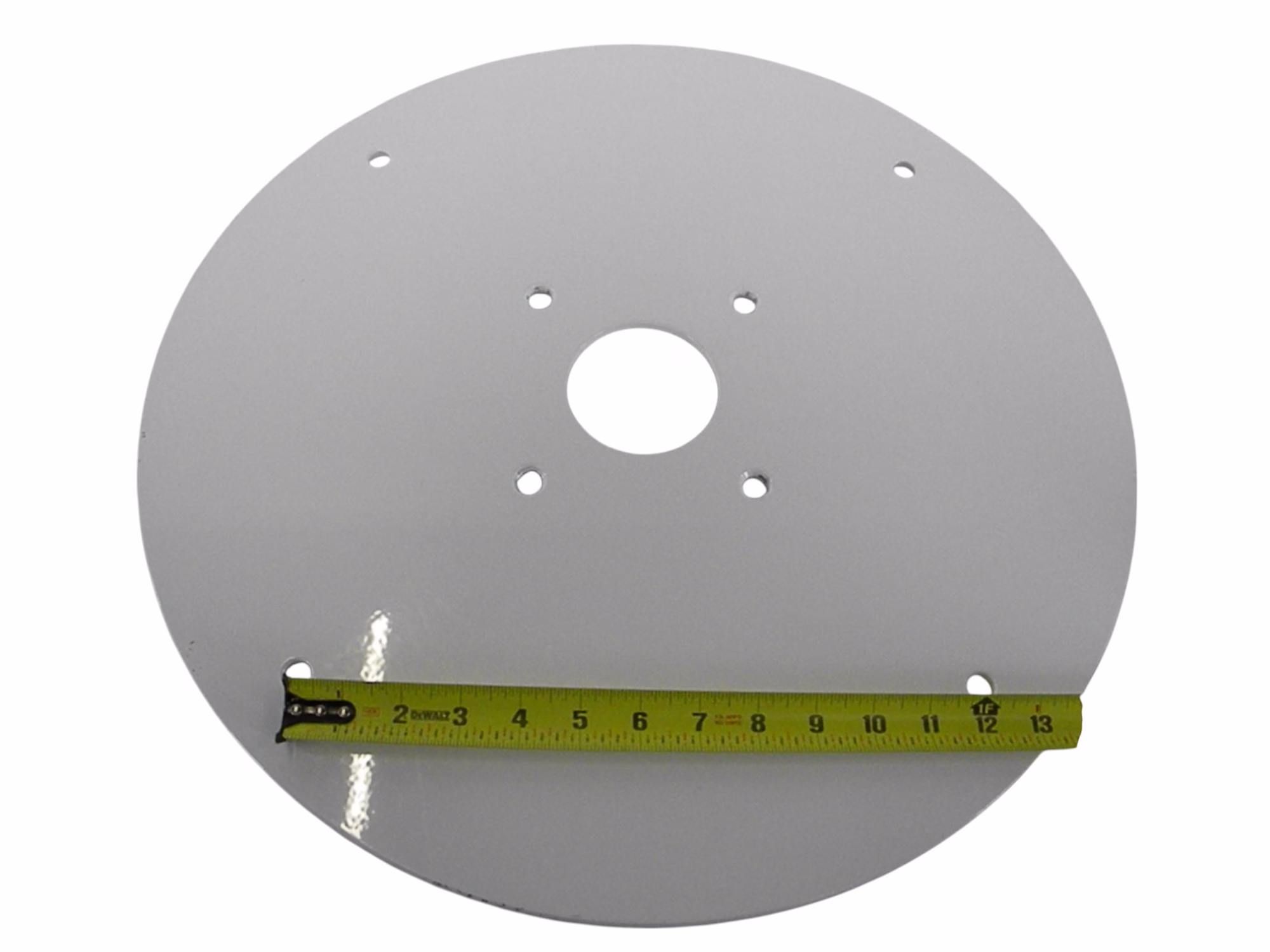

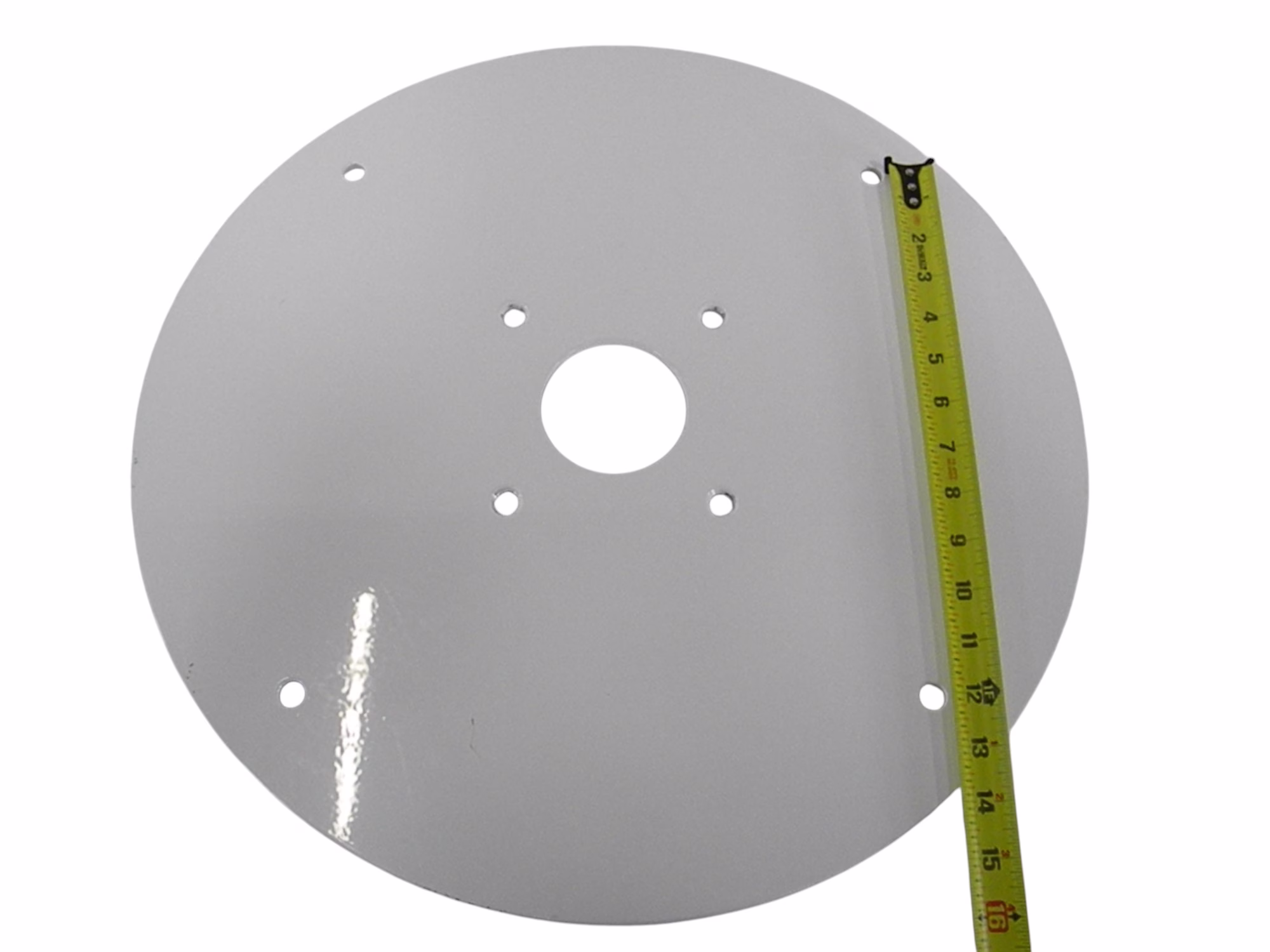

The outside holes in the top plate are spaced 12″ by 12″ apart. Please see the bolt pattern in your sat dome’s manual to make sure this top plate is right for you.
What’s Included:

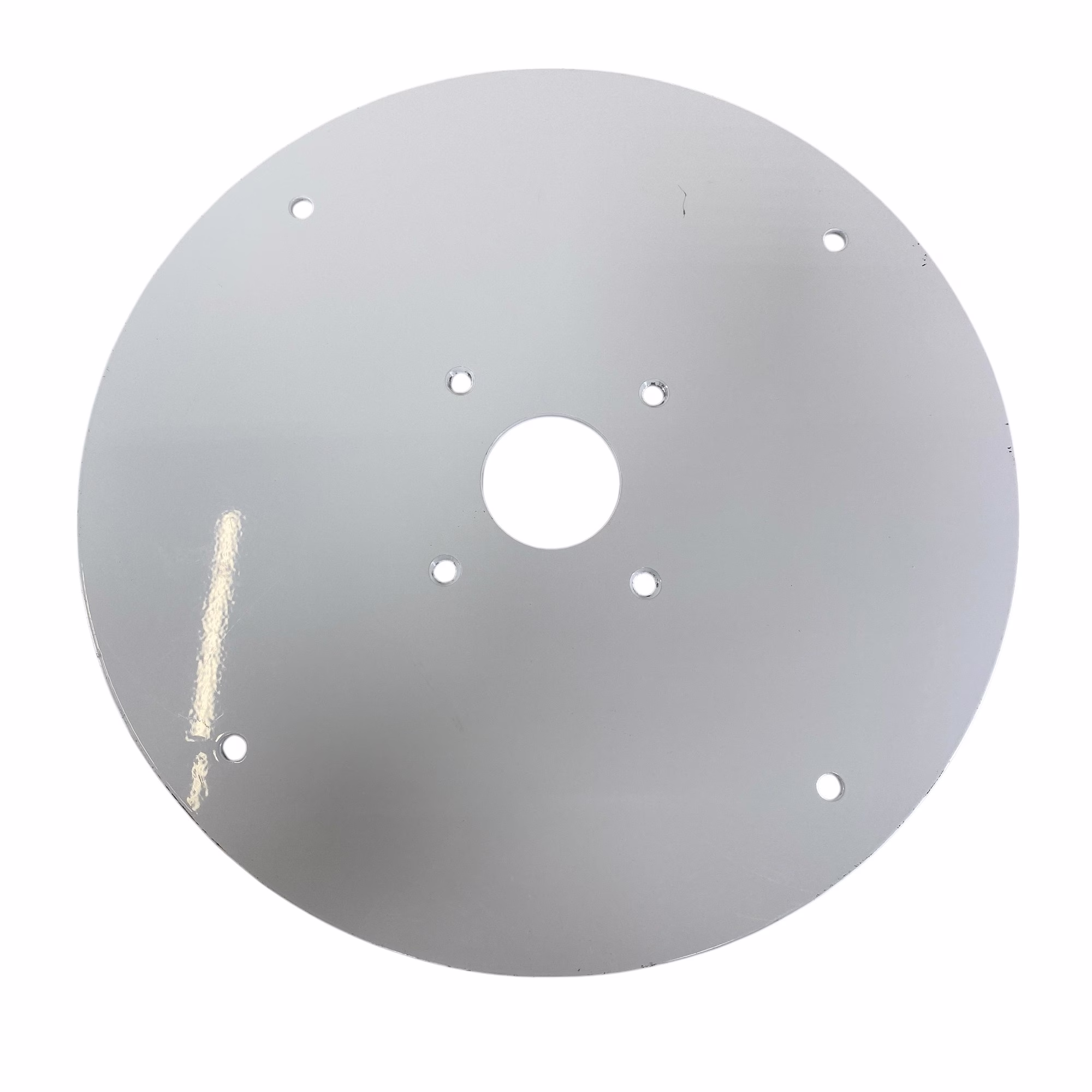

- Large White Powder Coated Aluminum Top Plate
Compatible Parts: Raymarine 60STV
Intellian i6, K6, d6, S60, FB500
KVH TracPhone V7, TV6, HD7
Cobham (Thrane & Thrane) – Sailor 500, & FB500

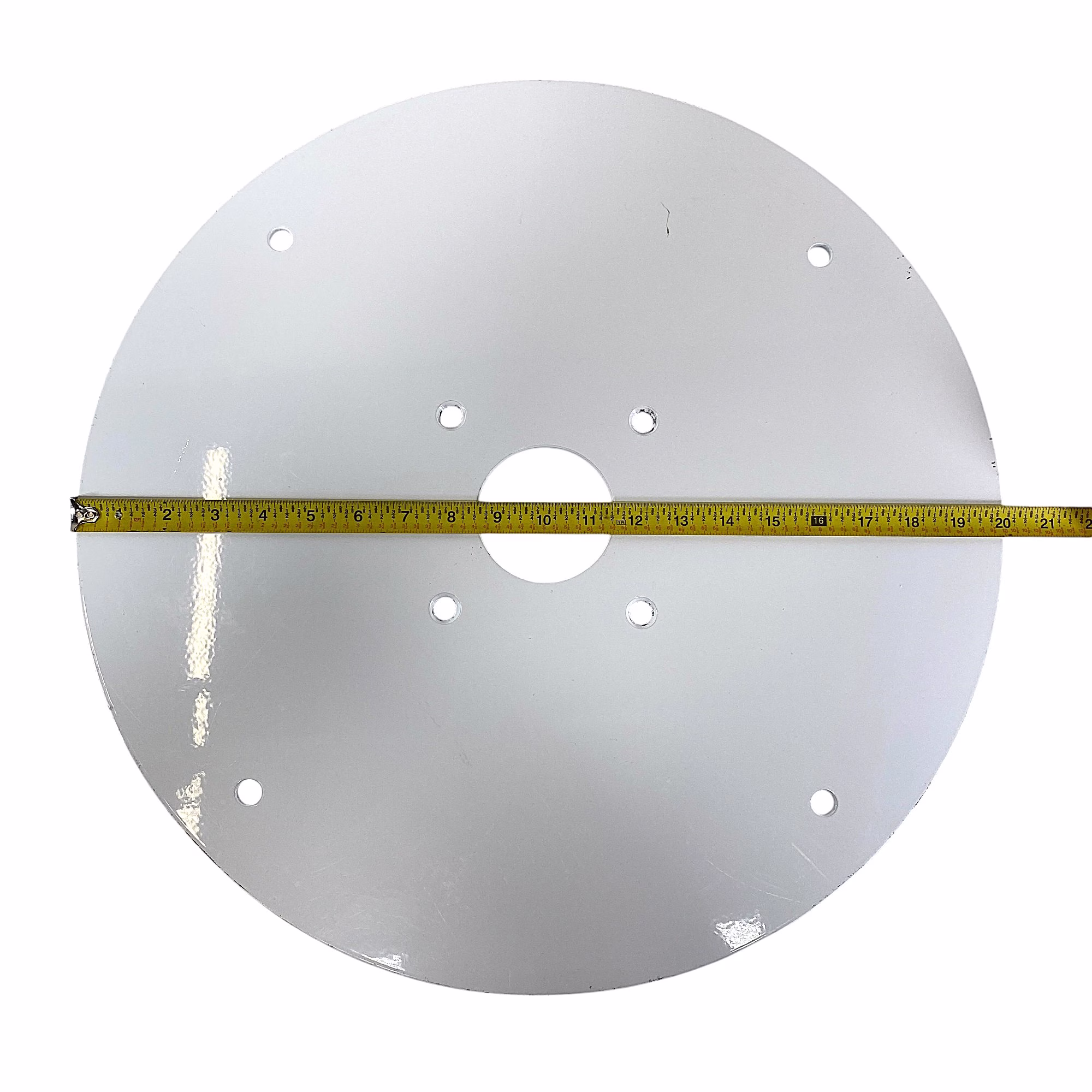

Dimensions (L x W x H): 20 x 20 x .5 in, Weight: 7.5 lbs
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
