Manufacturer: Lake Cable

Model Number: Lake Cable 18 AWG 12-Pair SPOS Instrumentation Tray Cable (PLTC/ITC) 300V 105C

MPN: T1812SPOS

Listed Item Condition: New other (see details)

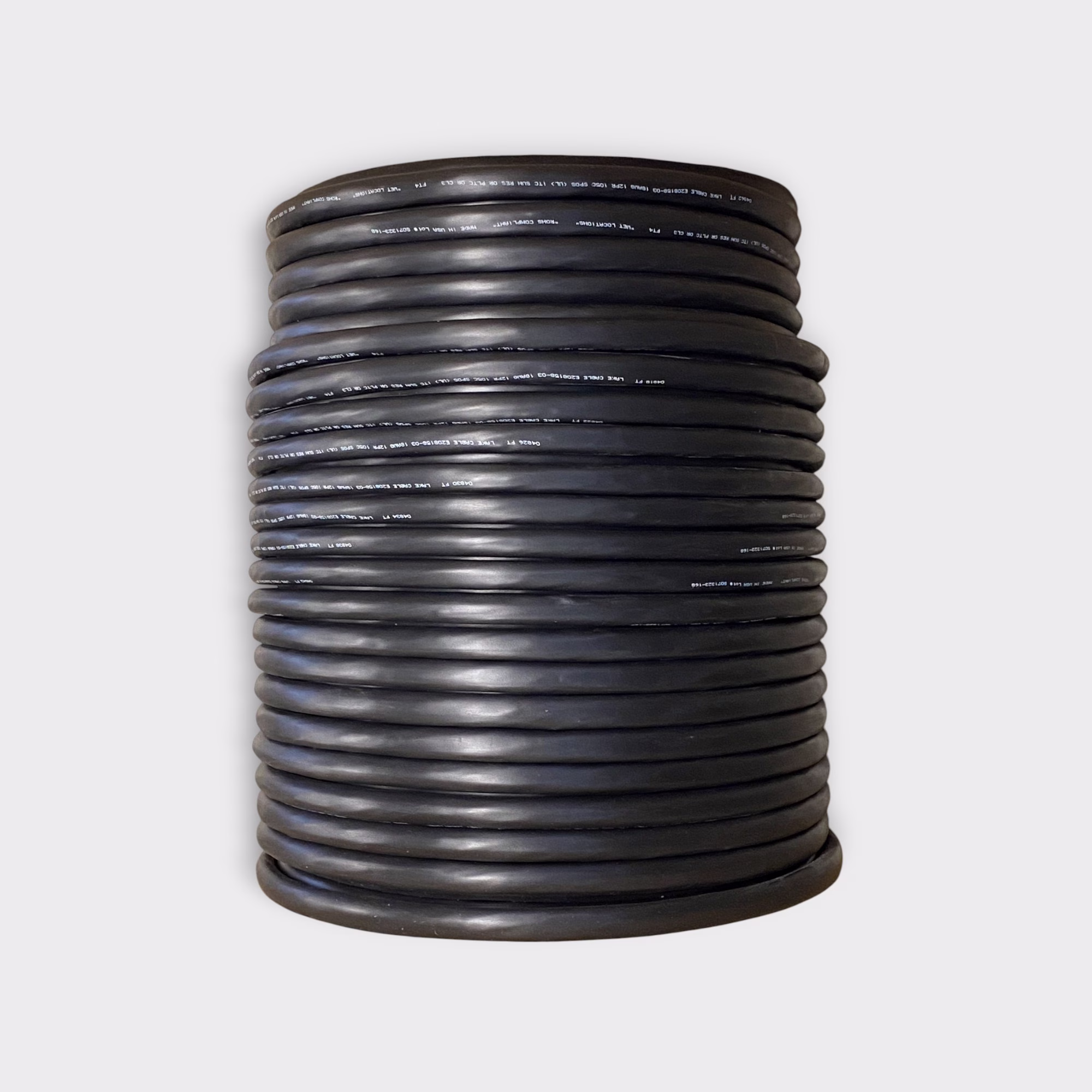

Additional Notes: This listing is for a 225ft Spool of Lake Cable 18 AWG 12-Pair SPOS Instrumentation Tray Cable (see full specs below). This cable is being listed as new old stock, as it is in new uninstalled condition but a portion of the cable has been cut from the spool with exactly 232ft remaining.

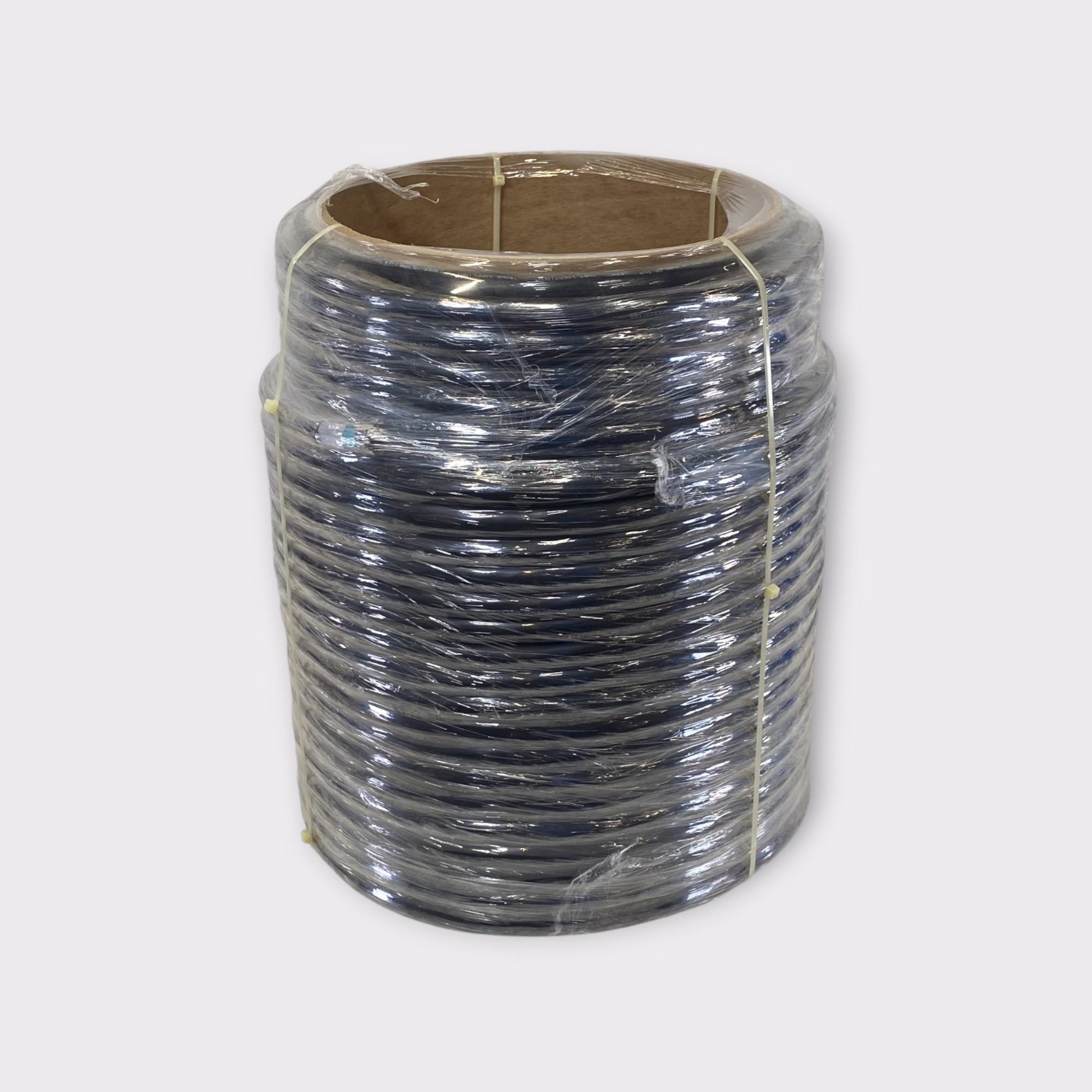

Please Note: Wooden spool ends were removed from the cable reel for shipping purposes and will come as you see in the main photo.

Please see our photos for the items condition.

Physical Construction
Conductor: 18 AWG Stranded Bare Copper (7-Strand)

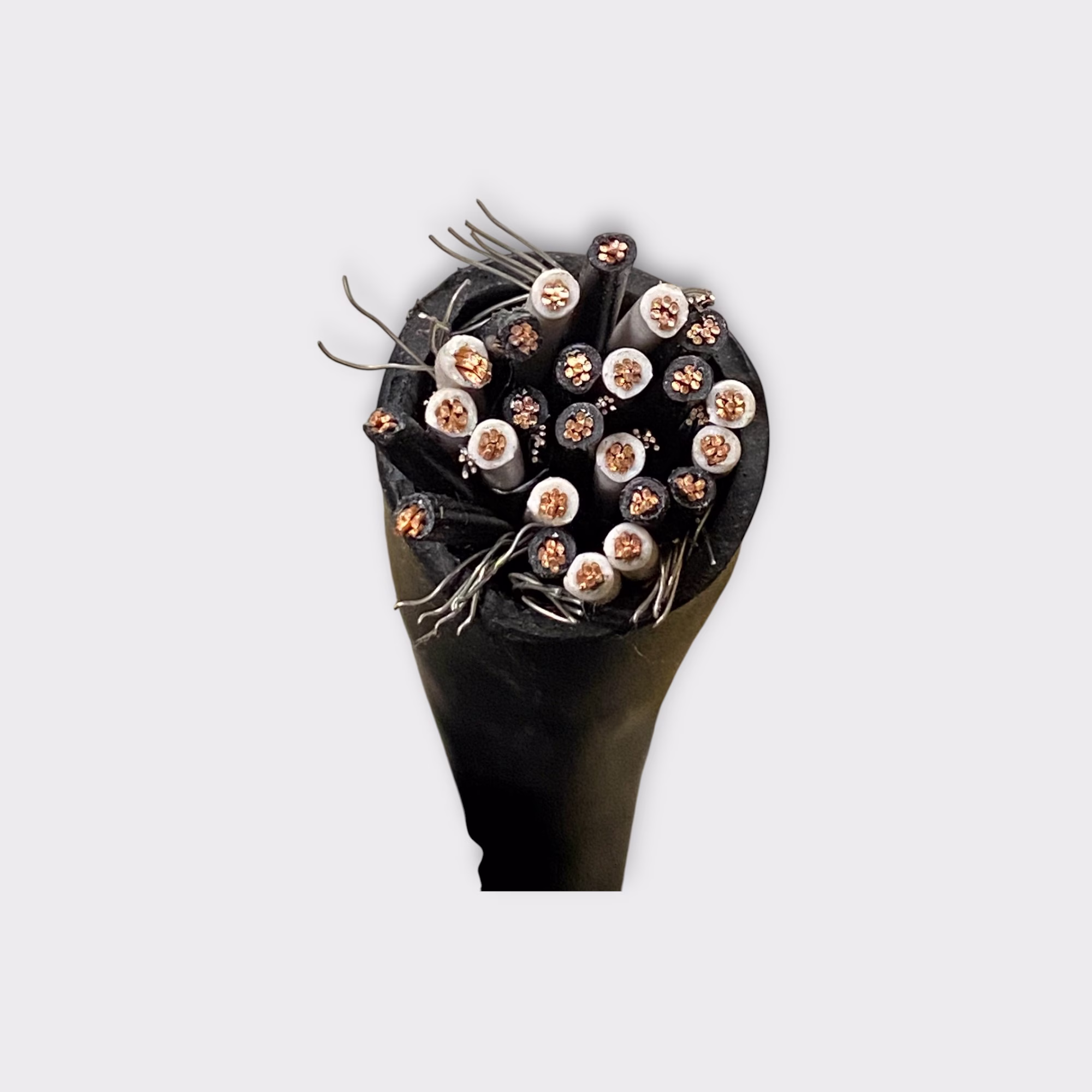

Configuration: 12 Twisted Pairs (24 conductors total)

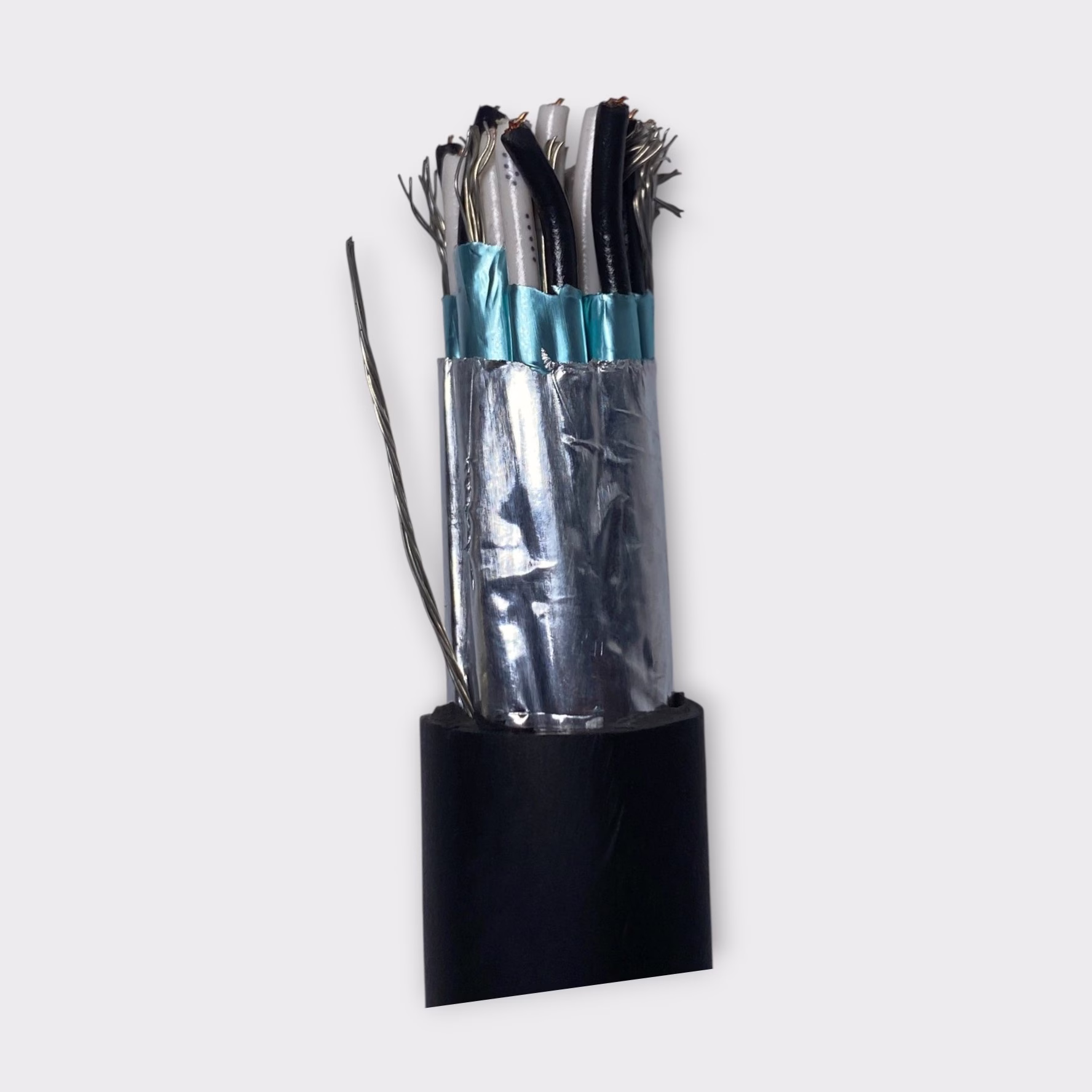

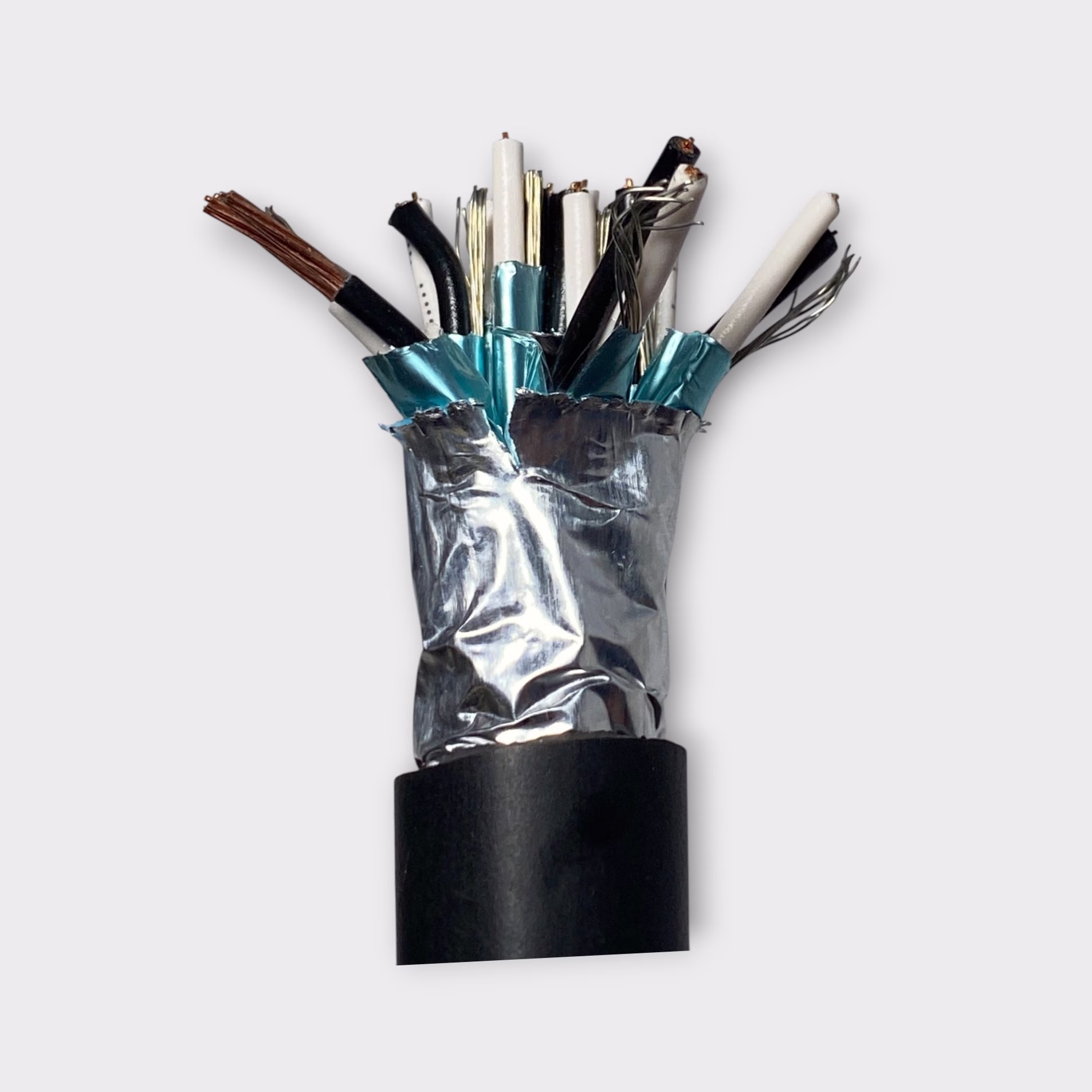

Shielding (SPOS):

Individual Pair Shields: Aluminum Mylar tape with tinned copper drain wire for each pair (prevents crosstalk)
Overall Shield: 100% Coverage Aluminum Mylar tape with a global tinned copper drain wire (prevents external EMI)

Electrical & Thermal Ratings
Voltage Rating: 300 Volts (RMS)
Temperature Rating: 105°C (221°F) Dry
Fire Rating: UL 1685 / FT-4 / IEEE 1202 Flame Test

What’s Included:

• Lake Cable 18 AWG 12-Pair SPOS Instrumentation Tray Cable – 225′

Dimensions (L x W x H): 16 x 16 x 20 in, Weight: 70 lbs

Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout. Please be advised if the item is large or is a multi-piece shipment, shipping quotes may be inaccurate due to restrictions outside of our control, in those instances you will be contacted promptly.

Return Info: 30-Day Returns

Warranty Info: 90-Day Warranty
