Manufacturer: Icom
Model Number: AT-140
Series: AT
MPN: AT-140
Listed Item Condition: New/New Other
Summary
- The Icom AT-140 is an automatic HF antenna tuner designed for compatible Icom marine SSB and HF radio transceivers. Operating across the 1.6-30 MHz frequency range, this tuner automatically matches compatible long-wire, insulated backstay, and whip antenna systems to the connected transceiver. The unit supports up to 150W PEP or 100W continuous RF input power and is compatible with Icom radio models including the IC-M802, IC-M803, IC-M700PRO, and IC-M710.
- This item is new old stock (NOS), new in its original Icom manufacturer box, unused and never installed. The original box is clearly marked AT-140 #46 USA6, identifying this particular unit as a USA-marked version. The tuner itself is manufactured in Japan. Minor cosmetic blemishes or packaging wear from long-term storage and handling may be present. Please review all photos for the exact item, condition, packaging, and components included.
- IMPORTANT USA VERSION NOTICE: This AT-140 was supplied in packaging marked USA6 and is being offered specifically for U.S.-market applications. We recommend that this particular unit be purchased and used within the United States. Buyers outside the USA should contact Icom or an authorized regional distributor to confirm compatibility, installation requirements, and suitability before purchasing.
Product Description
- The Icom AT-140 is a professional automatic HF antenna tuner designed for use with compatible Icom marine SSB and HF transceivers. It provides automatic impedance matching between the connected radio and antenna system, helping maintain efficient RF transmission across a wide range of operating frequencies.
- The AT-140 supports operation from 1.6 MHz to 30 MHz when used with a suitable antenna element approximately 7 meters (23 feet) or longer. It is designed for use with compatible long-wire antennas, insulated sailboat backstay antennas, and other appropriate marine HF antenna configurations.
- The tuner features electronically controlled automatic matching with typical initial tuning times of approximately 2 to 3 seconds, depending on operating conditions. Previously memorized frequencies can typically be retuned in approximately one second. Its automatic matching system is designed to achieve an SWR of approximately 2.0:1 or better under manufacturer-specified conditions.
- The unit supports a maximum RF input power of 150W PEP or 100W continuous and uses a nominal 50-ohm SO-239 antenna connector. Operating power is provided through a compatible HF transceiver, with a nominal requirement of 13.6V DC and a maximum current draw of 2A.
- The AT-140 is designed for installation near the antenna feed point and features a weather-resistant enclosure suitable for appropriate marine installations. Its mounting arrangement supports compatible bulkhead and pole-mount applications when installed with the appropriate hardware.
- This tuner is compatible with several Icom HF transceivers, including the IC-M802, IC-M803, IC-M700PRO, IC-M710, IC-F8101, and compatible IC-78 variants. Buyers should verify radio compatibility and the required control cable before installation.
USA VERSION AND REGIONAL COMPATIBILITY NOTICE

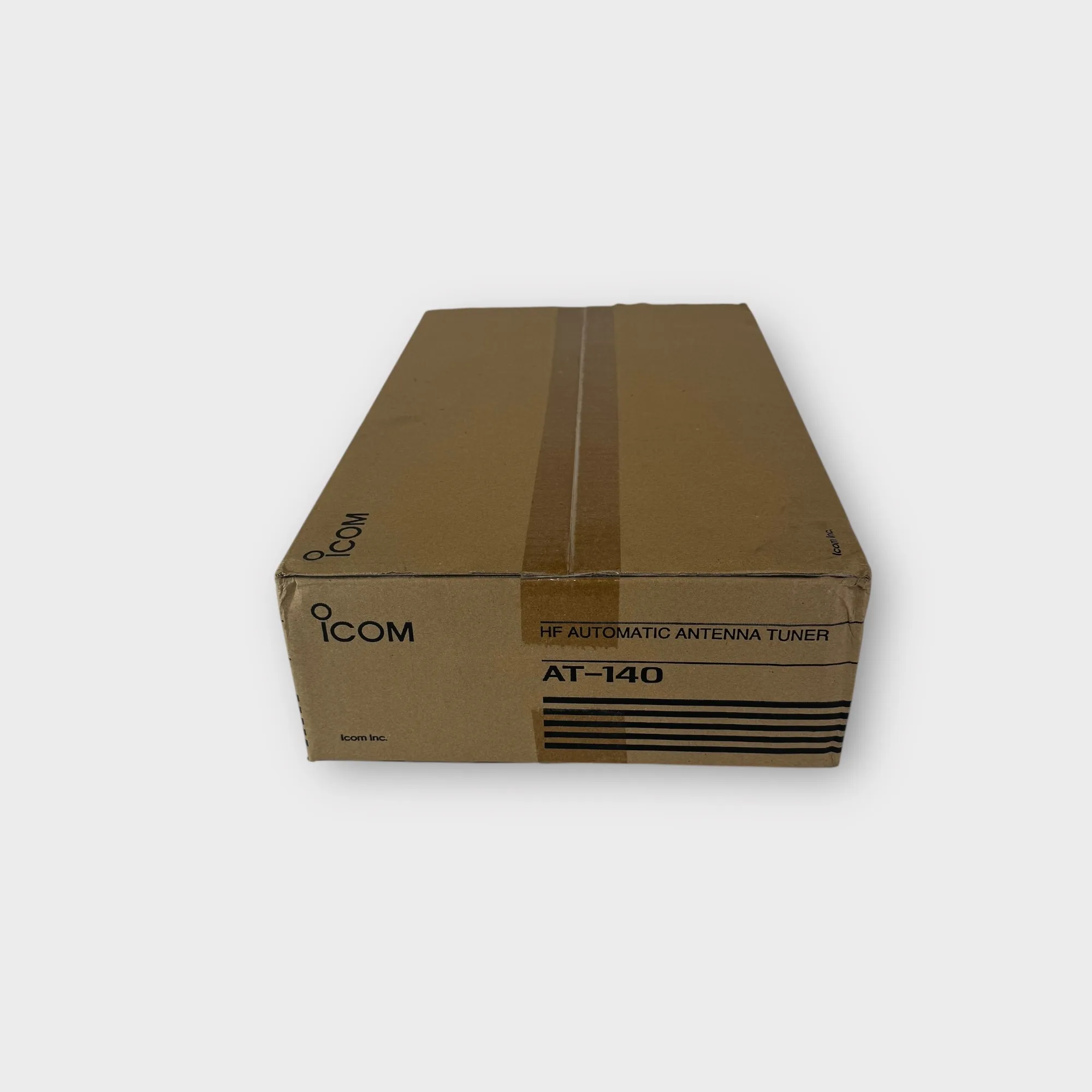

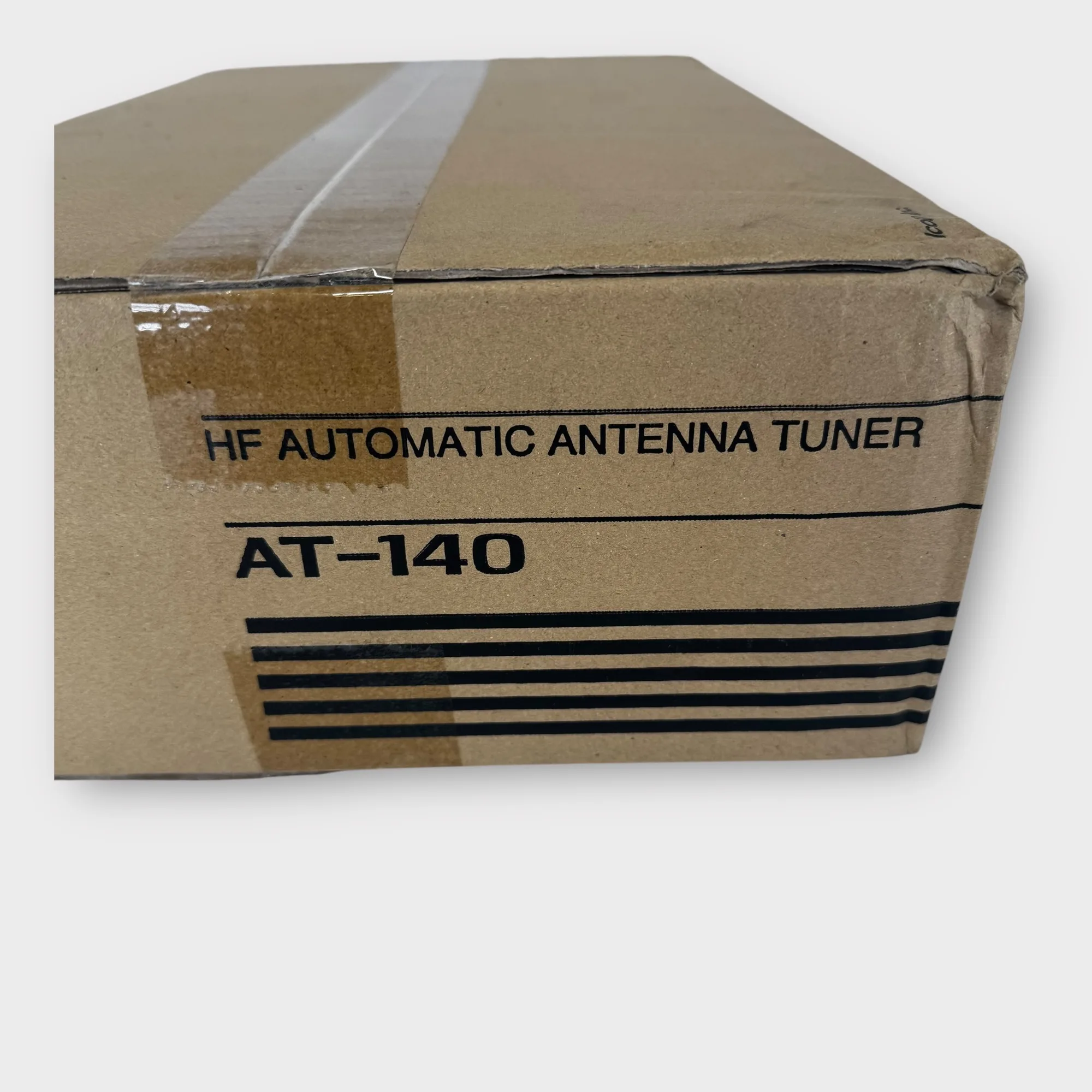

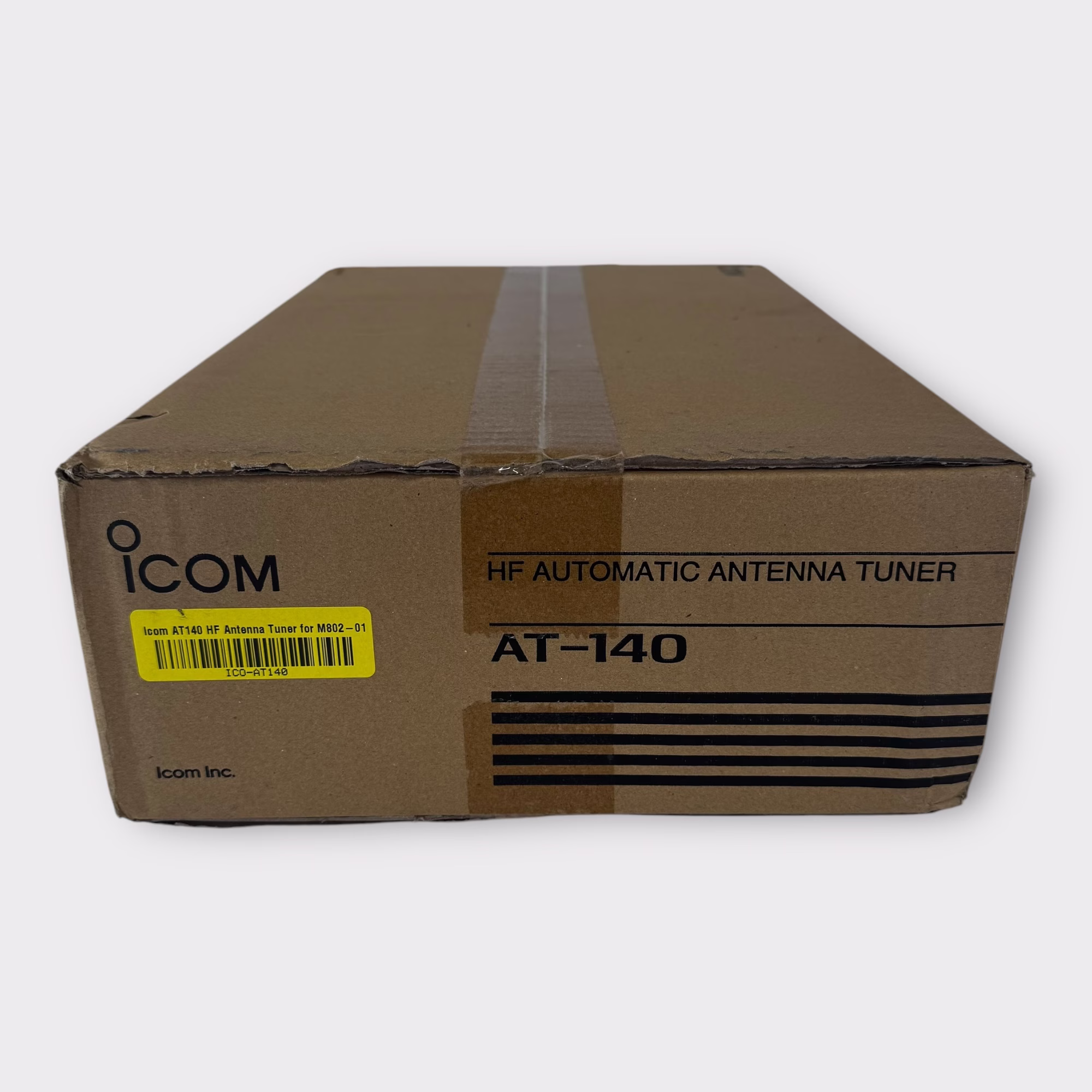

The original Icom manufacturer box accompanying this tuner is marked:
- AT-140 #46 USA6
- This marking is important because it identifies the particular packaging designation supplied with this unit. Icom technical service documentation also identifies U.S.-market versions of the AT-140, although the exact meaning of the USA6 suffix has not been independently confirmed.
- Because this unit was supplied with USA-marked packaging, we are offering it specifically for applications within the United States and recommend its use in U.S.-market installations.
- International buyers should not assume compatibility with equipment supplied for other regional markets. Radio configurations, control cable requirements, installation standards, and applicable regulations may differ by country.
- For this reason, buyers outside the United States should verify the suitability of this exact AT-140 version with Icom or an authorized distributor in their country before purchasing or installing it.
- The USA6 marking has not been verified as an electronic restriction preventing operation outside the United States. Our USA-use recommendation is intended to avoid uncertainty regarding regional compatibility.
CONDITION AND SALE DETAILS

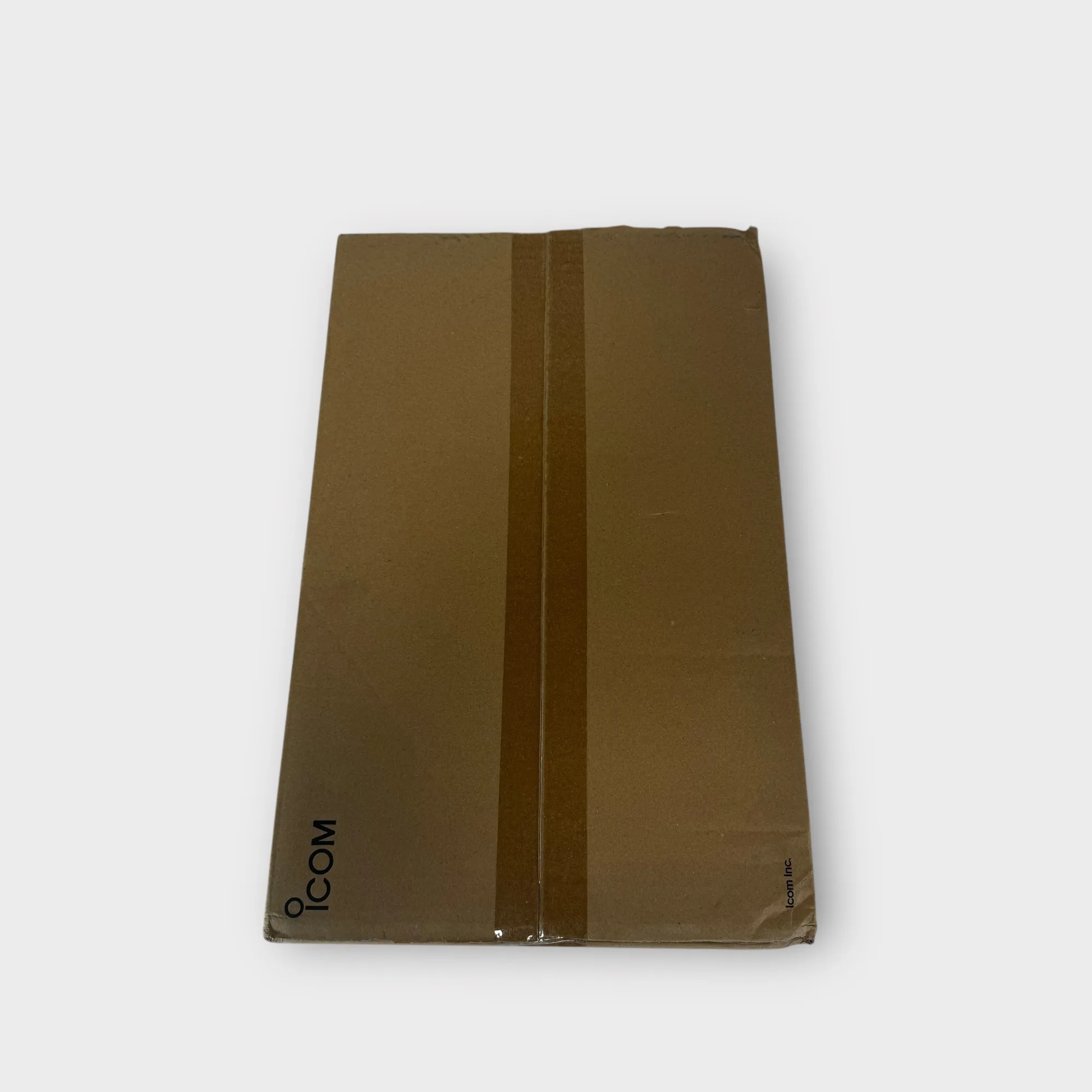

- This item is new old stock (NOS), unused, never installed, and supplied in its original Icom manufacturer box. The tuner is marked Made in Japan.
- The unit has not been independently operationally tested. The original packaging may exhibit wear associated with long-term storage and handling.
- This listing is for the AT-140 automatic antenna tuner only. The Icom IC-M802, IC-M803, or any other HF transceiver is not included.
Product Information
- Manufacturer: Icom
- Model Number: AT-140
- Series: AT
- MPN: AT-140
- Original Box Marking: AT-140 #46 USA6
- Market Designation: USA-Marked Package
- Recommended Market: United States
- International Compatibility: Buyer Must Verify
- Product Type: HF Automatic Antenna Tuner
- Application: Marine SSB / HF Radio Antenna Tuning
- Frequency Range: 1.6-30 MHz
- Recommended Antenna Element Length: 7 m / 23 ft or Longer
- Compatible Antenna Types: Long Wire / Insulated Backstay / Compatible Whip
- RF Input Impedance: 50 Ohms
- Antenna Connector: SO-239
- Maximum RF Input Power: 150W PEP
- Continuous RF Input Power: 100W
- Operating Voltage: 13.6V DC
- Power Source: Compatible HF Transceiver
- Maximum Current Drain: 2A
- Automatic Tuning Time: Approximately 2-3 Seconds Typical
- Maximum Automatic Tuning Time: 15 Seconds
- Memorized Frequency Retuning Time: Approximately 1 Second
- Automatic Tuning Accuracy: SWR 2.0:1 Under Manufacturer-Specified Conditions
- Operating Temperature Range: -25°C to +55°C
- Usable Mounting Pole Diameter: 32-60 mm
- Approximate Width: 230 mm / 9.06 in
- Approximate Height: 340 mm / 13.39 in
- Approximate Depth: 80 mm / 3.15 in
- Approximate Weight: 2.5 kg / 5.5 lb
- Compatible Radio Models: IC-M803 / IC-M802 / IC-M700PRO / IC-M710 / IC-F8101 / Compatible IC-78 Variants
- Country of Manufacture: Japan
- Condition: New Old Stock (NOS)
- Packaging: Original Icom Box Marked #46 USA6
- Installation History: Never Installed
- Independent Operational Testing: Not Performed
- Quantity Per Purchase: 1
Included
- (1) Icom AT-140 HF Automatic Antenna Tuner
- (1) Original Icom Manufacturer Box Marked #46 USA6
- Attached Connector Leads and Mounting Components Visible in Product Photos
Not Included
- Icom IC-M802 HF Marine Transceiver
- Icom IC-M803 or Other HF Radio Transceiver
- Marine HF Antenna
- External Antenna Control Cable Unless Shown in Photos
- External RF Coaxial Cable
- Additional Installation Hardware or Accessories Not Shown in Photos
What's Included:
- (1) Icom AT-140 HF Automatic Antenna Tuner
- (1) Original Icom Manufacturer Box Marked #46 USA6
- Attached Connector Leads and Mounting Components Visible in Product Photos
Compatible Parts:
- IC-M802
- FM802
