Manufacturer: Heinen & Hopman
Model Number: GEM2110 (Controller Module) / GEM4210.0 (Enclosure Assembly)
Series: GEMultiBus
Listed Item Condition: For parts or not working

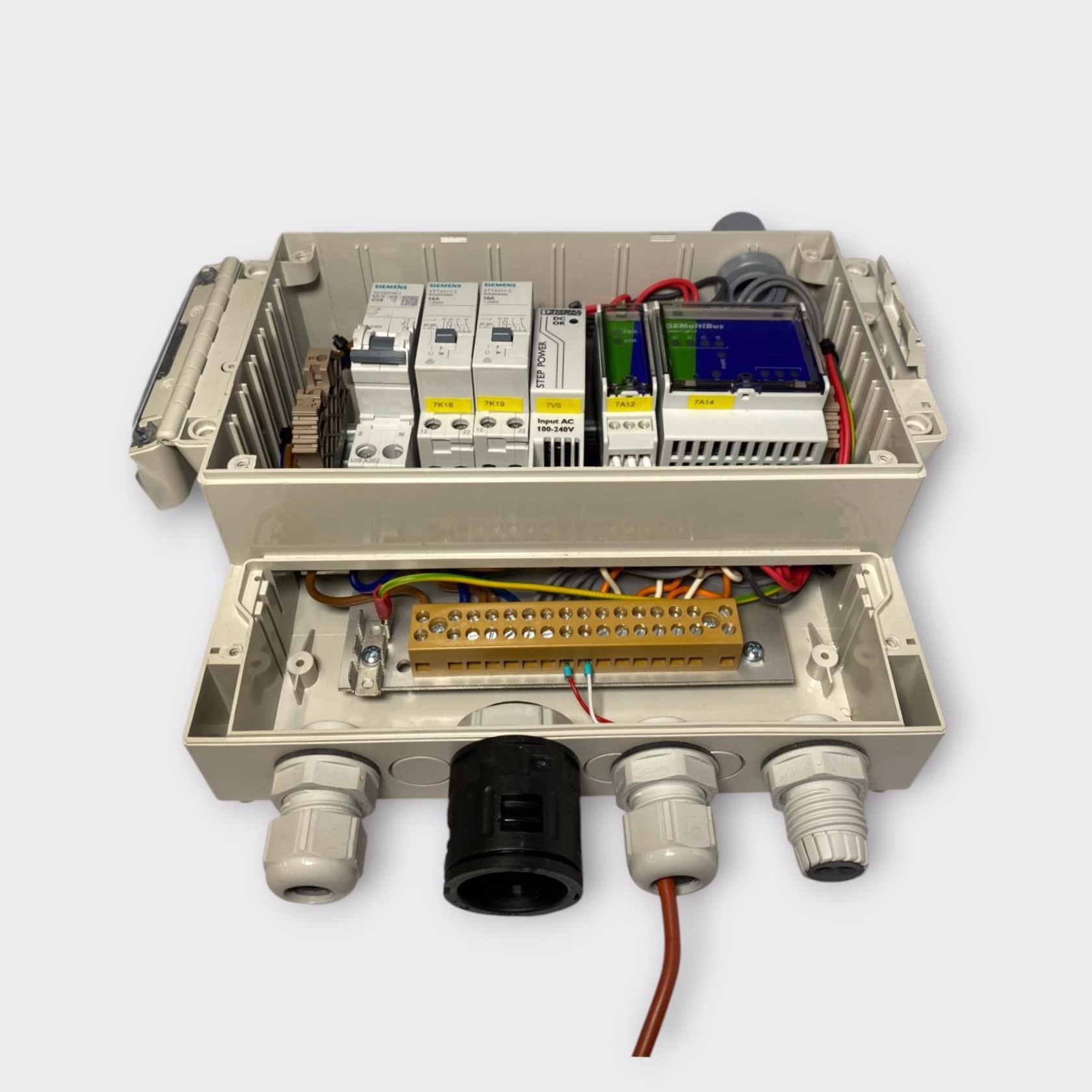

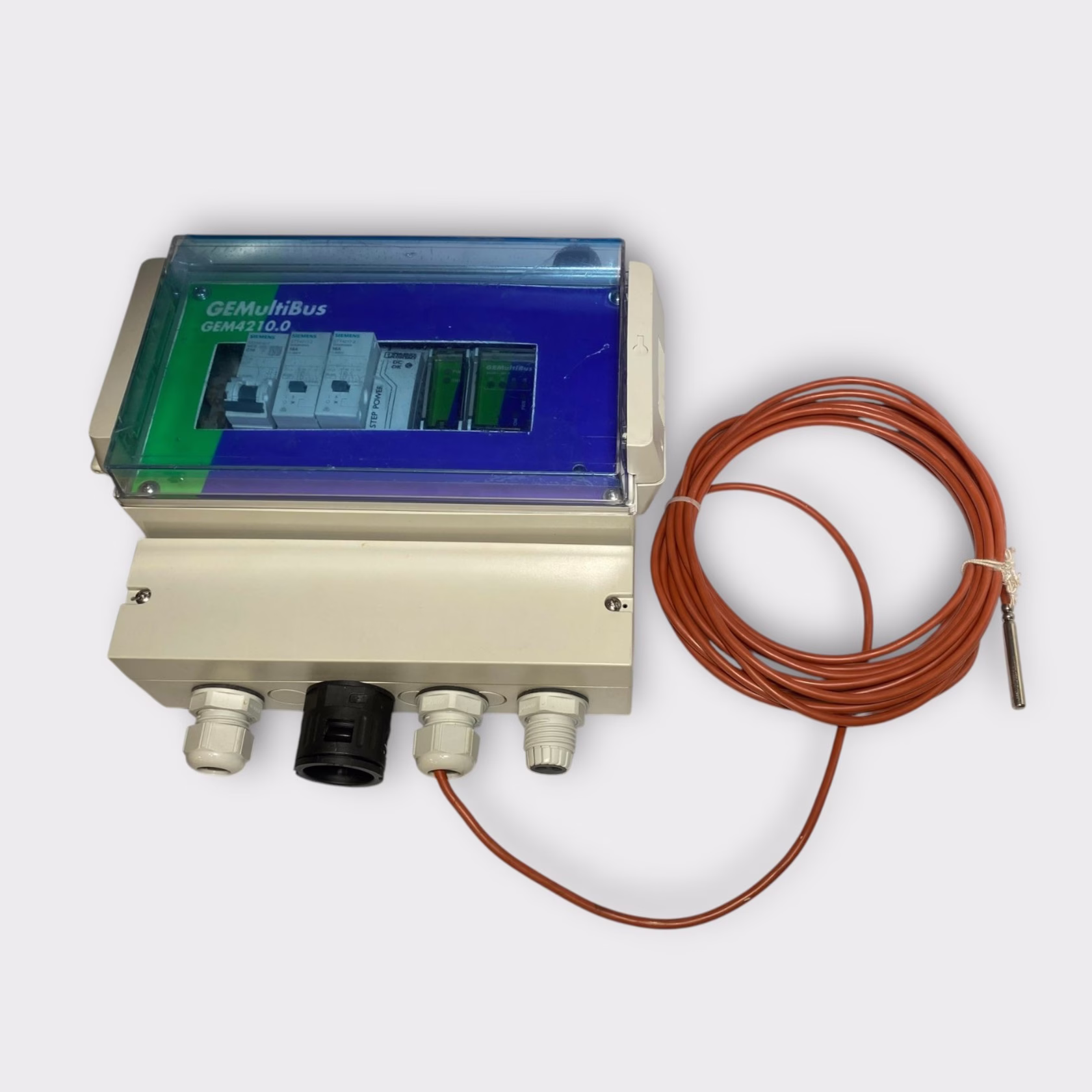

Additional Notes: This listing is for a Heinen & Hopman GEMultiBus Fan Coil Unit (FCU) Controller Station assembly, designed to monitor and regulate localized cabin temperatures. We recently acquired a few of these units as part of an inventory liquidation from a commercial shipyard. Some of these unit’s have varying conditions and internal makeups/specs so please view our What’s Included section for a detailed list of the modules and part/model numbers.
We are listing this unit for parts and repair since it and was made for a very specific set up and we are not able bench test it. This unit is missing a cap for one of the cable glands but there does not appear to have any structural damage, and the internal parts (listed below) appear to be unused and in good working condition. We don’t think this unit has been used and there are no apparent signs of previous use or wire termination but it has a crack and some scuffs/blemishes from storage and handling
Please see our photos for the items condition and included contents. Thanks for viewing!

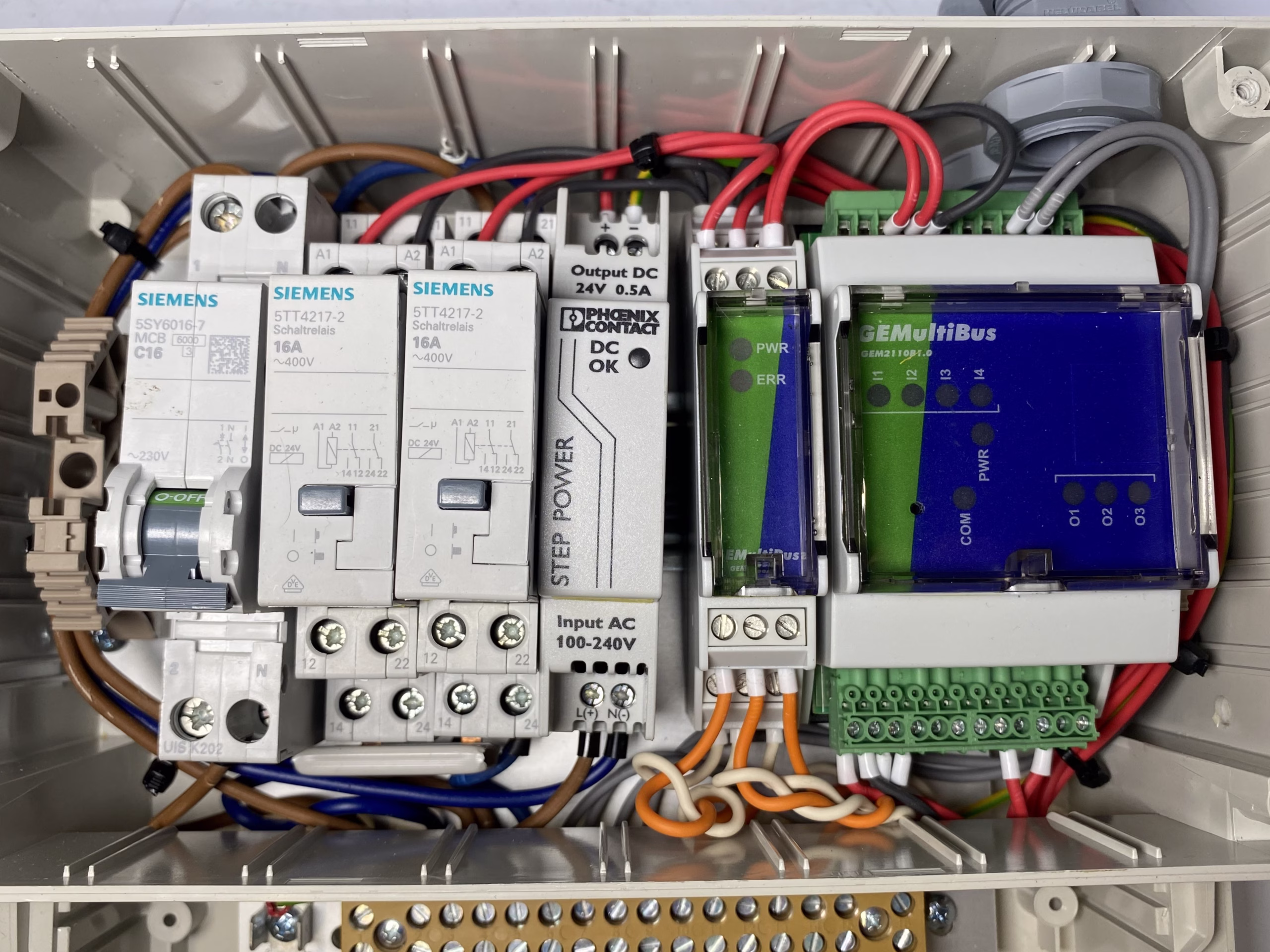

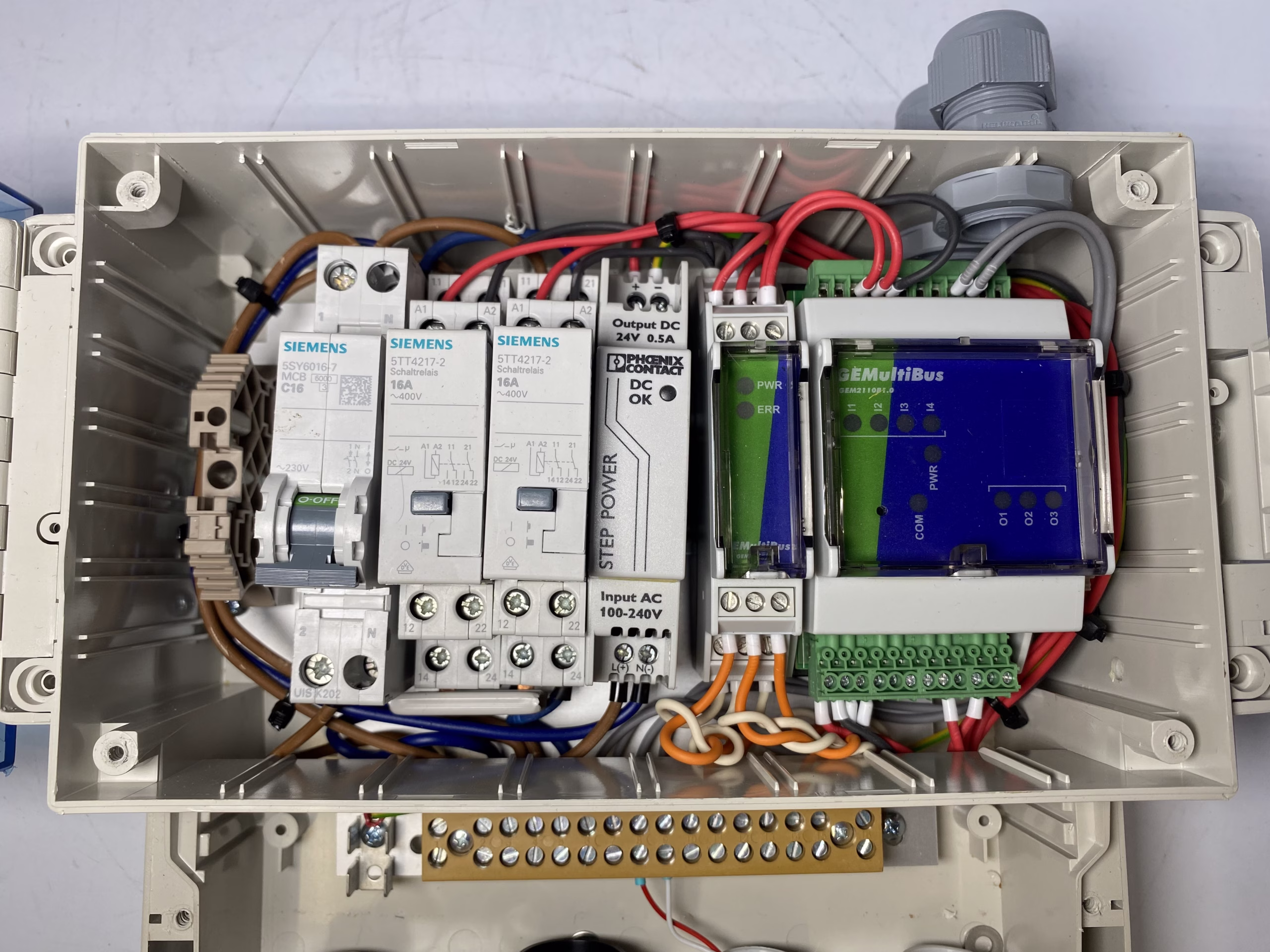

What’s Included:

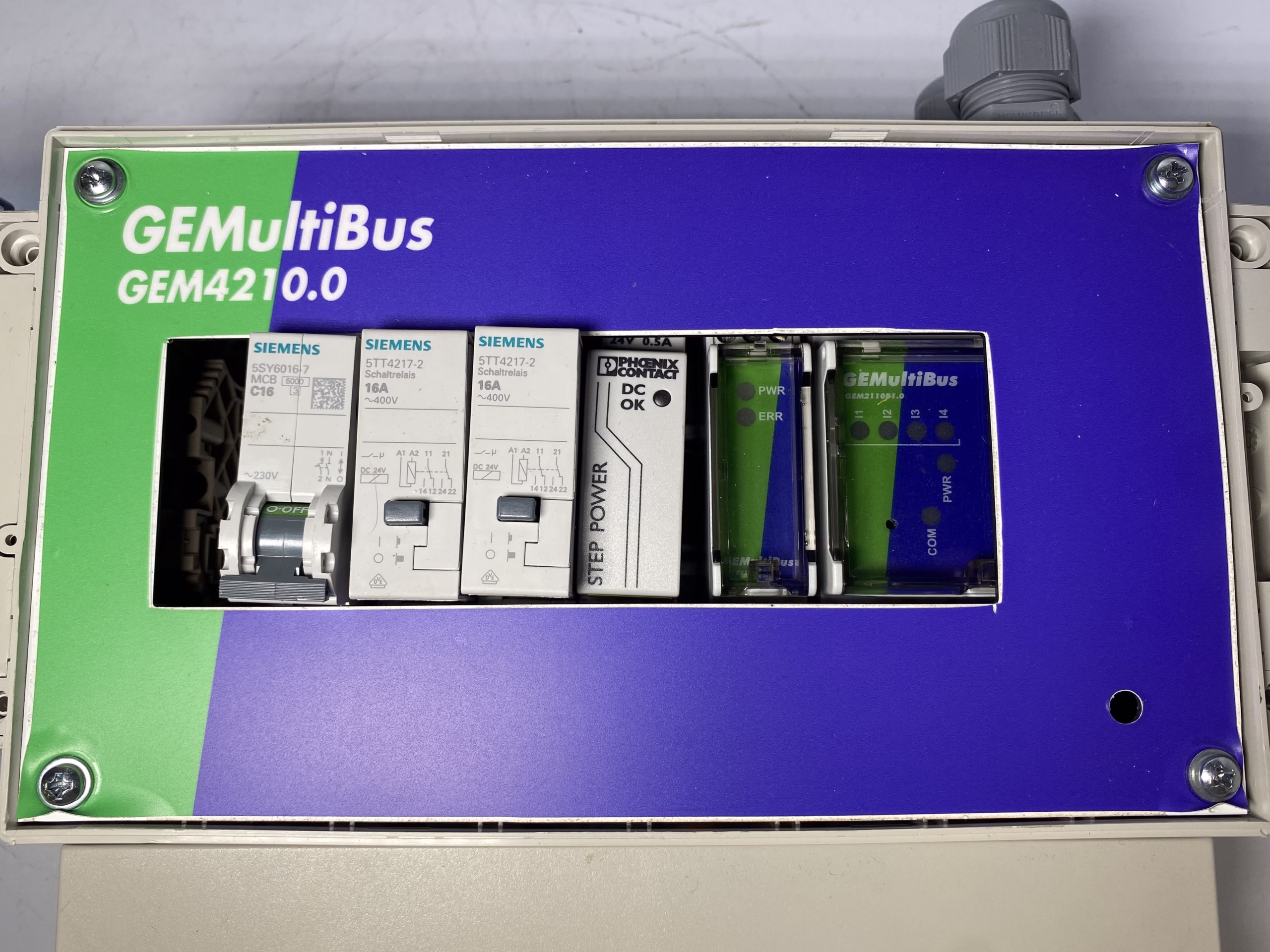

- 1x – Heinen & Hopman Enclosure Assembly (GEM4210.0)
- 1x – Heinen & Hopman Controller Module (GEM2110)
- 1x – Siemens 16-Amp Circuit Breaker (5SY6016-7)
- 2x – Siemens 16-Amp Switching Relay (5TT4217-2)
- 1x – Phoenix Contact 24V DC/0.5A Step Power Supply (2868596)

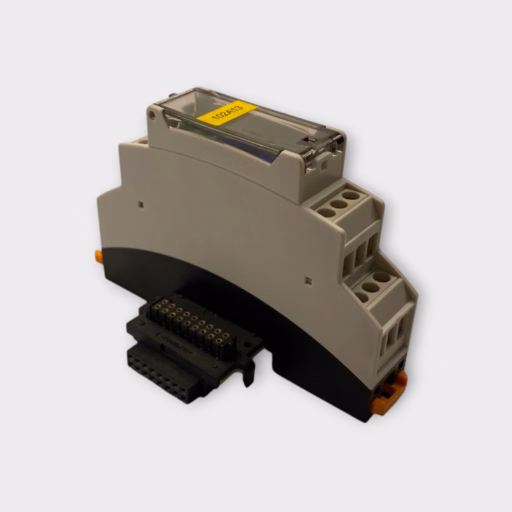

- 1x – Heinen & Hopman Small Interface/Extension Module (GEM2000A1.0)
- 1x – Heinen & Hopman Main Smart Controller Board (GEM2110B1.0)
- 1x – JUMO 902150/10 Pt100 RTD Temperature Sensor Probe 5m Silicone (PN: 00376323) (Order Code: 902150/10-378-1003-1-6-50-11-5000/000)
Dimensions (L x W x H): 10 x 9 x 6 in, Weight: 4.5 lbs
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout. Please be advised if the item is large or is a multi-piece shipment, shipping quotes may be inaccurate due to restrictions outside of our control, in those instances you will be contacted promptly.
Return Info: No Returns
Warranty Info: As-Is, No Warranty
