Description

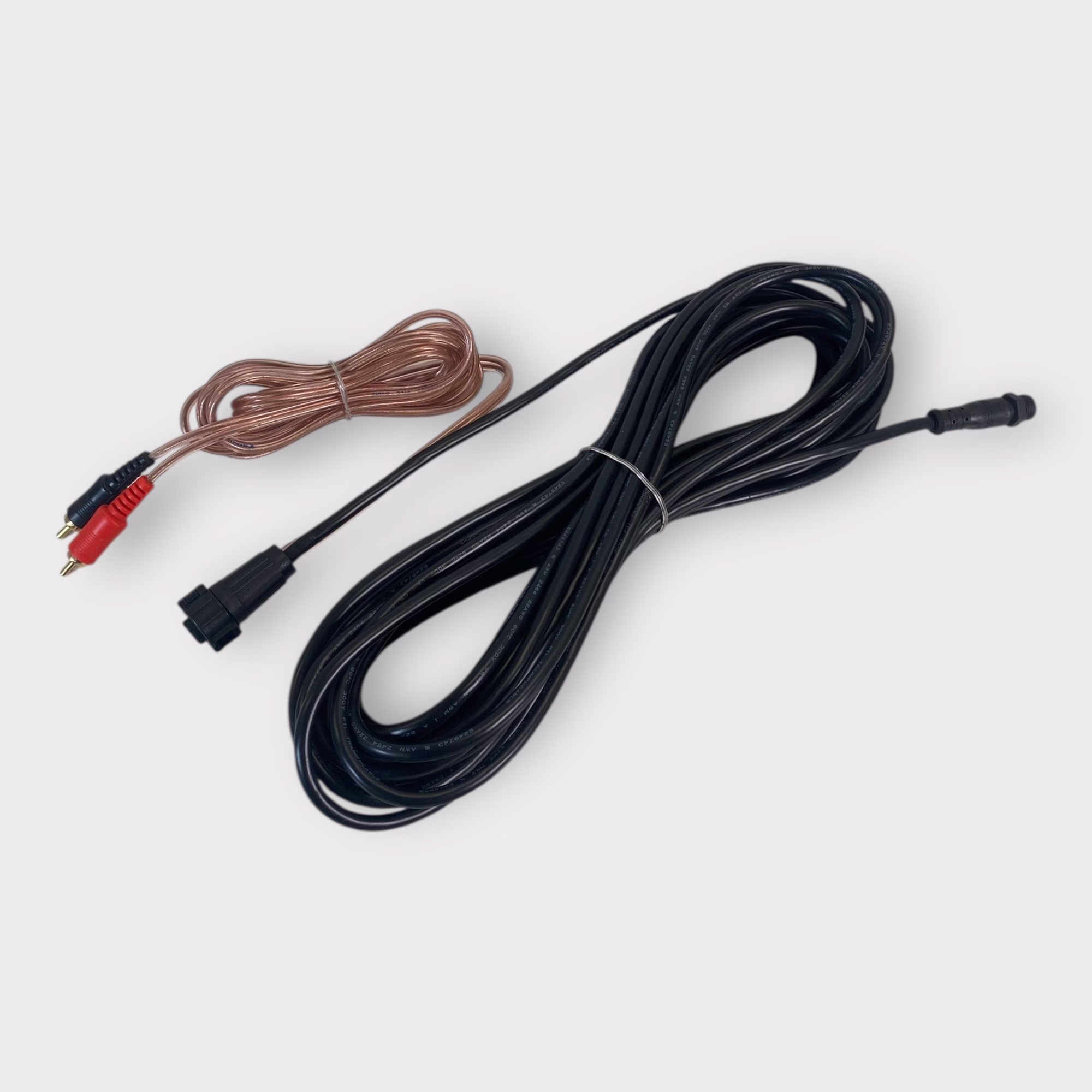

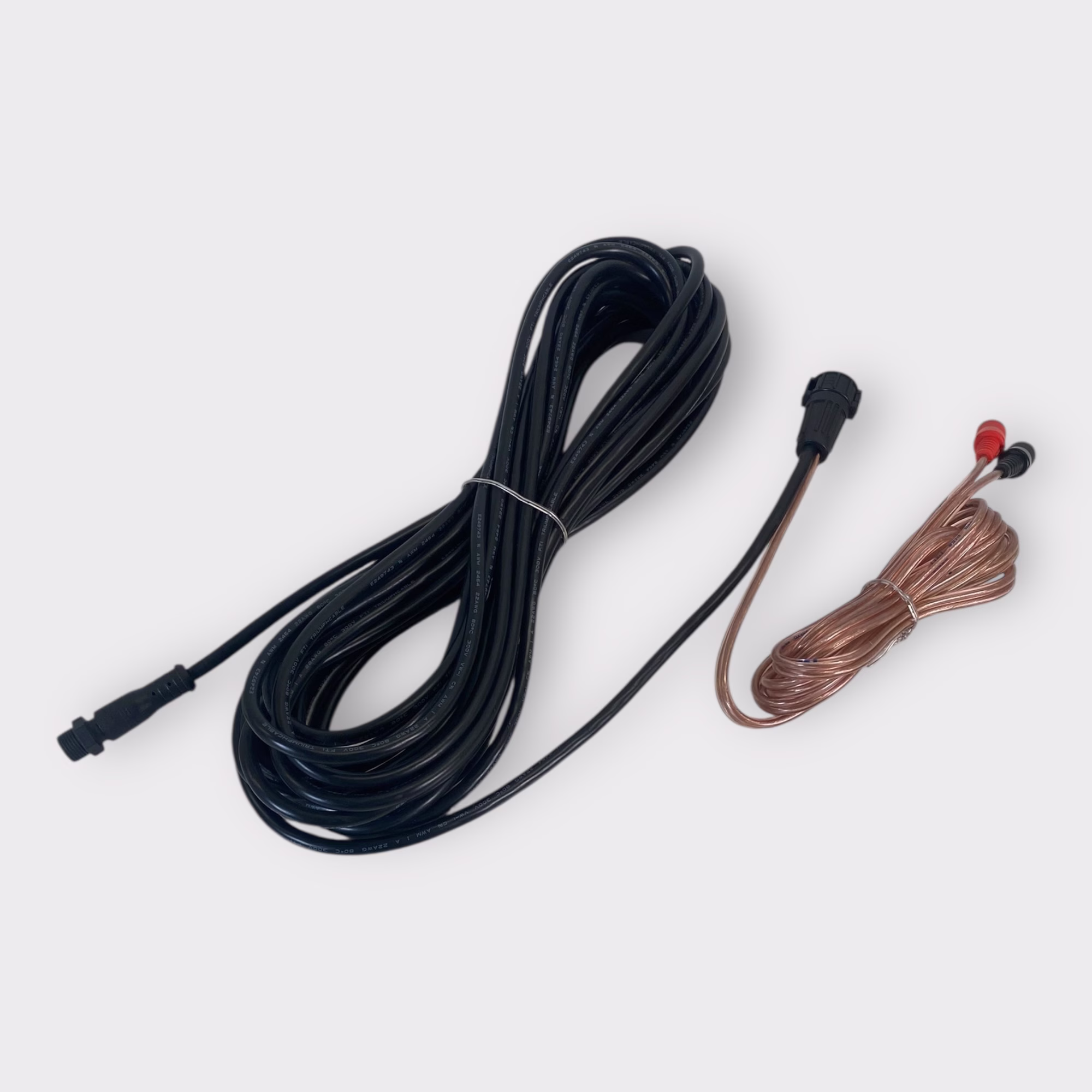

The Garmin 010-11297-00 has been discontinued and is impossible to find. We have created a replacement cable, that in many ways, is better than the original:

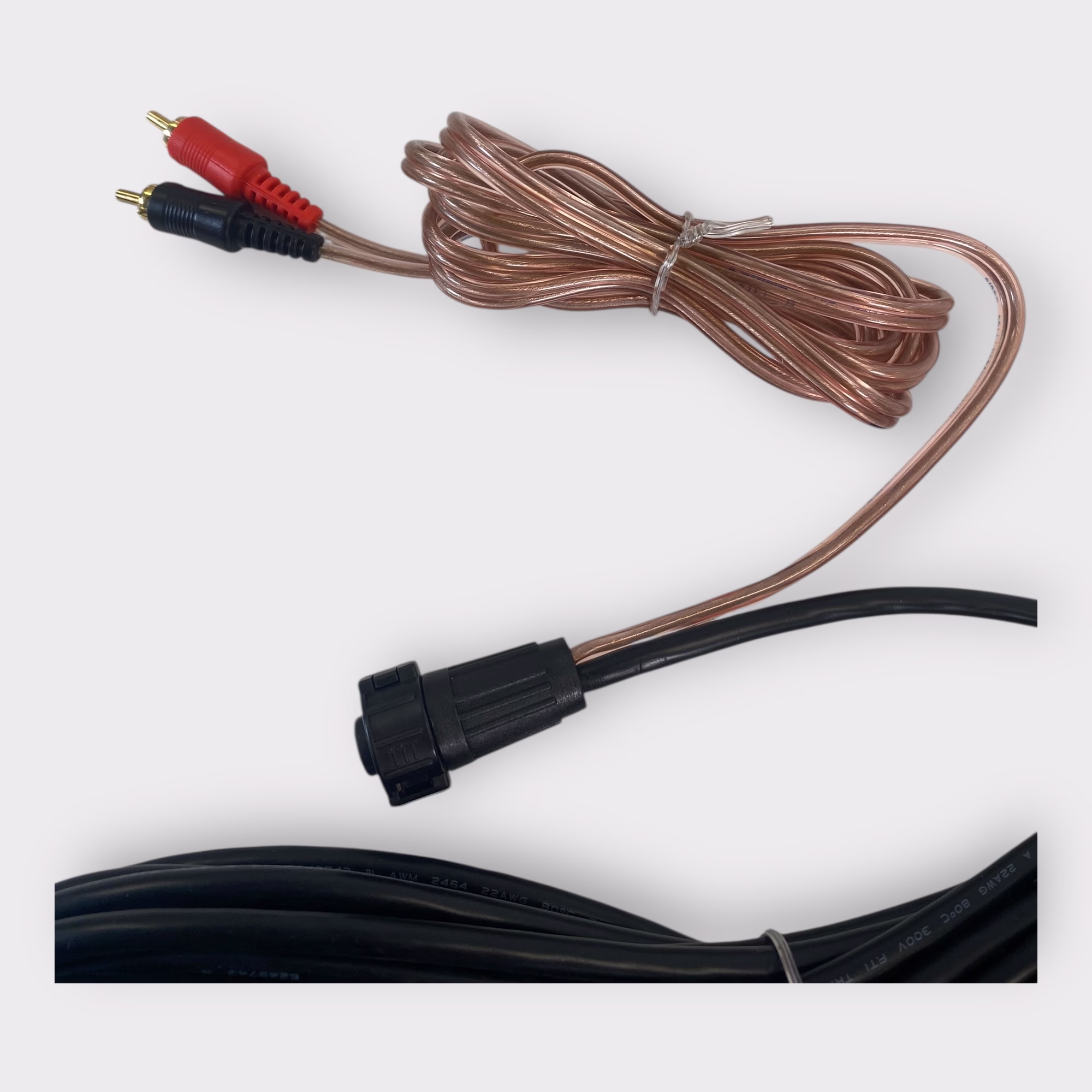

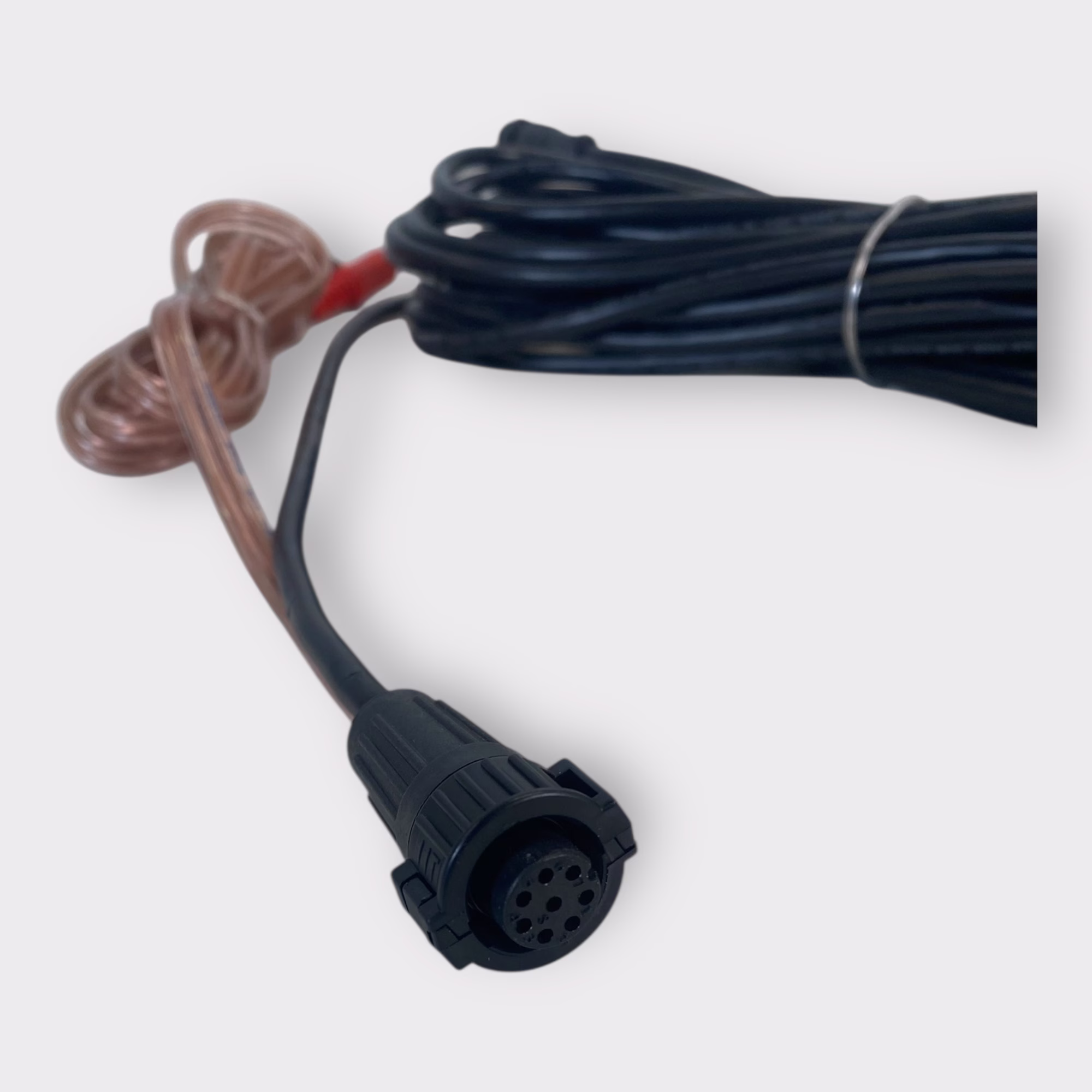

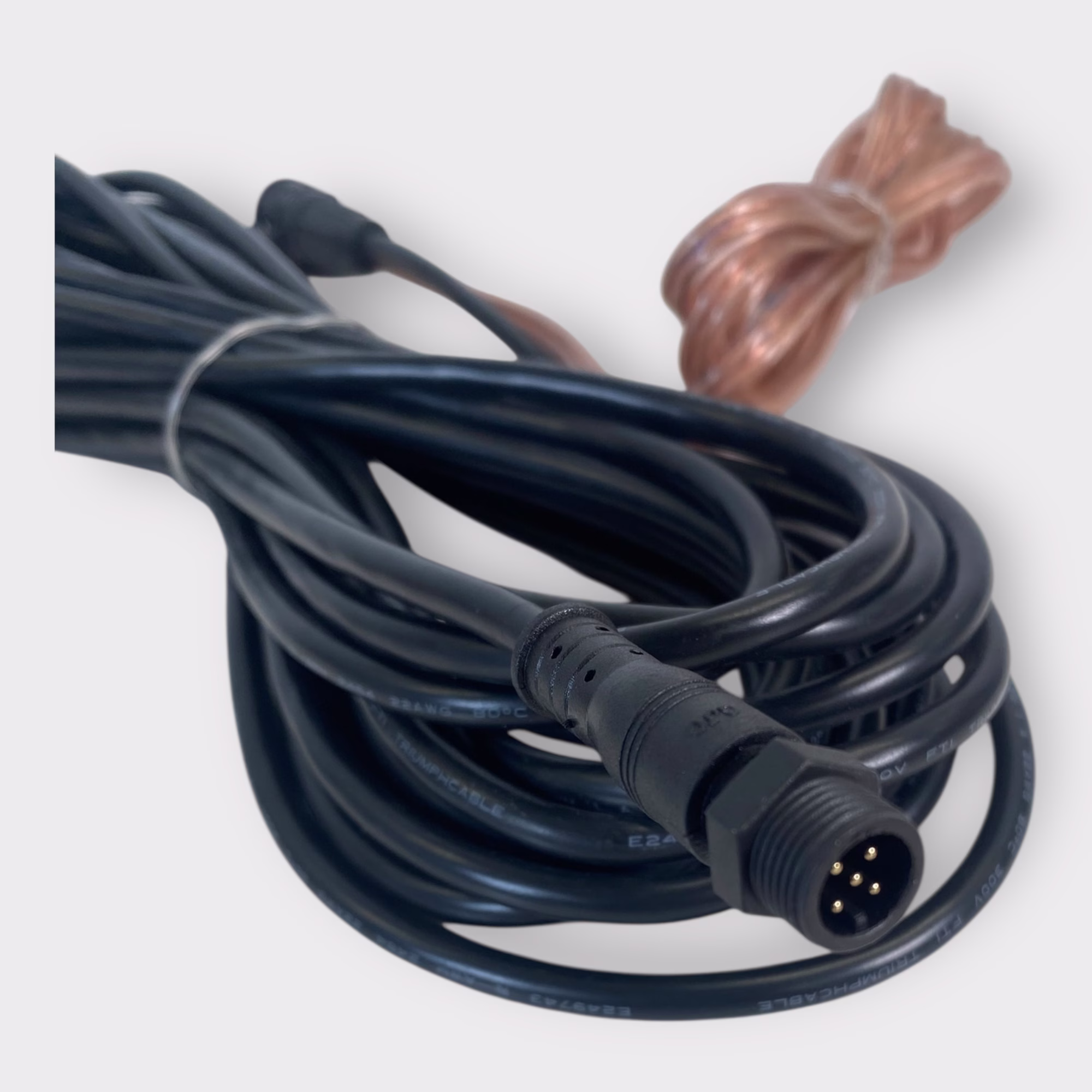

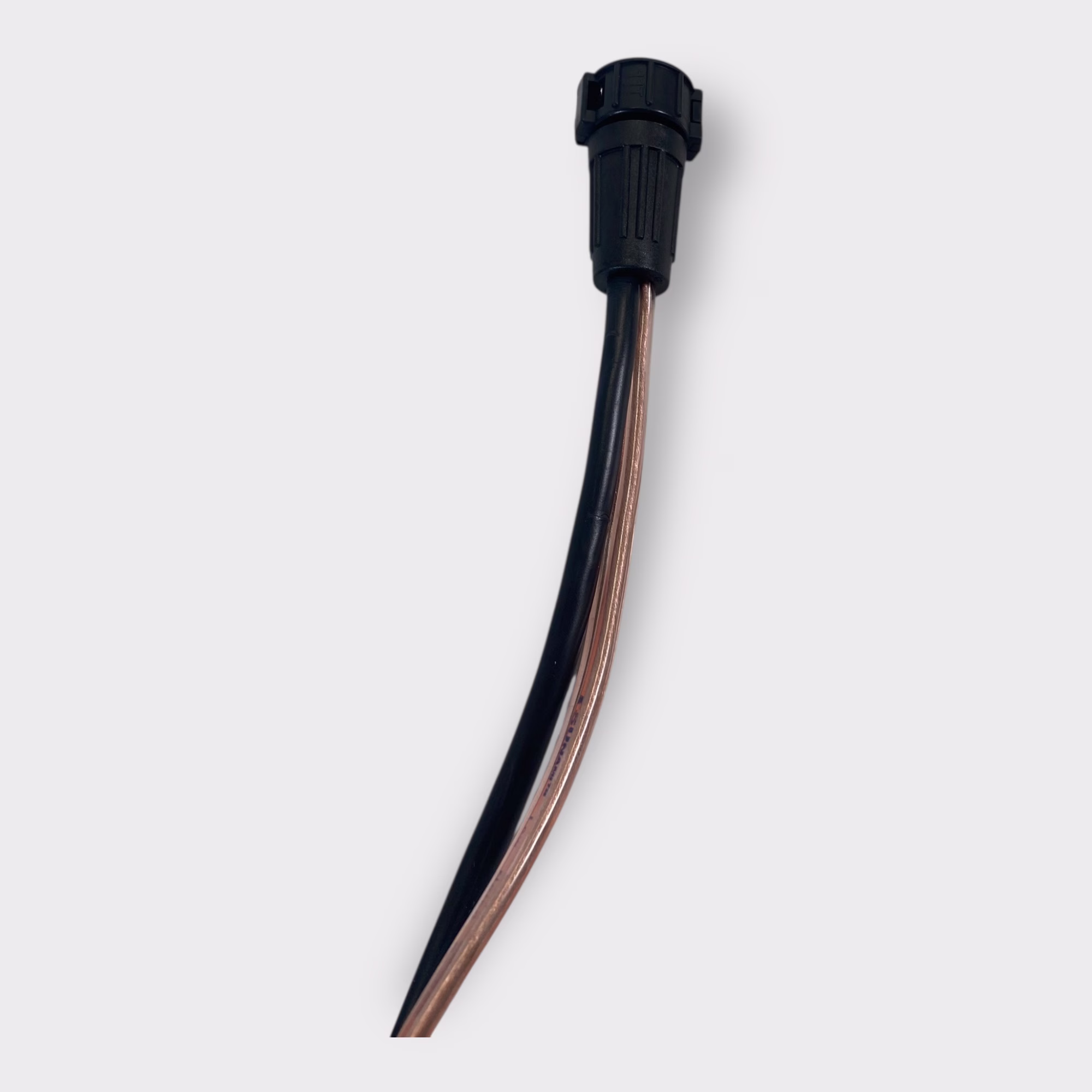

- Our cable uses a threaded 8-pin connector with a permanently attached collar for a secure fit.
- Our pins are gold plated and “barrel type” rather than the 2-blade type on the original which is more subject to wearing out causing poor connectivity
- This cable bypasses the “2 cable system” Garmin uses, the 010-11298-00 audio cable is integrated into our assembly.

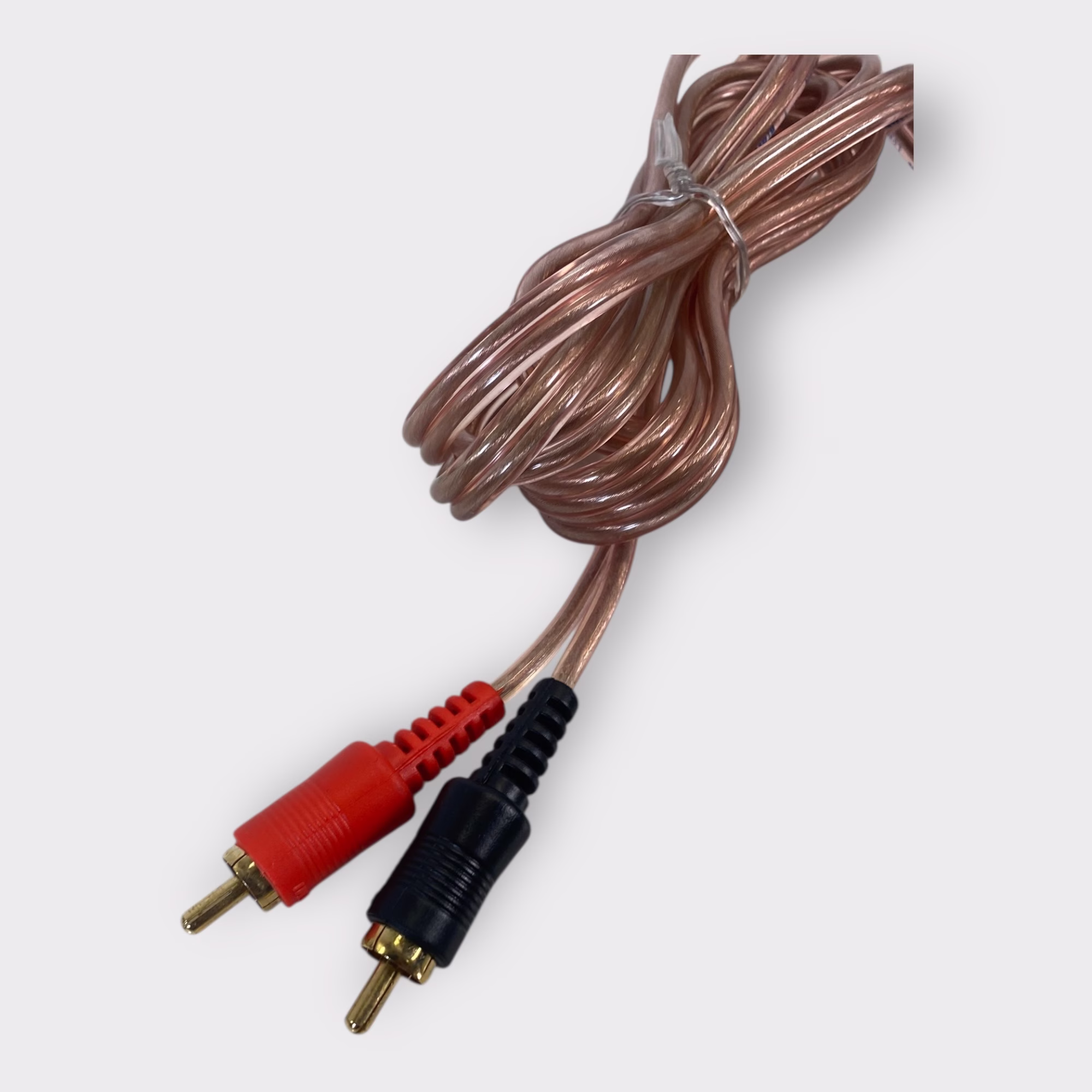

Most importantly, this is the only option we know of on the market to use the GXM51 and 52 XM weather receivers, which are still widely used today. If you do not need audio connectivity, simply wrap the RCA connectors in electrical tape or heat shrink and set them aside.
Important Notes:
-EACH CABLE IS 30 FEET IN LENGTH. The length of the NMEA portion can be extended by adding a drop cable of the desired length, the audio portion is about 5 feet and can be extended with an RCA cable extender.
– Recommended for pole mounting only as with a flush mounted antenna, you will have 2″ under the 8-pin connector on the antenna of straight connector/cable before you can bend it 90 degrees.
-This cable assembly is thicker than the original. It will be difficult to fit in the portion of the pole mount that allows the cable to pass through the OUTSIDE of the threads, it is suggested that you use a straight pole mount, like a Shakespeare 4365 for proper fitment.
Each cable has been individually tested and certified by a Max Marine Electronics technician. Audio cables may vary in color but functionality is the same.

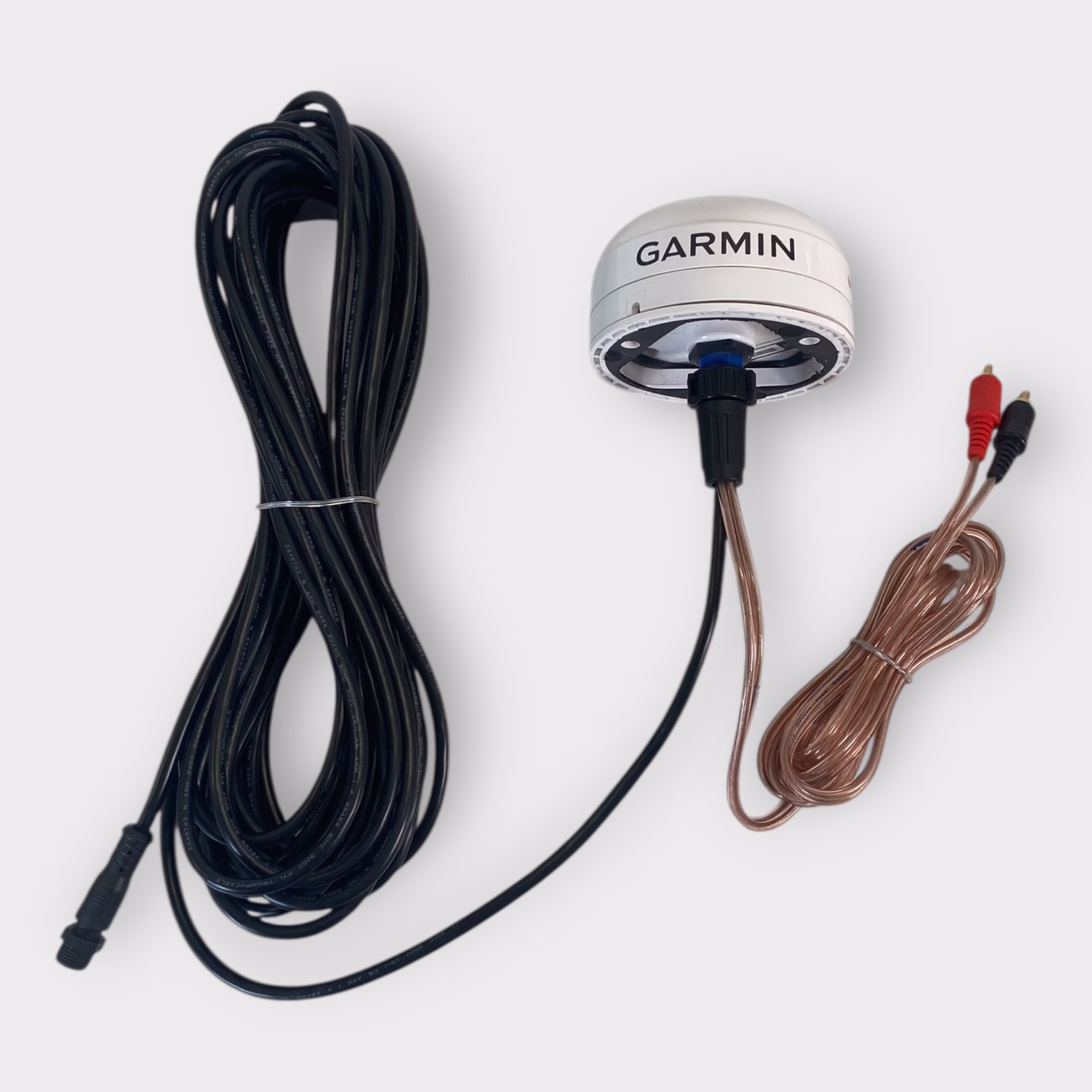

*PLEASE NOTE: THE GARMIN GXM52 UNIT SHOWN IN THE PHOTOS IS NOT INCLUDED IN THIS LISTING*
Thanks for looking!
Terms:
All items sold at Max Marine Electronics come as you see in the pictures provided, with ONLY the parts and accessories shown in the pictures. Do not assume any additional items will be included in your shipment. IF YOU DO NOT SEE SOMETHING YOU EXPECT TO BE INCLUDED IN THE PICTURES WE PROVIDE, IT WILL NOT BE INCLUDED. Read all descriptions thoroughly. There are times a display is used ONLY to show the item being sold is functional and working properly. In this case these displays ARE NOT included, this will be stated in our descriptions. If you have ANY questions feel free to send a message or call Max Marine Electronics Inc, Pompano Beach, Florida. We always want to be transparent with our customers and fully disclose any information regarding the products we sell.
