Manufacturer: Garmin
Model Number: GMR624 xHD2
Series: XHD2
Condition: Used
Additional Notes:

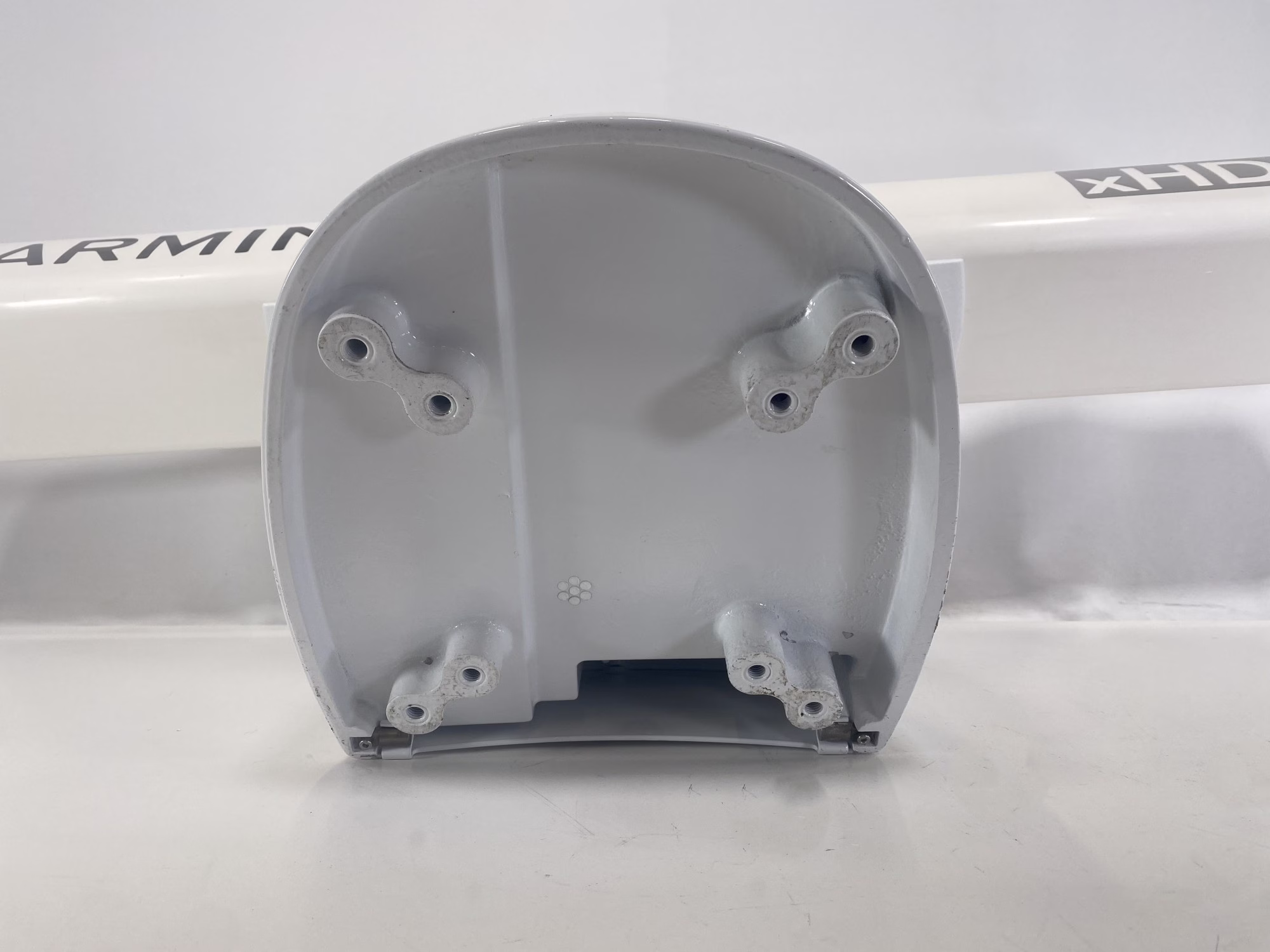

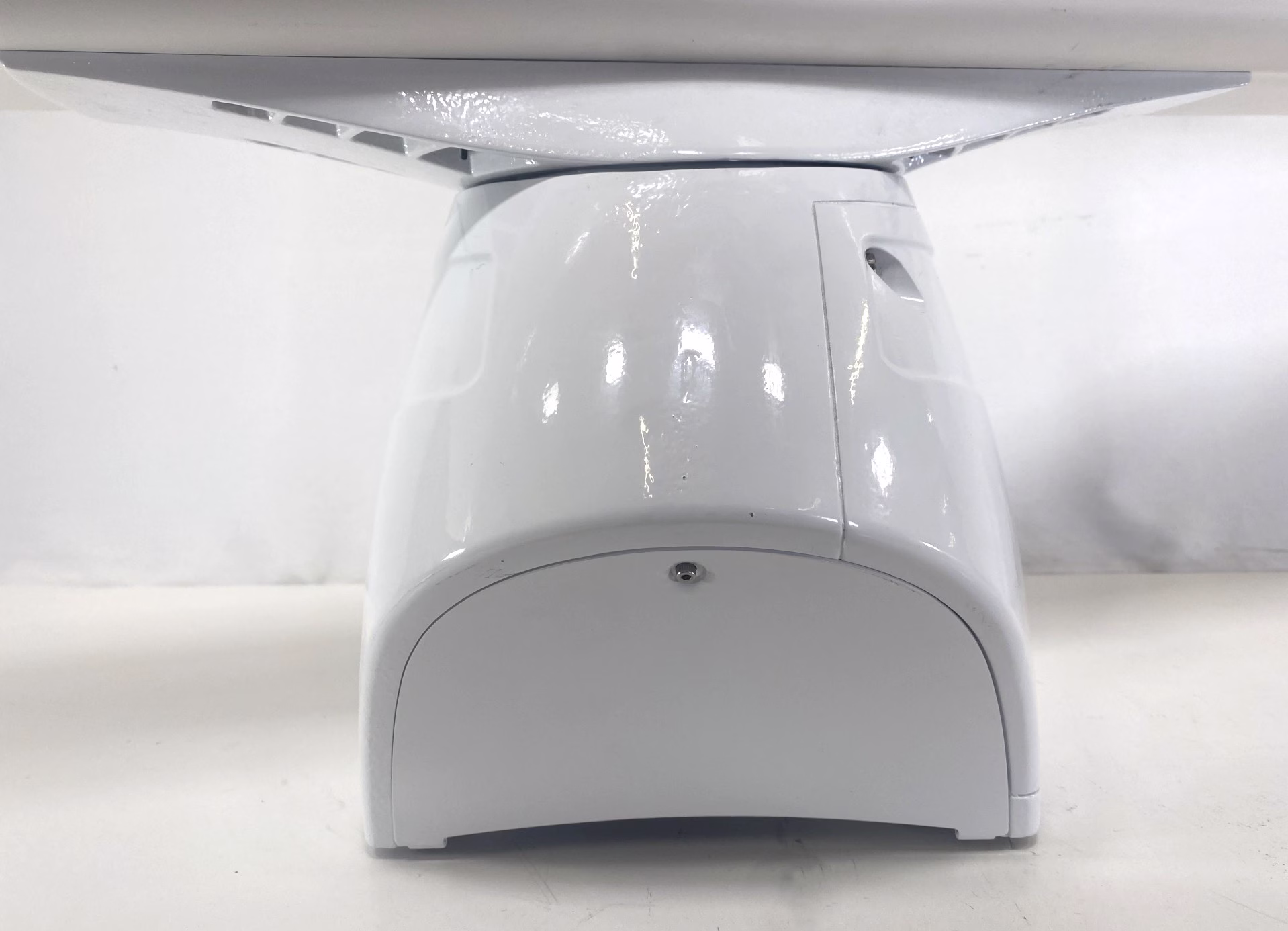

When we acquired this radar, the pedestal showed signs of oxidation. We went ahead and stripped the radar down completely, had it powder-coated white, reassembled it, and confirmed it was in working functionality. Due to the poor quality of metal, Garmin used to manufacture these radar pedestals, there may be slight blemishes on the outside.

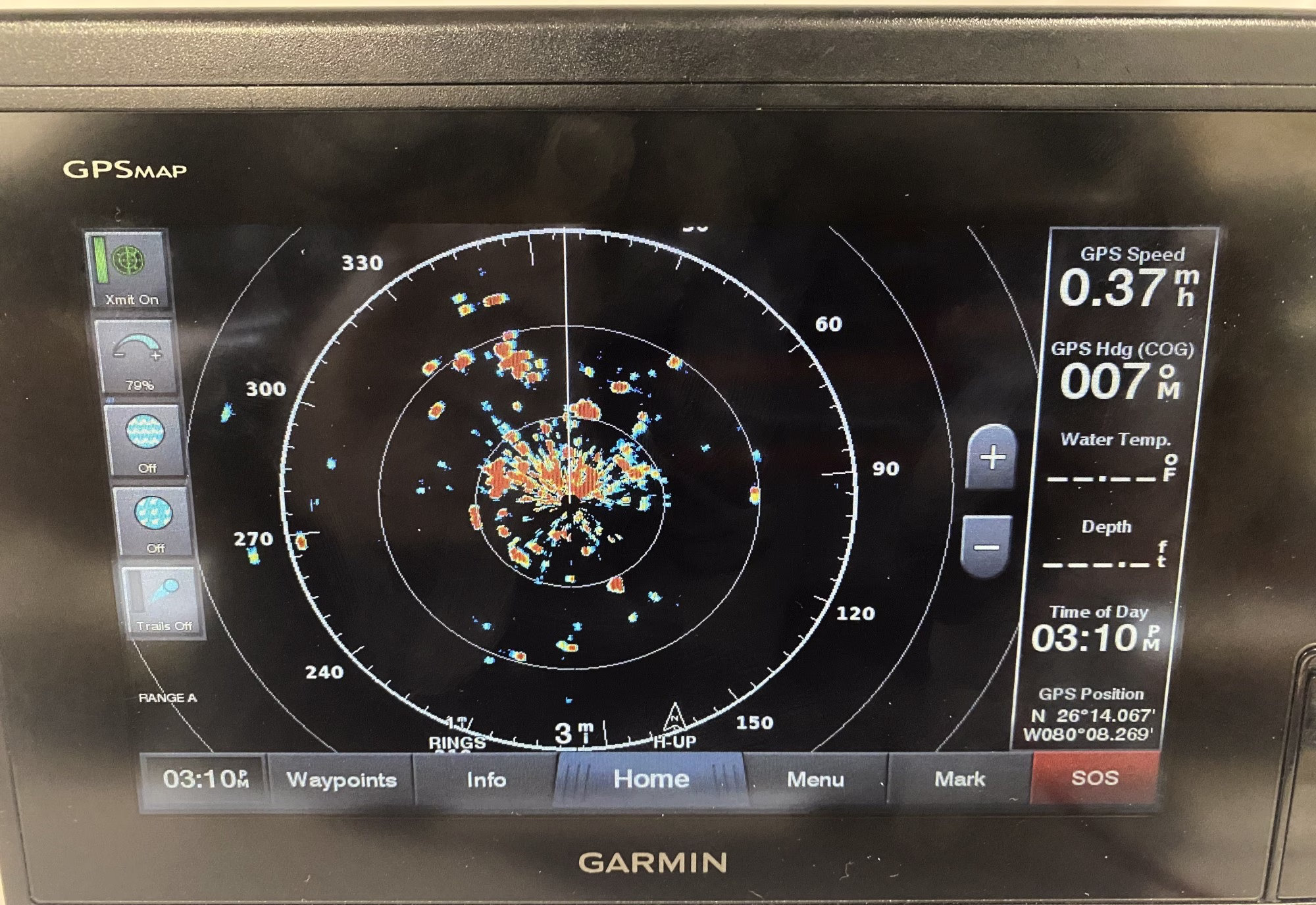

Unit picked up targets around 12nm out on a stormy day (capable of 72nm viewing).

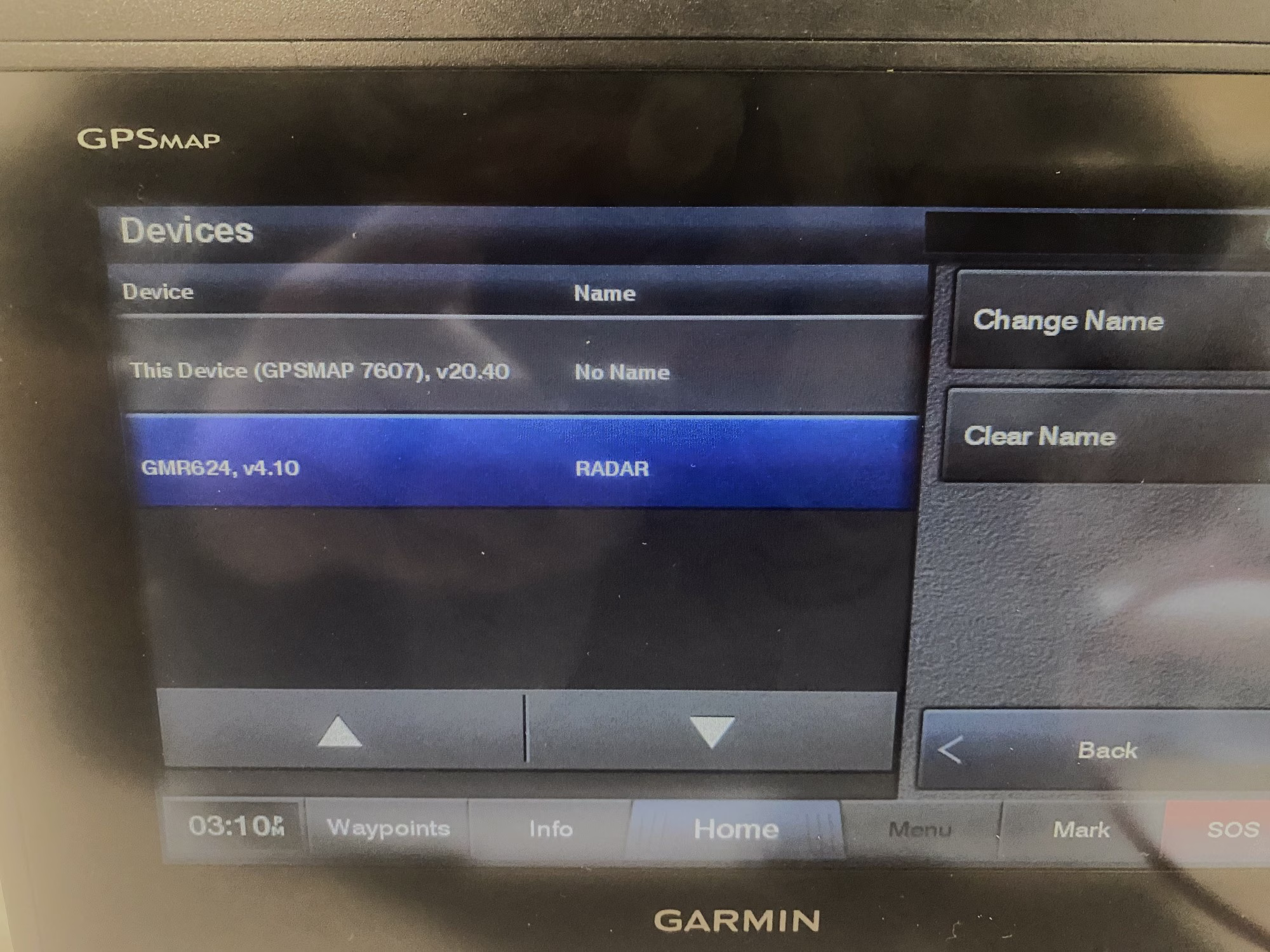

This is a Garmin 6kw XHD2 that was fully tested and fully functional.
This is a 6Kw radar. It can be a 604 with a 4ft array and with a 6ft array attached it becomes a 606. (we can switch the 4ft array for a 6ft array at no additional charge, subject to availability).
This would be perfect for someone looking to add open array radar to their vessel without paying an extra several thousand dollars, or someone looking for a replacement for a downed unit.
Thanks for looking!

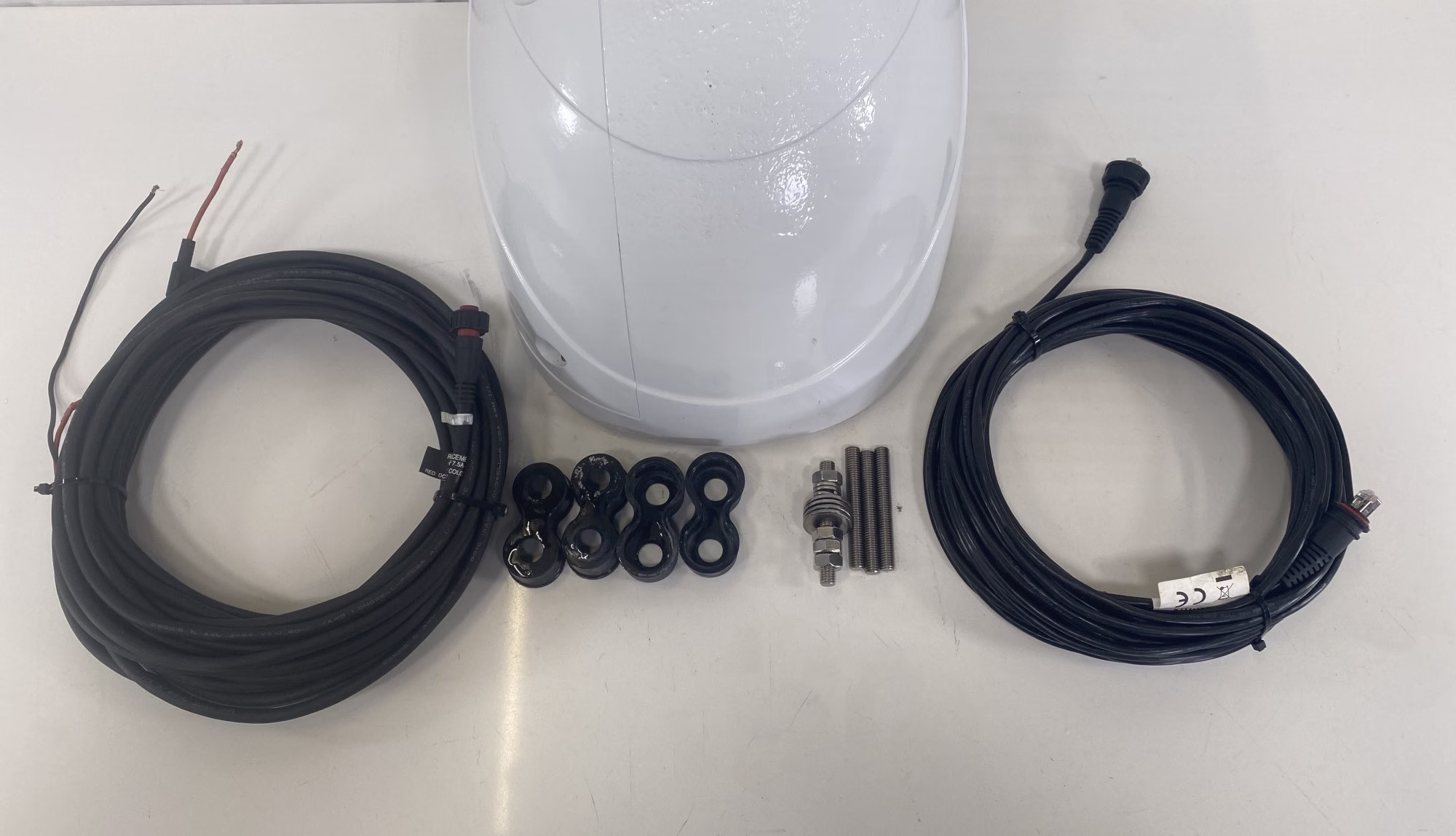

What’s Included:
- Pedestal
- 4ft array
- Network cable
- Power cable
- Mounting hardware
- Rubber mounting feet
Compatible Parts: Chart plotters that support xHD2 radar systems.
Dimensions (L x W x H): 90 x 90 x 90 in, Weight: 90 lbs
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
**Garmin Radar Disclaimer:**
Max Marine Electronics believes in full transparency; We sell Garmin radars due to overwhelming demand from customers. Garmin builds a suite of extremely easy to use, and for the most part, reliable marine electronics products. Their radars are a rare exception. We have always done our best to supply the best product we can, but there are factors beyond our control. These factors include the fact that Garmin radars have a disproportionately high rate of failure, are made with mediocre aluminum alloys (open array radars only), and that all but the latest/current production XHD2 (open array radars) and XHD (dome radars) are no longer serviced by Garmin and parts are no longer available.
The disproportionately high rate of failure is well documented online. Our radars are tested to ensure full functionality at the time of sale and come with a 90-day warranty. The aluminum alloy issue is also well documented – the aluminum oxidizes which cause the factory powder coating to blister. This is unattractive and can cause water intrusion when the blistering occurs in the case-seal area of the pedestal. We strip, bead blast, and powder coat nearly every Garmin pedestal we sell. Because the degradation of the aluminum leaves small artifacts in the surface of the aluminum, some of those artifacts will show through on the powder coating. Furthermore, because of the aluminum alloys used in manufacturing, there may be small areas of off gassing that are left in the powder coating process. Lastly, Garmin no longer supports or produces parts for any radars that are not current production. This includes the original GMR40X, all XHD pedestals, and all non-XHD domes.
This means that after the Max Marine Electronics’ 90-day warranty (the same warranty Garmin gives to factory repaired products), there is no resource for these radars to be serviced. We certainly hope and expect the radars will last well beyond the warranty period, and we have put a lot of time into trying to make the best of the situation with these radars. We believe that if buying a used Garmin radar, buying one of ours will give buyers the best shot at a reasonable service life.
Thanks for looking!
Terms:
All items sold at Max Marine Electronics come as you see in the pictures provided, with only the parts and accessories stated in the description section named “What’s Included”. IF YOU DO NOT SEE SOMETHING YOU EXPECT TO BE INCLUDED IN THE DESCRIPTION WE PROVIDE, IT WILL NOT BE INCLUDED. Read all descriptions thoroughly. There are times a display is used only to show the item being sold is functional and working properly. In this case, these displays are not included. If you have any questions feel free to send a message or call Max Marine Electronics Inc, Pompano Beach, Florida. We always want to be transparent with our customers and fully disclose any information regarding the products we sell.
