Manufacturer: Garmin / Airmar
Model Number: SS60-20
Series: Thru-Hull
Listed Item Condition: New Other (see details)
Additional Notes: This Airmar/Garmin SS60-20-6G transducer is in great working condition!
Please Note: This transducer comes as shown – It will not have a hull nut making it ideal for someone replacing an existing downed SS60 transducer! If this transducer is being installed from scratch, the hull nut can be purchased from various online vendors – please search Airmar Part # 02-563-01.
It is a 600w power output and has an operating frequency of 50kHz and 200kHz. It has an internal temperature sensor.

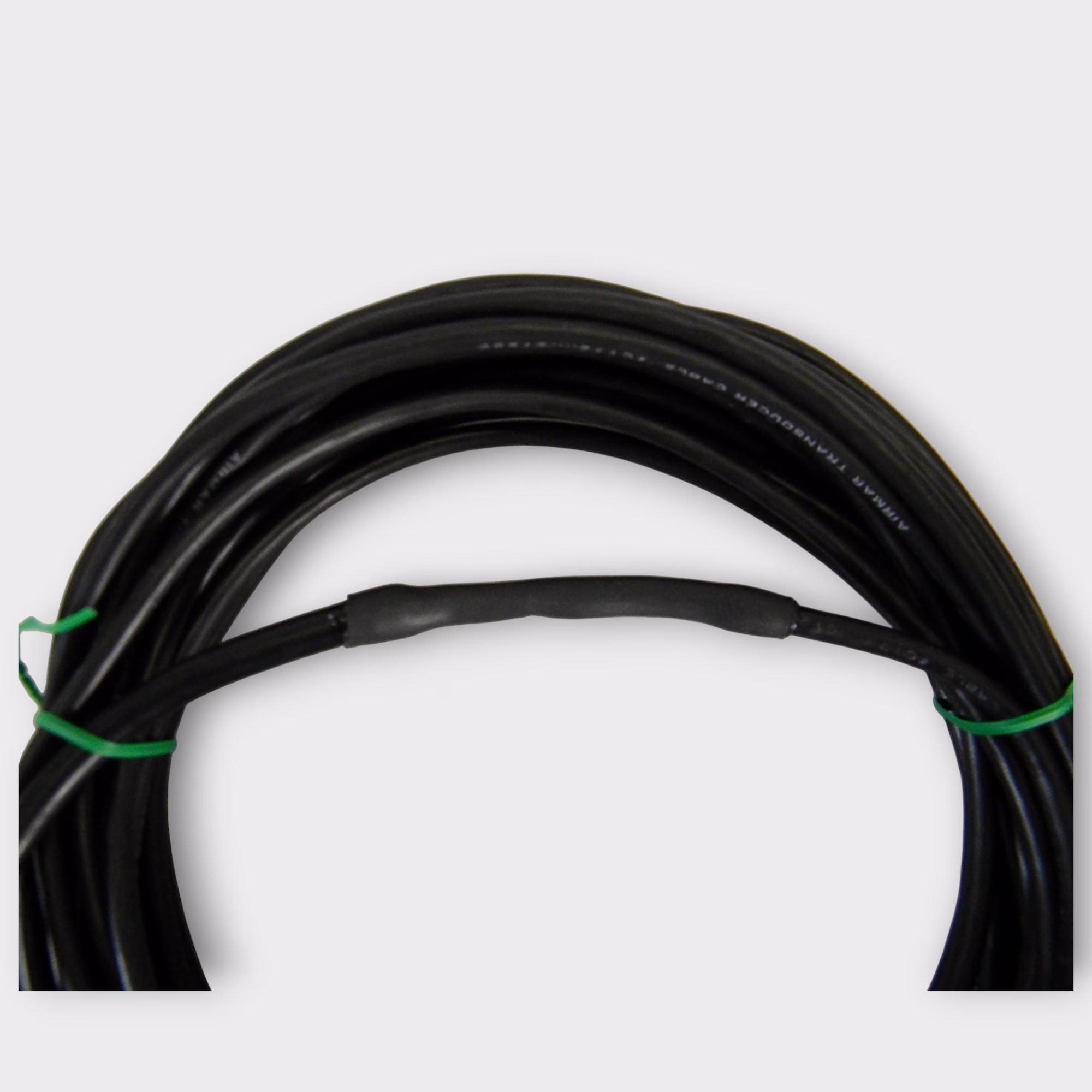

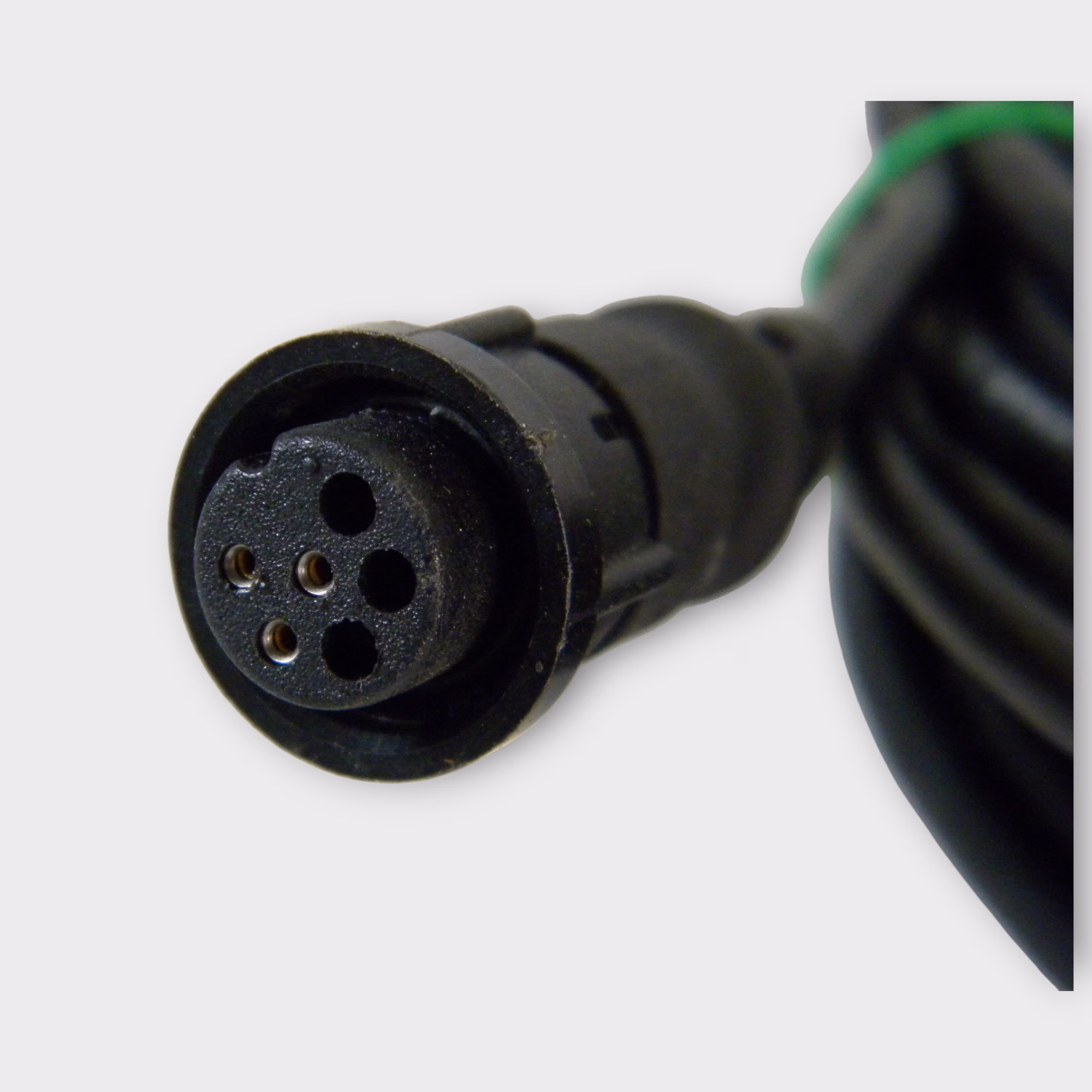

This transducer is essentially new, never been installed; however it was used as a demo/display unit and the cable was cut short, about 6 inches from the top of the transducer. We have professionally re-spliced a Garmin 6-Pin cable onto the transducer. We used multiple layers of sealed heat shrink over the splice to ensure the splice is completely sealed!
The transducer was then retested on a TDT1000 transducer test set, the gold standard in transducer testing. All testing results are passing and included in the listing photos.

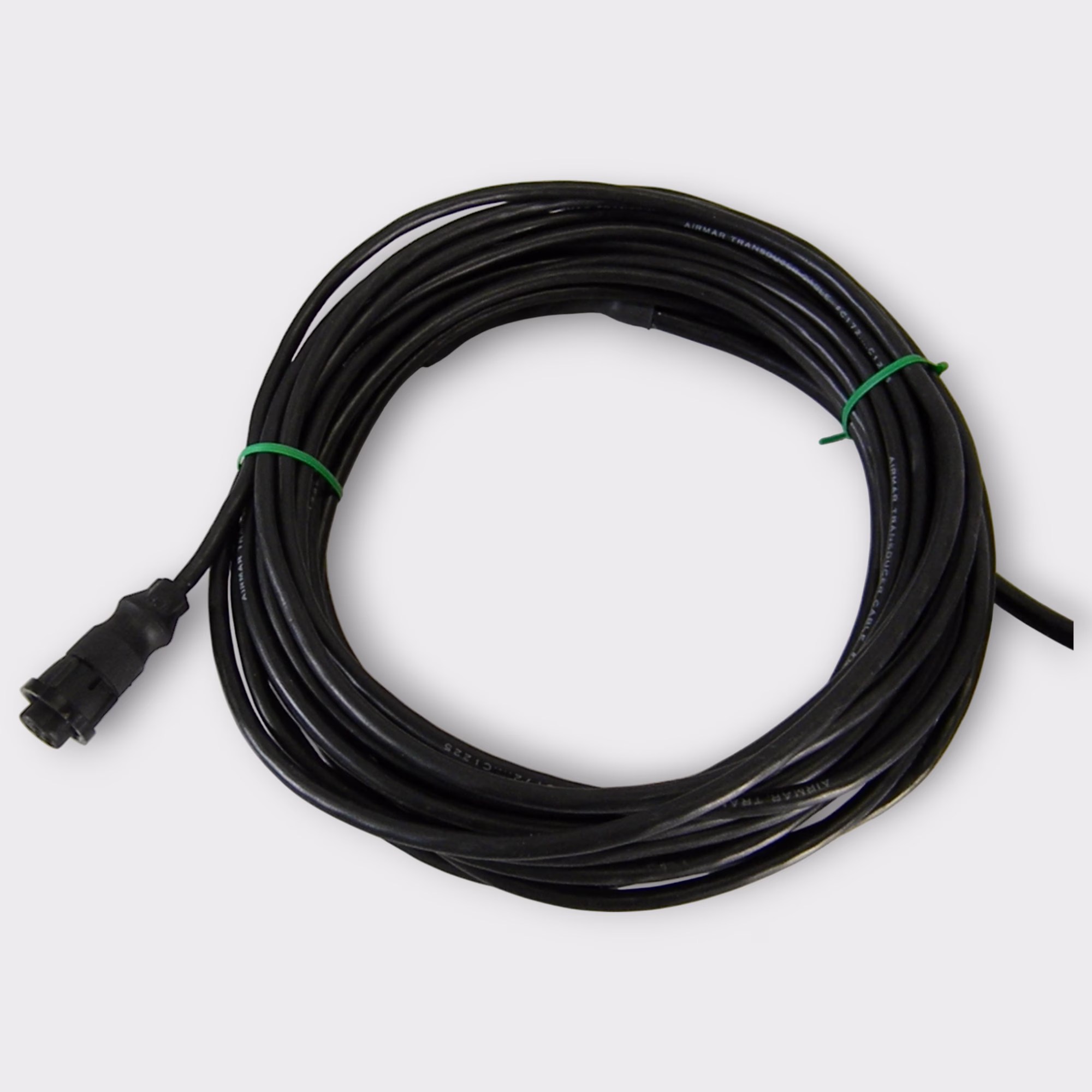

The cable length is 10m or 33ft.

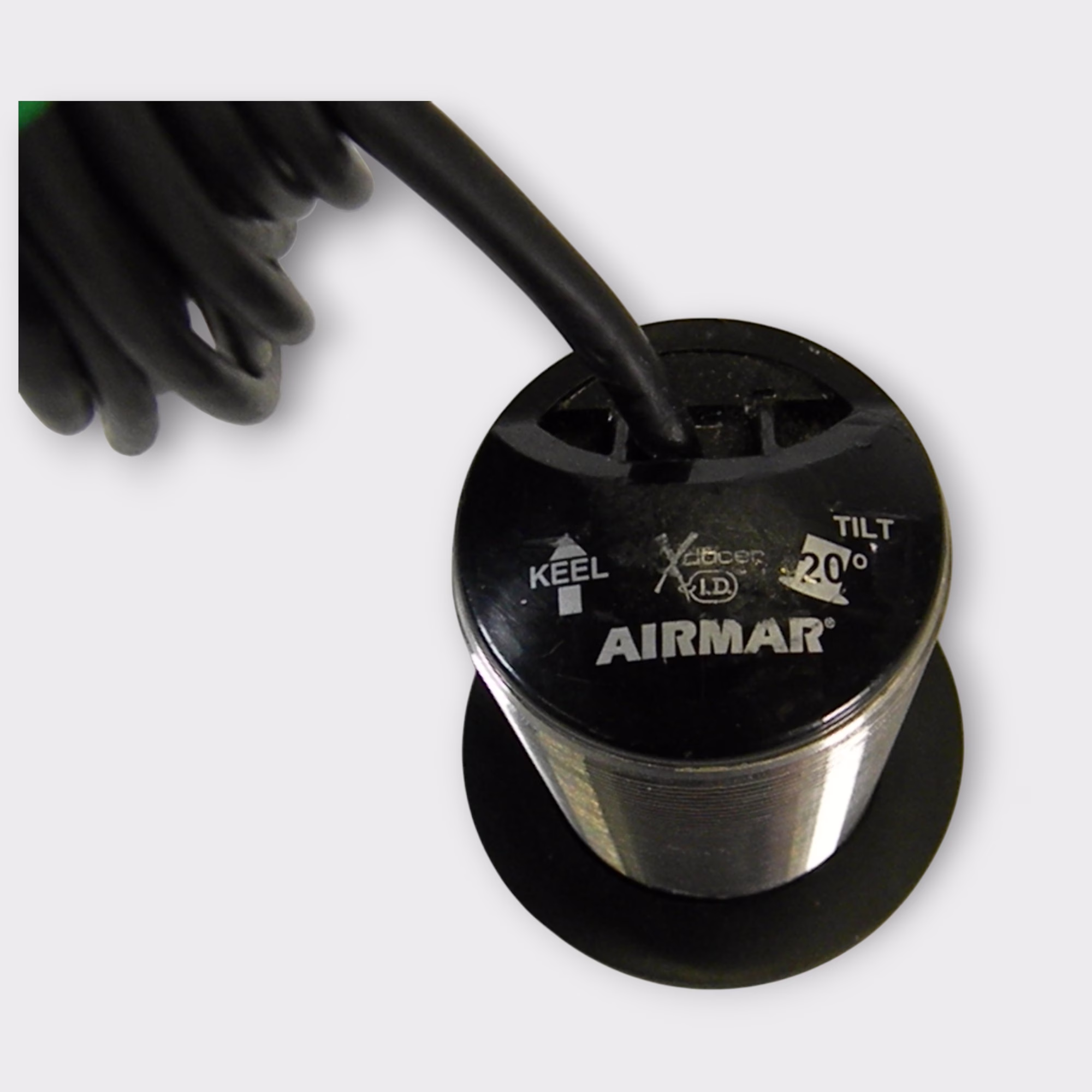

Please note: This is the 20 degree version of the SS60 therefore it should be installed on hull deadrises between 16-24 degrees. Anything above or below those numbers will result in reduced performance.
What’s Included:

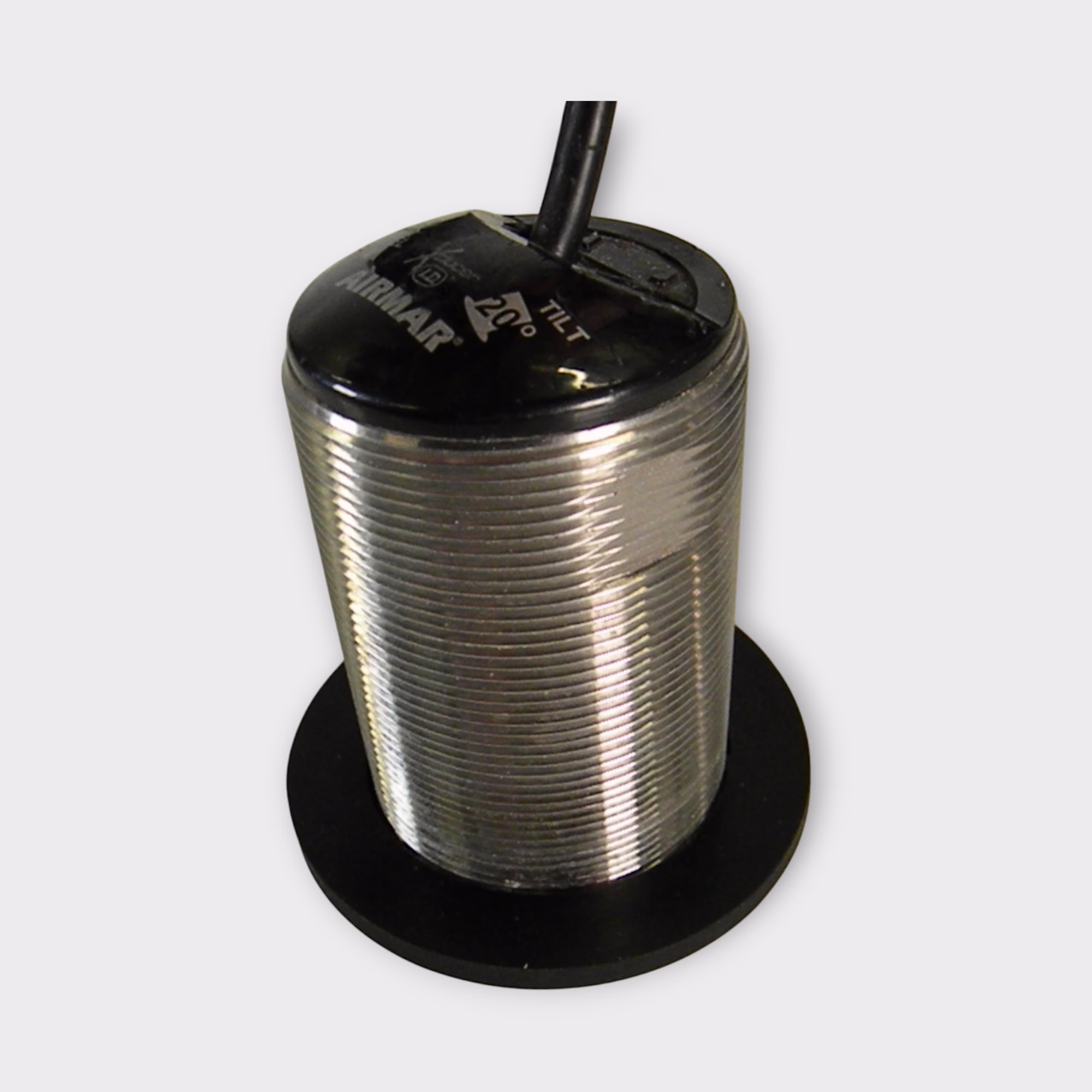

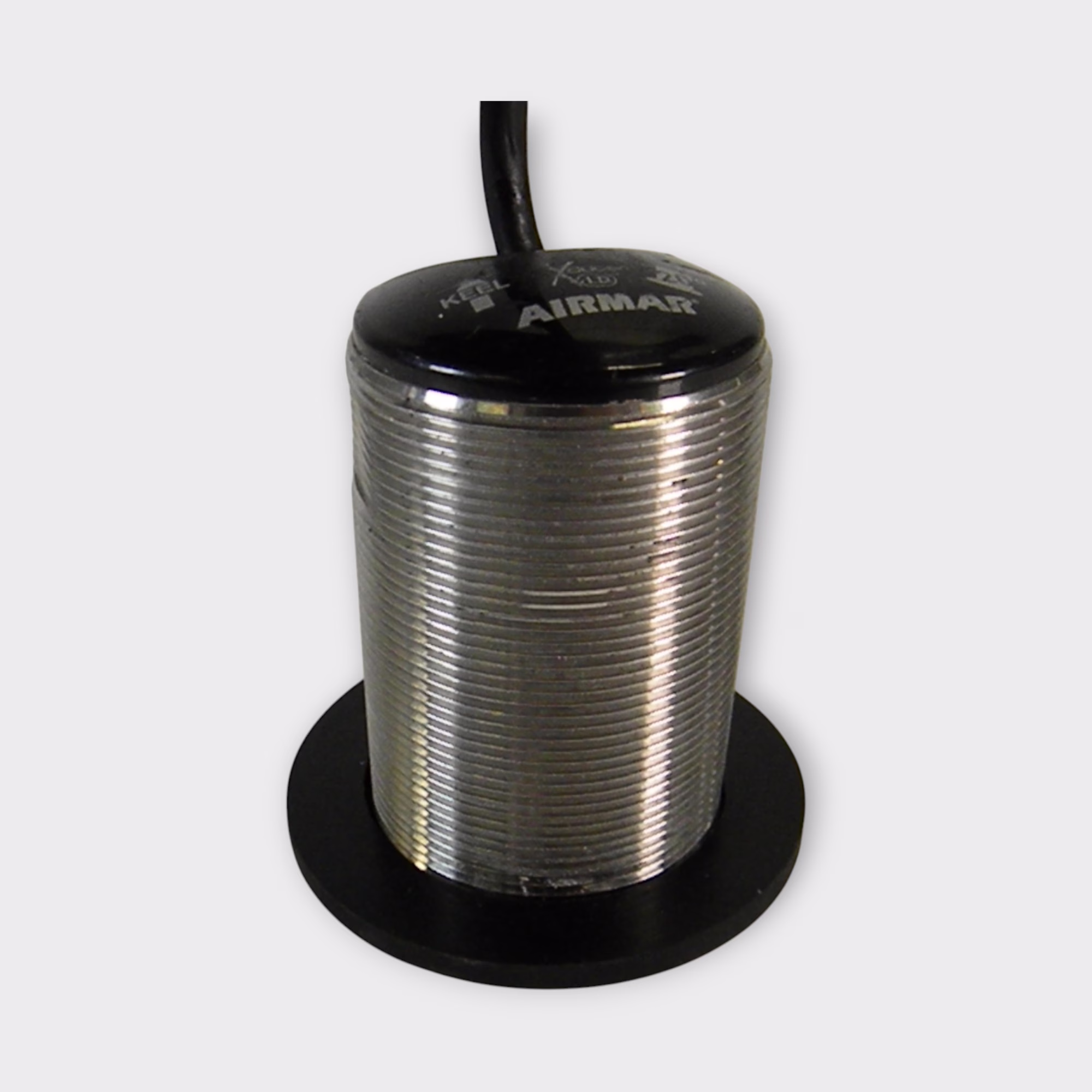

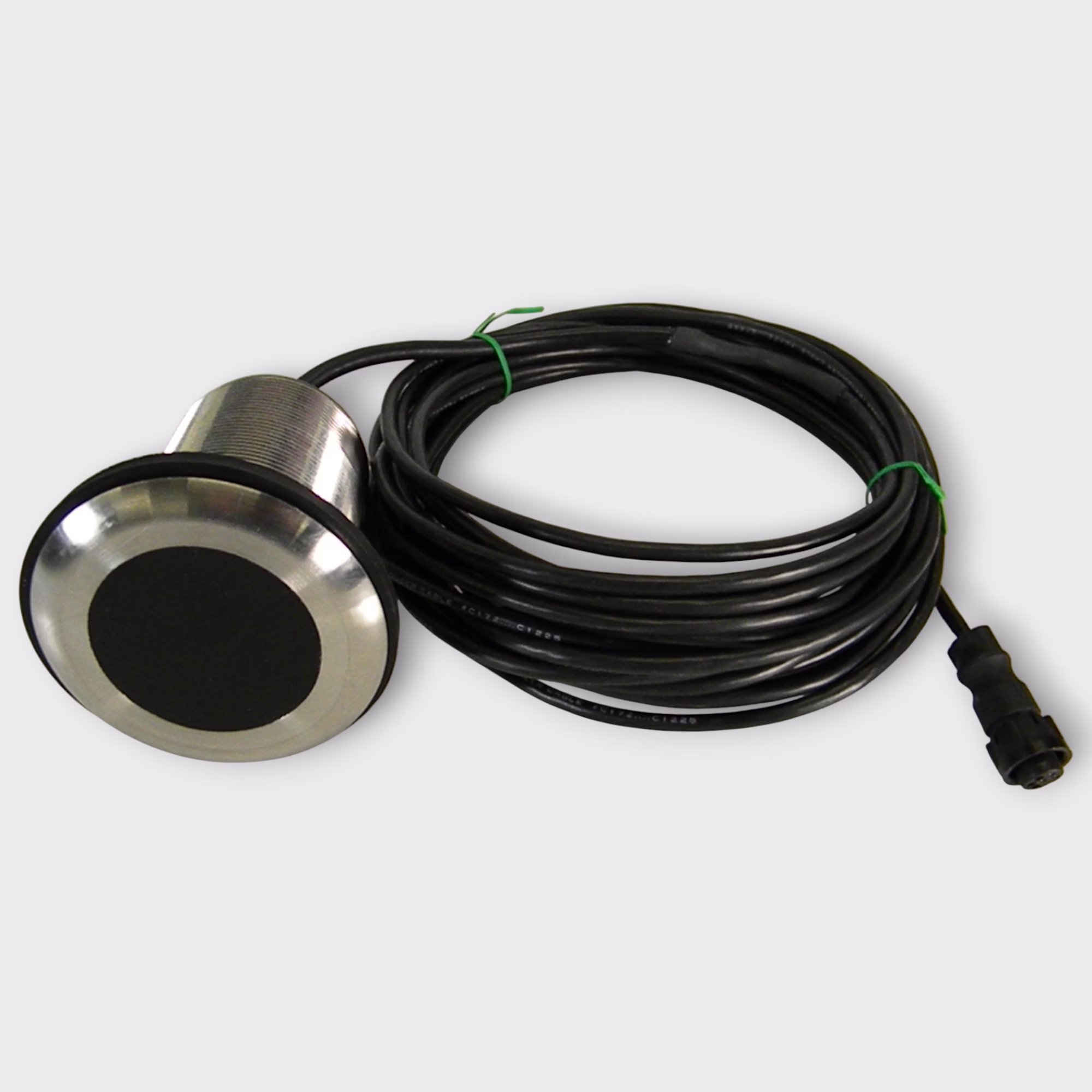

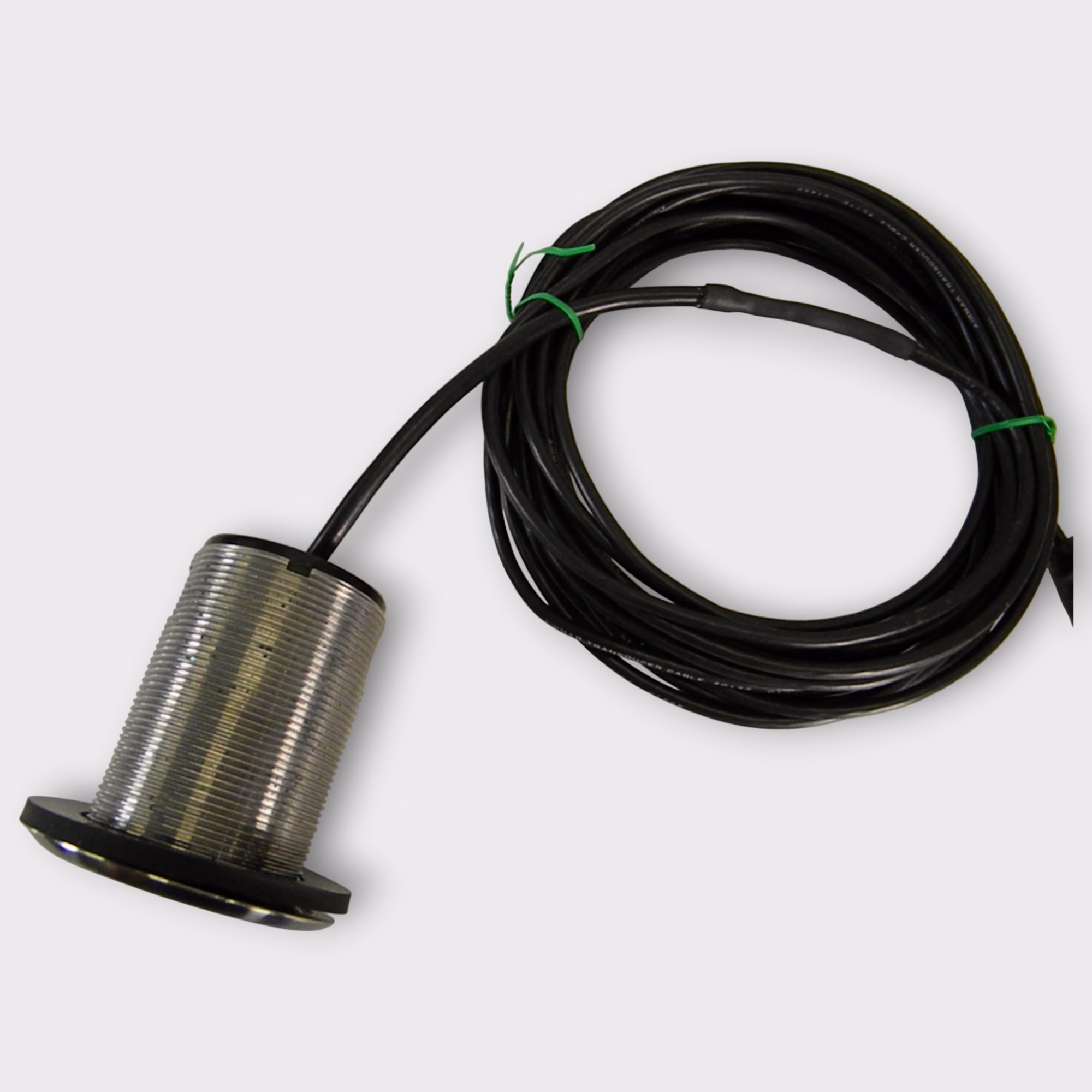

- Airmar Garmin SS60-20-6G Stainless Steel Low Profile Thru-Hull Transducer
- Rubber Washer
Compatible Parts: This transducer works with a variety of Garmin 6-pin units, please ensure compatability before purchasing.
Dimensions (L x W x H): 9 x 9 x 4 in, Weight: 3 lbs
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout. Please be advised if the item is large or is a multi-piece shipment, shipping quotes may be inaccurate due to restrictions outside of our control, in those instances you will be contacted promptly.
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
