Manufacturer: Garmin

Model Number: B175M-20

Series: Transducer

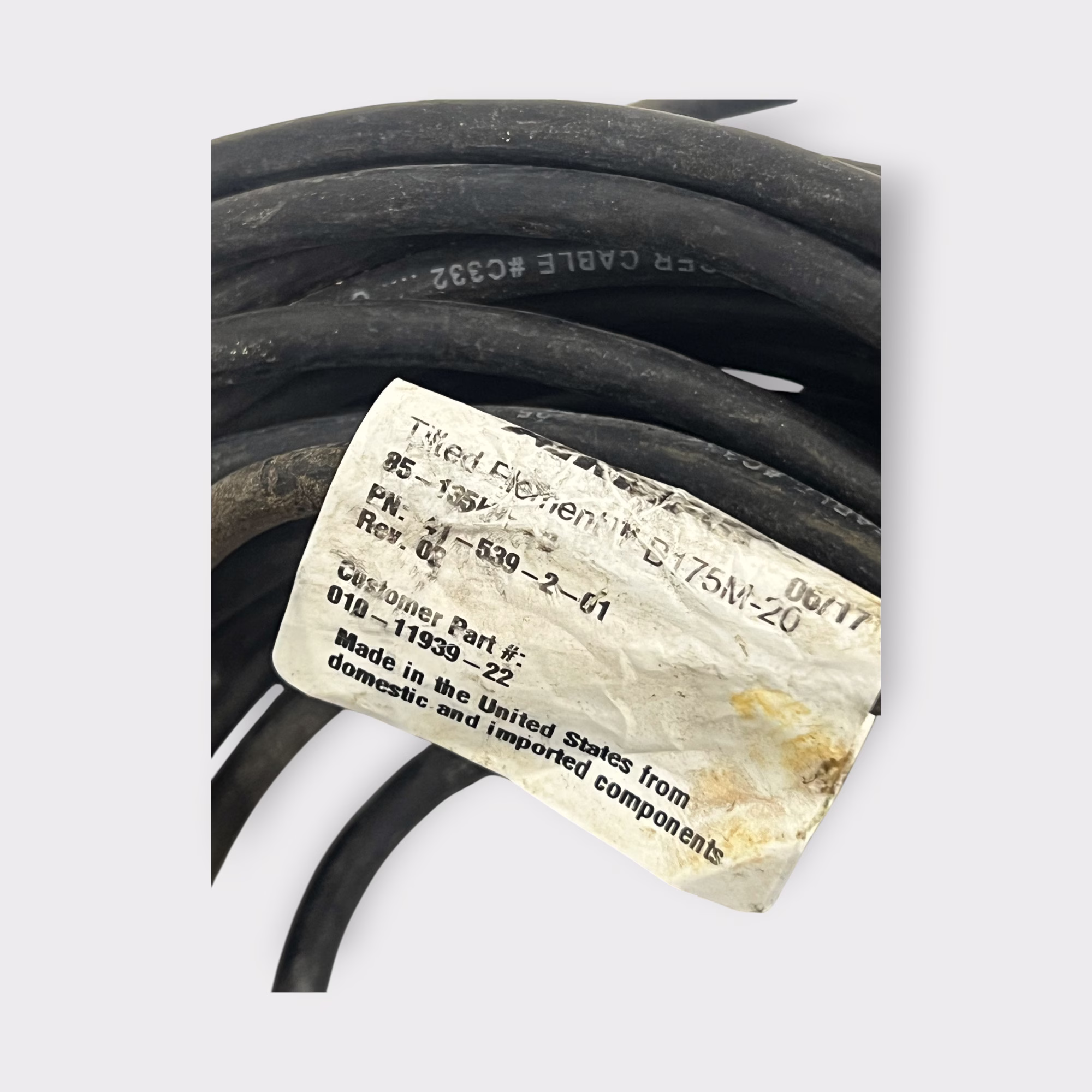

MPN: 010-11939-22

Listed Item Condition: Used

Additional Notes: Airmar/Garmin B175M-20 Thru-Hull 20-degree, Medium Band CHIRP, 1000w Operating at a frequency range of 85 to 135 kHz

This has been tested with the Airmar TDT1000, which is the gold standard in transducer test equipment. Test Report Attached.

This transducer passed testing on the medium CHIRP band; transducer is ready to install. Only 212 hours of runtime. It is used, we have done our best to clean it up and make it install-ready. It comes complete with install materials.

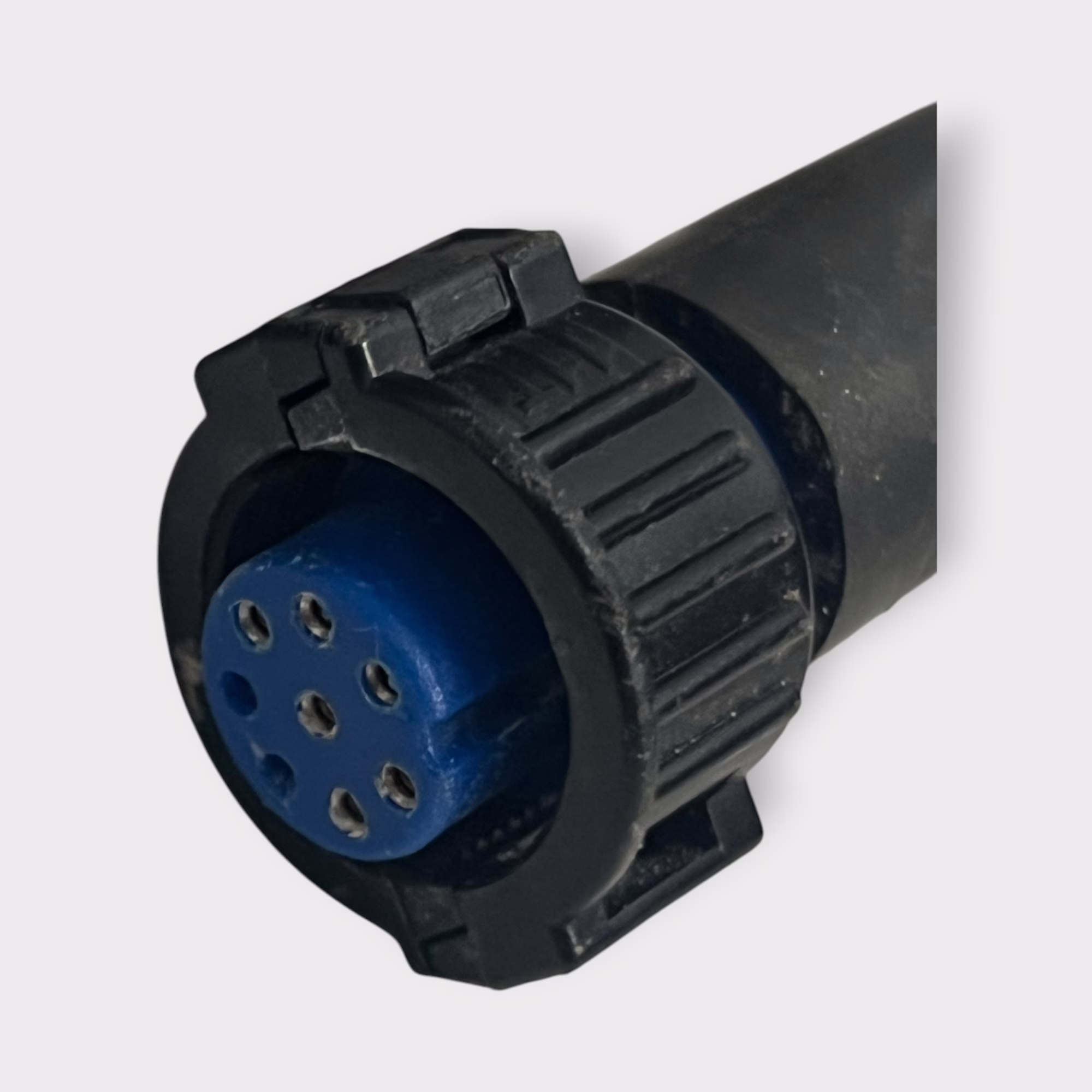

This transducer is a Garmin 8-pin blue CHIRP transducer, medium band.

If wiring to another brand/device, you can remove the split kit and wire as follows:

For Garmin – For GSD26 – cut the connector and just wire to the terminals. For 12 pin orange, use 010-12122-10 adapter cable.

For Raymarine – Use Airmar’s 33-969-01 adapter box

For Furuno – Works with the DFF1-UHD – just wire to the terminals – also works on the TZT3 and TZTXL (will require a special cable for TZT3, please ask)

For Simrad – Works with BSM2&3 – wire directly to the terminals, you may need to remove the 7 pin plugs on the BSM-3 if equip to wire directly. For the S5100, use the Simrad 000-13262-001 adapter box.

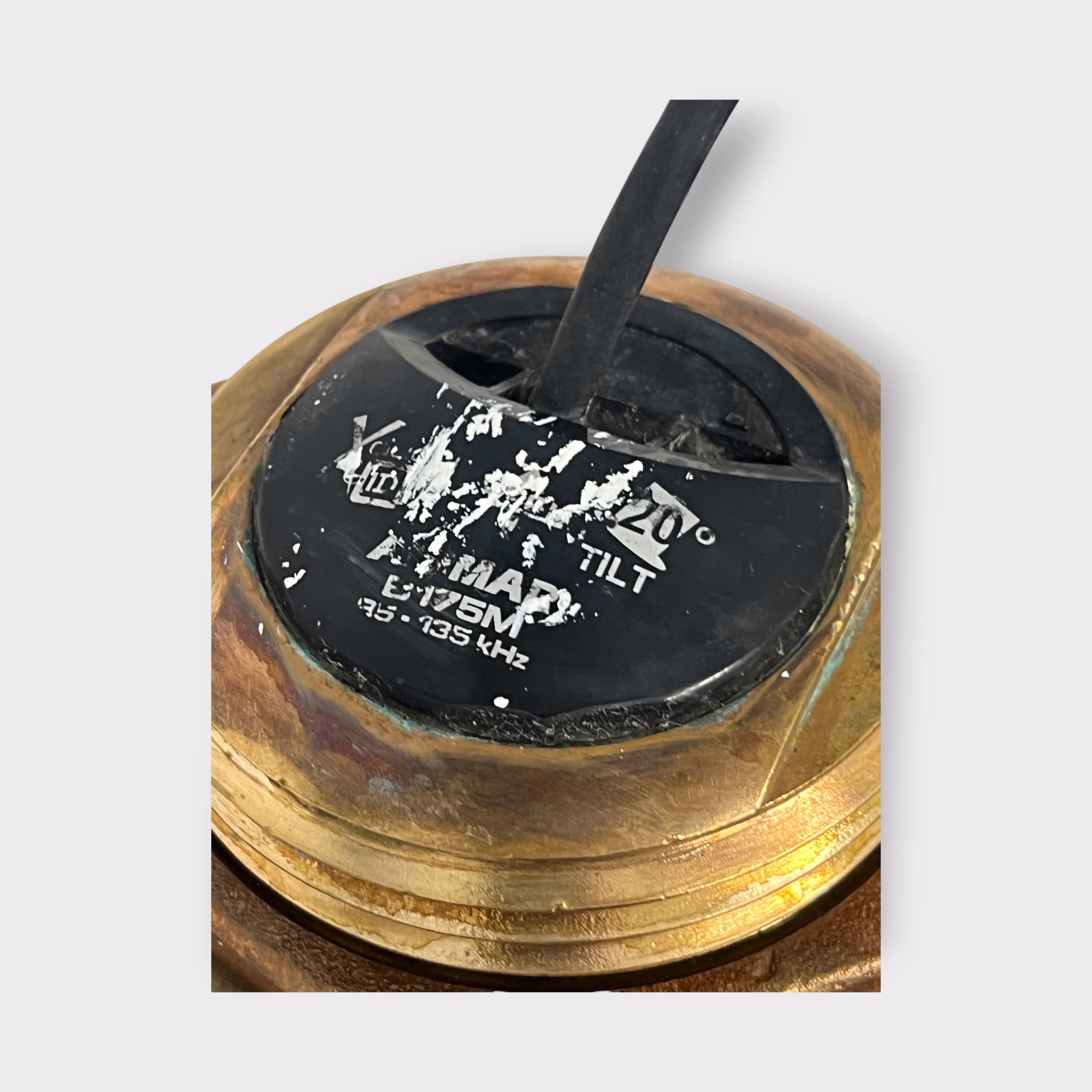

This is for installation on deadrises of Fixed 20° tilted version for 16° to 24° hull deadrise

This item has a 30-day return and 90-day warranty from date of receipt. For more information on our store policies please refer to our terms and conditions.

Free shipping in the Contiguous United States.

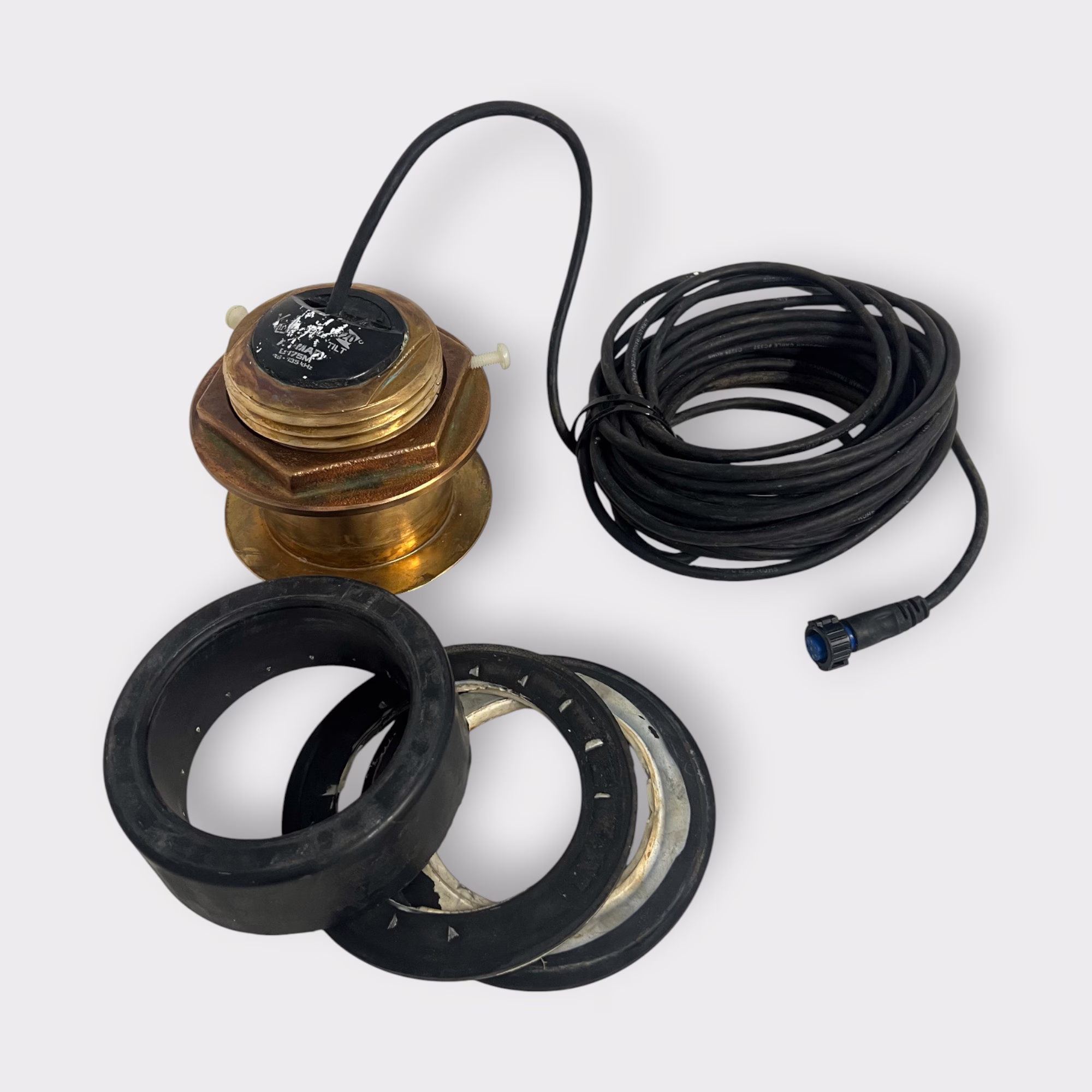

What’s Included:

• B175M-20 Transducer w/Attached Cable, Garmin 8-pin Blue Connector

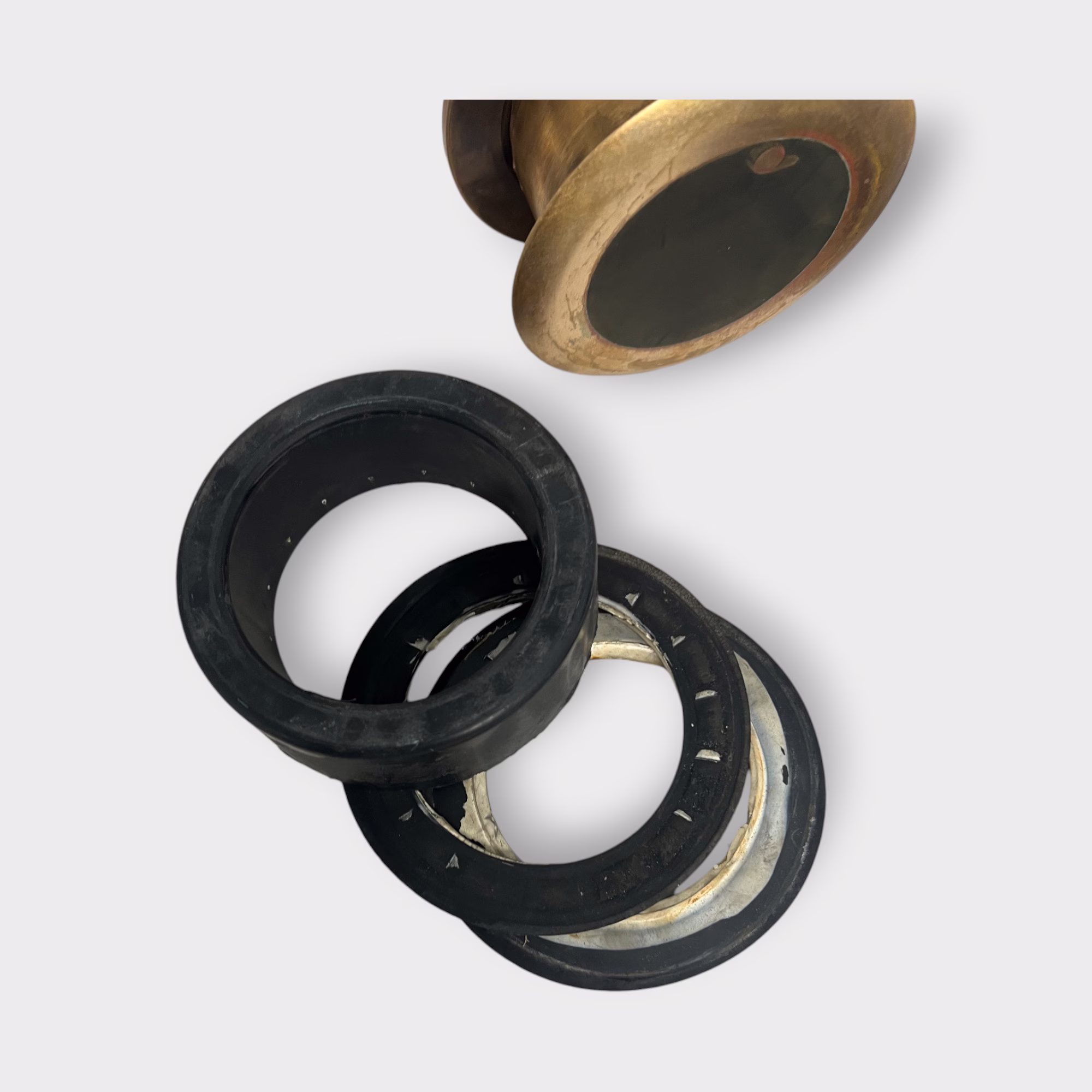

• Bronze Hull Nut with Jam Bolts
• 2x Rubber Washers
• Plastic Hull Spacer

Compatible Parts: Garmin XSV units and Sounder Modules that support 1kw CHIRP – Blue Connector

Dimensions (L x W x H): 12 x 12 x 12 in, Weight: 20 lbs

Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout. Please be advised if the item is large or is a multi-piece shipment, shipping quotes may be inaccurate due to restrictions outside of our control, in those instances you will be contacted promptly.

Return Info: 30-Day Returns

Warranty Info: 90-Day Warranty
