Manufacturer: Furuno
Model Number: DRS6a
Series: UHD
Condition: Used
Additional Notes:
We updated this radar to the latest software version 1.18, which allows this radar to work with the TZ models.

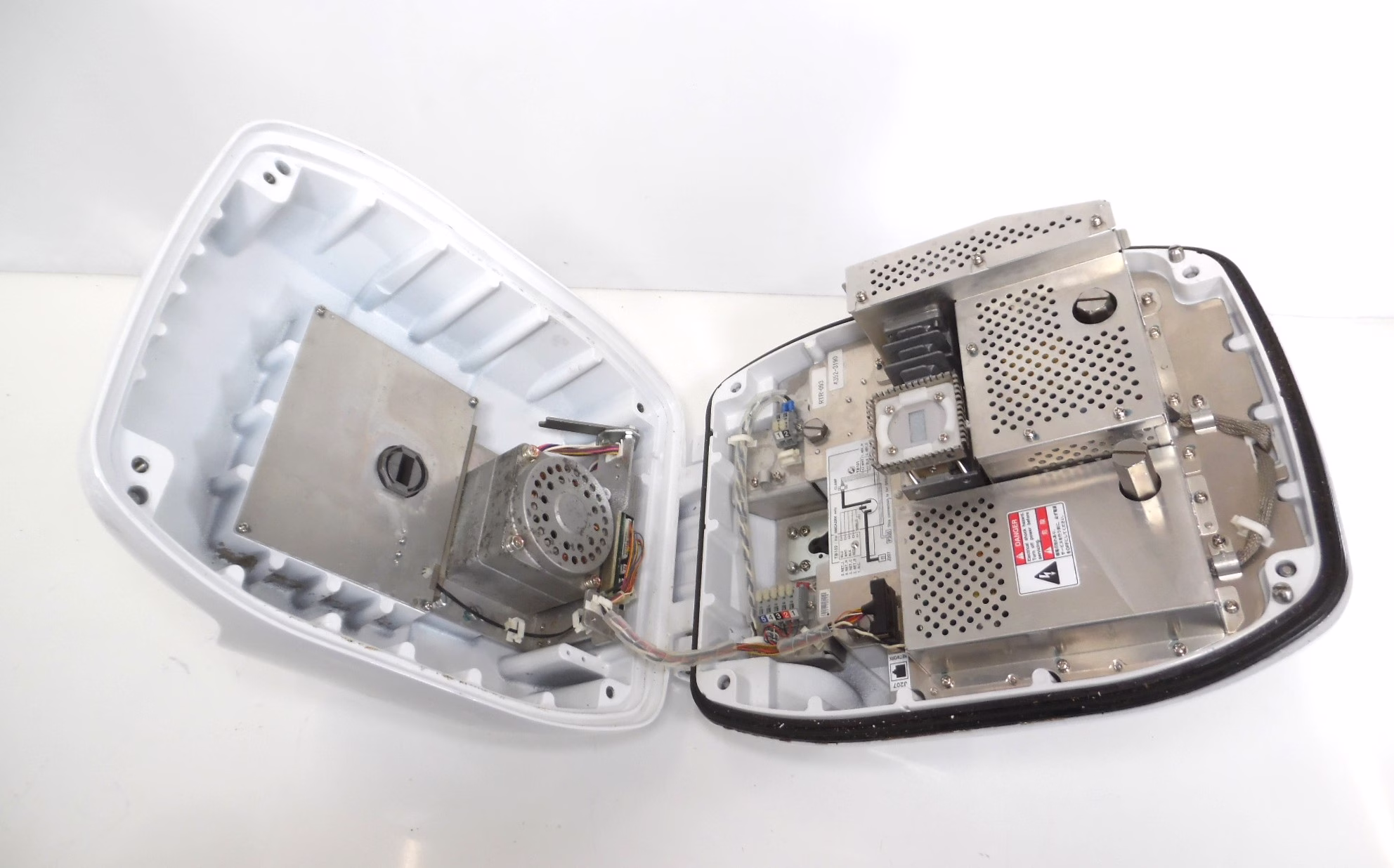

The radar has been fully tested on our bench and is in excellent working condition.
All DRS radars operate on 48 VDC, so we are including x2 NEW Victron 12 to 24 VDC power supplies to increase the output voltage to 48 VDC. These can be used in place of the PSU-012 as those are harder to come by and carry a higher price tag than the Victron units. These two power supplies must be connected in a series (wiring diagram included). Instead of the ethernet wire connecting directly to the PSU-012, you can directly connect this DRS to any NavNet3D or TZtouch. A HUB-101 or similar switch can be used if a direct connection is not an option. We only supply the jumper wire between the two Victron units to increase the total output voltage. Other wiring will need to be supplied by the customer.
PLEASE NOTE: This radar can unlock the ARPA function with the use of your MFD (MFD8/12/BB, TZT, TZT2, TZT3), you just need to connect a GPS antenna and a heading sensor to your existing NMEA2000 network. Please take a look at the MFD manual for more information on how to properly use ARPA.
What’s Included:

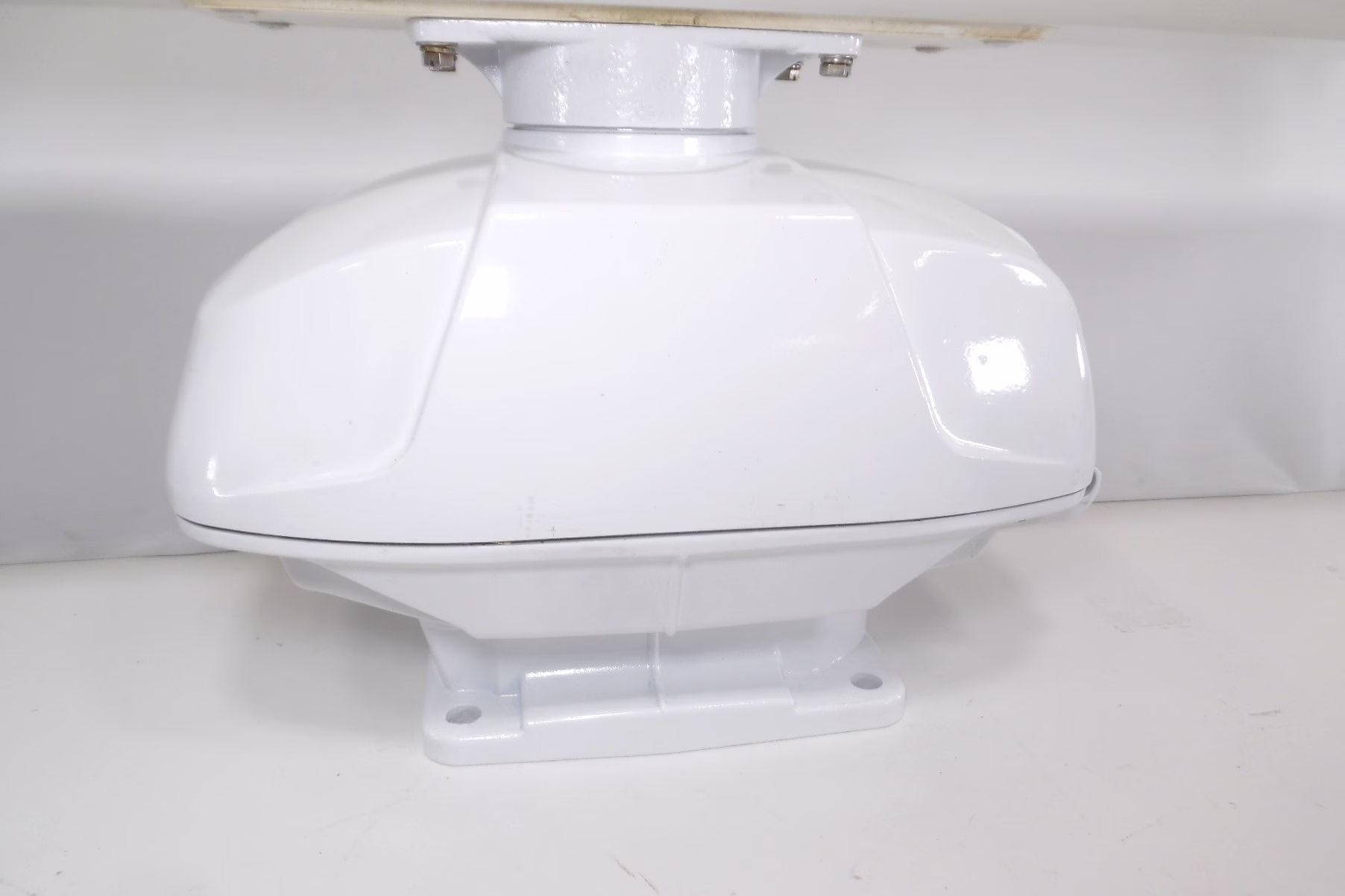

- DRS6a – gearbox was professionally powder coated
- 4 Foot Array – minor scuffs and scratches
- New Victron Power Supply – 12 to 24VDC
- New Victron Power Supply – 12 to 24DVC
- Jumper Wire
- Interconnect Cable – 15 M. Does not have 3-pin connector on it, both power sides are bare wires, made in house, please read note below:
- Instead of being a “siamese” cable with no protection, ours is two individual wires in a durable cable wrap
- Our cable uses red (+) and yellow (-), instead of white (+) and black (-)
- Our cable uses one size heavier gauge power wire – we feel it is better to be oversized than undersized on power.
- Our cable uses an electronically shielded data wire, and an unshielded power wire, whereas the Furuno cable uses a shielded power and shielded data wire.
Compatible Parts:
NavNet3D, TZtouch series, Time zero
Dimensions (L x W x H): 60 x 60 x 60 in, Weight: 100 lbs
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
