Manufacturer: Furuno

Model Number: DRS12a

Series: UHD

MPN: RSB118-094

Condition: Used

Additional Notes:

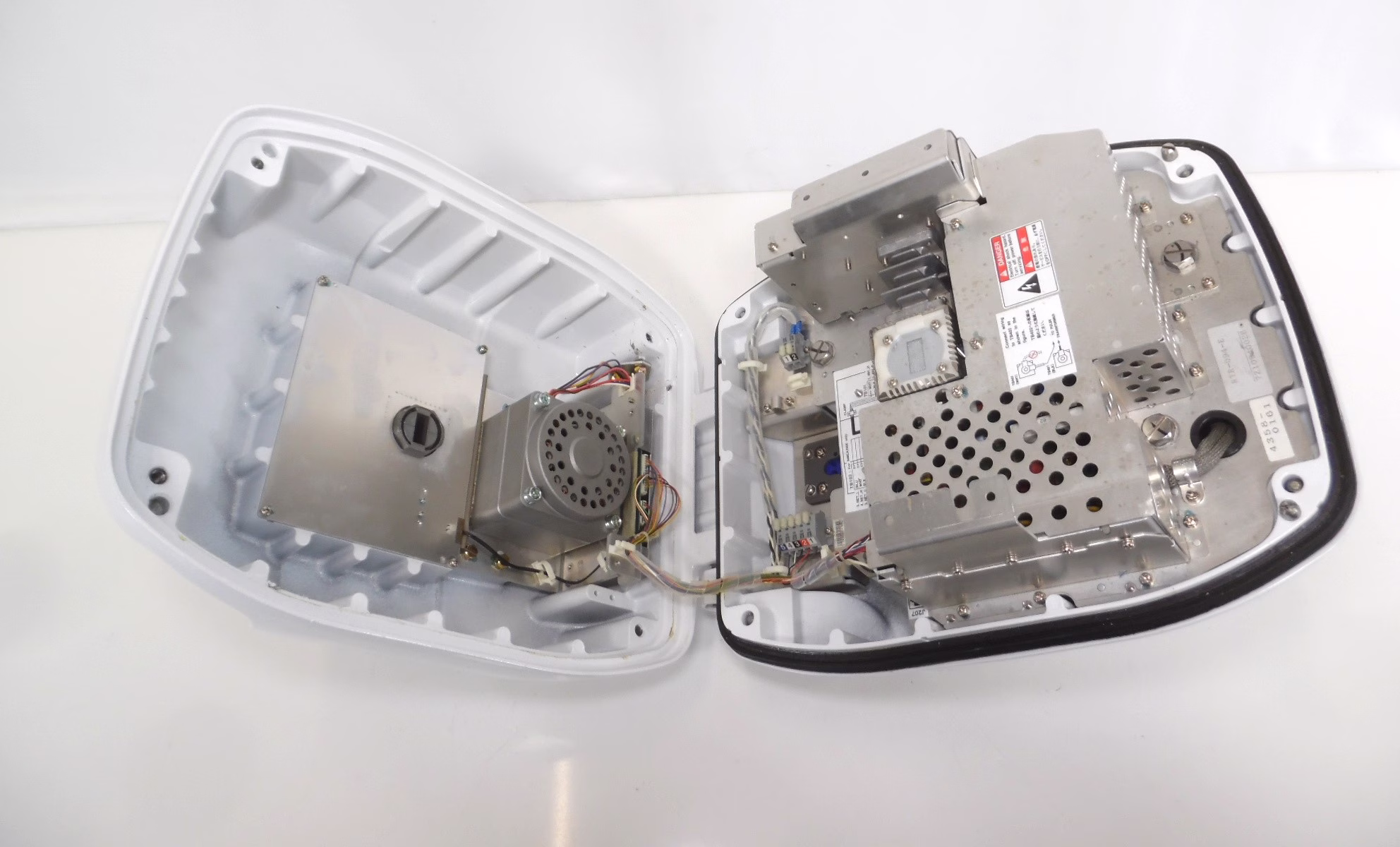

This radar was part of a Navnet system we recently acquired. The radar is great for birds and has been fully tested on our bench.

This radar was on a vessel where the electronics were left on all the time resulting in a higher ON time. The TX time is average for a DRS12a. We have discounted the radar accordingly.

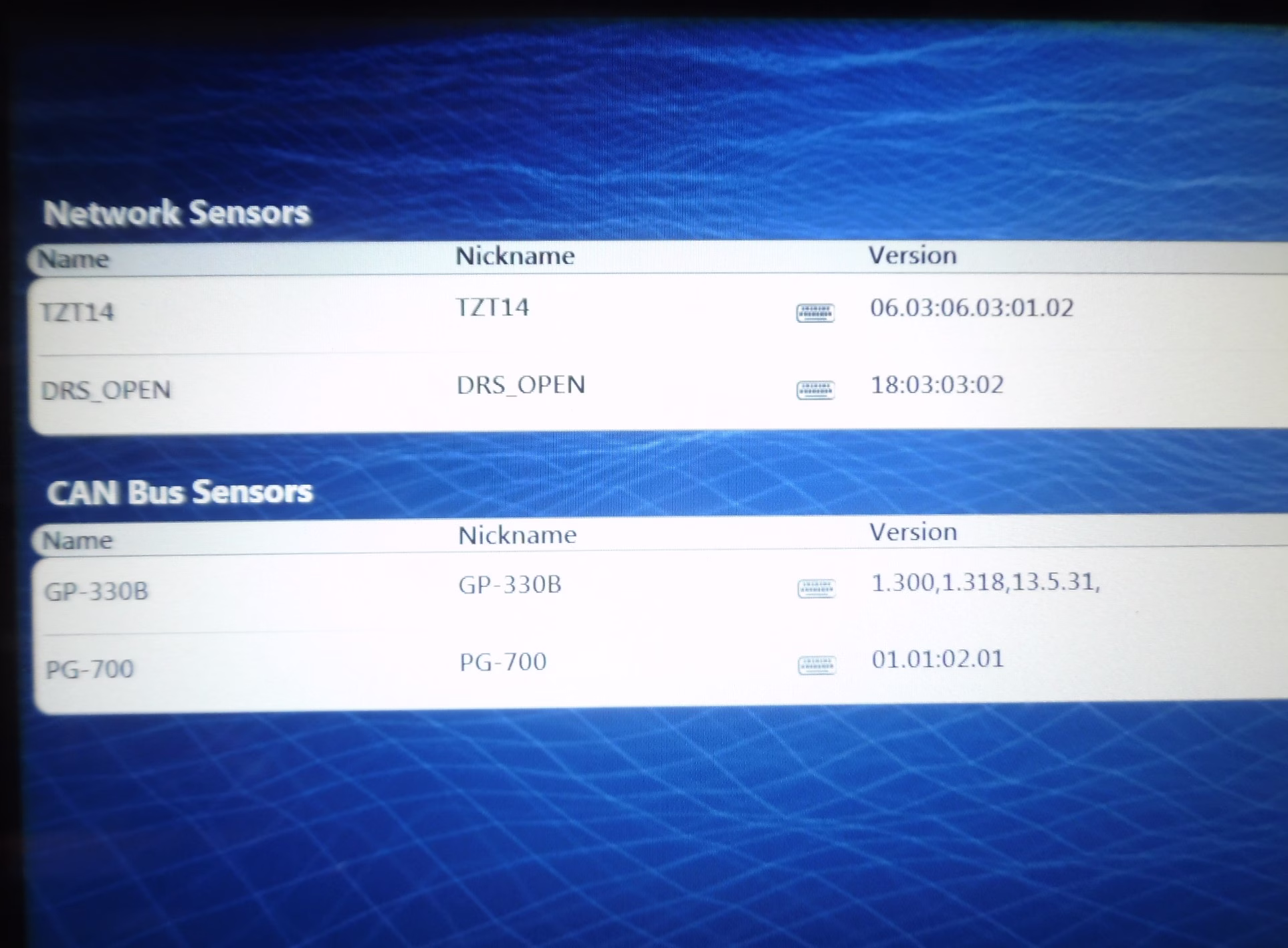

We updated this radar to the latest software version 1.18, which allows this radar to work with the TZ models.

All DRS radars operate on 48 VDC, so we are including x2 NEW Victron 12 to 24 VDC power supplies to increase the output voltage to 48 VDC. These can be used in place of the PSU-012 as those are harder to come by and carry a higher price tag than the Victron units. These two power supplies must be connected in a series (wiring diagram included). Instead of the ethernet wire connecting directly to the PSU-012, you can directly connect this DRS to any NavNet3D or TZtouch. A HUB-101 or similar switch can be used if a direct connection is not an option. We only supply the jumper wire between the two Victron units to increase the total output voltage. Other wiring will need to be supplied by the customer.

PLEASE NOTE: This radar can unlock the ARPA function with the use of your MFD (NavNet 3D’s, TZT, TZT2’s, TZT3), you just need to connect a GPS antenna and a heading sensor to your existing system. Please refer to the MFD manual for further information on how to properly use ARPA.

If you desire to have a 4 ft array and not a 6 ft array; we can check if any are available and replace it for you at NO ADDITIONAL COST! Please contact us before purchasing this listing.

What’s Included:

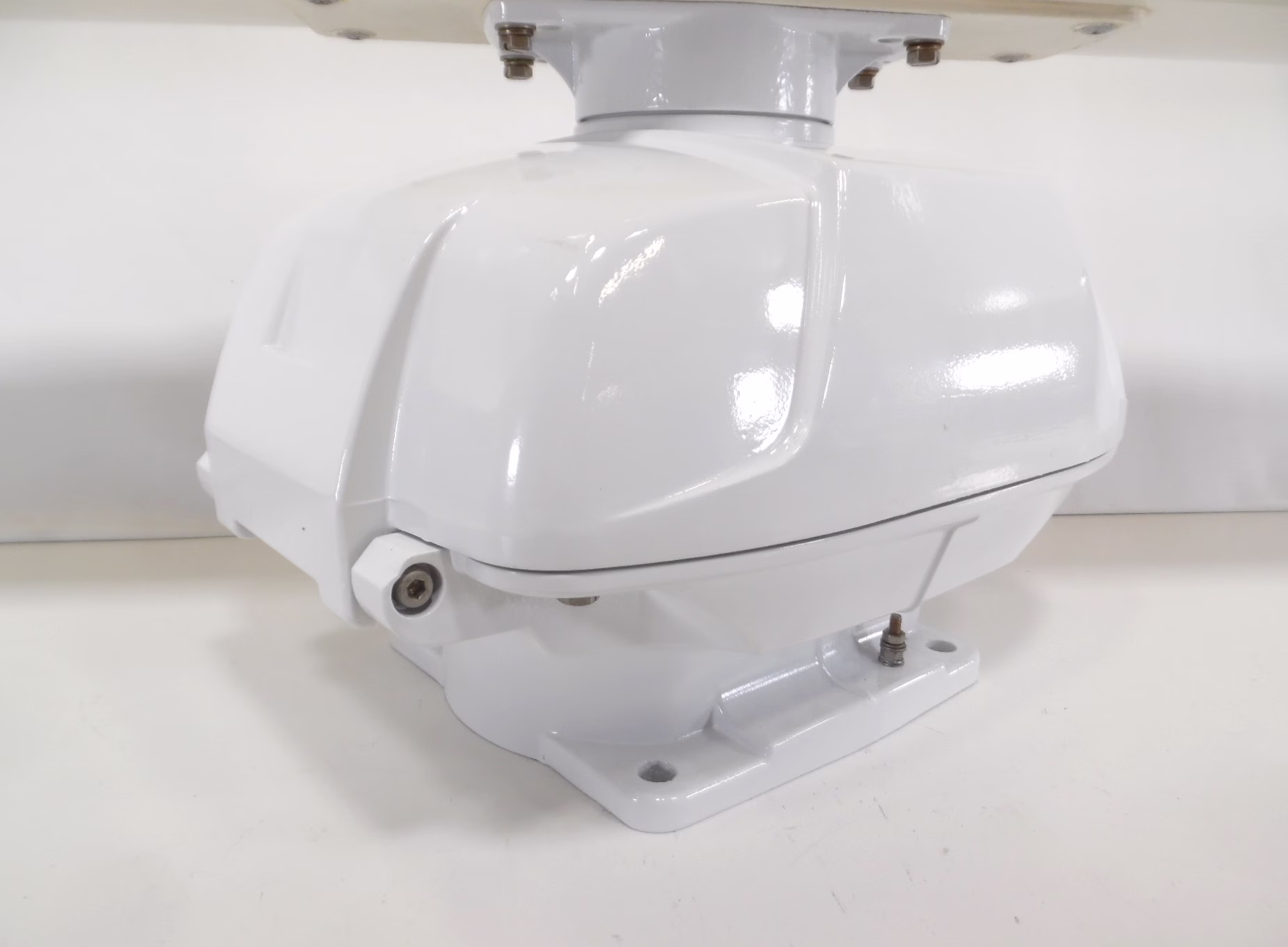

• DRS12a
• 6 Foot Array – scuffs and scratches
• NEW Victron Power Supply
• NEW Victron Power Supply
• Jumper Wire
• Interconnect Cable – 50 feet

Compatible Parts:

NavNet 3D, TZtouch, Timezero, TZtouch2, TZtouch3

Dimensions (L x W x H): 60 x 60 x 60 in, Weight: 120 lbs

Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.

Return Info: 30-Day Returns

Warranty Info: 90-Day Warranty
