Manufacturer: Furuno

Model Number: DST800

Series: Smart Sensor

MPN: 235DST-MSE

Condition: Used

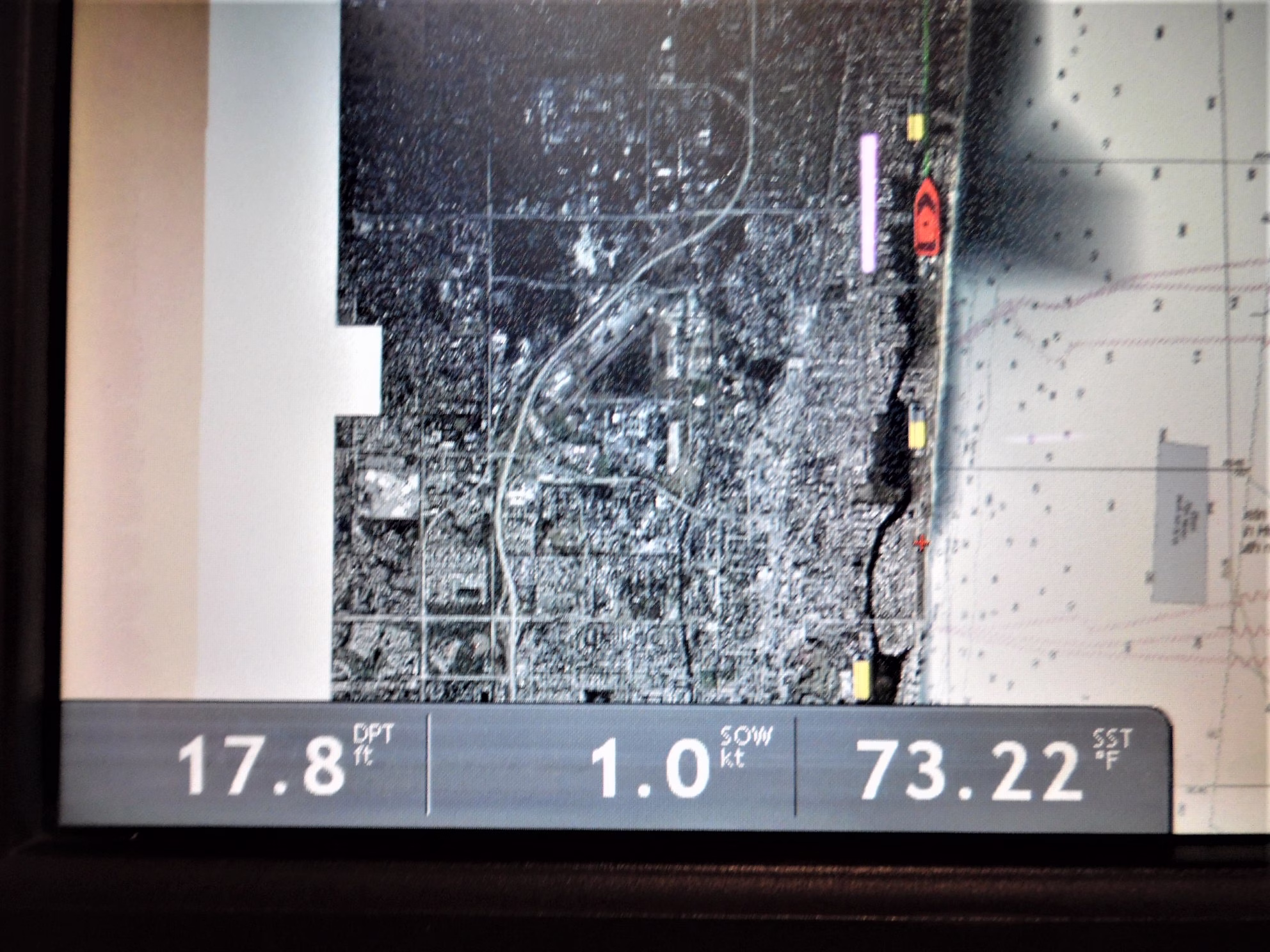

Additional Notes: This Furuno 235DST-MSE smart sensor will output Depth, Speed, and Sea Temperature through NMEA0183 to any device from any brand capable of receiving NMEA0183 information. The sensor has been fully tested, test report attached. The sensor’s power/data wires were cut short so 4 conductor cable will need to be used to extend the harness to your device – it is easy to wire – red and black are 12vdc, blue and white are your NMEA0183 data wires.

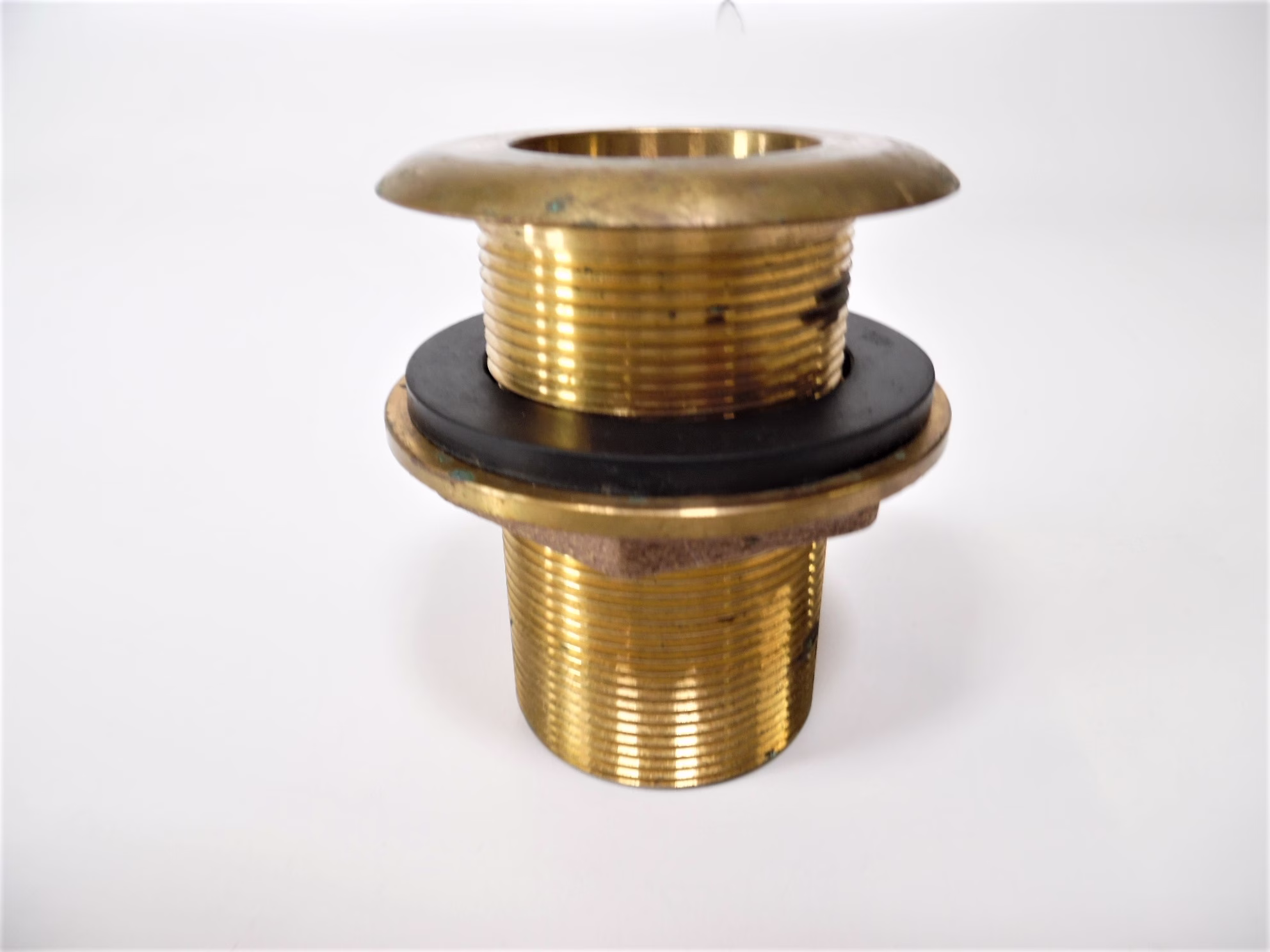

We are including a bronze housing kit and blanking plug. There is 44″ of cable attached, which will need to be extended. The transducer operates at the 235khz frequency, which is beneficial as it will not interfere with 50 or 200 khz devices.

Please note: The tag on the transducer says “235DST-PSE” – the “P” is “Plastic,” but because we have kitted this with a metal (“M)/bronze housing, this is effectively a “235DST-MSE”.

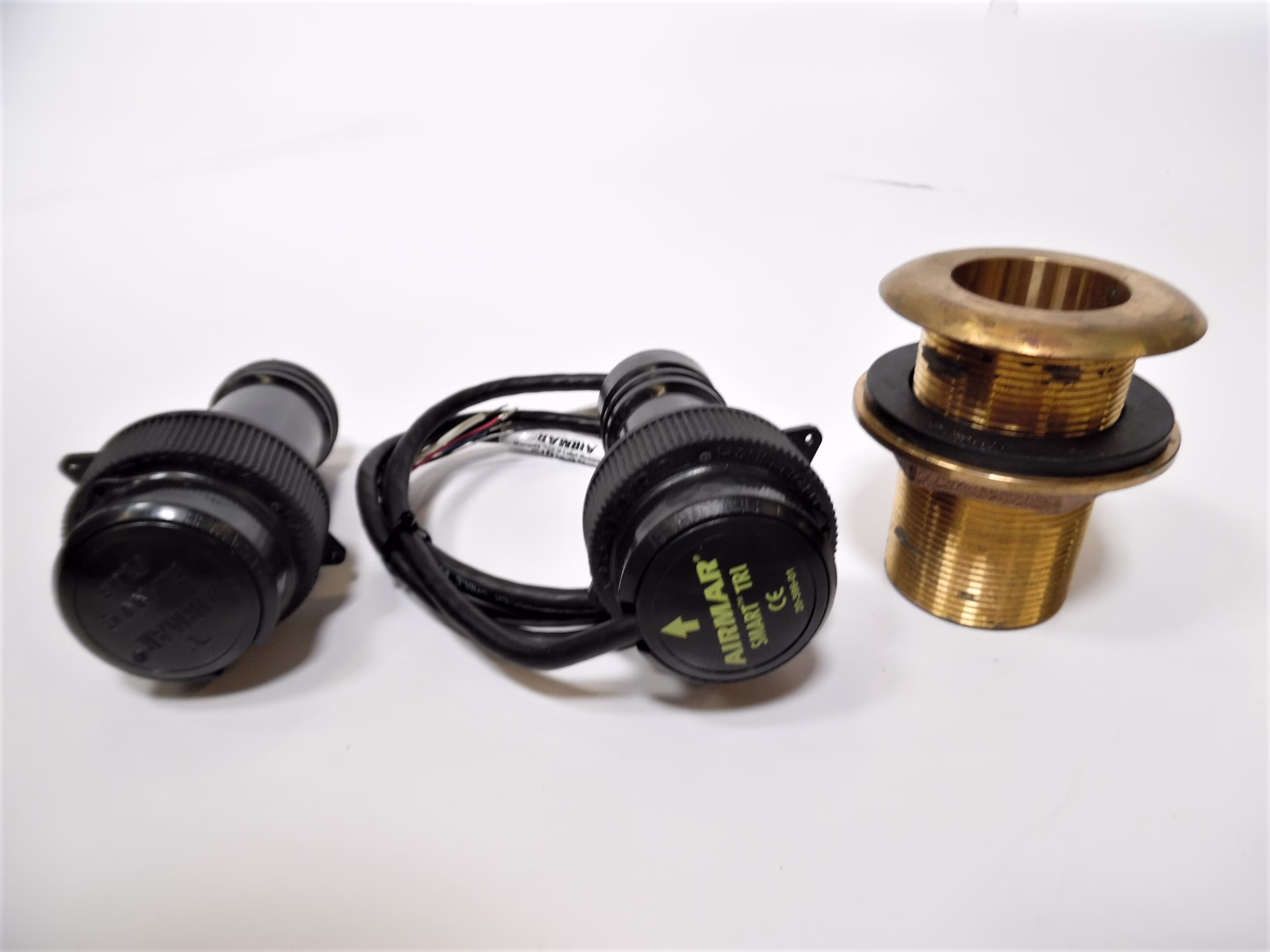

What’s Included:

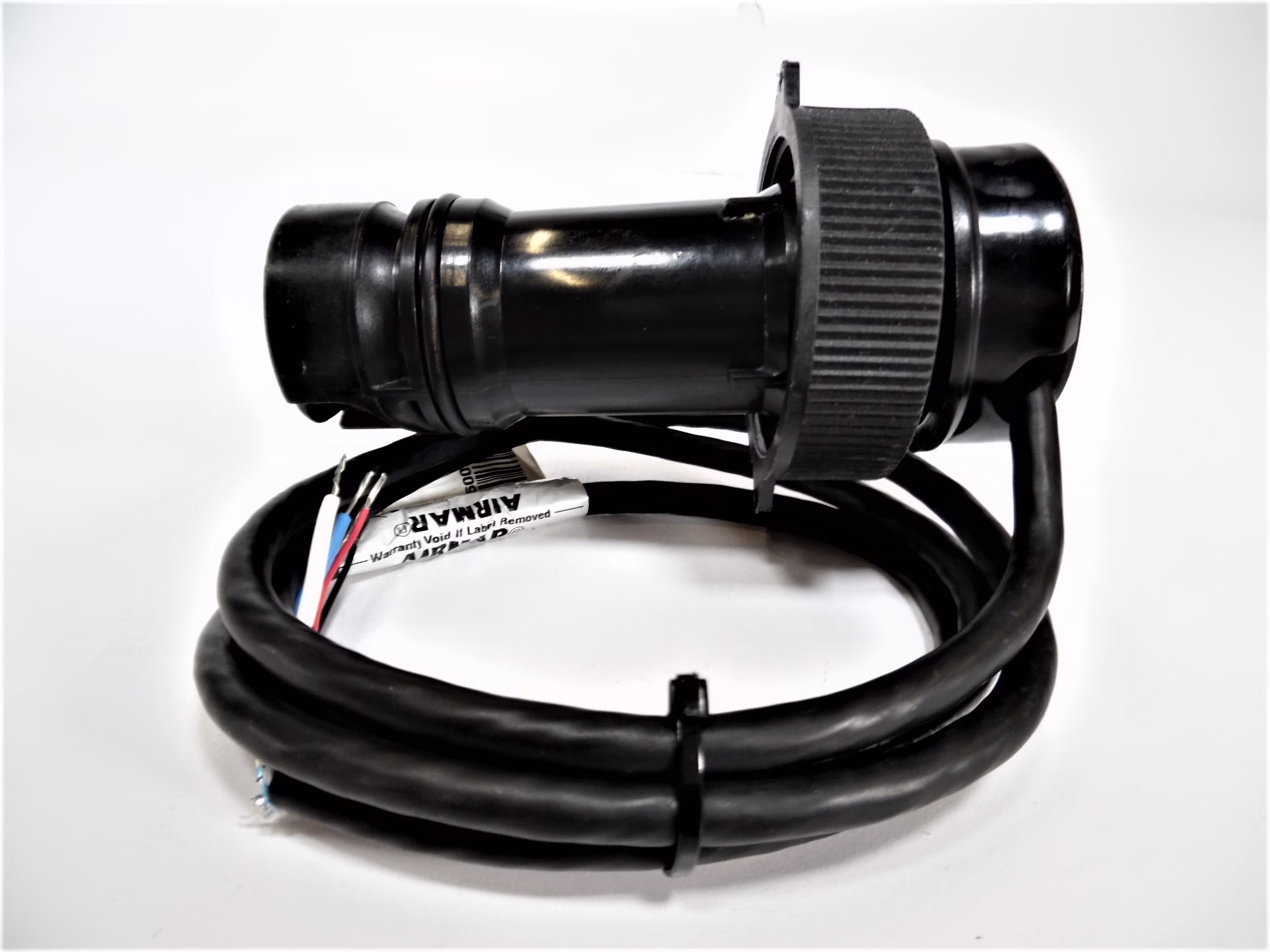

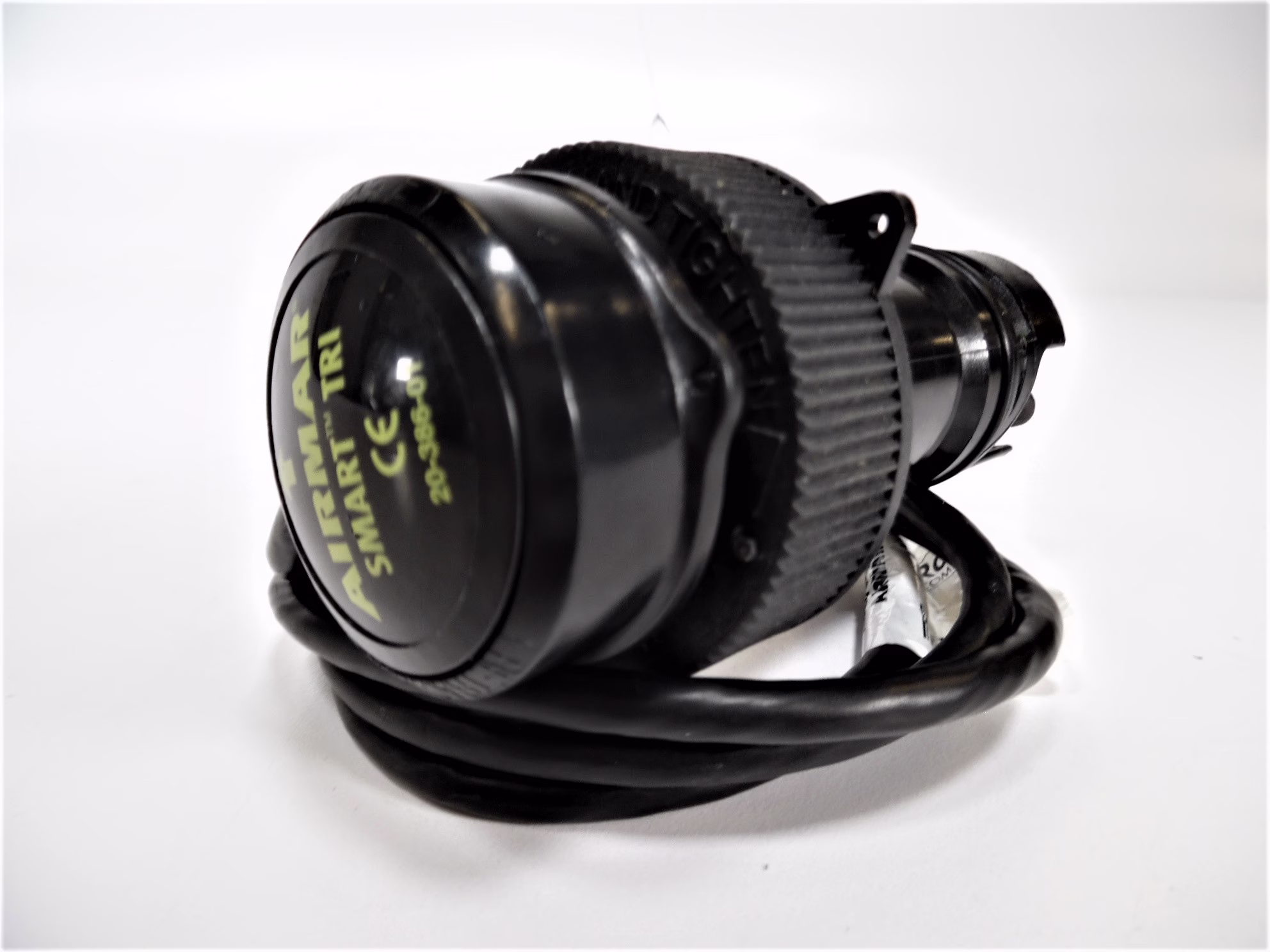

• 235DST-MSE Smart Sensor w/44″ Cable

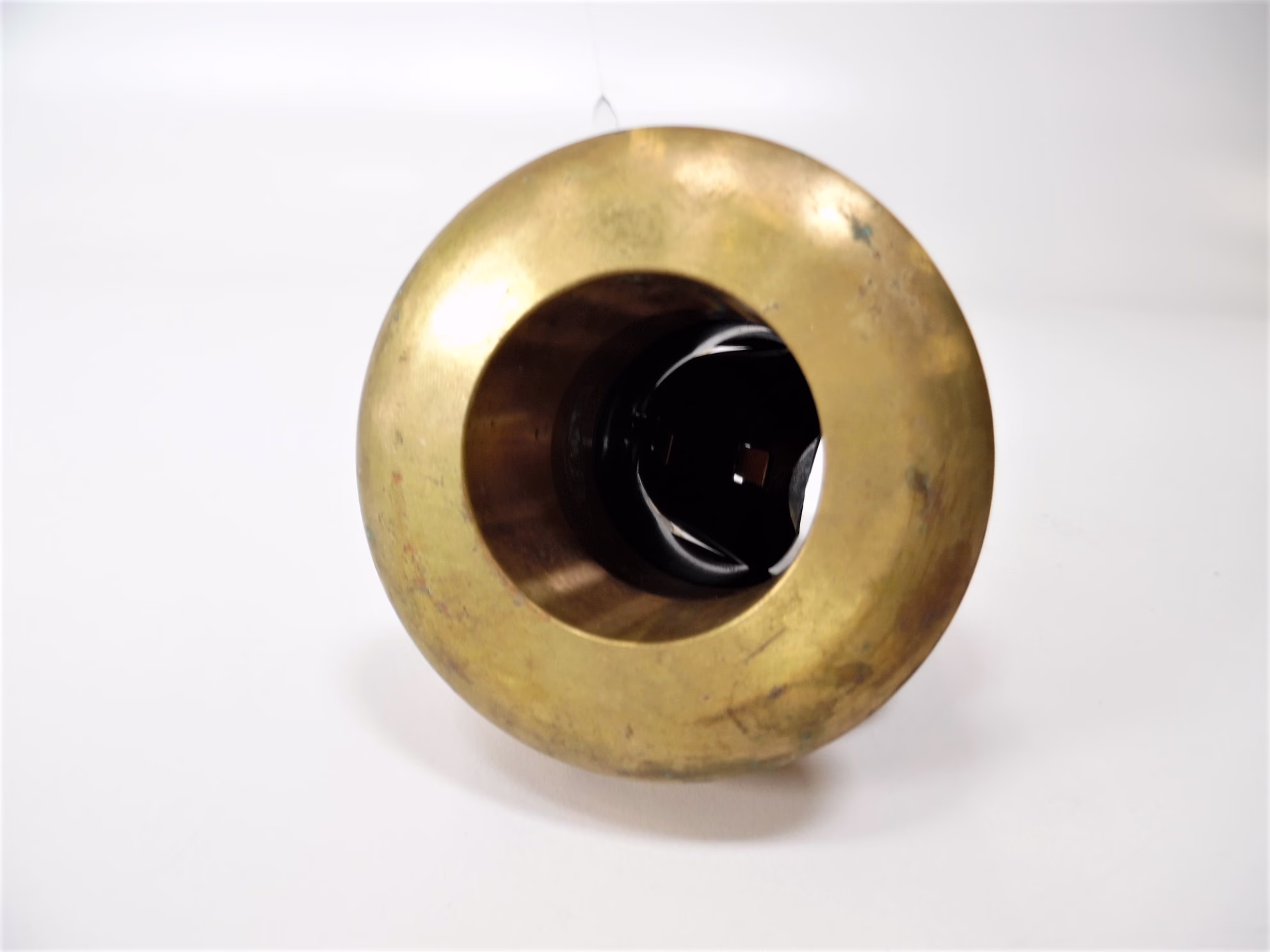

• Bronze Housing Kit

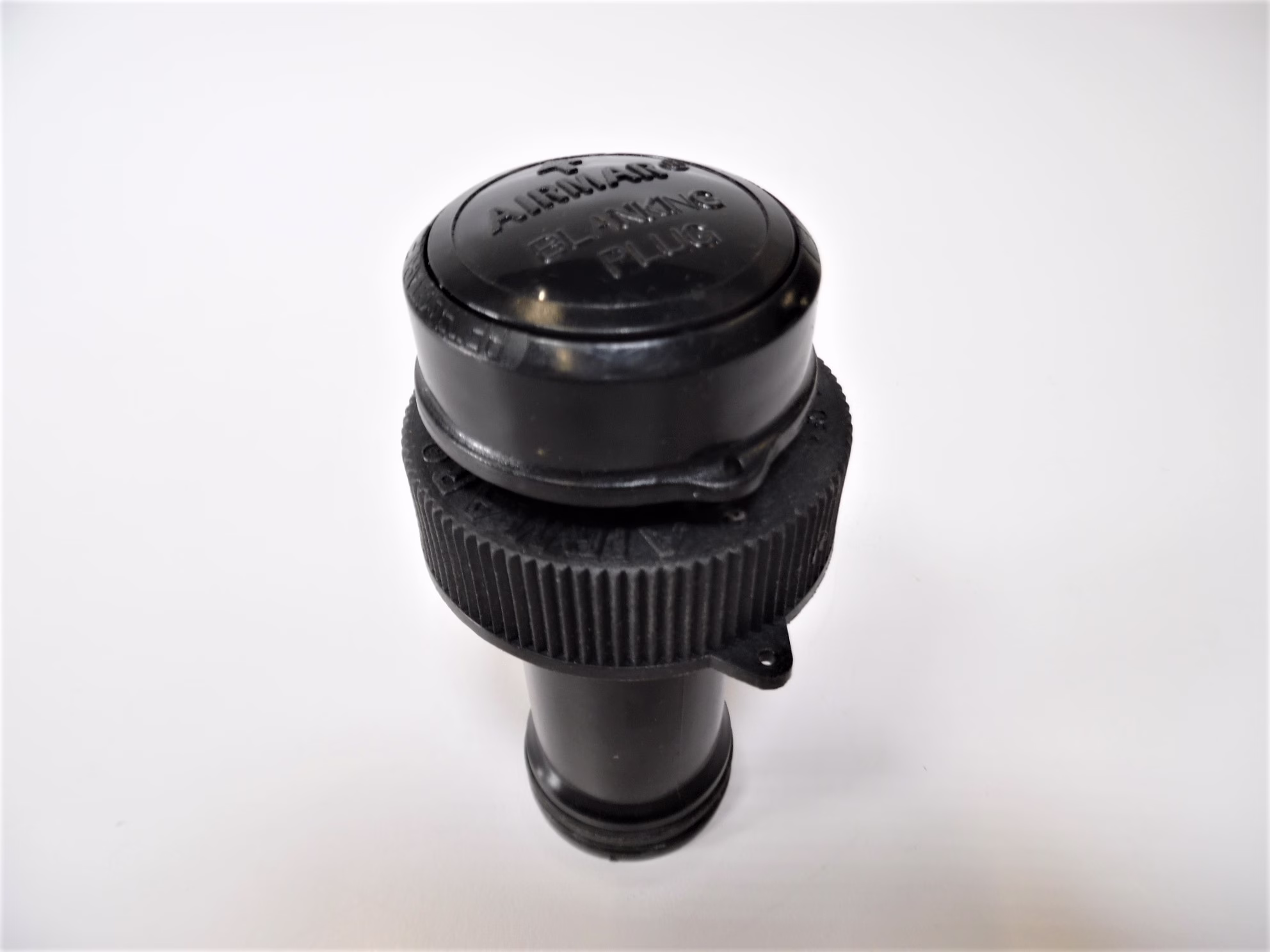

• Blanking Plug

Compatible Parts: Any NMEA0183 device that can receive NMEA0183 depth and temp sentences

Dimensions (L x W x H): 8 x 8 x 8 in, Weight: 5 lbs

Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.

Return Info: 30-Day Returns

Warranty Info: 90-Day Warranty
