Manufacturer: Furuno/Accu-Steer
Model Number: HRP 35-24
Listed Item Condition: Used
Additional Notes:

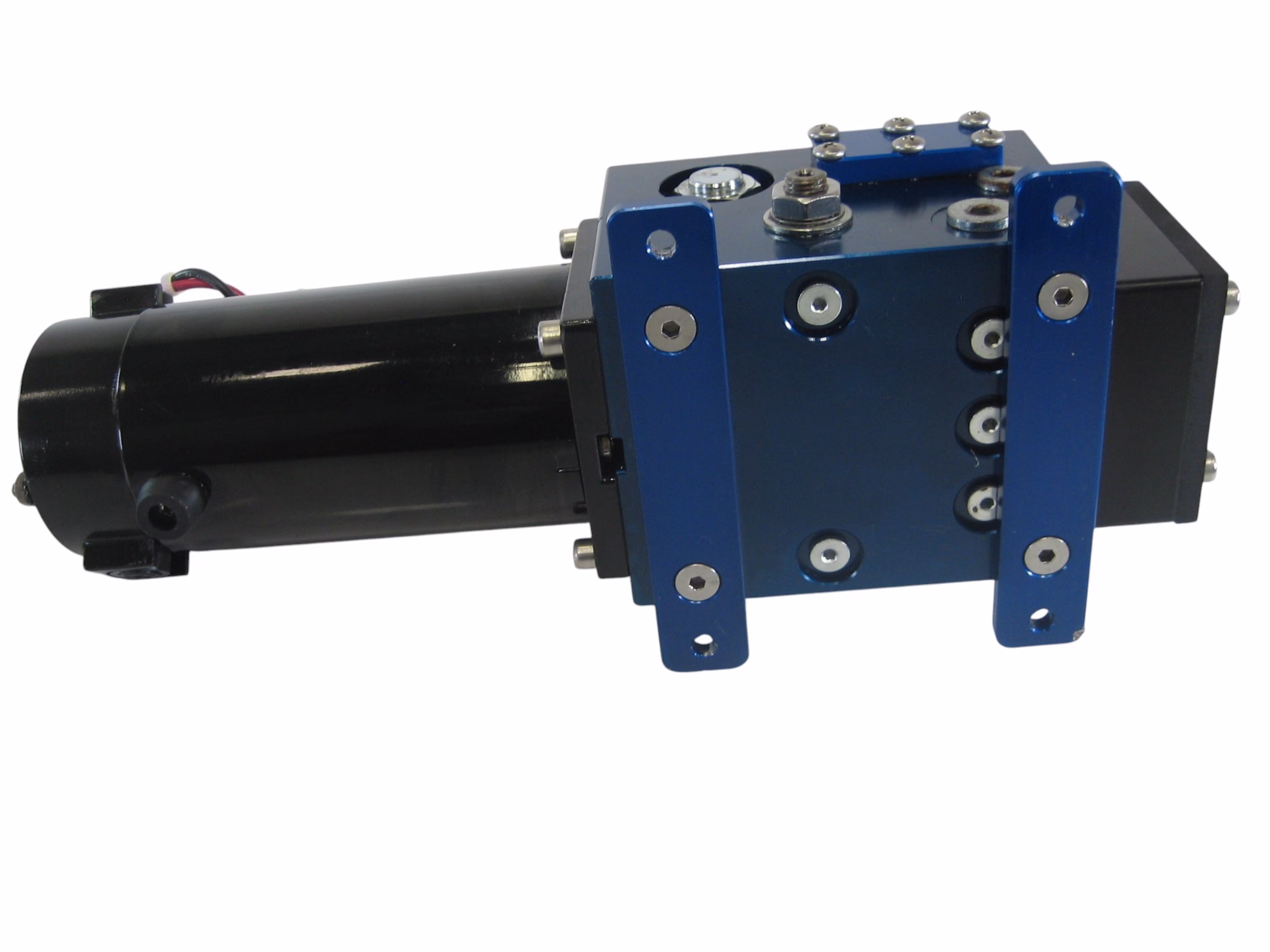

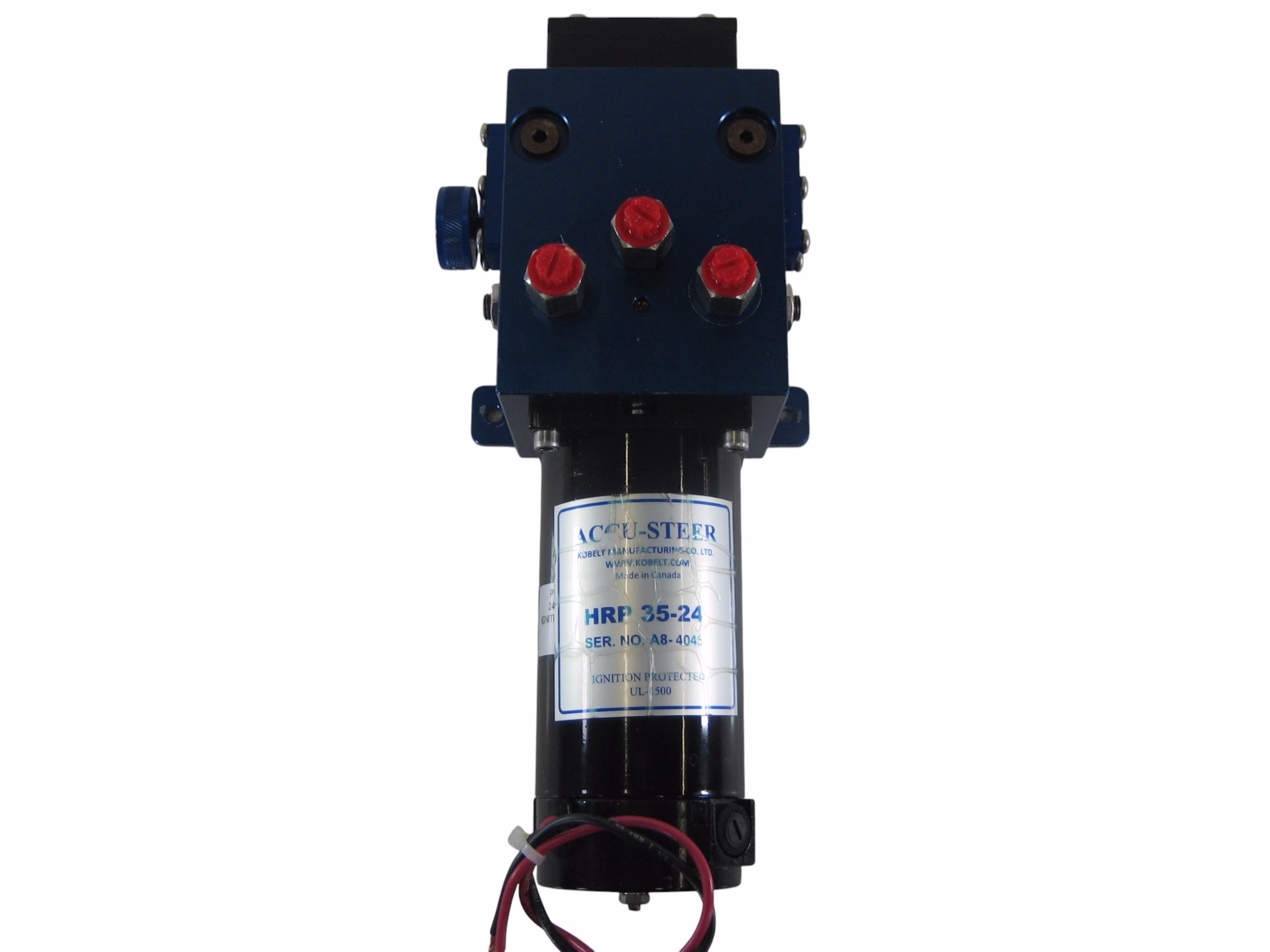

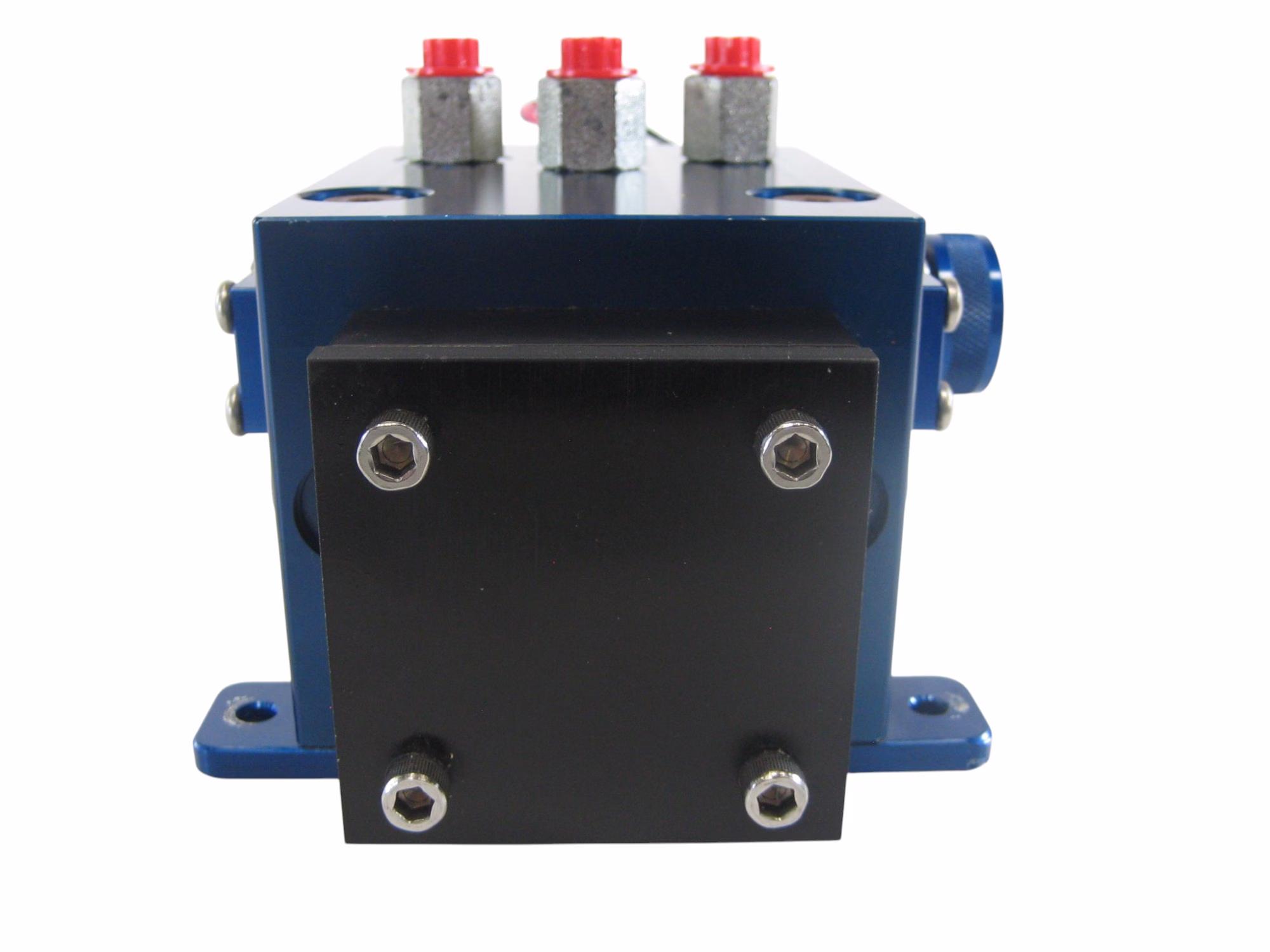

This listing is for a Furuno/Accu-Steer HRP 35-24 Autopilot Pump that is 24 Volts ONLY and has an adjustable output of 0-3.5 cu in/sec.
This pump has been rebuilt in-house. We cleaned out any debris and old fluid left inside and replaced O-rings. The motor was also disassembled, and the commutator was polished. The brushes were also inspected and replaced as needed.
Testing:

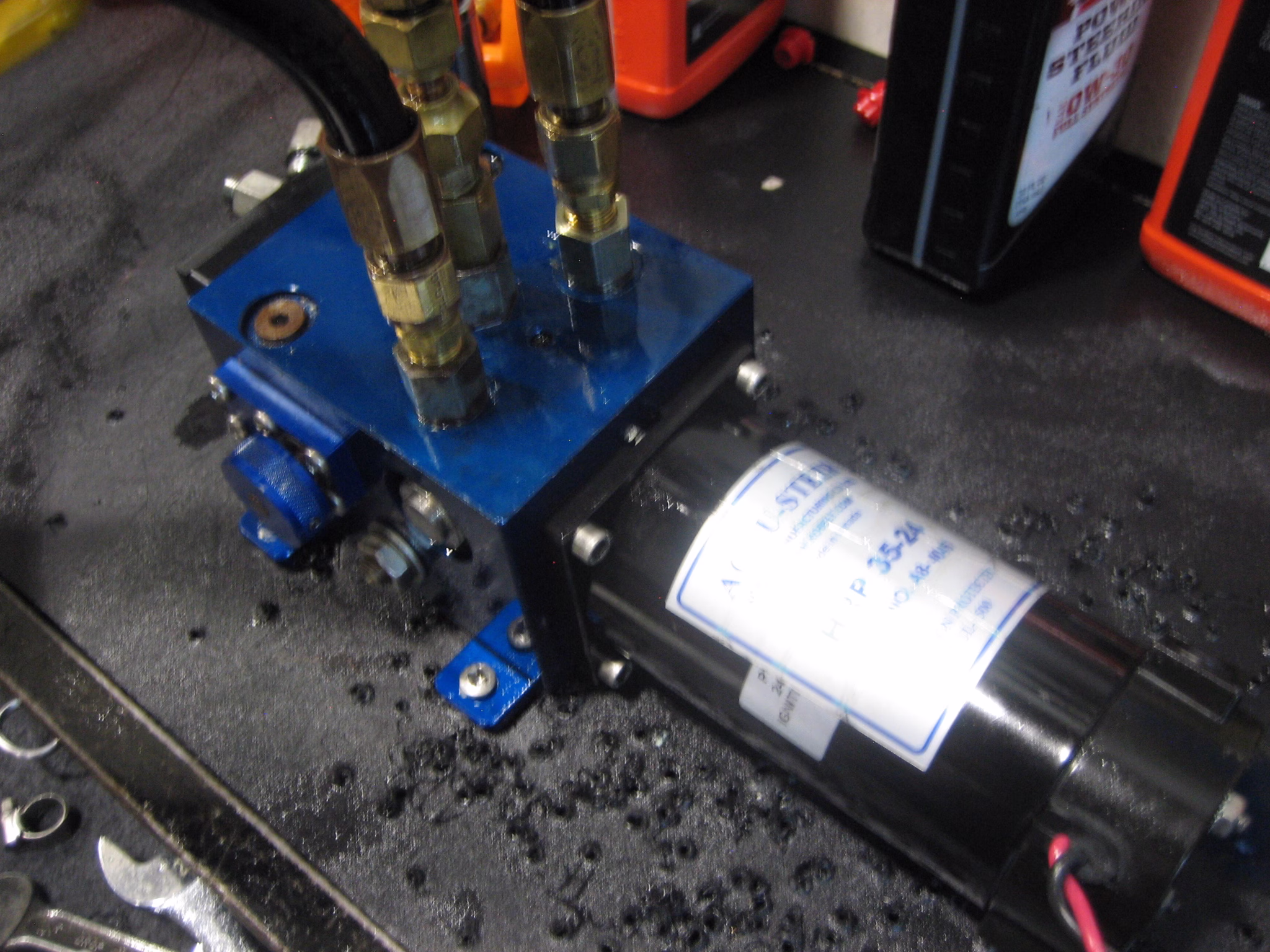

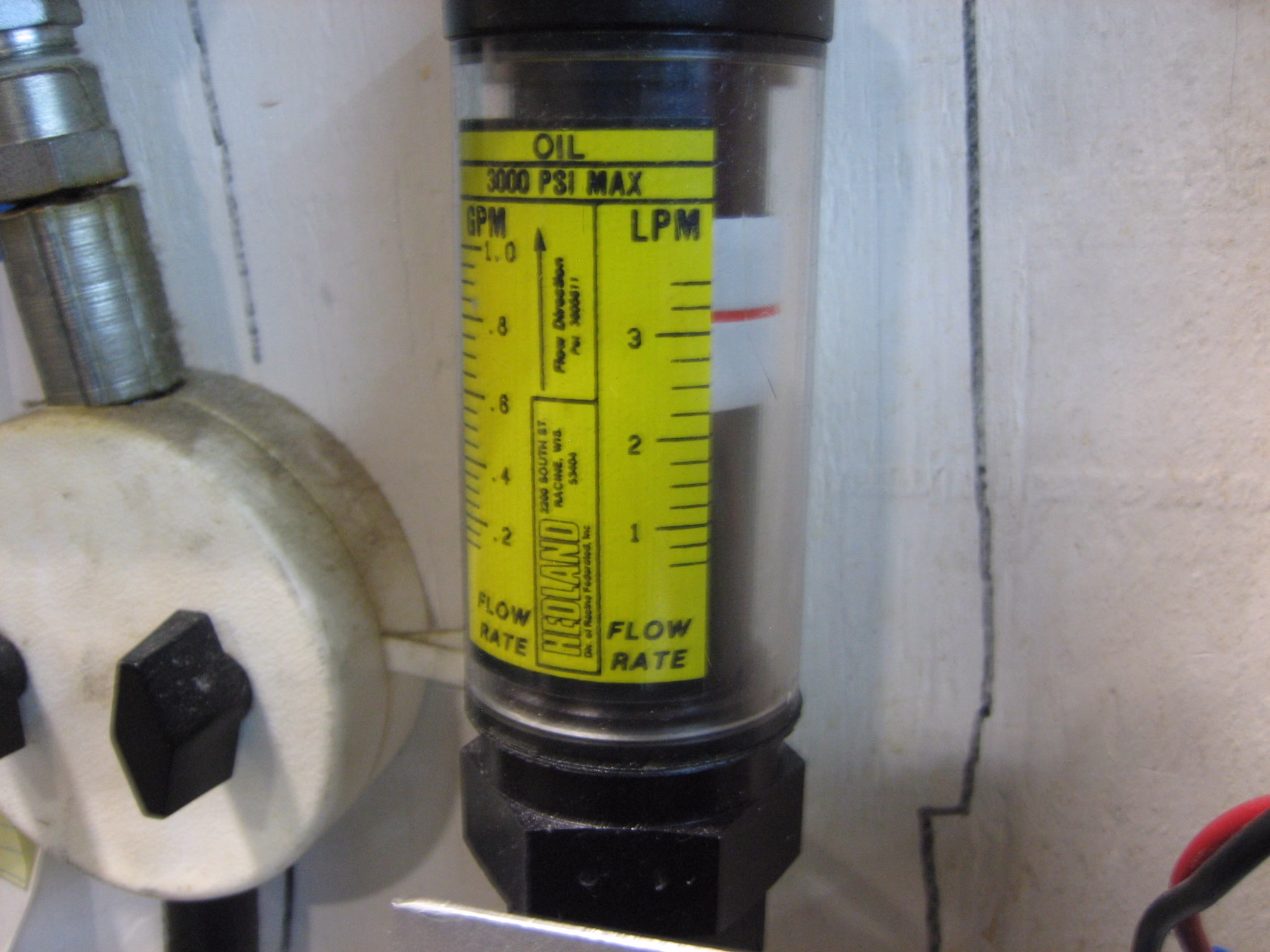

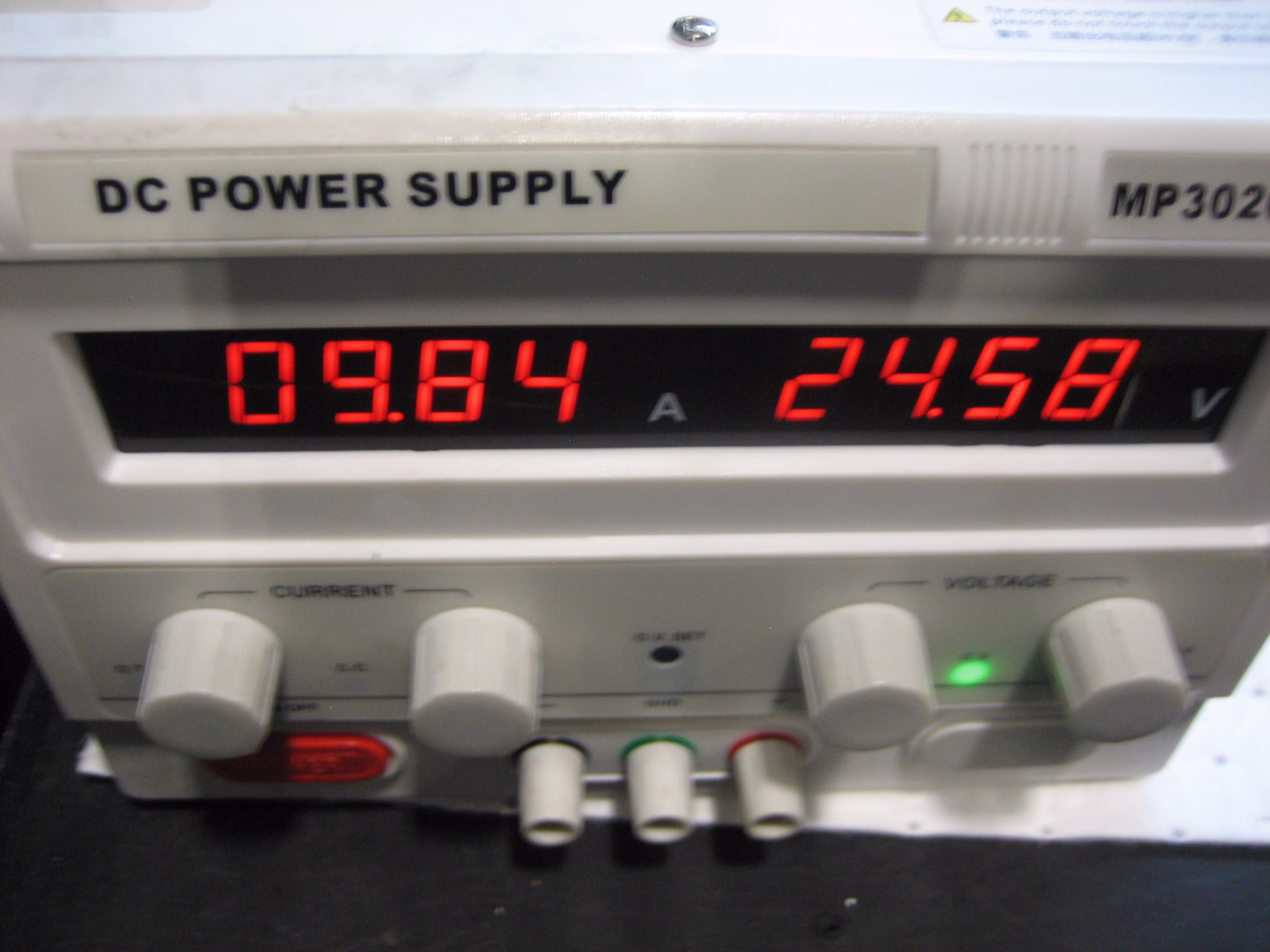

This unit was then bench-tested on our hydraulic helm, where it was tested for amperage draw and fluid flow. All results are within the manufacturer’s specs. There are photos confirming testing the first photo is of the pump running at 3.10 Amps @24V The second photo is of the pump running with a load of 300PSI at 9.84 Amps and the third is with a load of 500PSI at 12.35 Amps. And moving around 3.5 LPM. Take into account that there is still a small amount of air in the system. This pump will need to be bled.

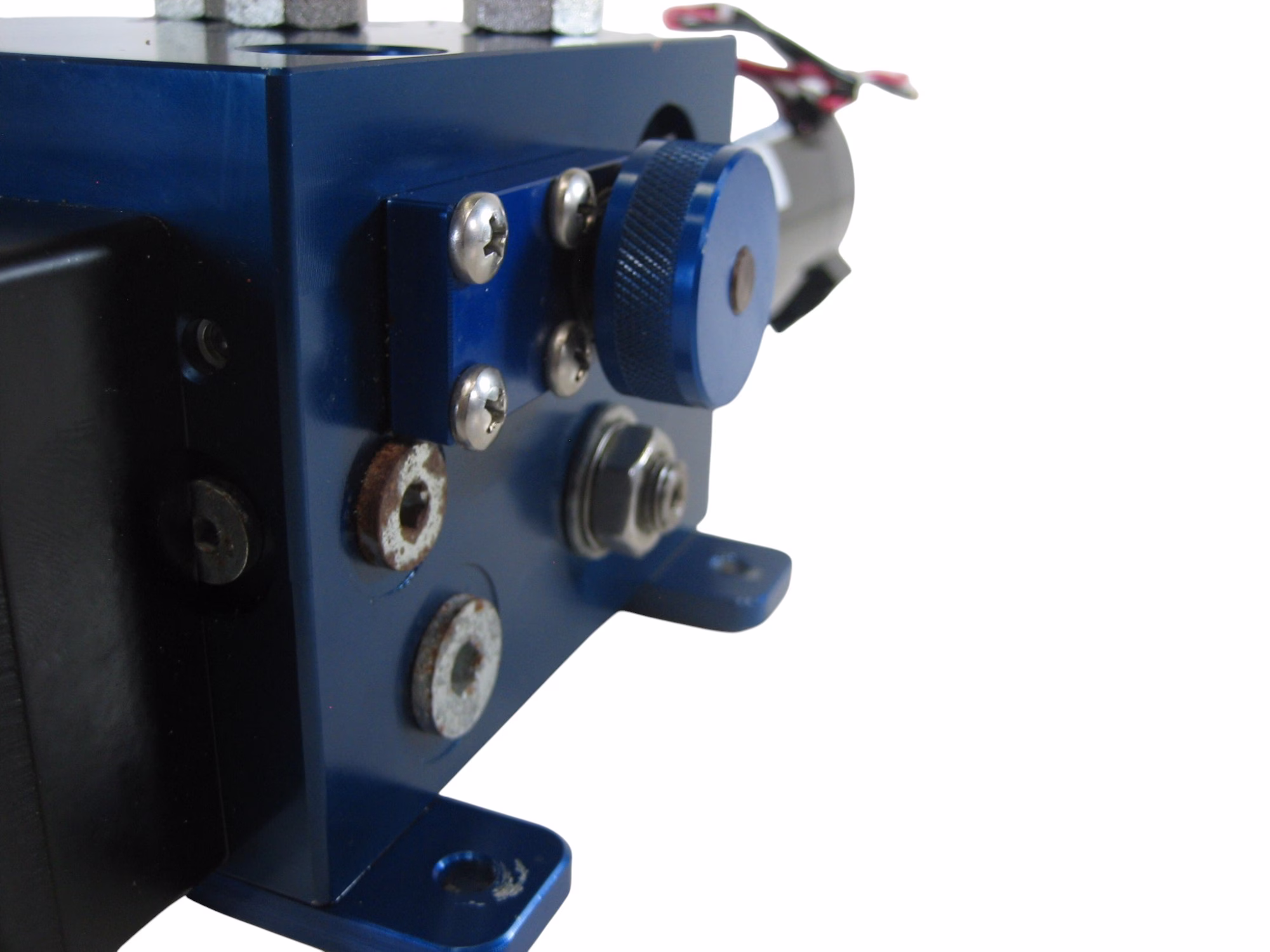

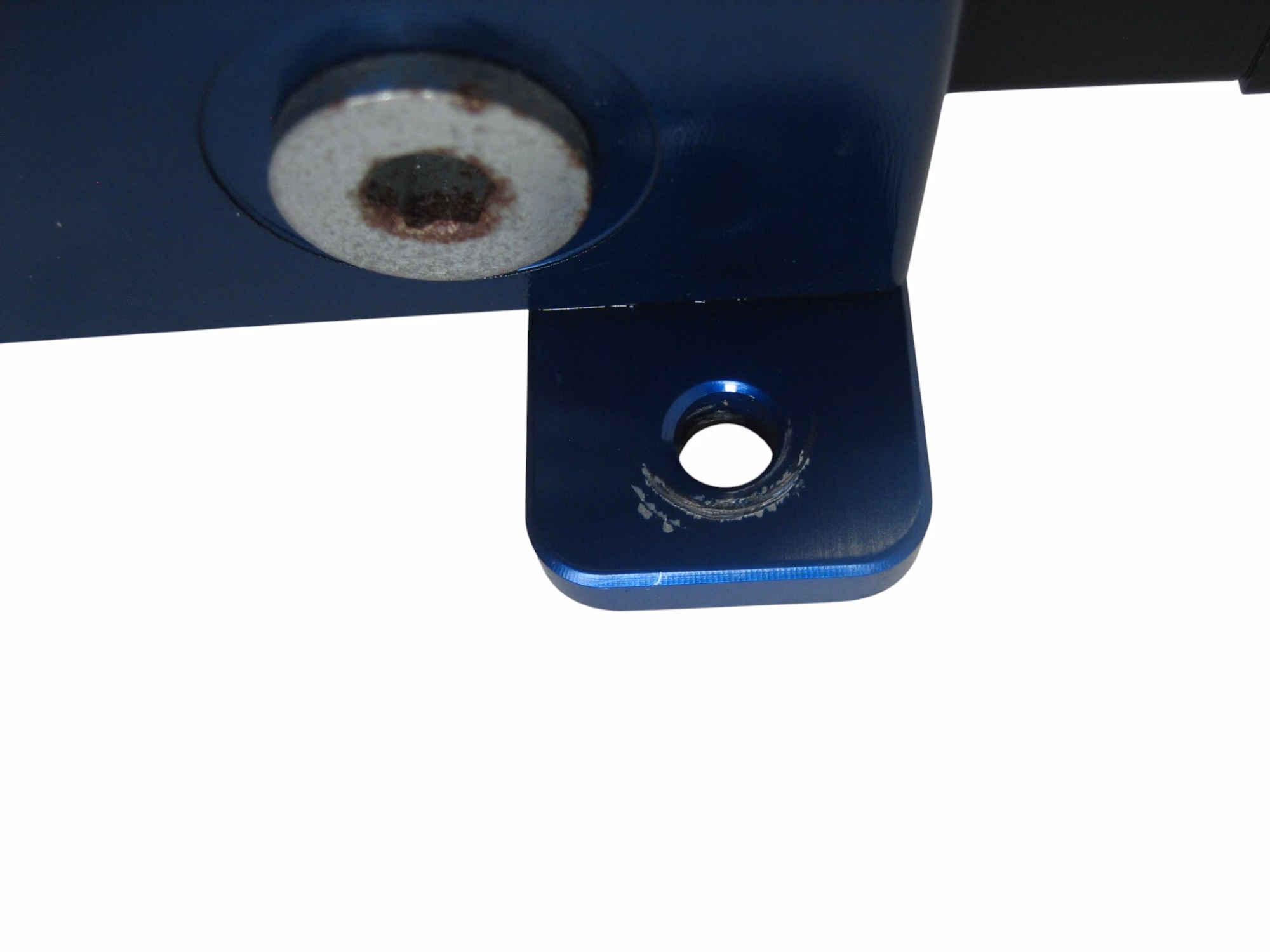

Please Note: This pump does not come with additional cables, hydraulic lines, or extra fittings; it only comes with what is shown in the pictures. And there is no mounting hardware provided. There are also some scratches on the feet of the pump.
What’s Included:
- Furuno/Accusteer/Kobelt HRP35-24 24V Hydraulic Reversible Autopilot Boat Pump
Dimensions (L x W x H): 13 x 4.5 x 4 in, Weight: 16.5 lbs
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
