Description
Manufacturer: Extron
Model Number: DVS150
Listed Item Condition: Used
Additional Notes: This Extron unit is sold in used condition and is backed by our 30-Day Return/90 Day Warranty Policy.
This is a multiple quantities listing. All units were power tested. We have no reason to believe the listing does not work as designed but minor cosmetic conditions may differ from piece to piece. (see photos for general condition)
This sale is for the Extron unit only. No accessories are included.
Specs:
Number/signal type: 1 RGBHV, RGBS, RGsB pass-through,
1 component video (Y, R-Y, B-Y),
1 S-video,
1 composite video

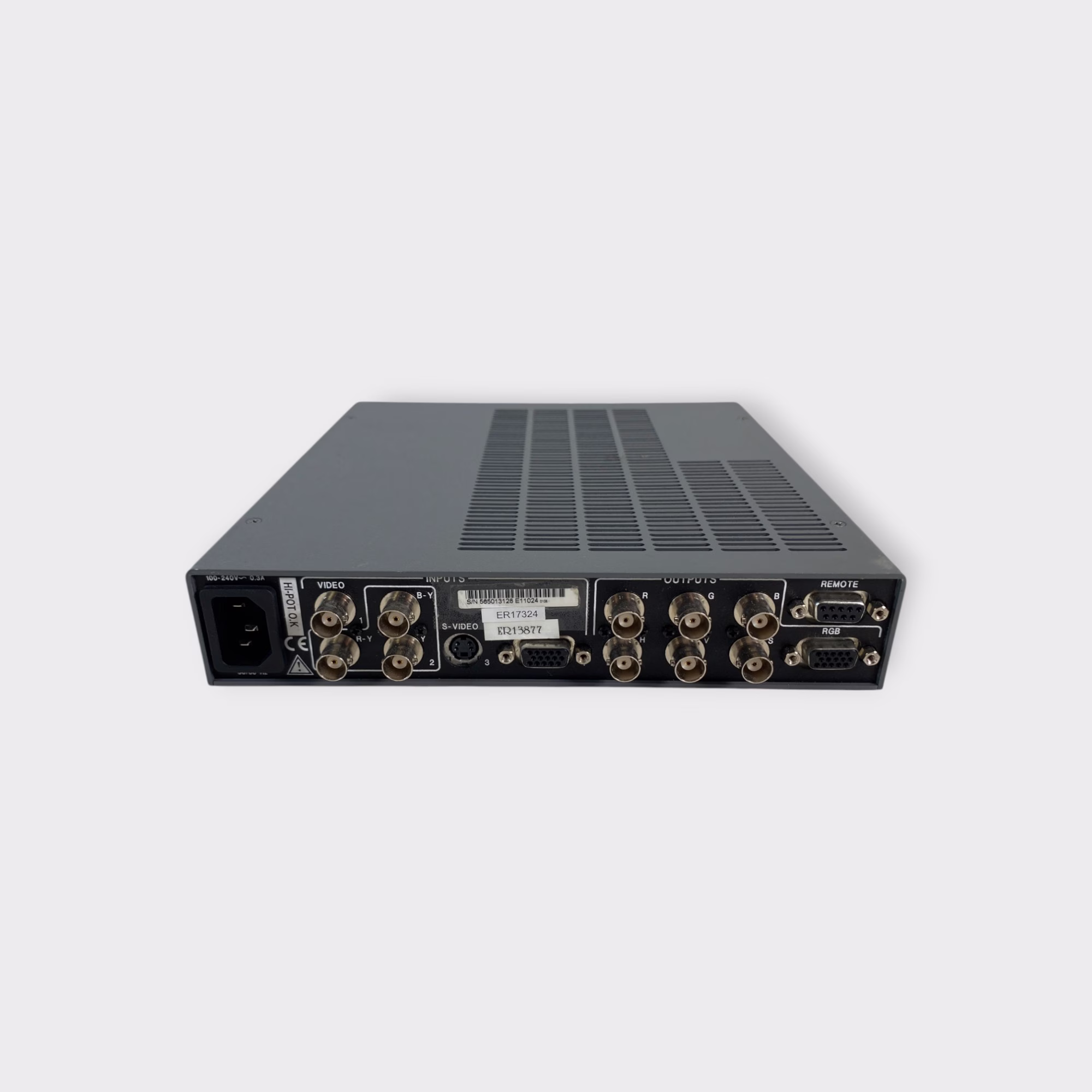

Connectors 3 BNC female: component video
1: 4-pin mini-DIN female S-video
1 BNC female: composite video
1: 15-pin HD female RGB pass-through
Minimum/maximum levels Analog: 0.0V to 1.0V p-p with no offset
Impedance 75 ohms
Vertical frequency 50 Hz to 60 Hz (does not apply to pass-through)
Video output
Number/signal type: 1 scaled RGBHV, RGBS, RGsB
1 scaled RGBHV or pass-through RGBHV/RGBS/RGsB
Connectors 6: BNC female
1: 15-pin HD female
Minimum/maximum levels: 0.0V to 0.7V p-p
Impedance 75 ohms
Vertical frequency 56 Hz, 60 Hz, or 75 Hz
Scaled VGA resolution 640×480, 800×600, 832×624,: 848×480, 852×480, 1024×768, 1280×768,
1280×1024, 1360×765, HDTV 480p, 720p, and 1080p
Sync
Input type RGBHV, RGBS, RGsB
Output type RGBHV, RGBS, RGsB
Standards NTSC 3.58, NTSC 4.43, PAL, SECAM
Output level TTL: 5.0V p-p
Output impedance 75 ohms
Polarity Positive or negative (switch-selectable)
Control/remote — decoder/scaler
Serial control port RS-232, 9-pin female D connector
Baud rate and protocol 9600, 8-bit, 1 stop bit, no parity
What’s Included:
- Extron DVS150
Dimensions (L x W x H): 11 x 9 x 3 in, Weight: 3 lbs
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
Terms:
All items sold at Max Marine Electronics come as you see in the pictures provided, with only the parts and accessories stated in the description section named “What’s Included”. IF YOU DO NOT SEE SOMETHING YOU EXPECT TO BE INCLUDED IN THE DESCRIPTION WE PROVIDE, IT WILL NOT BE INCLUDED. Read all descriptions thoroughly. There are times when a display is used only to show the item being sold is functional and working properly. In this case, these displays are not included. If you have any questions feel free to send a message or call Max Marine Electronics Inc, Pompano Beach, Florida. We always want to be transparent with our customers and fully disclose any information regarding the products we sell.
