Description
Manufacturer: Extron Electronics
Model Number: DDS100
Listed Item Condition: Used
Additional Notes: This Extron unit is sold in used condition and is backed by our 30-Day Return/90 Day Warranty Policy.

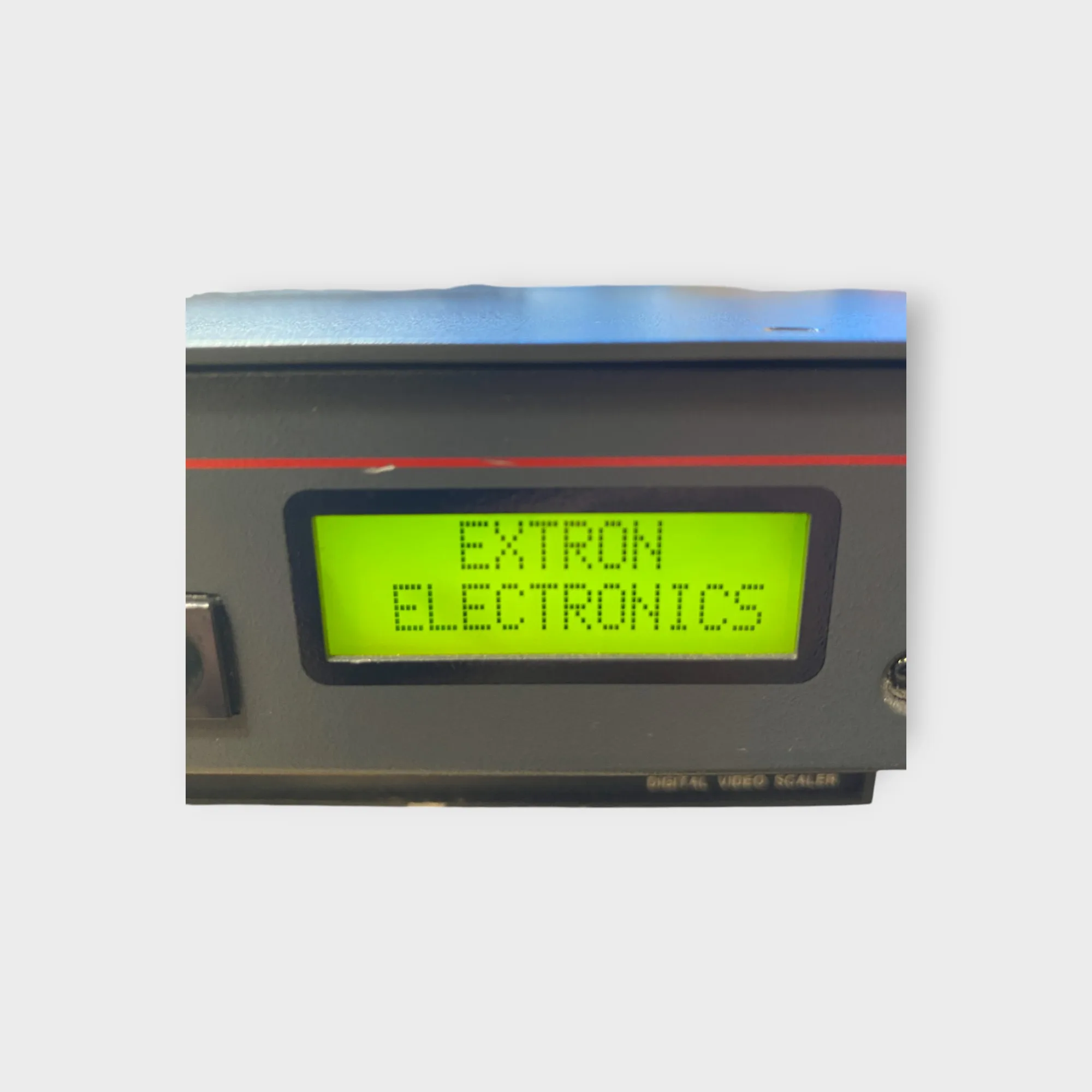

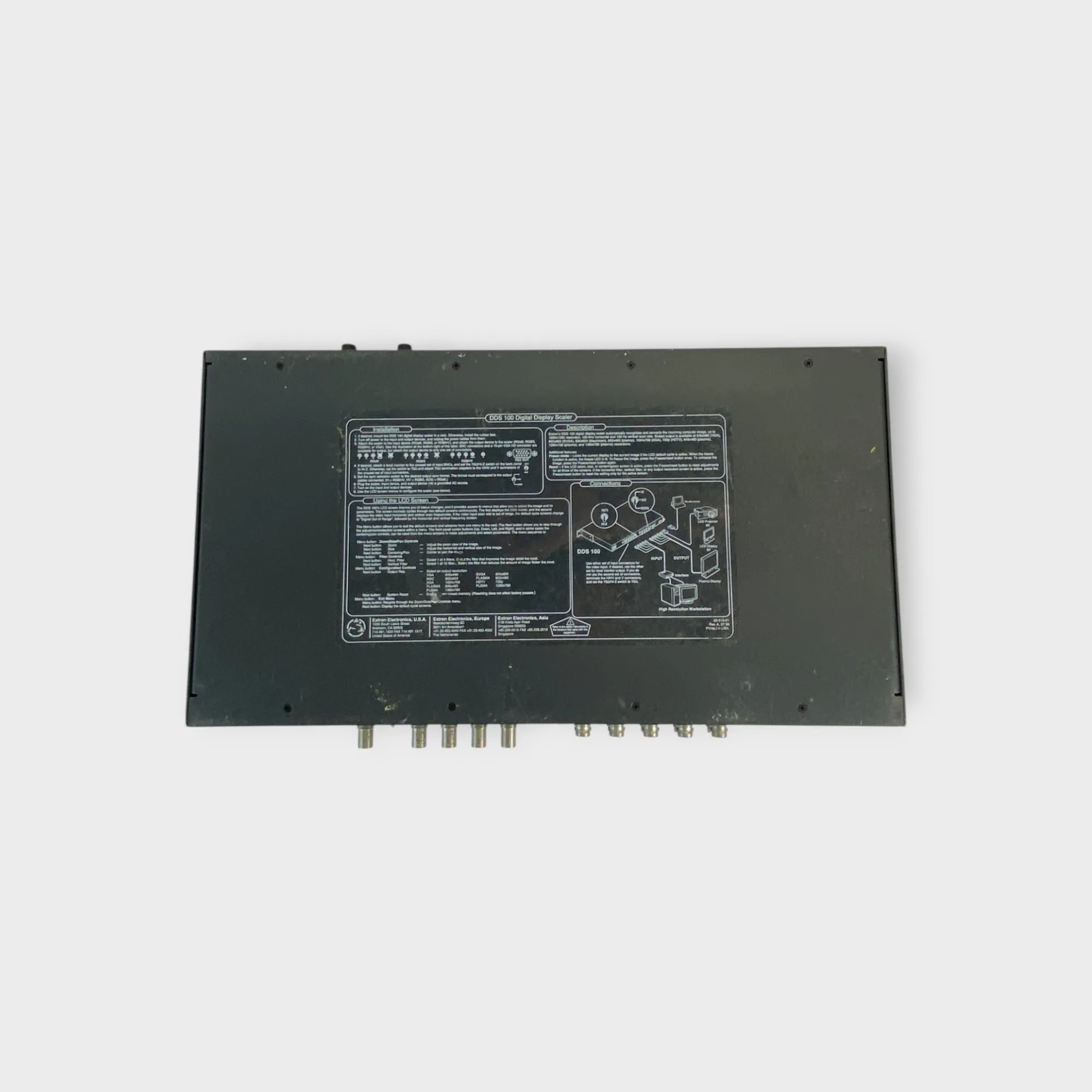

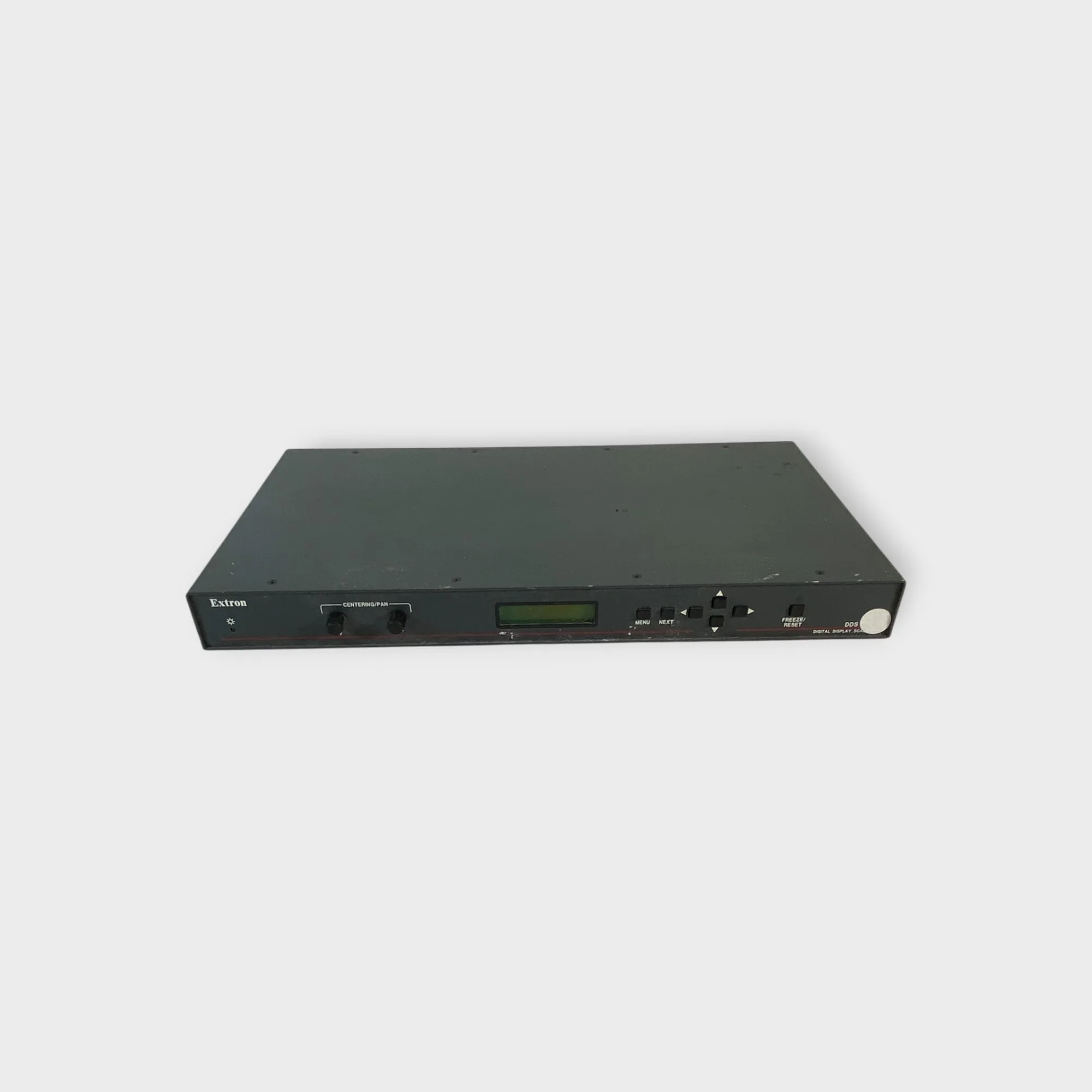

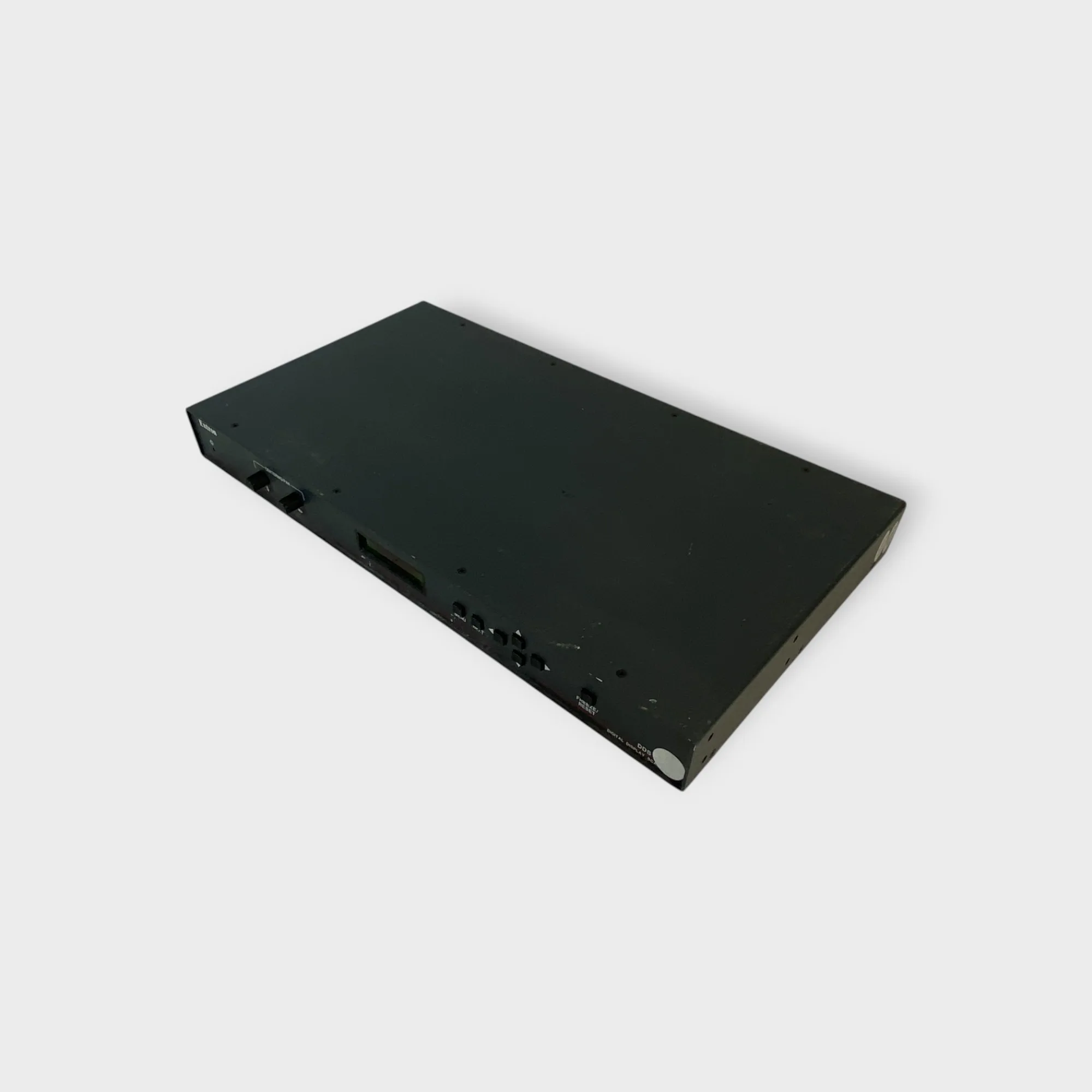

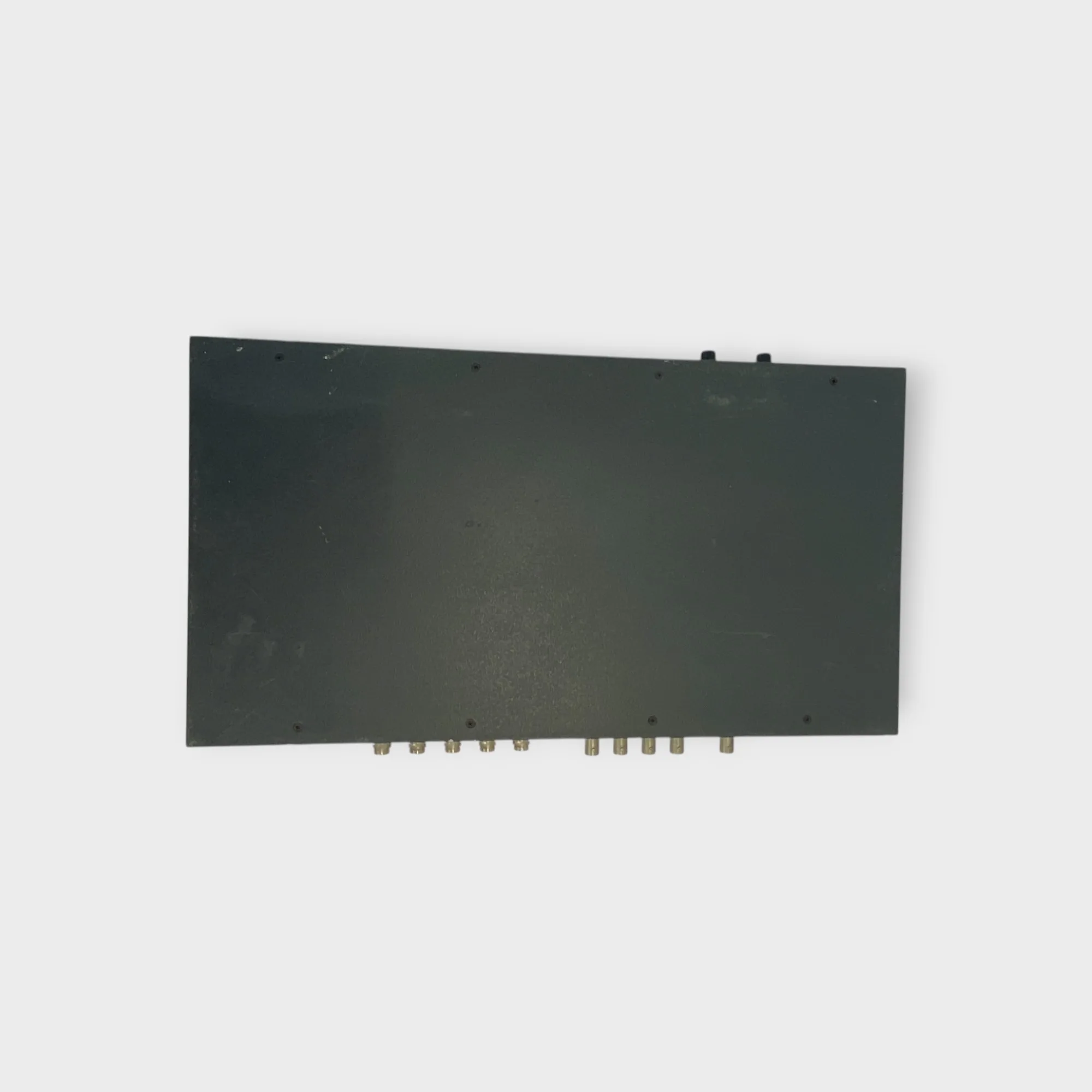

This is a multiple quantities listing. All units were power tested. We have no reason to believe the listing does not work as designed but minor cosmetic conditions may differ from piece to piece. (see photos for general condition)
This sale is for the Extron unit only. No accessories are included.
Specs:
Video input:
Number/signal type 2 RGBHV, RGBS, RGsB

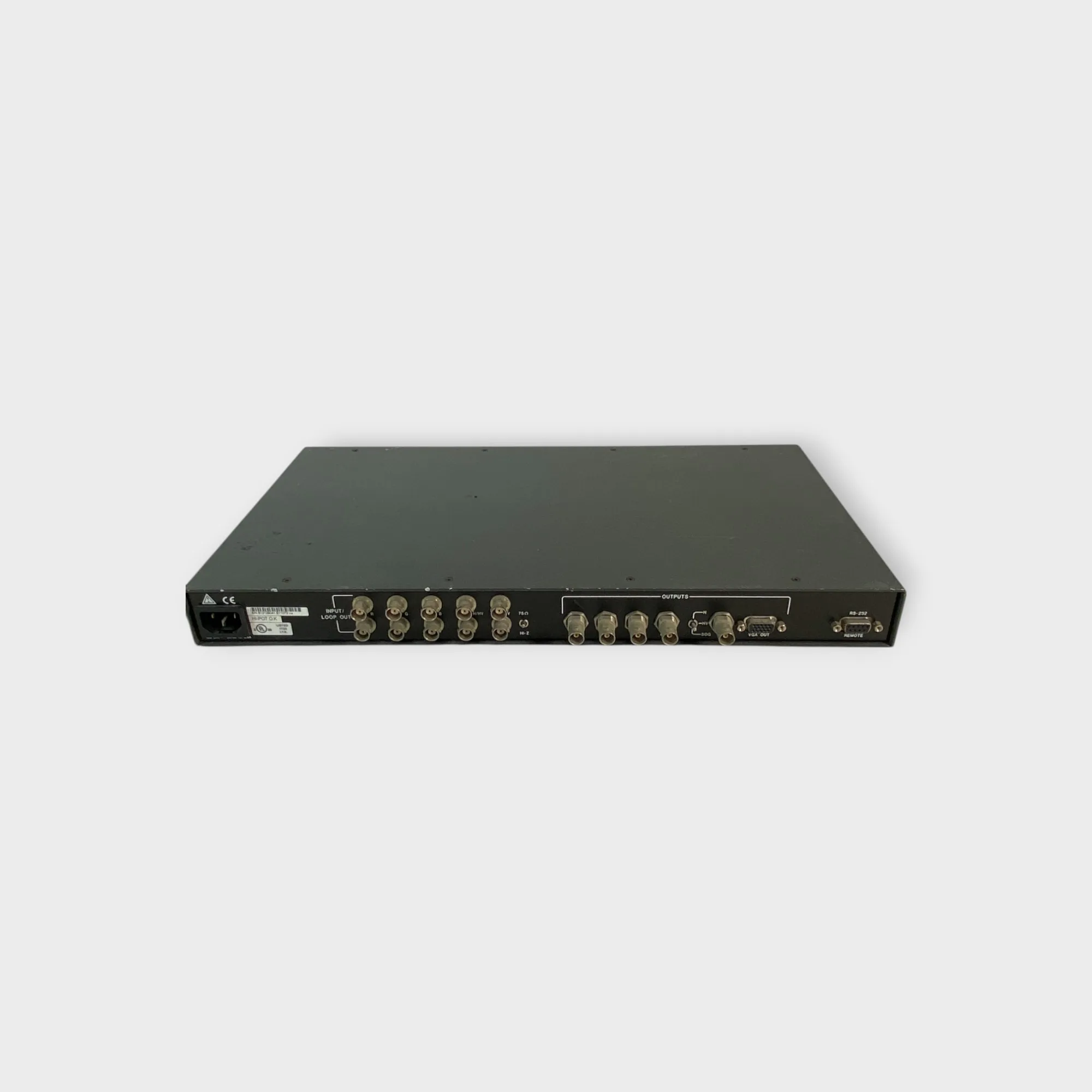

Connectors 2 x 5 BNC female (5 for input, 5 for passive local monitor output)
Maximum level Analog: 2.0V p-p with no offset
Impedance 75 ohms or High Z (switch selectable)

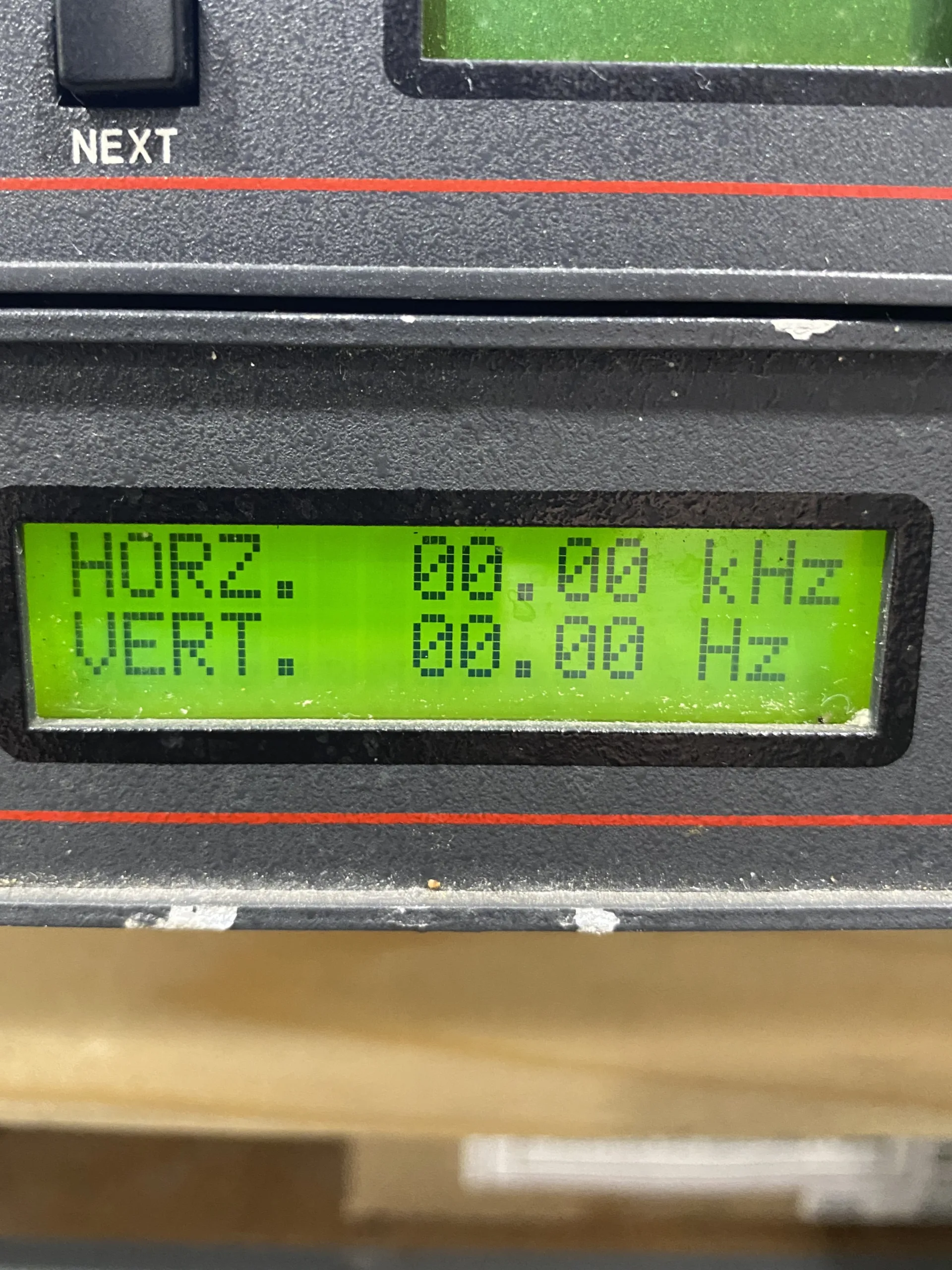

Horizontal frequency Autoscan 24 kHz to 100 kHz
Vertical frequency Autoscan 50 Hz to 120 Hz
Resolution range Autoscan 560 x 384 to
1600 x 1280
Video processing:
Digital sampling 24 bit, 8 bits per color;: 80 MHz standard
Colors 1.6 million
Horizontal filtering 4 levels
Vertical filtering 10 levels
Video output:
Number/signal type 1 RGBHV, RGBS, RGsB
Connectors 5 BNC female or 1 VGA-XGA 15-pin HD female
Minimum/maximum levels 0.0V to 0.7V p-p
Impedance 75 ohms
Scaled VGA resolution 640×480, 480p, 800×600, 832×624, 848×480, 852×480, 1024×768, 720p,
1280×768, 1360×765
Sync:
Input type Autodetect: RGBHV, RGBS, RGsB, RsGsBs
Output type RGBHV, RGBS, RGsB
Input level 1.5V to 5.0V p-p
Output level 5.0V p-p
Input impedance 75 ohms or High Z (switch-selectable)
Output impedance 75 ohms
Polarity Negative
Serial control port 1 RS-232, 9-pin female D connector
What’s Included:
- Extron DDS100
Dimensions (L x W x H): 18 x 10 x 2 in, Weight: 6 lbs
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
