Description
Manufacturer: Electroswitch
Model Number: D4G0205N
Series: D4
Listed Item Condition: New
Additional Notes: This Electroswitch panel mount rotary switch is 2 pole/5 Position DP5T.
This item is sold as new/old stock.
The switch was removed from the packaging for photo description and returned unused.

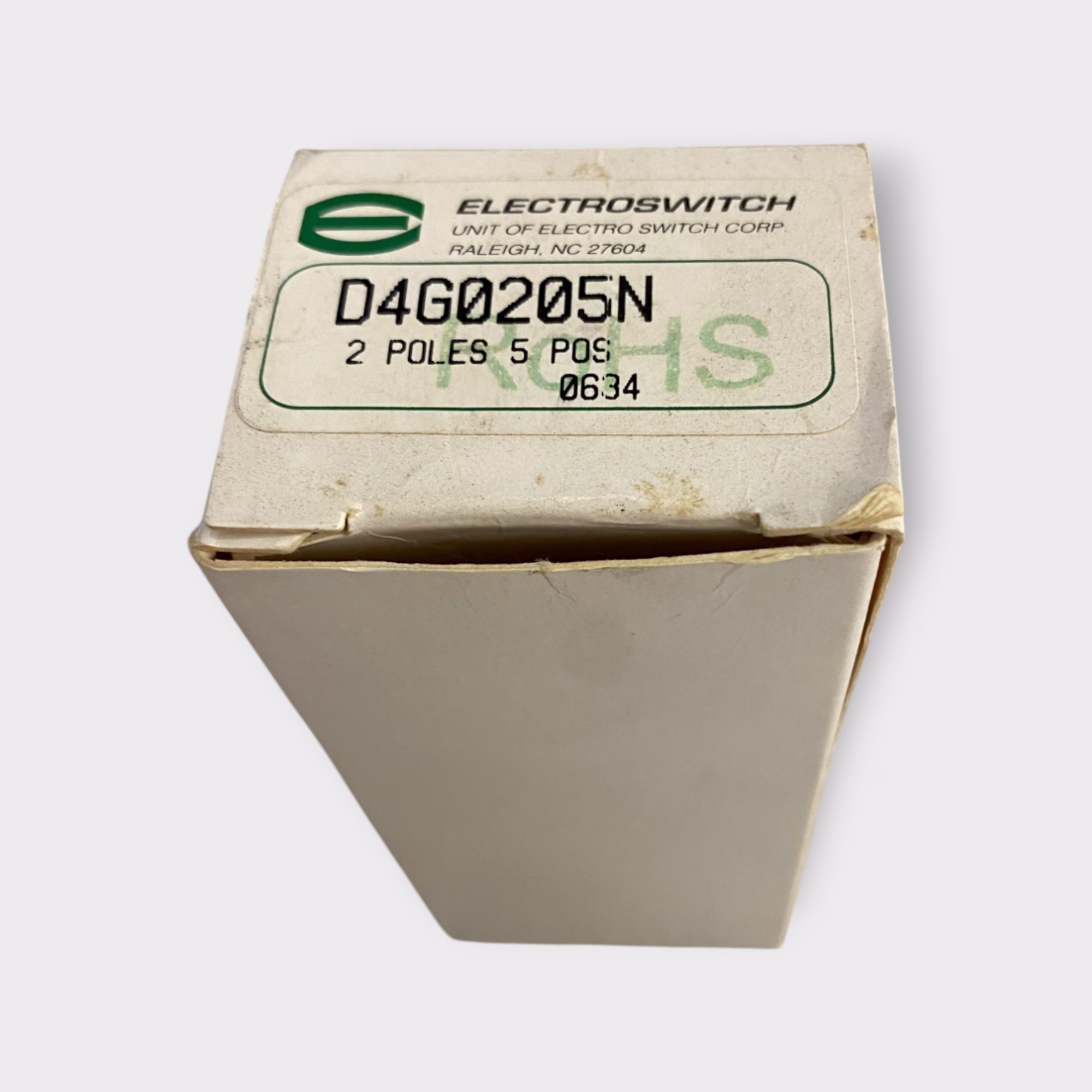

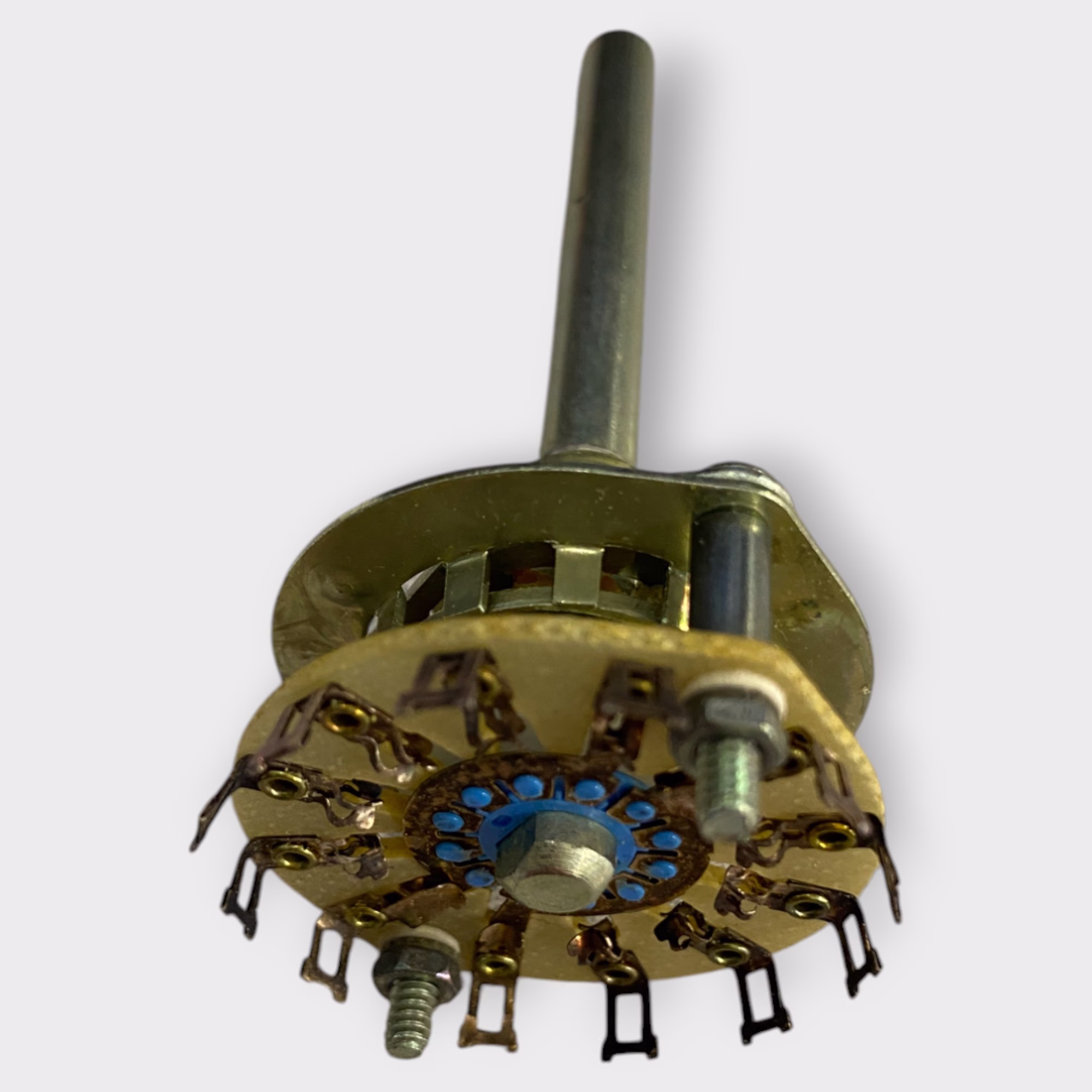

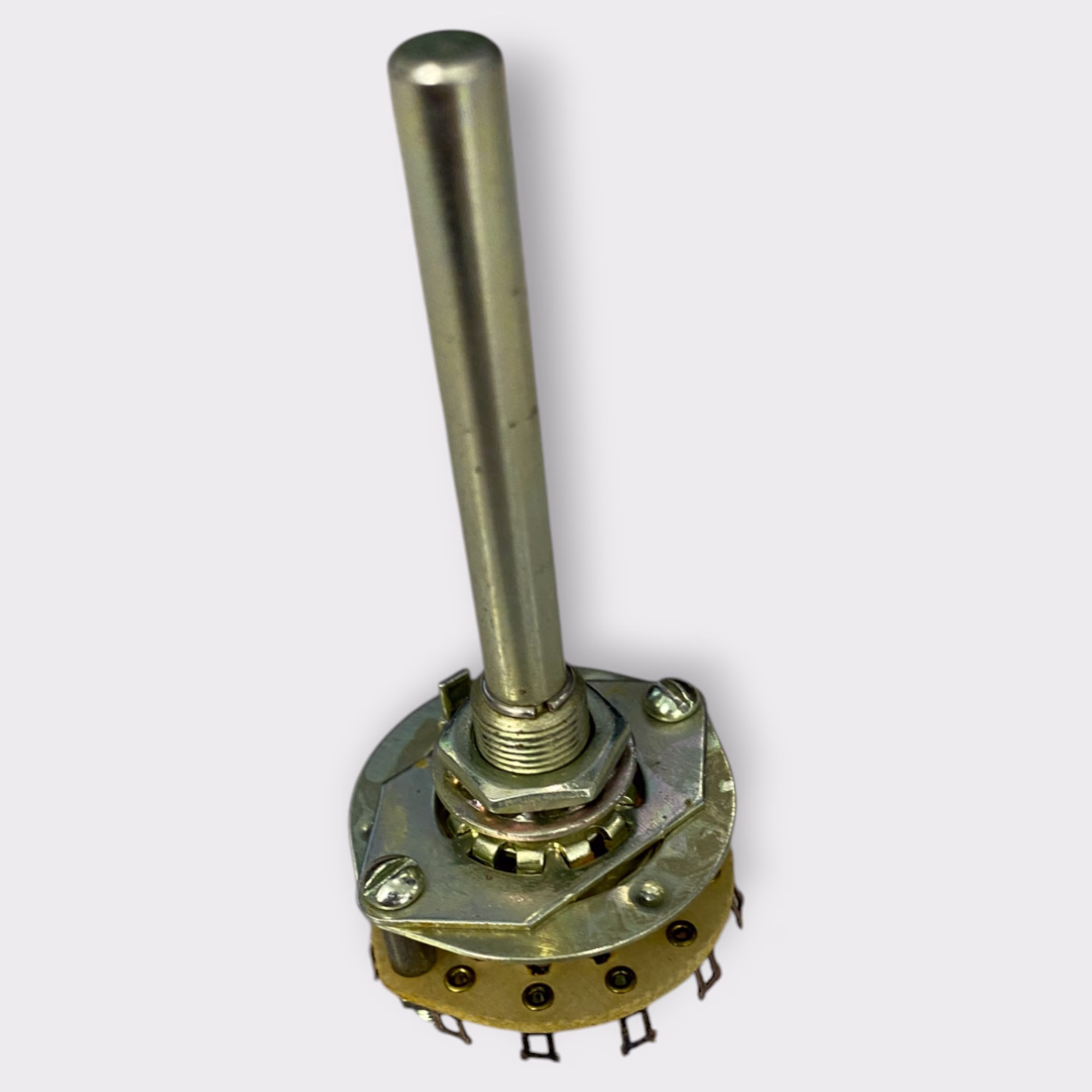

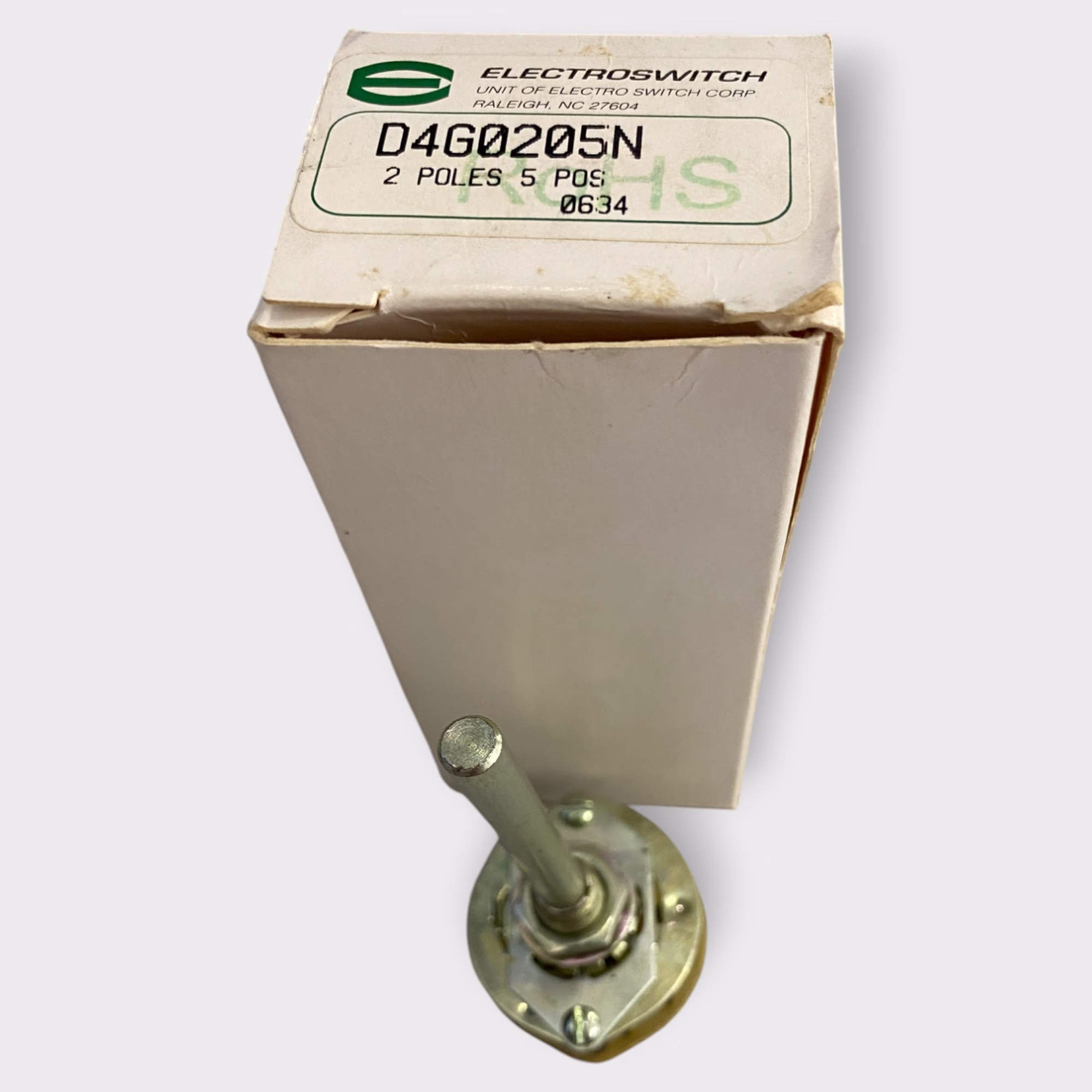

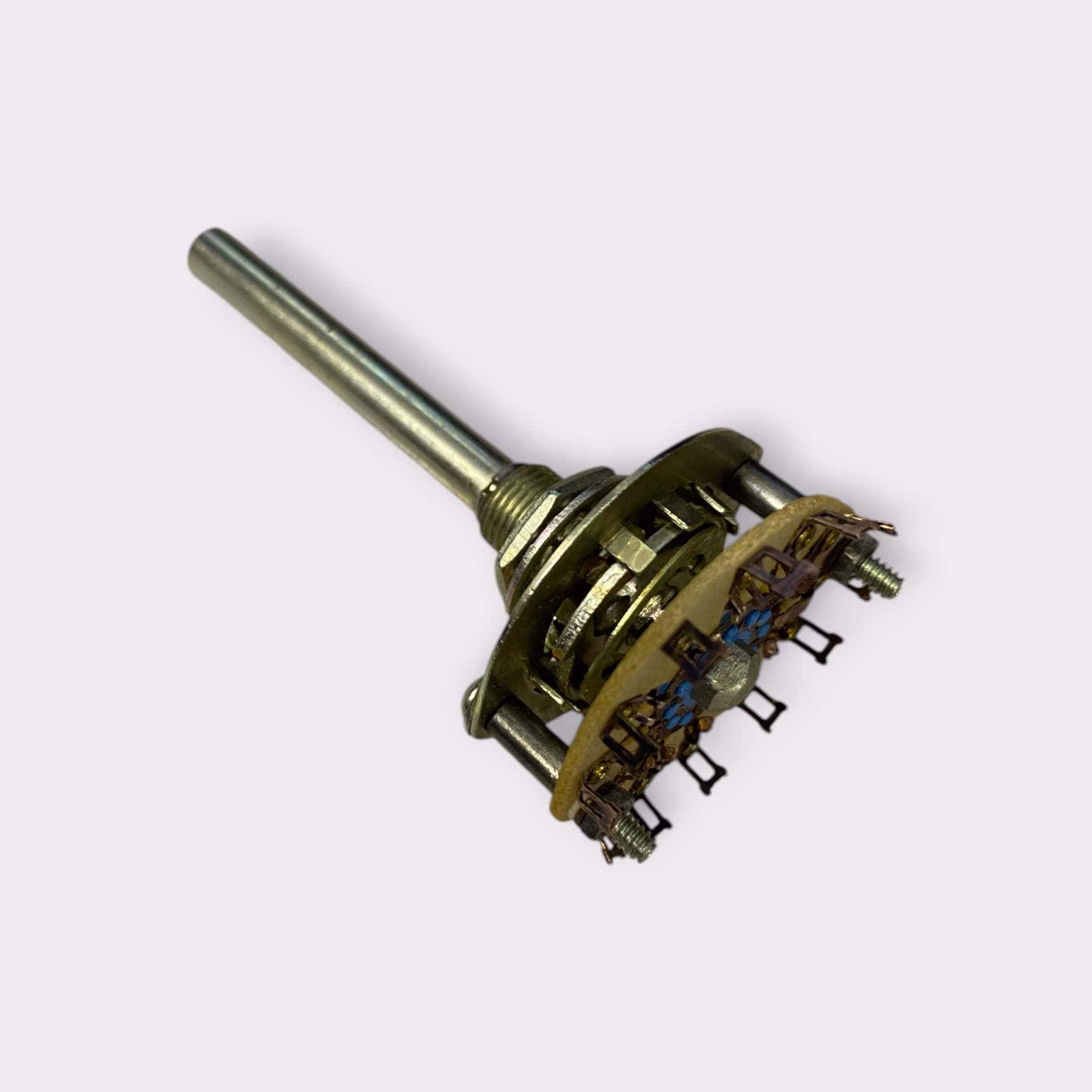

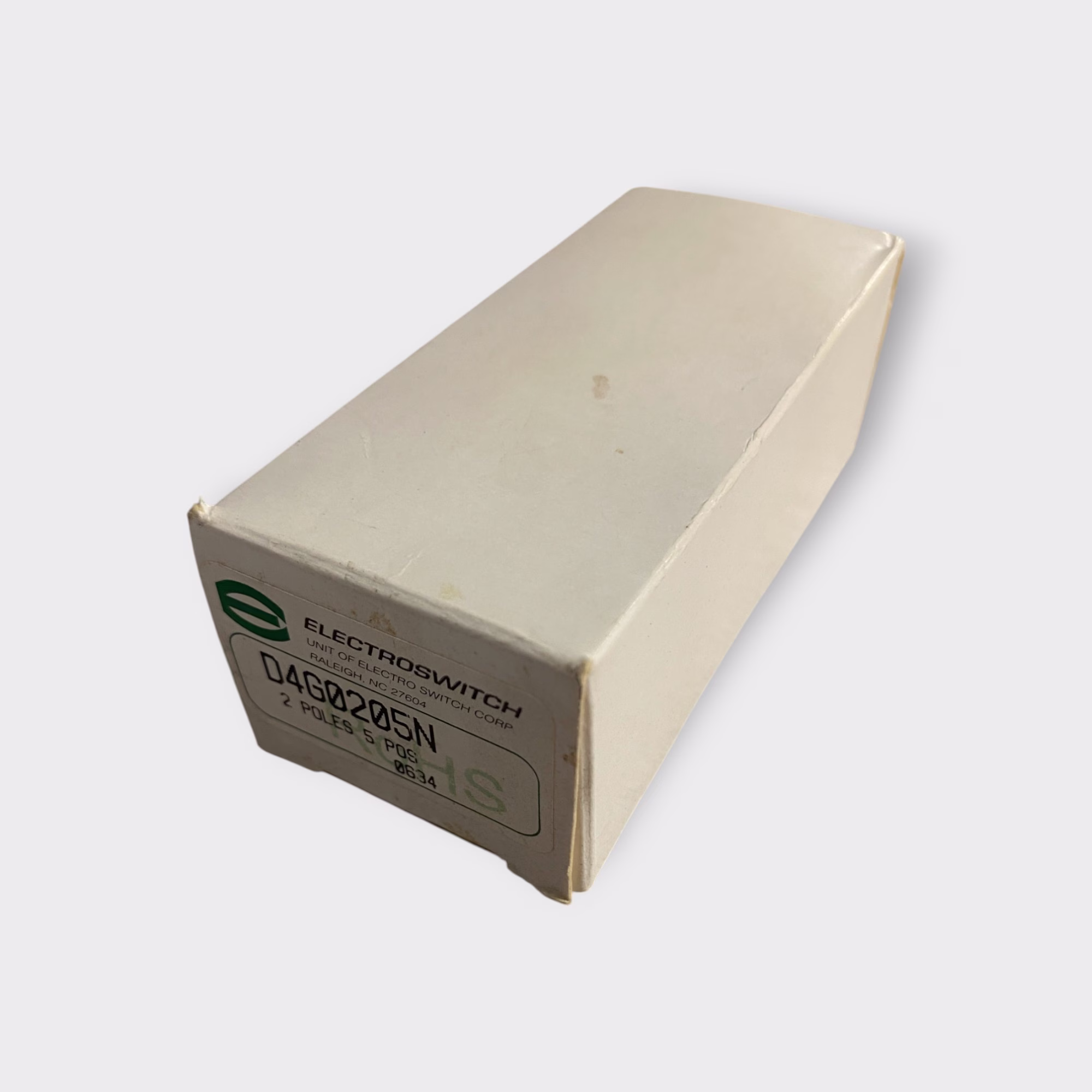

**See photos for more detail**
The packaging for the product you will receive may vary slightly from the unit that is pictured due to the fact this is a multiple quantity listing; however, all units are in similar in cosmetic condition and in working order.
Specs:
Number of Positions – 2 ~ 5
Index Stops – Adjustable
Number of Decks – 1
Number of Poles per Deck – 2
Circuit per Deck – DP5T
Contact Timing – Non-Shorting (BBM)
Current Rating (Amps) – 500mA (AC), 1.5A (DC)
Voltage Rating – AC – 115 V
Voltage Rating – DC -28 V
Actuator Type – Round (6.35mm Dia)
Actuator Length – 47.63mm
Angle of Throw – 30°
Contact Material – Brass
Contact Finish – Silver
Mounting Type – Panel Mount
Termination Style – Solder Lug
Depth Behind Panel – 14.27mm
Panel Cutout Dimensions – Circular – 9.78mm Dia
What’s Included:
- D4G0205N Rtary Switch
Dimensions (L x W x H): 5 x 2 x 2 in, Weight: .5 lbs
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and international locations will have shipping calculated during checkout.
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
Terms:
All items sold at Max Marine Electronics come as you see in the pictures provided, with only the parts and accessories stated in the description section named “What’s Included”. IF YOU DO NOT SEE SOMETHING YOU EXPECT TO BE INCLUDED IN THE DESCRIPTION WE PROVIDE, IT WILL NOT BE INCLUDED. Read all descriptions thoroughly. There are times when a display is used only to show the item being sold is functional and working properly. In this case, these displays are not included. If you have any questions, feel free to send a message or call Max Marine Electronics Inc, Pompano Beach, Florida. We always want to be transparent with our customers and fully disclose any information regarding the products we sell.
