Eaton R5A3016U 16A 3-Pole Rotary Disconnect w/ SHR0N4X Handle & Shaft – USED

$129.99

Eaton

SKU: 857979

In stock (1 available)

Buy Now

Free Shipping Lower 48
30-Day Returns
90-Day Warranty

Description
Additional information

Manufacturer: Eaton

Model Number: Rotary Disconnect Switch

Series: R5 Series

MPN: R5A3016U, SHR0N4X

Listed Item Condition: Used

Product Details:

Summary

Eaton R5A3016U R5 Series 16A 3-pole non-fusible rotary disconnect switch with Eaton SHR0N4X (191850) red/yellow external operating handle and shaft included. Designed for industrial switching, isolation, and motor disconnect applications. This was part of a custom electrical/electronics cabinet that was mounted on a yacht. As the cabinet was customized for the exact application on this vessel, we have disassembled/parted the cabinet out. All parts were reported to be working, but we lack the proper equipment to test them and confirm this. As such, we are selling them as working with a 30 day period for customers to test and ensure functionality and a 90 day warranty for peace of mind.

Product Description

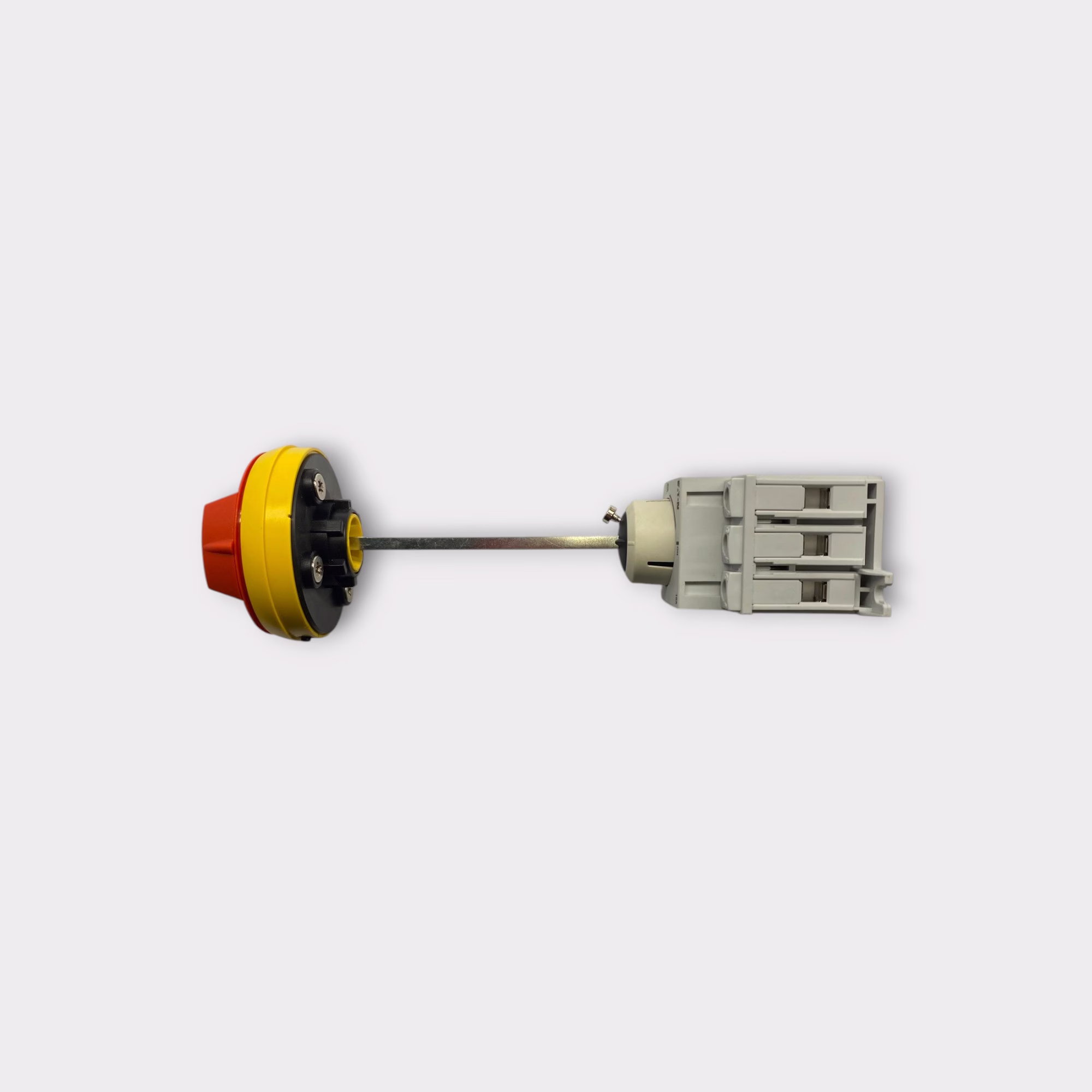

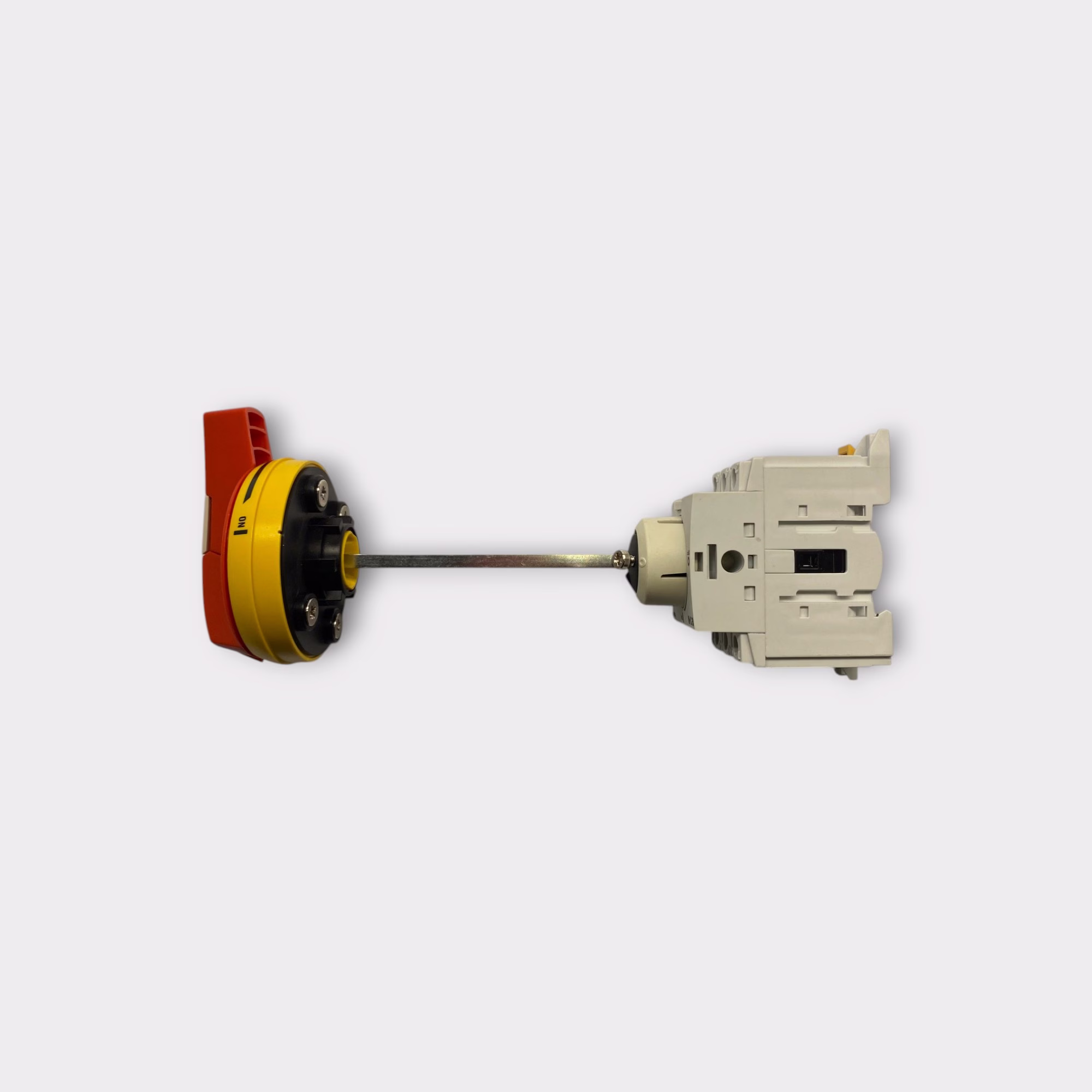

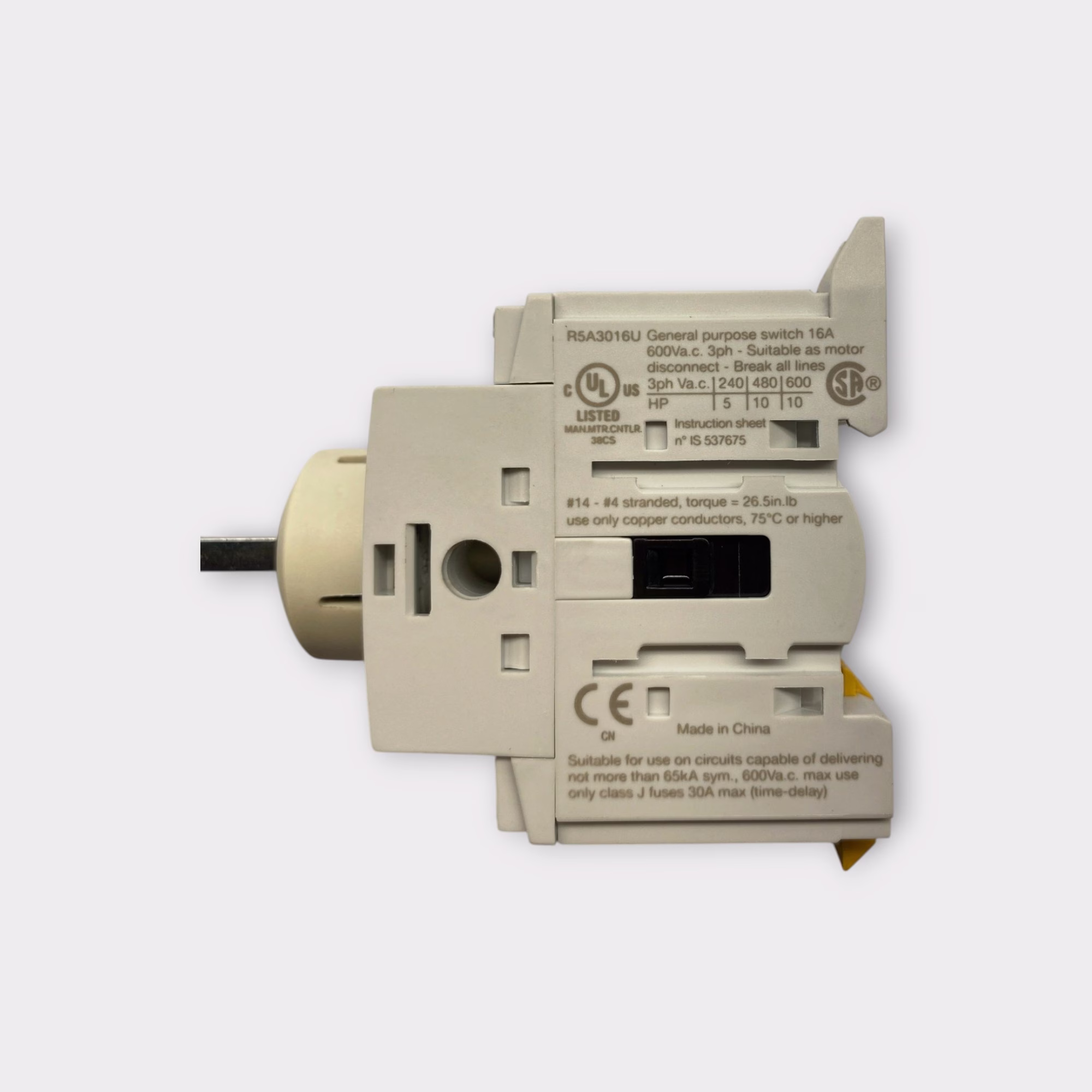

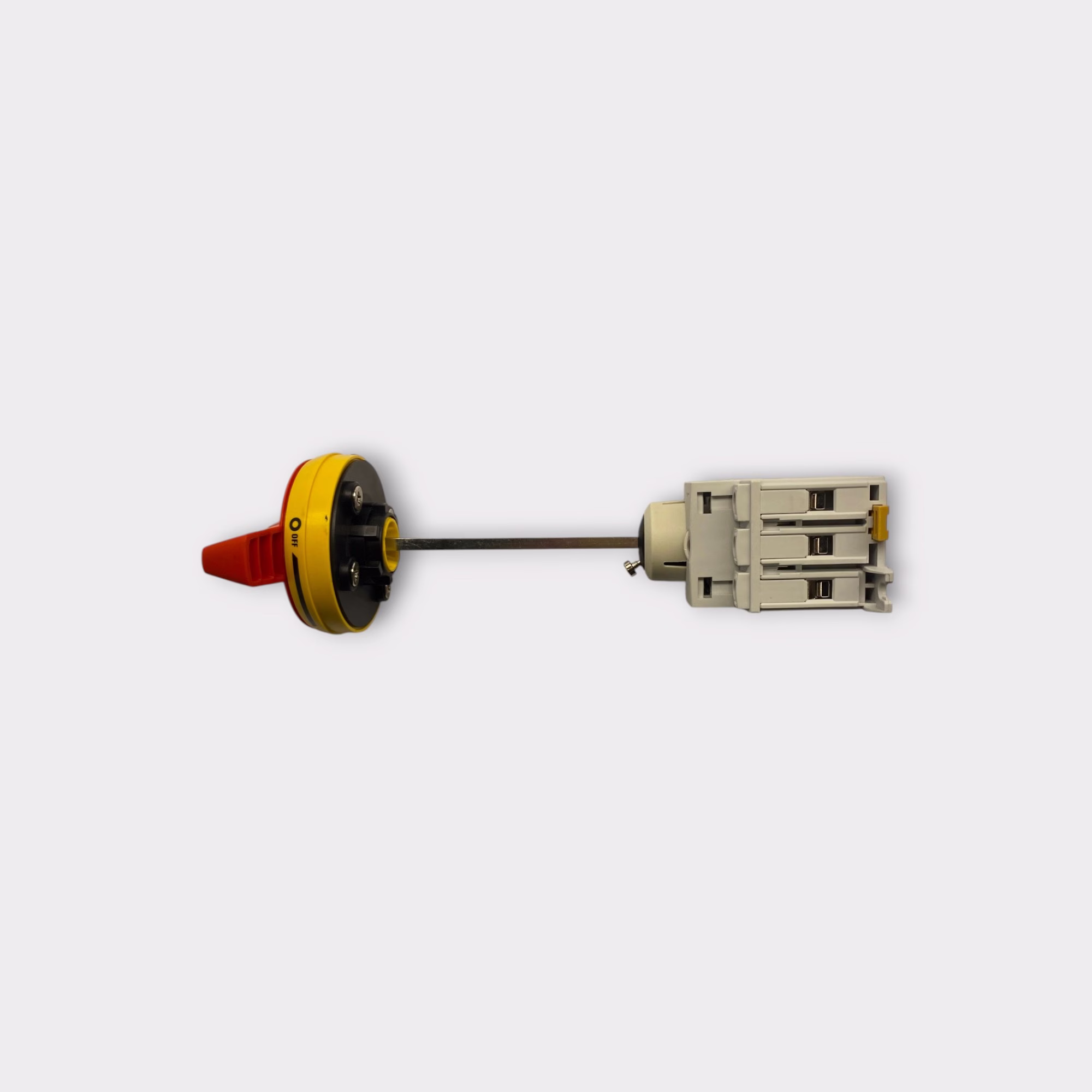

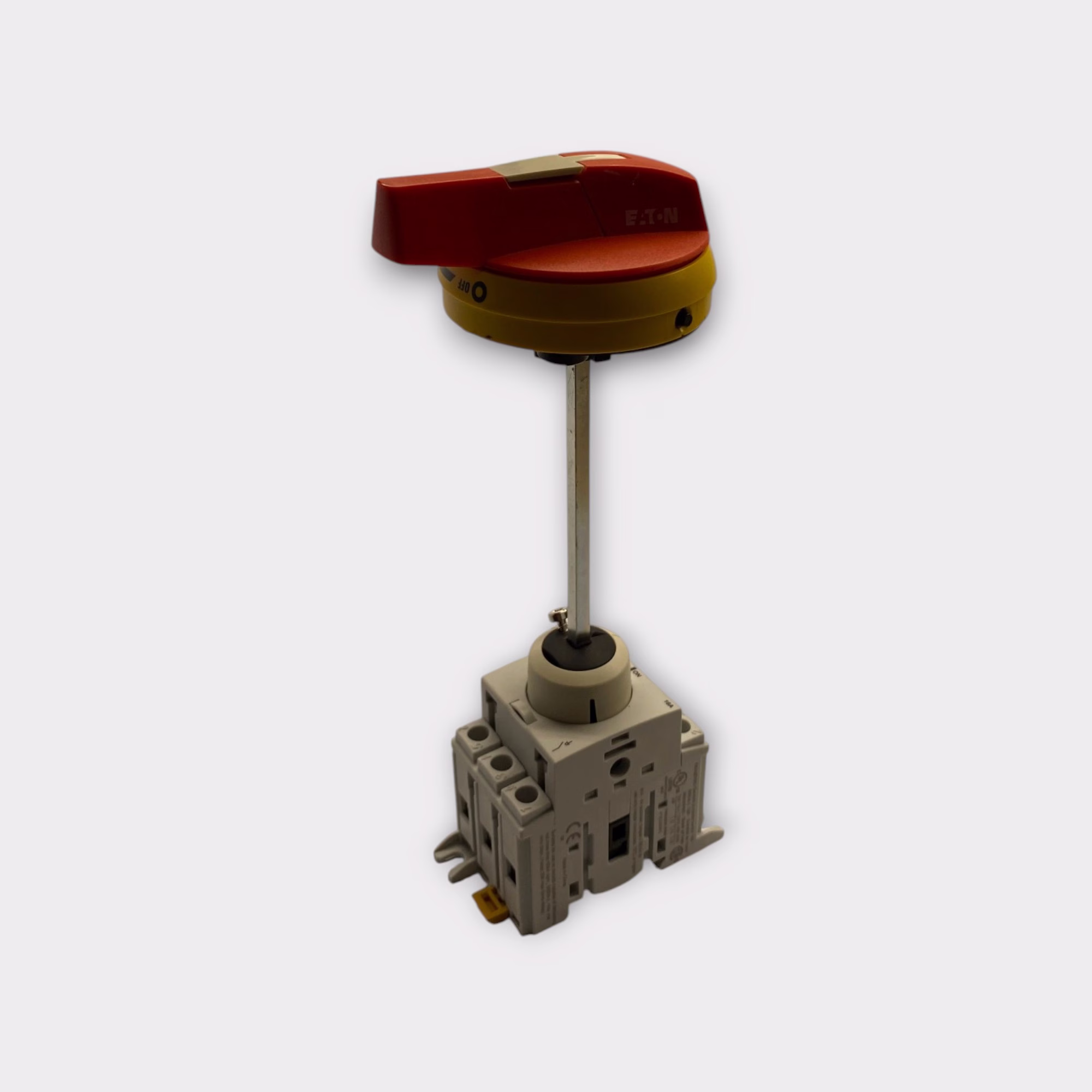

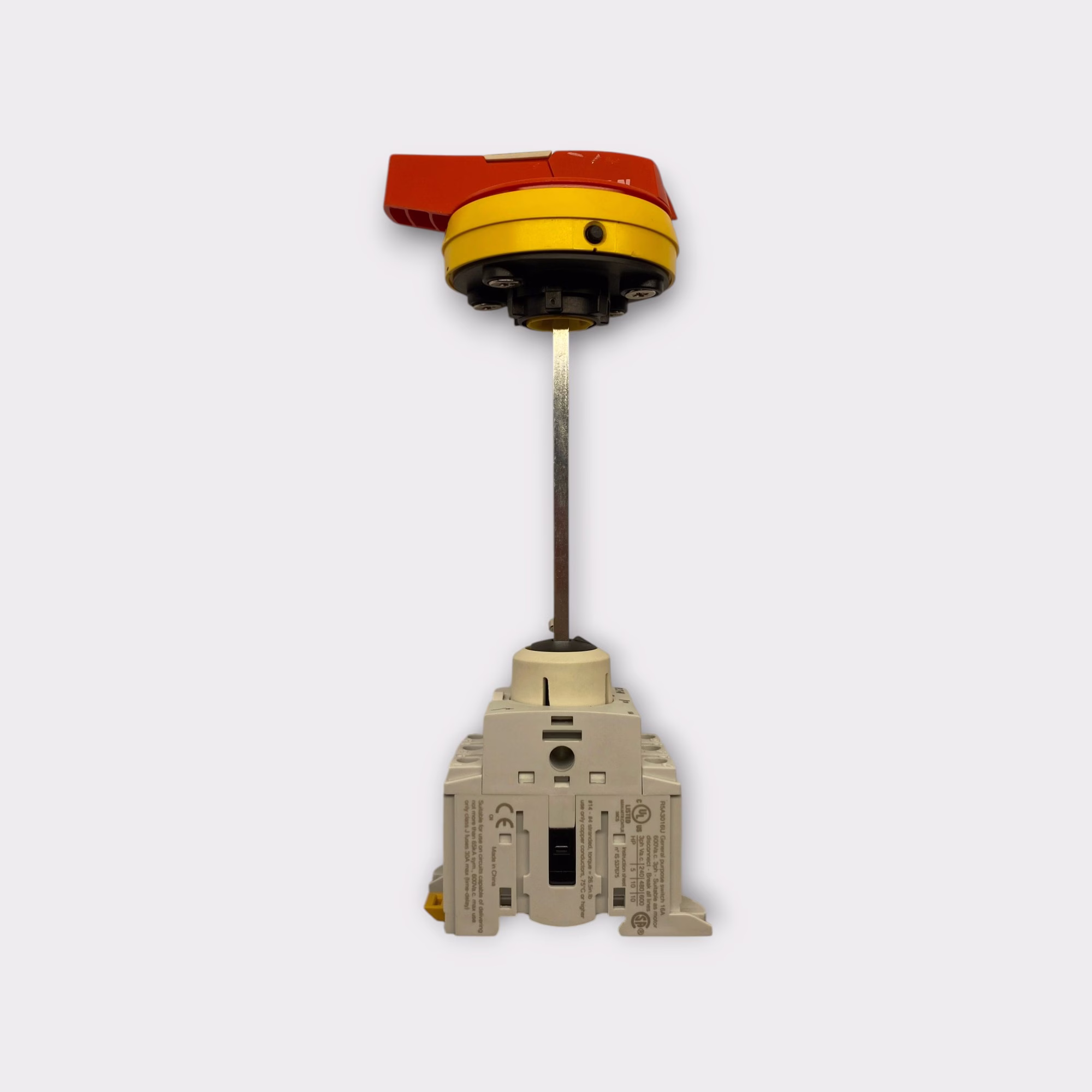

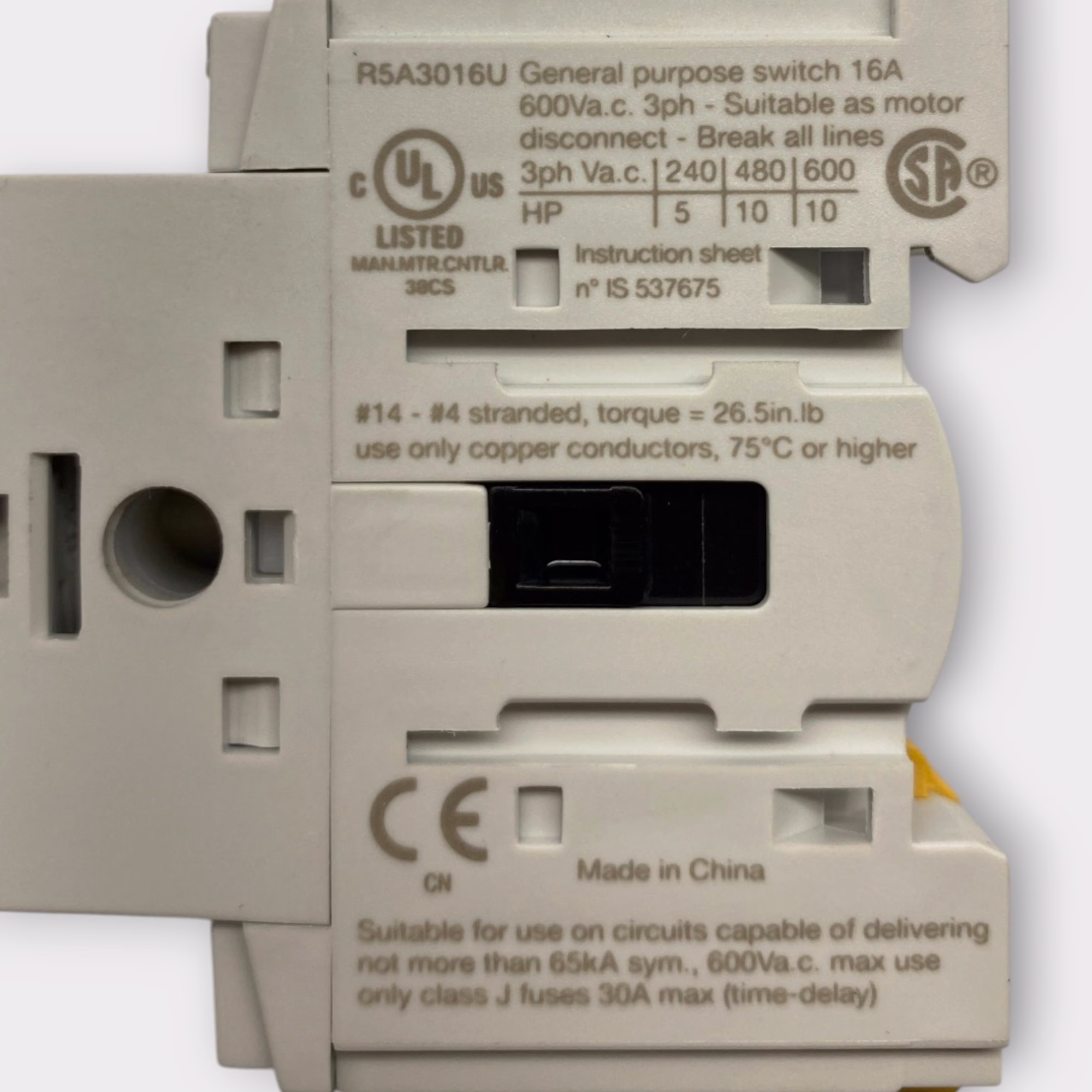

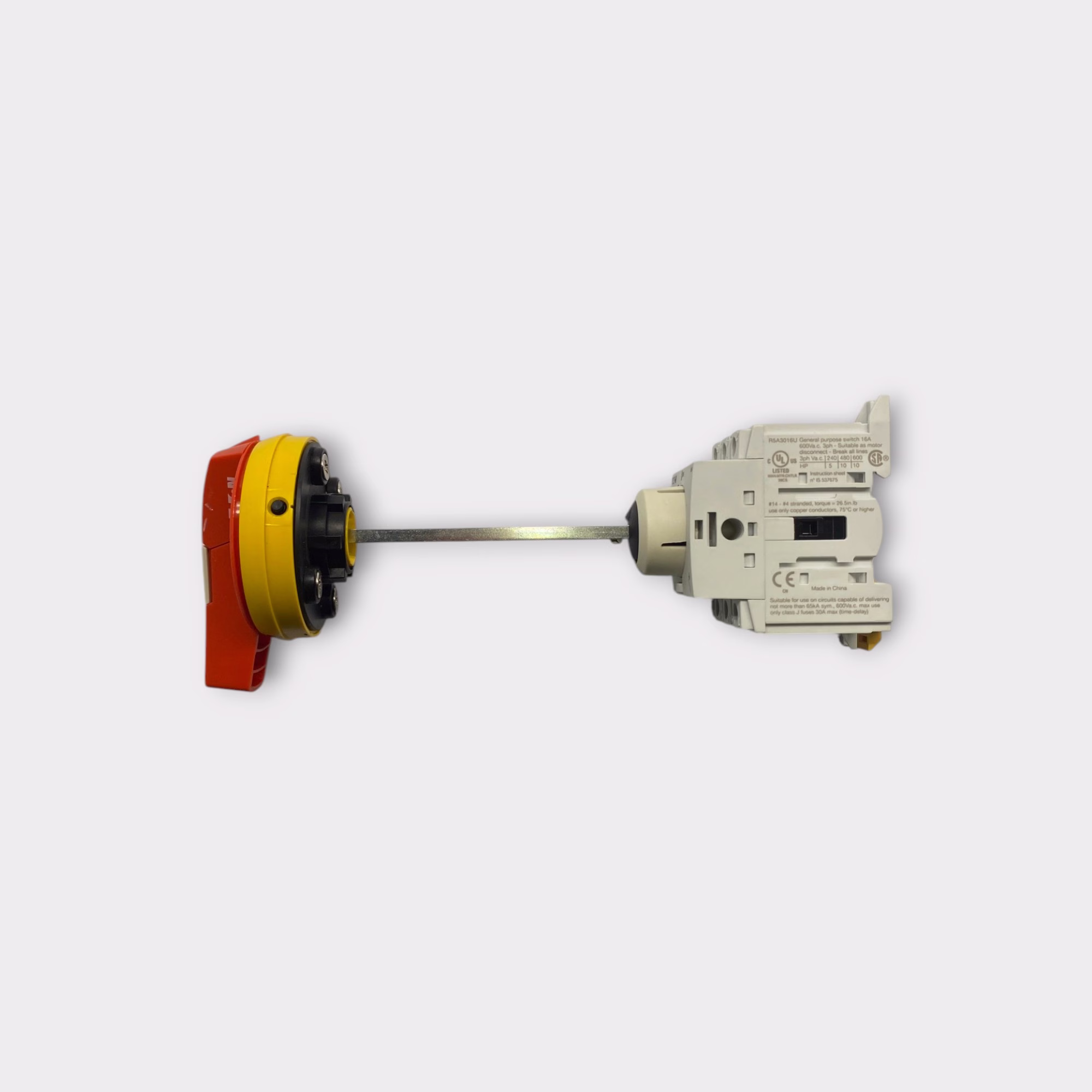

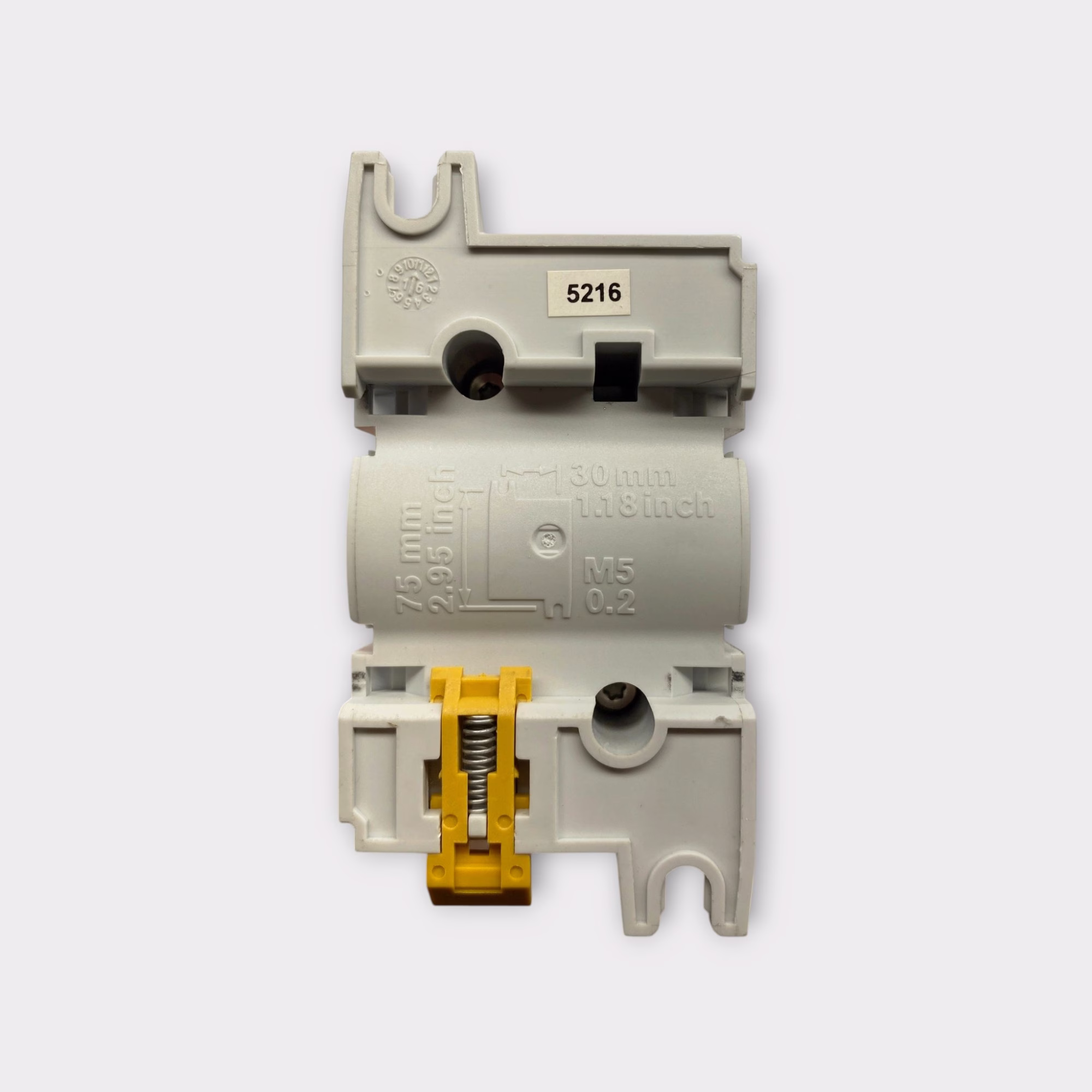

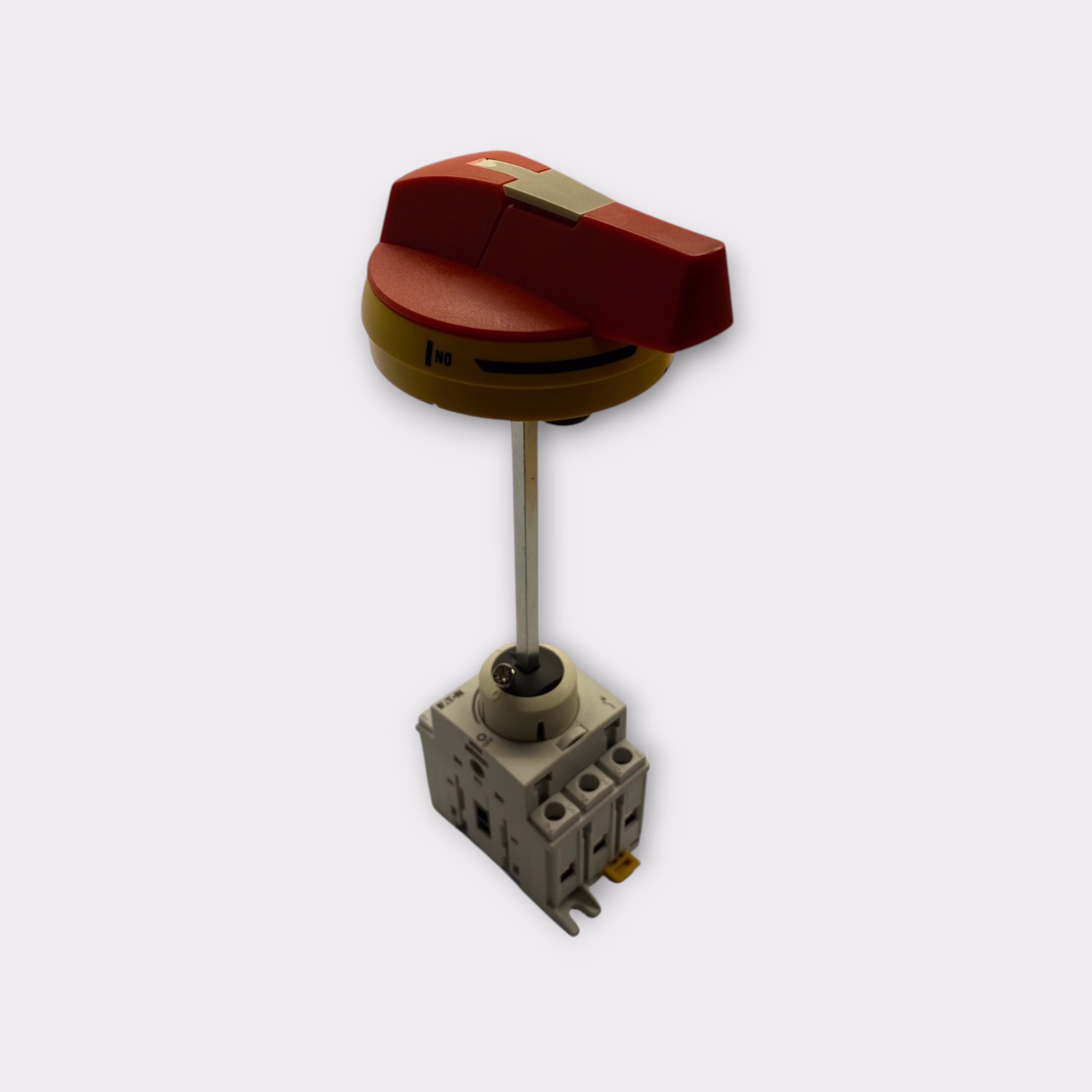

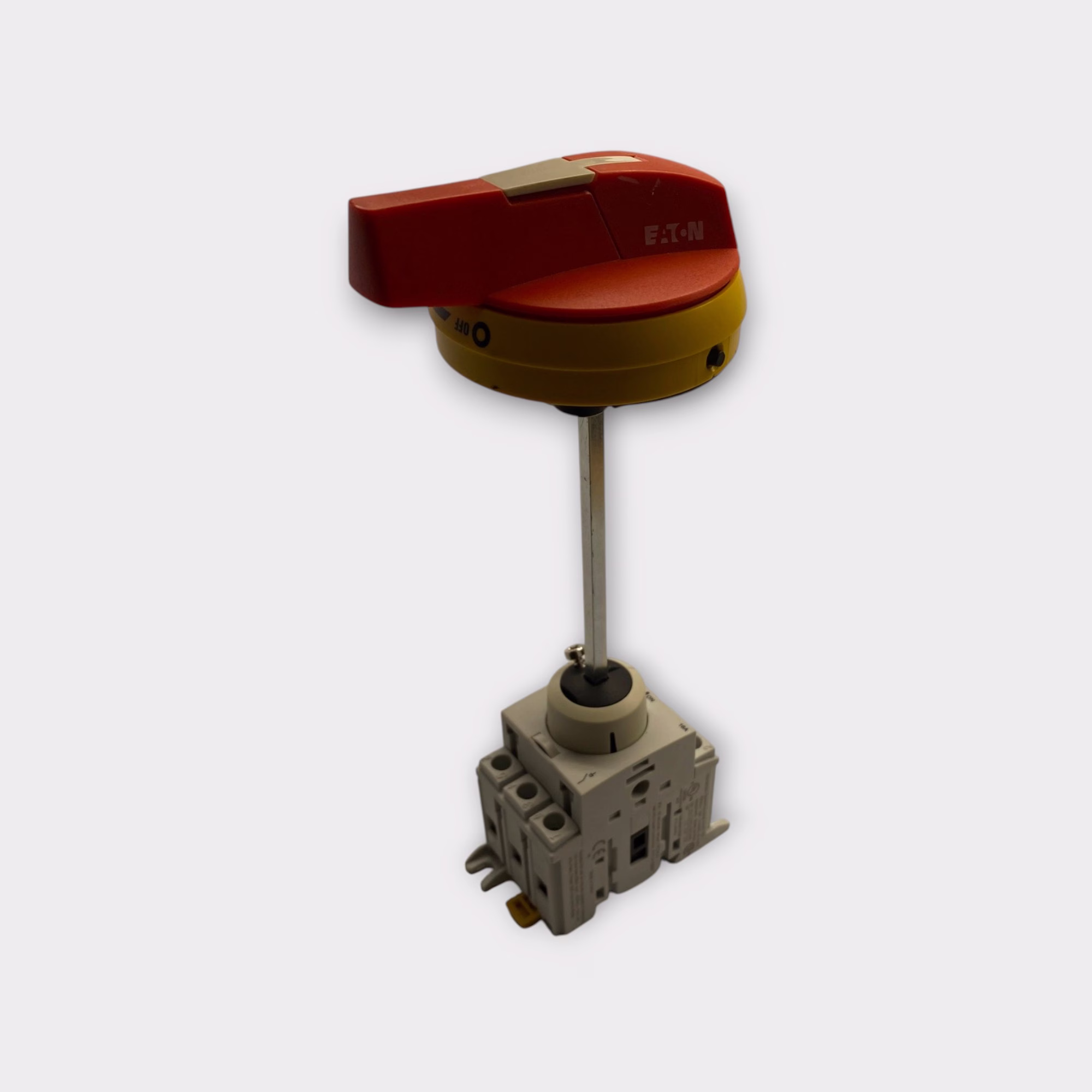

The Eaton R5A3016U is a 16A, 600V, 3-pole non-fusible rotary disconnect switch suitable for use as a motor disconnect. This assembly includes the Eaton SHR0N4X red/yellow external operating handle, part number 191850, along with the connecting shaft as pictured.

Product Information:

- Manufacturer - Eaton
- Model Number - R5A3016U
- Series - R5
- MPN - R5A3016U
- Product Type - Rotary Disconnect Switch
- Switch Type - Non-Fusible
- Number of Poles - 3
- Amperage Rating - 16A
- Voltage Rating - 600V AC
- Phase - 3 Phase
- Frame Size - A-Frame
- Operation - Rotary
- Application - Motor Disconnect / Switching and Isolation
- Horsepower Rating at 240VAC 3-Phase - 5 HP
- Horsepower Rating at 480VAC 3-Phase - 10 HP
- Horsepower Rating at 600VAC 3-Phase - 10 HP
- Switch Dimensions - 2.57 x 1.77 x 3.35 in
- Switch Weight - 0.5 lb
- Certification - UL 508
- Certifications - CSA Certified / UL 508 / IEC Rated / EN Listed
- Compliance - CCC Marked
- UPC - 786685402857
- Country of Origin - China

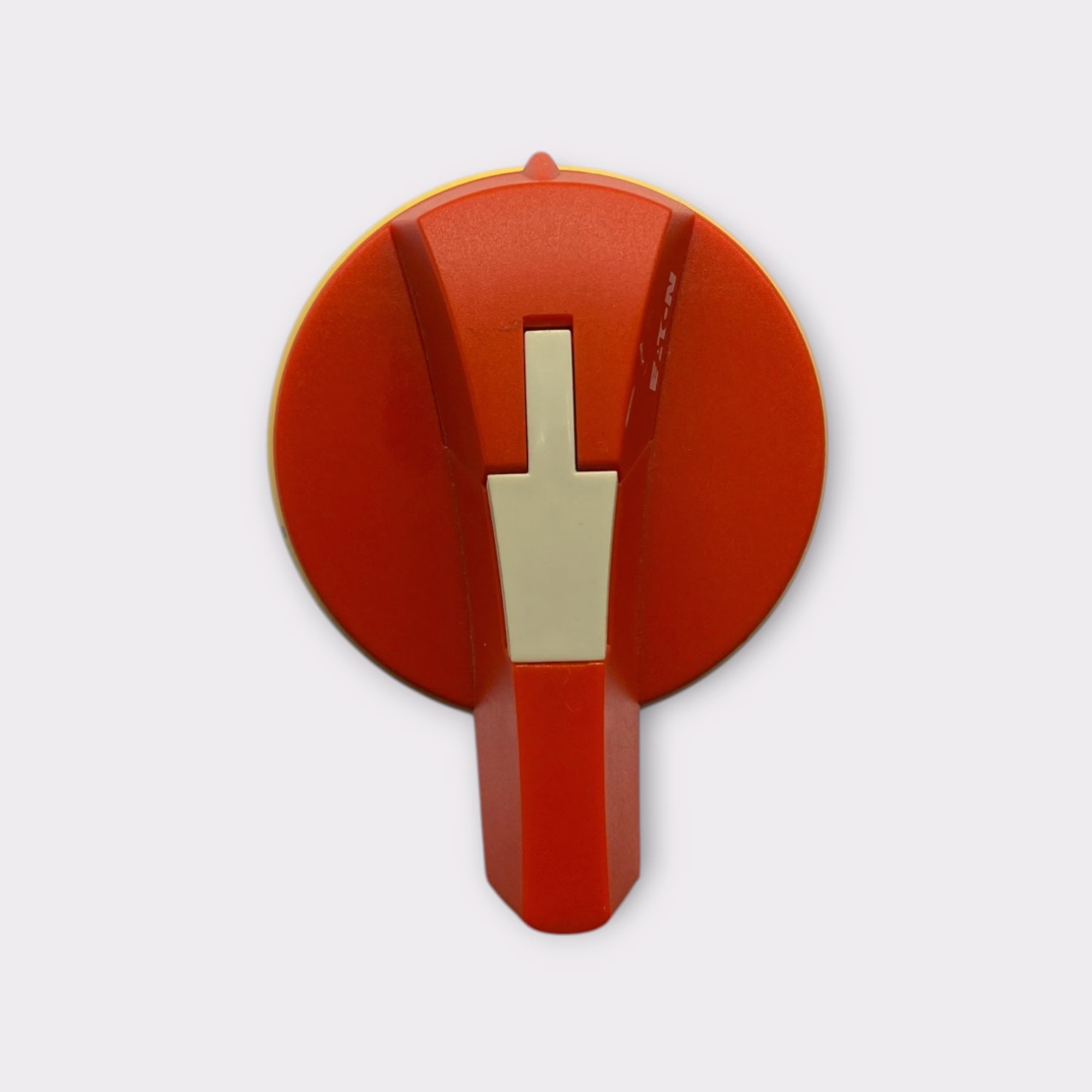

Included Handle Information:

- Manufacturer - Eaton
- Model Number - SHR0N4X
- Series - R5 / R9 Rotary Disconnect Accessories
- MPN - 191850
- Eaton Catalog Number - SHR0N4X
- Product Type - External Operating Handle
- Handle Size - Size 0
- Handle Color - Red / Yellow
- Handle Function - Grip Lockout for Padlock
- Enclosure Rating - NEMA 4X
- Handle Dimensions - 65 x 65 x 37 mm
- Handle Weight - 0.085 kg
- Compliance - CE
- Operating Temperature - -25°C to 50°C
- Shaft - Included
- Shaft Part Number - Unknown

What's Included:

Eaton R5A3016U R5 Series 16A 3-pole non-fusible rotary disconnect switch with Eaton SHR0N4X (191850) red/yellow external operating handle and shaft included

Compatible Parts:
