Listed Item Condition: New/New Other

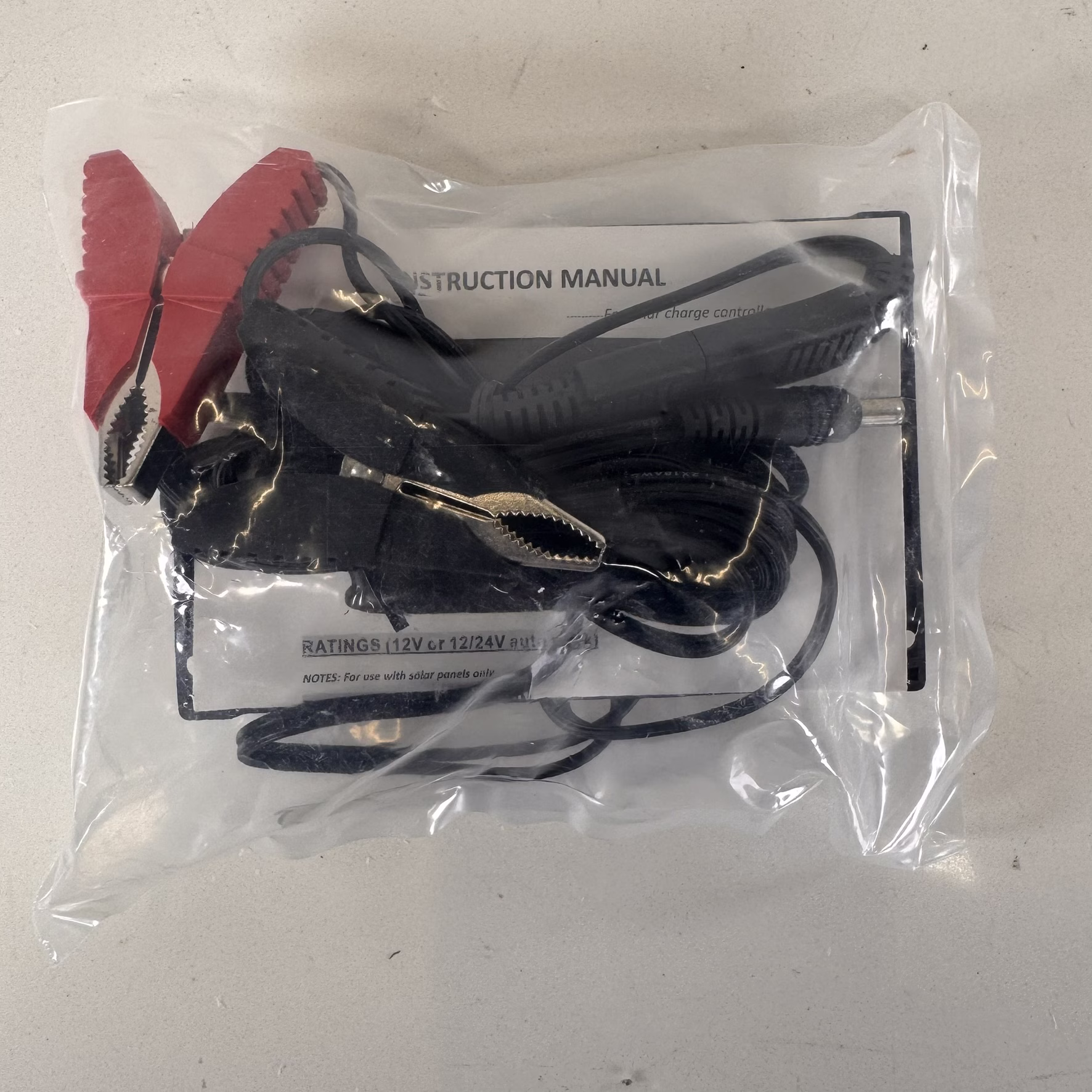

What's Included:

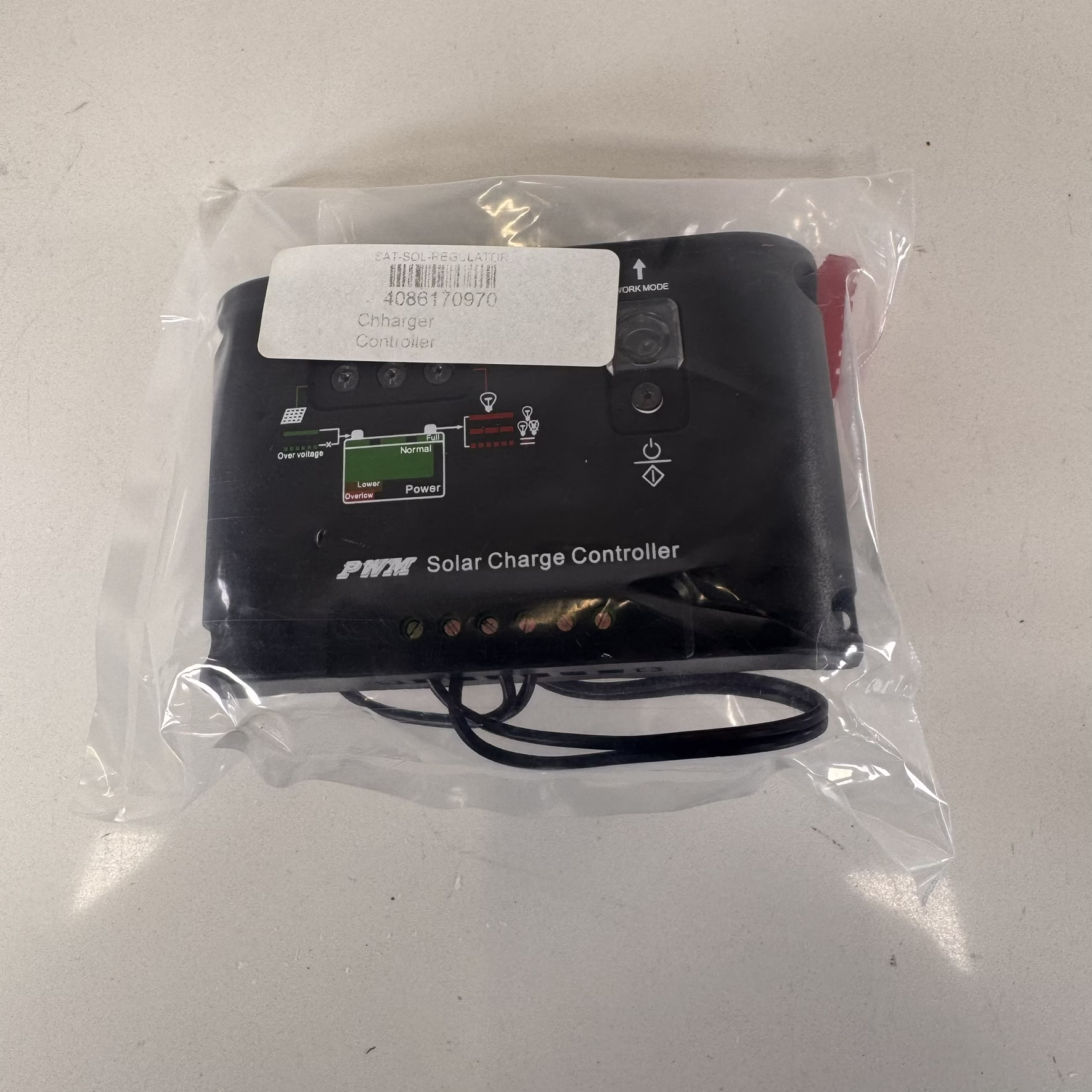

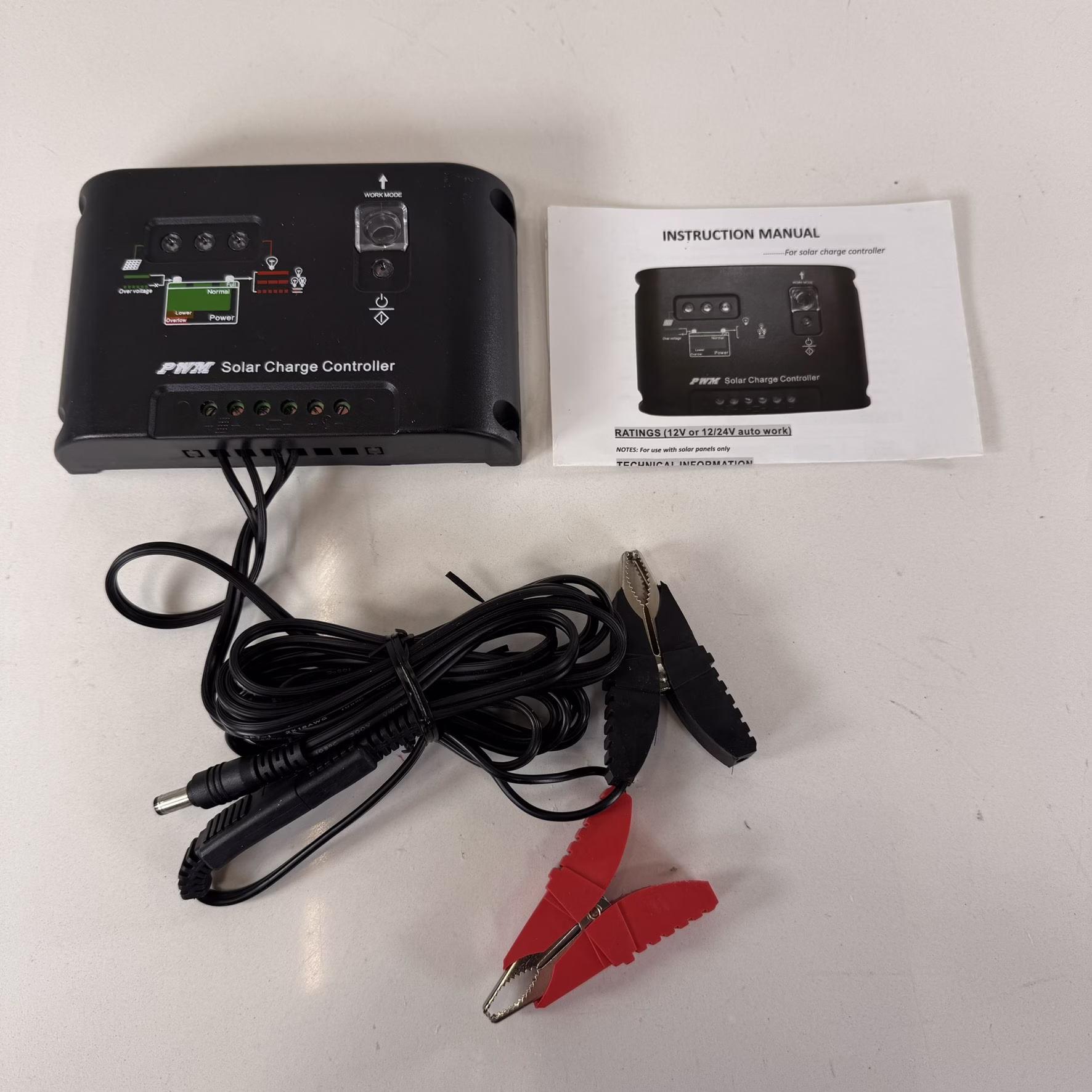

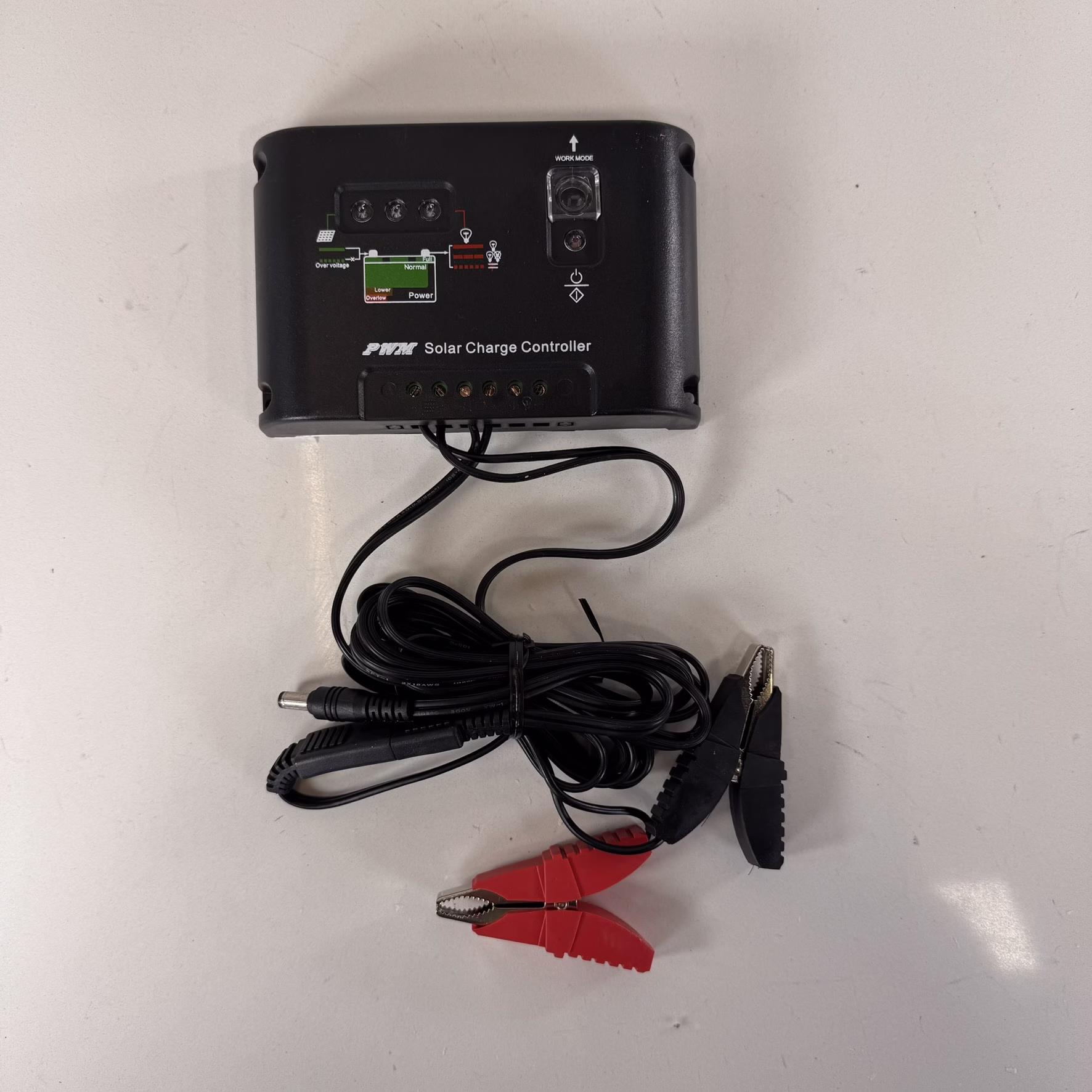

- PWM Solar Charge Controller
Dimensions: 5 × 6 × 1 in
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout. Please be advised if the item is large or is a multi-piece shipment, shipping quotes may be inaccurate due to restrictions outside of our control, in those instances you will be contacted promptly.
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
We received a lot of these from a Marine Electronics business that was closing its doors.
Rated charge current: 10A
Rated load current: 10A
Overload protection: 1.25 Rated load current 60sec
Quiescent current control circuit: 8mA; LED(MAX) = 10mA
Work voltage: 12/24V
Work temperature: -35'C to +50'C
Battery capacity: 24,40,60 100AH set by jumper
Boost charge voltage: 14.8V, x2/24V;(10min)
Direct charge voltage: 14.4V;x2/24V;(10min)
Float charge voltage: 13.4V;x2/24V
Control mode PWM charge mode, modified discharge voltage by the discharge rate
