Summary

• Dell EMC 3.2TB 24Gbps SAS enterprise solid-state drive (SSD), manufactured by KIOXIA Corporation, part number SDFUY74DHB03T, Dell DP/N 0RGP9J. This KIOXIA PM7-V Series mixed-use SSD features self-encrypting drive (SED) technology, FIPS security configuration, 3 DWPD endurance, and an included Dell 2.5-inch hot-swap drive tray.
• These SSDs were pulled from a new Dell PowerEdge R7625 server and replaced with larger SSDs. They are new, never-used server pulls removed during a storage upgrade before the server was placed into service.
• This listing includes one Dell EMC / KIOXIA 3.2TB SAS SSD installed in its Dell PowerEdge 2.5-inch hot-swap drive tray. No original retail box, instructions, manuals, cables, or additional accessories are included. Please review all photos for the exact item, condition, and components included.
• This is a multiple quantity listing and the unit that you will receive may be different than the unit shown, but is in the same cosmetic condition. Please review all photos for the exact item, condition, and components included.

Product Description

• The Dell EMC 0RGP9J is a 3.2TB enterprise-grade solid-state drive manufactured by KIOXIA Corporation for Dell PowerEdge server and enterprise storage applications.
• Part of the KIOXIA PM7-V Series, this SSD utilizes a 24Gbps SAS-4 interface, providing high-speed enterprise storage connectivity for demanding server environments.
• The drive incorporates KIOXIA 112-layer BiCS FLASH 3D TLC NAND technology and is optimized for mixed-use workloads, including virtualization, database processing, data warehousing, web services, and enterprise applications.
• With a 3 DWPD (Drive Writes Per Day) endurance classification, the PM7-V Series is designed to accommodate workloads requiring both frequent read operations and sustained write activity.
• The KPM7WVUG3T20 hardware model belongs to KIOXIA's FIPS self-encrypting drive family, providing hardware-based encryption capabilities for enterprise data protection and security applications.
• Additional PM7-V Series features include power-loss protection, end-to-end data protection with T10 DIF support, and dual-port SAS capability for compatible storage configurations.
• The 3.2TB SSD features a standard 2.5-inch form factor with a 15mm drive thickness and is designed for installation in compatible enterprise SAS storage systems.

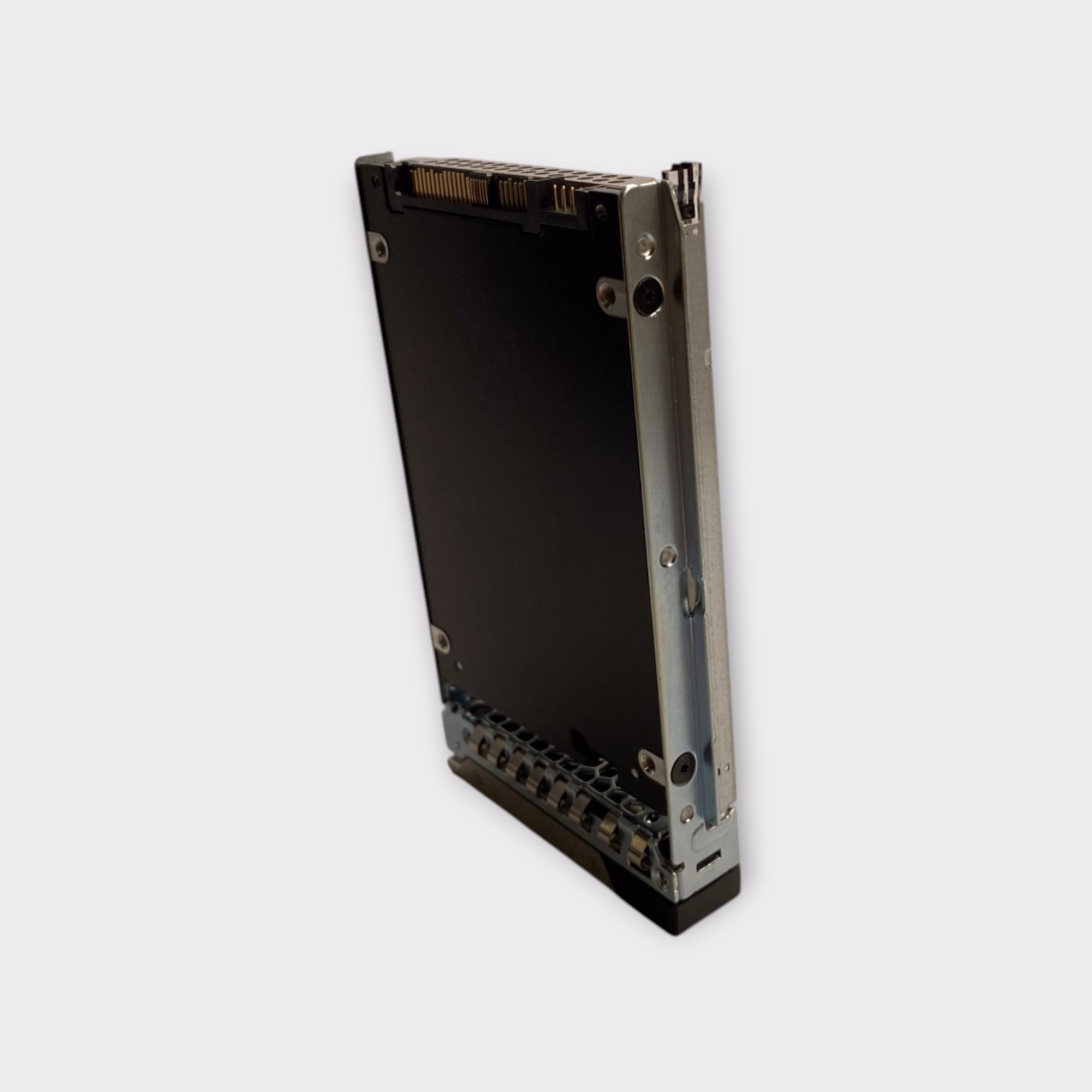

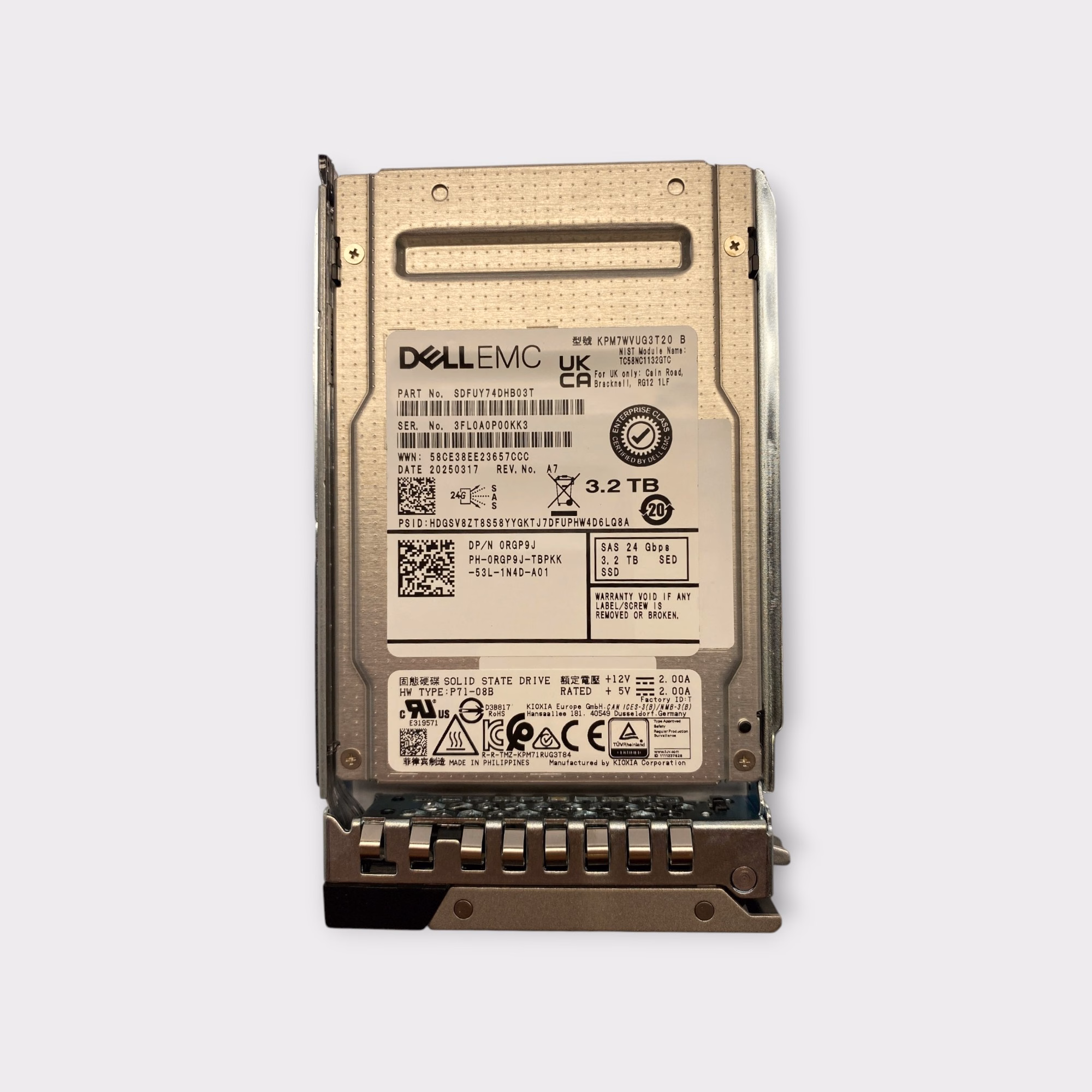

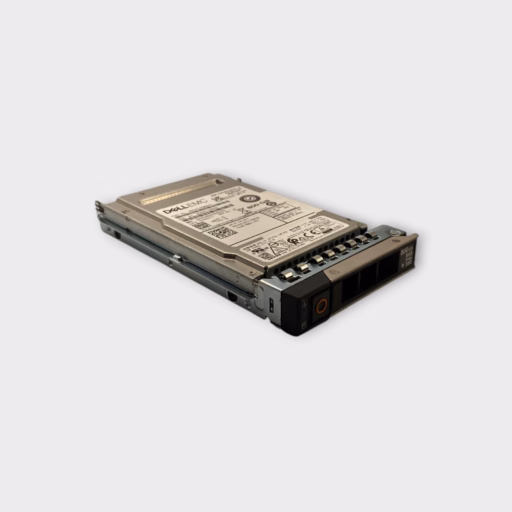

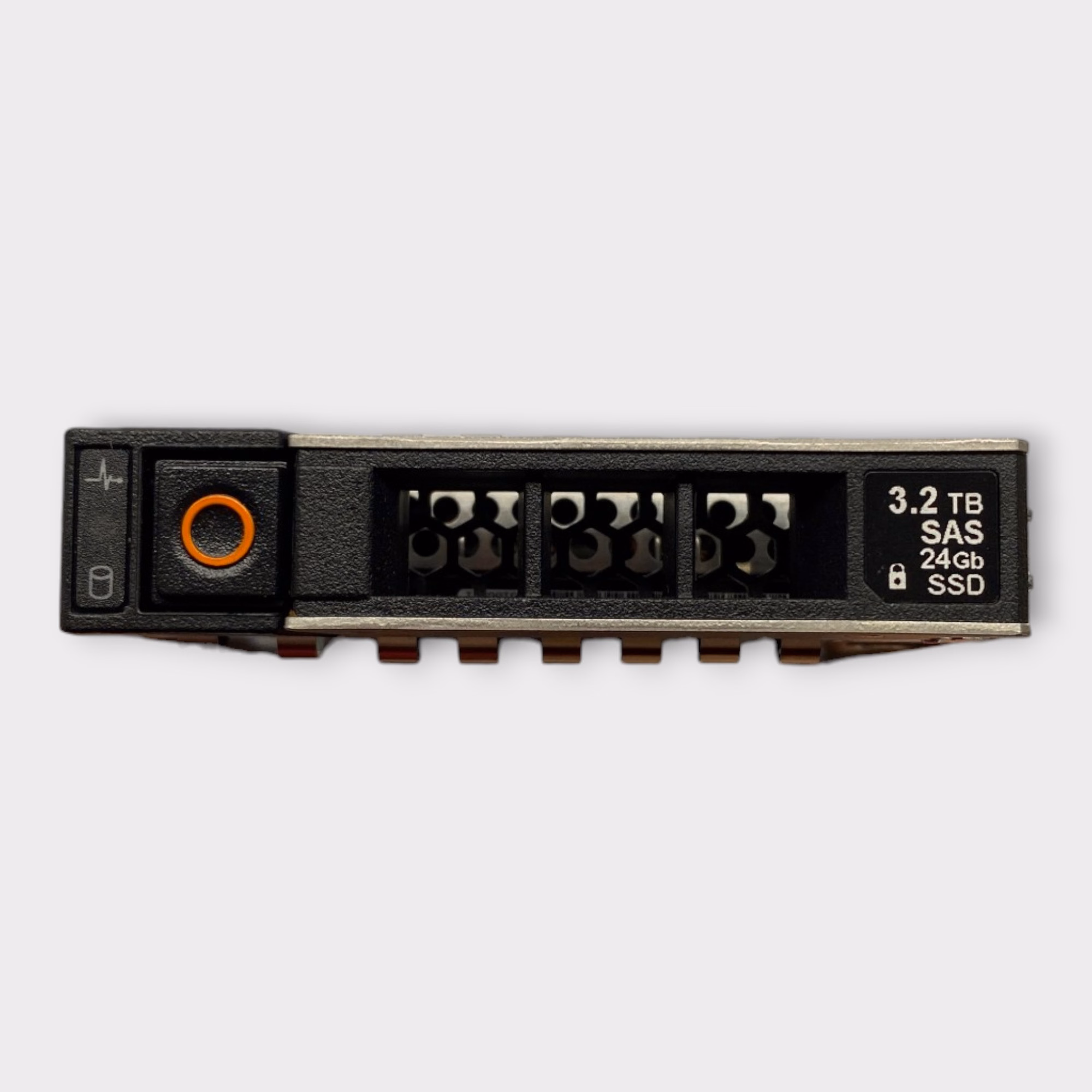

• This SSD includes its Dell PowerEdge 2.5-inch hot-swap drive carrier, complete with the front release mechanism and 3.2TB SAS 24Gb SSD identification panel.
• The hot-swap carrier allows installation and removal through compatible Dell PowerEdge server drive bays without opening the server chassis, subject to the system's supported hot-swap configuration.
• Originally supplied with a Dell PowerEdge R7625 server, this SSD is suitable for compatible Dell PowerEdge systems equipped with the appropriate SAS controller, backplane, and firmware support.

Product Information

General Information

- OEM Brand: Dell EMC
- SSD Manufacturer: KIOXIA Corporation
- Model Number: KPM7WVUG3T20 B
- Series: **KIOXIA PM7-V Series**
- KIOXIA Part Number: SDFUY74DHB03T
- Dell Part Number: 0RGP9J
- Dell DP/N: 0RGP9J
- Product Type: Enterprise Solid State Drive (SSD)
- Storage Capacity: 3.2TB (3,200GB)
- Drive Configuration: Mixed Use (MU)
- Drive Form Factor: 2.5-Inch Small Form Factor (SFF)
- Drive Thickness: 15mm
- Original Server Model: Dell PowerEdge R7625
- Quantity Included: 1 SSD with Hot-Swap Tray

Interface and Performance

- Interface: SAS-4 (Serial Attached SCSI)
- Interface Class: 24Gbps SAS
- SAS Port Support: Single / Dual Port
- NAND Flash Type: KIOXIA BiCS FLASH 3D TLC
- NAND Technology: 112-Layer 3D TLC
- Endurance Classification: 3 DWPD
- Drive Writes Per Day: 3
- Sector Format: 512e
- Intended Workload: Enterprise Mixed Use
- Power-Loss Protection: Supported
- End-to-End Data Protection: Supported
- T10 DIF: Supported

Data Security

- Encryption Technology: Self-Encrypting Drive (SED)
- Security Configuration: FIPS SED
- Security Model Family: KPM7WVUG
- Hardware-Based Encryption Capability: Yes

Electrical and Physical Information

- Rated Input Voltage: +12V DC / +5V DC
- Label Power Rating: 12V 2.00A / 5V 2.00A
- SSD Form Factor: 2.5-Inch
- SSD Thickness: 15mm
- Installation Type: Internal Hot-Swap
- Manufacturer Label Date: March 17, 2025
- Country of Origin: Philippines
- Manufacturer: KIOXIA Corporation

Dell Hot-Swap Drive Tray

- Manufacturer: Dell
- Product Type: 2.5-Inch Hot-Swap SSD Carrier / Drive Caddy
- Drive Compatibility: 2.5-Inch SAS SSD
- Compatible Server Family: Dell PowerEdge
- Original Server Model: Dell PowerEdge R7625
- Front Release Mechanism: Yes
- Drive Identification Label: 3.2TB SAS 24Gb SSD
- Tray Included: Yes
- Tray Part Number: Not Verified

Applications

- Dell PowerEdge Server Storage
- Enterprise Data Centers
- Database and Transaction Processing
- Virtualization Environments
- Enterprise Storage Arrays
- Data Warehousing
- Server Storage Upgrades and Replacements

Package Contents

- 1x Dell EMC / KIOXIA 3.2TB 24Gbps SAS SED SSD (SDFUY74DHB03T / 0RGP9J)
- 1x Dell PowerEdge 2.5-Inch Hot-Swap Drive Tray / Carrier (Installed)

Total: 1 Complete SSD Assembly with Dell Hot-Swap Tray.
