DANFOSS Vacon VACON0100-3L-0018-2-FLOW+FL03+DPAP+DLNL IP21 Low Voltage Drive NOS

$1,124.99

This item is new and has never been used. It may be unused in its original packaging, be old stock, new open-box, new out of box, or never installed. Packaging might be missing, opened, or show minor damage. The item is fully functional and includes all accessories shown in the listing and images, unless otherwise noted.
SKU: 857423
In stock (2 available)
Buy Now
  • Free Shipping Lower 48

    Free Shipping Lower 48

  • 30-Day Returns

    30-Day Returns

  • 90-Day Warranty

    90-Day Warranty

Manufacturer:

Model Number: VACON 0100-3L-0018-2

Series: VACON 100 FLOW Series

MPN: VACON0100-3L-0018-2-FLOW+FL03+DPAP+DLNL

Listed Item Condition: New/New Other

Product Details:

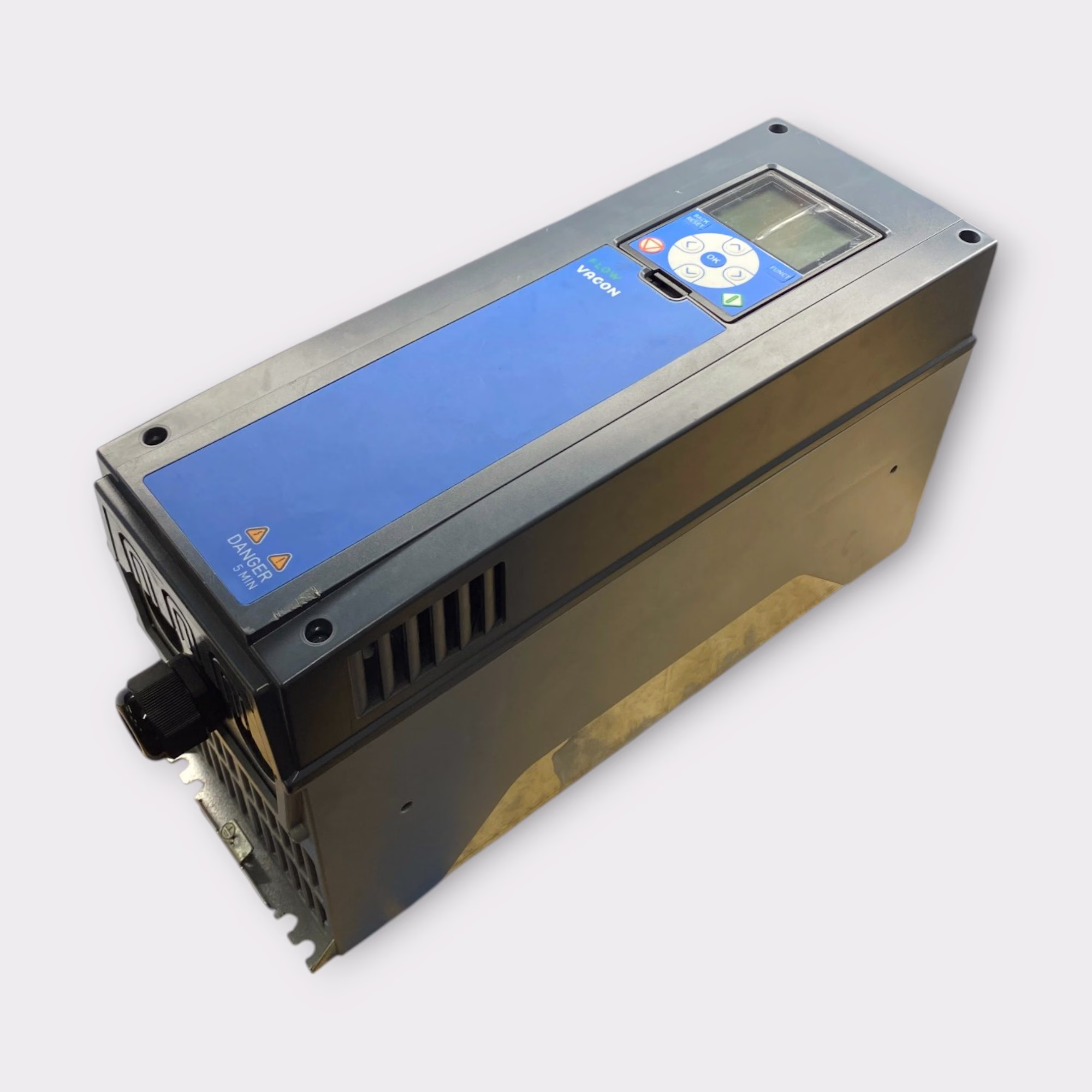

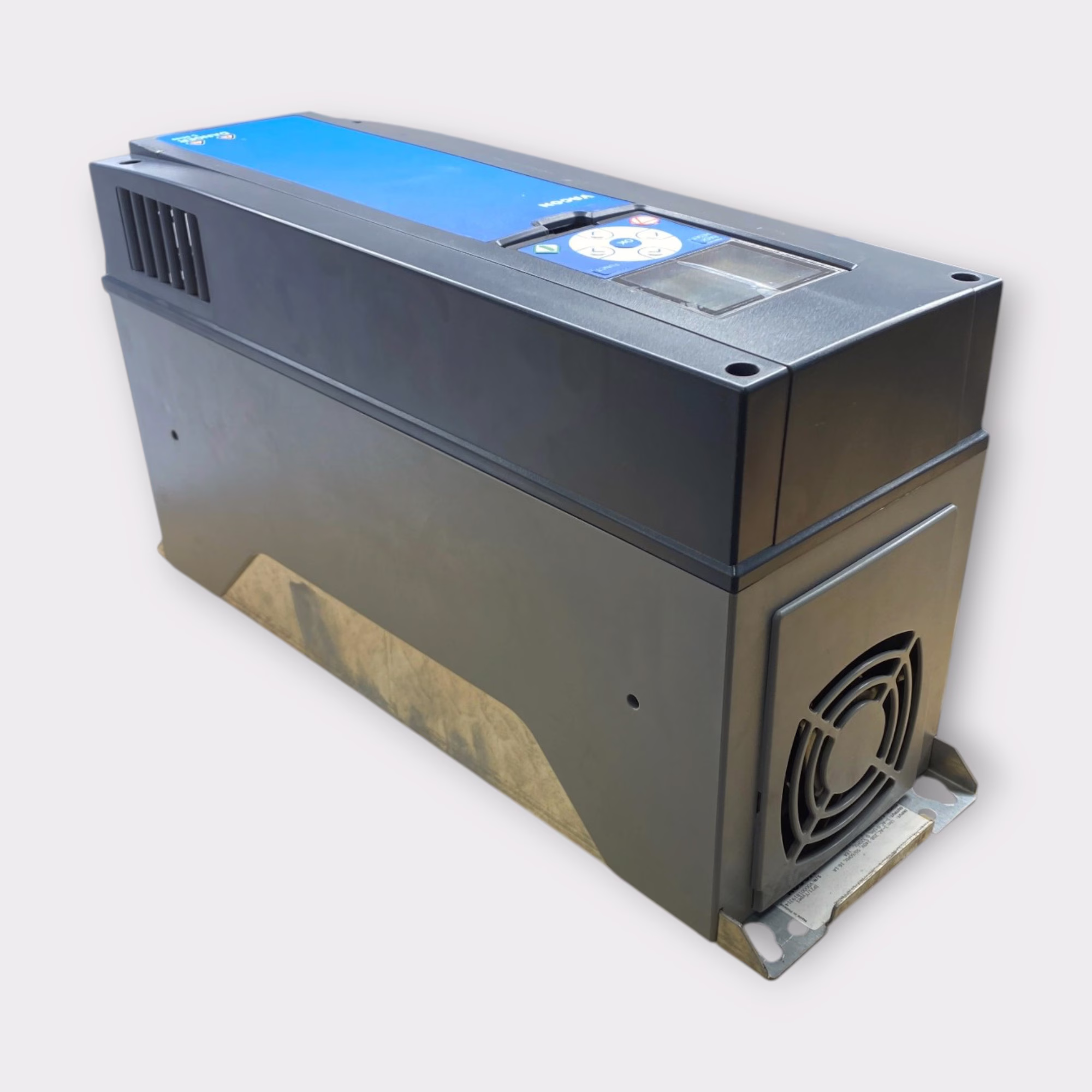

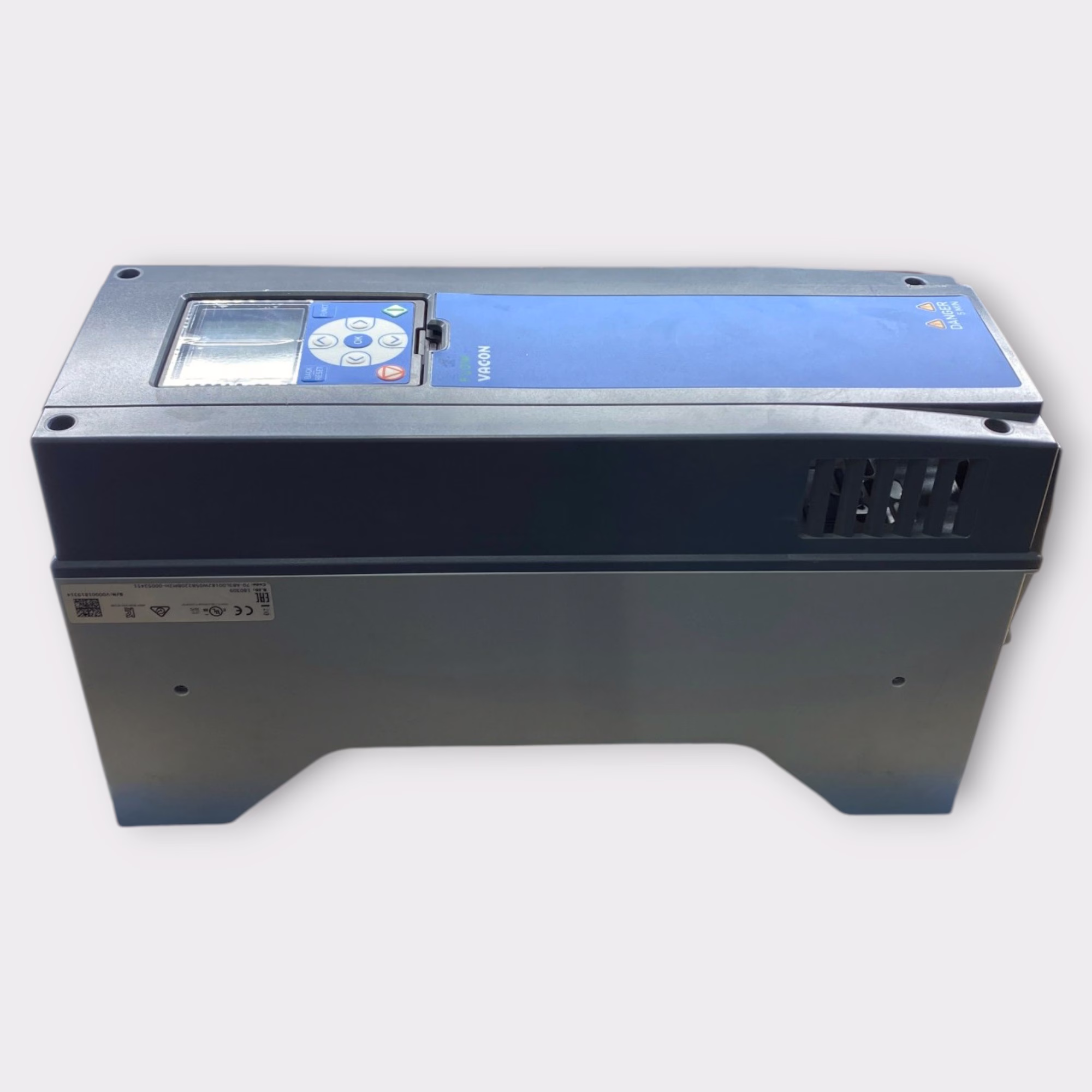

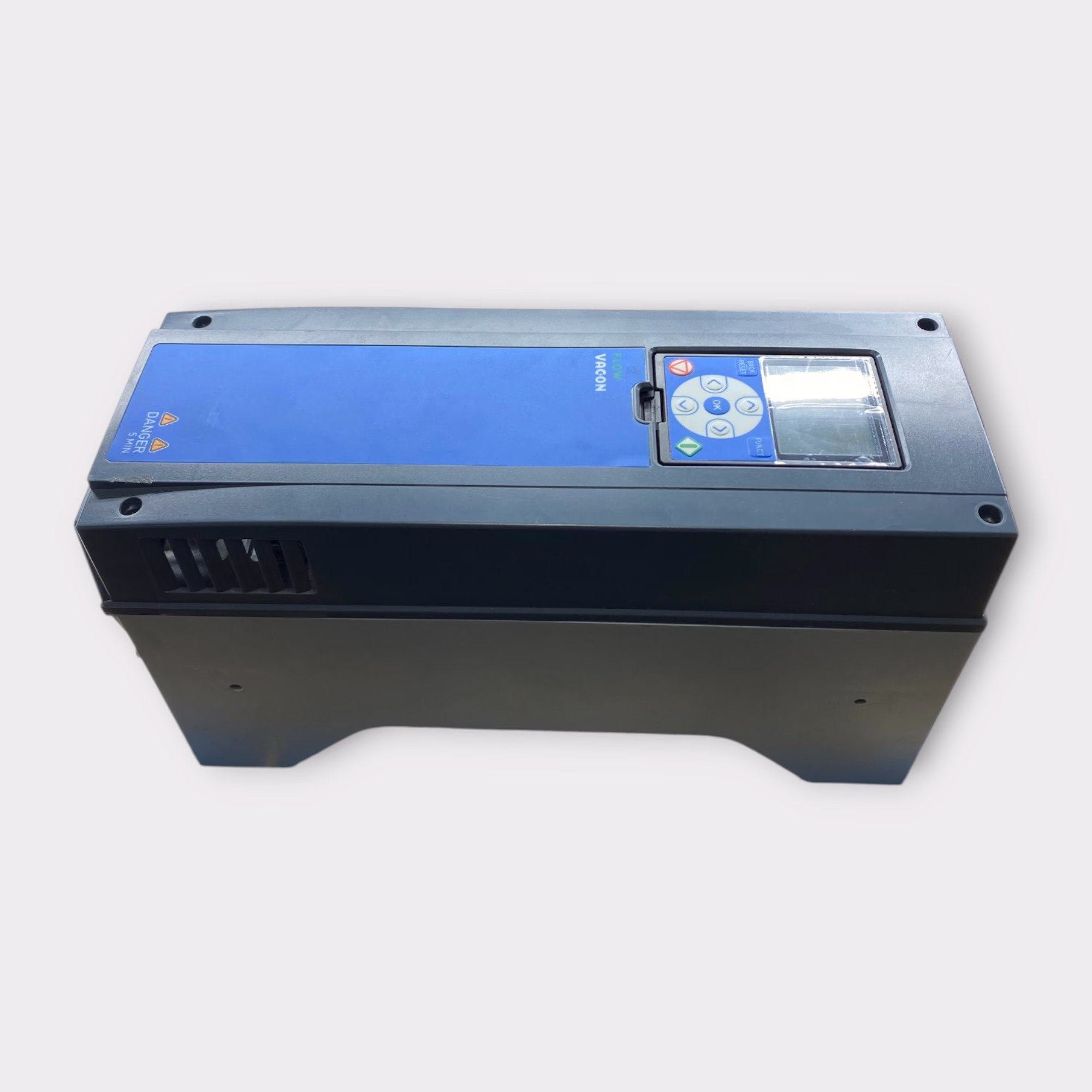

Danfoss VACON 100 FLOW AC Frequency Converter / Drive

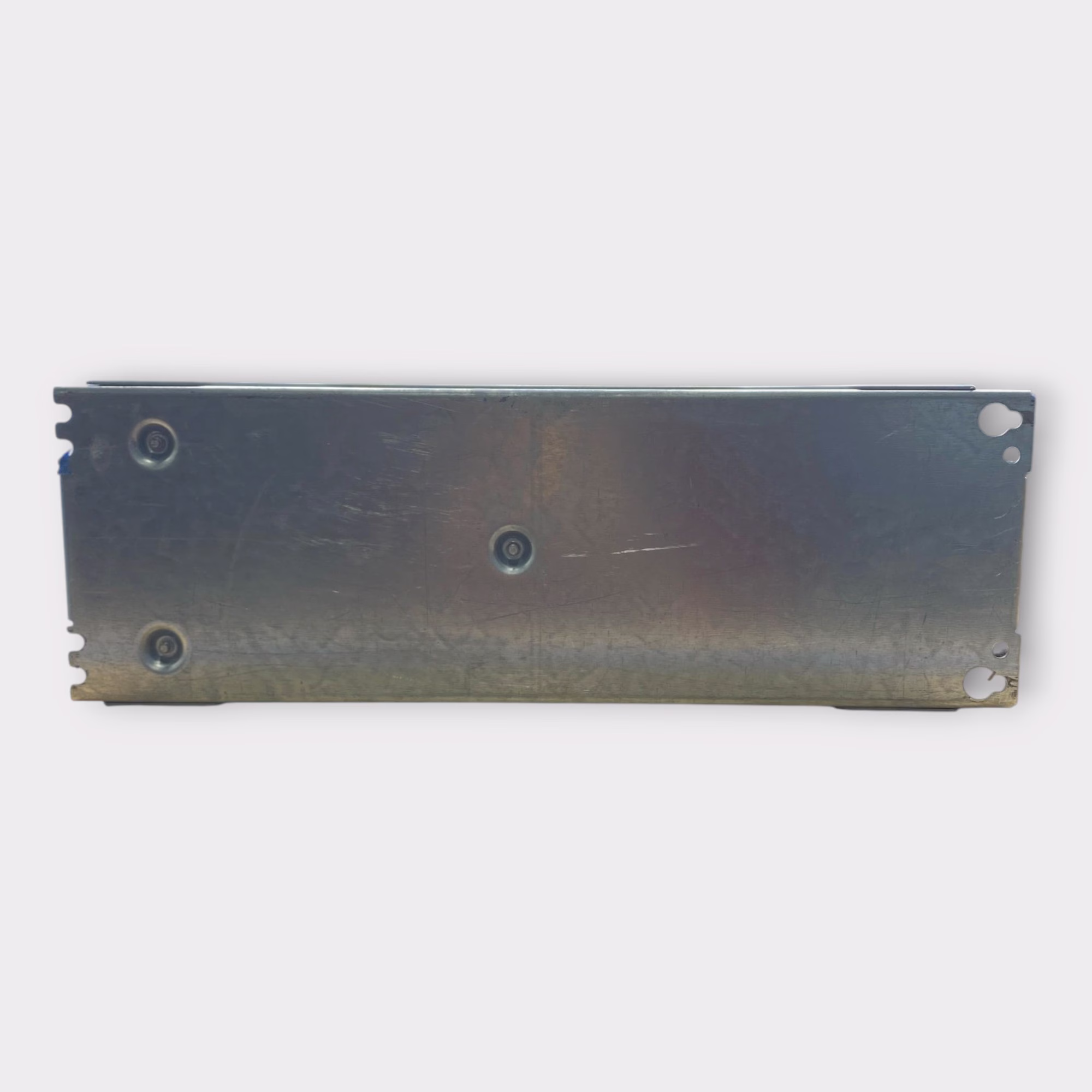

This was part of a lot of electric/electronic parts and components that were mounted in a cabinet but never actually commissioned. The cabinet was part of a motor control system for a yacht that was undergoing an extensive refit. The refit hit an unrelated roadblock which ended in the entire project being abandoned. Since this cabinet was built for a very specific and custom application, we disassembled it and are piece-mealing out all of the parts and components. While this may show signs of being mounted, and may have a scratch or two from storage and moving, it has 150% never actually been “used” and is therefore listed as new (other). As with anything of this nature, we back the item with a 90 day warranty and 30 day return policy. Includes only converter, no box or instructions, please view photos for condition. This is a multiple quantity listing and the unit that you e will receive may be different than the unit shown, but is in the same cosmetic condition.

Manufacture Product Description

The VACON 100 FLOW is an AC drive designed for flow-control applications and industrial environments. The VACON 100 series is designed to help optimize process control, improve productivity, and reduce energy consumption while providing straightforward installation and operation.

This configuration features a 208–240 VAC three-phase input, 18A current rating, 4 kW / 5 HP motor rating, IP21/NEMA 1 enclosure, graphical MK01 keypad, and support for standard communication protocols including Modbus, N2, and BACnet.

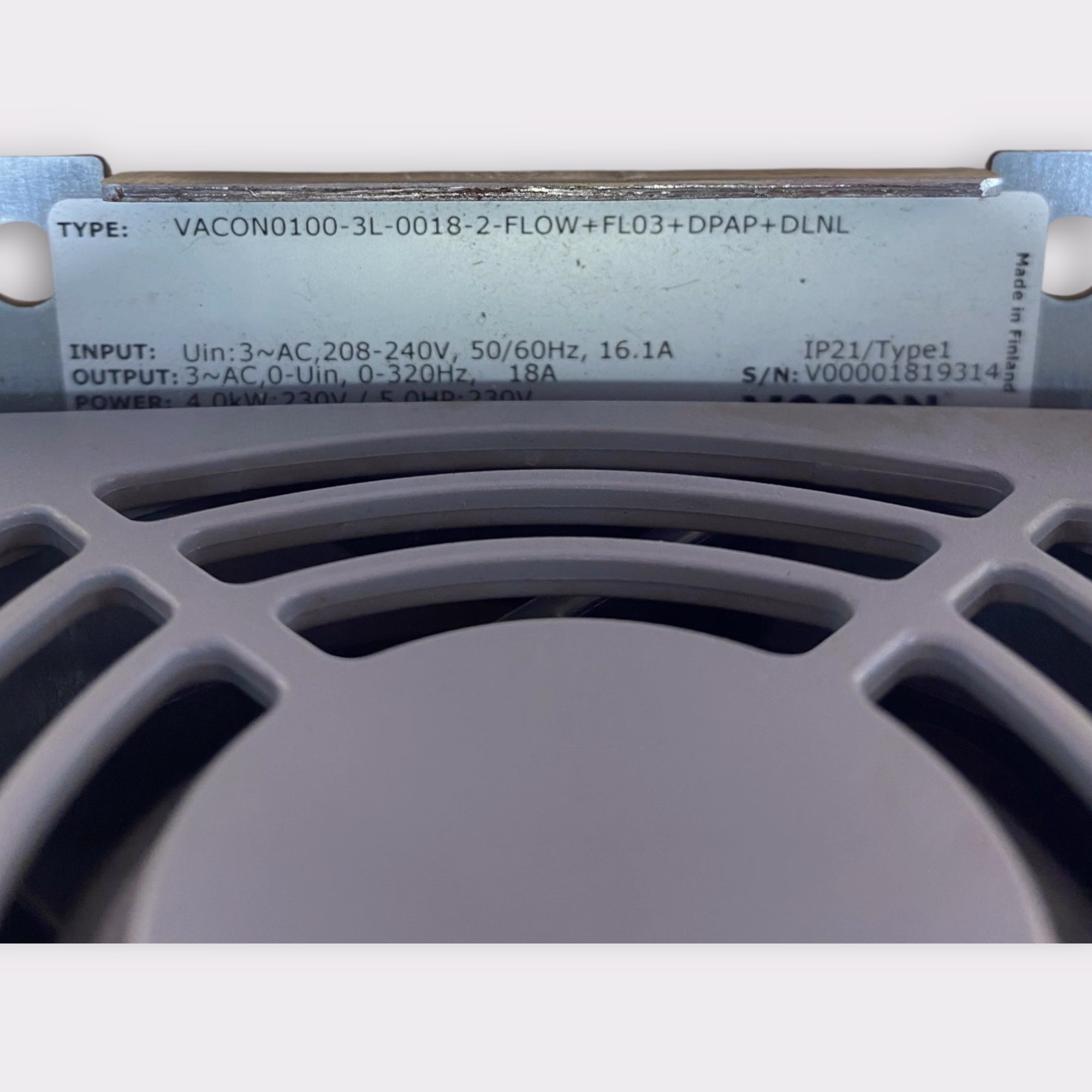

Model Code: VACON0100-3L-0018-2-FLOW+FL03+DPAP+DLNL

Product Information:
Model - VACON0100-3L-0018-2-FLOW+FL03+DPAP+DLNL
SKU / Part Number - 135U5996
Product Series - VACON 100 Series
Segment - VACON 100 FLOW
Product Type - Frequency Converter / AC Drive
Phase - 3 Phase AC Input
Mains Voltage - 208–240 VAC
Current Rating - 18 Amp
Continuous Current - 18 Amp
Motor Power - 4 kW / 5 HP
Frame Size - MR05 / Frame 05
Installation - Drive Module
Enclosure - IP21 / NEMA 1

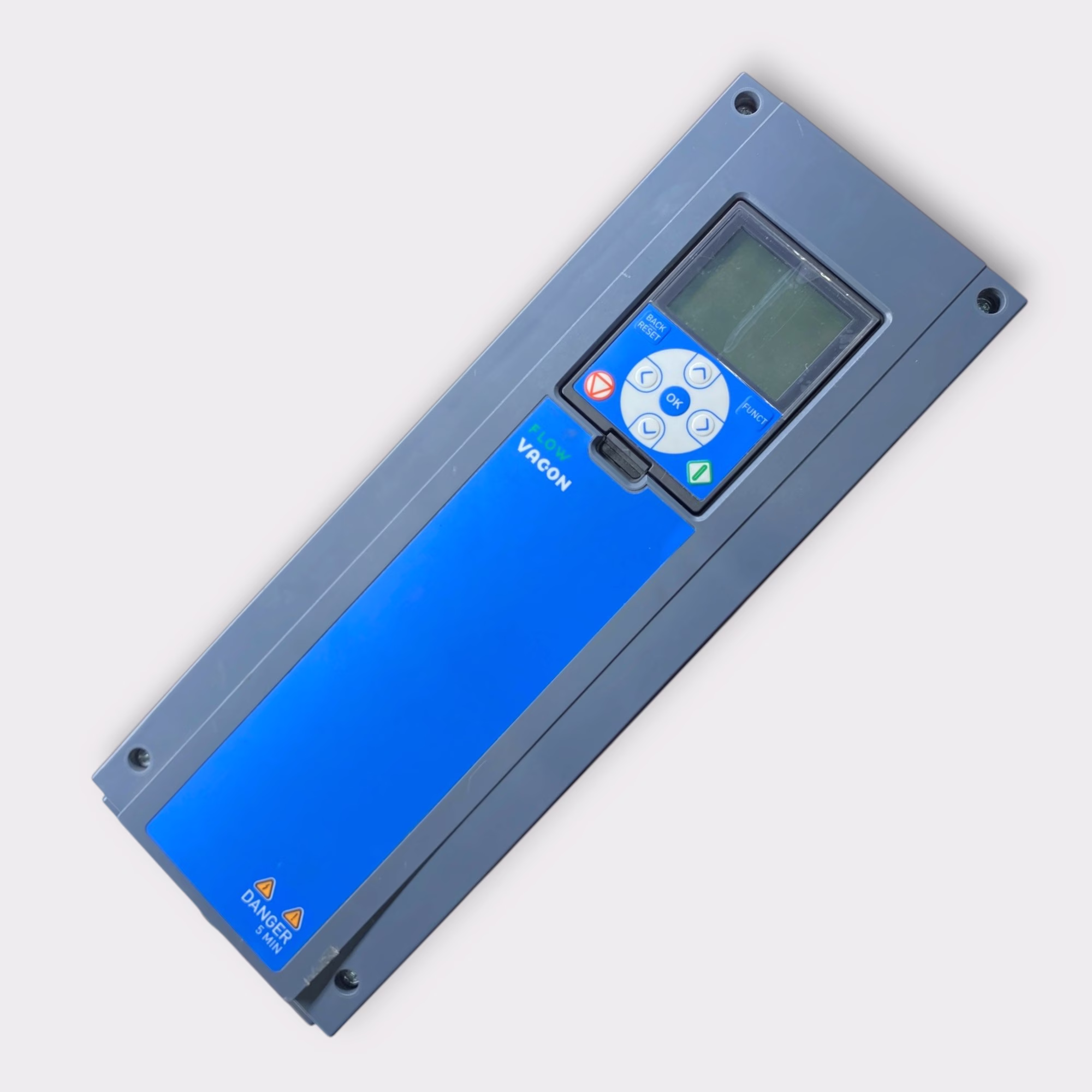

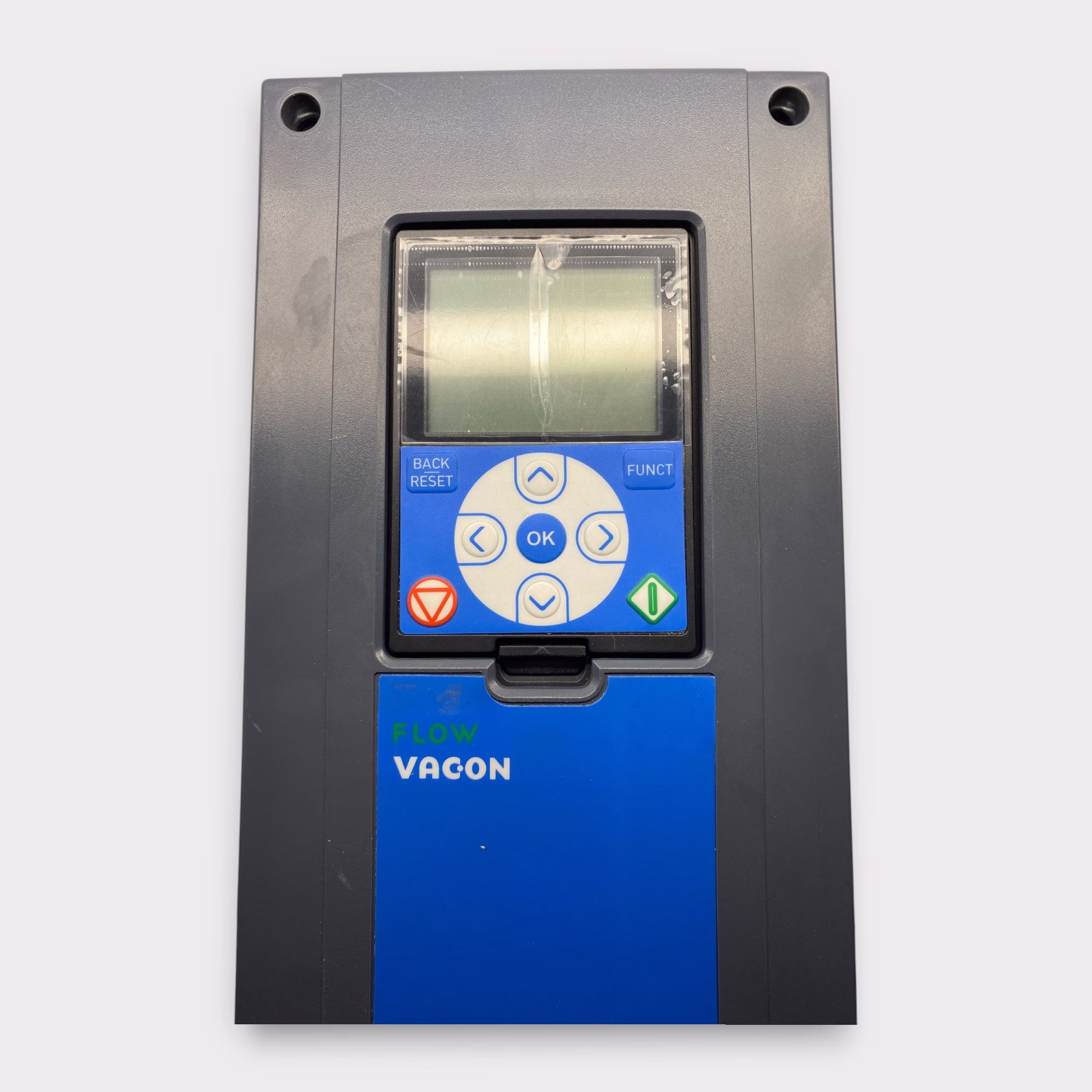

Control Panel - Graphical Keypad MK01
EMC Emission Limit Category - C2 Commercial & Industry Environment
Brake Chopper - No Dynamic Braking Device
Real Time Clock Battery - No

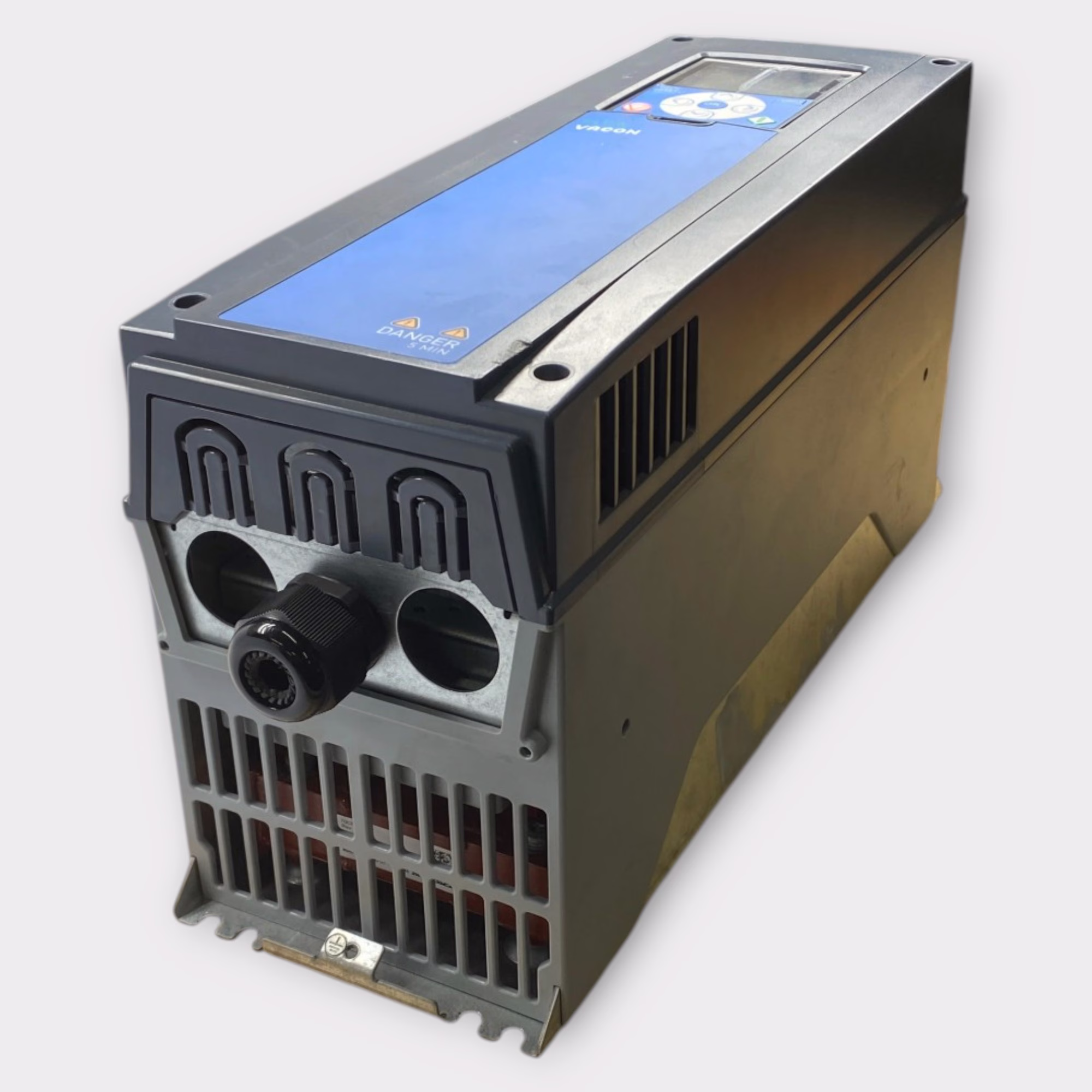

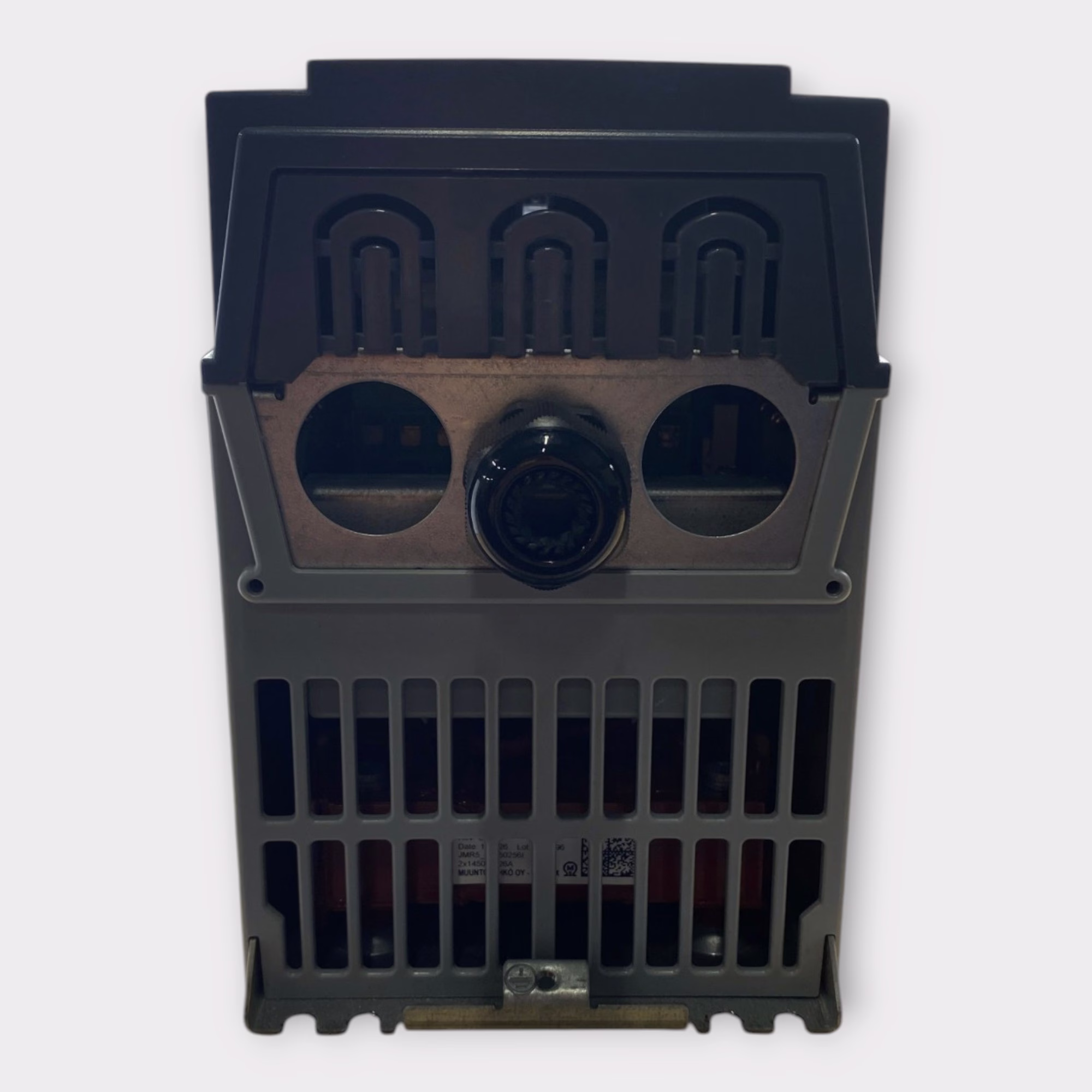

Cable Entry - Metric Conduit Plate
B-Slot Option Board - F3, 3 Relay Board
C-Slot Option Board - No Board
D-Slot Option Board - No Board
E-Slot Option Board - No Board
Fieldbus - Standard Protocol, Modbus, N2, BACnet
Documentation - Paper Manuals
Manual Language - Dutch
Firmware Language Pack - UK, ES, FR, IT, NL, PT
Motor Parameter Default Frequency - 50 Hz
Units of Measure - Metric

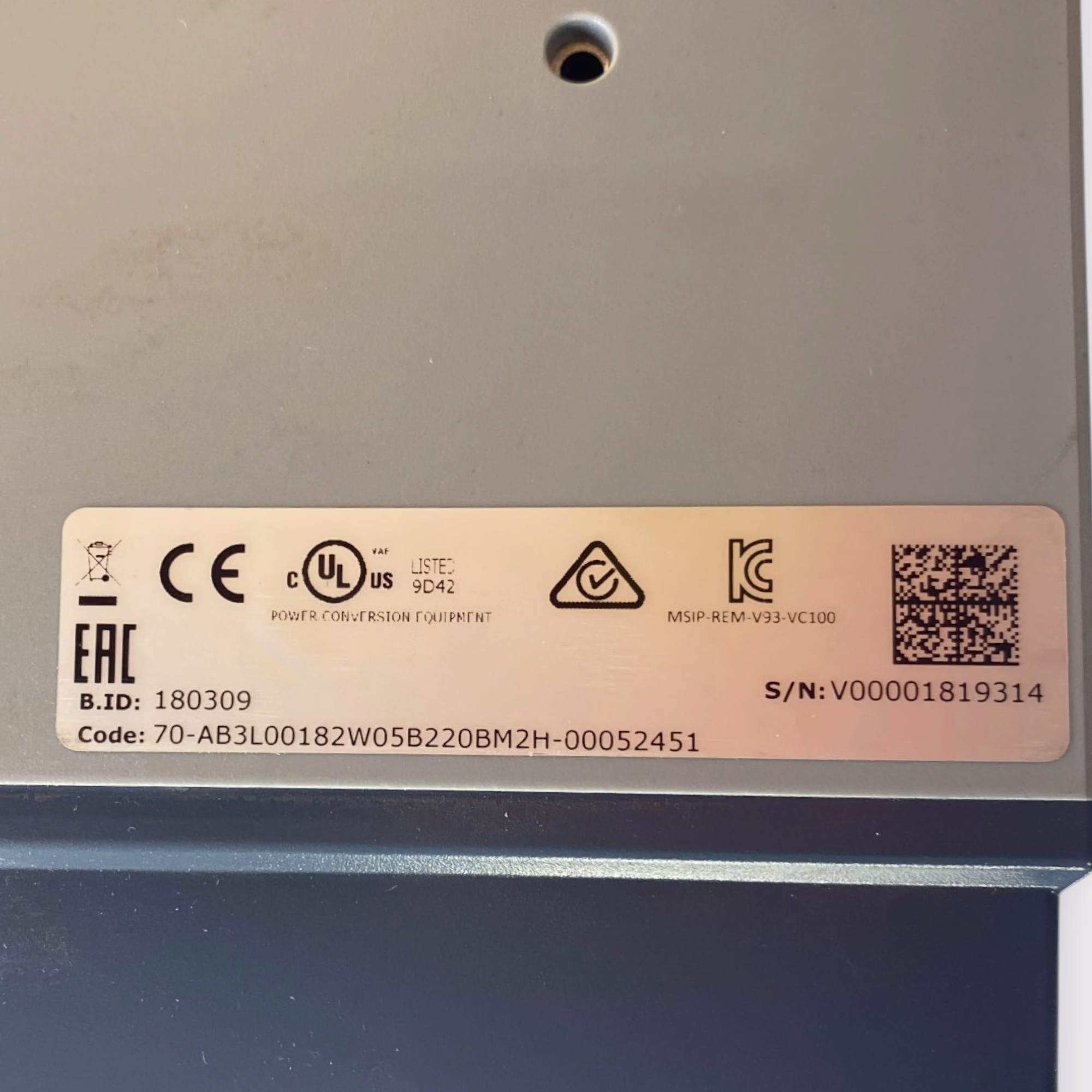

UL Approval - Yes
RCM Approval - N16307
KC Approval - Yes
Ukrainian Approval - Yes
EAC Approval - Yes
CE Approval - Yes
Marine Approval - None
ATEX Approval - None
Common Mode Filter - No Option
DU/DT / Sine Filter - No Option
Auxiliary Power Supply - No Option
DC Power Supply for Auxiliary Device - No Option
AC Socket for Auxiliary Devices - No Option
Cabinet Heater - No Option
Cabinet Light - No Option
Motor Heater Control - No Option
Emergency Stop Option - No Option
Insulation Fault Sensor - No Option
Back Channel Cooling - No Option
Firmware - VACON0100-FLOW Software Pack
Shipping Package - Cardboard Box
Dimensions (W x H x D) - 144 x 419 x 214 mm
Net Weight - 10 kg
Gross Weight - 11 kg
EAN - 5710108322700
ECCN US - 3A999.a
ECCN EU - Y901

What's Included:

  • Danfoss Vacon VACON0100-3L-0018-2-FLOW+FL03+DPAP+DLNL Low Voltage Drive

Compatible Parts:

Return Info: 30-Day Returns

Warranty Info: 90-Day Warranty

Dimensions: 17 × 6 × 9 in, Weight: 23 lbs
