Manufacturer: Daiwa
MPN: CS-201A
Condition: New

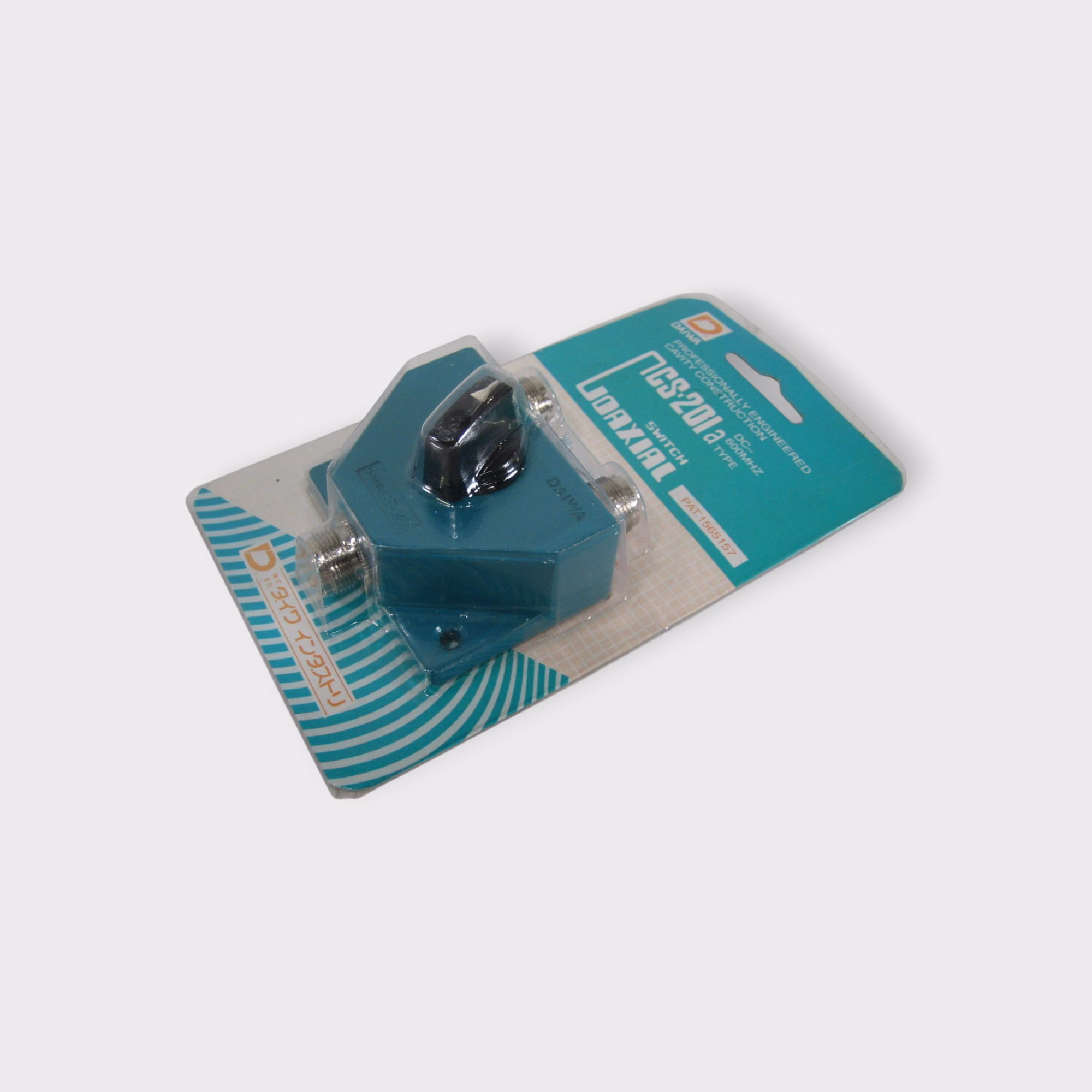

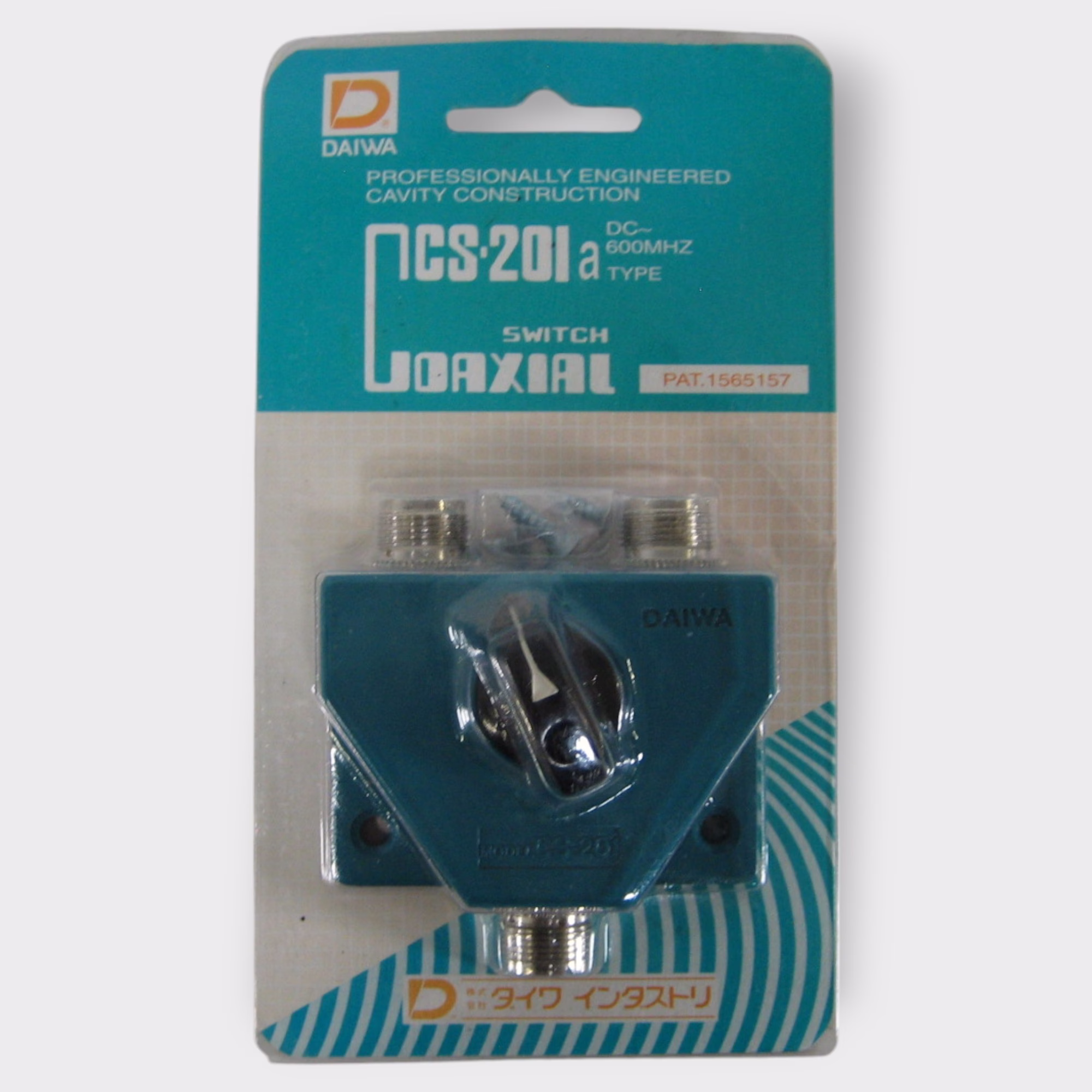

Additional Notes: This listing is for a Daiwa CS-201A Coaxial Switch Antenna-Radio 2-Position DC-600MHZ NEW
You can use the Daiwa CS-201A coax switches to switch between one antenna and two radios or two antennas and one radio. These 2-position coaxial switches can handle the power and offer auto grounding of the unused terminal for protection and excellent port isolation.
This is a multiple quantities listing. Therefore, the product you receive may have packaging that is cosmetically different. However, the item is being sold as new, sealed in its original package and unused.

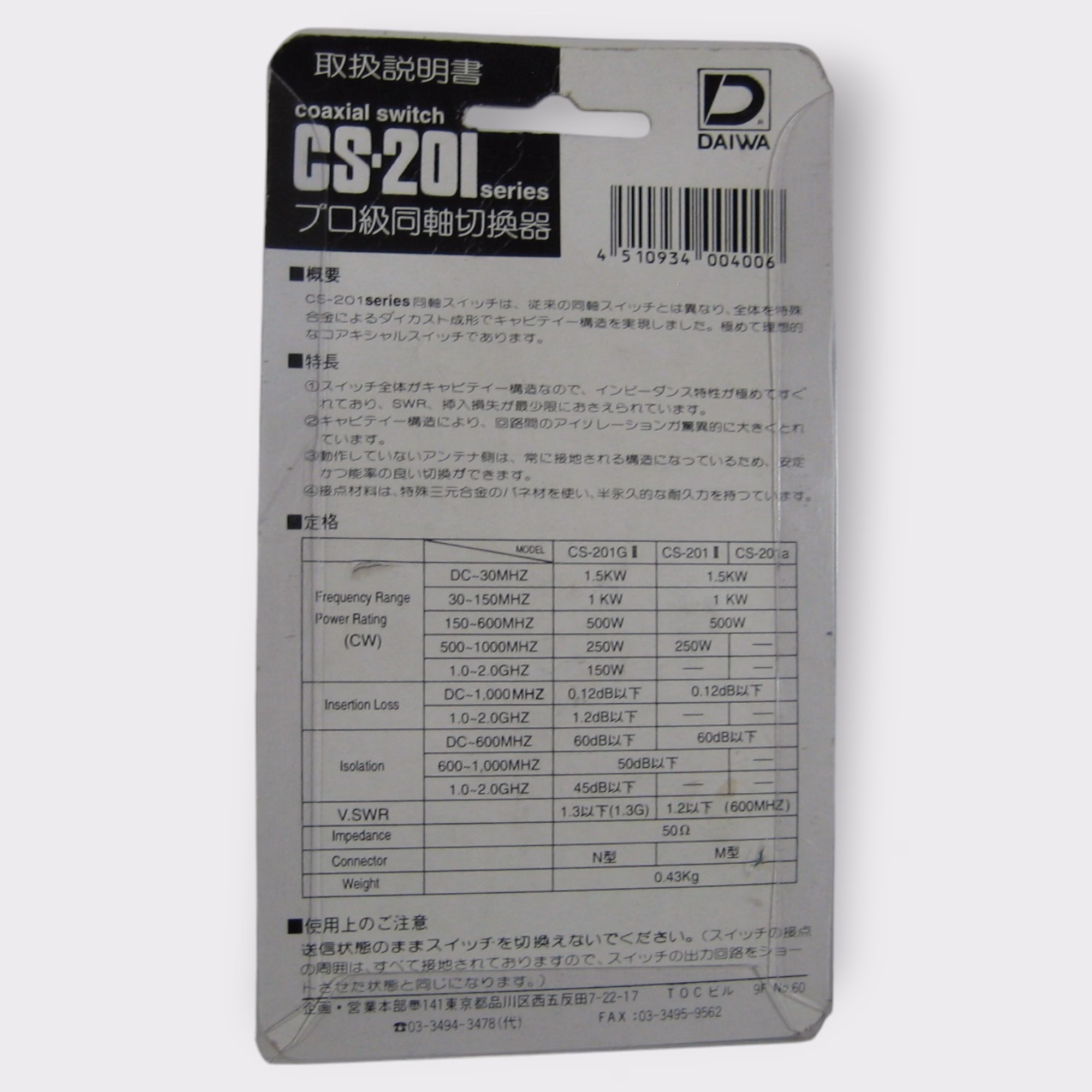

Specifications:
- Frequency range: (up to) 600 MHz
- Power rating: 2.5 kW PEP, 1 kW CW
- VSWR: below 1.12:1 across range
- Insertion loss: less than 0.2 dB
- Isolation: 60 dB, 600 MHz
- Connector: SO 239
What’s Included:
- QTY 1 Daiwa CS-201A Coaxial Switch Antenna-Radio 2-Position DC-600MHZ NEW
Dimensions (L x W x H): 7 x 4 x 2 in, Weight: 1lb
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and international locations will have shipping calculated during checkout.
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
