Summary

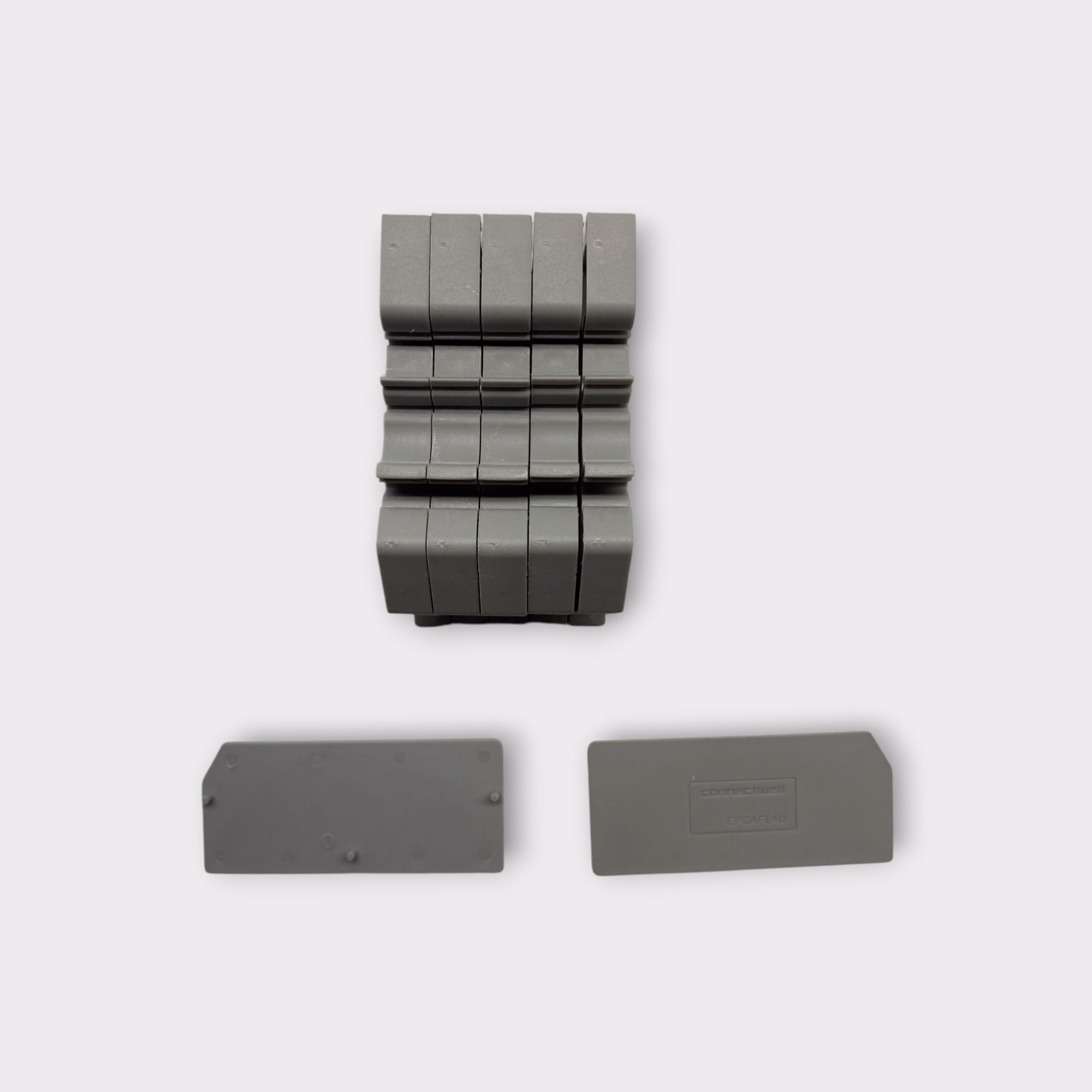

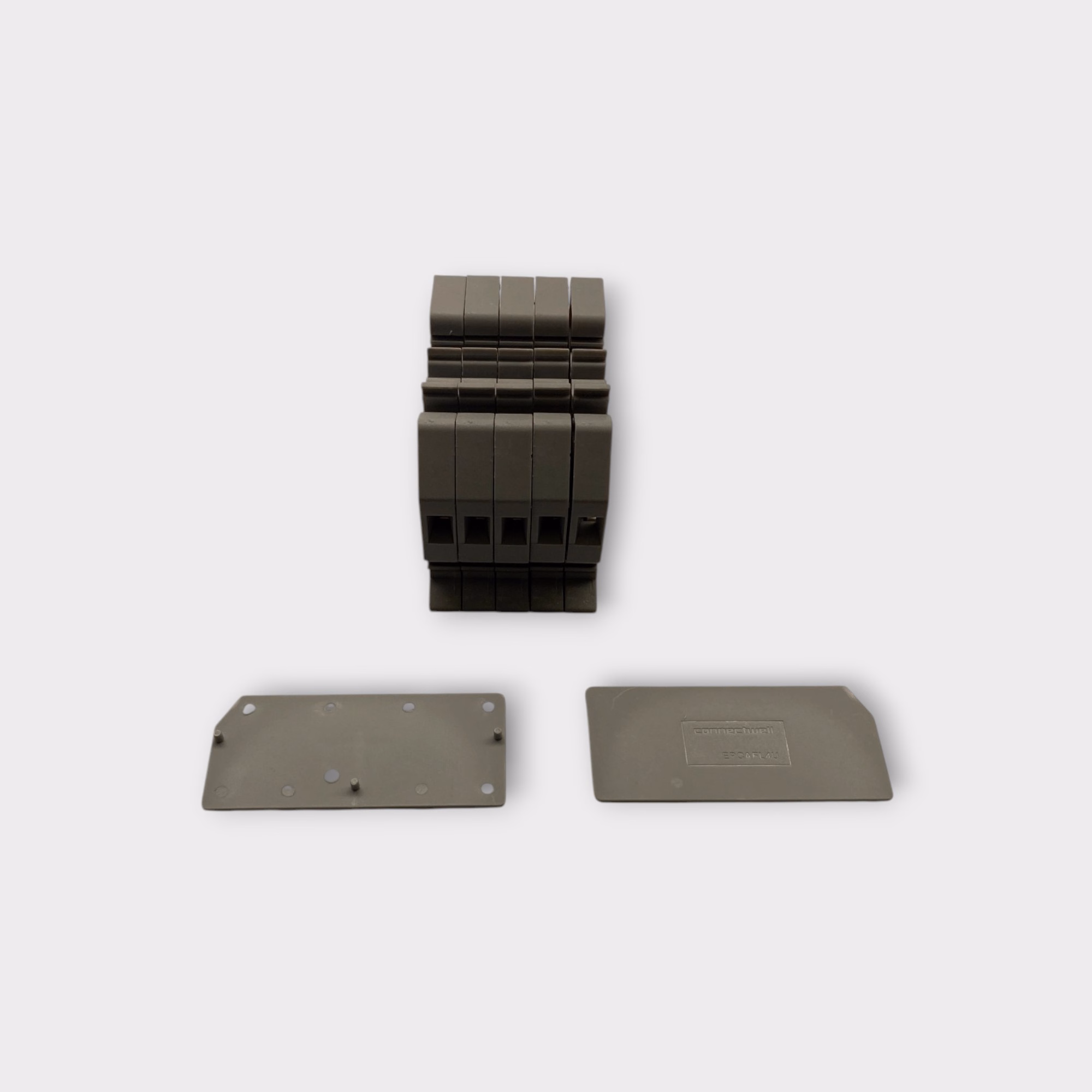

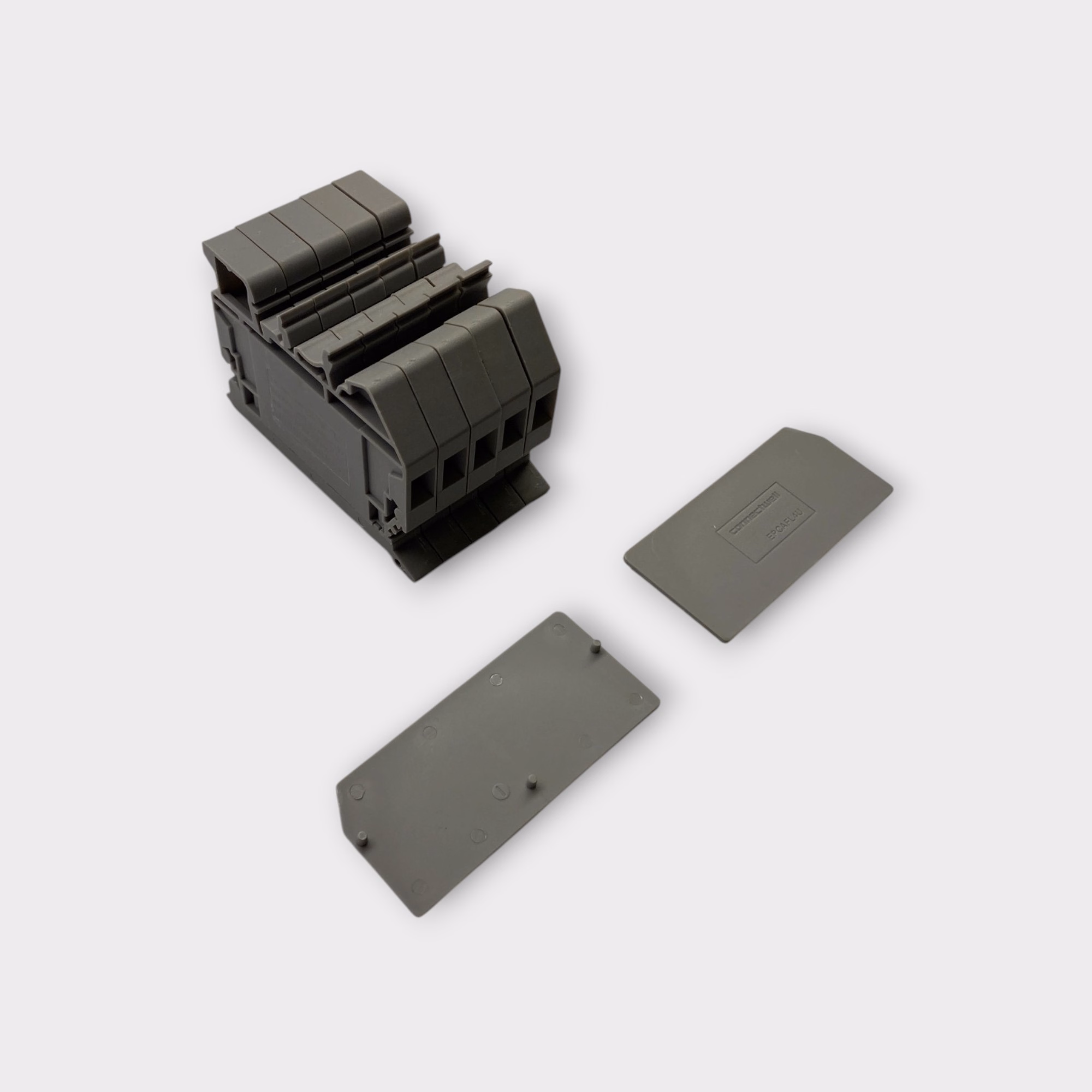

• Connectwell CAFL4U DIN rail fuse terminal blocks, sold as a pack of 5 with 2 Connectwell EPCAFL4U end plates included. These gray terminal blocks feature screw-clamp connections, a 4 mm² conductor cross-section rating, and a 6.3 A / 1000 V IEC electrical rating for industrial electrical control and distribution applications.
• Each terminal block features a fuse-disconnect design accommodating 6.3 x 32 mm cartridge fuses, providing an accessible solution for individual circuit protection within DIN rail terminal assemblies.
• This listing includes 5 Connectwell CAFL4U fuse terminal blocks and 2 EPCAFL4U end plates only. No original box, instructions, manuals, DIN rail, wiring, or additional accessories are included. Please review all photos for the exact item, condition, and components included.
• This item was sourced from a new, uncommissioned equipment cabinet that was dismantled prior to being placed into service.

Product Description

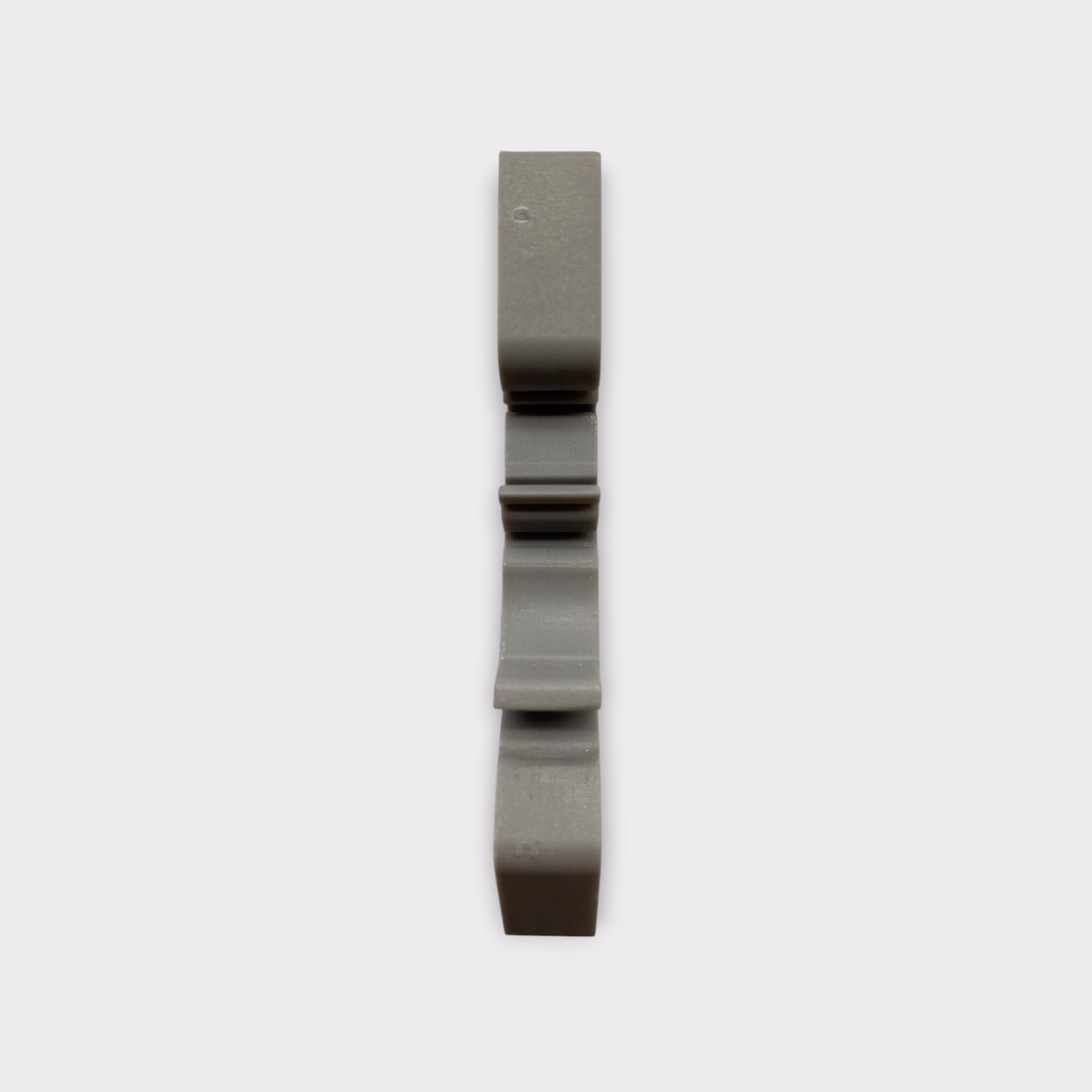

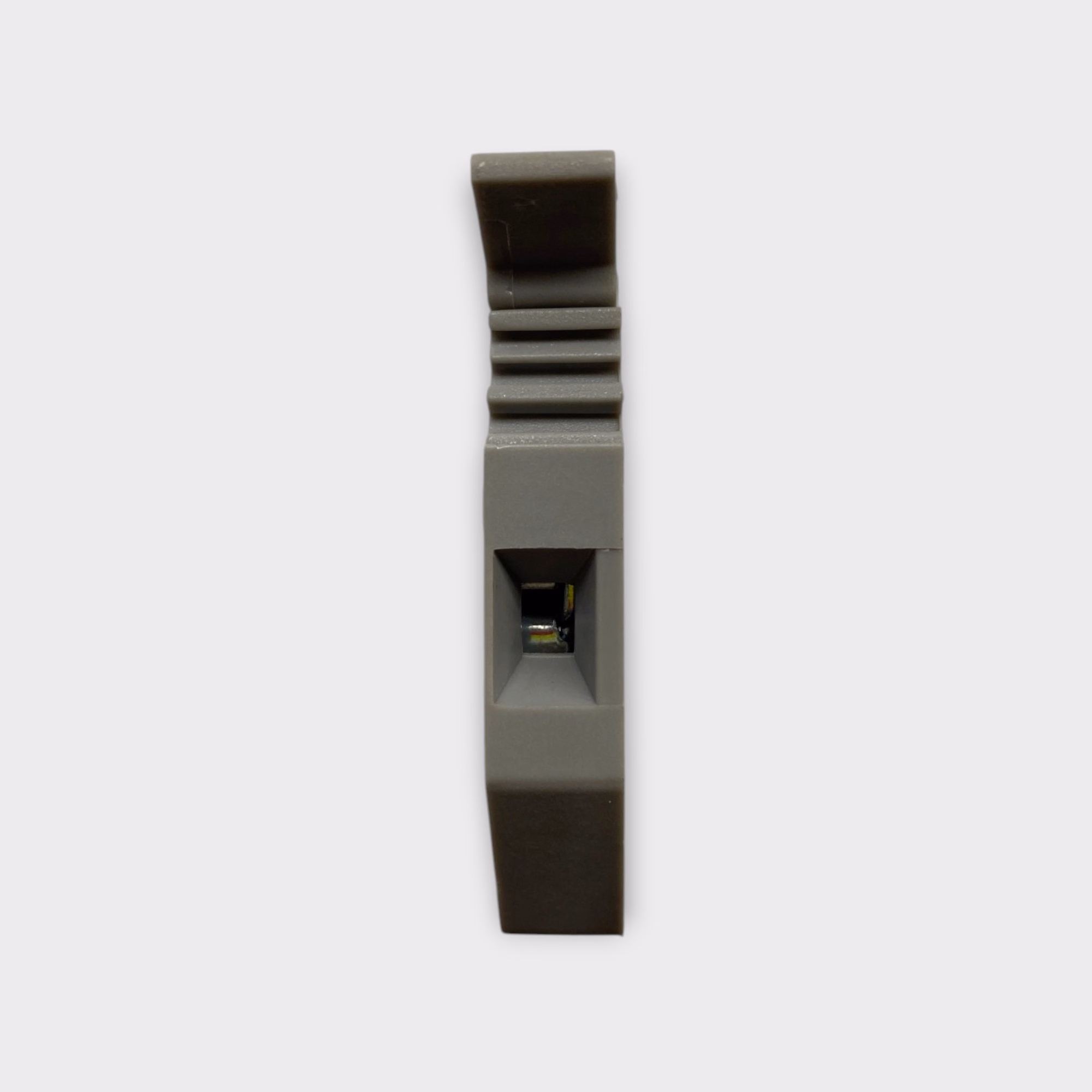

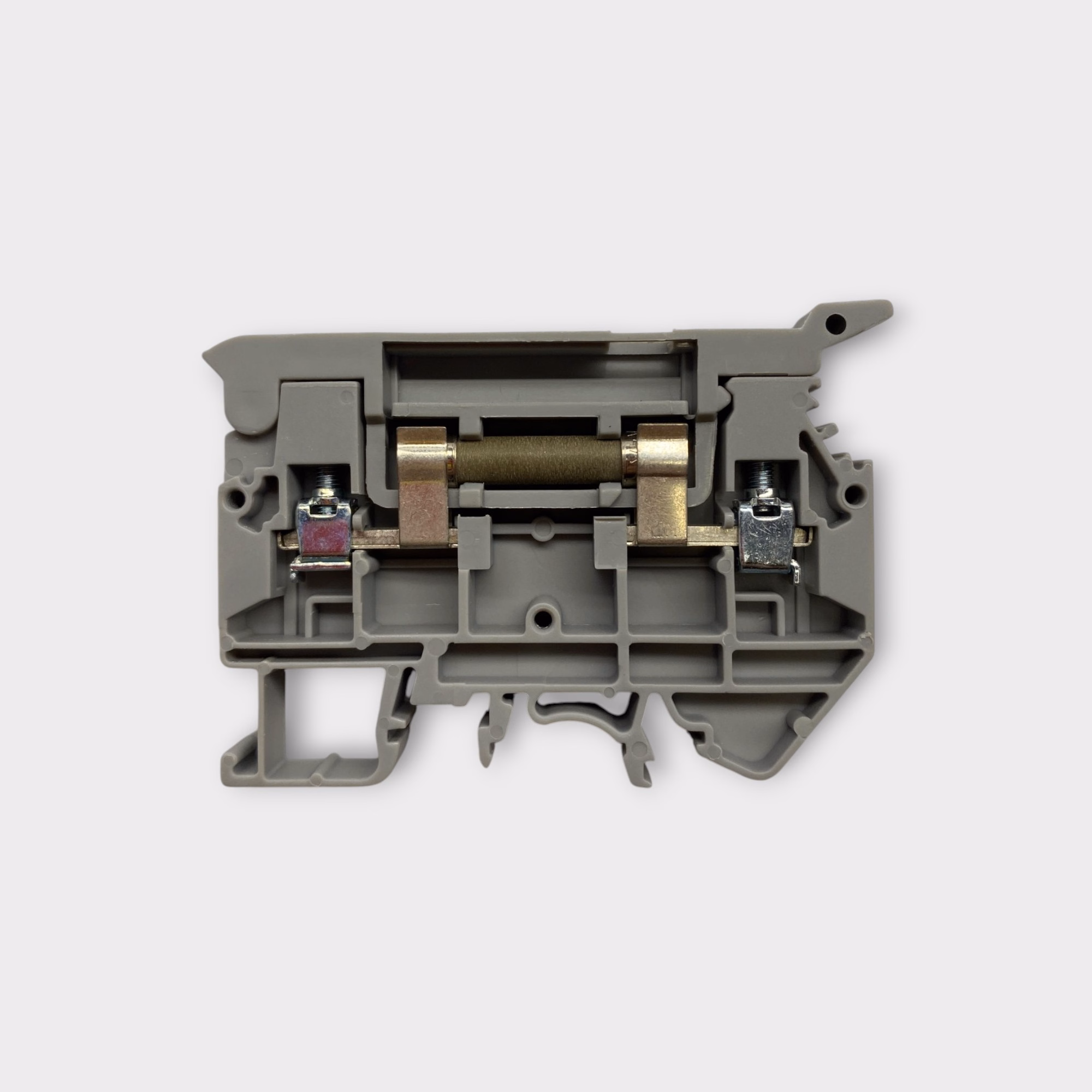

• The Connectwell CAFL4U is a DIN rail fuse terminal block designed to provide individual circuit protection within industrial electrical control panels, distribution cabinets, and automation systems.

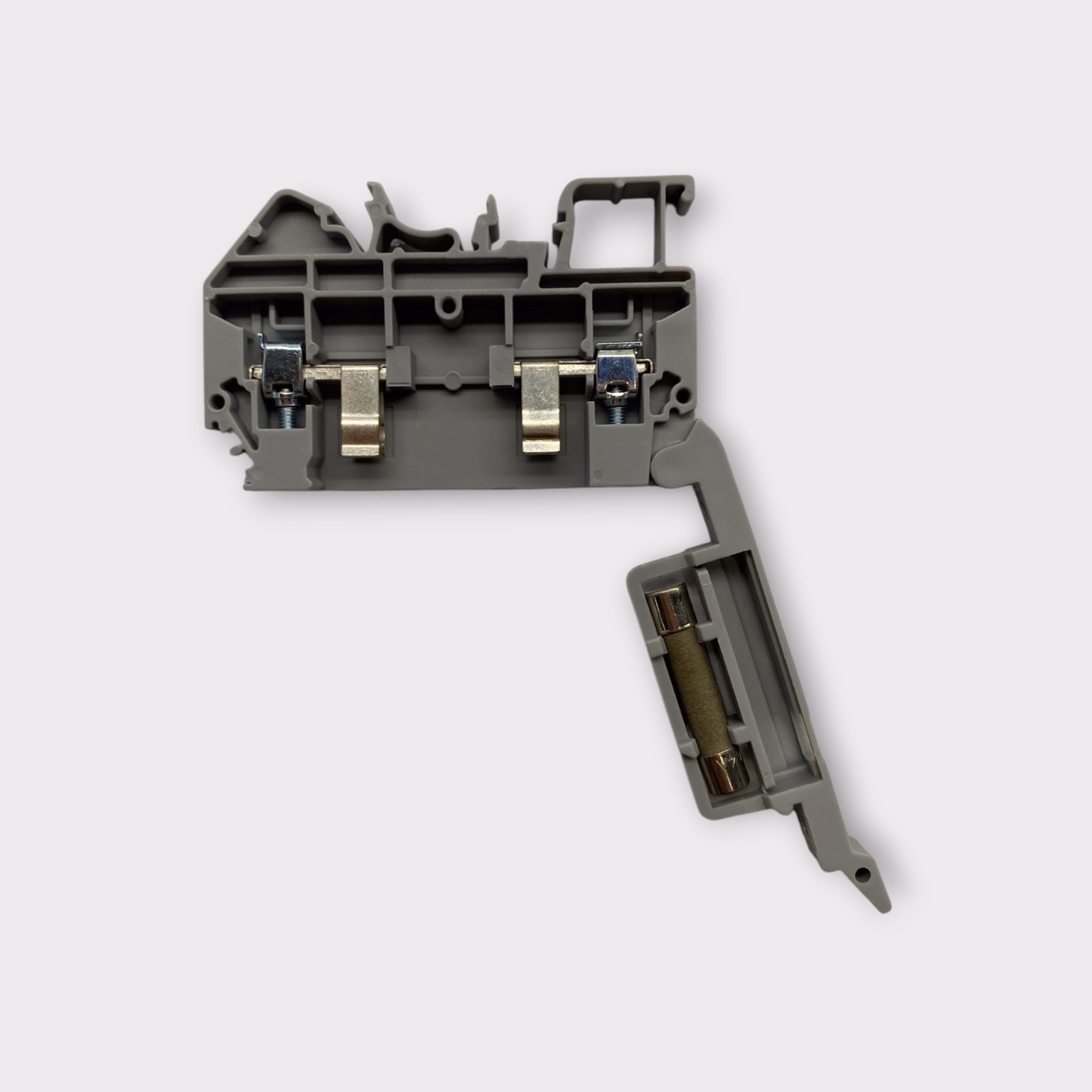

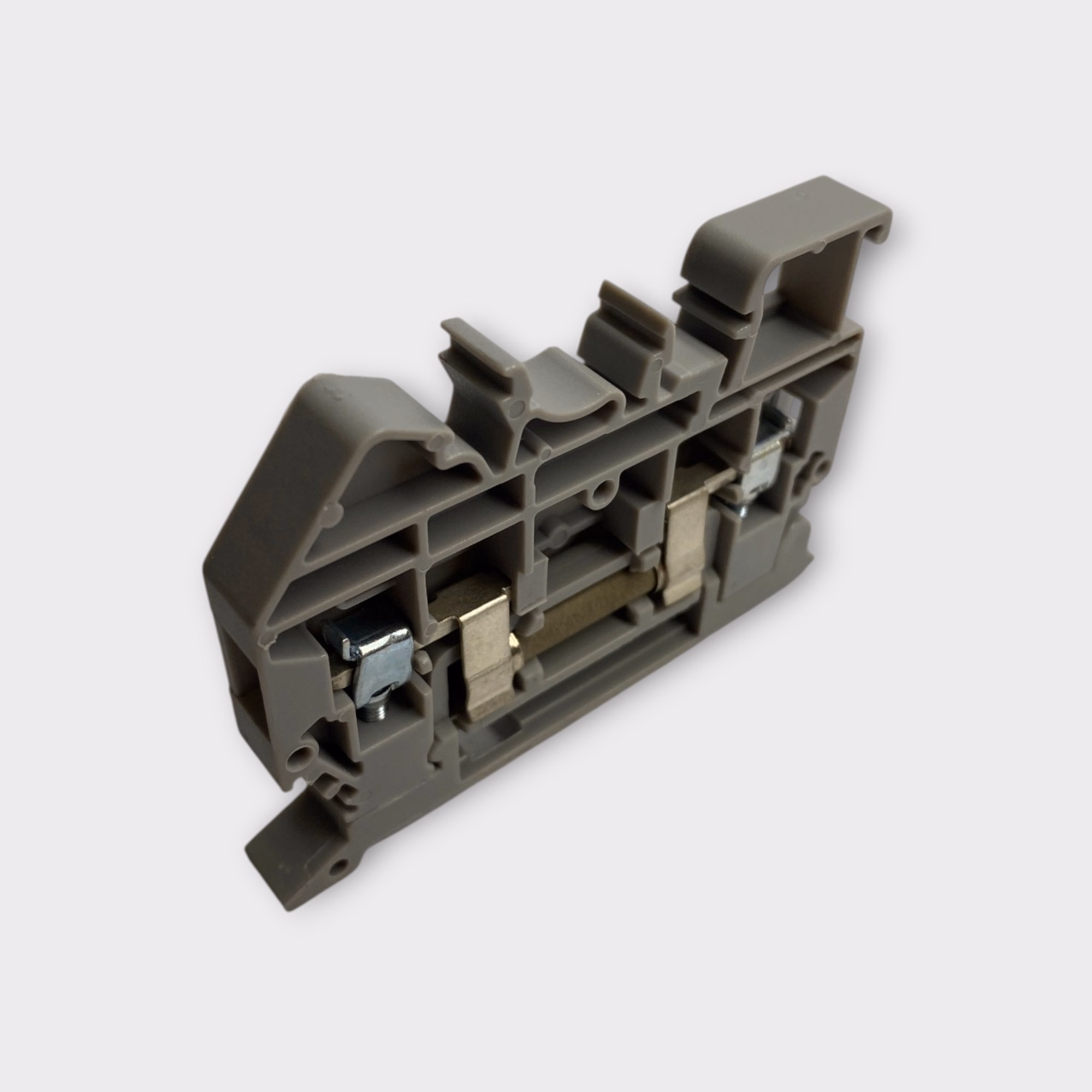

• Each terminal block features a screw-clamp connection system with two conductor connection points and an integrated fuse-disconnect mechanism designed to accommodate 6.3 x 32 mm cylindrical cartridge fuses.
• The fuse carrier allows the fuse connection to be engaged or disengaged, providing convenient access for fuse replacement and circuit maintenance.
• Designed for standard DIN 35 and DIN 32 mounting rails, these terminal blocks feature a 9 mm housing width and support conductor sizes from 0.2 mm² to 4 mm² for stranded wiring.
• The gray insulating housing is manufactured from polyamide, providing durability and electrical insulation for industrial control applications.
• The CAFL4U features an IEC electrical rating of 1000 V and 6.3 A, with UL/CSA ratings of 600 V and 16 A under their respective standards.

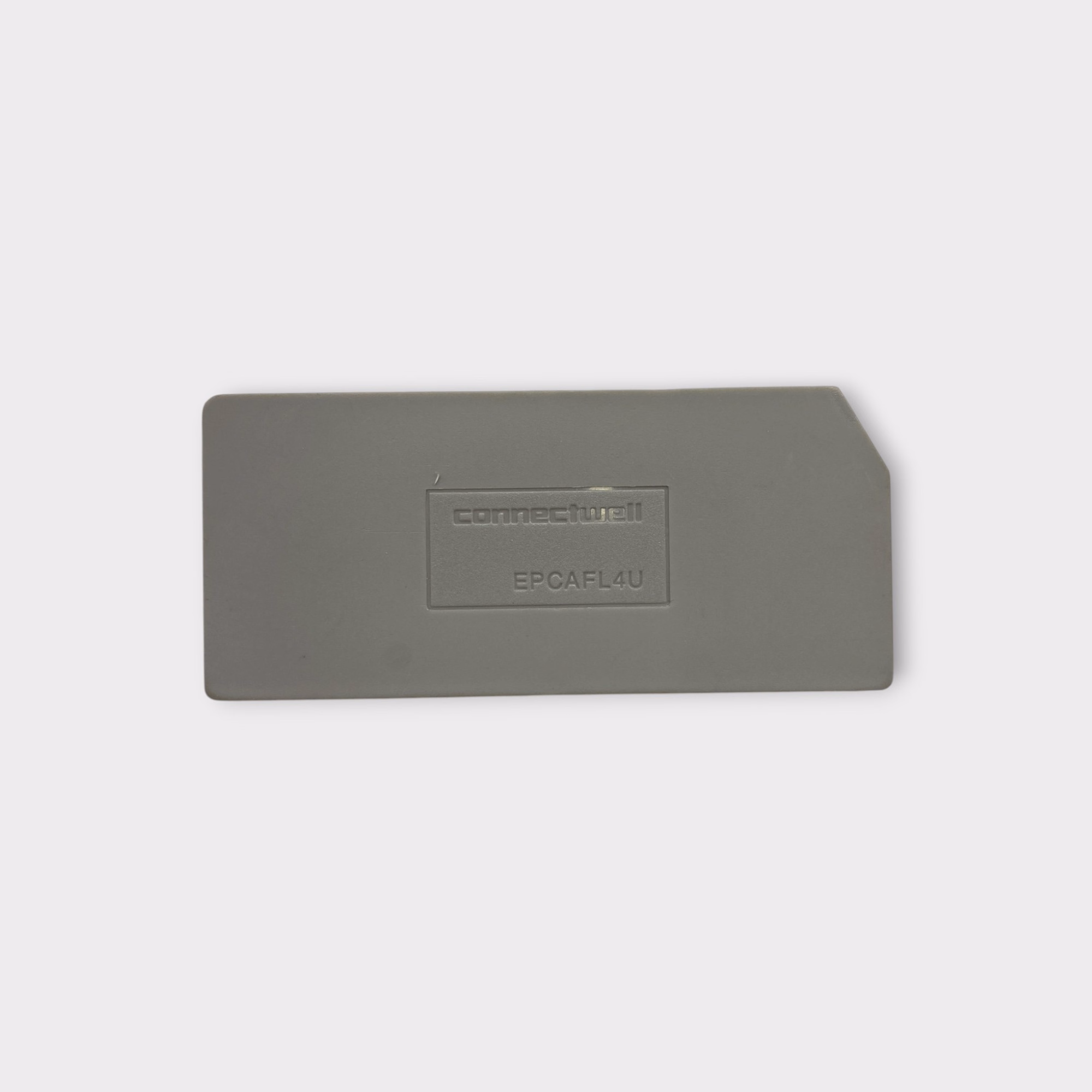

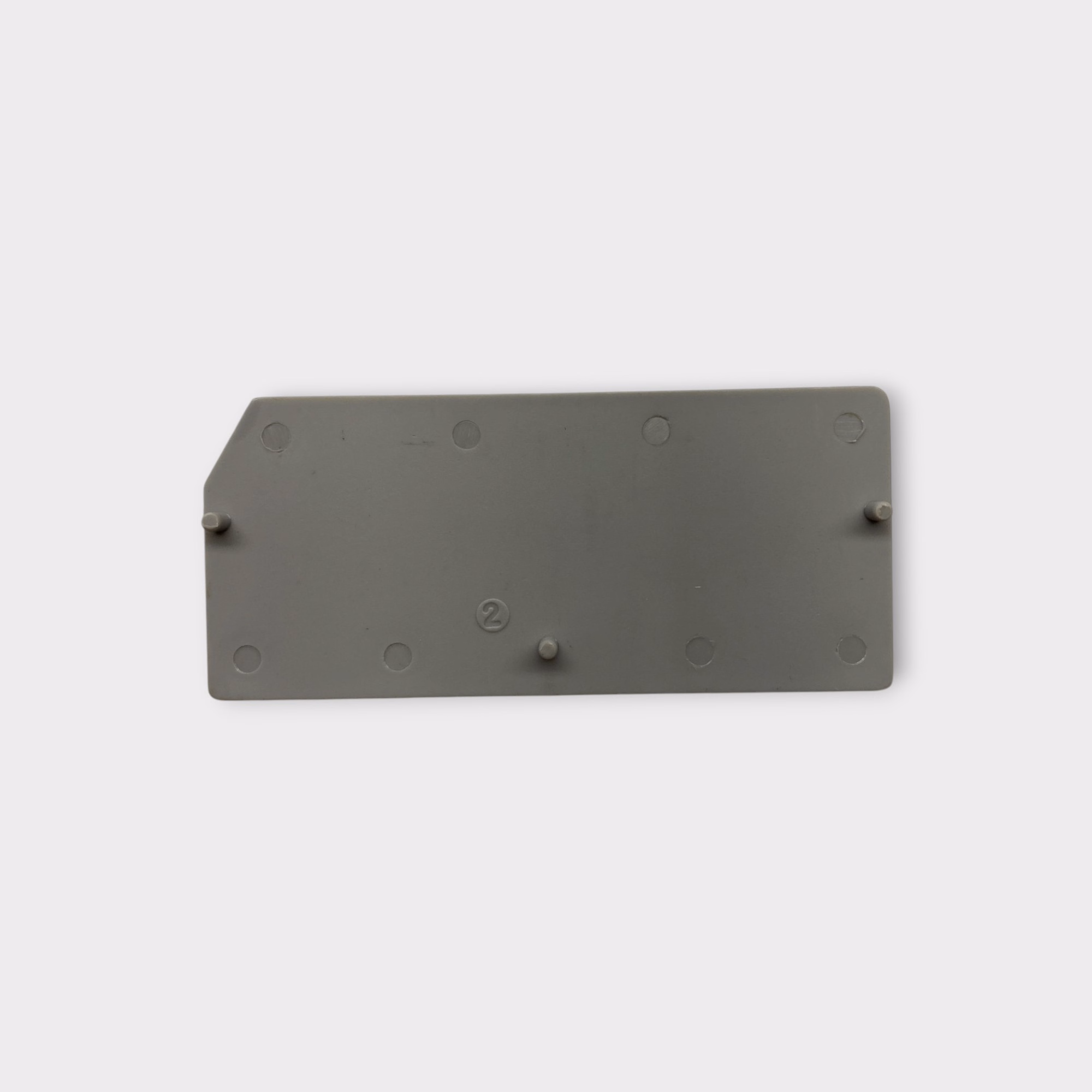

• This 5-pack includes two Connectwell EPCAFL4U end plates, specifically designed for the CAFL4U terminal block series. These plates cover exposed sides of compatible terminal block assemblies, providing insulation and separation.
• The included gray end plates are manufactured from polyamide and feature a 1.5 mm thickness, matching the terminal blocks for a consistent installation.
• These fuse terminal blocks are suitable for industrial automation, control cabinet wiring, electrical distribution, machinery, and compatible marine electrical control systems.

Product Information

Terminal Blocks

- Manufacturer: Connectwell
- Model Number: CAFL4U
- Series: CAFL Series
- MPN: CAFL4U
- Product Type: DIN Rail Fuse Terminal Block
- Quantity Included: 5
- Connection Technology: Screw Clamp
- Fuse Type: Cylindrical Cartridge Fuse
- Compatible Fuse Size: 6.3 x 32 mm (1/4 x 1-1/4 Inch)
- Fuse Holder Type: Disconnect / Lever-Operated
- Rated Conductor Cross-Section: 4 mm²
- Rated Voltage (IEC): 1000 V
- Rated Current (IEC): 6.3 A
- Rated Voltage (UL/CSA): 600 V
- Rated Current (UL/CSA): 16 A
- Rated Surge Voltage: 5 kV
- Number of Connections: 2
- Number of Levels: 1
- Number of Potentials: 1
- Solid Conductor Range: 0.2–6 mm²
- Stranded Conductor Range: 0.2–4 mm²
- Wire Gauge Range: 10–22 AWG
- Wire Entry Orientation: Side
- Screw Size: M3
- Tightening Torque (IEC): 0.5 Nm
- Tightening Torque (UL/CSA): 7 lb-in
- Compatible DIN Rail: DIN 32 / DIN 35 / DIN 35-15
- Mounting Type: DIN Rail
- Housing Material: Polyamide
- Color: Gray
- Width: 9 mm
- Length: 72 mm
- Height with DIN 35 x 7.5 mm Rail: 55.3 mm
- Height with DIN 35 x 15 mm Rail: 63 mm
- Stripping Length: 9.5 mm
- Operating Temperature Range: -40°C to +105°C
- Standard: IEC 60947-7-3 / UL 1059
- UL Certificate Number: E220514
- Country of Origin: India

End Plates

- Manufacturer: Connectwell
- Model Number: EPCAFL4U
- Series: CAFL Series Accessories
- MPN: EPCAFL4U
- Product Type: End Plate / Terminal Block Cover Plate
- Quantity Included: 2
- Compatibility: Connectwell CAFL4U Series
- Material: Polyamide
- Color: Gray
- Width / Thickness: 1.5 mm
- Height: 32 mm
- Length: 72 mm
- Application: Terminal Block End Insulation and Protection

Package Contents

- 5x Connectwell CAFL4U Fuse Terminal Blocks
- 2x Connectwell EPCAFL4U End Plates

Total: 7 Components, Sold as One 5-Pack Terminal Block Listing with 2 End Plates.
