Summary

Chicago Miniature #683 miniature incandescent light bulbs, supplied in an original factory package of 10. These T-1 lamps are rated for 5V operation at 0.06A and feature wire terminals for use in compatible low-voltage equipment, control panels, indicator lights, warning lights, and instrumentation.

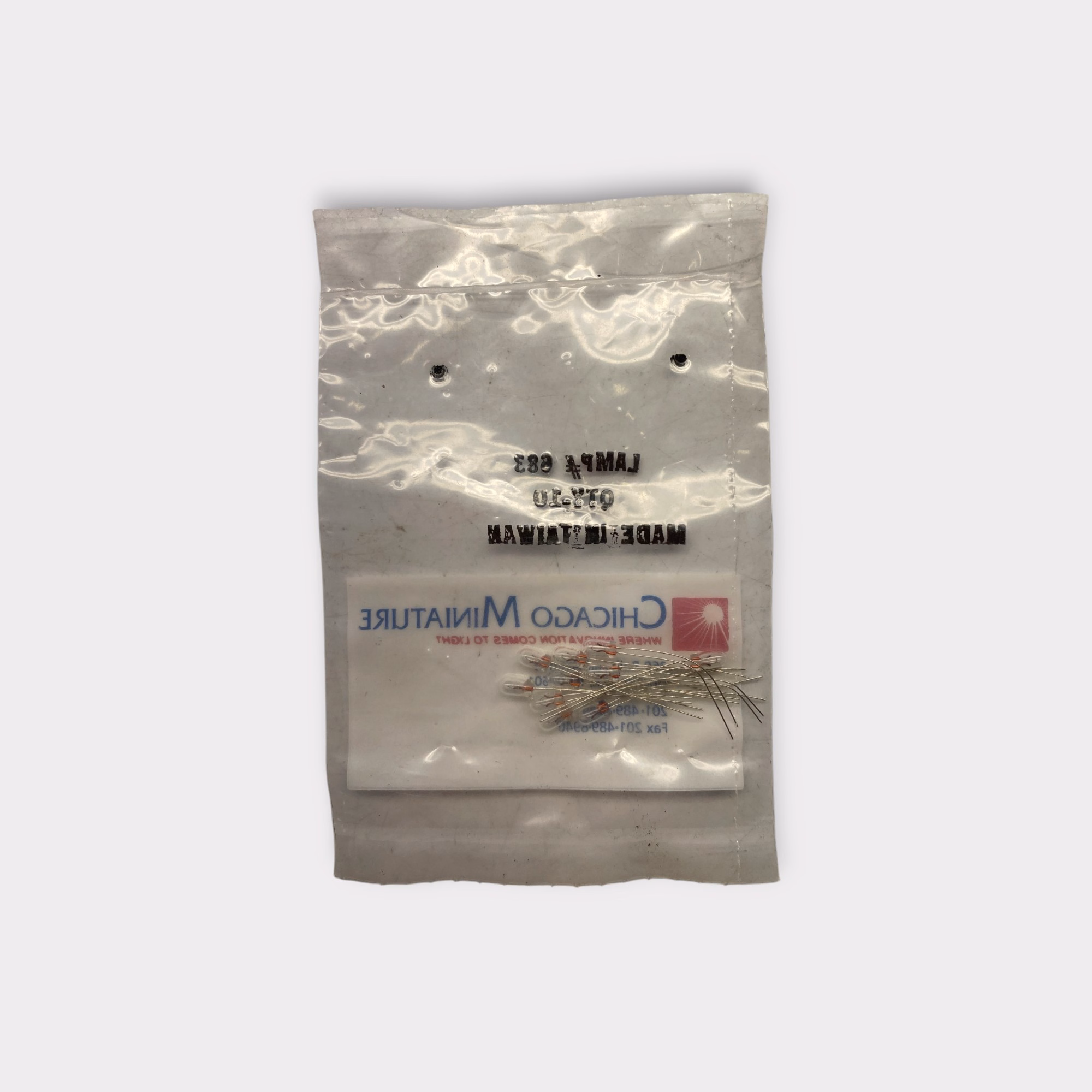

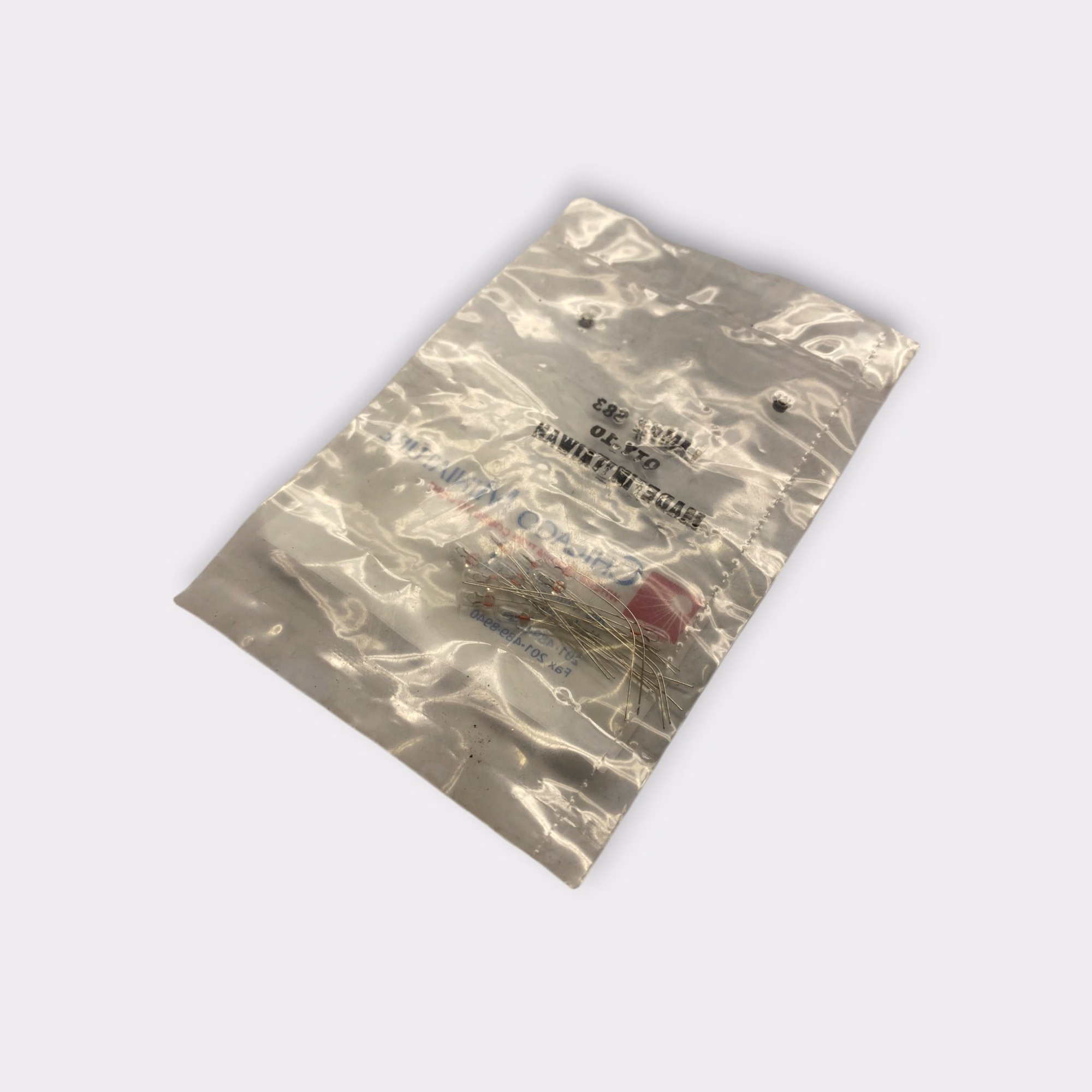

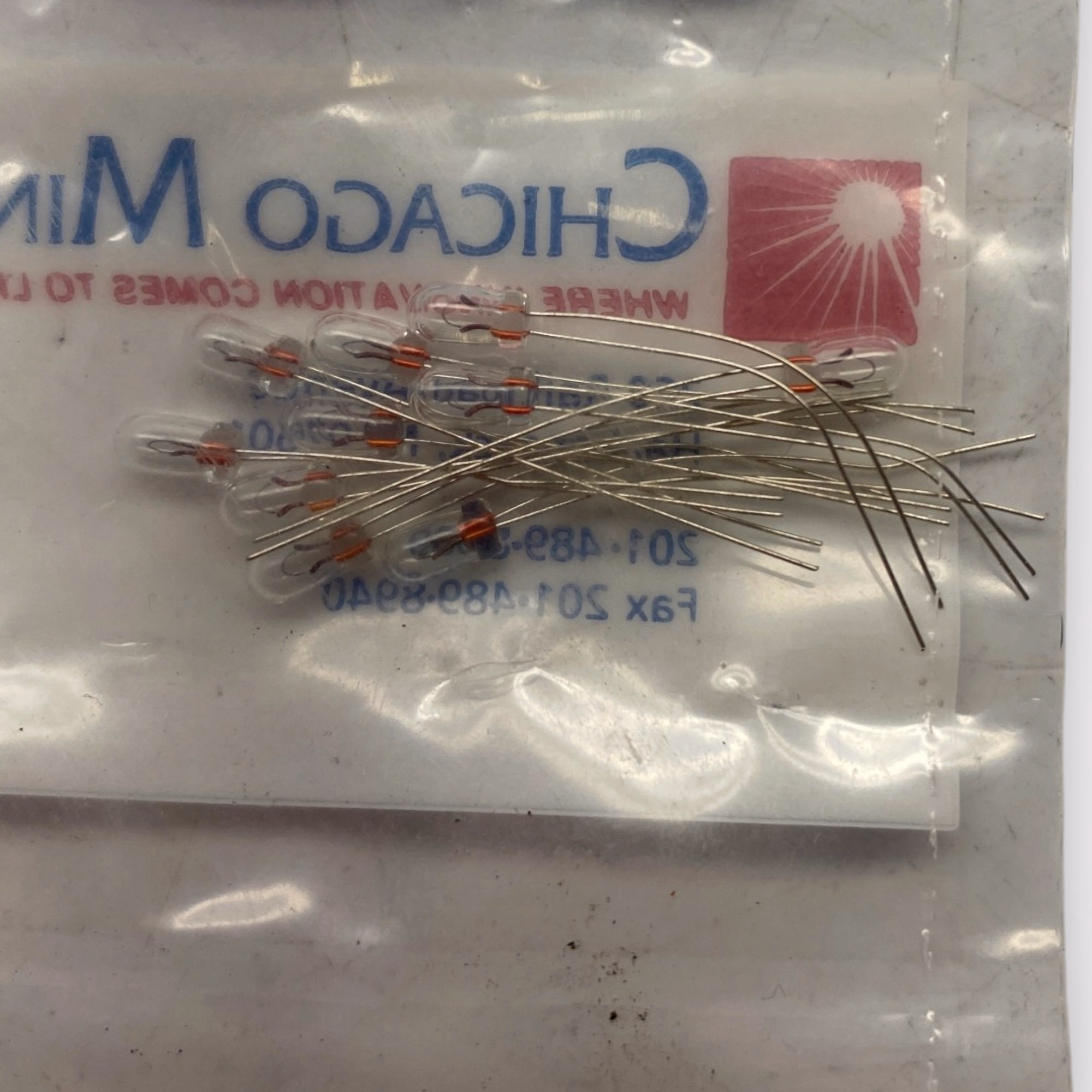

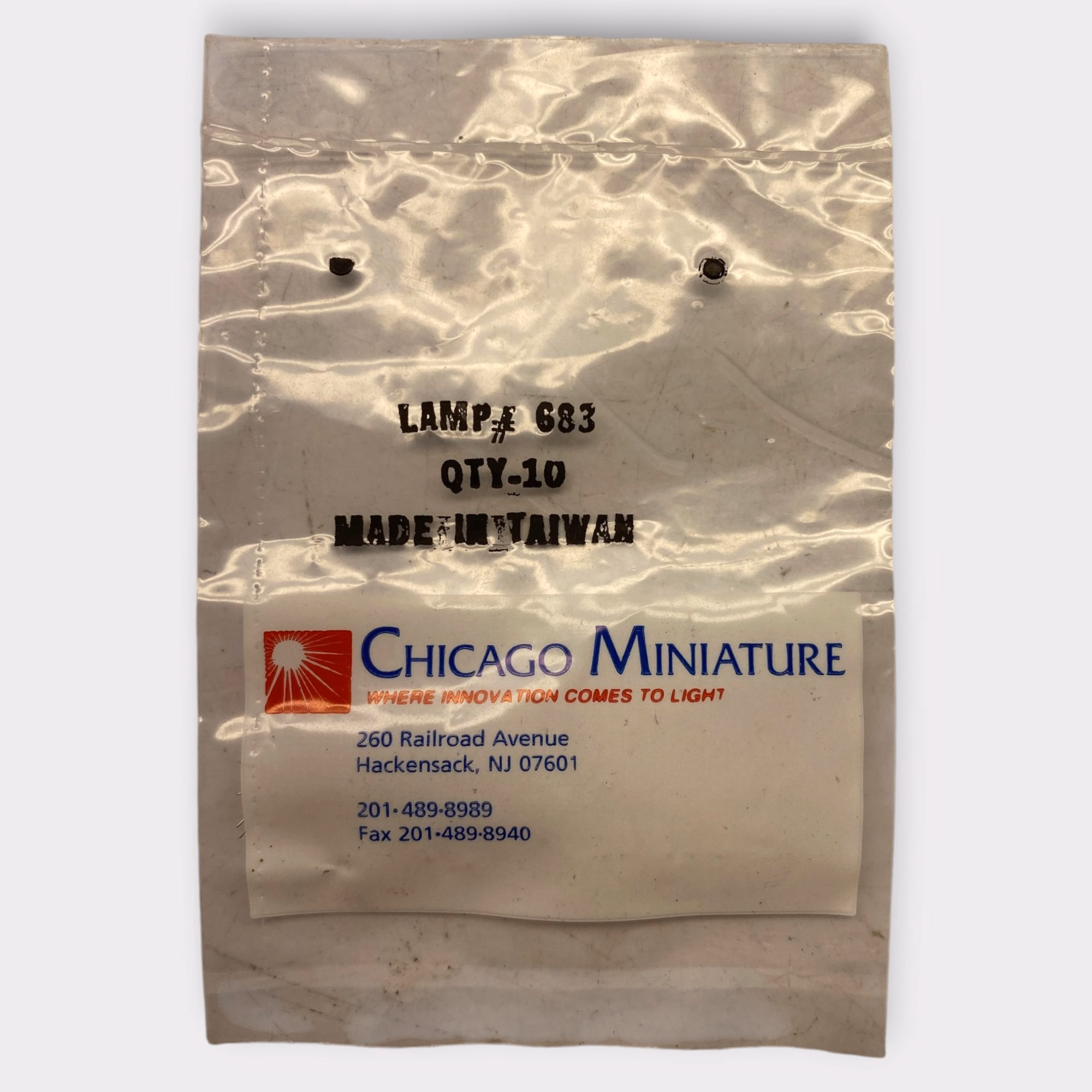

• This listing includes one factory package containing 10 Chicago Miniature #683 light bulbs only. No sockets, wiring, instructions, or additional accessories are included. Please review all photos for the exact item, condition, and components included.

Product Description

The Chicago Miniature #683 is a miniature T-1 incandescent lamp designed for low-voltage indicator and illumination applications.

Each lamp operates at a rated voltage of 5V and draws 60 milliamps (0.06A). The wire-terminal design allows installation in compatible lamp sockets or electrical assemblies designed for this bulb type.

The #683 lamp has a nominal luminous intensity of 0.05 mean spherical candlepower (MSCP) and a manufacturer-listed average rated life of 40,000 hours under rated operating conditions.

These lamps are suitable for compatible control panels, warning indicators, status lights, electronic instrumentation, and other applications requiring a Chicago Miniature #683 replacement bulb.

Product Information

- Manufacturer - Chicago Miniature
- Brand - Chicago Miniature
- Model Number - 683
- Series - T-1 Miniature Incandescent Lamps
- MPN - 683
- Product Type - Miniature Incandescent Light Bulb
- Bulb Number - 683
- Lamp Shape - T-1
- Bulb Diameter - Approximately 3.2 mm
- Rated Voltage - 5V
- Rated Current - 0.06A (60 mA)
- Calculated Power - 0.3W
- Base Type - Wire Terminal
- Lamp Technology - Incandescent
- Nominal Luminous Intensity - 0.05 MSCP
- Average Rated Life - 40,000 Hours
- Applications - Control Panels, Indicator Lights, Warning Lights, Instrumentation
- Package Quantity - 10 Bulbs
- Packaging - Original Factory Package
