Manufacturer: Charles Marine
Model Number: LT-IXFMR12I-1
Listed Item Condition: Used

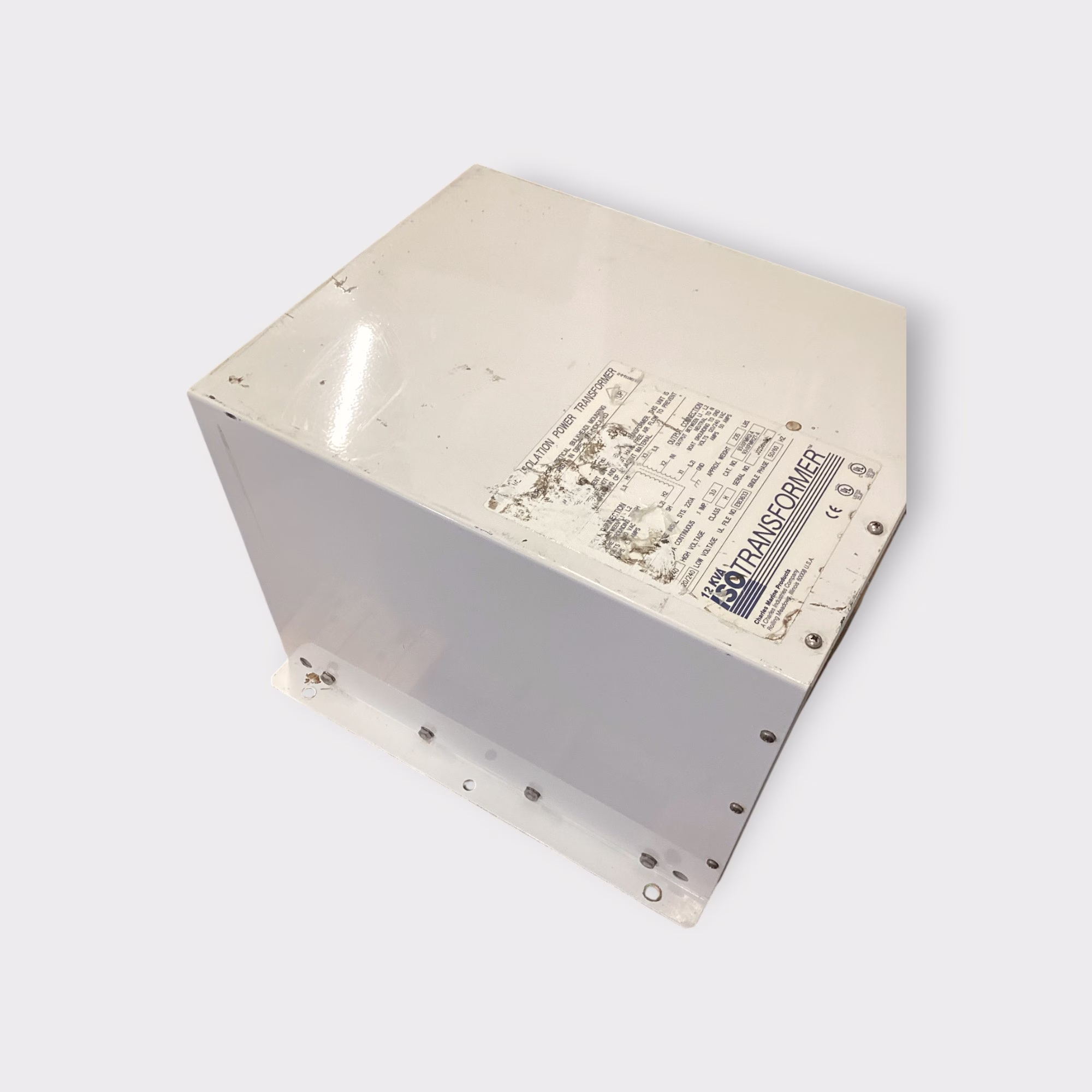

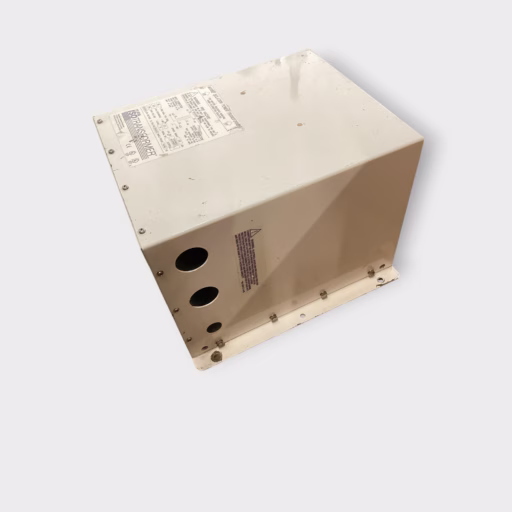

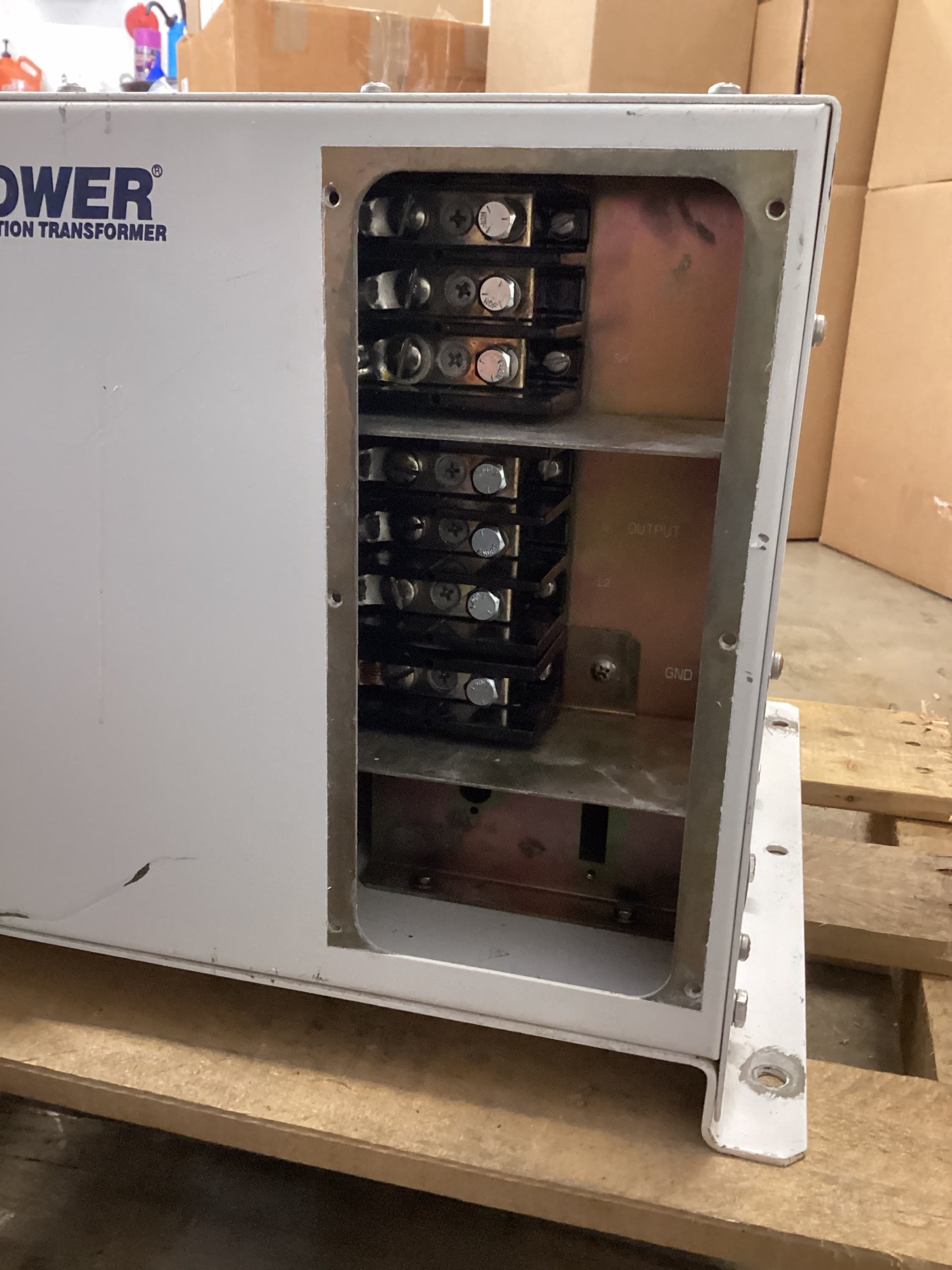

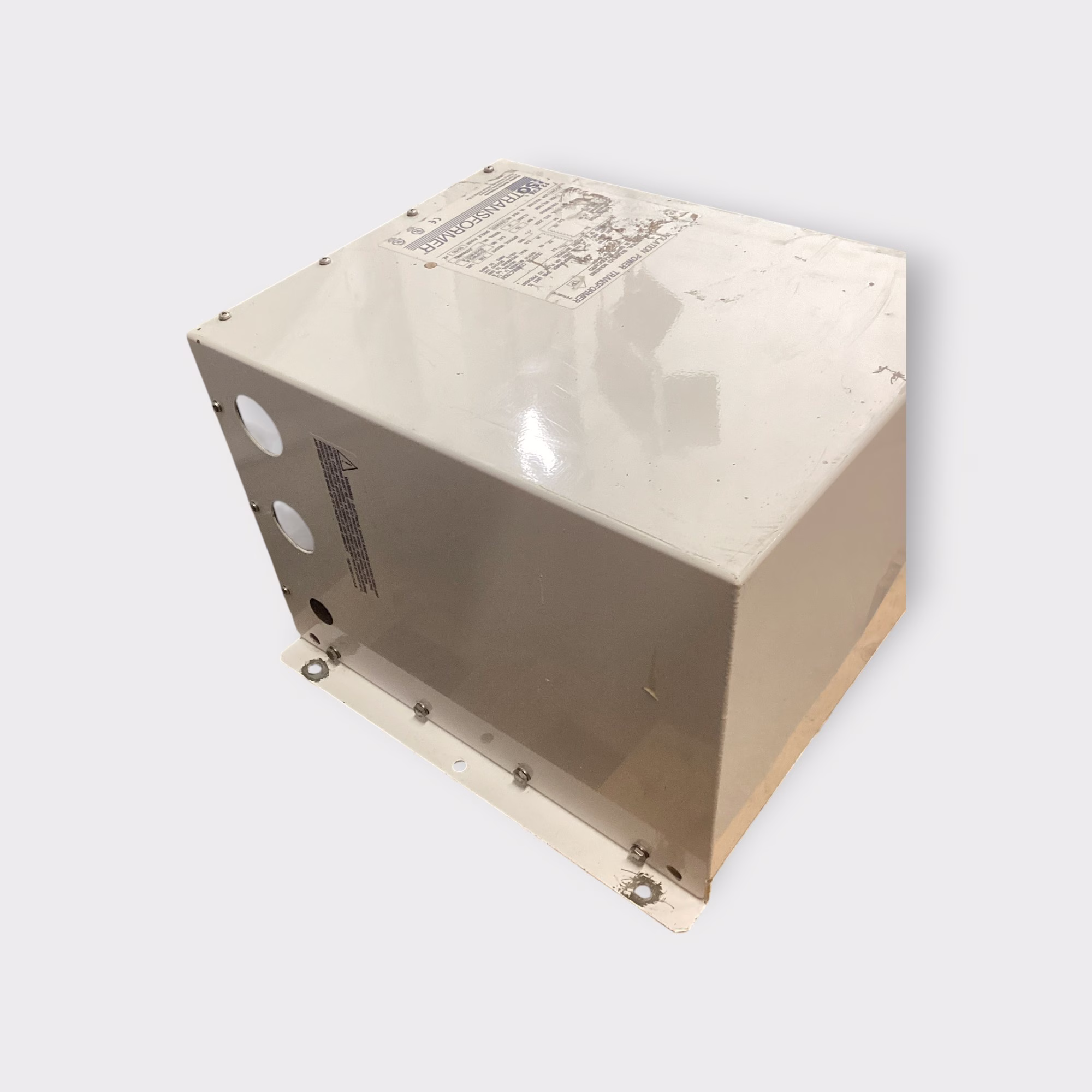

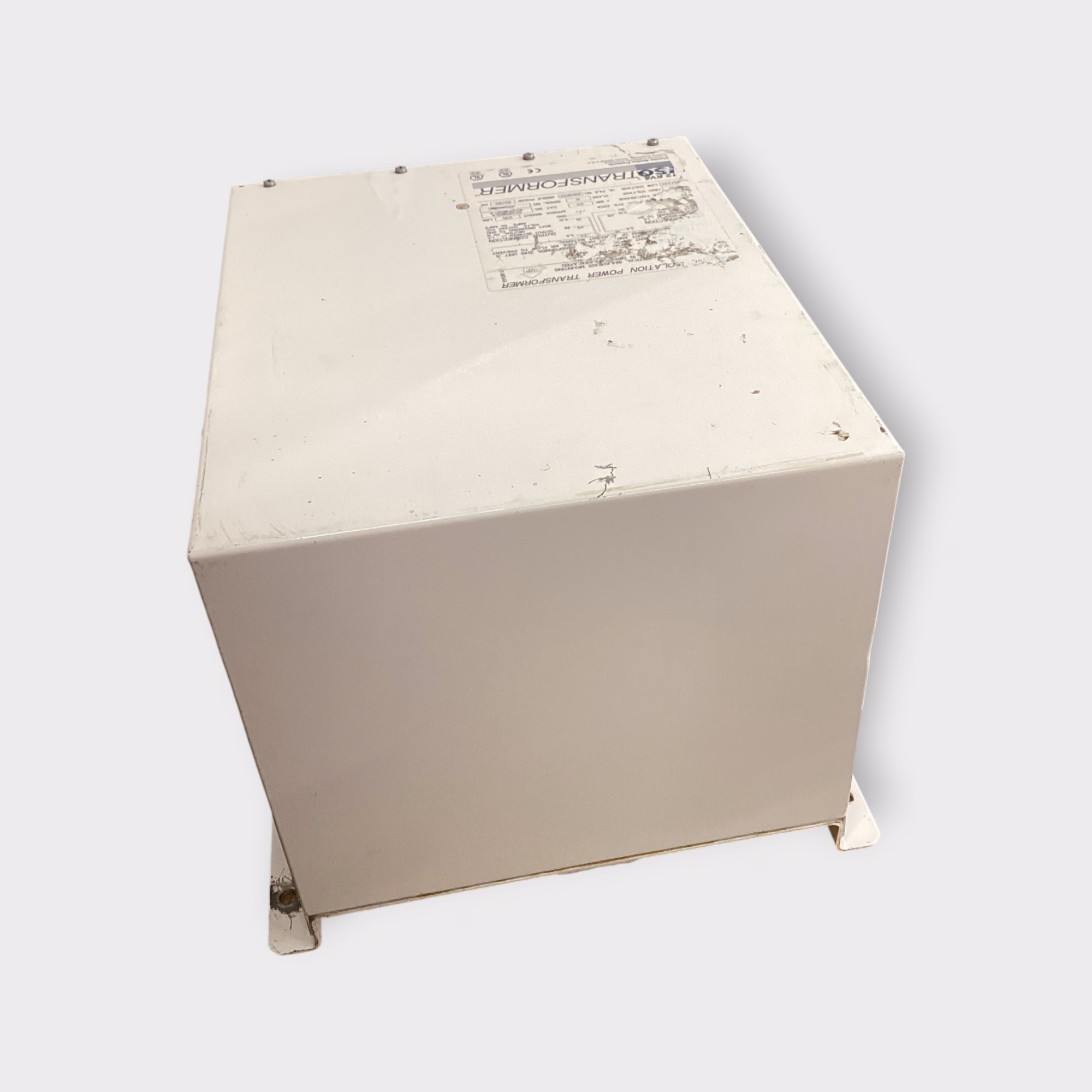

This C-Power 12KVA isolation transformer is used and was said to be working prior to removal. This unit has some sings of use from being moved about. The connections are pristine.

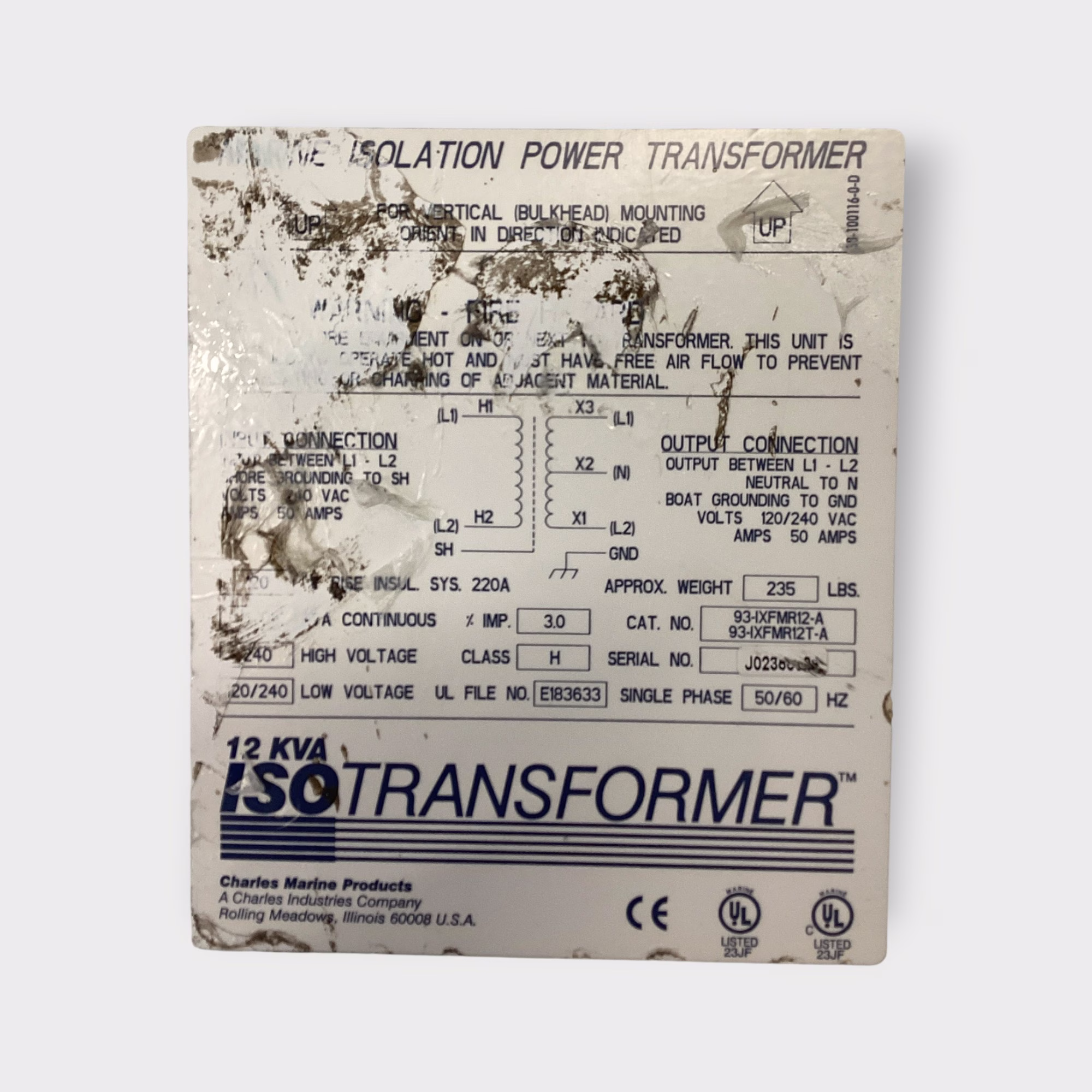

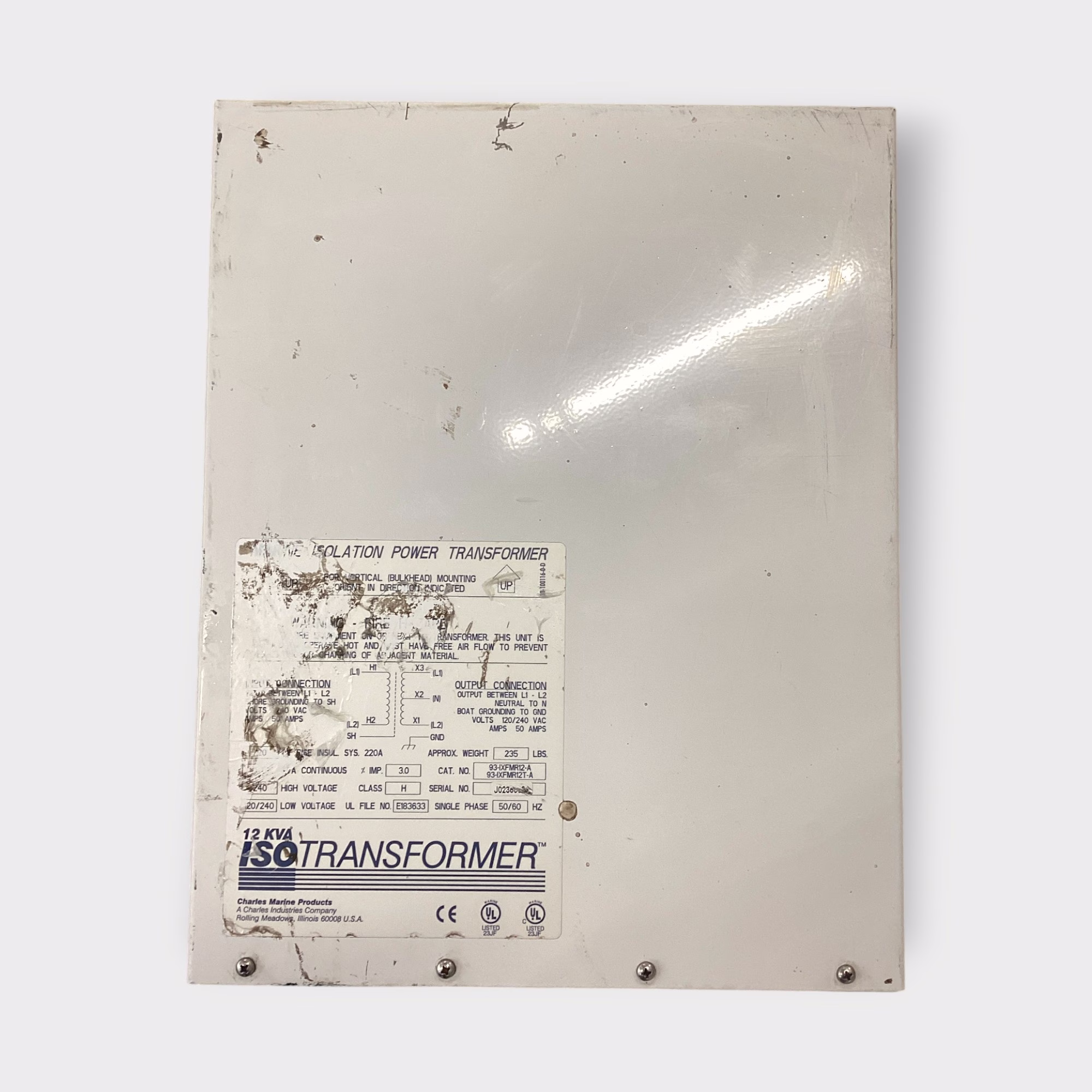

Please see photos for manufactures specs and details.
Per the the manufacturer:
The 12 KVA International Universal IsoTransformer is a shoreline isolation transformer intended for boats with 50
amp/240 volt (12 KVA) or 50 amp/120 volt (6 KVA) service. Properly installed it will electrically isolate AC shore
power from the boat’s AC power system reducing galvanic current corrosion due to the AC shore power connection.
The boat’s electrical system and grounding conductor are not actually connected to the shoreside system when
you use the 12 KVA International Universal IsoTransformer as an isolation transformer. Power is transferred from
the shoreside electrical system to the boat’s electrical system by magnetic coupling. This means there is no direct
electrical connection between the earth-grounded shore AC power and boat AC power systems. The shore
grounding conductor is connected to a shield that is wound between the primary (shore) and secondary (boat)
transformer windings. This shield assures isolation on the boat by providing a protective layer between primary
and secondary windings within the transformer. In the unlikely event of a breakdown within the transformer, the
shield can withstand the fault current of a properly sized shore supply circuit breaker long enough for the breaker
to trip
This unit will have to be shipped freight. Please contact us for a shipping quote, Local pick up is free,
What's Included:
- QTY 1
