BTX CD-HD15MST Solderless Terminal Block Connector – New/Old Stock – Set Of Three – Free Shipping

$32.99

This item is new and has never been used. It may be unused in its original packaging, be old stock, new open-box, new out of box, or never installed. Packaging might be missing, opened, or show minor damage. The item is fully functional and includes all accessories shown in the listing and images, unless otherwise noted.
SKU: 739434
In stock (1 available)
Buy Now
  • Free Shipping Lower 48

    Free Shipping Lower 48

  • 30-Day Returns

    30-Day Returns

  • 90-Day Warranty

    90-Day Warranty

Manufacturer:

Model Number: CD-HD15MST

Listed Item Condition: New/New Other

Product Details:

The CD-MX15M from BTX is a part of the MaxBlox Series of Solderless HD15 and DB9 EZ termination system. The CD-MX15M is a male high density 15-pin D-SUB to Terminal Block connection, that is used for RGBHV field termination with VGA connectors using a solderless termination design.

This lot of the is sold as New/Old Stock and in great condition.

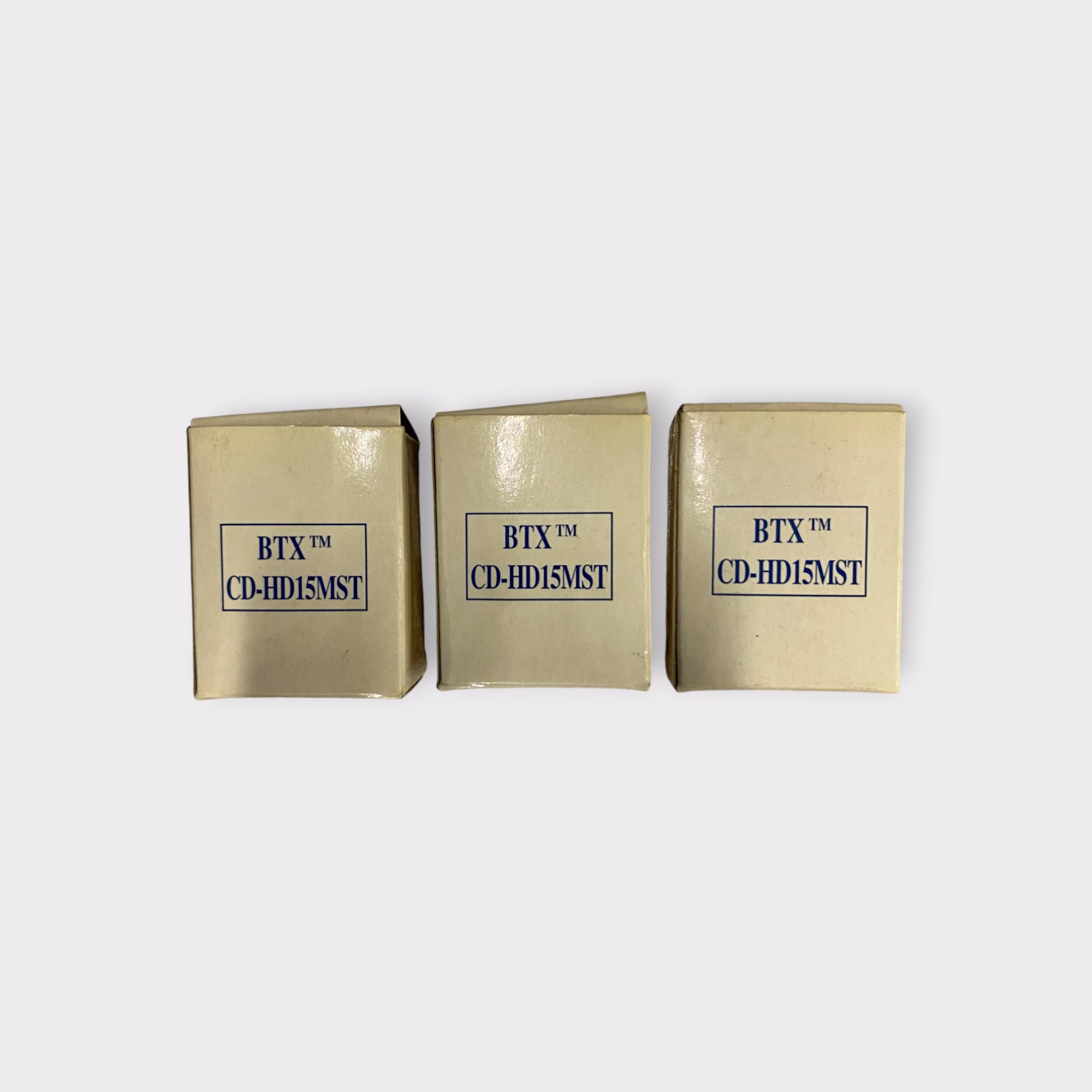

The boxes have signs of wear.

Specs/Features:
-Requires No Soldering or Crimping for Termination
-Male high density D-SUB to Terminal Block connectivity
-Accepts cable size range from 16 AWG to 30 AWG
-Gold Plated Contacts
-HD-15 Signals: VGA to UXGA
-HD15 Connectors Bandwidth: >345Mhz
-HD15 Contact Insertion Loss: (.63db for male, .71db for female) @100MHz
-HD15 Contact Return Loss: (20.49db for male, .71db for female) @100MHz
-Non-EDID compliant, RGBHV only cable connection
-Phoenix Connector Screw Down Termination

What's Included:

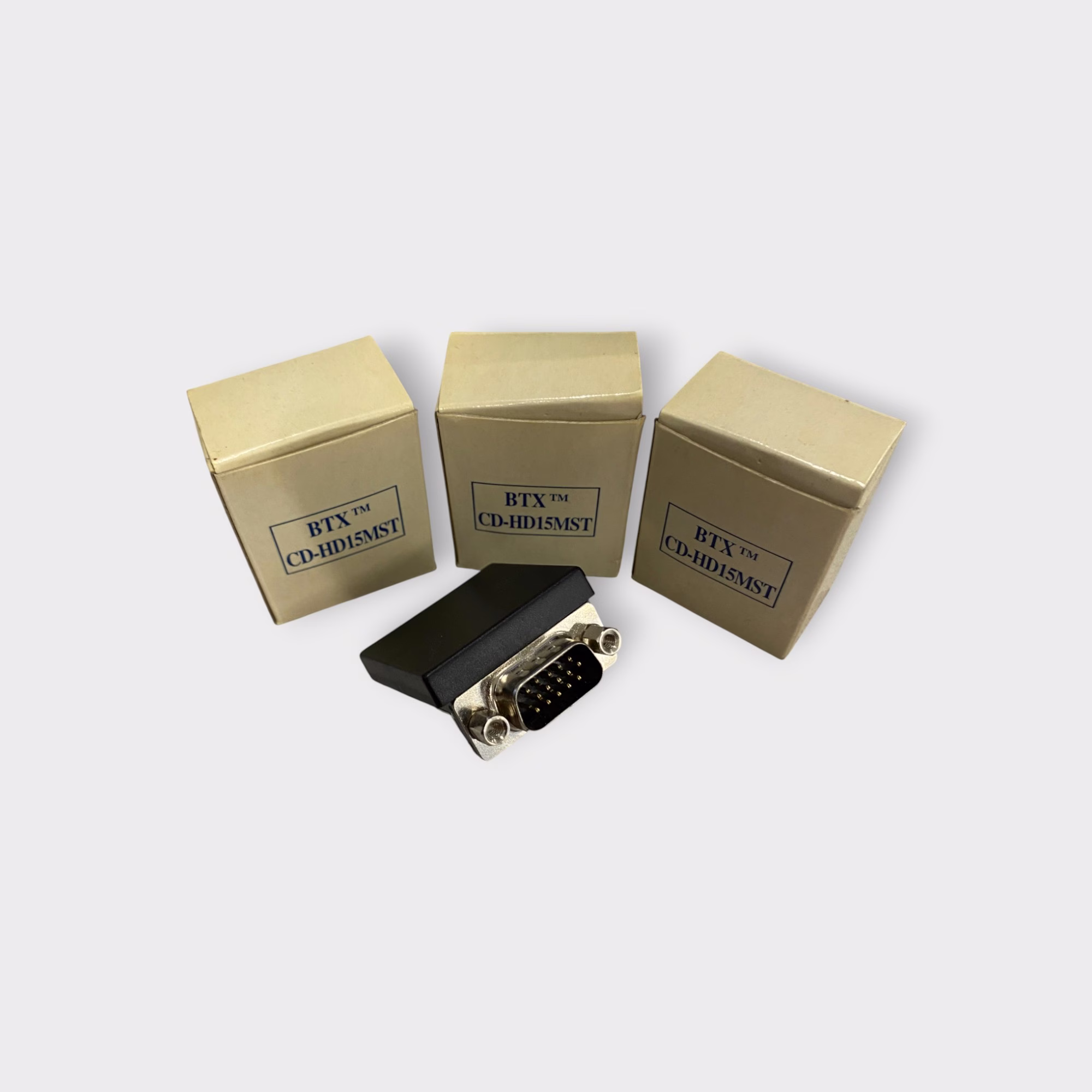

  • Three BTX Terminal Block Connectors S/N: CD-HD15MST

Return Info: 30-Day Returns

Warranty Info: 90-Day Warranty

Dimensions: 6 × 4 × 4 in, Weight: 1 lbs
