Summary

• B&R Industrial Automation PC 910 (APC910) industrial computer, model 5PC910.SX01-00, Rev. L0, featuring an Intel Celeron 1020E dual-core processor, 4GB DDR3 memory, 32GB CFast MLC storage, and a PCI POWERLINK communication module.
• This complete 1-slot industrial PC configuration includes the orange front cover, passive heat sink, Windows Embedded Standard 7 Premium SP1 license specified on the factory configuration label, rear protective plastic/nylon plugs and covers, a separate 4-pin connector, and an installed 3-pin 24VDC power connector.
• This listing is for one complete B&R Automation PC 910 assembly, including the accessories shown in the photos and detailed in the description below. Installation instructions, mounting screws, and original packaging are not included. Please review all photos and the full description for the exact items included.
• This unit is new/out-of-box and comes as shown. It was part of a large lot of items acquired from a project that was halted mid-refit after items were ordered and staged but before they were installed on the yacht. This automation PC came out of a lot of several crates of custom Pariani Helm Panels that were loaded with equipment. The PC includes original tags as shown in the photos with all of the extras that are in the PC. We believe this was the "brain" of the Pariani helm and as such, will likely require reprogramming to suit your application. We are selling as new/open box functional with 30 days for buyers to ensure it is what we say it is and a 90 day warranty for your peace of mind.

Product Description

• The B&R Automation PC 910 is an industrial computer designed for machine control, industrial automation, monitoring, and real-time communication applications.
• This system features an Intel Celeron 1020E 2.2GHz dual-core processor, 4GB DDR3-1600 RAM, and 32GB CFast MLC storage. An integrated 5LS182.6-2 PCI communication module provides Ethernet POWERLINK connectivity for industrial automation networks.

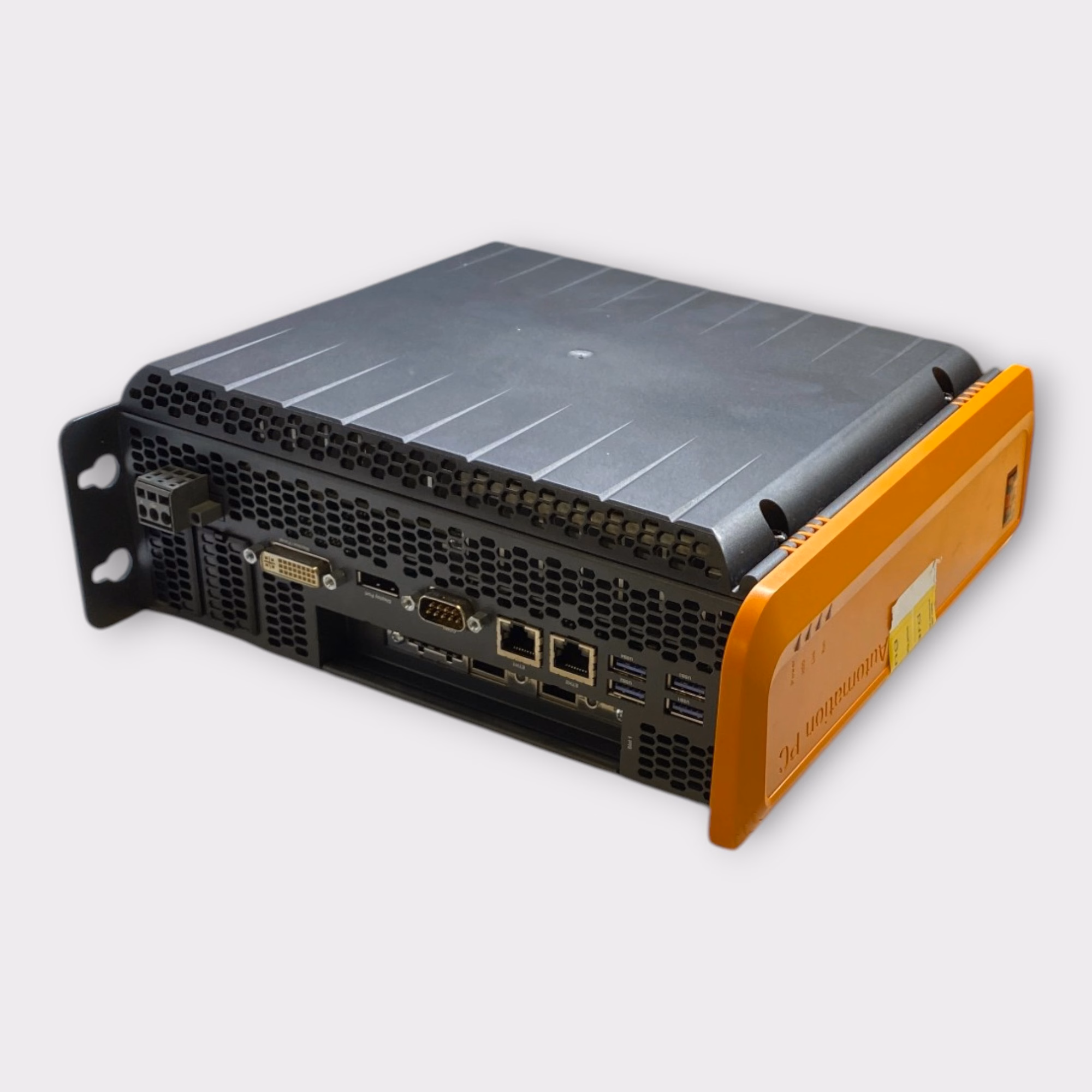

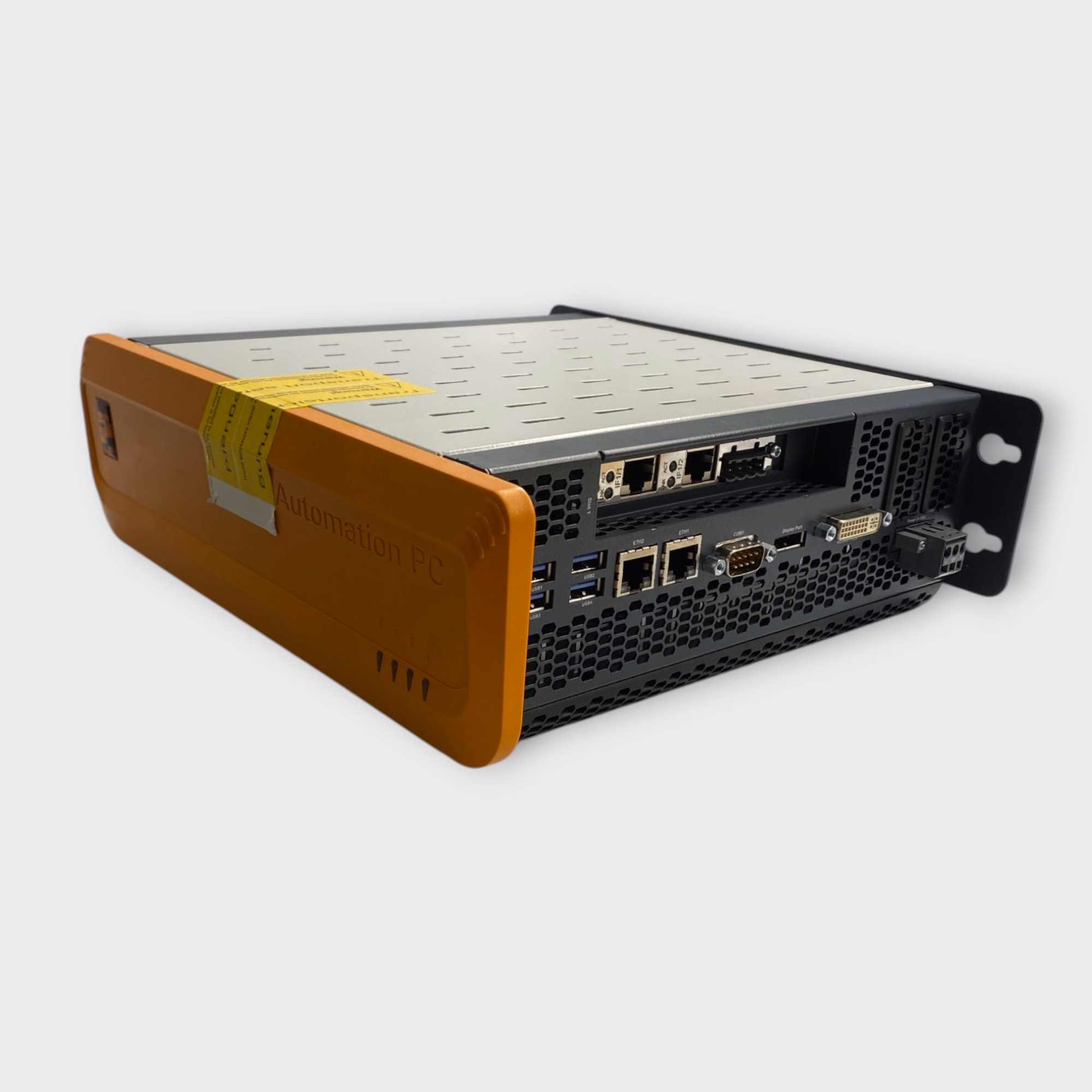

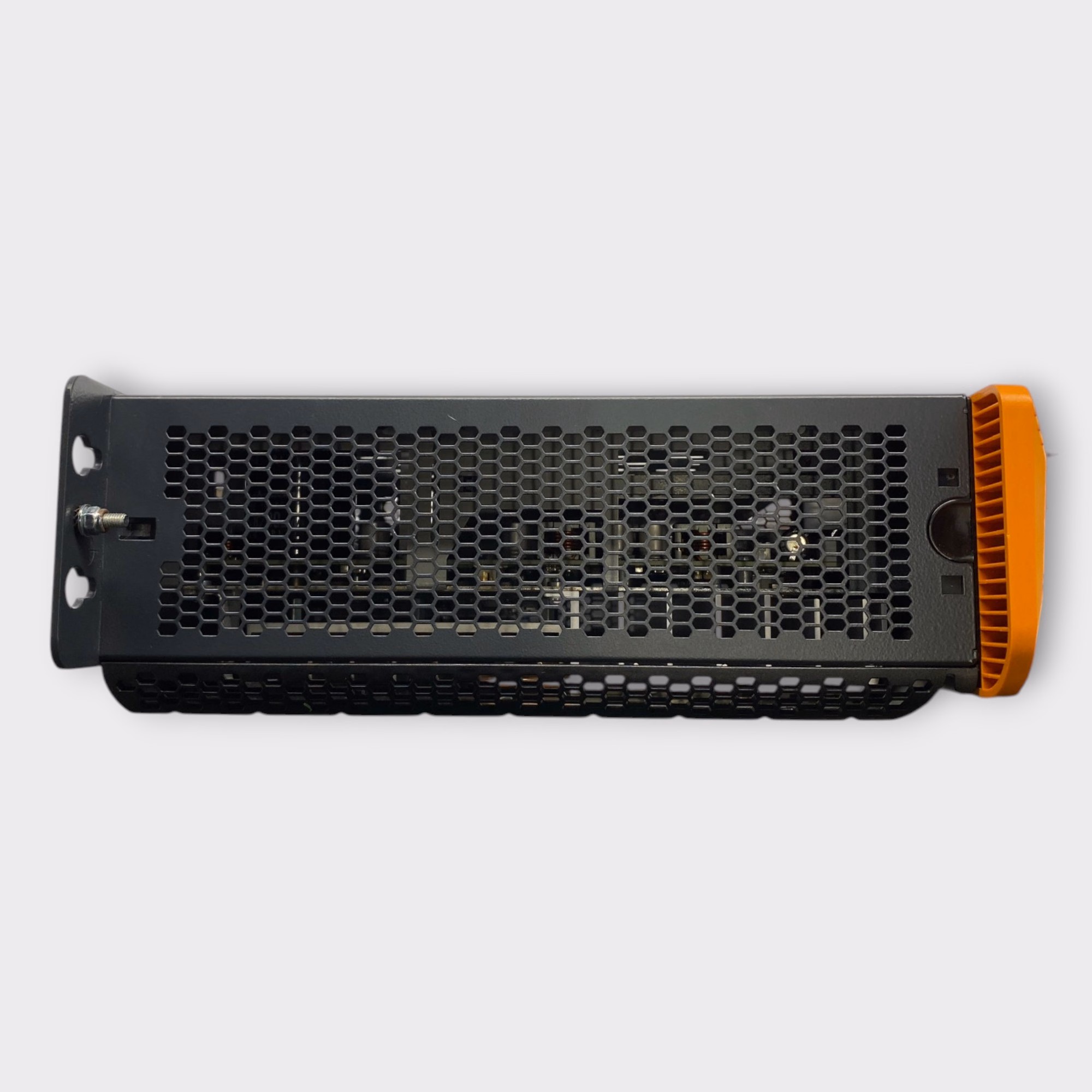

• The computer uses a passive heat sink for cooling and supports 24VDC operation. Its compact industrial housing includes an orange front cover, a single PCI expansion slot, USB and Ethernet interfaces, DisplayPort, DVI-I, and an RS232 serial interface.
• The manufacturer's configuration label specifies a Windows Embedded Standard 7 Premium SP1 32-bit multilingual license. The presence, installation, and activation status of the operating system have not been independently verified.

Included Accessories

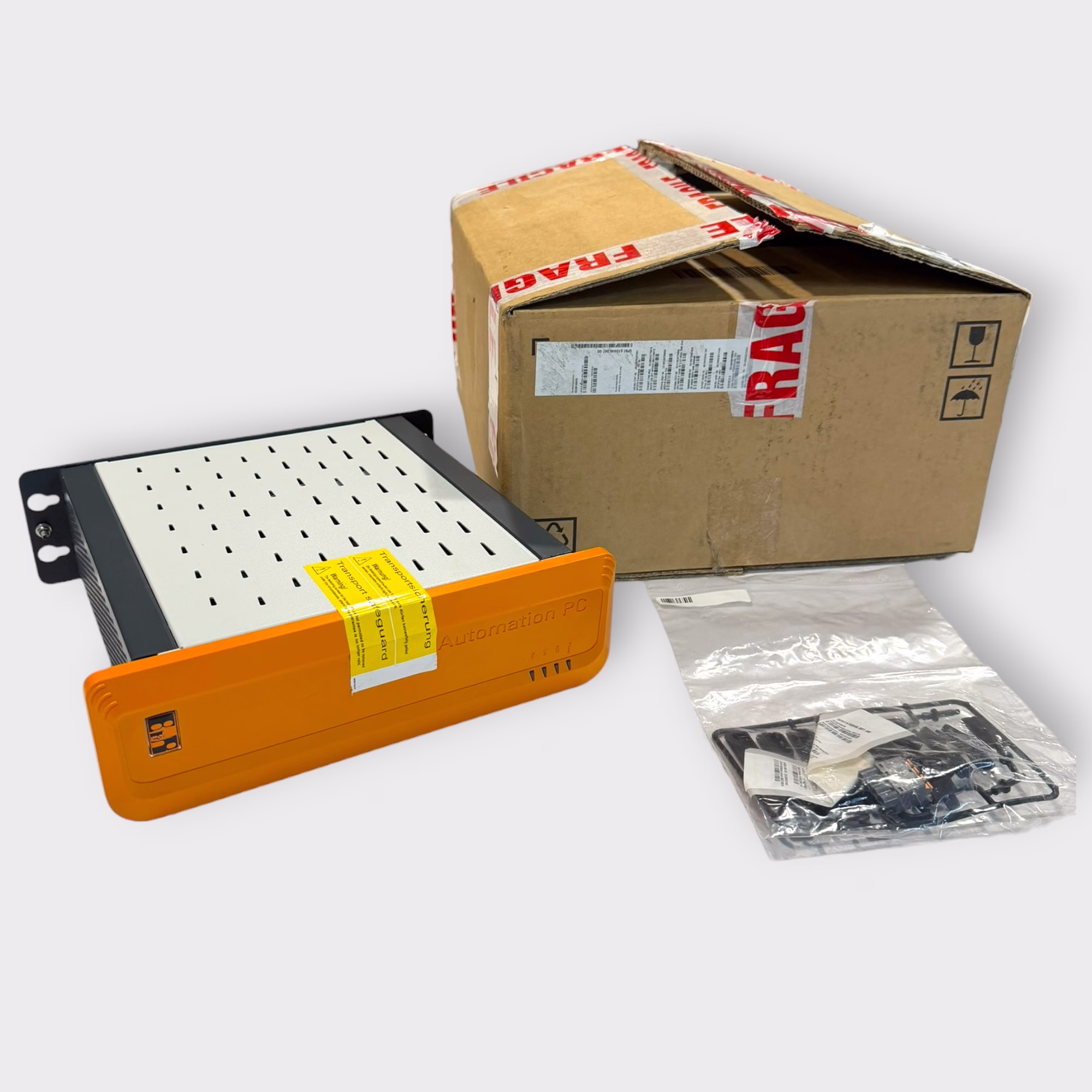

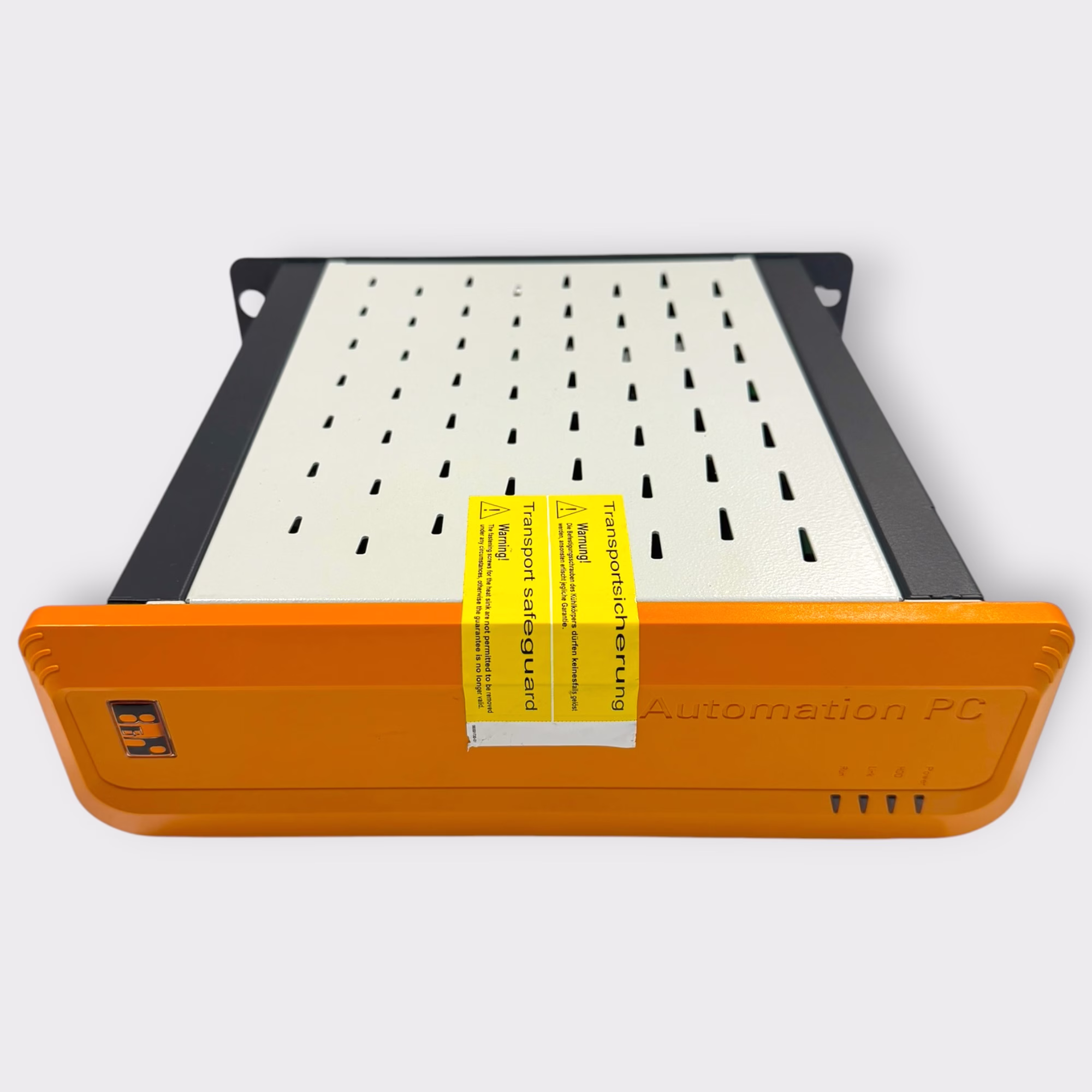

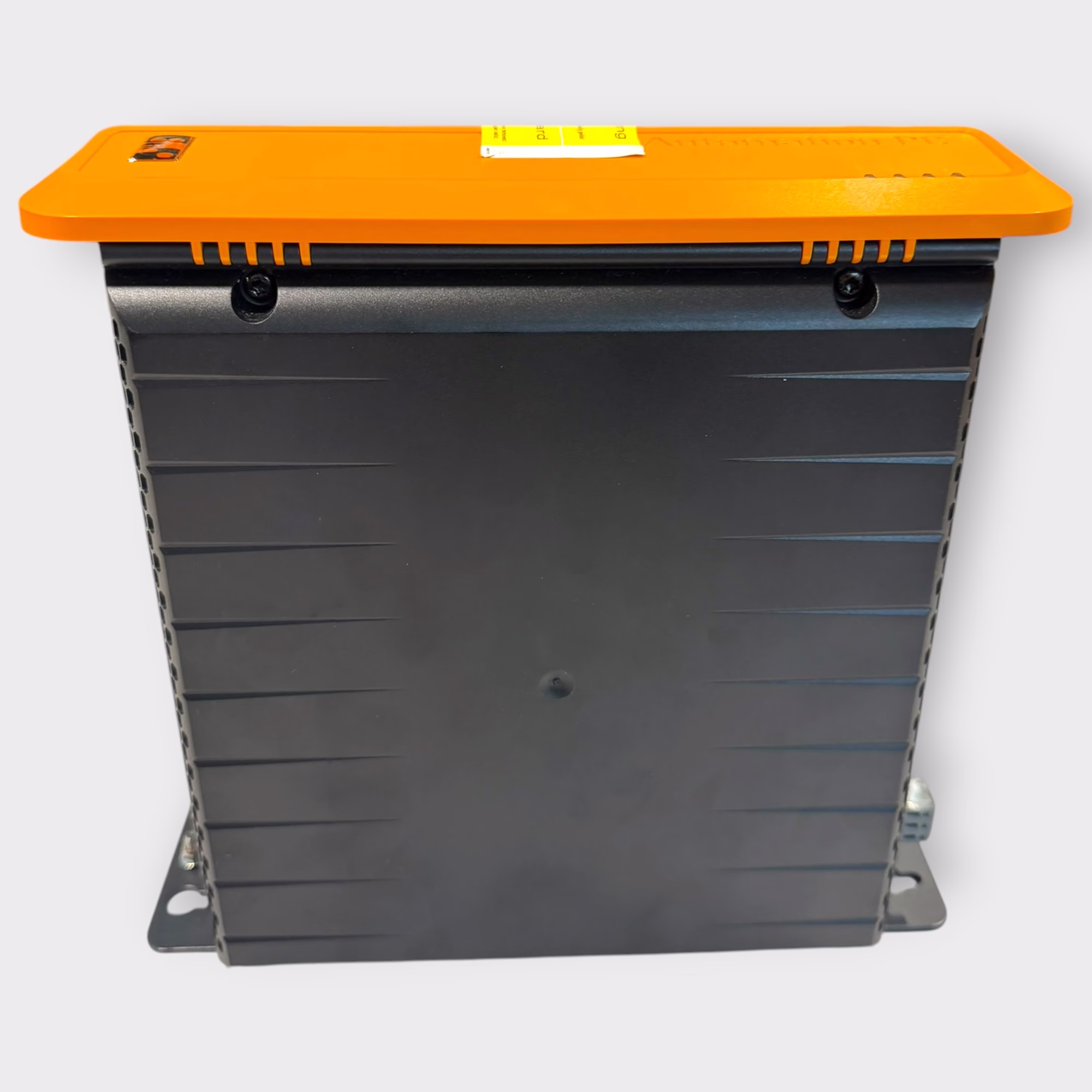

• 1x B&R Automation PC 910 complete computer assembly

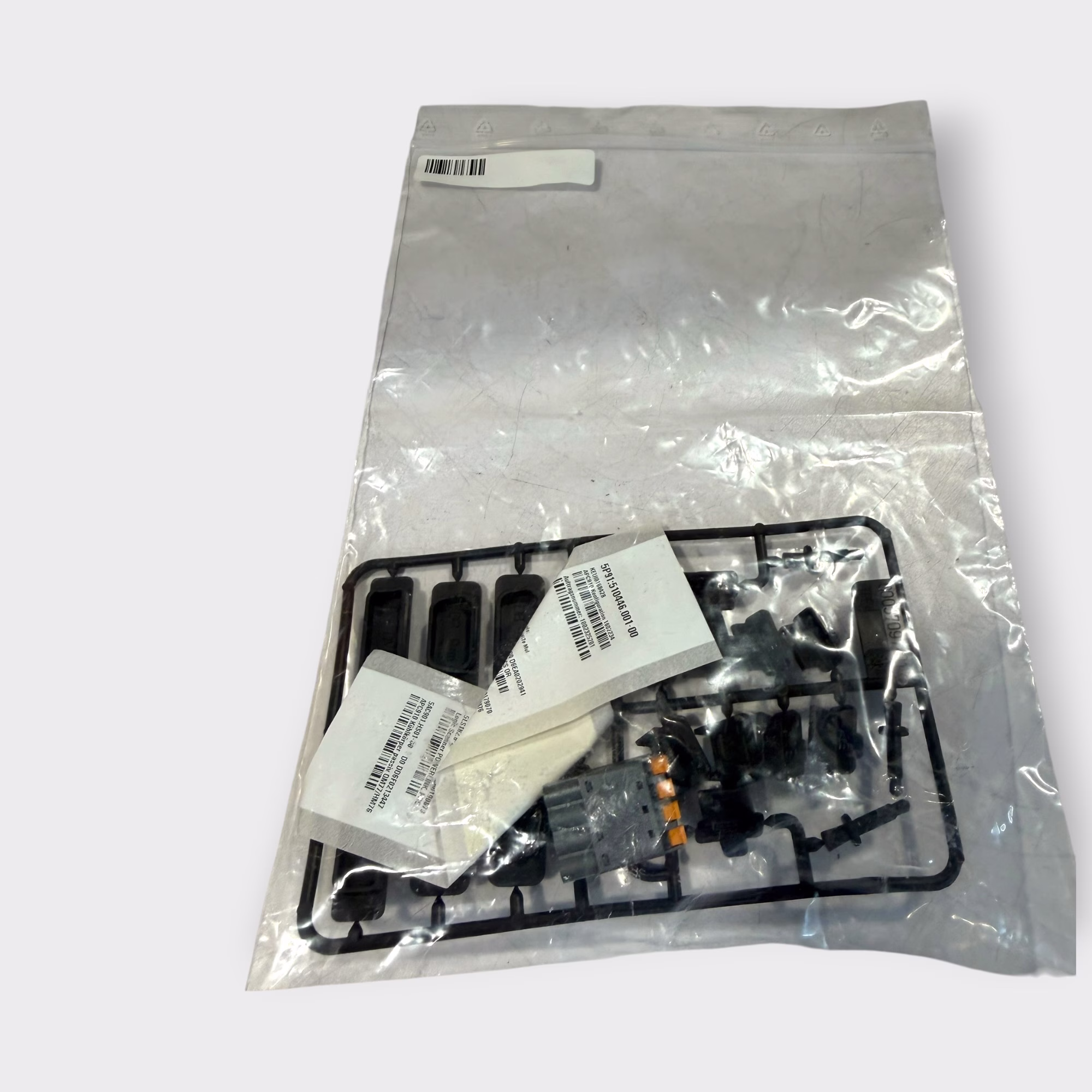

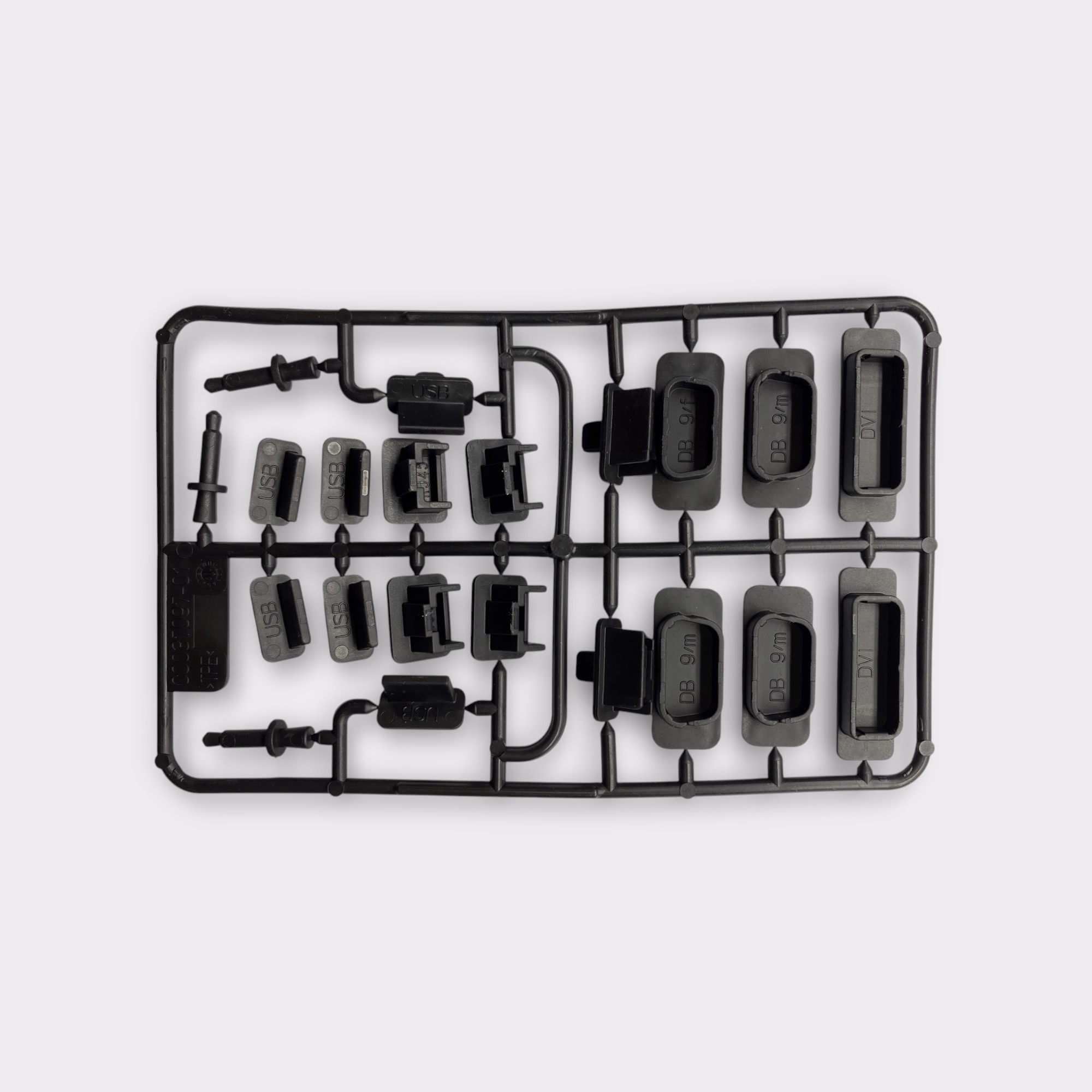

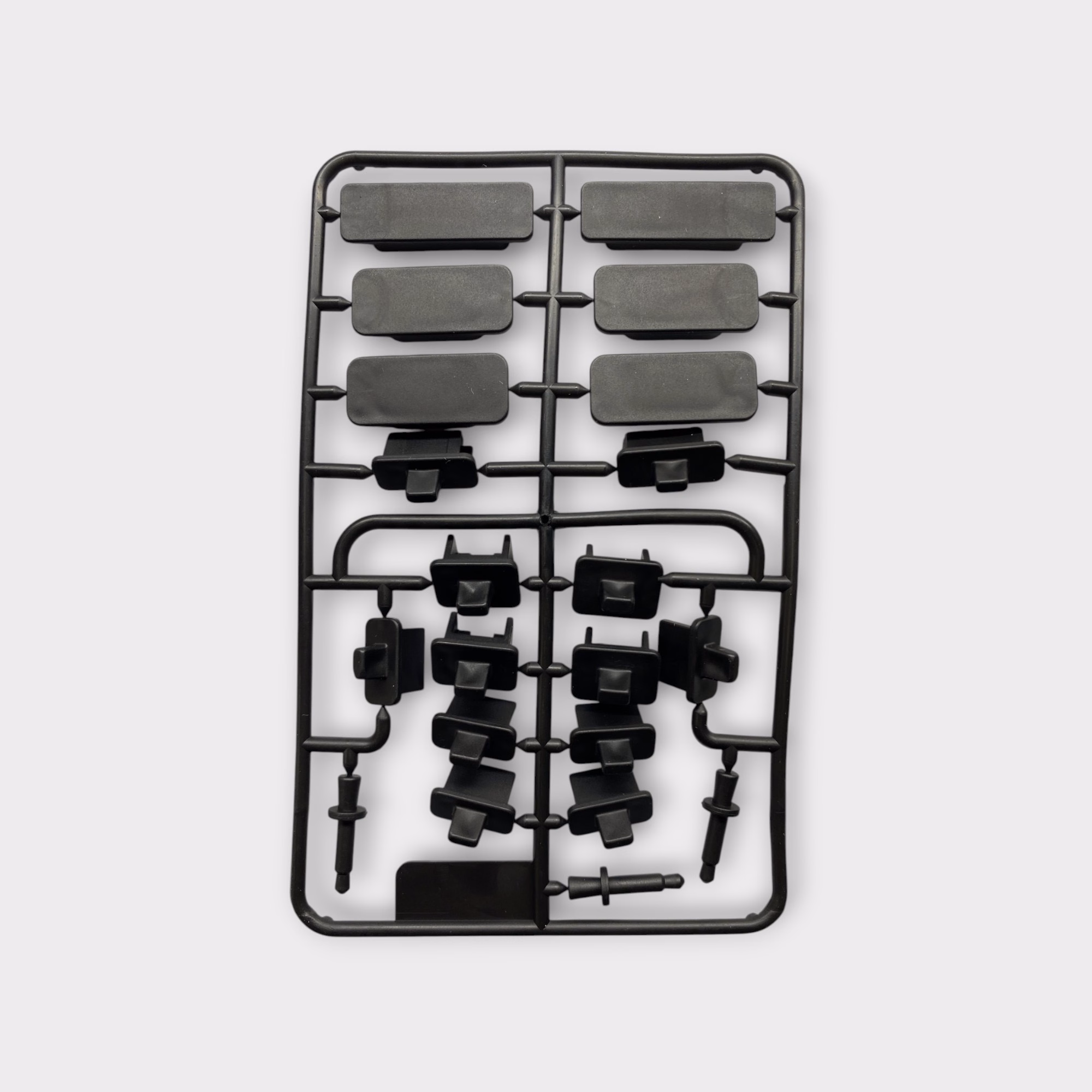

• 1x Plastic/nylon protective port plug and cover assortment, supplied on a molded plastic sprue

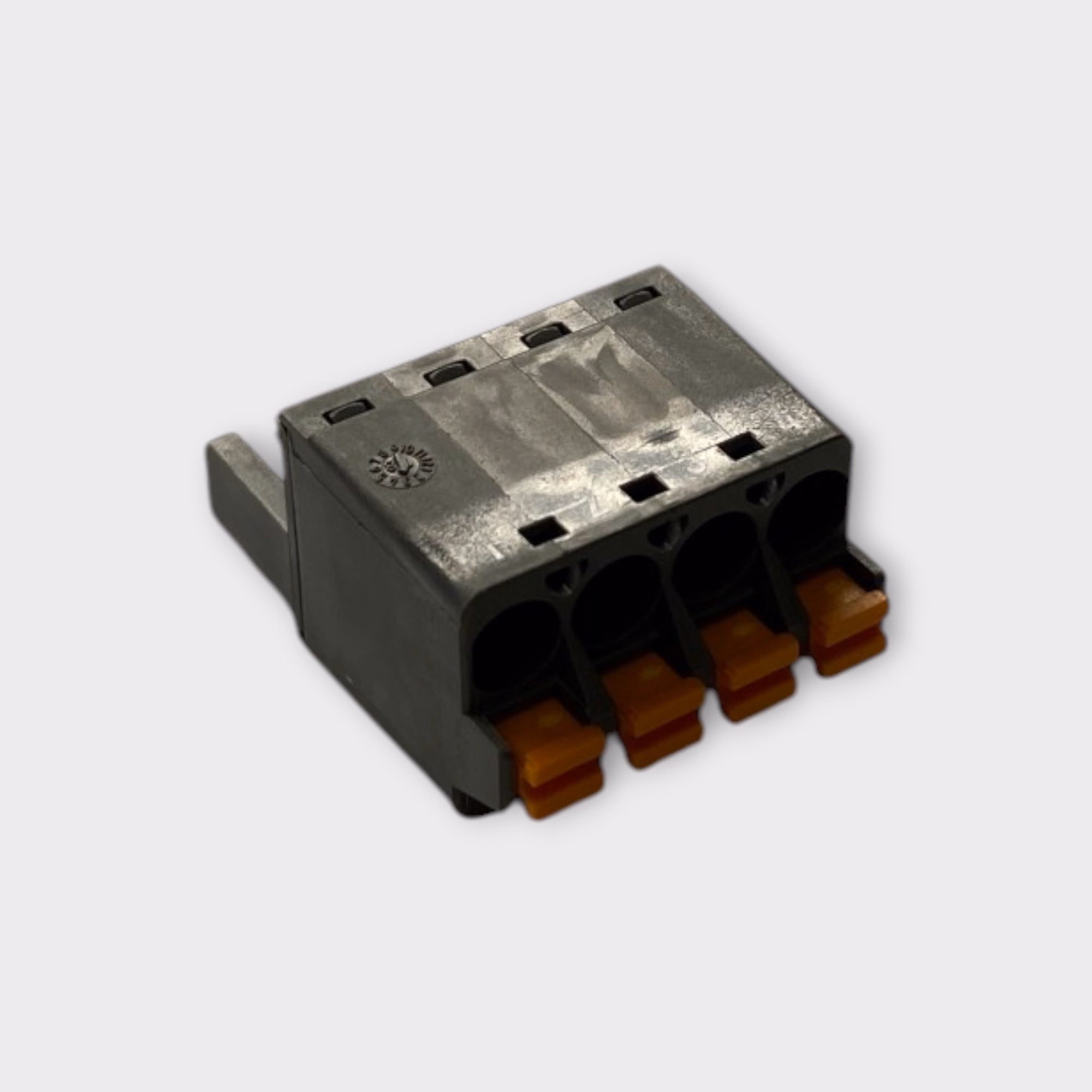

• 1x Separate 4-pin rear connector
• 1x 3-pin 24VDC power connector, already attached to the rear power input
• The included protective covers are intended for unused connections. The computer itself is rated IP20 and should not be considered waterproof or weatherproof.

Product Information

Manufacturer: B&R Industrial Automation
Model Number: 5PC910.SX01-00
Series: Automation PC 910 / APC910
MPN: 5PC910.SX01-00
Revision: L0
Product Type: Industrial Automation PC
Configuration Number: 5P91:510446.001-00
System Configuration: 1-Slot Industrial PC
Processor: Intel Celeron 1020E
Processor Speed: 2.2 GHz
Processor Cores: 2
Processor Cache: 2 MB Intel Smart Cache
Processor TDP: 35W
Chipset: Intel HM76
Graphics: Intel HD Graphics 2500
Installed Memory: 4GB DDR3-1600 SO-DIMM
Storage Capacity: 32GB
Storage Type: CFast MLC Flash
Expansion Bus: 1x PCI, 32-bit, 33 MHz
Communication Module: B&R 5LS182.6-2 POWERLINK Logic Scanner
Network Protocol: Ethernet POWERLINK V1/V2
Power Requirement: 24VDC ±25%, SELV
Maximum Nominal Current: 5.5A
Cooling: Passive Heat Sink
Operating System License: Windows Embedded Standard 7 Premium SP1, 32-bit, Multilingual
Protection Rating: IP20
Country of Origin: Austria
Quantity: 1 Complete System

Interfaces and Connections

4x USB 3.0 Type-A
1x USB 2.0 Type-A
2x Gigabit Ethernet RJ45 (System)
2x 100Mbps POWERLINK RJ45 (PCI Module)
1x RS232 DB9 Serial Port
1x DisplayPort
1x DVI-I / SDL Monitor Interface
1x CFast Storage Slot
1x PCI Expansion Slot
1x 24VDC Power Input
1x POWERLINK Module Terminal Connection

Installed System Components and Part Numbers

1. 5PC910.SX01-00 - Automation PC 910 System Unit

Manufacturer: B&R Industrial Automation
Model Number: 5PC910.SX01-00
Series: APC910
MPN: 5PC910.SX01-00

B&R Automation PC 910 industrial system unit with a single expansion slot, 24VDC input, integrated Ethernet, USB, serial and display interfaces, and support for configurable processor boards, storage, and industrial communication modules.

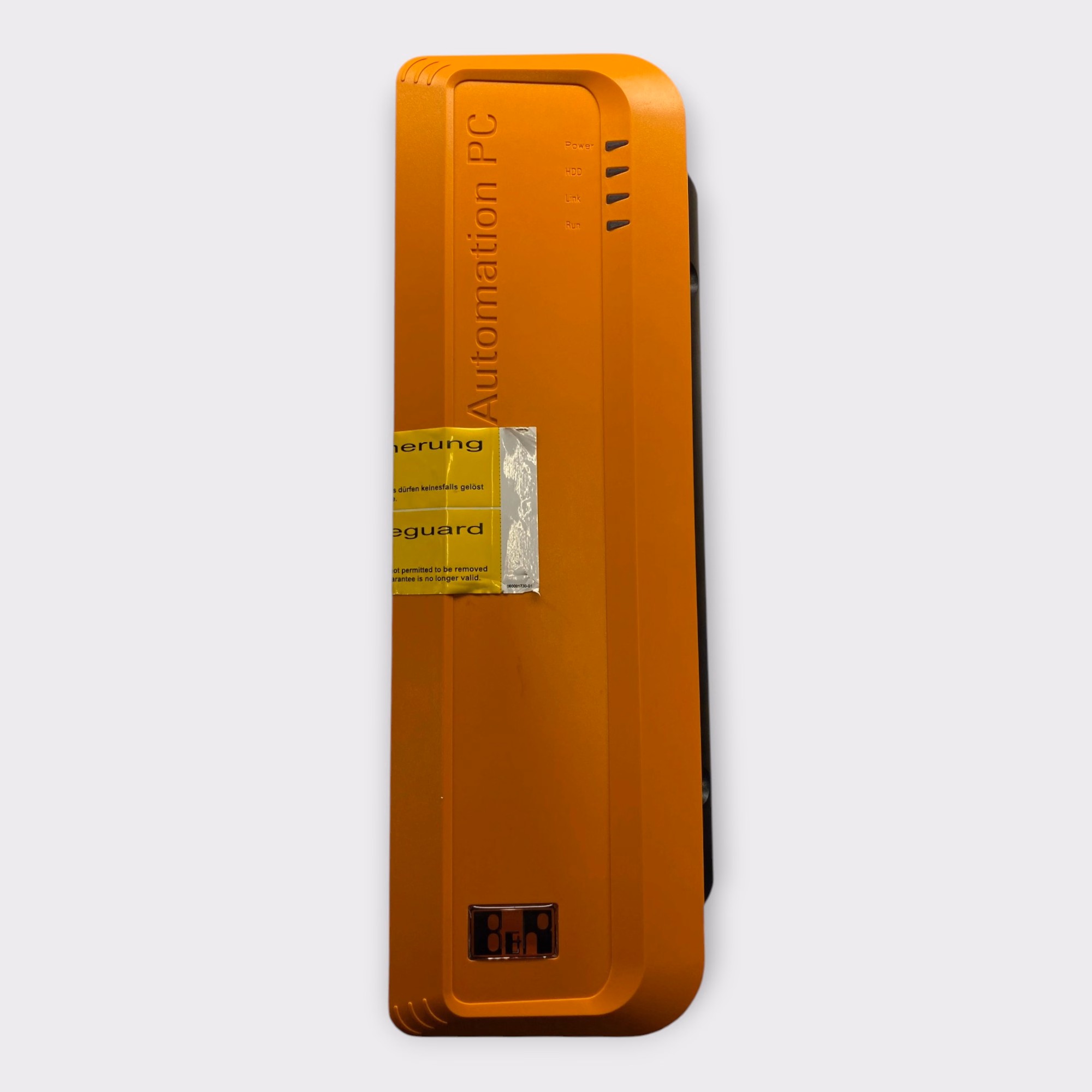

2. 5AC901.FF01-00 - APC910 Orange Front Cover

Manufacturer: B&R Industrial Automation
Model Number: 5AC901.FF01-00
Series: APC910
MPN: 5AC901.FF01-00

Orange plastic front cover designed for the 1-slot Automation PC 910 system.

Color: Orange
Material: Plastic
Dimensions: 82 x 264 x 14 mm

3. 5SWWI7.1740-MUL - Windows Embedded Standard 7 License

Manufacturer: B&R Industrial Automation
Model Number: 5SWWI7.1740-MUL
Series: Windows Embedded Standard 7
MPN: 5SWWI7.1740-MUL

Windows Embedded Standard 7 Premium SP1 software license for the APC910 industrial computer.

Edition: Premium
Architecture: 32-bit
Service Pack: SP1
Language: Multilingual
Supported Chipsets: Intel QM77 / HM76
Target System: APC910
Minimum Required Memory: 1GB
Minimum Storage Capacity: 16GB

The license is listed on the manufacturer's configuration label. Software installation and activation are not independently verified.

4. 5PC900.TS77-09 - Intel Celeron CPU Board

Manufacturer: B&R Industrial Automation
Model Number: 5PC900.TS77-09
Series: APC910
MPN: 5PC900.TS77-09

Industrial CPU board featuring the Intel Celeron 1020E dual-core processor and Intel HM76 chipset.

Processor: Intel Celeron 1020E
Clock Speed: 2.2 GHz
Cores: 2
Cache: 2 MB
Thermal Design Power: 35W
Chipset: Intel HM76
Integrated Graphics: Intel HD Graphics 2500
Memory Support: DDR3
Maximum Supported Memory: 16GB
Memory Channels: 2
DisplayPort Version: 1.1
BIOS: Embedded AMI BIOS

5. 5MMDDR.4096-03 - 4GB DDR3 Memory Module

Manufacturer: B&R Industrial Automation
Model Number: 5MMDDR.4096-03
Series: Industrial PC Memory
MPN: 5MMDDR.4096-03

Industrial-grade SO-DIMM memory module designed for compatible B&R industrial computer systems.

Memory Capacity: 4096MB / 4GB
Memory Type: DDR3 SDRAM
Memory Speed: DDR3-1600
Memory Standard: PC3-12800
Form Factor: 204-Pin SO-DIMM
Data Width: 64-bit

6. 5CFAST.032G-10 - 32GB CFast Storage Card

Manufacturer: B&R Industrial Automation
Model Number: 5CFAST.032G-10
Series: Industrial CFast Storage
MPN: 5CFAST.032G-10

Industrial CFast storage card using MLC flash memory for industrial computer operating systems, software, and data storage.

Capacity: 32GB
Flash Type: MLC
Interface: CFast / SATA
Supported SATA Modes: SATA I, II, III
Maximum Sequential Read: 495 MB/s
Maximum Sequential Write: 115 MB/s
S.M.A.R.T. Support: Yes
Error Correction: ECC
Wear Leveling: Dynamic and Static

7. 5AC901.BX01-00 - APC910 1-Slot PCI Bus Unit

Manufacturer: B&R Industrial Automation
Model Number: 5AC901.BX01-00
Series: APC910
MPN: 5AC901.BX01-00

Single-slot PCI expansion bus for B&R Automation PC 910 industrial computers.

Expansion Slots: 1
Slot Type: PCI
Bus Width: 32-bit
Bus Speed: 33 MHz
PCI Standard: 2.2
Supported Module Size: Half-Size PCI
PCIe-to-PCI Bridge: Yes

8. 5LS182.6-2 - POWERLINK Logic Scanner Module

Manufacturer: B&R Industrial Automation
Model Number: 5LS182.6-2
Series: POWERLINK
MPN: 5LS182.6-2

Industrial POWERLINK communication module for real-time Ethernet communication between industrial controllers and automation devices.

Module Type: PCI Communication / Logic Scanner
Expansion Interface: Half-Size PCI
Protocol: Ethernet POWERLINK V1/V2
Node Operation: Managing or Controlled Node
Network Ports: 2x Shielded RJ45
Network Speed: 100Mbps
SRAM: 1MB Battery-Backed
Network Topology: Integrated Hub with Optional Ring Redundancy
Plug and Play: Supported
Network Diagnostics: LED Status Indicators
Electrical Isolation: Yes
Module Power Consumption: 2W
Ready Relay: Normally Open / Normally Closed
Maximum Ready Relay Rating: 30VDC, 10A

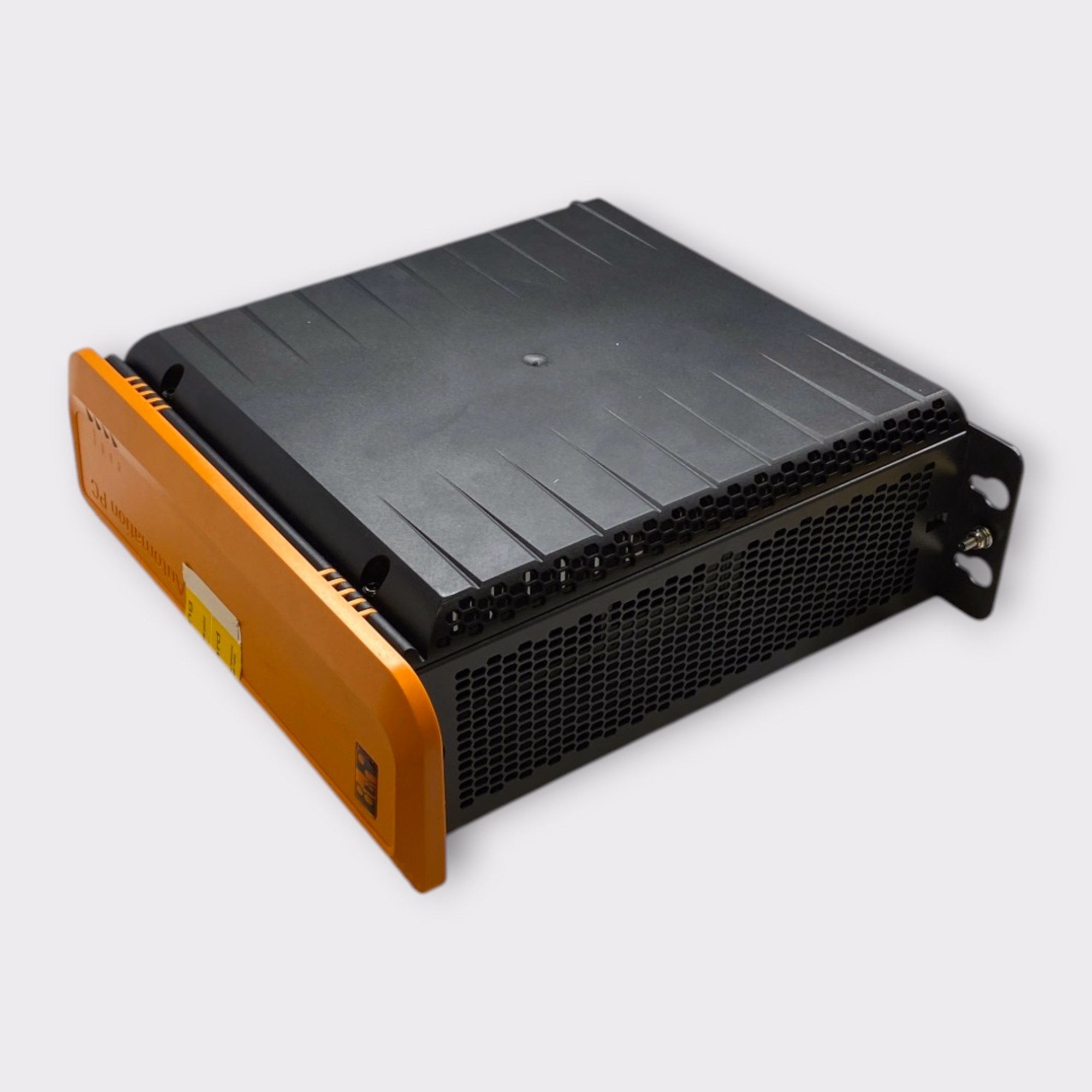

9. 5AC901.HS01-00 - Passive Heat Sink

Manufacturer: B&R Industrial Automation
Model Number: 5AC901.HS01-00
Series: APC910
MPN: 5AC901.HS01-00

Passive cooling assembly designed for Automation PC 910 systems with compatible Intel QM77/HM76 CPU boards.

Cooling Type: Passive
Design: Cooling Fins and Heat Pipes
Compatibility: APC910 Systems Without Fan Kits
Function: Heat Dissipation for Installed Processor

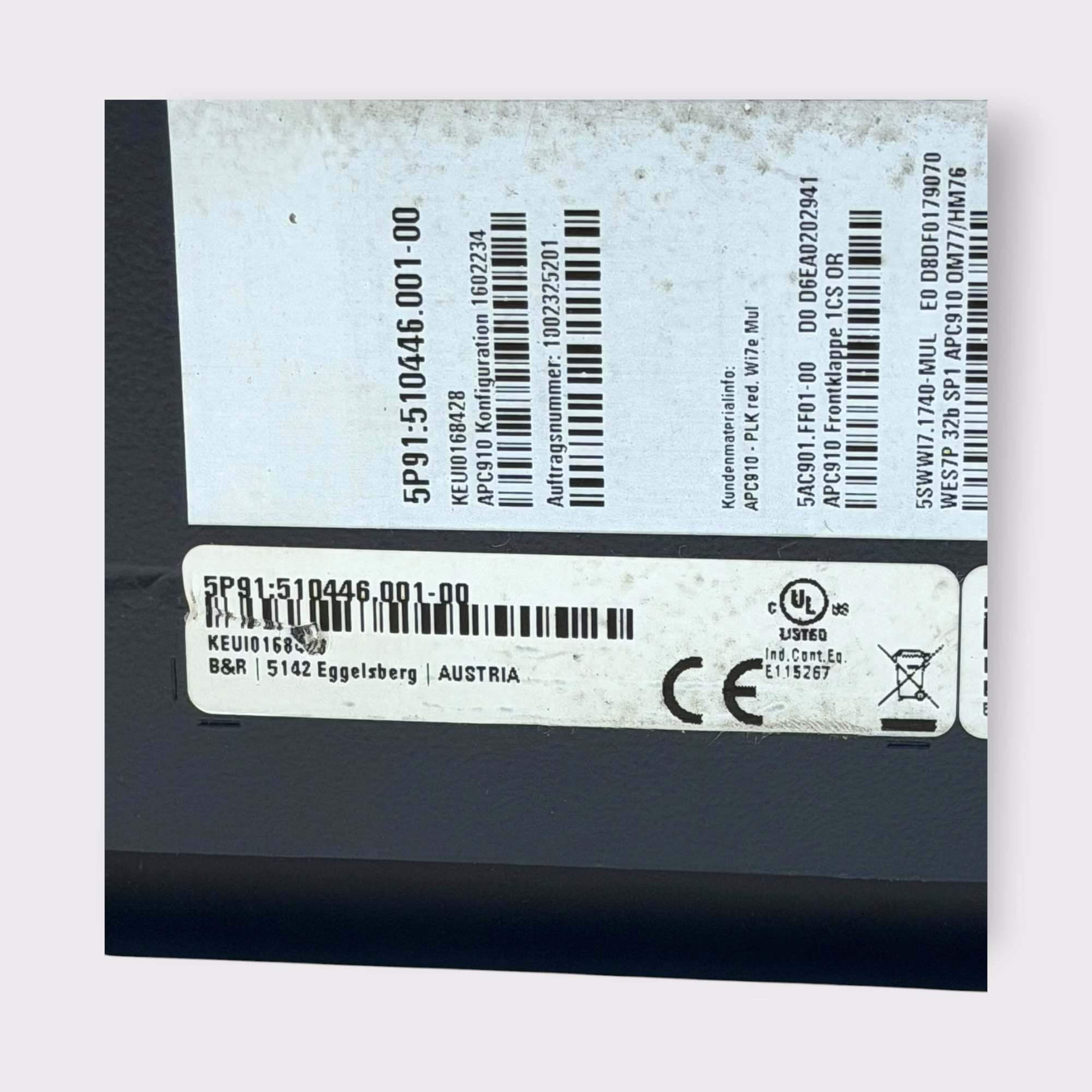

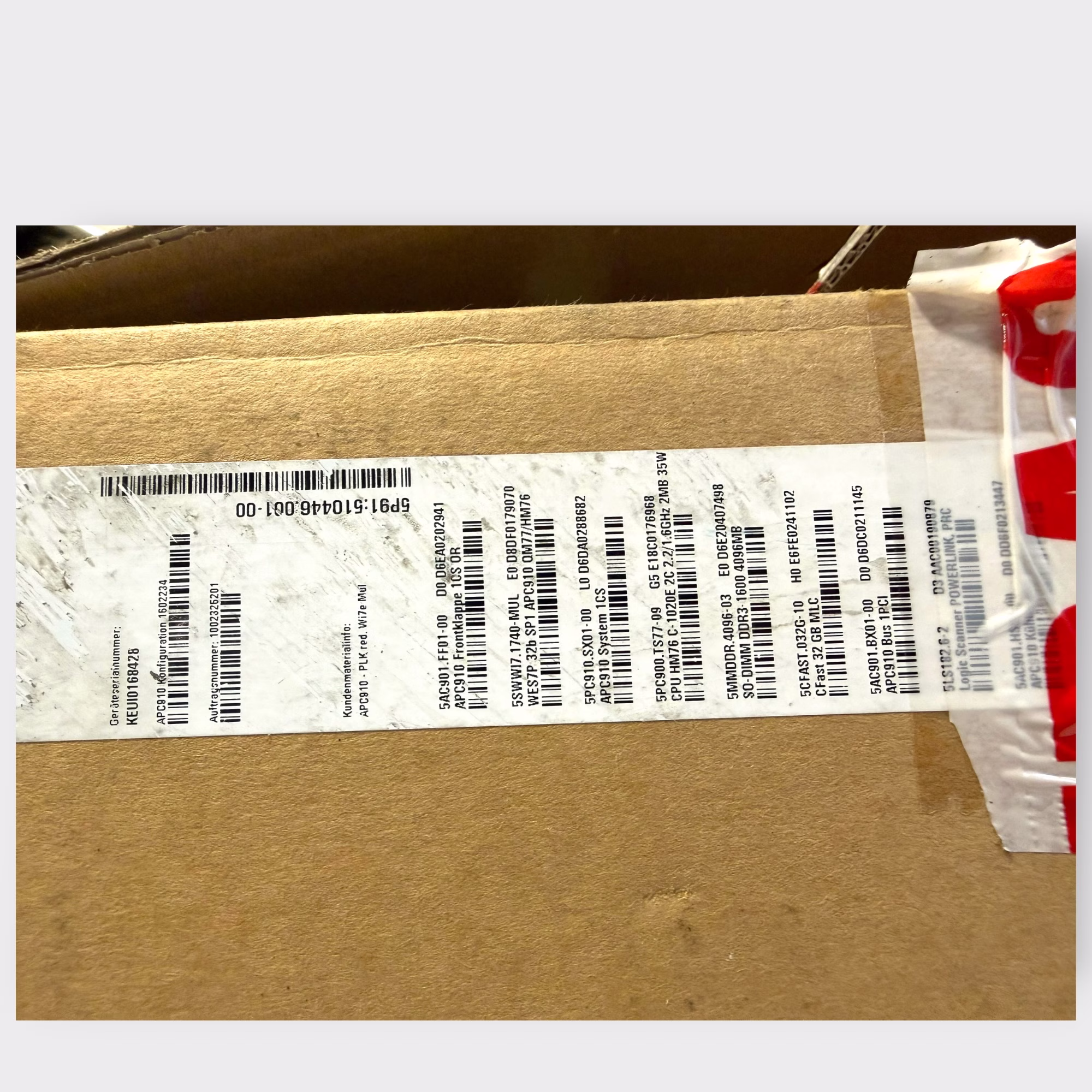

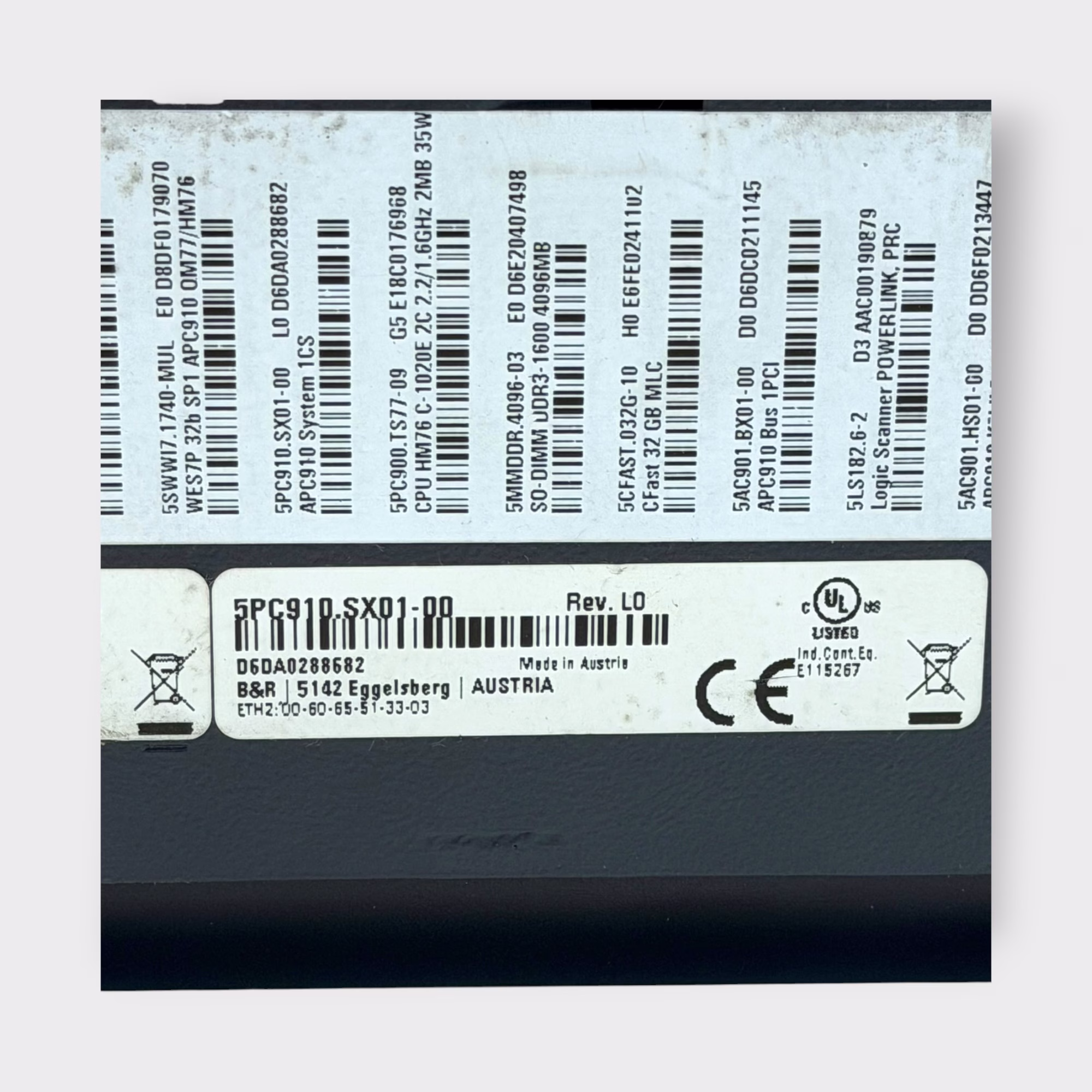

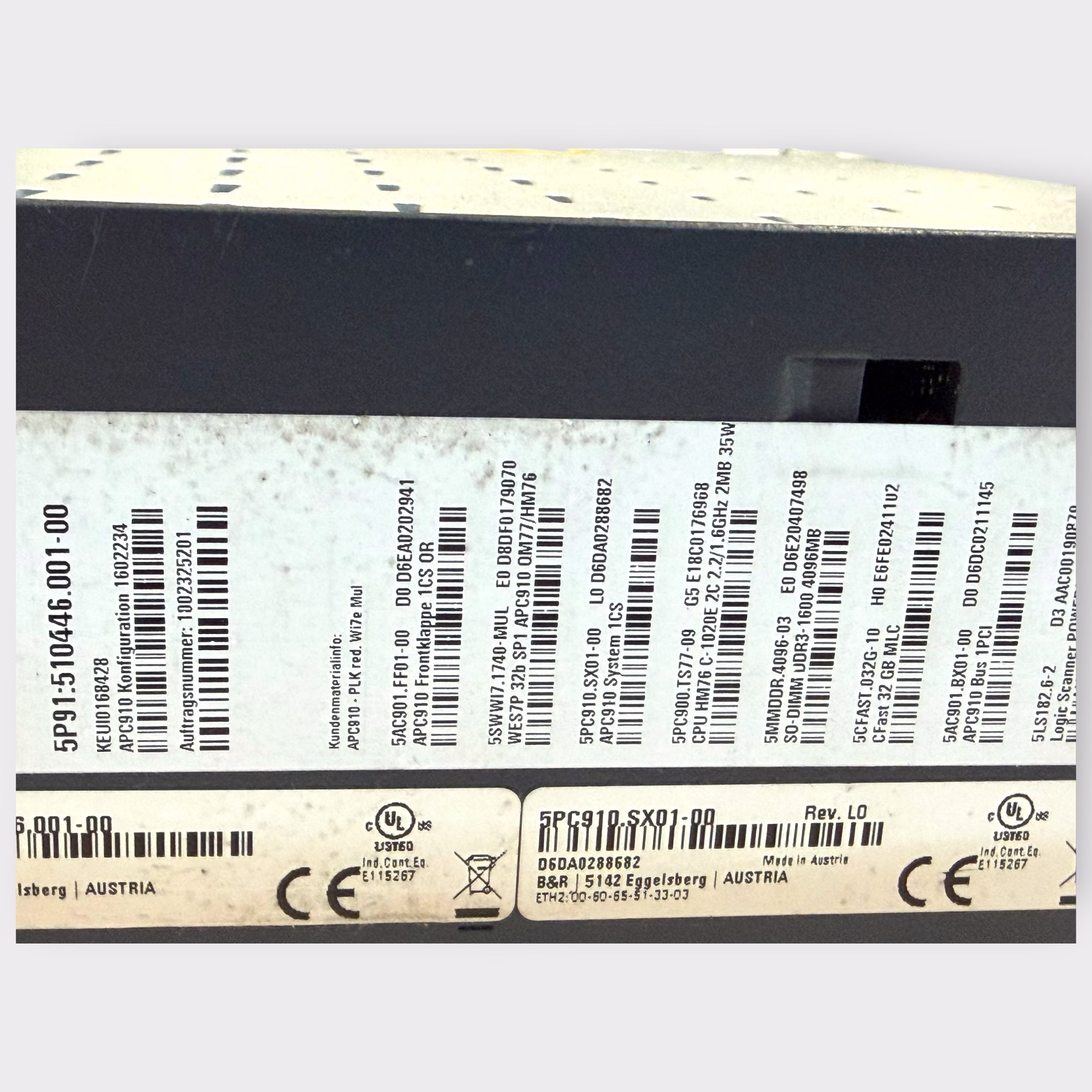

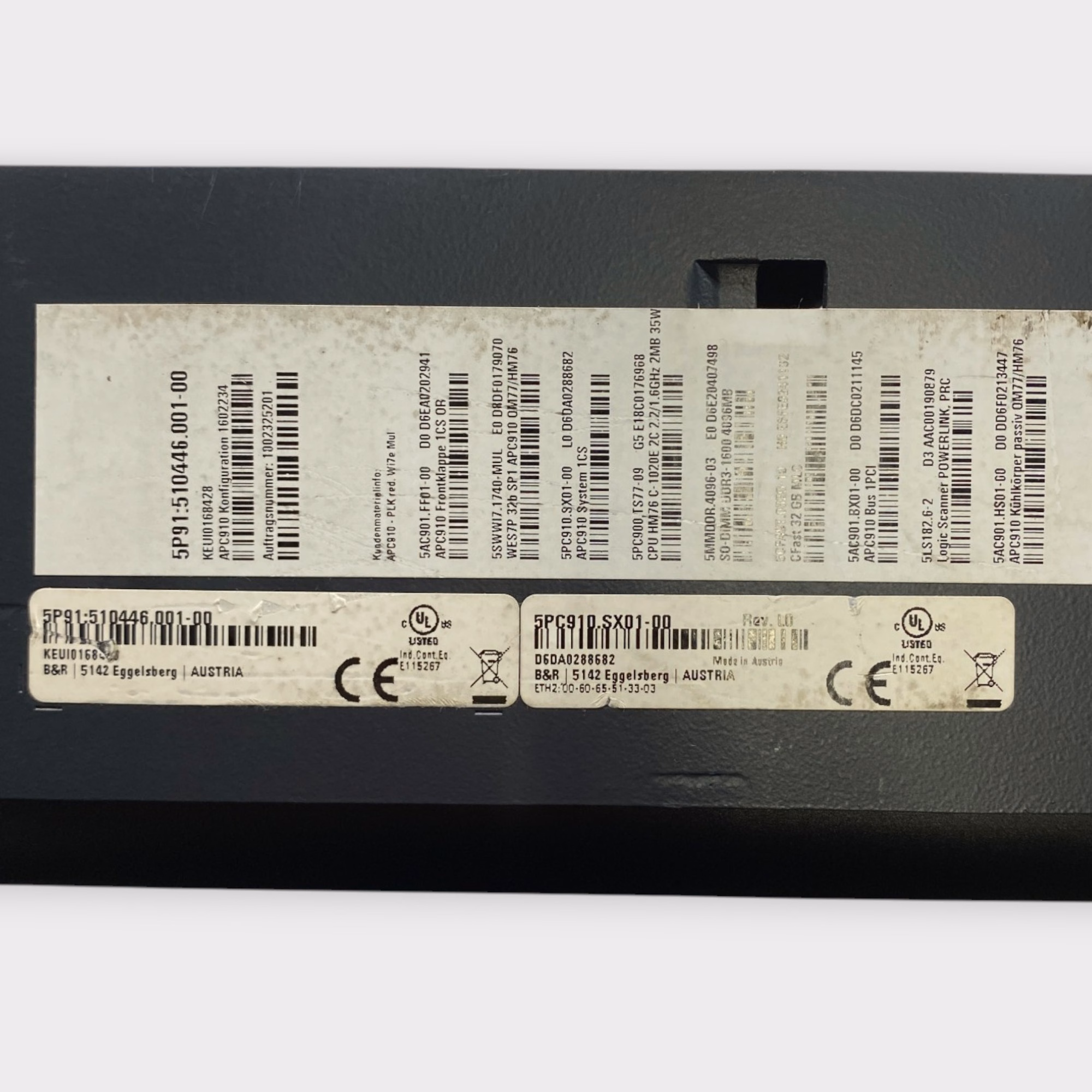

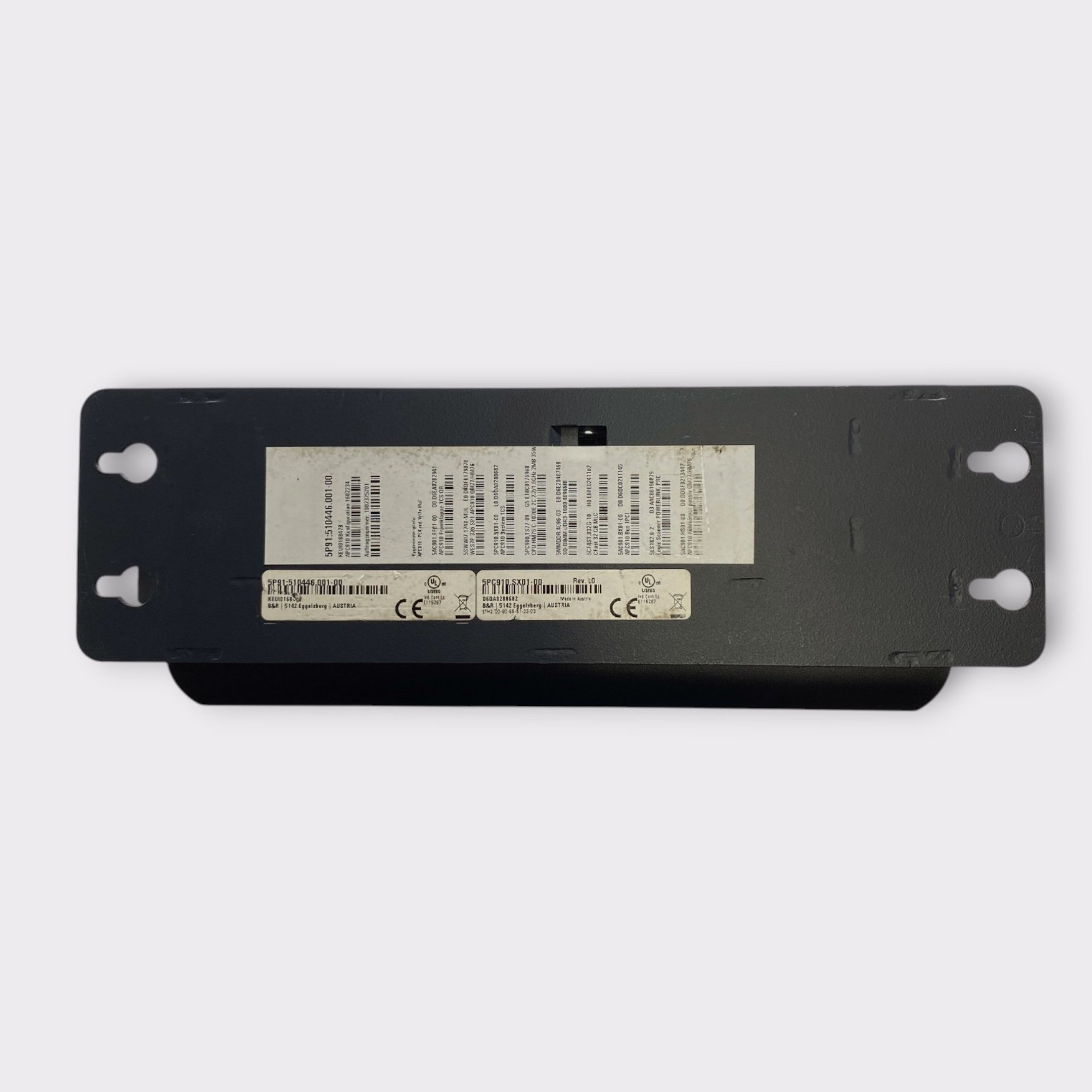

Label Writing

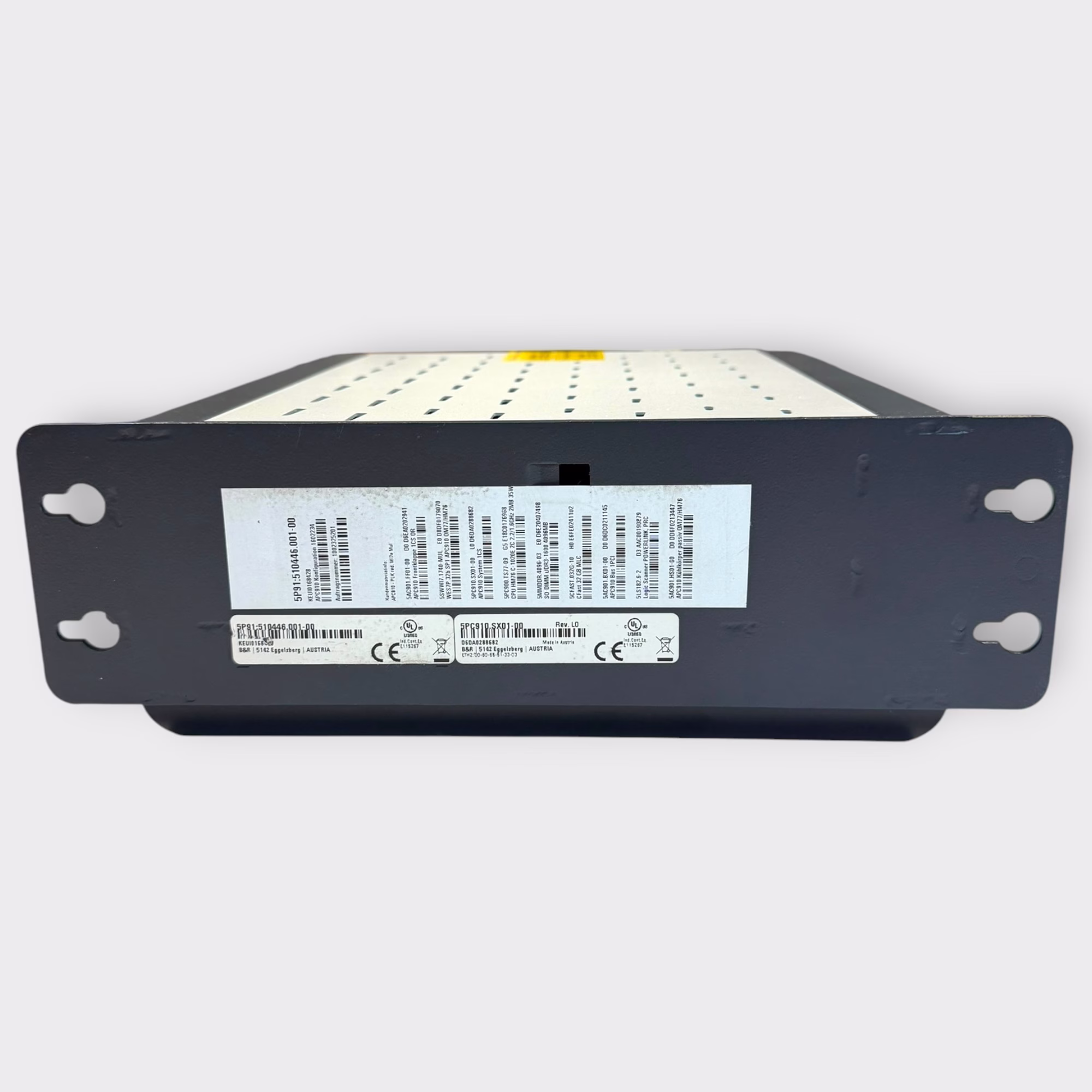

• 5P91:510446.001-00
  KEUI0168428
  APC910 Konfiguration 1602234
  Auftragsnummer: 1002325201
• Kundenmaterialinfo:
  APC910 - PLK red. Wi7e Mul
• 5AC901.FF01-00
  APC910 Frontklappe 1CS OR
• 5SWWI7.1740-MUL
  WES7P 32b SP1 APC910 QM77/HM76
• 5PC910.SX01-00
  APC910 System 1CS
  Rev. L0
• 5PC900.TS77-09
  CPU HM76 C-1020E 2C 2.2/1.6GHz 2MB 35W
• 5MMDDR.4096-03
  SO-DIMM DDR3-1600 4096MB
• 5CFAST.032G-10
  CFast 32 GB MLC
• 5AC901.BX01-00
  APC910 Bus 1PCI
• 5LS182.6-2
  Logic Scanner POWERLINK, PRC
• 5AC901.HS01-00
  APC910 Kühlkörper passiv QM77/HM76
