Description
Manufacturer: Bosch

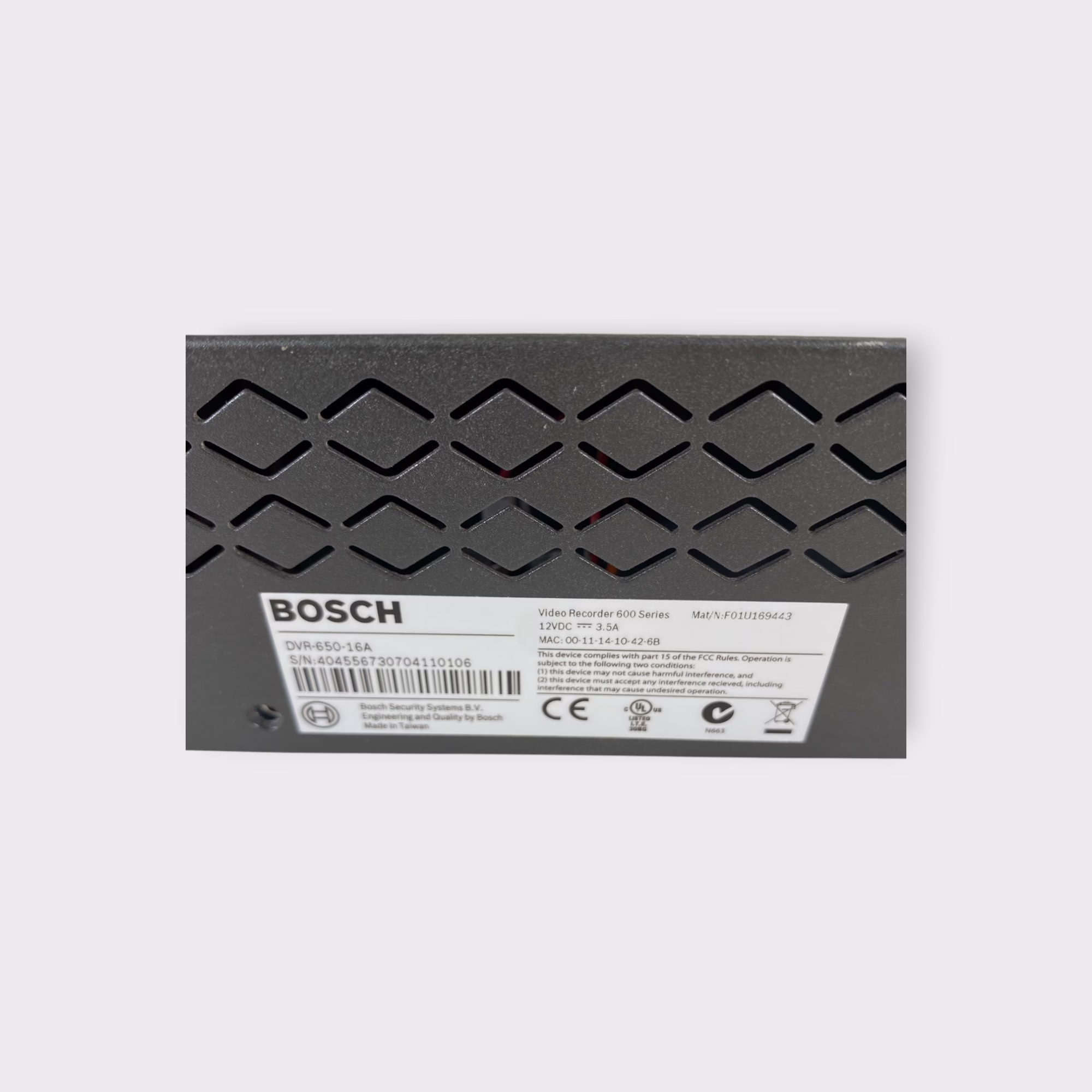

Model Number: DVR-650-16A
Series: 600 Series
Listed Item Condition: Used
Additional Notes: This DVD Recorder is being sold as USED and does not include the power supply.
It’s been tested with 12v leads to assure the unit is working order.

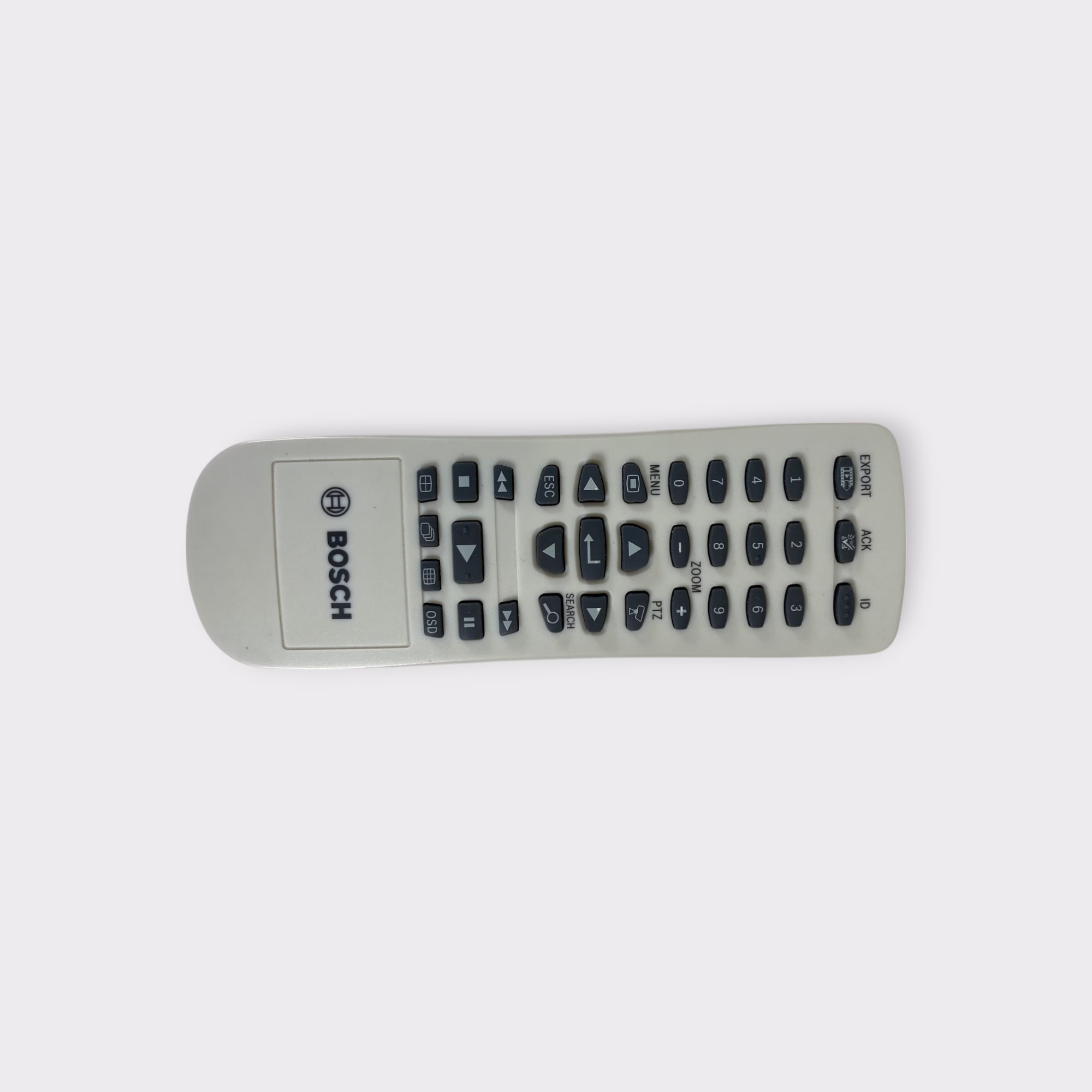

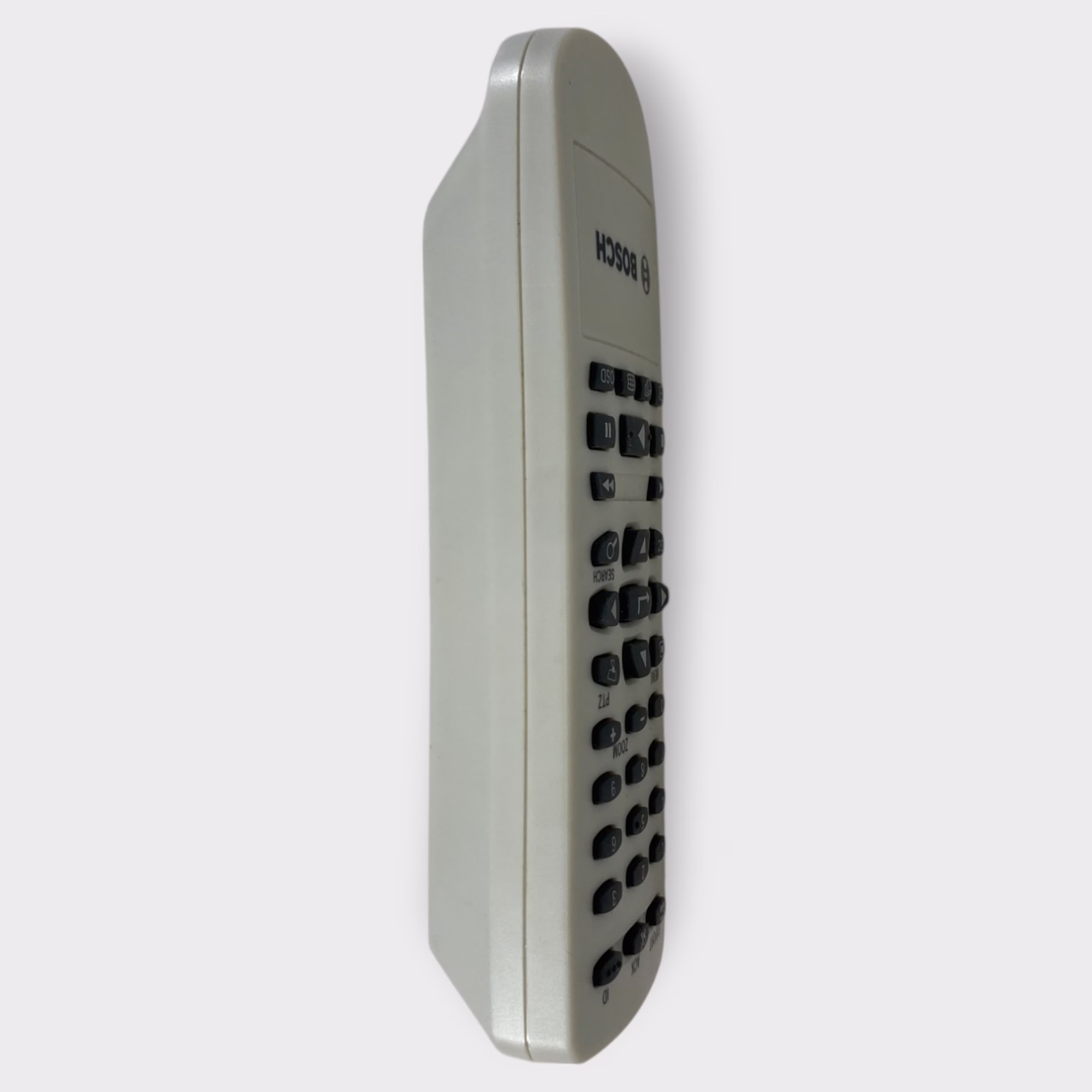

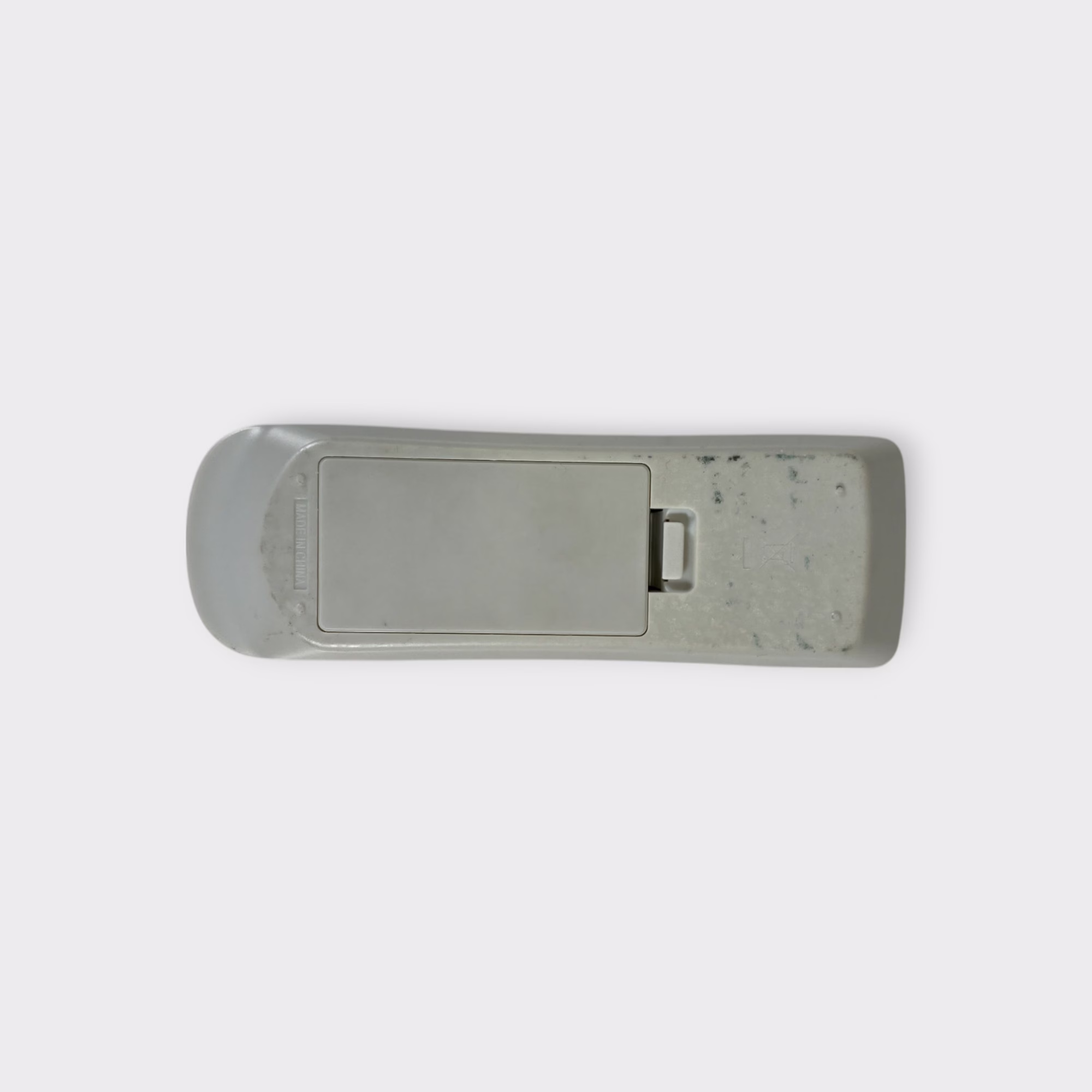

The original remote is included in this listing.

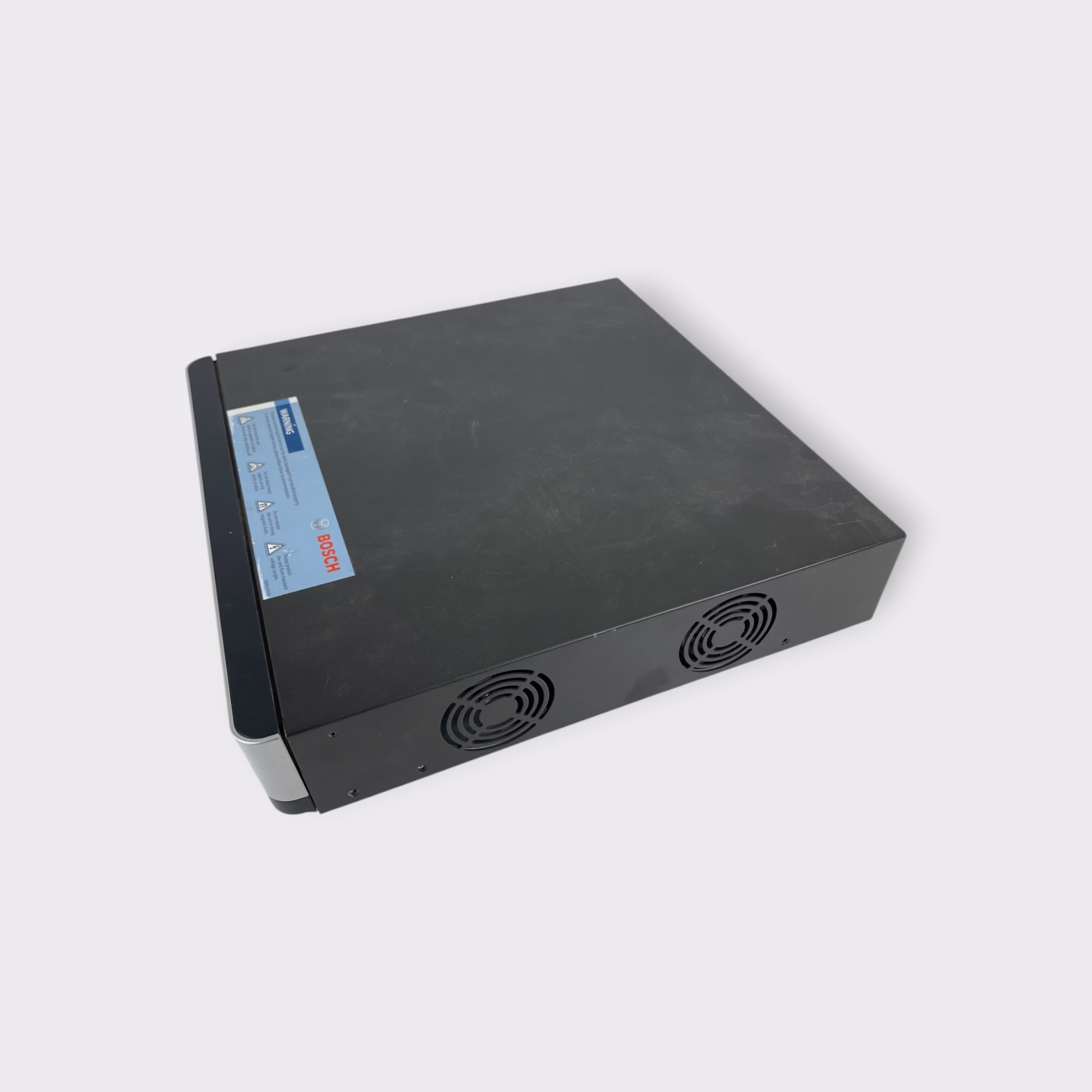

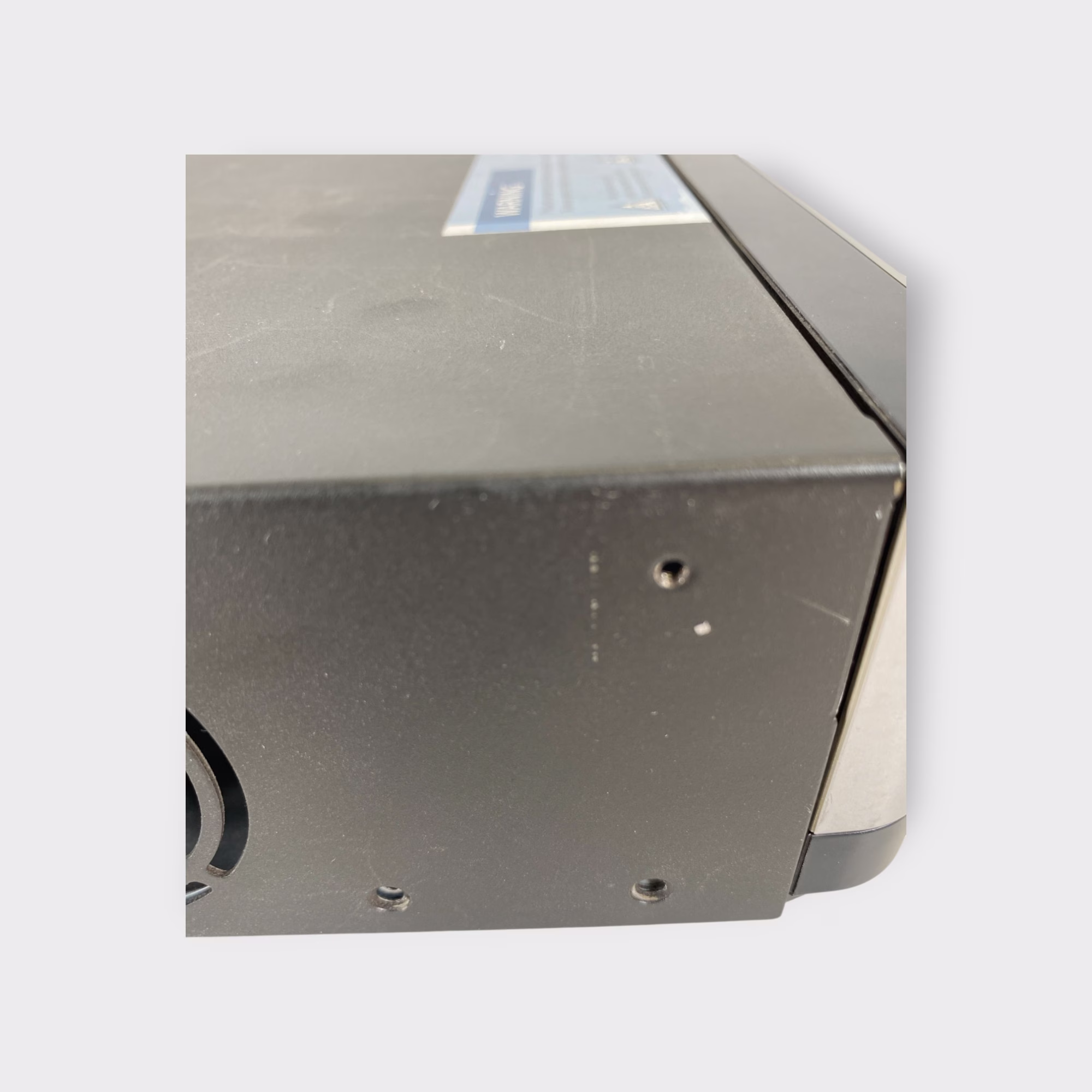

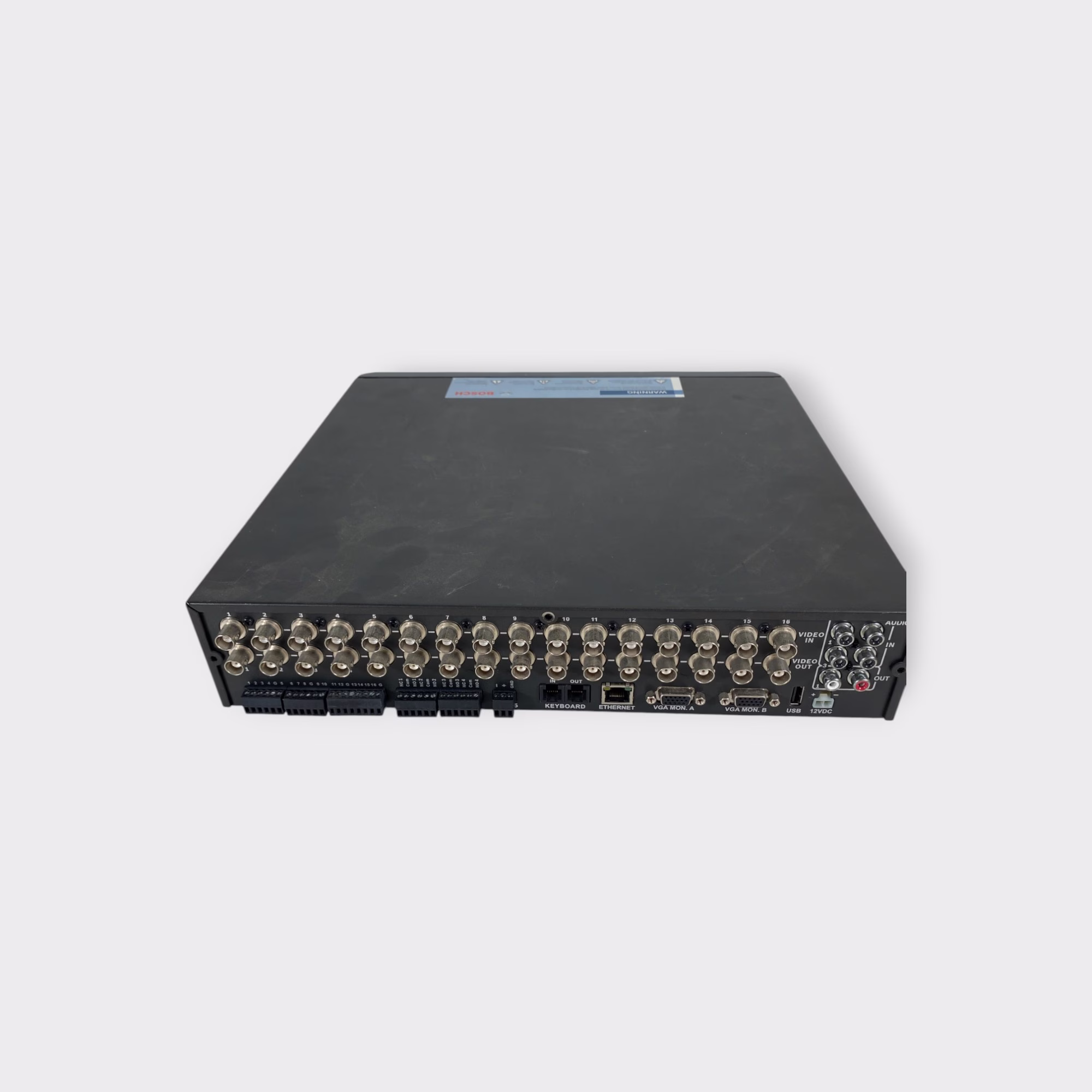

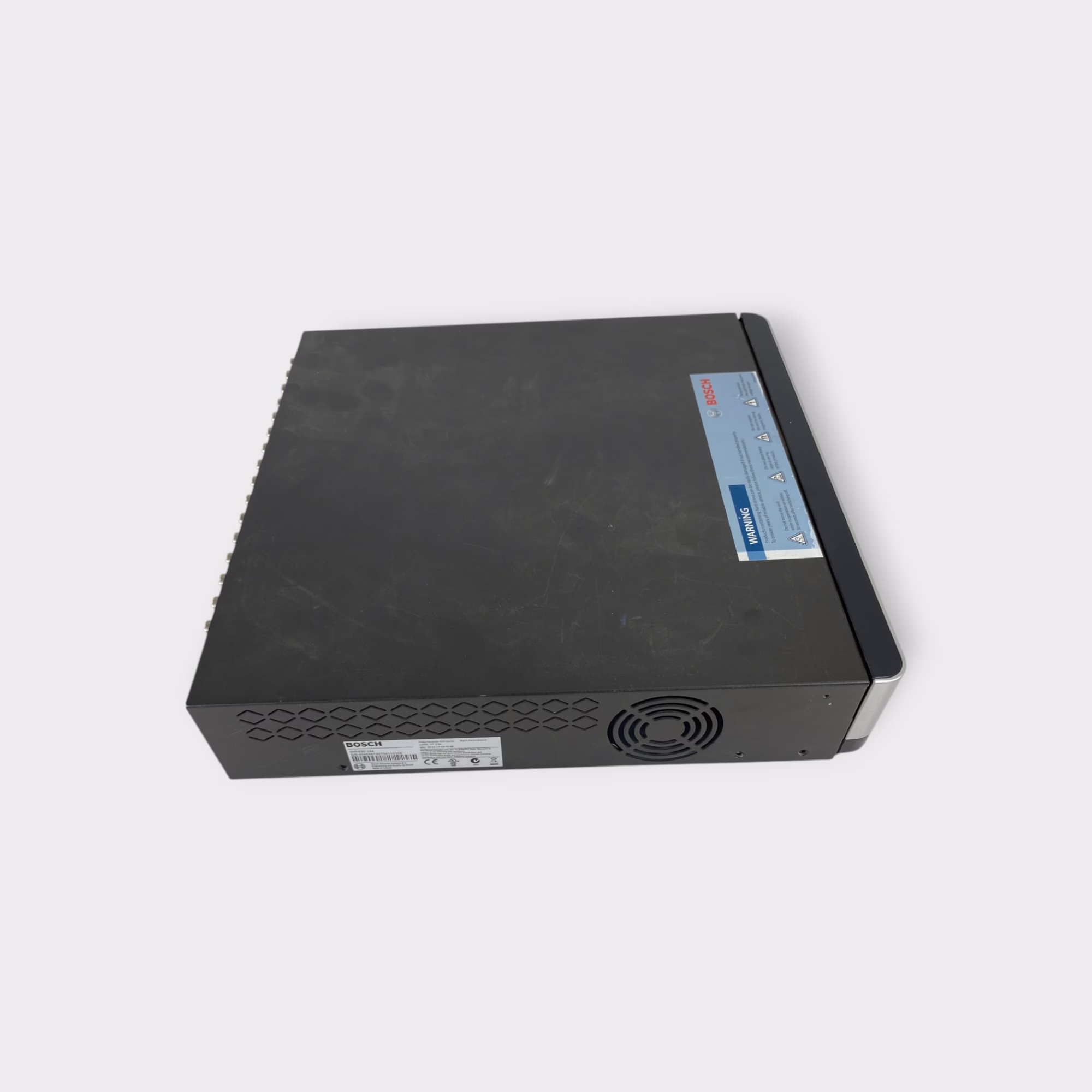

See photos for condition.
Features:
6-Channel real-time recording
Reduced storage and bandwidth requirements
Flexible viewing with two monitor outputs
Remote viewing, playback, control, and configuration
Live display for mobile devices
Faster information retrieval
Specs:
DVR Power input – 12 VDC; 3.5 A; 145 BTU/h
Inputs – Composite video 1 Vpp, 75 ohm, automatic termination; PAL / NTSC auto-detect
AGC – Automatic gain adjustment for each video input
Outputs – Monitor A: VGA RGB, Monitor B: VGA RGB
Live Resolution (SVGA) – 800×600 (4:3), 1024×768 (4:3) 1280×1024 (5:4) 1366×768 (16:9) 1440×900 (16:10)
Digital Zoom – 2 times
Streaming video – H.264 compression
Audio Input / Output – Mono RCA, 1.0 Vpp
Compression – ADPCM
Sample rate – 16 kHz per channel
Bit rate – 8-bit
Alarm Inputs – 8 or 16 inputs configurable NO/NC, max. input voltage 15 VDC
Alarm Outputs – 4 Relay outputs, configurable NO/NC, max. rated 30 VAC, 40 VDC 0.5 A continuous or 10 VA
RS485 – Output signals according to RS485, max. signal voltage -8 to +12 V
Hard Disks – 2 SATA hard drive maximum 2TB each

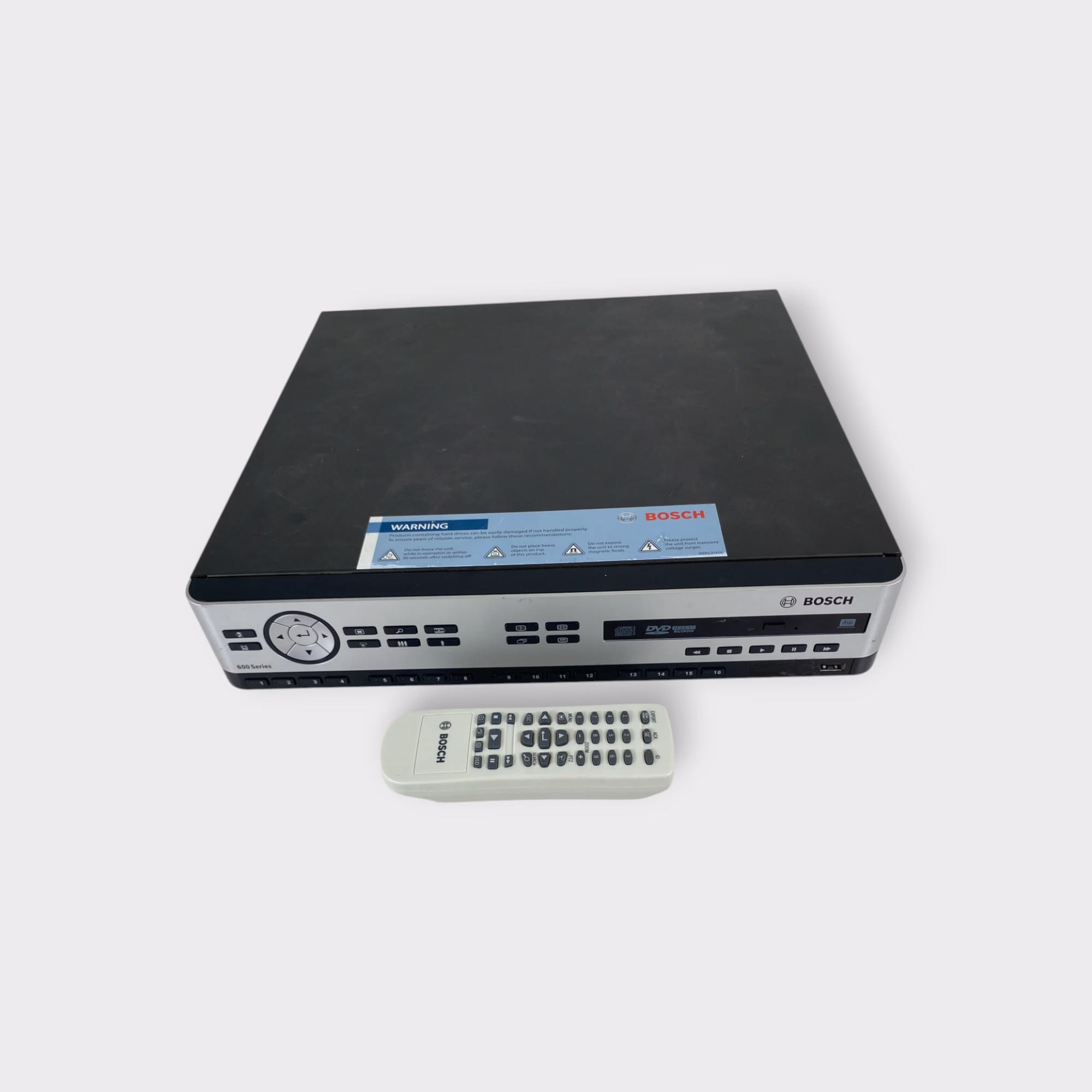

What’s Included:
- Bosch DVR-650
- Remote
Dimensions (L x W x H): 14 x 14 x 4 in, Weight: 10 lbs
Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.
Return Info: 30-Day Returns
Warranty Info: 90-Day Warranty
