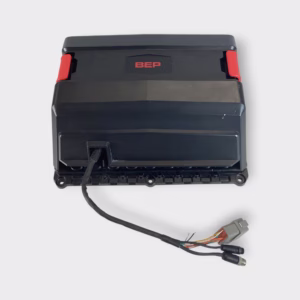

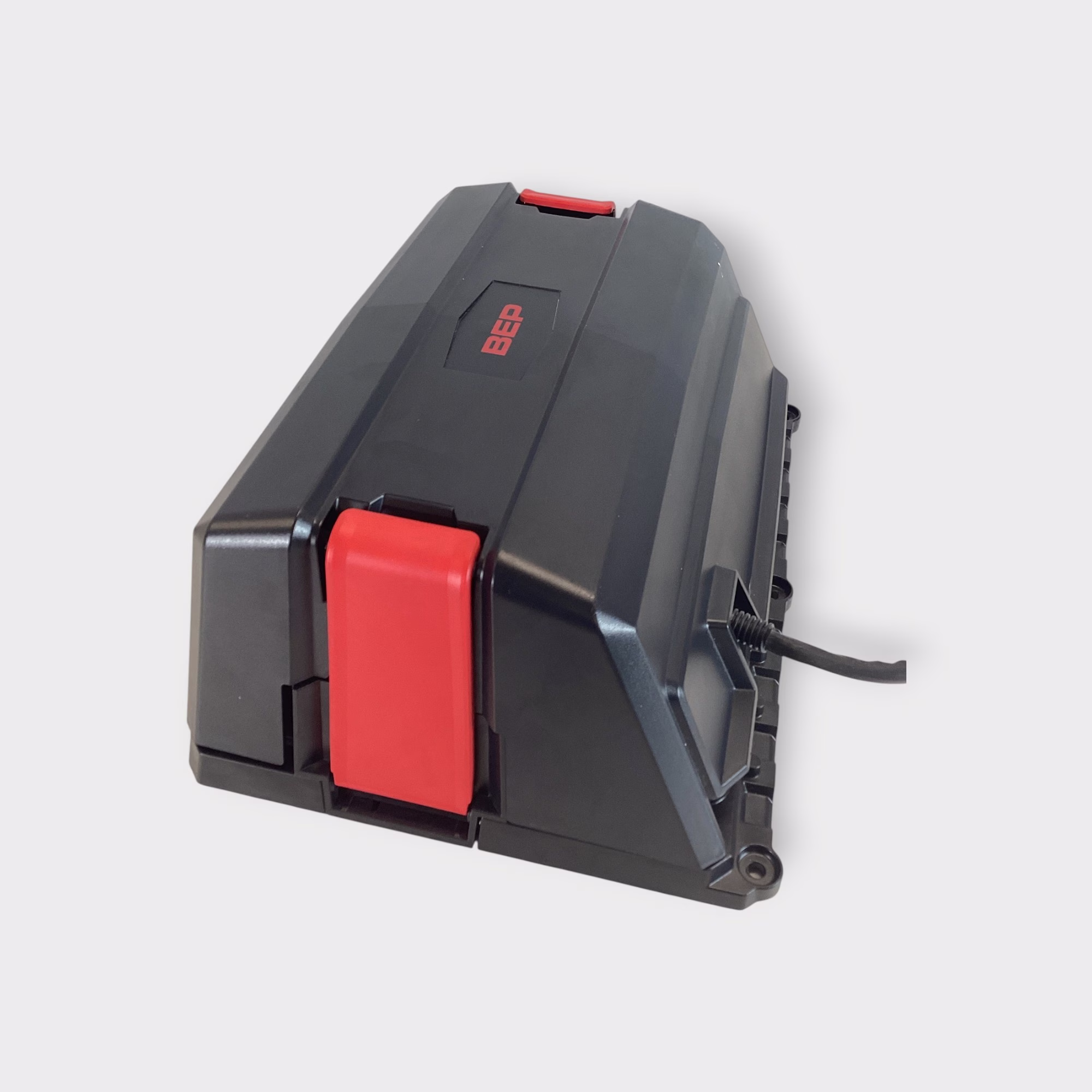

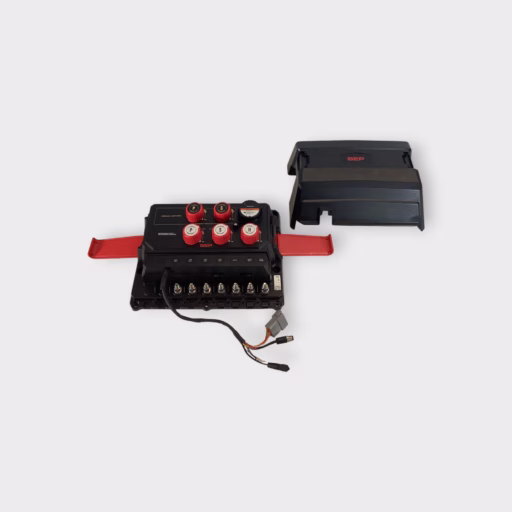

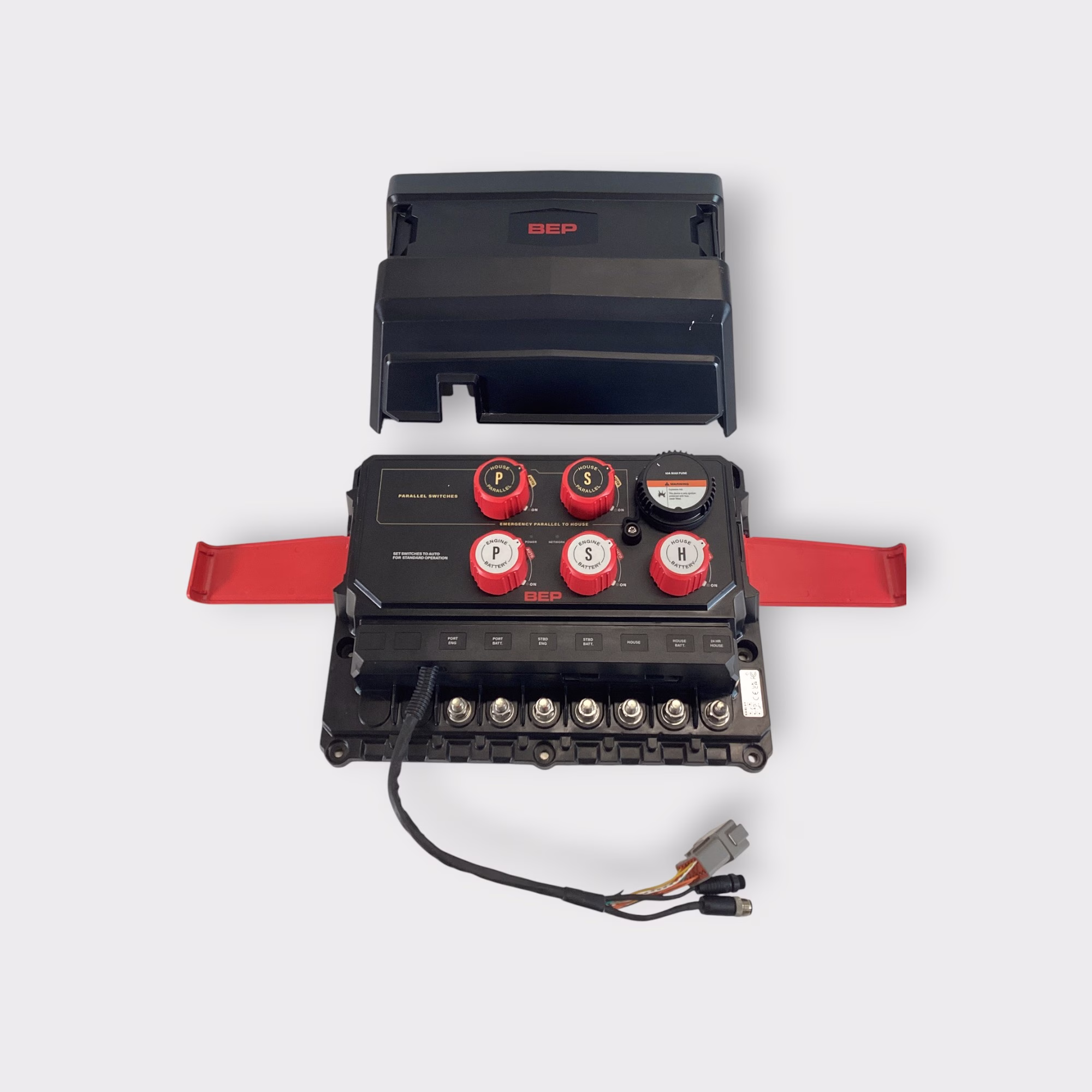

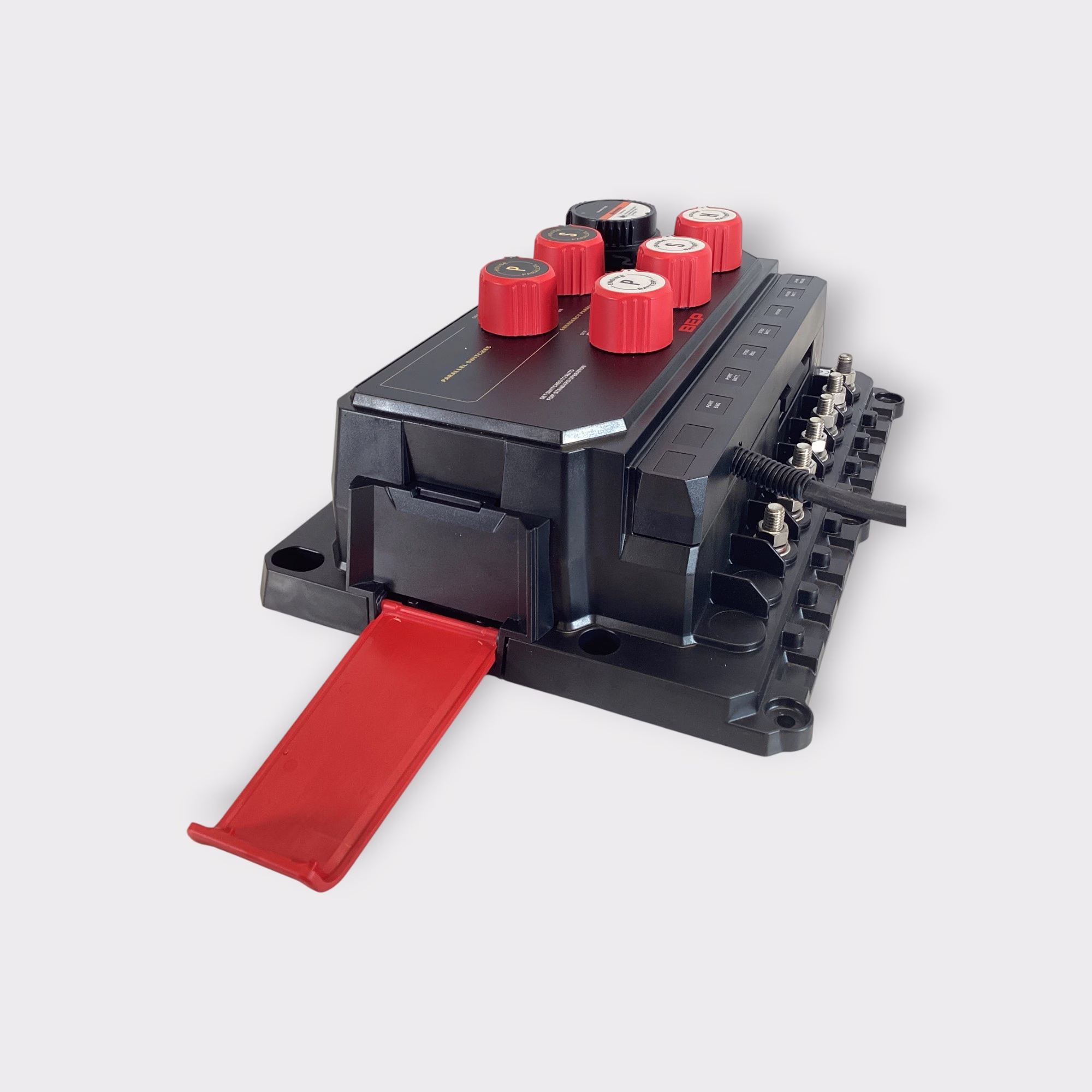

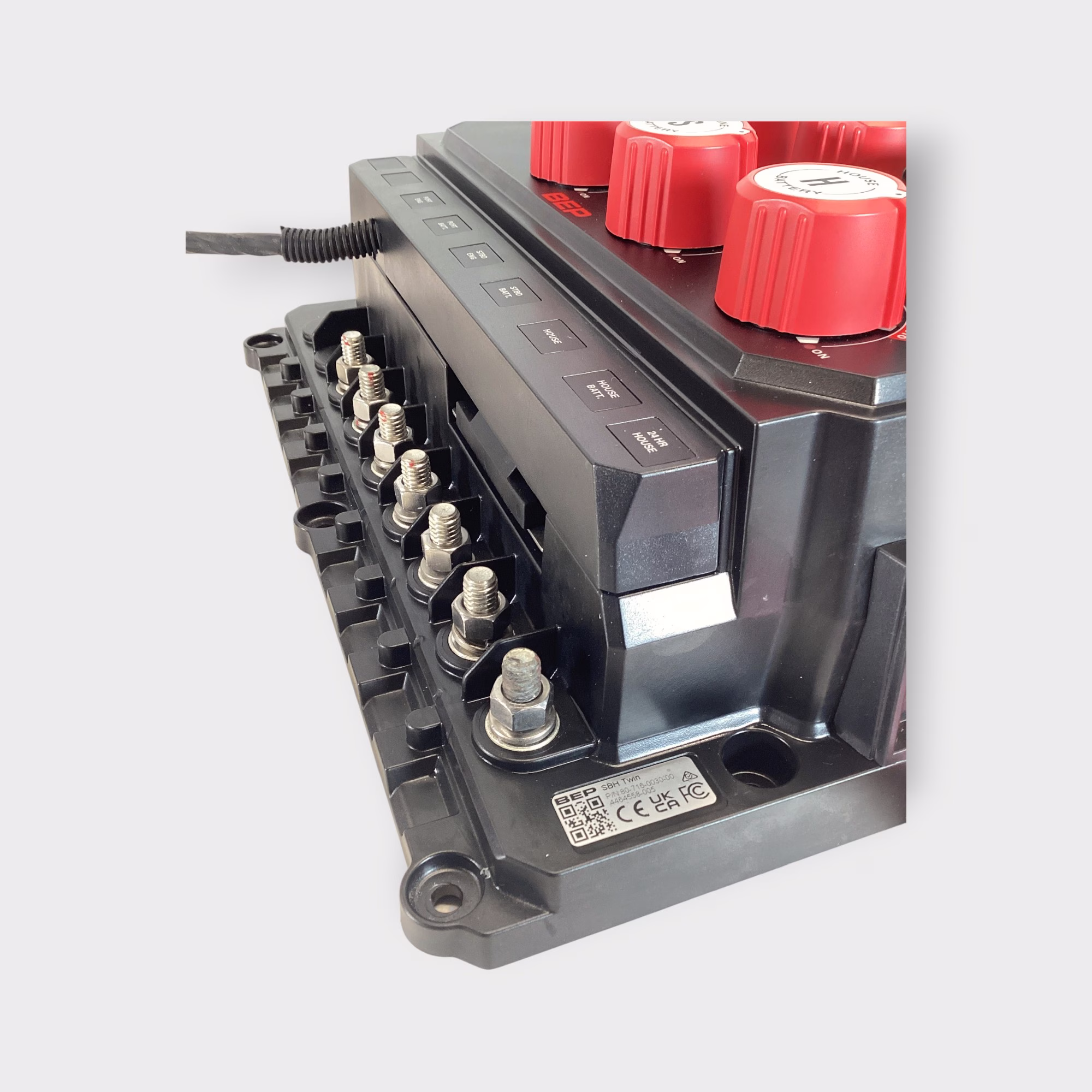

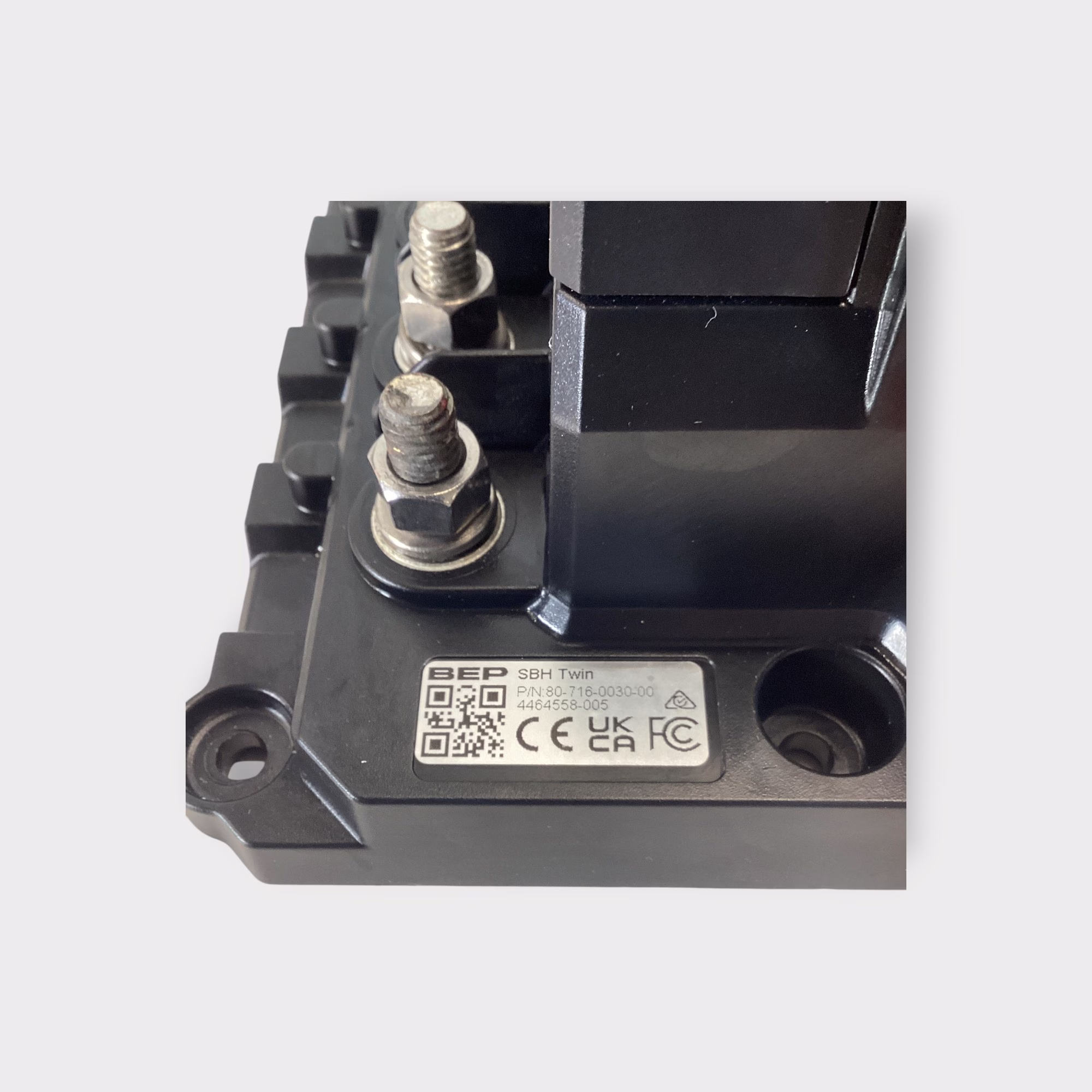

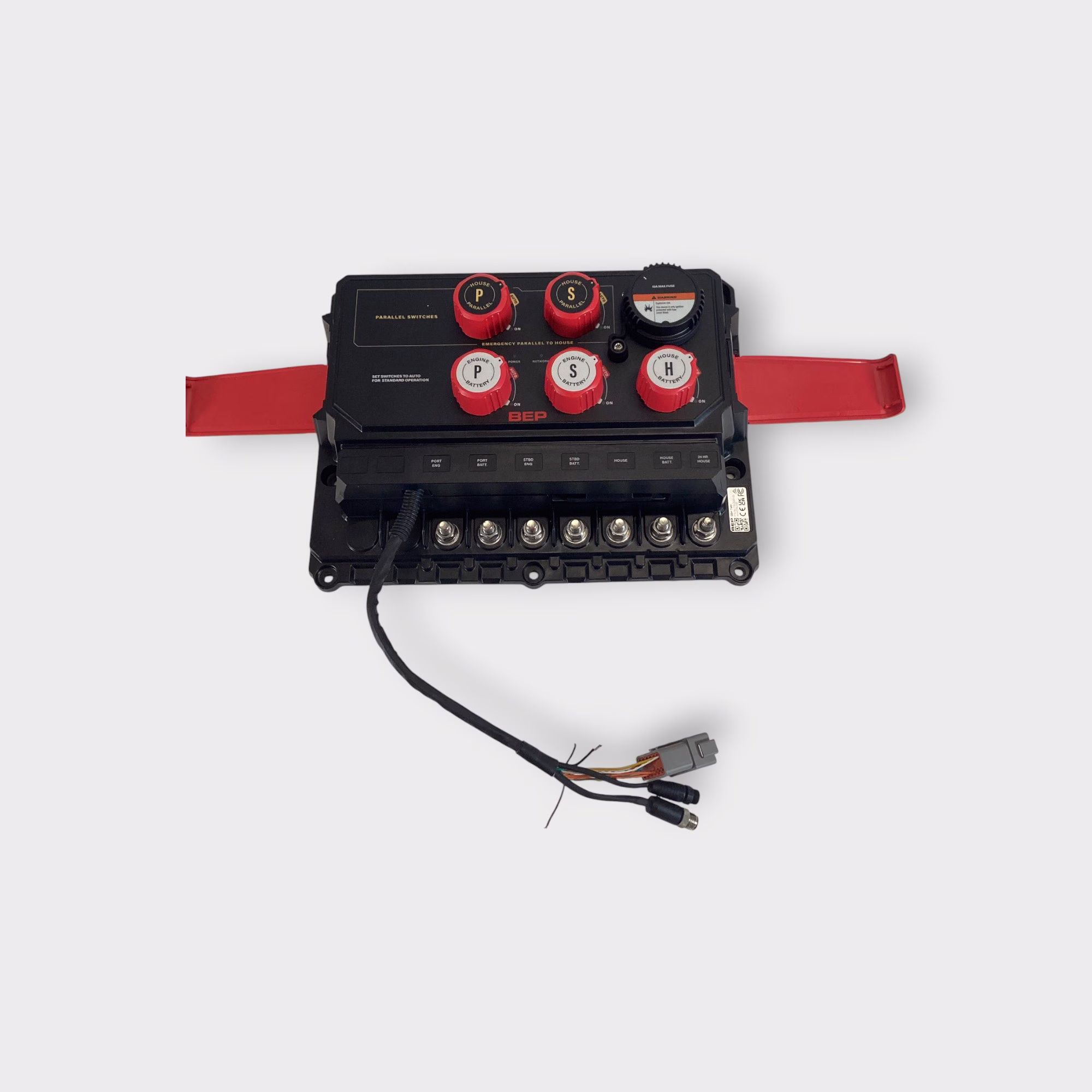

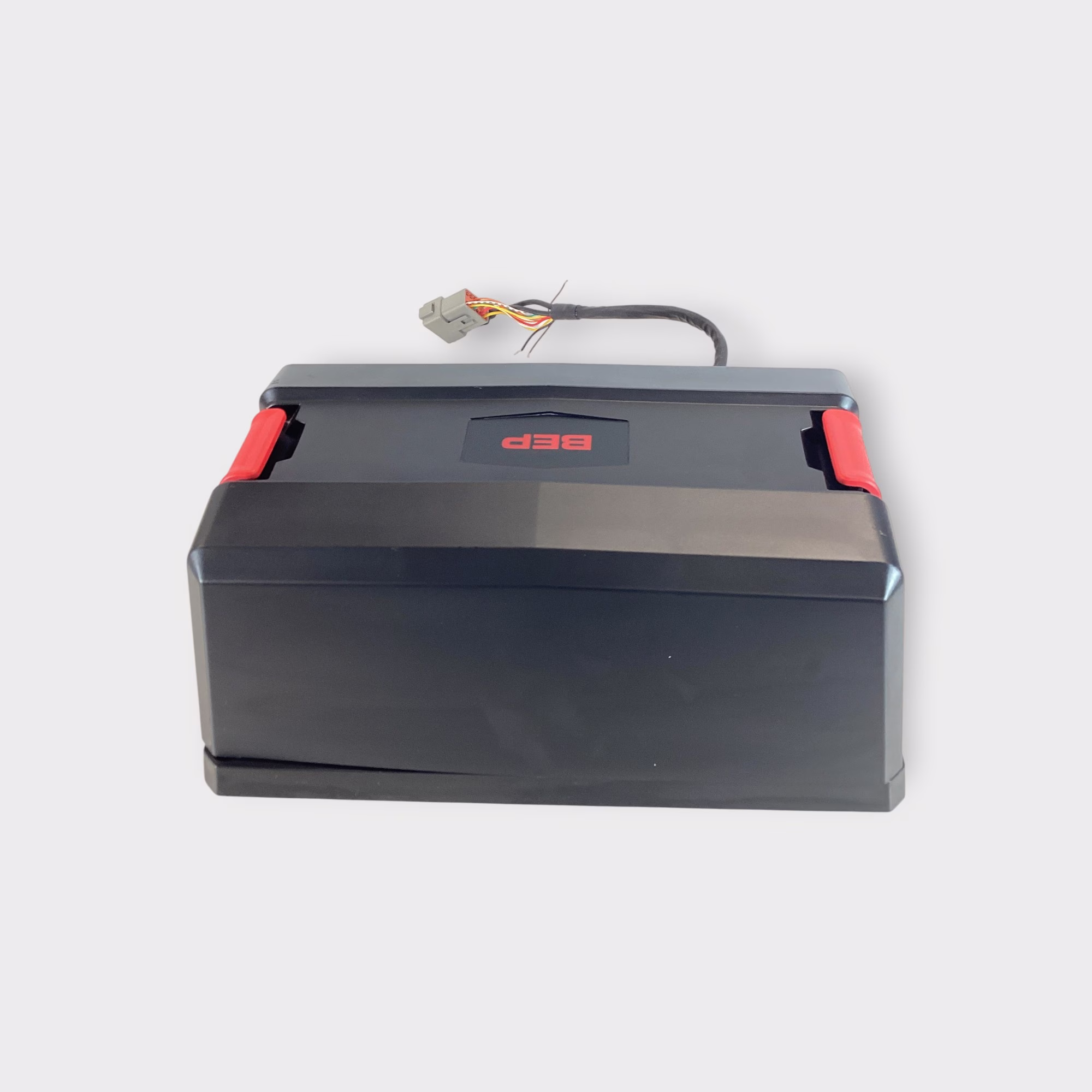

This is a used BEP twin engine SBH. This unit is used and is excellent condition with some very minor signs of use.

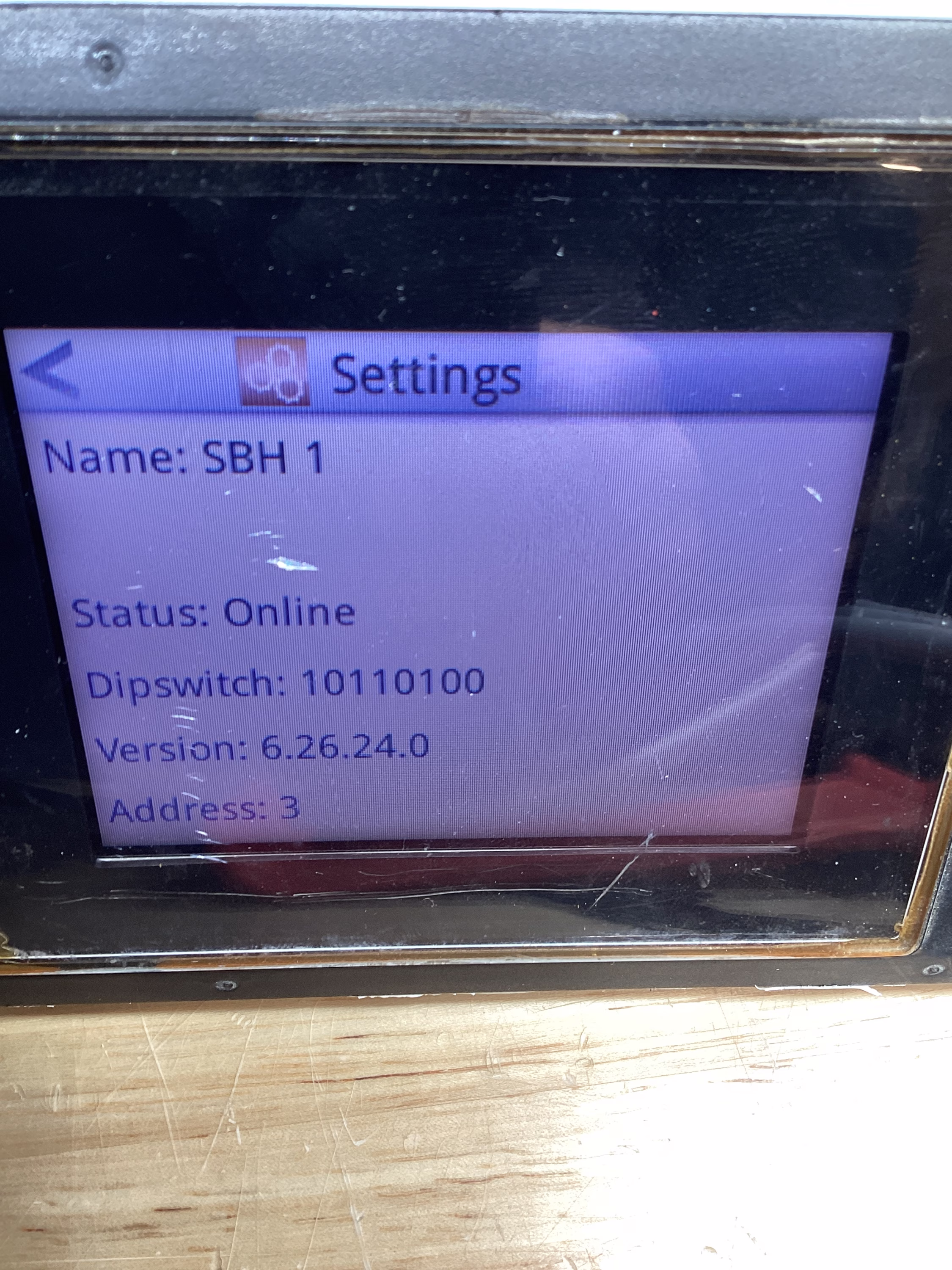

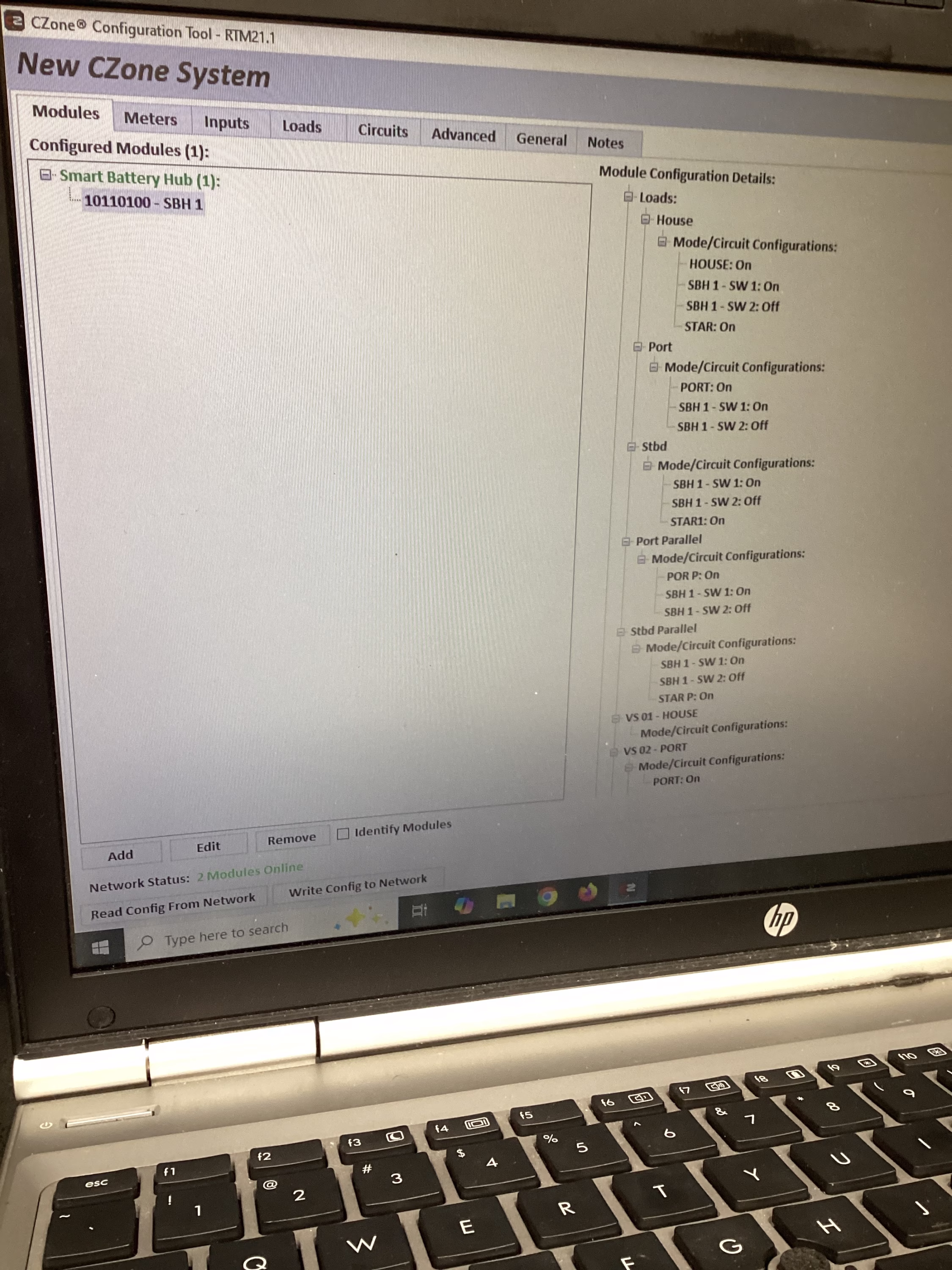

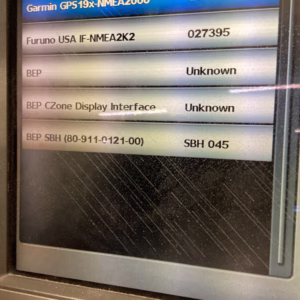

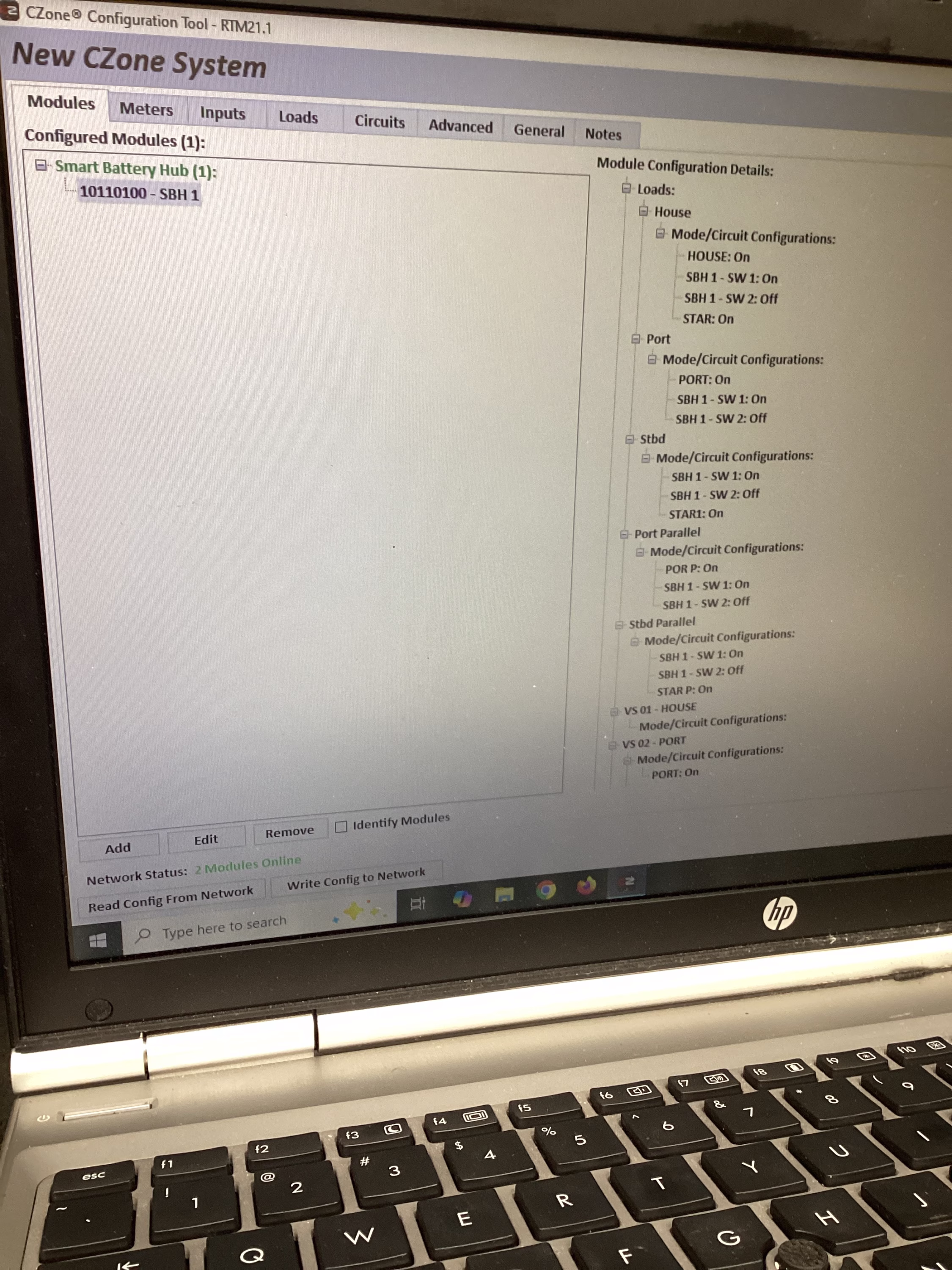

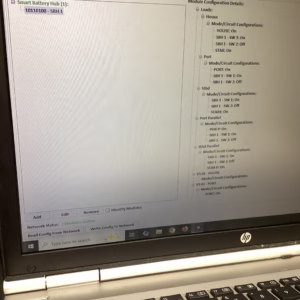

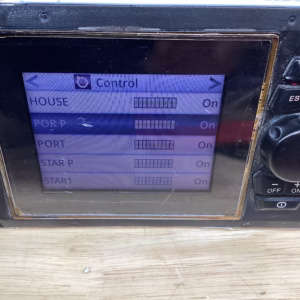

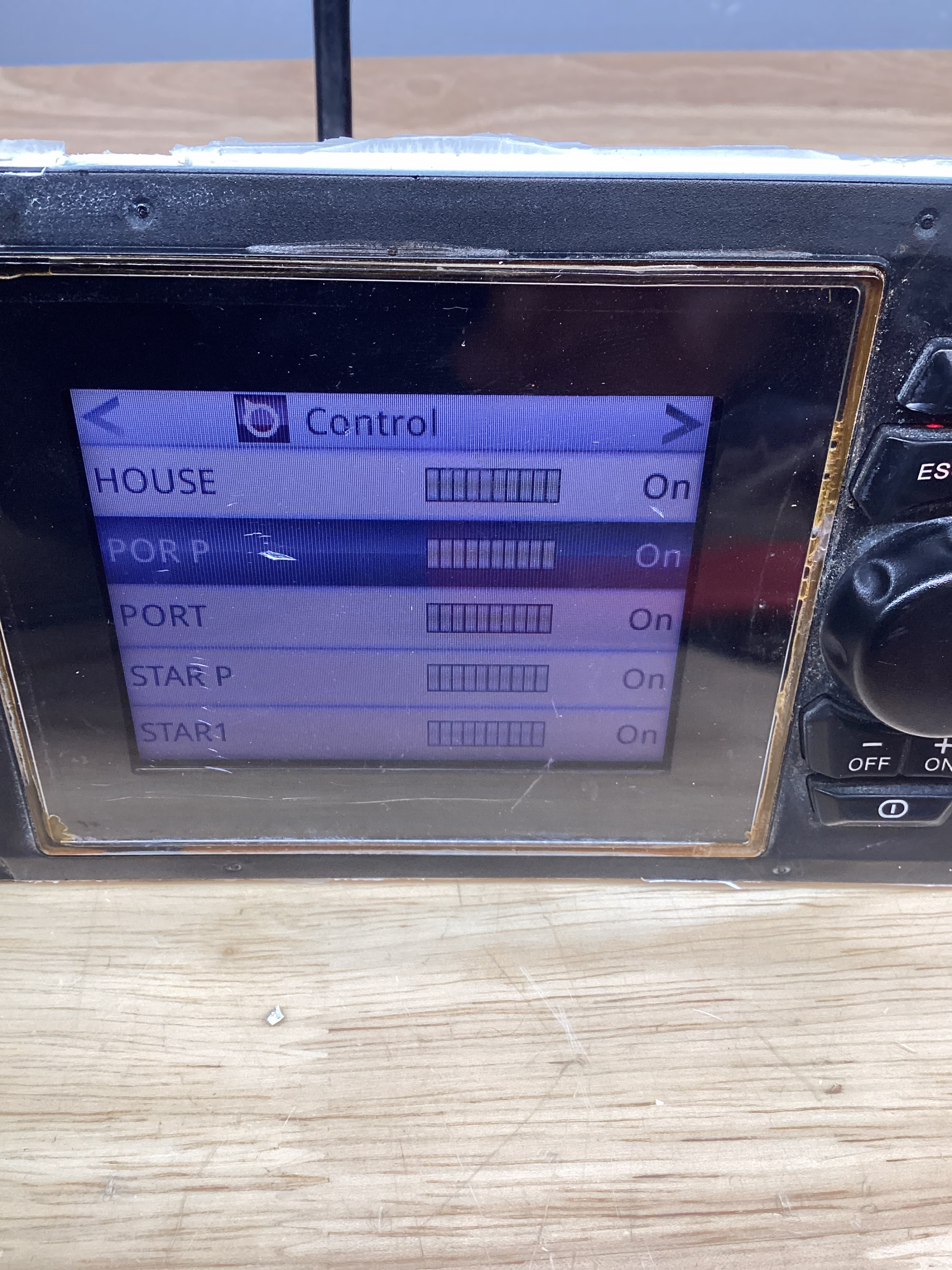

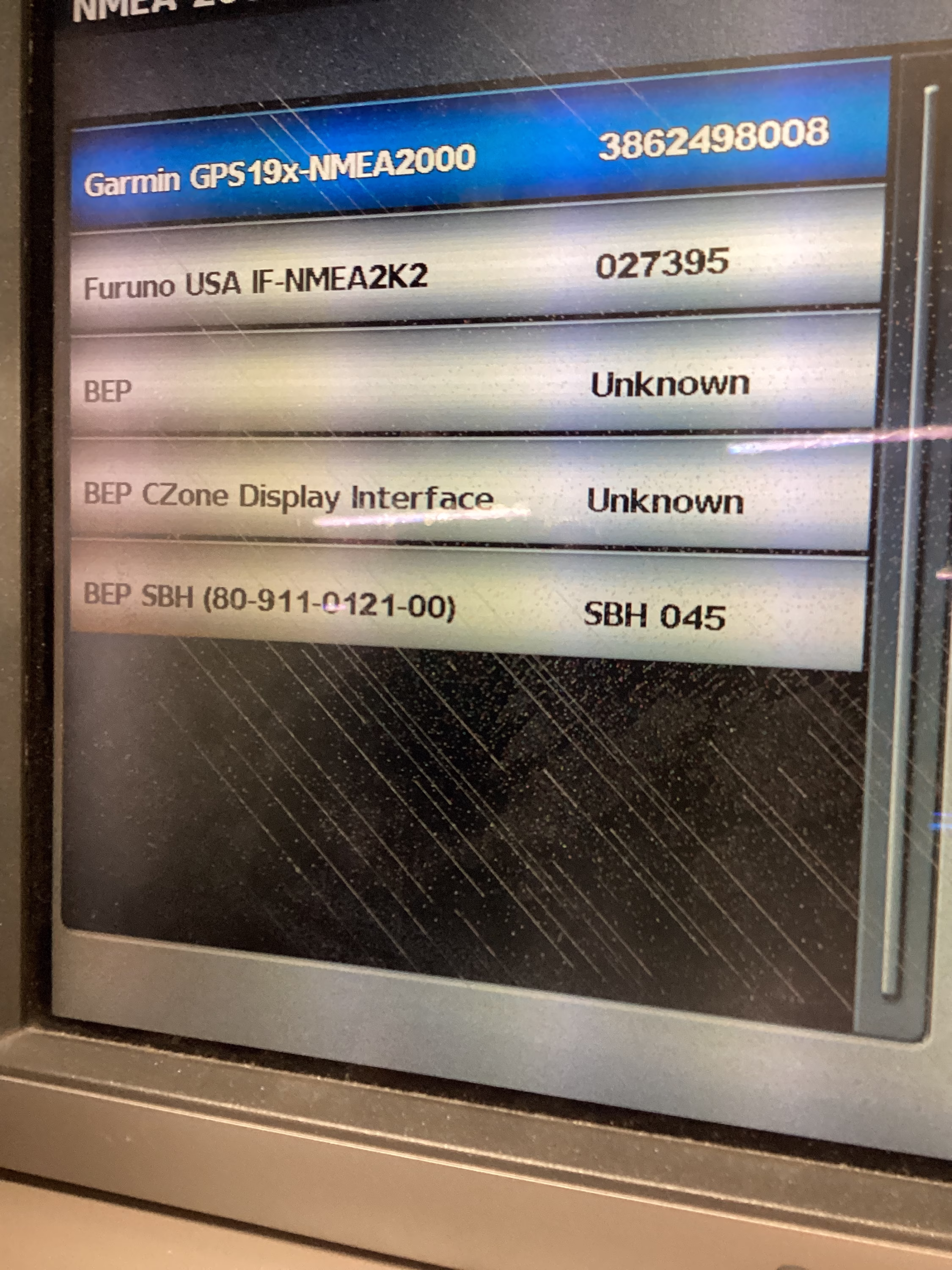

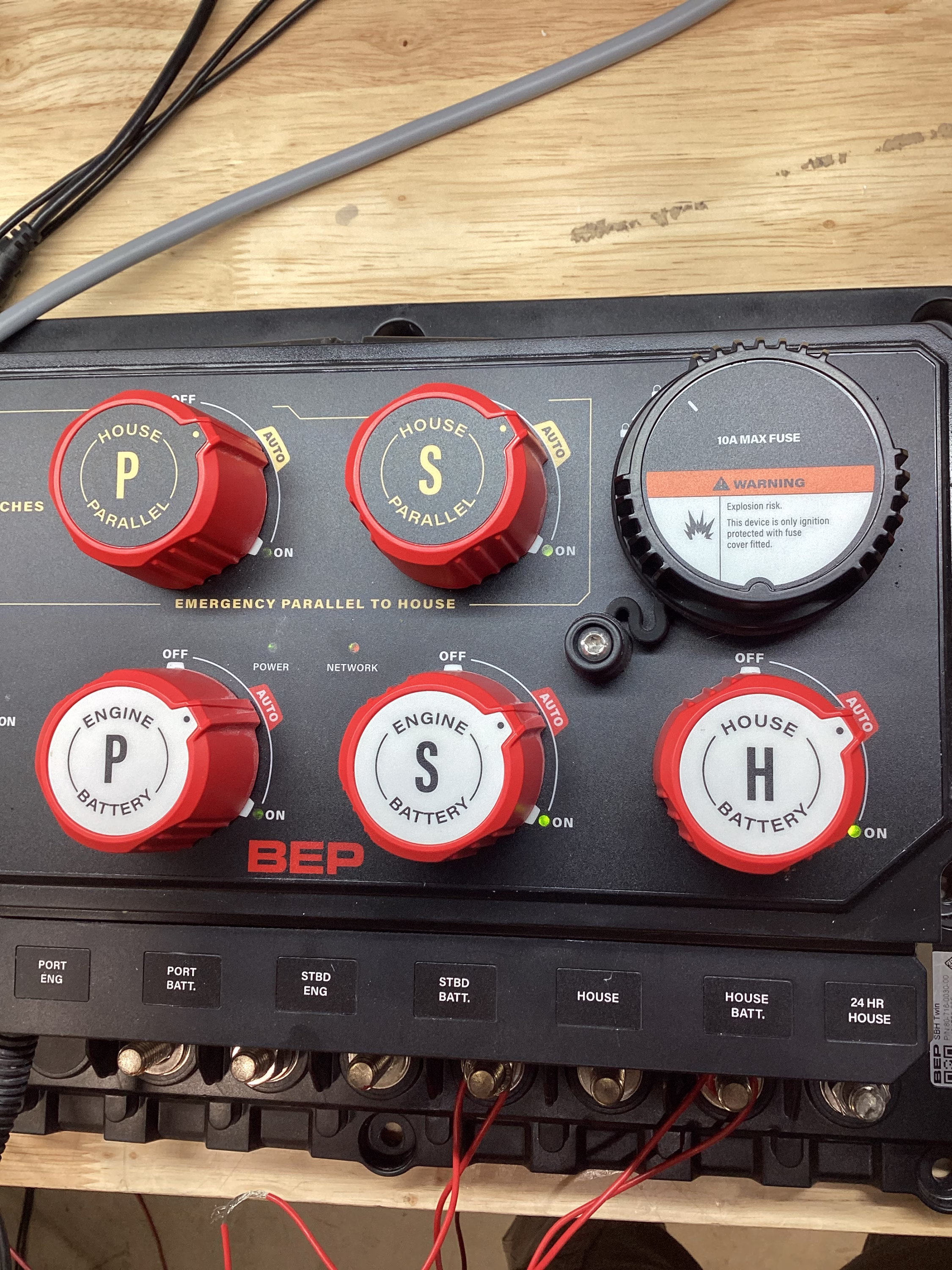

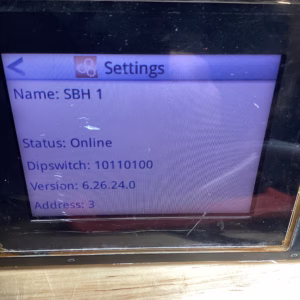

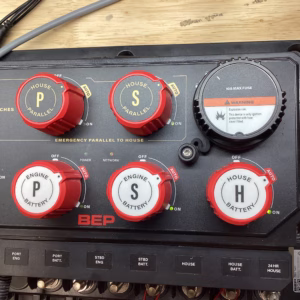

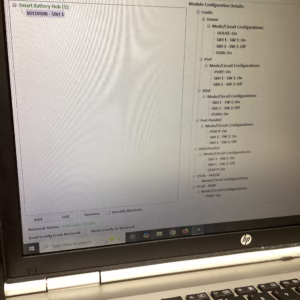

We were able to read & write a configuration file and proved proper functionality. We tested this unit and confirmed that all switches operate via the N2K network, as well as the master over ride switches (and manual-psychical).

This unit MUST BE PROGRAMMED prior to installation. It requires a special CZONE CAN adaptor and the CZONE configuration program in order to do so.
We highly recommend that you hire a qualified professional for this installation.
This unit does not come with any of the accessories- this is the BEP module only.

This would be a nice upgrade for someone that has an existing CZONE switching network.

PER the Manufacture:

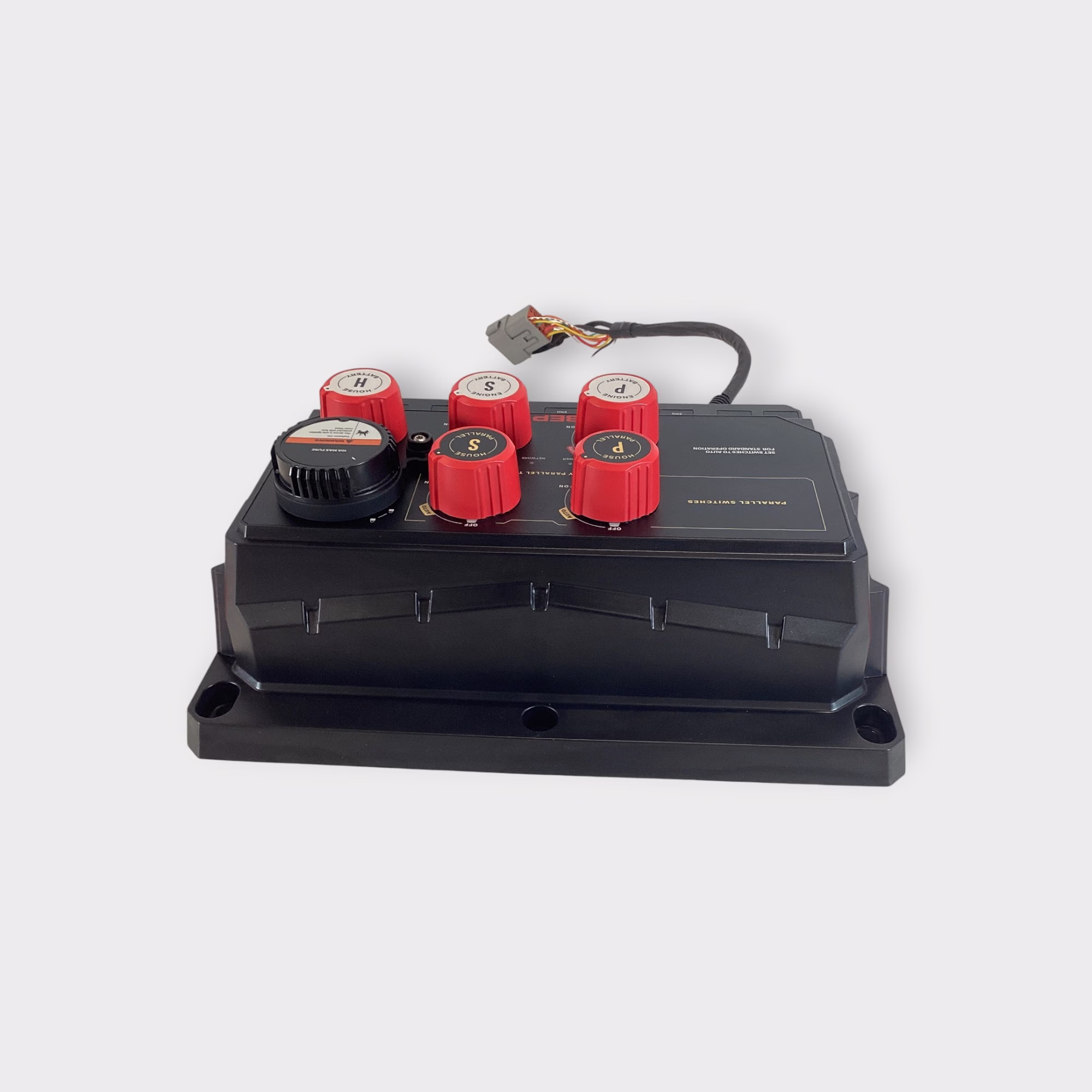

BEP’s innovative Smart Battery Hub (SBH) is a world-first intelligent battery management system for vessels running two or more outboards, sterndrives, or multiple inboard engines.

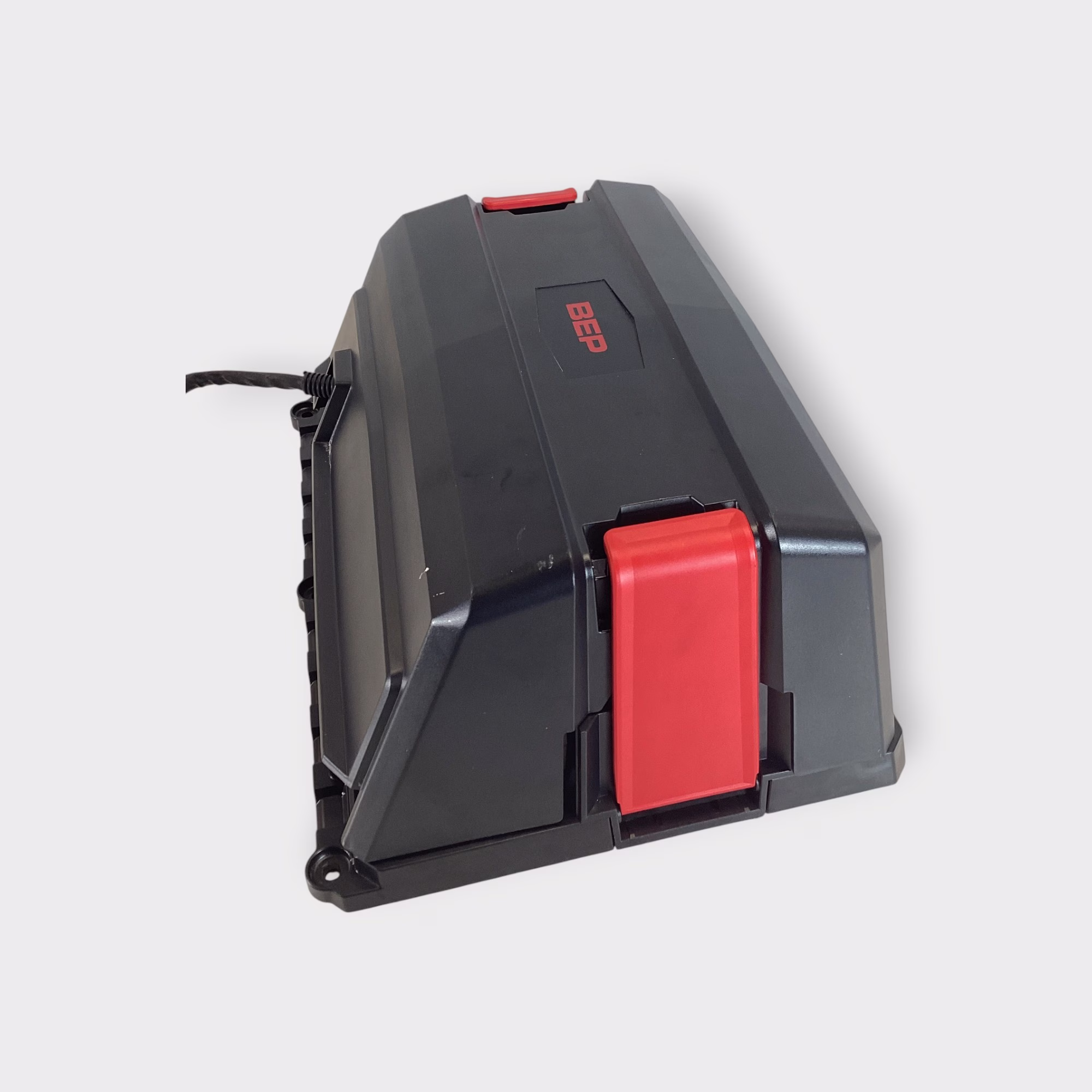

Smart Battery Hub simplifies battery management with remotely activated switches, automatic Voltage Sensitive Switching (VSS) and emergency parallel functionality, neatly housed in a robust, easy-to-install, ignition-protected IPX7 enclosure.

SBH monitors and transmits individual battery voltages and full house bank state of charge over NMEA2000, for easy integration with multi-function displays. Remote battery switching is operated via NMEA2000 or wired switches, with physical manual override of all battery switches for safety and servicing.

SBH works-with-CZone®, so users can control batteries from CZone® Waterproof Keypads, monitor them on any CZone® touchscreen or any compatible CZone® partner device. SBH works seamlessly as a CZone® module in networked systems.

“We designed the Smart Battery Hub with the OEM in mind. Simplifying installs, reducing the overall footprint and faster installation times resulting in lower system costs with shorter battery cable runs” says Geoff Morrish, BEP Product Manager.

VSS voltage thresholds can be configured to suit, or enabled/disabled with each installation. Switch inputs can be assigned to any function and two additional sensor inputs can be used for monitoring volts, fluid levels and temperature.

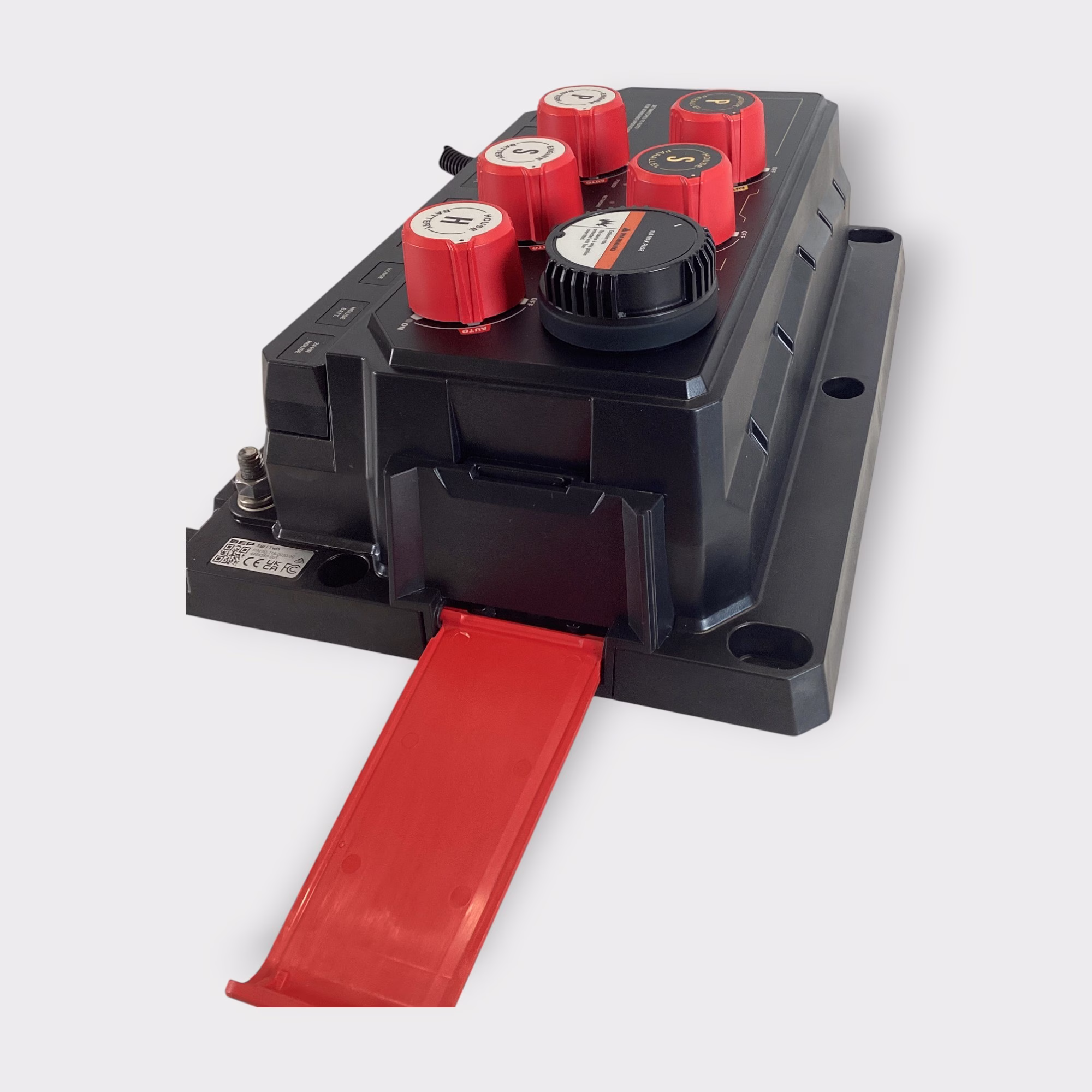

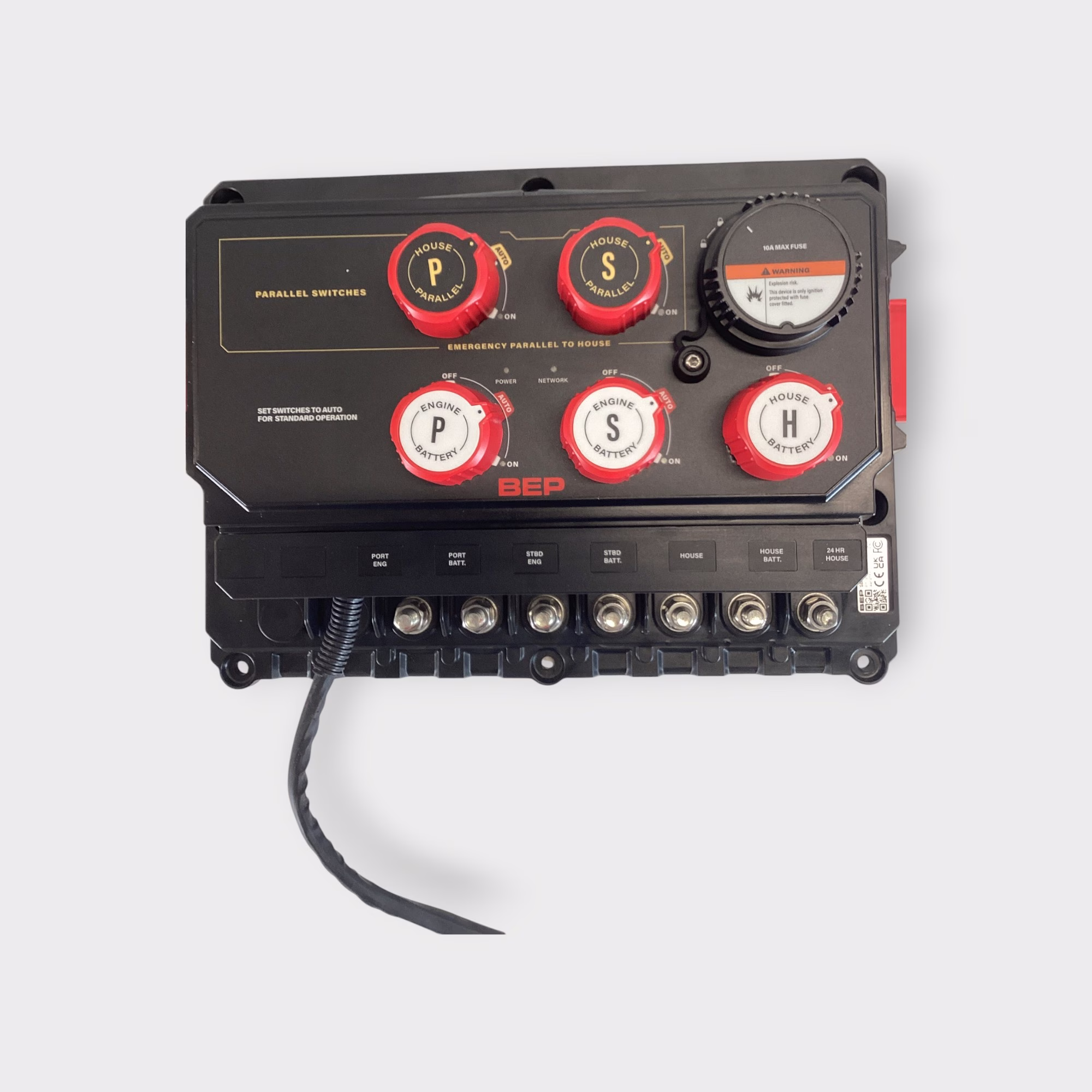

BEP’s all-in-one battery monitoring and management system features magnetic latching, 300-amp interrupt switching technology, two additional sensor inputs and true mechanical override. At less than 3.5mA in sleep mode, power consumption has been optimized for ultra-low draw on the batteries.
