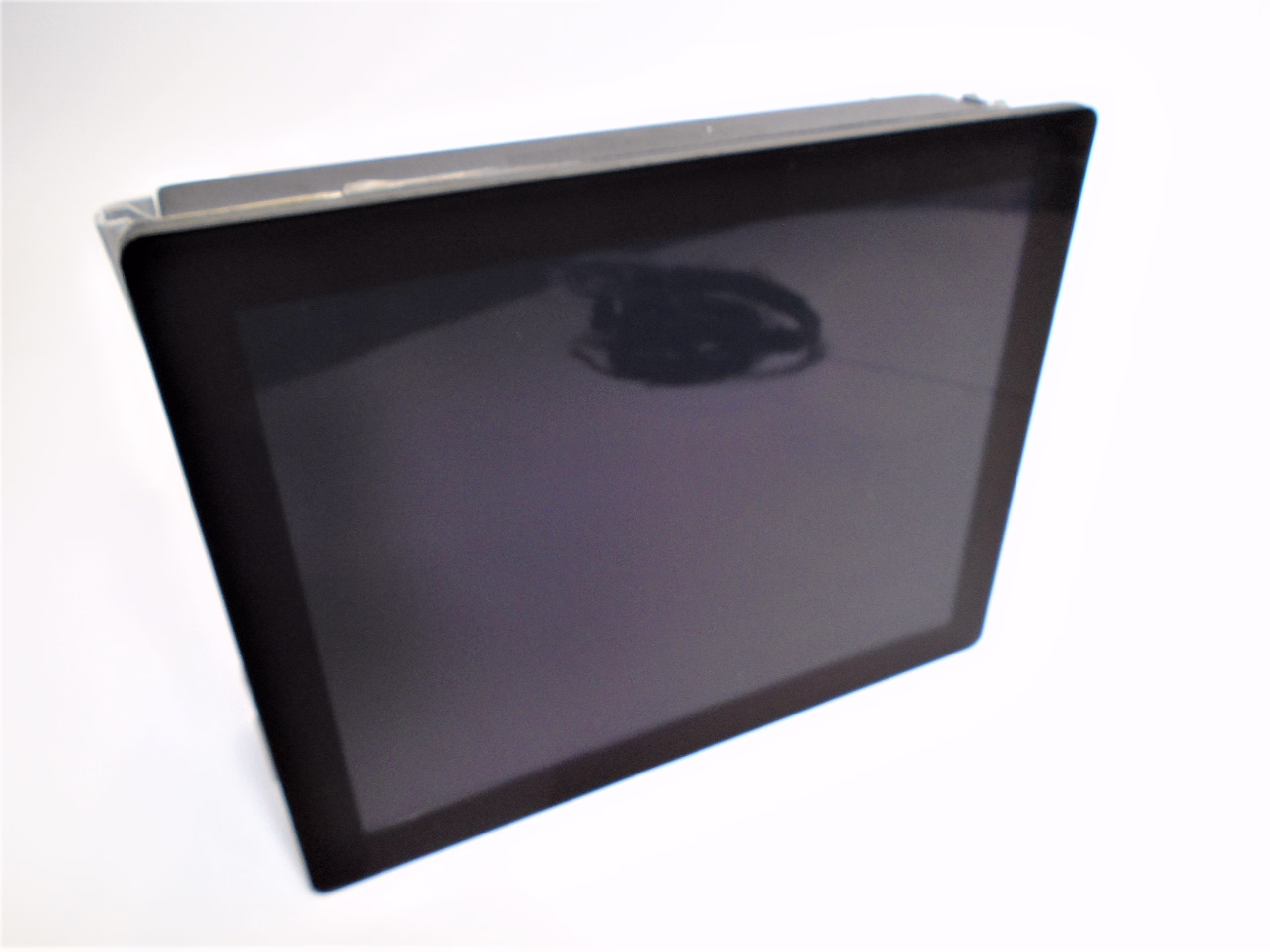

This listing is for an Aydin Displays 15″ Touch Screen Glass Bridge Marine Monitor, that we acquired from a boat that was undergoing a re-fit.

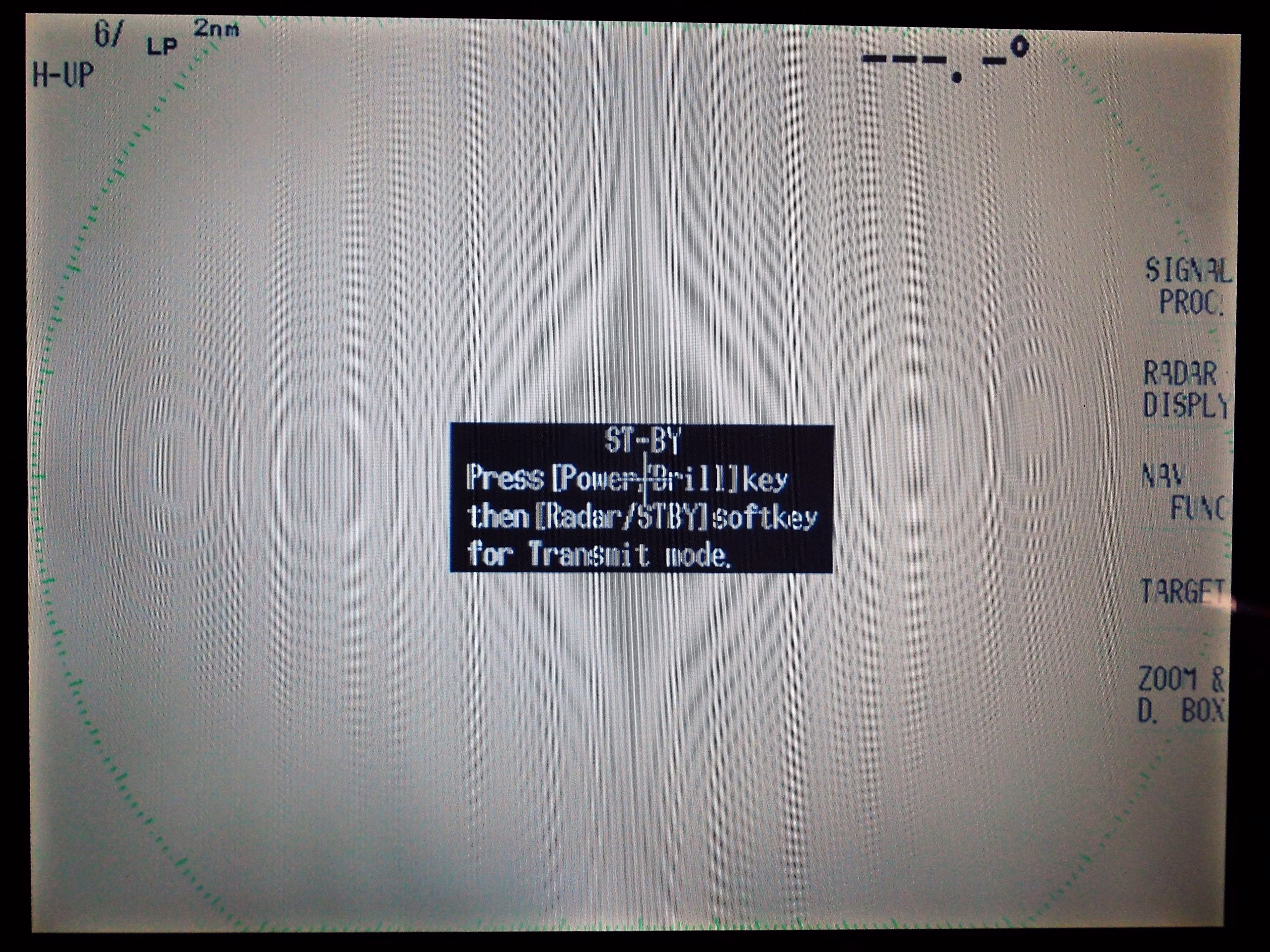

We verified the touch function with a Furuno TZTBB.
“AYDIN MARINE / KEP Sunlight Readable Displays are designed for the Marine industry. These rugged displays deliver crisp text, fast response and optimized viewing angles under any outdoor lighting conditions due to out bonding technology. The KMGB series is ideal for high sunlight areas such as cockpits, decks and bright pilothouses. The sleek design allows maximum screen size in the smallest spaces available.”

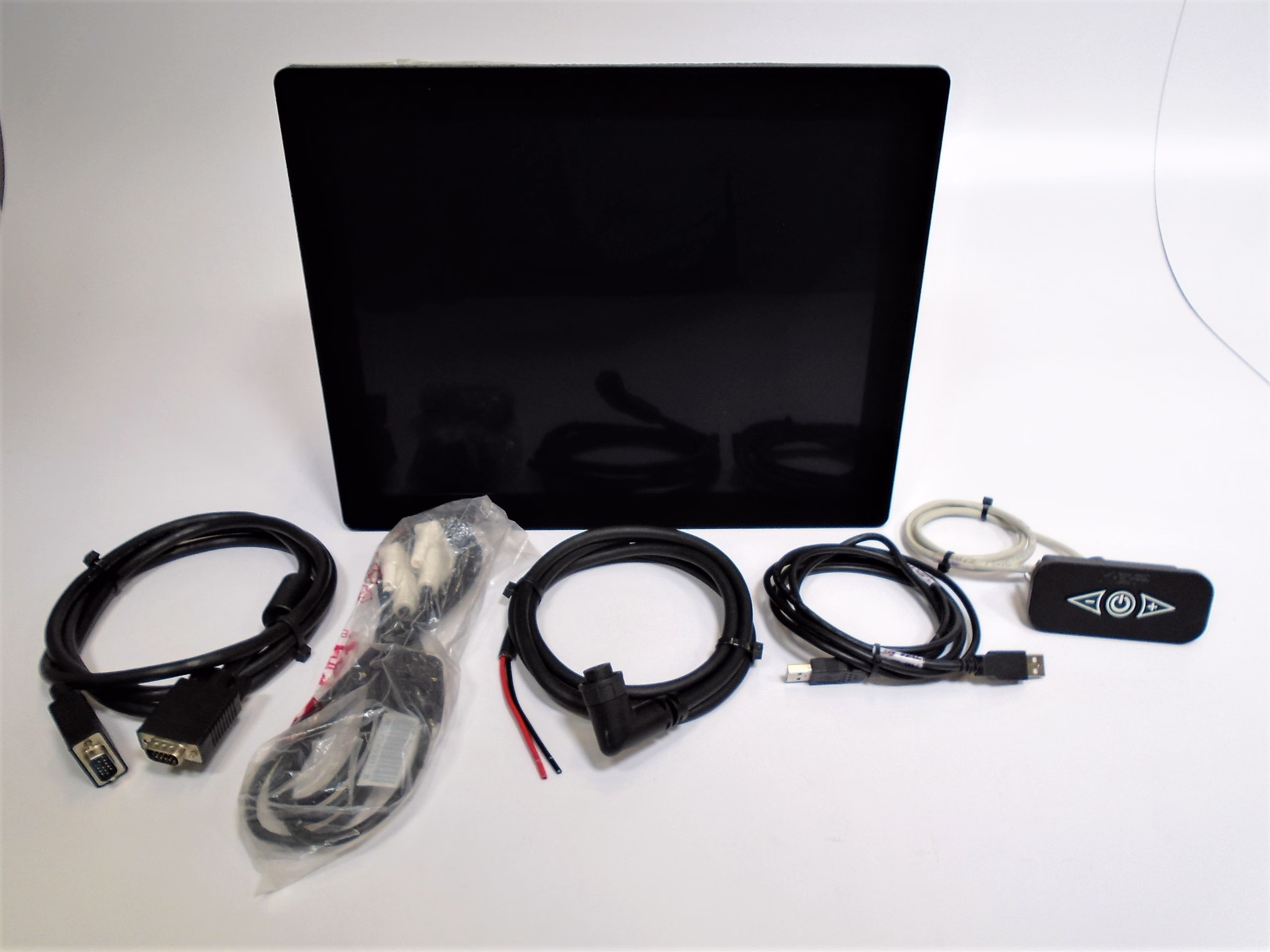

Included in this listing:

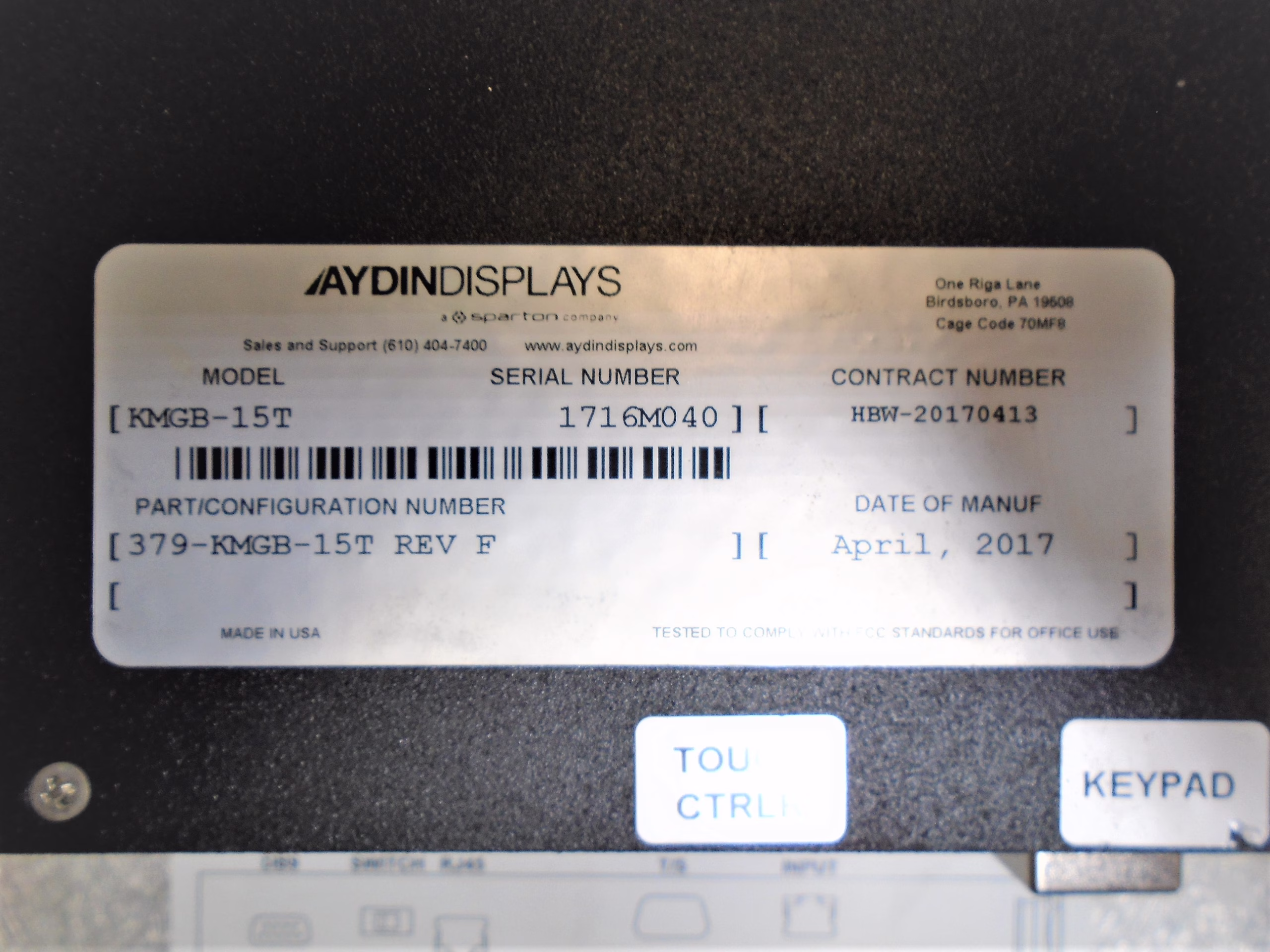

- KMGBL-15T – 15″ Touch screen monitor
- Power Cable
- Keypad
- x 4 Mounts
- VGA cable
- DVI cable
- USB-A to USB-A cable – for touch screen
Specifications
Display Type: 15” LCD TFT Monitor
Brightness: 1500 Nits
Viewing Angle: H85/85 V85/85
Aspect Ratio: 16:9
Contrast Ratio: 700:1
Display Colors: 16M

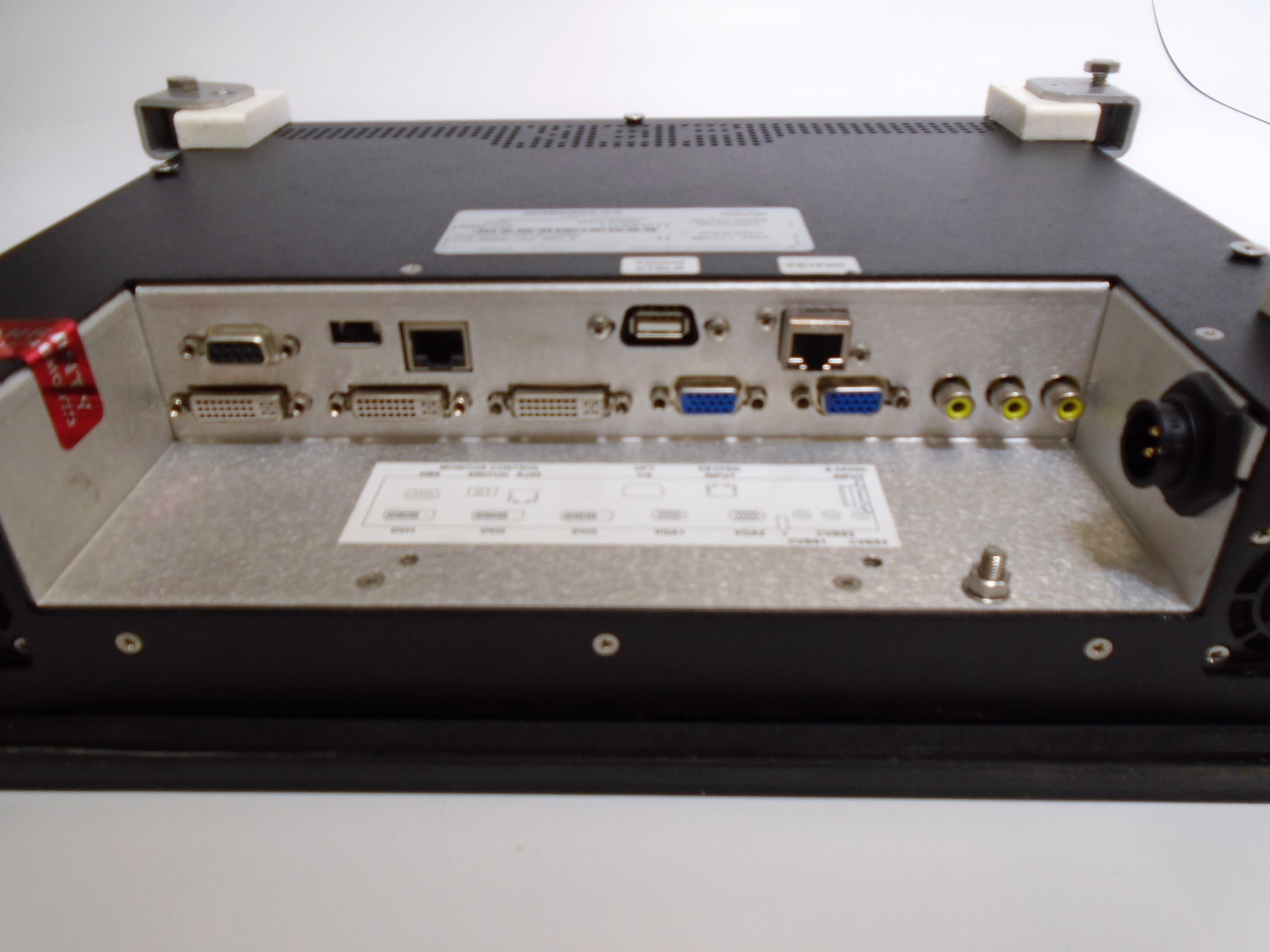

Video Inputs: 2 xVGA, 3 xDVI, 3-Composite
Max Resolution: 1024 x 768
Temperature: Operating: 0° to +70° C
Storage: -25° to +80° C
Power: Voltage: 12/24 VDC
Dimensions: Height: 11.059”
Width: 14.051”
Depth: 3.257”
Thanks for looking!
