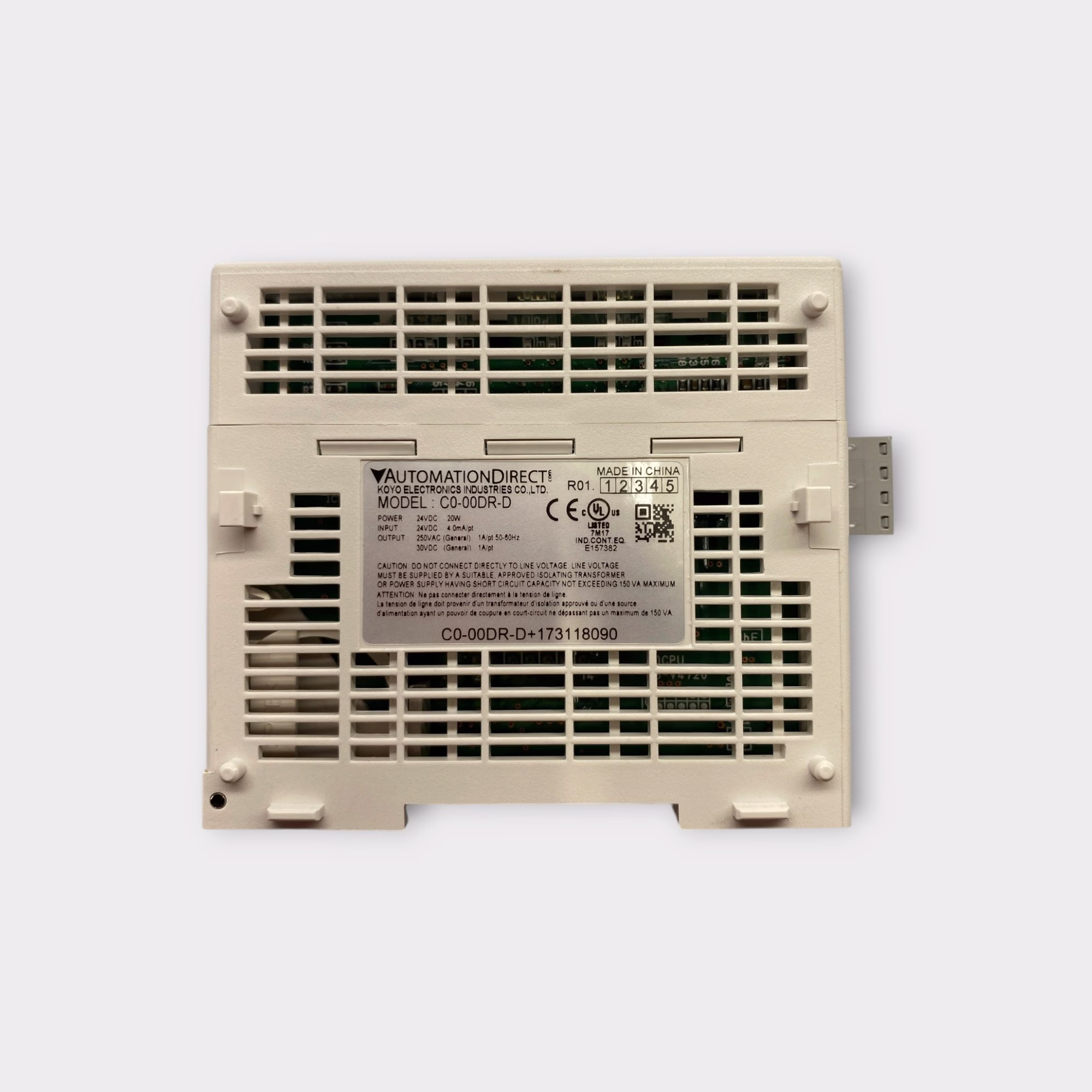

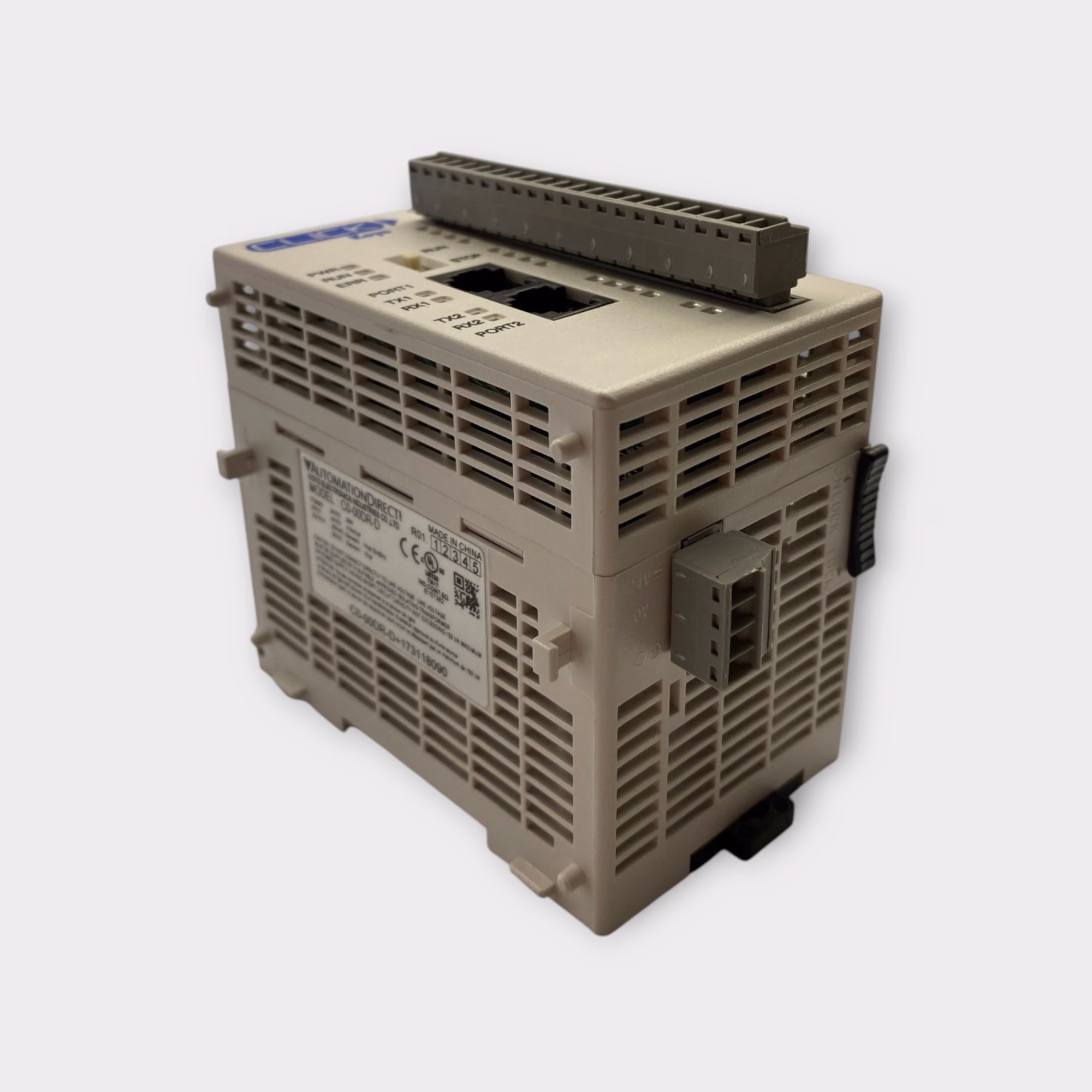

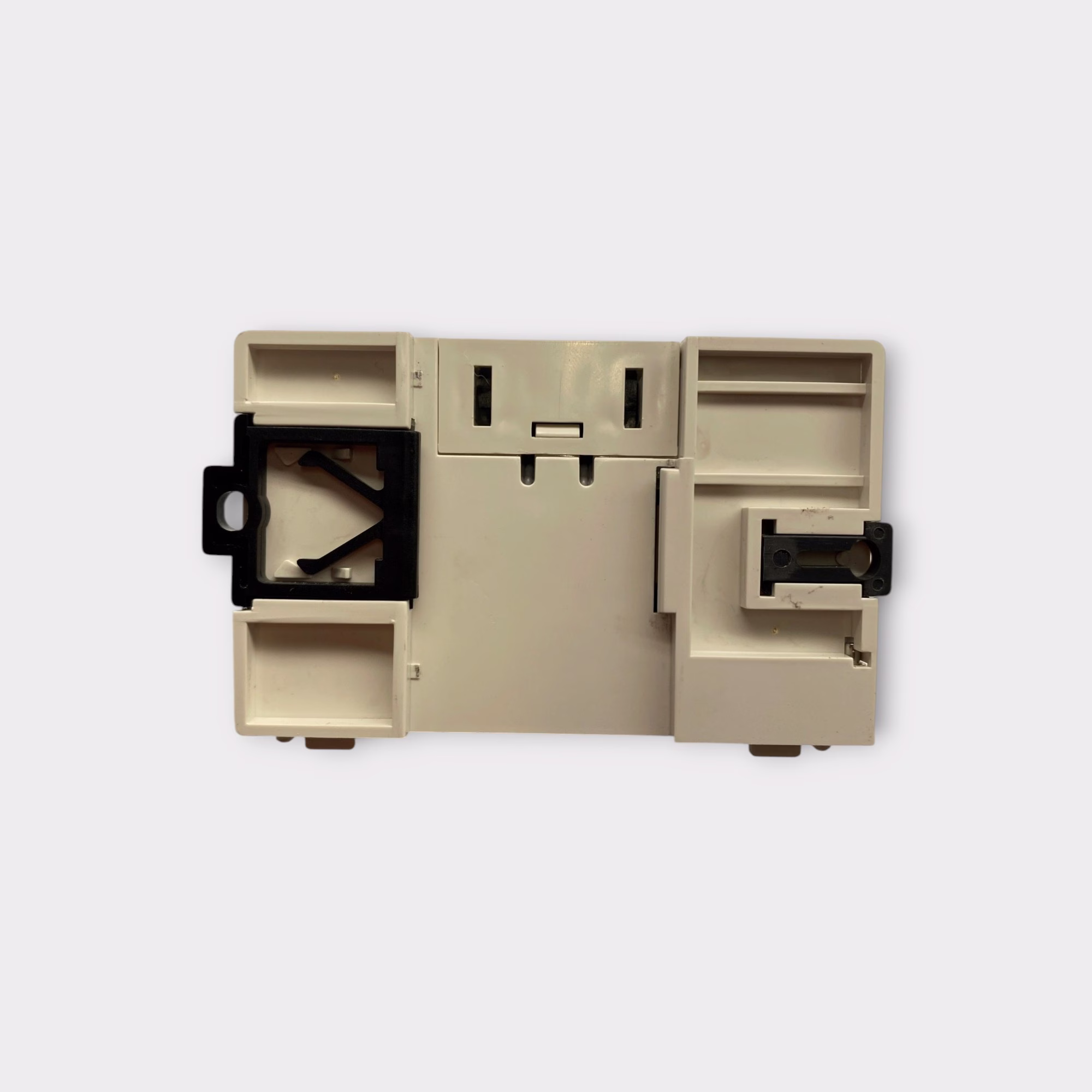

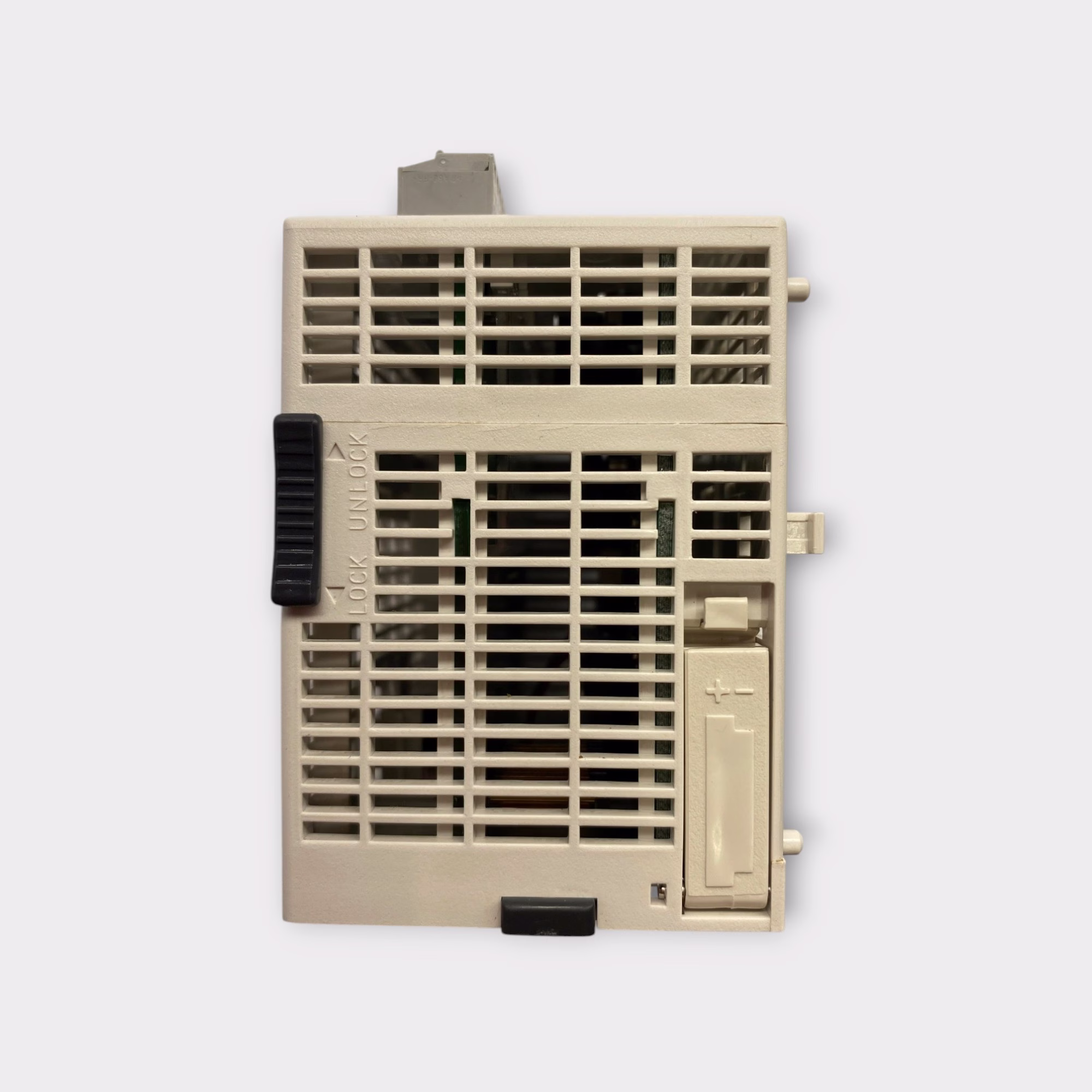

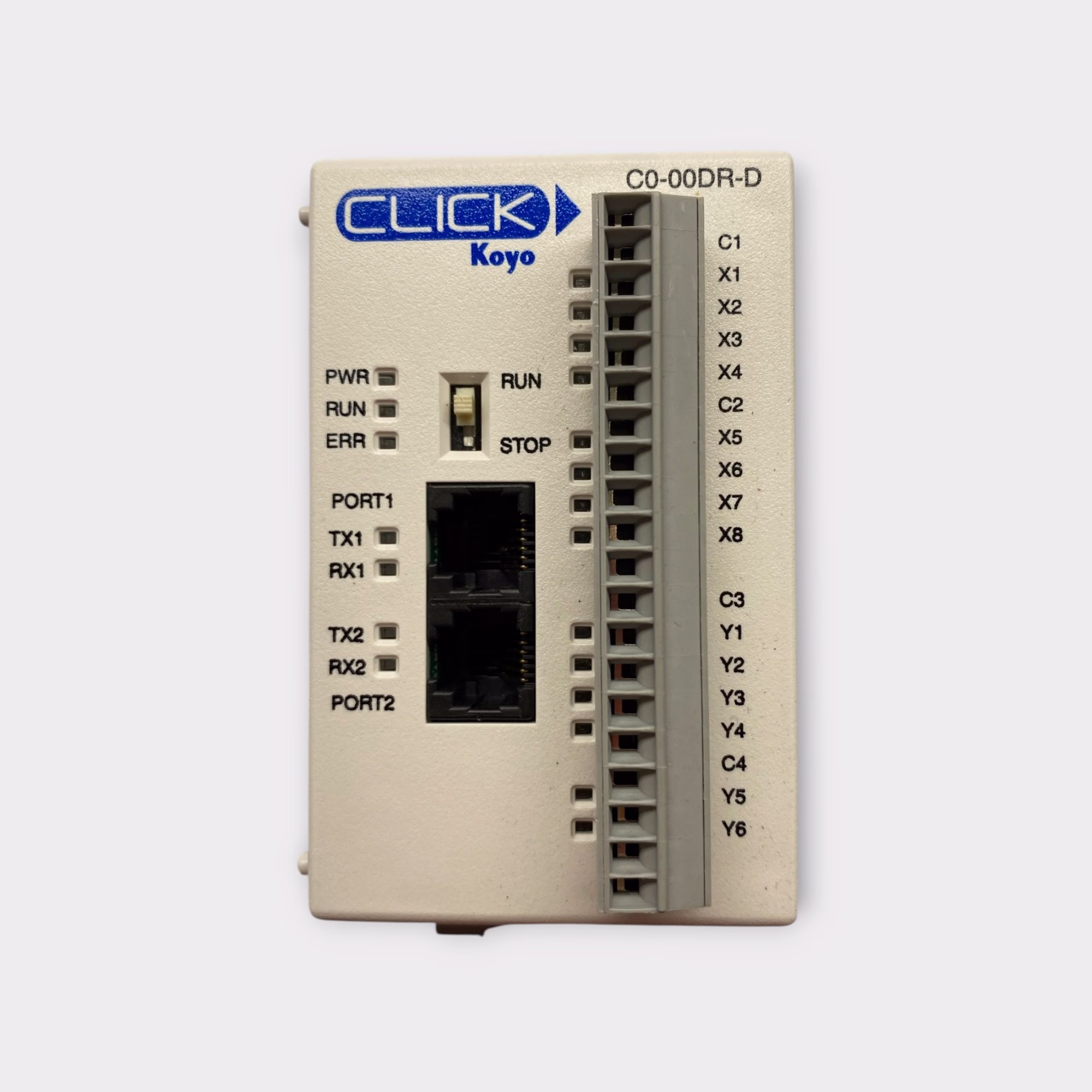

This listing is for a AutomationDirect CLICK C0-00DR-D Basic PLC programmable logic controller designed for compact automation and control applications. Features 8-point 24VDC discrete inputs, 6-point relay outputs, and serial communication ports. Requires 24VDC power and provides a compact, stackable solution for industrial control systems. Compatible with AutomationDirect CLICK C0-16ND3 16-Point 24VDC Discrete Input Module.

This was part of a custom electrical/electronics cabinet that was mounted on a yacht. As the cabinet was customized for the exact application on this vessel, we have disassembled/parted the cabinet out. All parts were reported to be working, but we lack the proper equipment to test them and confirm this. As such, we are selling them as working with a 30 day period for customers to test and ensure functionality and a 90 day warranty for peace of mind.

Manufacture Notes:

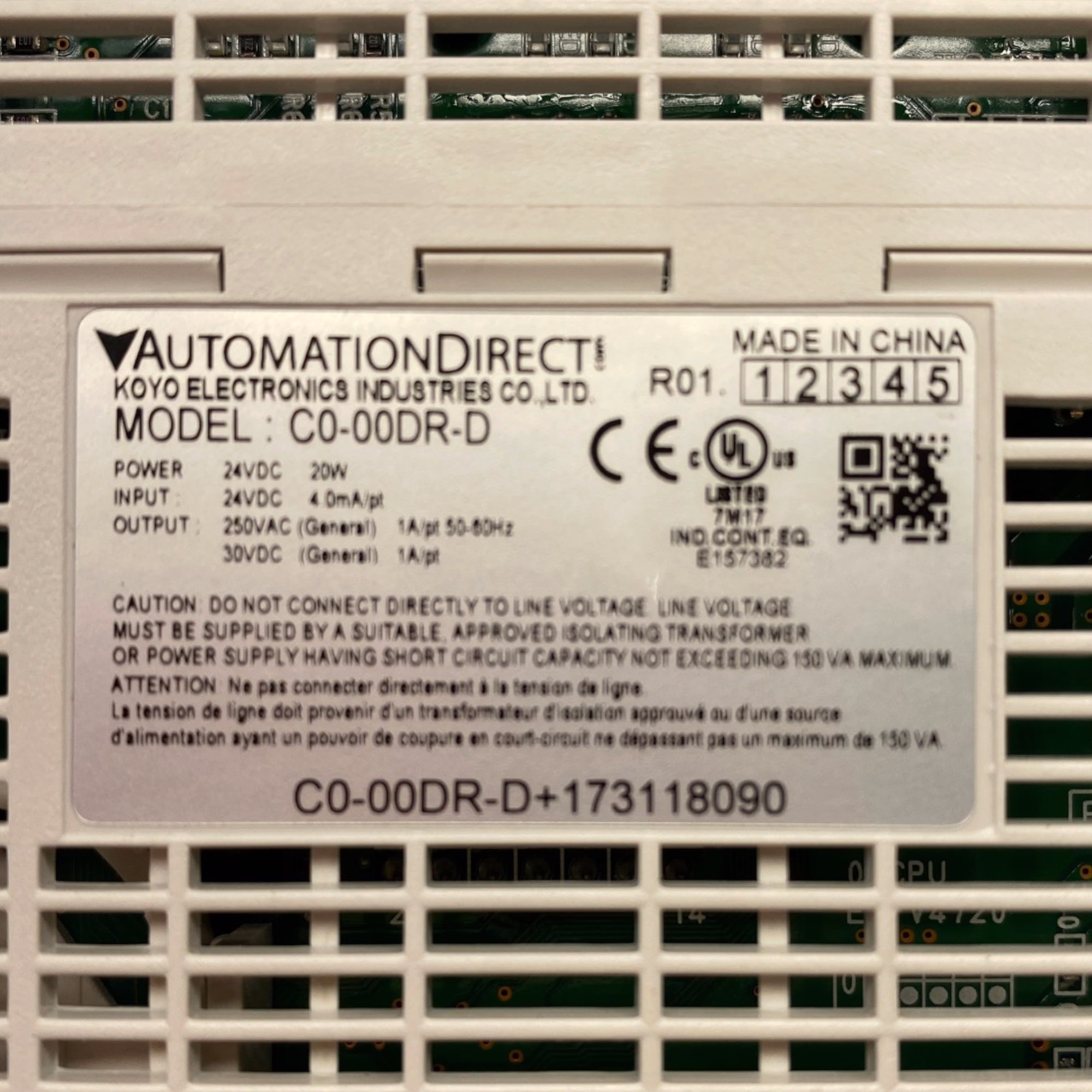

C0-00DR-D
CLICK Basic PLC, 24 VDC required, serial ports, Discrete Input: 8-point, DC, Discrete Output: 6-point, relay.

Product Information:
Brand - CLICK
Item - PLC
Series - Basic
Ladder Memory - 8k steps
User Data Memory - 16 KB
Programming Language - Ladder
Programming Software - CLICK programming software v1.00 or later and CLICK CPU firmware v1.00 or later

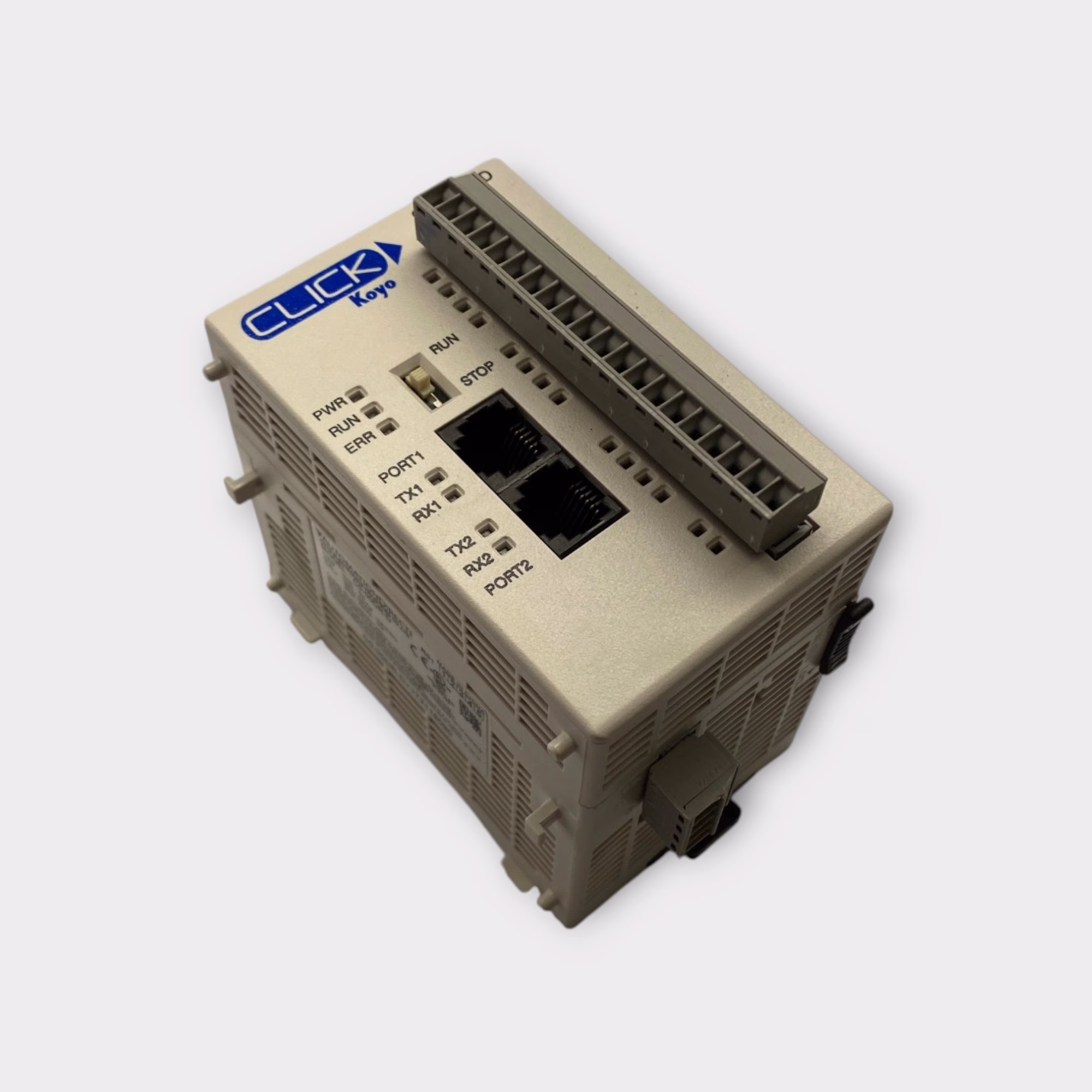

Communication Port and Connection Type(s) - (2) RS-232 (RJ12)
Port Protocol(s) -
*Modbus RTU Master/Slave
*ASCII In/out
*programming and monitoring
Port Speed(s) - up to 115.2k baud
Real Time Clock/Calendar - No
Retentive Memory - No
Battery Backup - No

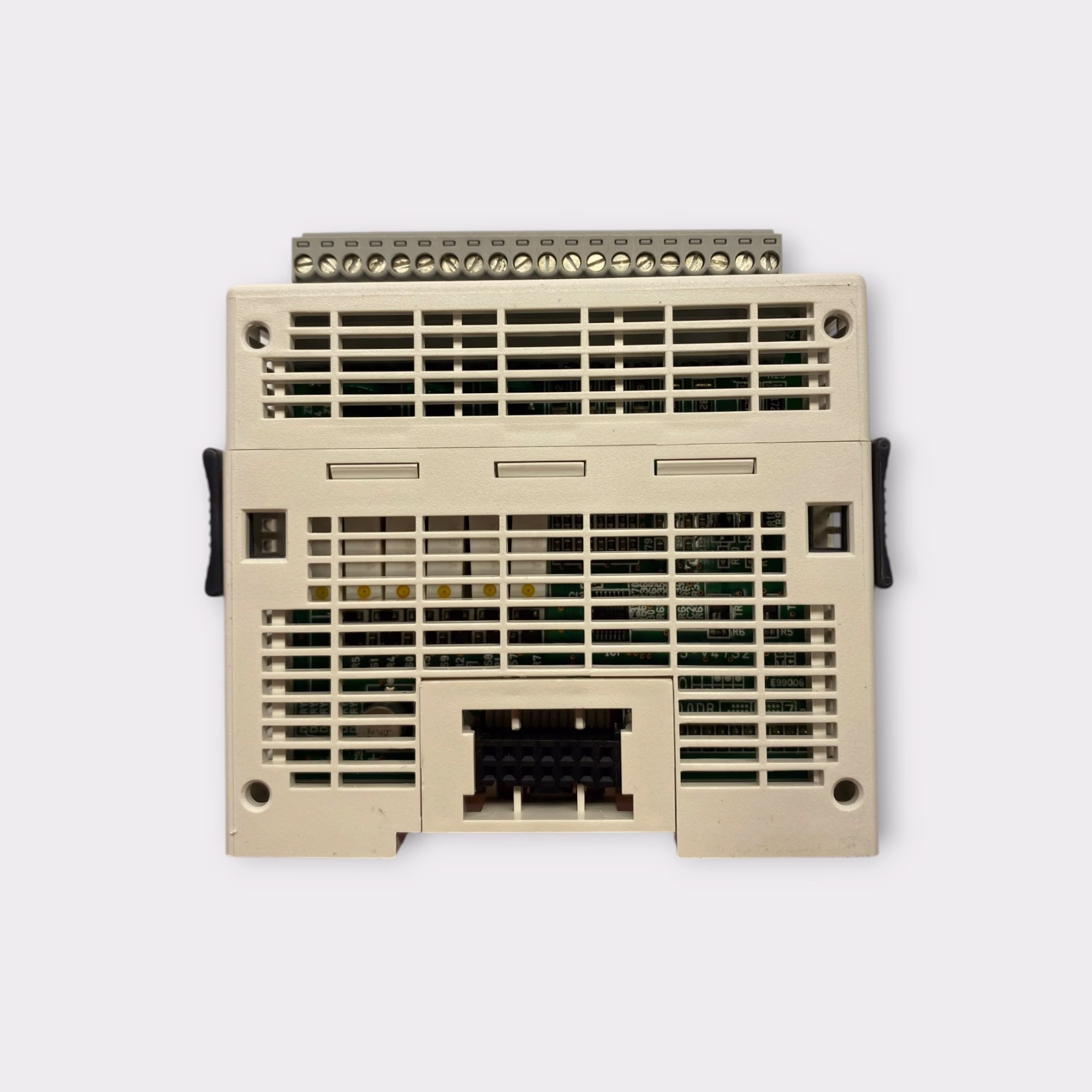

Maximum Expansion Modules Allowed - 8

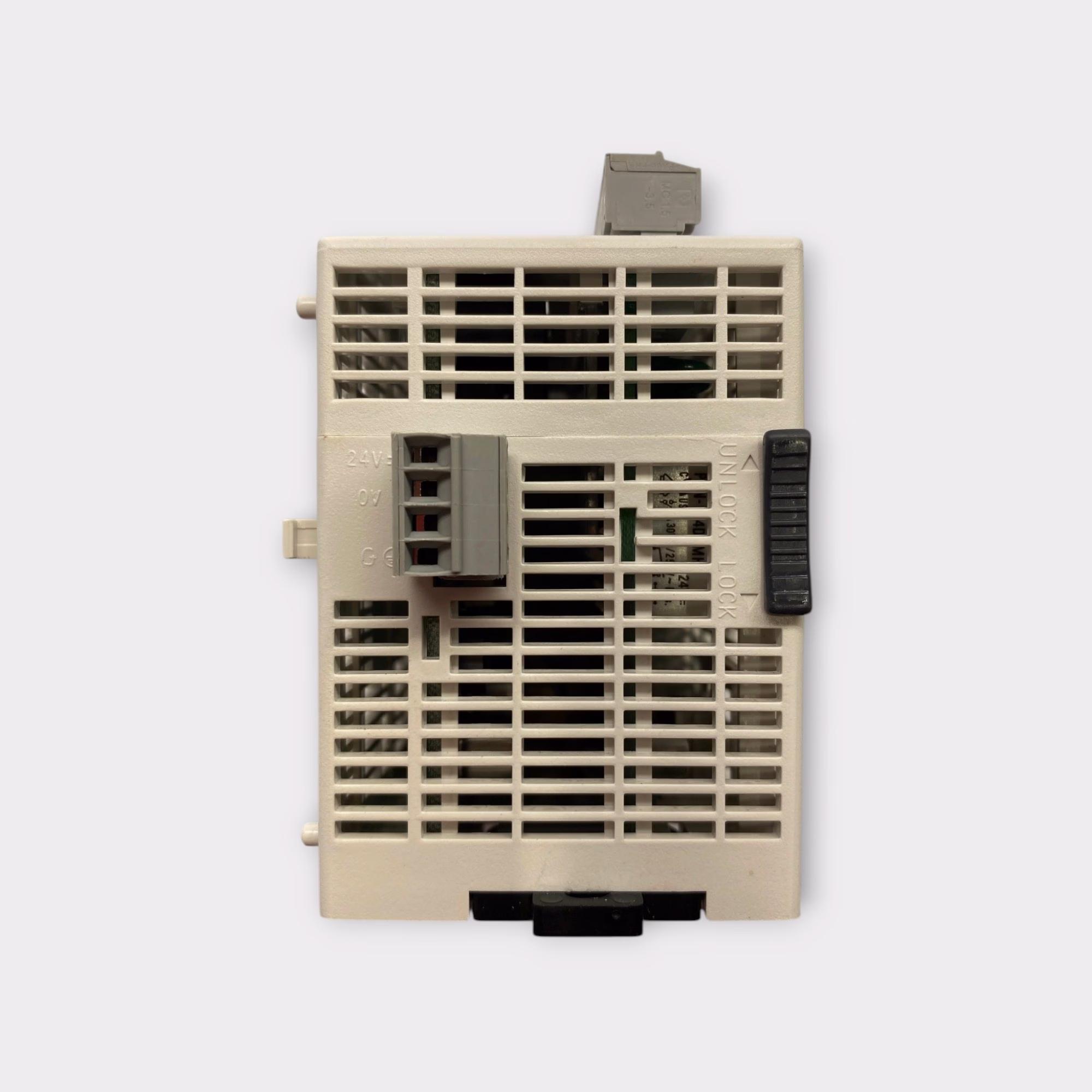

External Power Requirement - 24 VDC
Number of Discrete Input Points - 8
Nominal Input Voltage - 24 VDC
Voltage Type - DC
