Manufacturer: Amphenol
Model Number: RF TNC Male Crimp Connector (75 Ohm)
Series: TNC
MPN: 122426
Listed Item Condition: New/New Other
Summary
- Amphenol Connex 122426 TNC male straight coaxial connector designed for 75-ohm RF signal applications. This cable-mounted connector features a threaded TNC coupling interface, crimp-style center contact and shield termination, and compatibility with RG-59 20 AWG and RG-59 double-shielded coaxial cable.

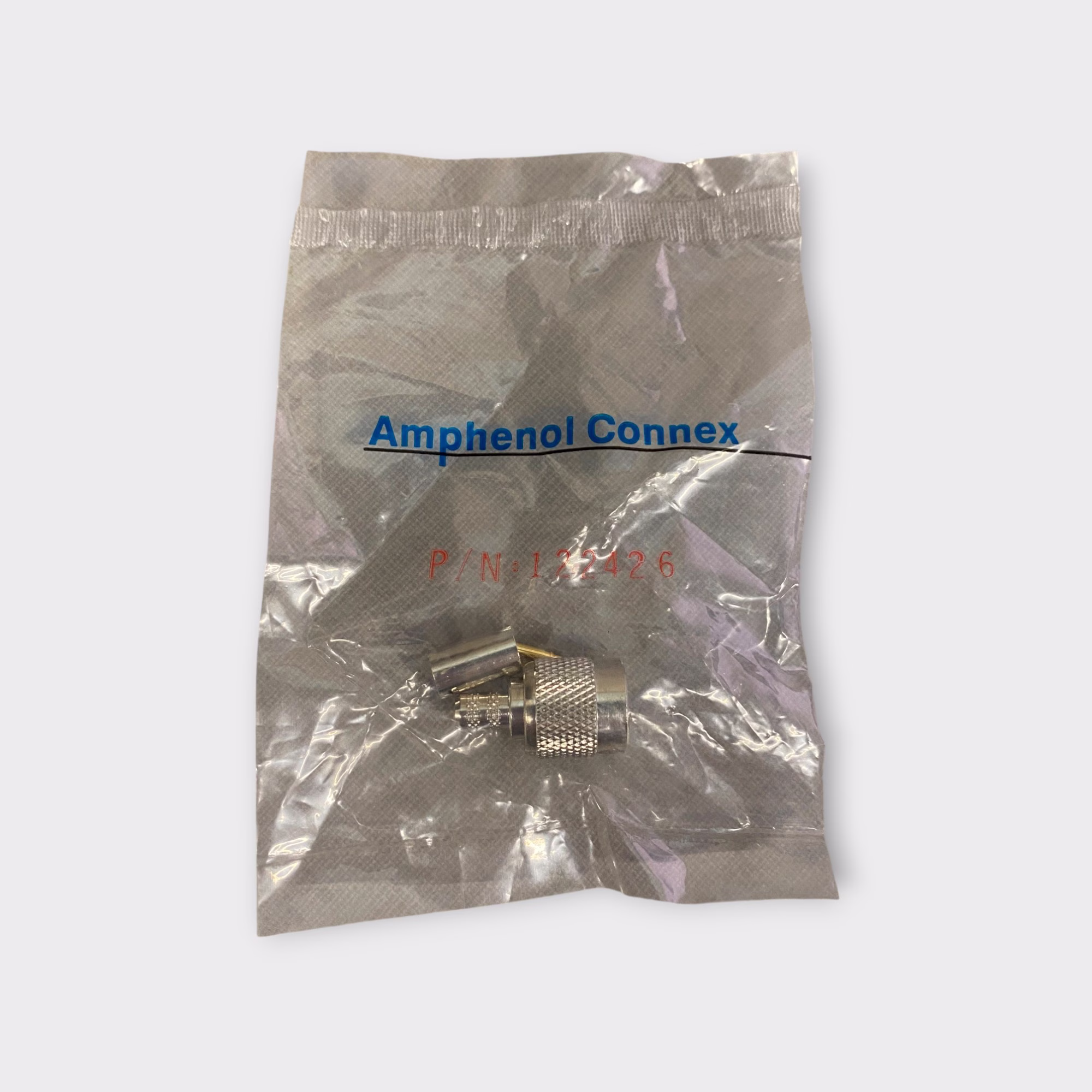

- This item is new old stock (NOS), unused and uninstalled. Minor cosmetic blemishes or packaging wear from long-term storage and handling may be present. Please review all photos for the exact item, condition, and components included.
- Listing is for one Amphenol Connex 122426 TNC male connector only.
Product Description
- The Amphenol RF / Amphenol Connex 122426 is a 75-ohm TNC male straight coaxial connector designed for reliable cable termination in RF communications, industrial electronics, video signal equipment, and compatible antenna or signal transmission systems.
- Unlike BNC connectors that use a bayonet-style coupling, this TNC connector uses a threaded coupling mechanism that helps maintain a secure connection in applications subject to movement or vibration.
- The connector features a nickel-plated brass body, gold-plated brass center contact, and Delrin insulating material. Its cable termination design uses crimp connections for both the center conductor and outer shield, allowing assembly onto compatible coaxial cables using appropriate installation tools.
- The manufacturer specifies a maximum operating frequency of 1 GHz, 75-ohm impedance, a minimum of 500 mating cycles, and an operating temperature range of -40°C to +85°C.
- Compatible cables listed by Amphenol include RG-59 20 AWG, RG-59 Double Shield, RD-59, Belden 8281, Belden 9141, Belden 9231, Belden 88281, and Canare LV-775.
- This connector is designed for cable mounting and is supplied unassembled. It is intended for use with properly prepared coaxial cable and compatible crimping equipment.
- Please verify cable compatibility and connector specifications before purchasing. This listing is for the connector only; no coaxial cable is included.
Product Information
- Manufacturer: Amphenol RF / Amphenol Connex
- Model Number: 122426
- Series: TNC
- MPN: 122426
- Connector Type: TNC Male Plug
- Connector Orientation: Straight
- Impedance: 75 Ohms
- Maximum Operating Frequency: 1 GHz
- Termination Style: Crimp
- Center Contact Termination: Crimp
- Shield Termination: Crimp
- Compatible Cable: RG-59 20 AWG, RG-59 Double Shield, RD-59
- Additional Compatible Cables: Belden 8281, Belden 9141, Belden 9231, Belden 88281, Canare LV-775
- Coupling Mechanism: Threaded
- Thread Direction: Standard
- Mounting Type: Cable Mount / In-Line
- Number of Ports: 1
- Body Material: Brass
- Body Finish: Nickel Plated
- Center Contact Material: Brass
- Center Contact Finish: Gold Plated
- Insulator Material: Delrin
- Operating Temperature: -40°C to +85°C
- Minimum Mating Cycles: 500
- Manufacturer Voltage Rating: 500 V
- Manufacturer Unit Weight: 12.3 Grams
- IP Rating: Not Rated
- Manufacturer Country of Origin: Vietnam
- Condition: New Old Stock
Included

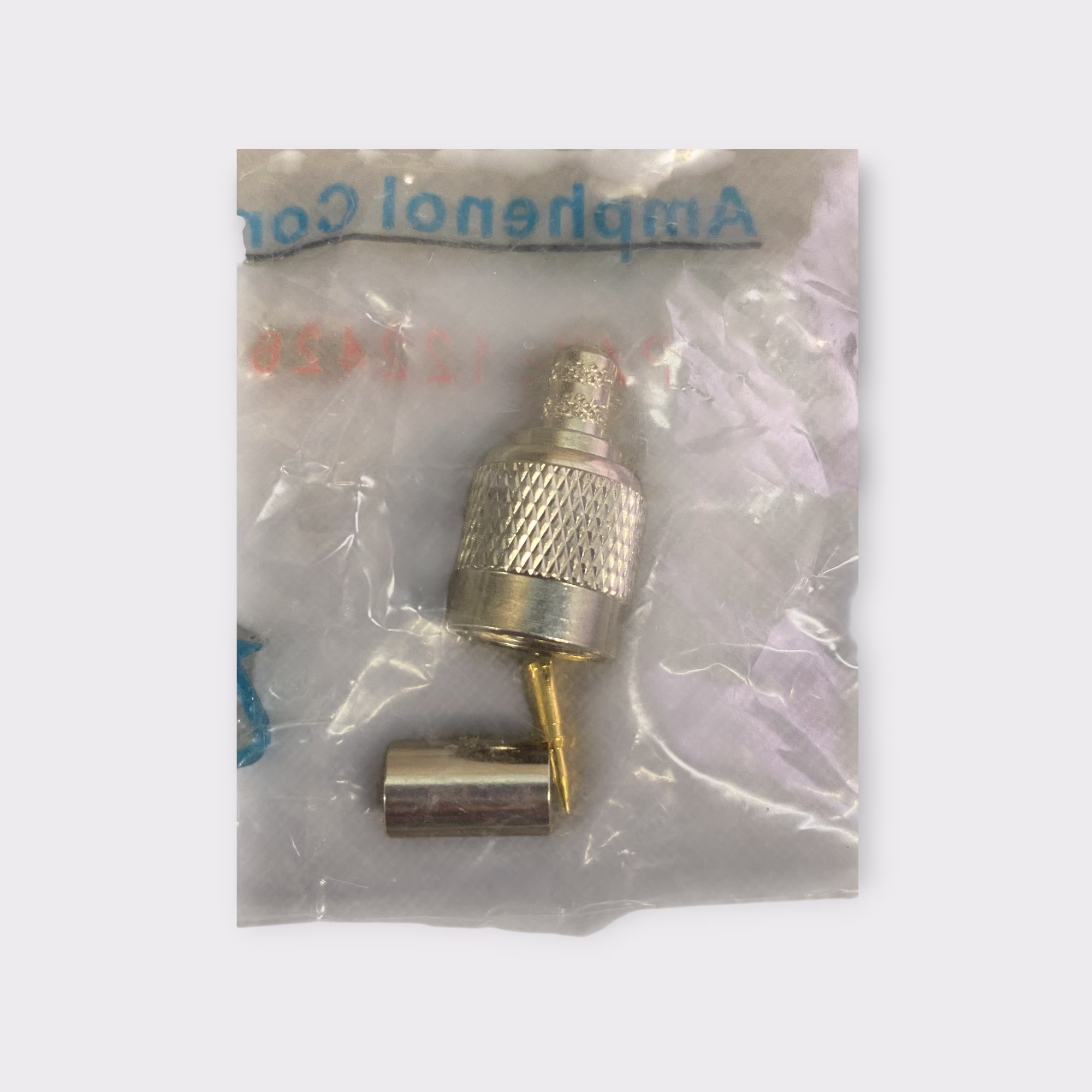

- (1) Amphenol Connex 122426 TNC Male Straight Connector
- (1) Center Contact
- (1) Crimp Ferrule
Not Included
- Coaxial Cable
- Crimping Tools
- Additional Connectors
- Other Accessories Not Shown in Photos
What's Included:
- (1) Amphenol Connex 122426 TNC Male Straight Connector
- (1) Center Contact
- (1) Crimp Ferrule
Compatible Parts:
