Manufacturer: Airmar

Model Number: 220WX

Series: Weatherstation

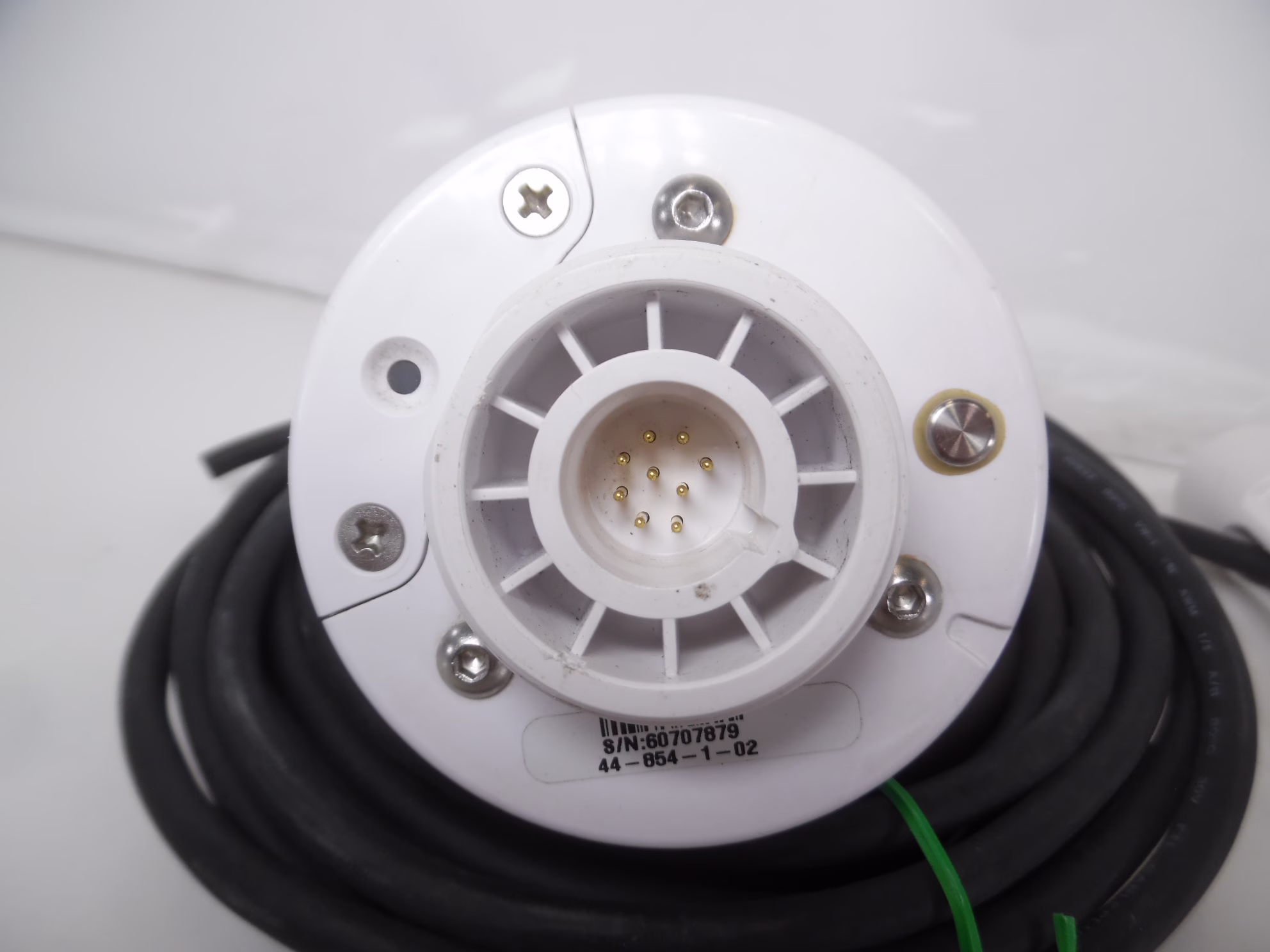

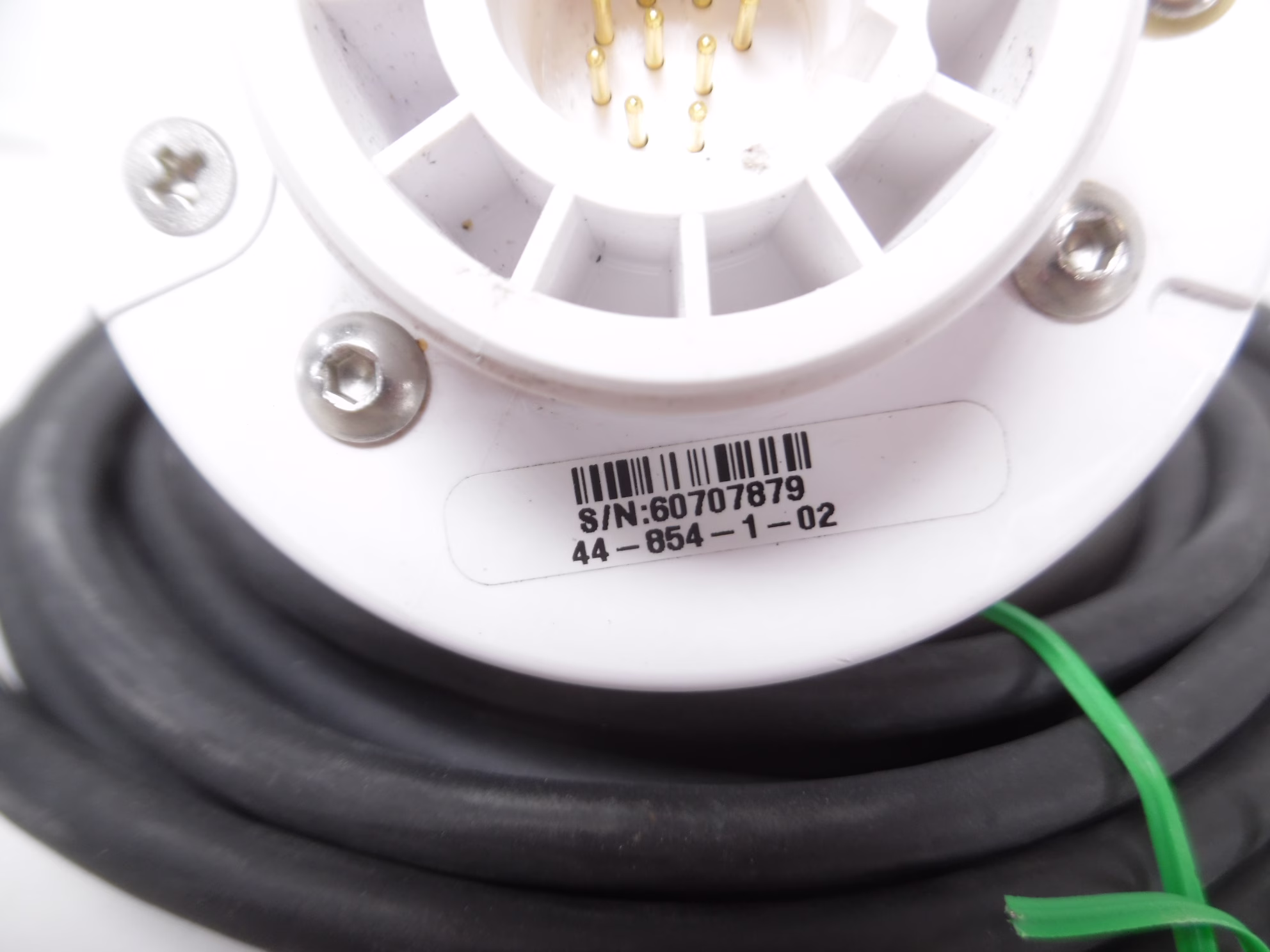

MPN: 44-854-1-02

Condition: Used

Additional Notes:

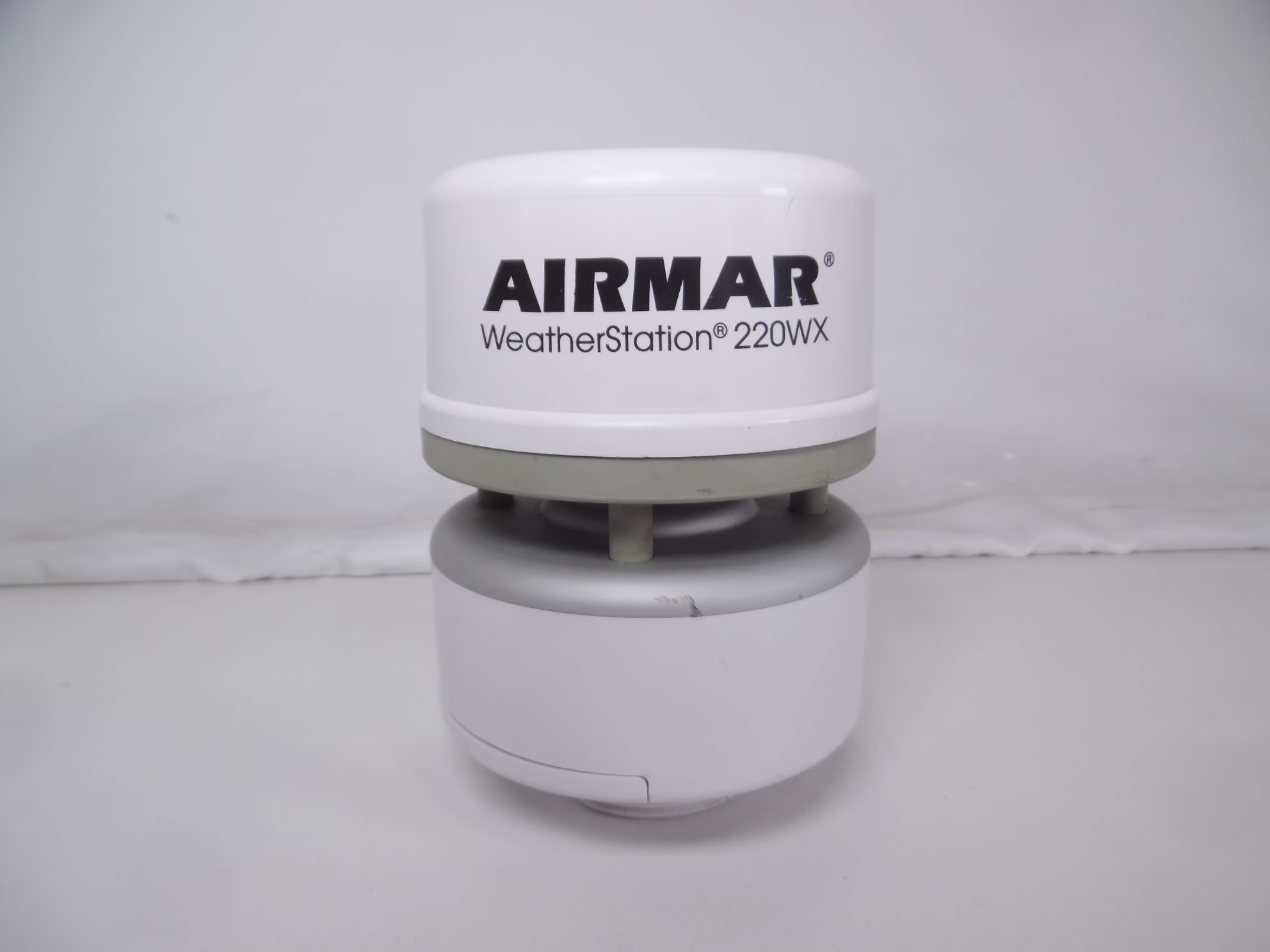

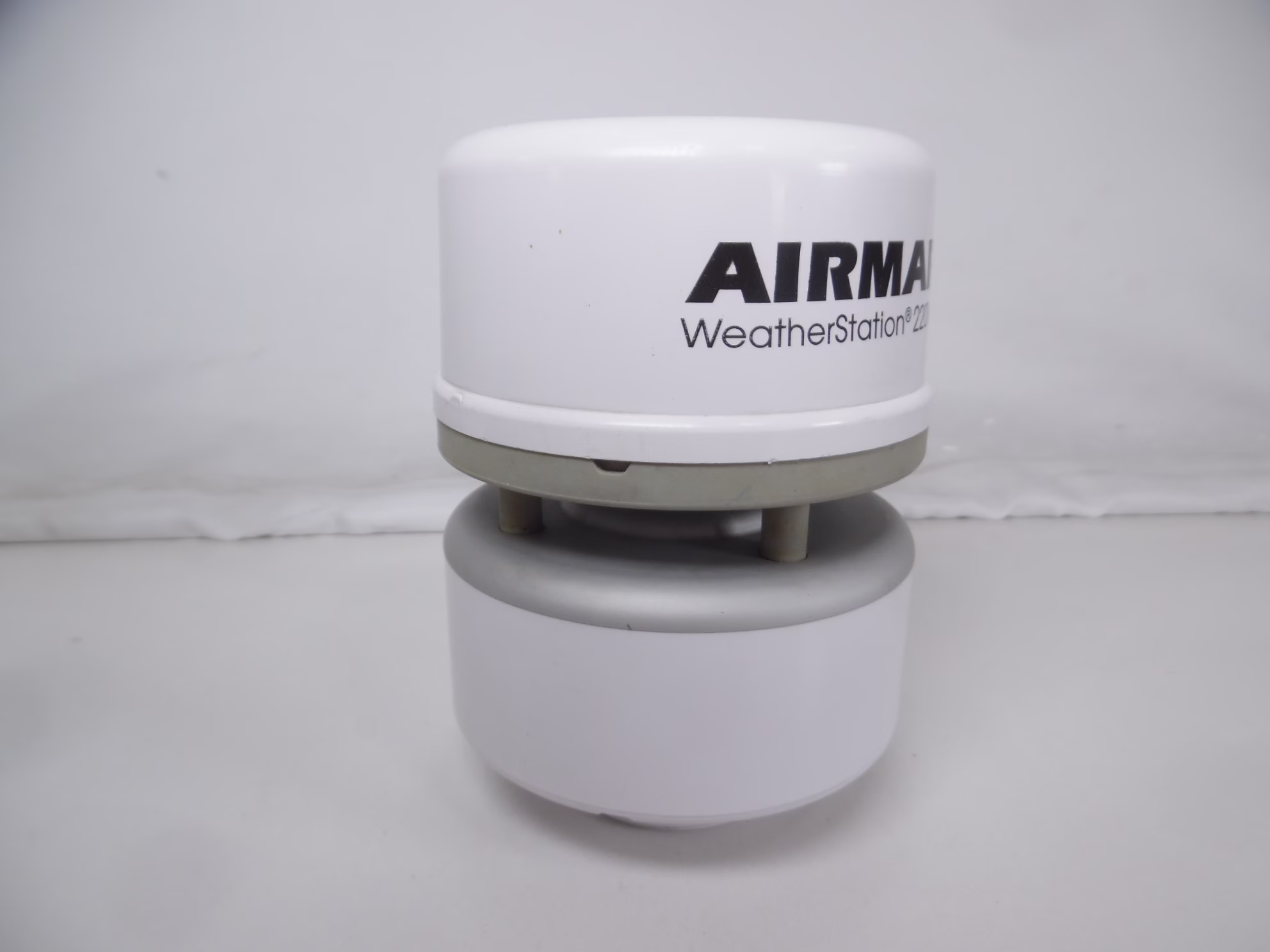

This is an Airmar WeatherStation 220WX that was fully tested and found to be operational.

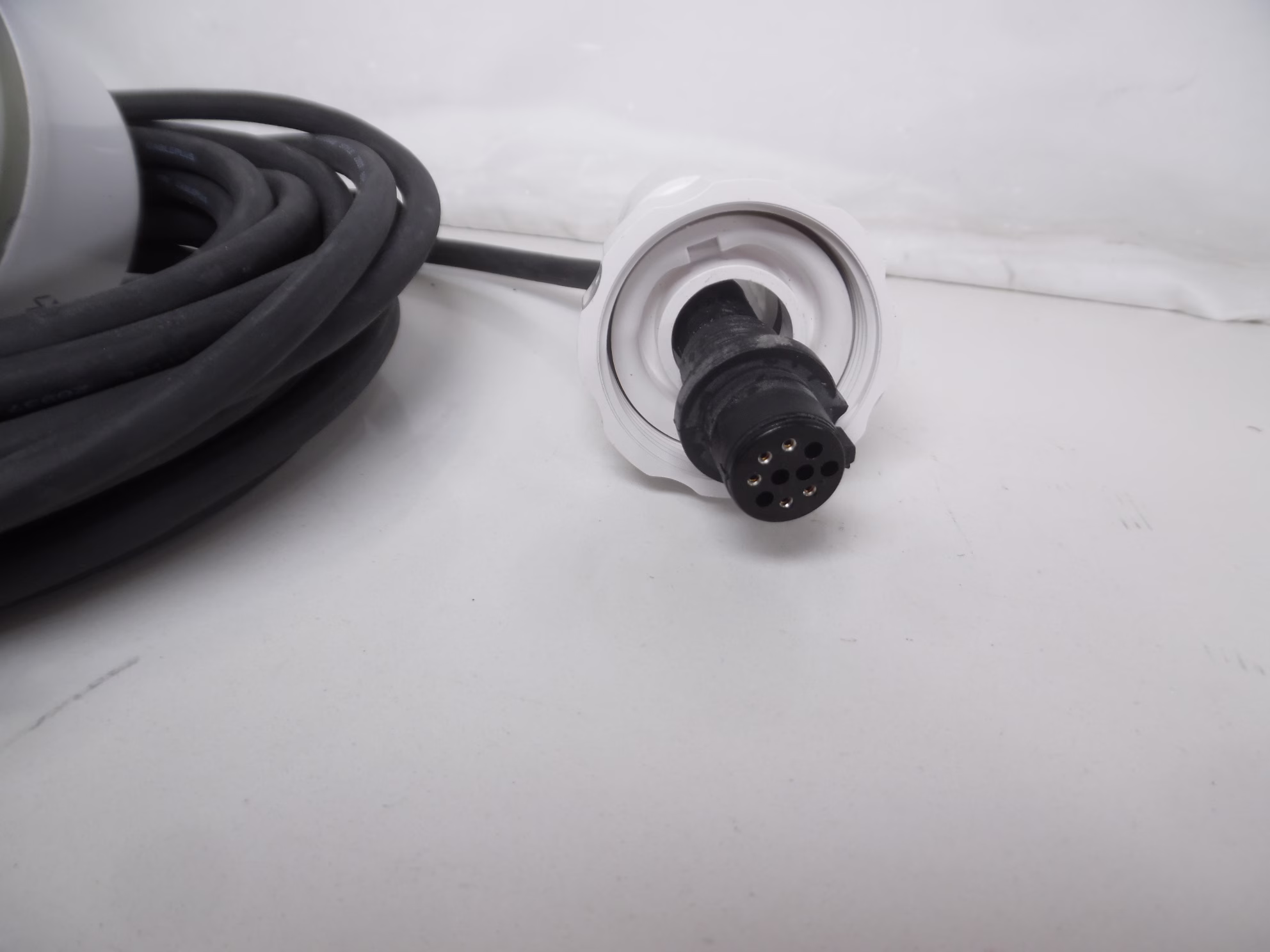

Comes with a 6M drop cable with a Male NMEA2000 field attachable end.

This 220WX will display the following information:

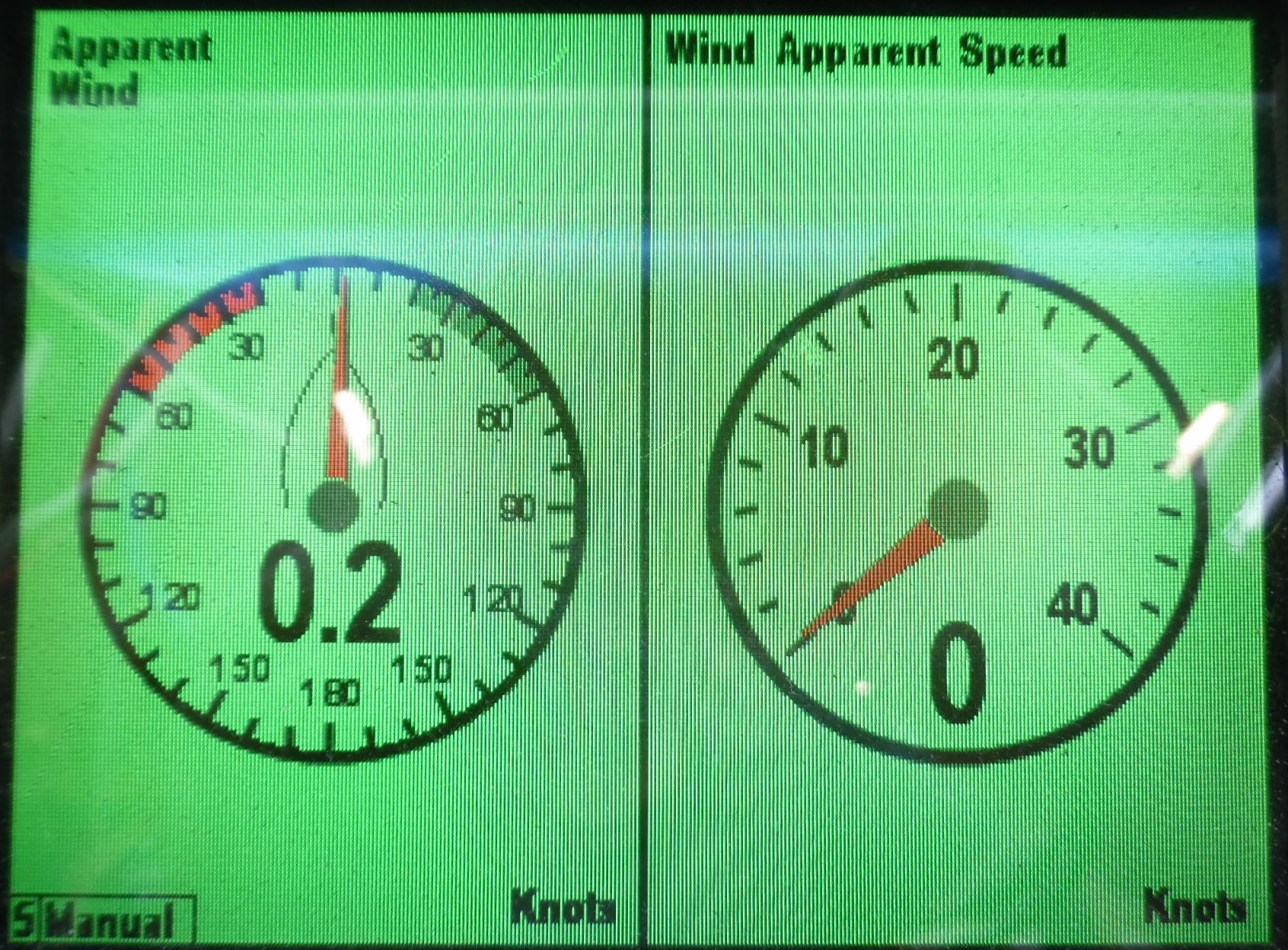

Wind Speed

• Range: 0 to 40 m/s (0 knots to 89 knots)
• Accuracy: 5% at 10 m/s (19 knots) at 4 angles
• Resolution: 0.1 m/s (0.1 knots)
• Calculations: User configurable damping

Wind Direction

• Range: 0° to 359.9°
• Accuracy: ±3° at 10 m/s
• Resolution: 0.1°
• Calculations: User configurable damping

Air Temperature

• Range: -40° to 80°C (-40 to 176°F)
• Accuracy: ±1.1°C at 20°C
• Resolution: 0.1 °C

Optional Relative Humidity

• Range: 0 to 100% RH
• Accuracy: ±5% RH at 0 to 90% RH at 20°C
• Resolution: 0.1% RH

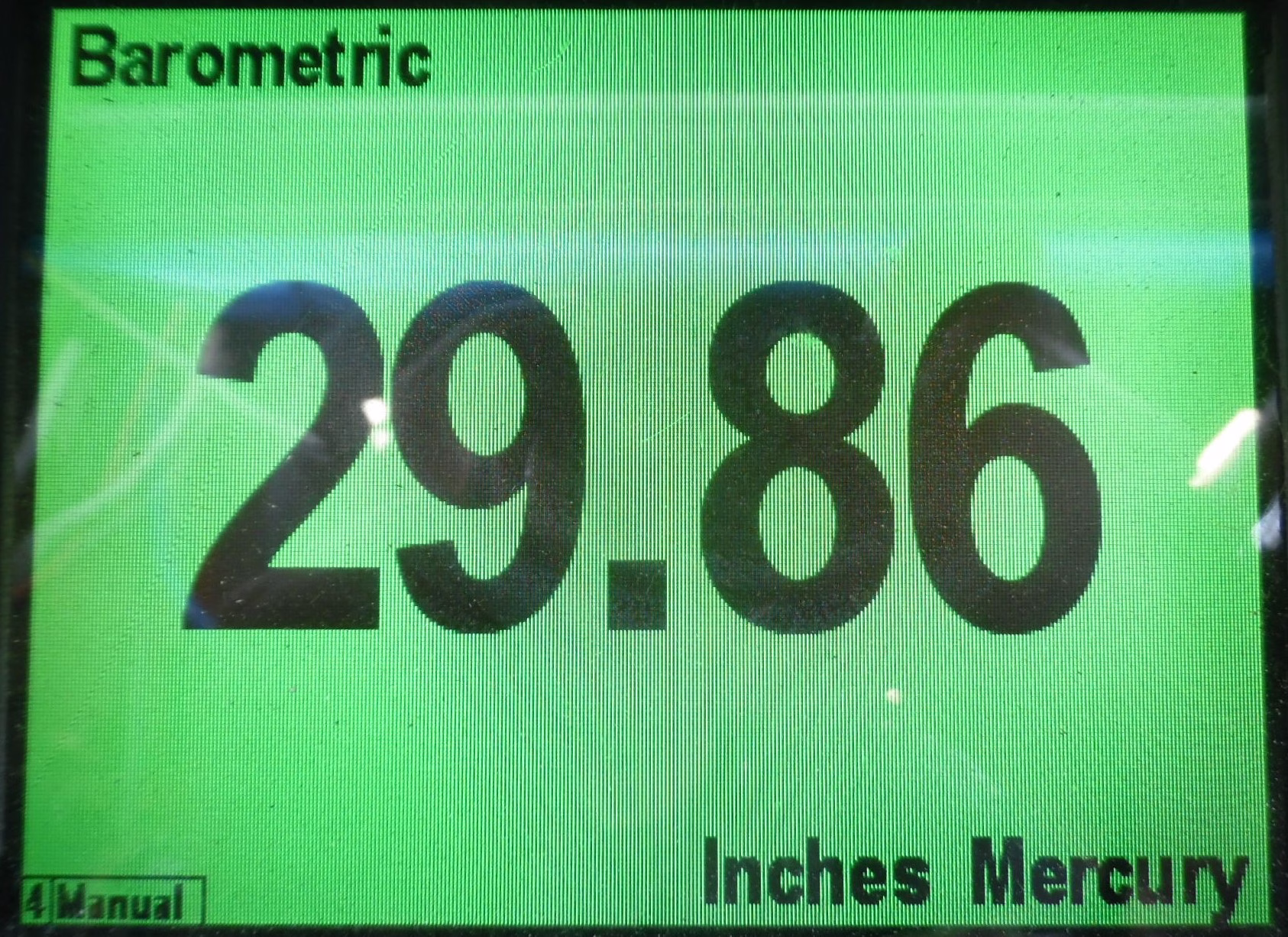

Barometric Pressure

• Range: 300 to 1100 hPa
• Accuracy: ±0.5 hPa at 25°C (or better)
• Resolution: 0.1 hPa

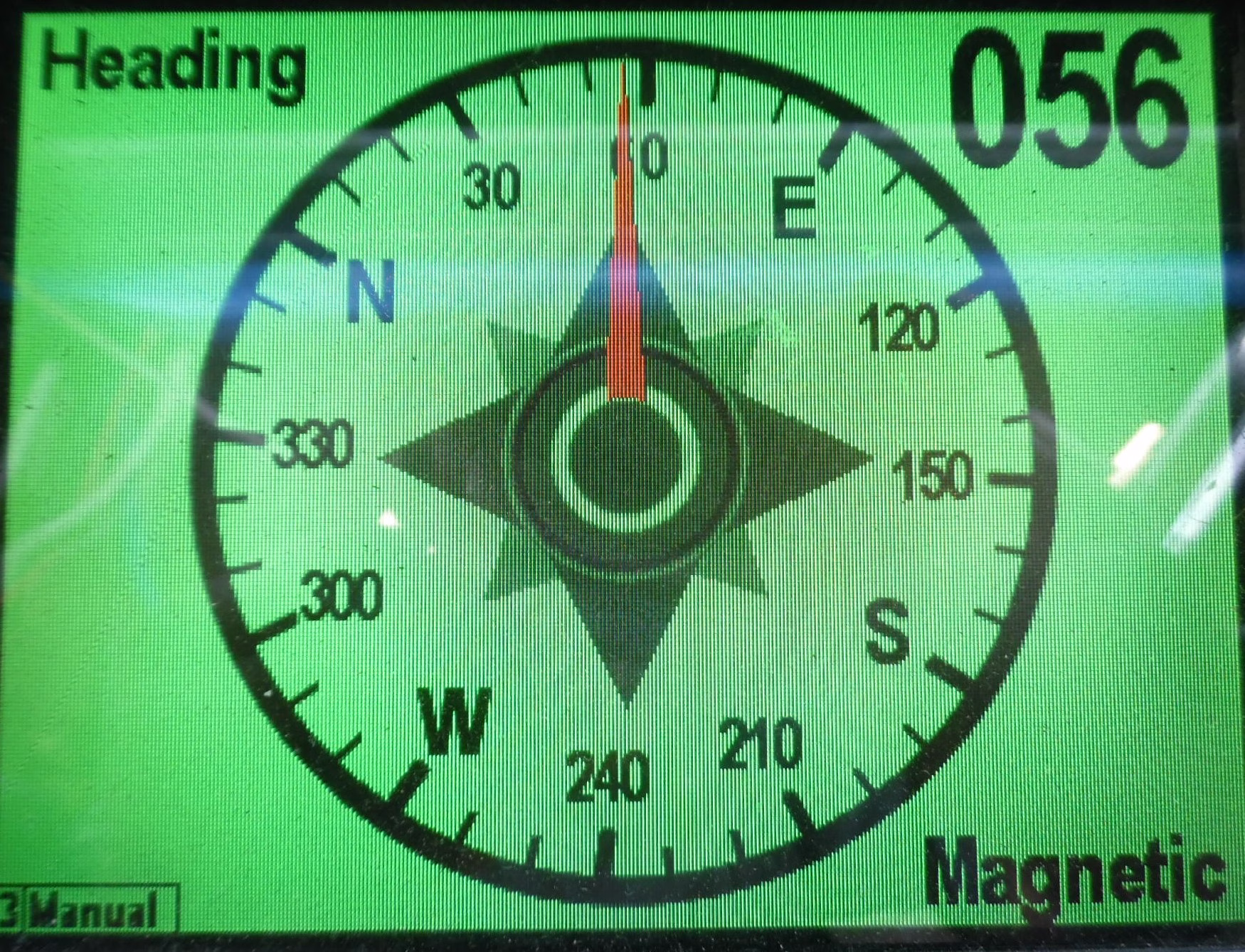

Three-axis Compass

• Range: 0 to 359.9°
• Accuracy: 1° RMS when level, 1° static heading accuracy; 2° dynamic heading accuracy (220WX only)
• Resolution: 0.1°

Pitch and Roll

• Measurement Type: MEMS
• Range: 50°
• Accuracy: ±1° in range of ±30°
• Resolution: 0.1°

• GPS Position Accuracy: 3 m (10′) CEP
• Operating Temperature Range: -25°C to 55°C (-13 to 131°F)

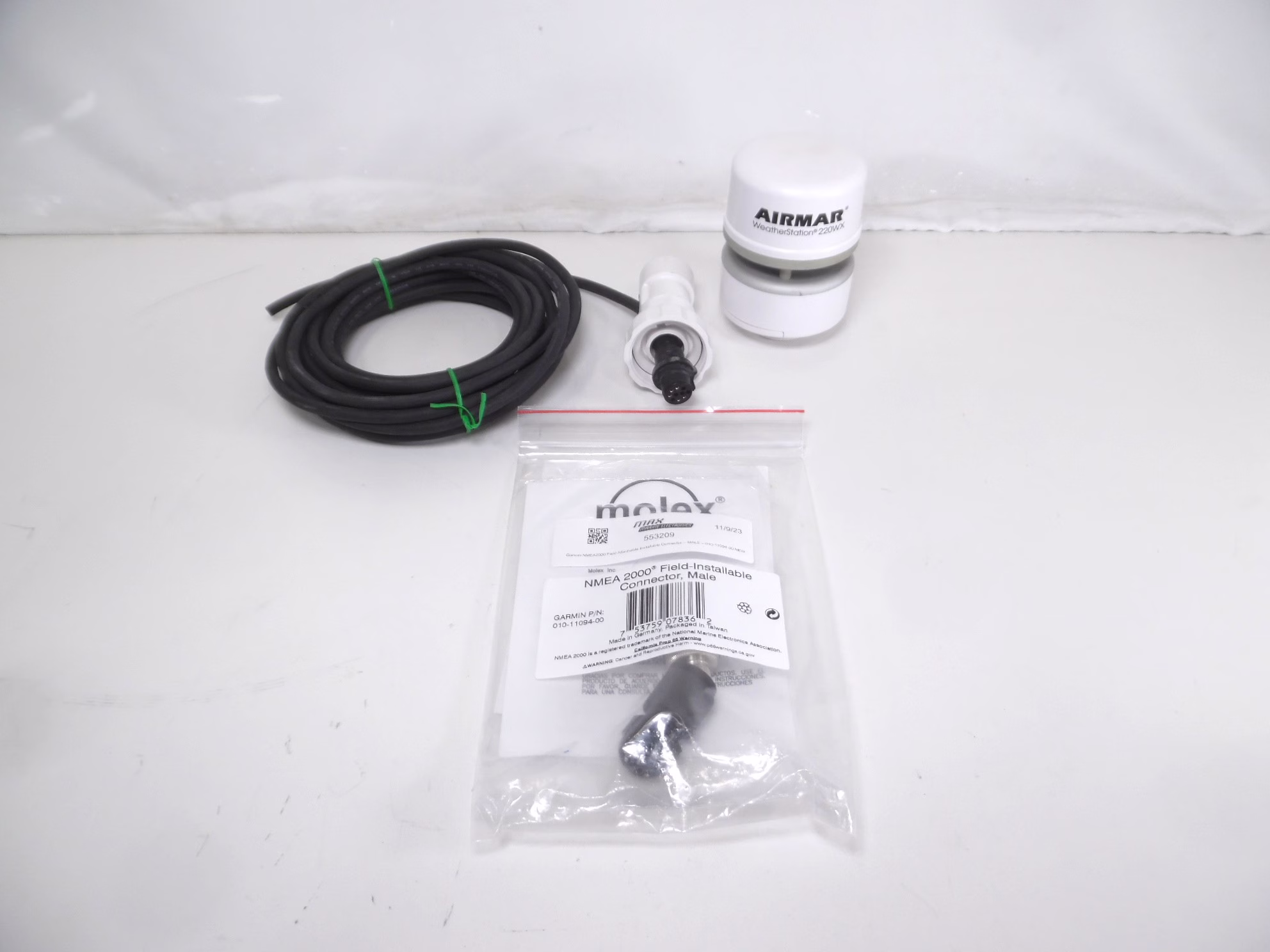

What’s Included:

• 220WX – good used condition

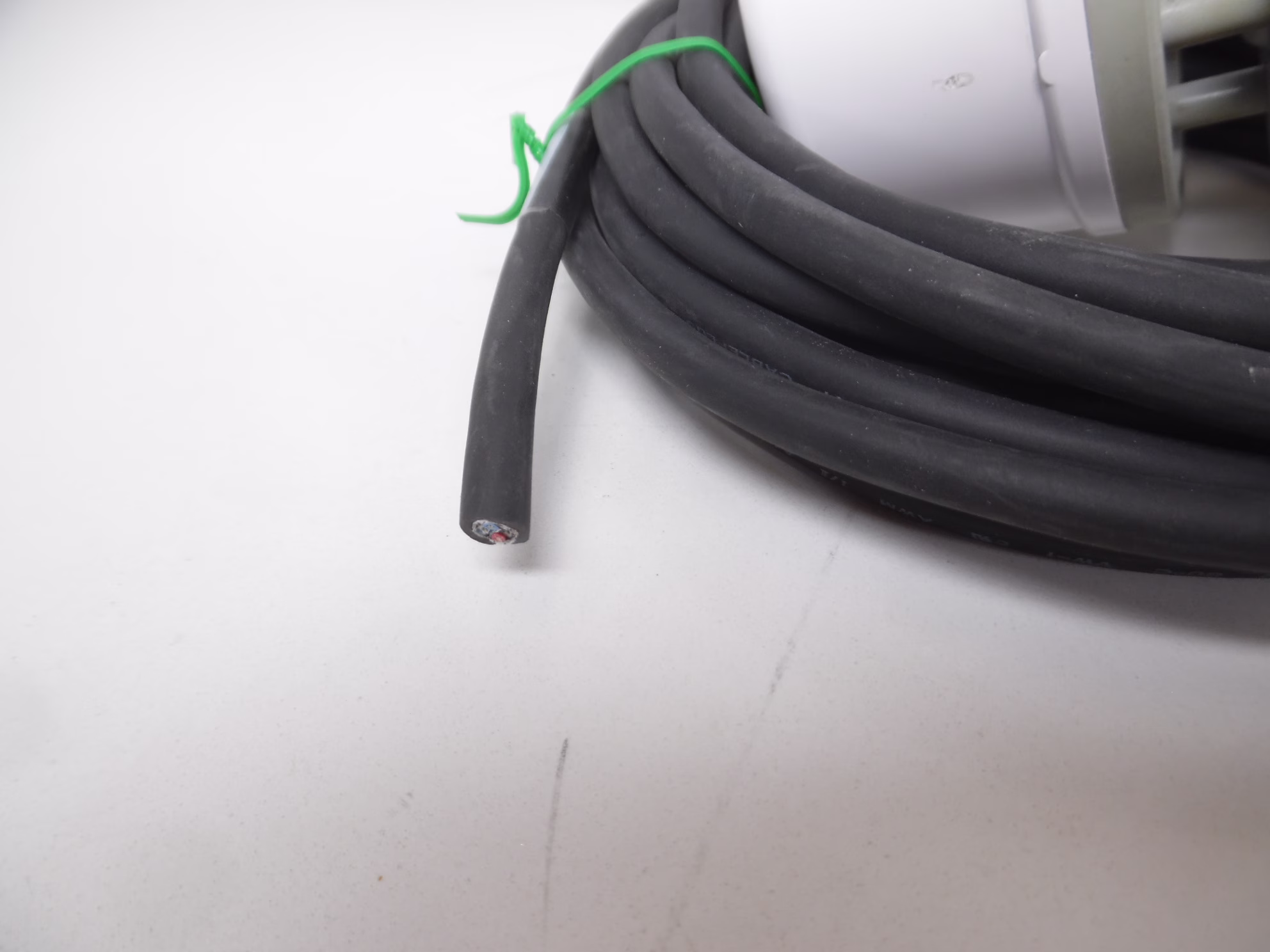

• NMEA2000 Drop Cable – 6M

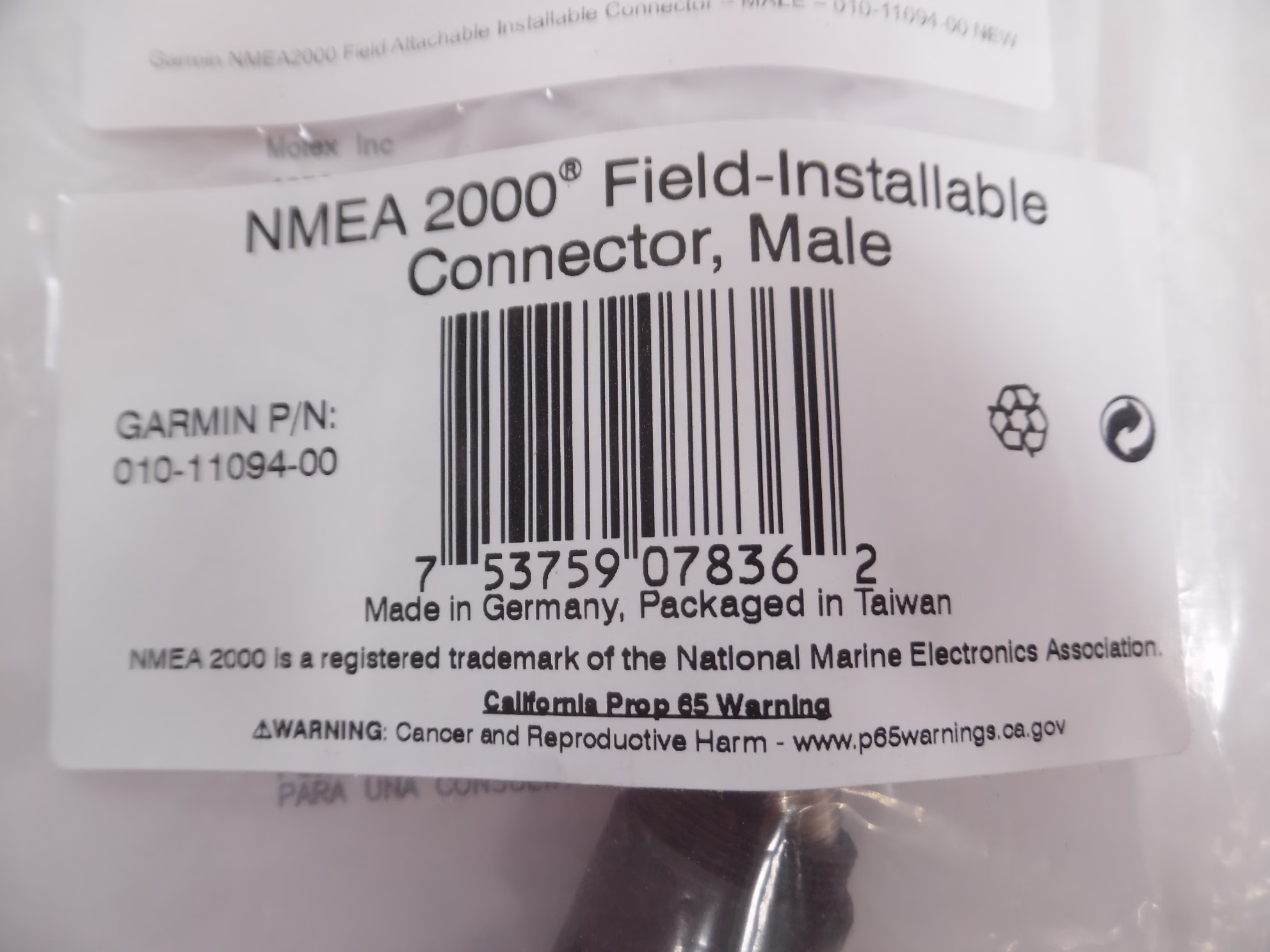

• Male Micro-c field attachable end

Compatible Parts:

NMEA2000

Dimensions (L x W x H): 6 x 6 x 6 in, Weight: 2 lbs

Shipping Info: Free shipping applies to items being delivered within the contiguous United States (lower 48). HI, AK, PR, and all other US Territories, and International locations will have shipping calculated during checkout.

Return Info: 30-Day Returns

Warranty Info: 90-Day Warranty
