Description

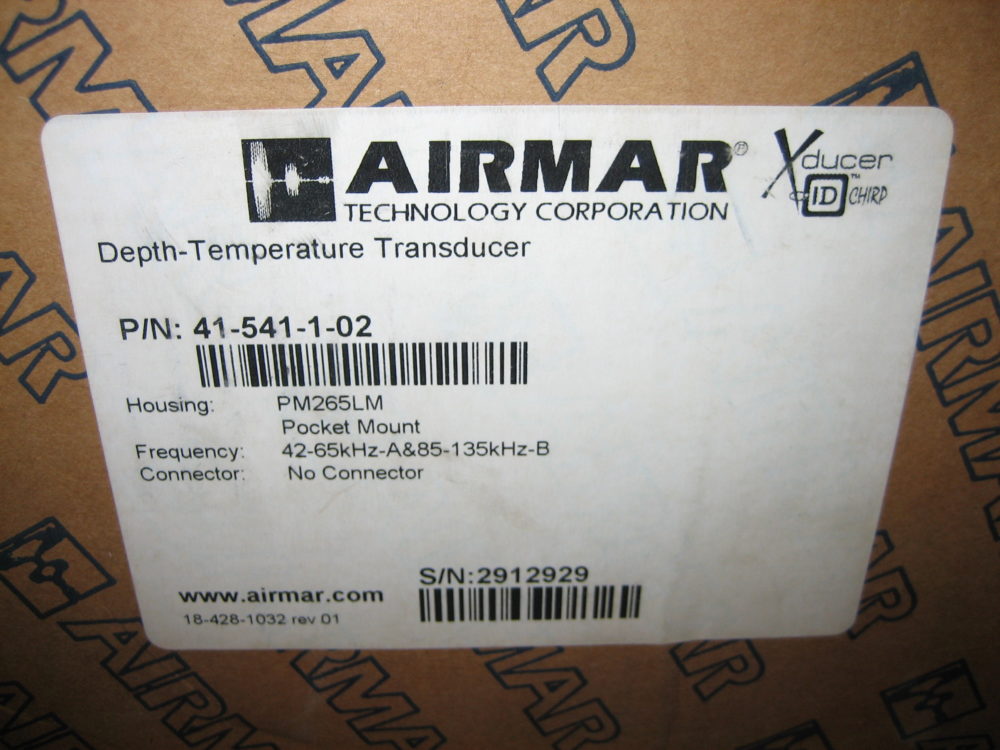

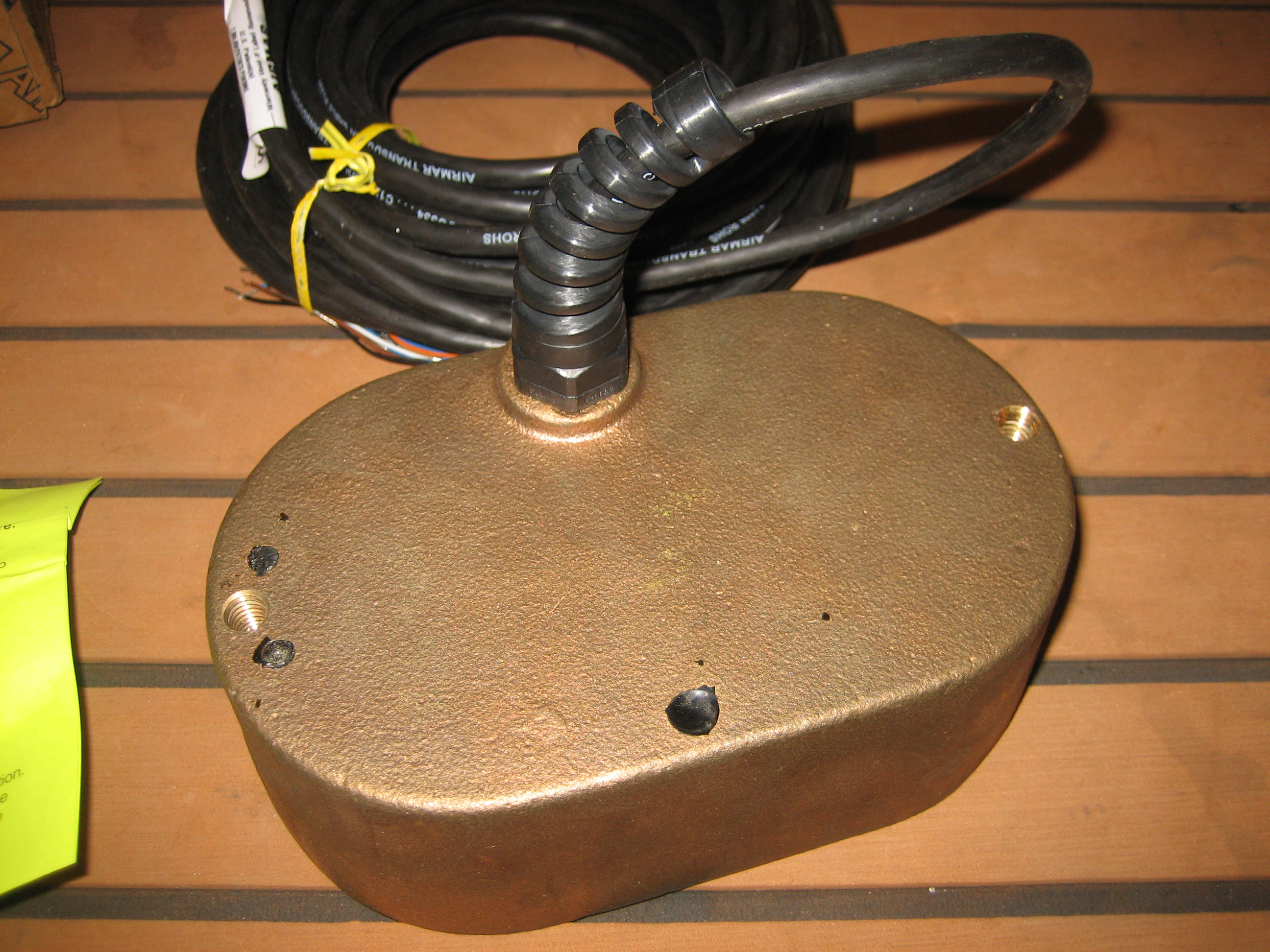

This Airmar PM265-LM is a new old stock item. The PM265 is designed to be pocket mounted (hence the “PM” nomenclature). Generally this is done in the keel of a boat. It will need to be “glassed in” and faired in to the pocket. If you’re lucky enough to have a flat pad on the centerline of the boat, this will be easier, but still required fiberglass work to be done.
This transducer is a “loose wire” CHIRP transducer. As far as wiring goes:
For Garmin – Works with the GSD26 – just wire to the terminals or to connect to compatible XSV units or GSD25, use the 12 pin yellow pin wire block adapter, part number 010-11613-10.
For Raymarine – Use Airmar’s 33-969-01 adapter box for Raymarine 11 pin CHIRP units/modules.
For Furuno – Works with the DFF1-UHD – just wire to the terminals – also works on the TZT3 (will require a special cable for TZT3, please ask)
For Simrad – Works with BSM2&3 – wire directly to the terminals, you may need to remove the 7 pin plugs on the BSM-3 if equip to wire directly. For the S5100, NSS evo3 and 3s, use the Simrad 000-13262-001 adapter box.
Because this is new old stock, the transducer does not carry a manufacturer’s warranty as Airmar warrants products for 2 years after the date of manufacture which has since passed. If it is installed by an Airmar Certified Installer (ACI) and the transducer is tested before and after install by an ACI with a TDT1000, you will get 3 years of warranty on the transducer.
Thanks for looking!
