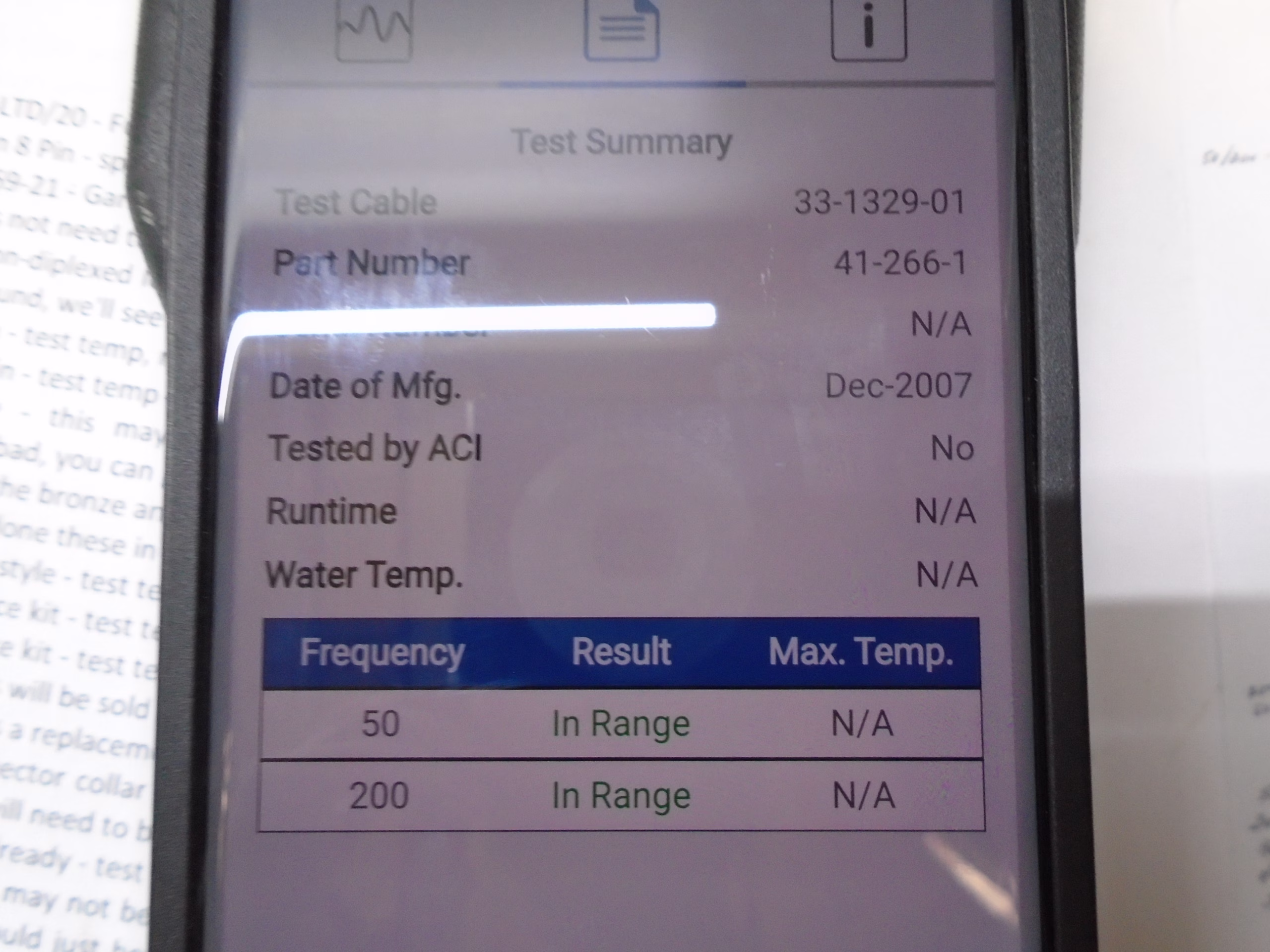

This is an M260-10F that was removed from a boat being refit with new electronics. The transducer was tested on the TDT1000, the gold standard in transducer test equipment. The transducer is well within factory specs and is ready for installation.
PLEASE NOTE: The tank included in this sale was previously cut at a 22 degree angle; However, it was cut below the do not cut line. This would allow you to have it re-cut and be used for 24 to 0 degree installations. This transducer also does not have XID – if you require XID for your installation then this will not work.
This includes the following:

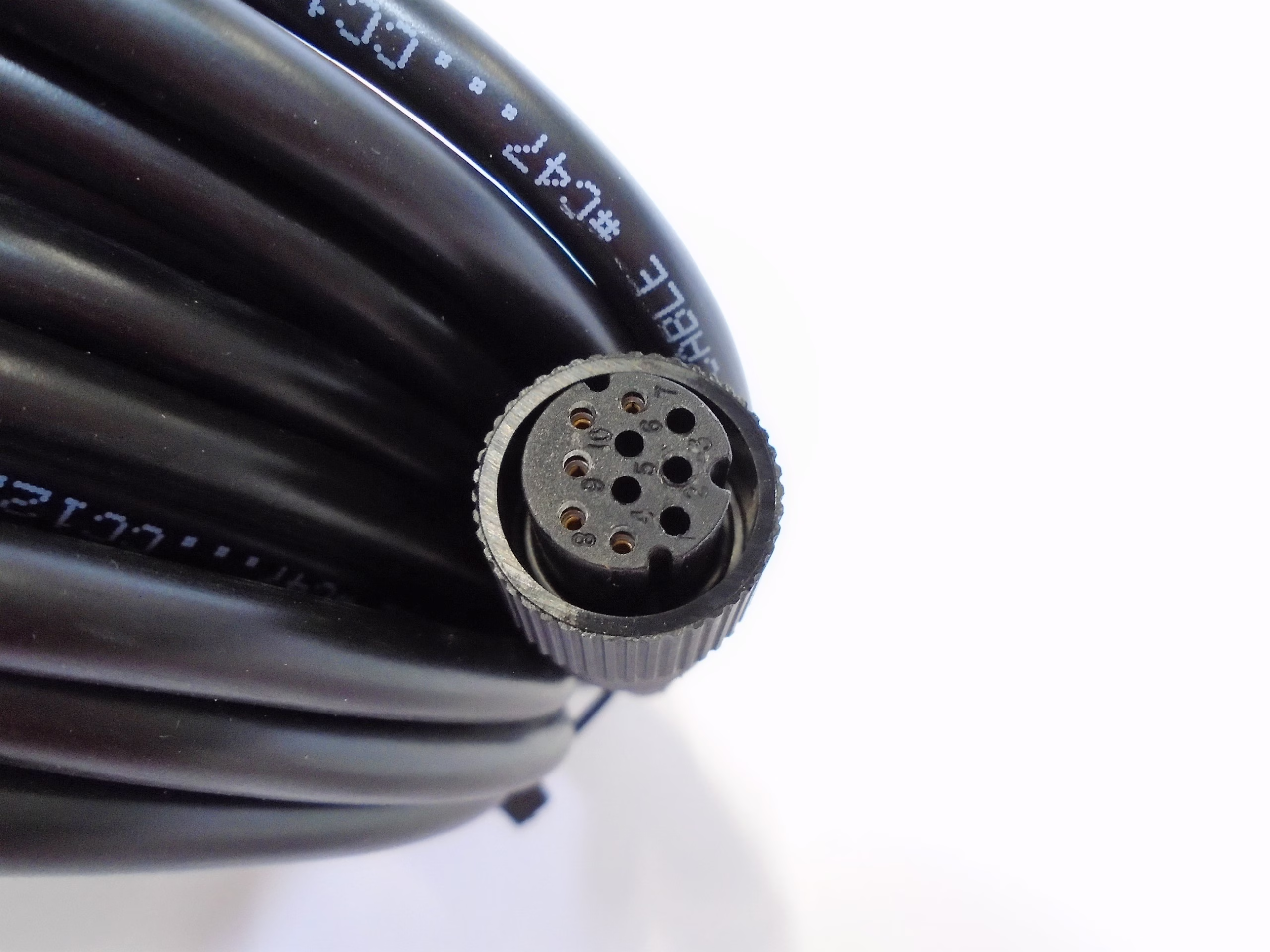

- M260 transducer w/10 pin Furuno Cable

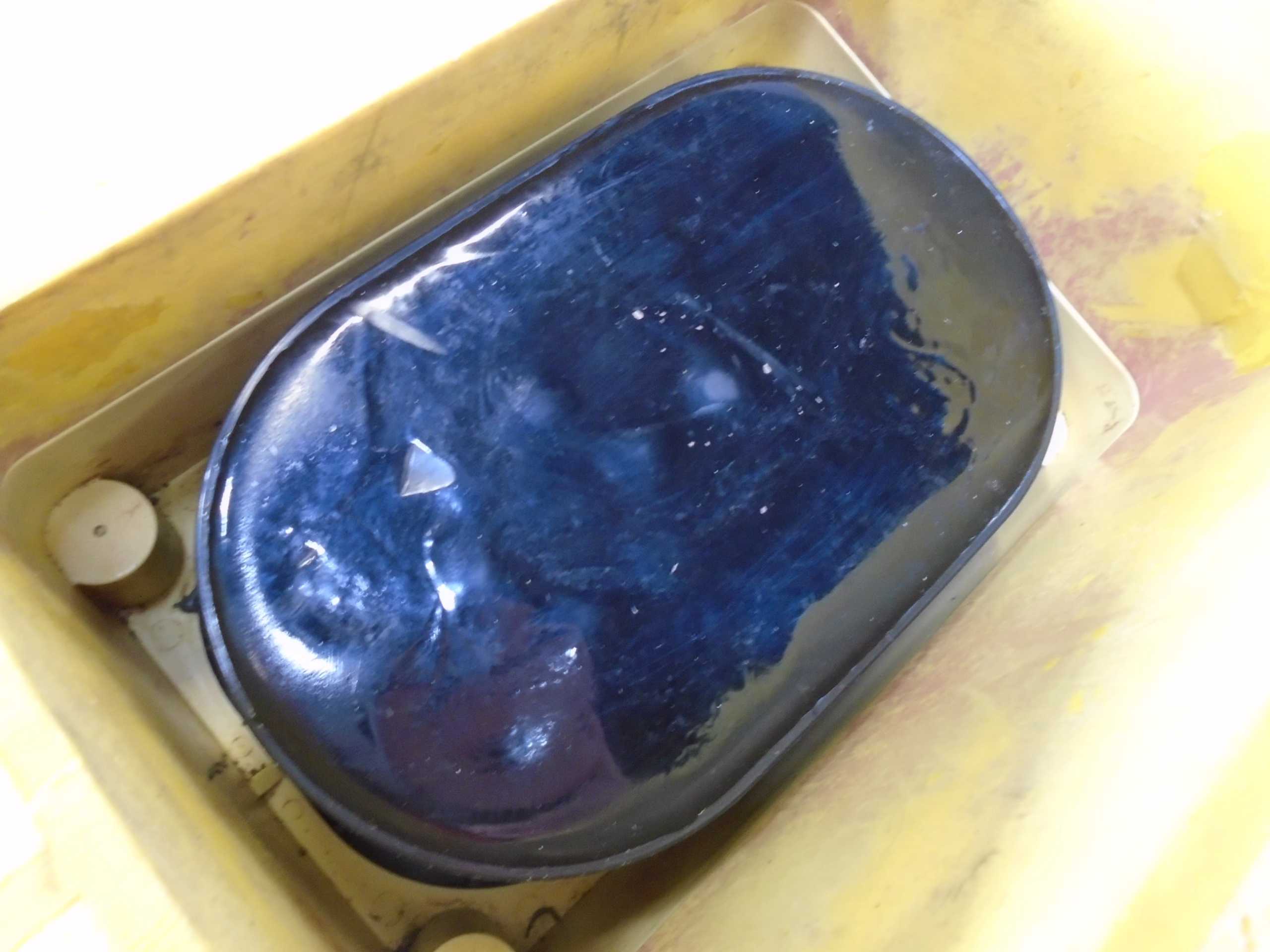

- Yellow tank kit
- Hardware
- Cork Liner
Features:
- Depth only
- 1 kW
- Dual-frequency element:
- 50 kHz with a 19° beamwidth for depth performance to 735 m (2,500′)
- 200 kHz with a 6° beamwidth for depth performance to 294 m (1,000′)
- Urethane transducer housing with plastic mounting tank
When this transducer was removed from the boat the cable had to be cut. We have retrofit it with a waterproof splice kit. If you need to remove the splice for any reason, it will require the use of a very small Allen key. We do not have any spares to include in the sale.
This item has a 30-day return and 90-day warranty from date of receipt. For more information on our store policies please refer to our terms and conditions.
Free shipping in the Contiguous United States.
