Manufacturer: Airmar

Model Number: B75C-20-M

Series: Transducer

Listed Item Condition: Used

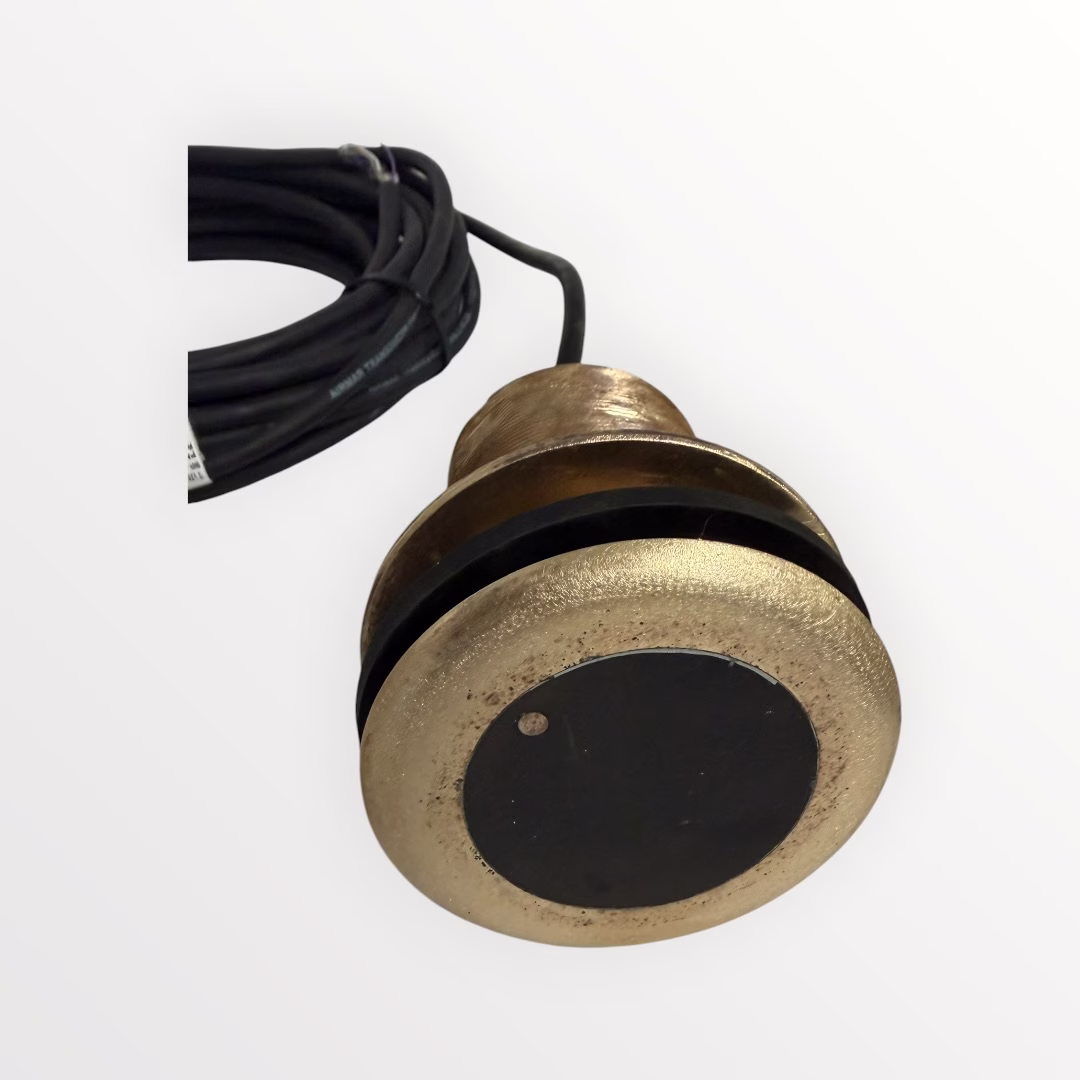

Additional Notes: Airmar B75C-M-20 Thru-Hull 20 degree, Medium Band CHIRP, 600w

We recently evaluated all of our transducers with the Airmar TDT1000, which is the gold standard in transducer test equipment.

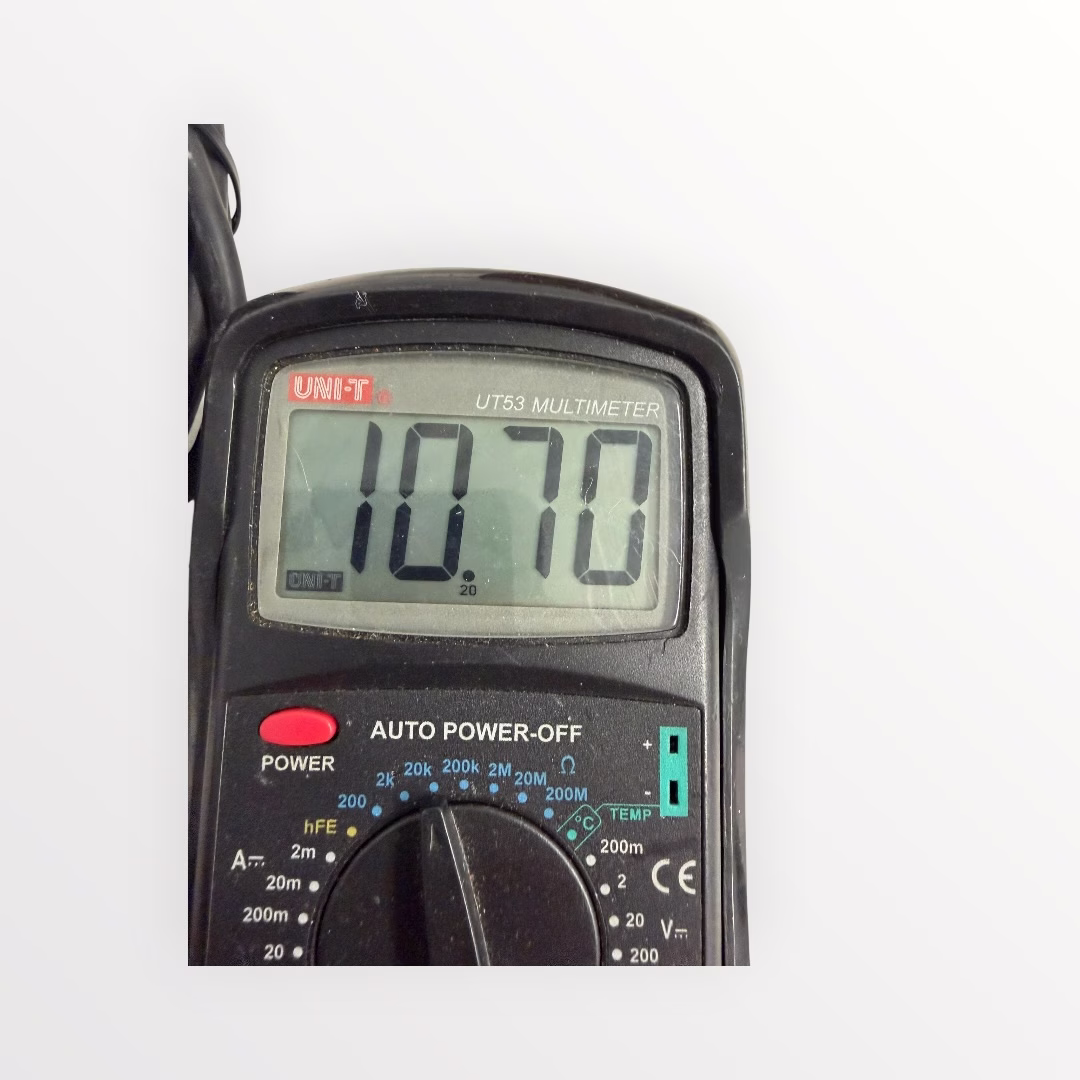

This transducer passed testing on the medium CHIRP band, water temperature sensor is functional, transducer is ready to install.

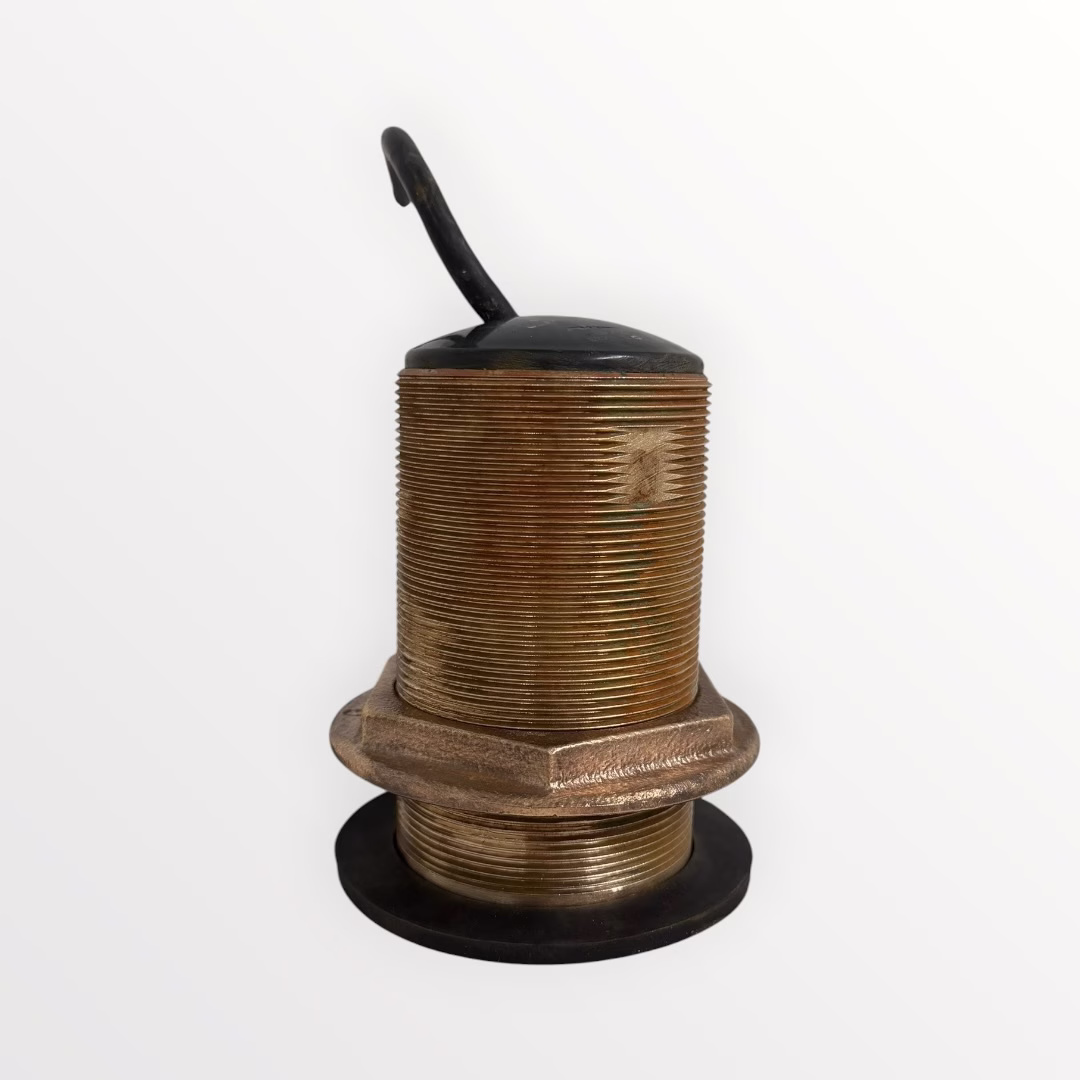

There were some imperfections from removal on the threads of the transducer – we have corrected the threads for a seamless install.

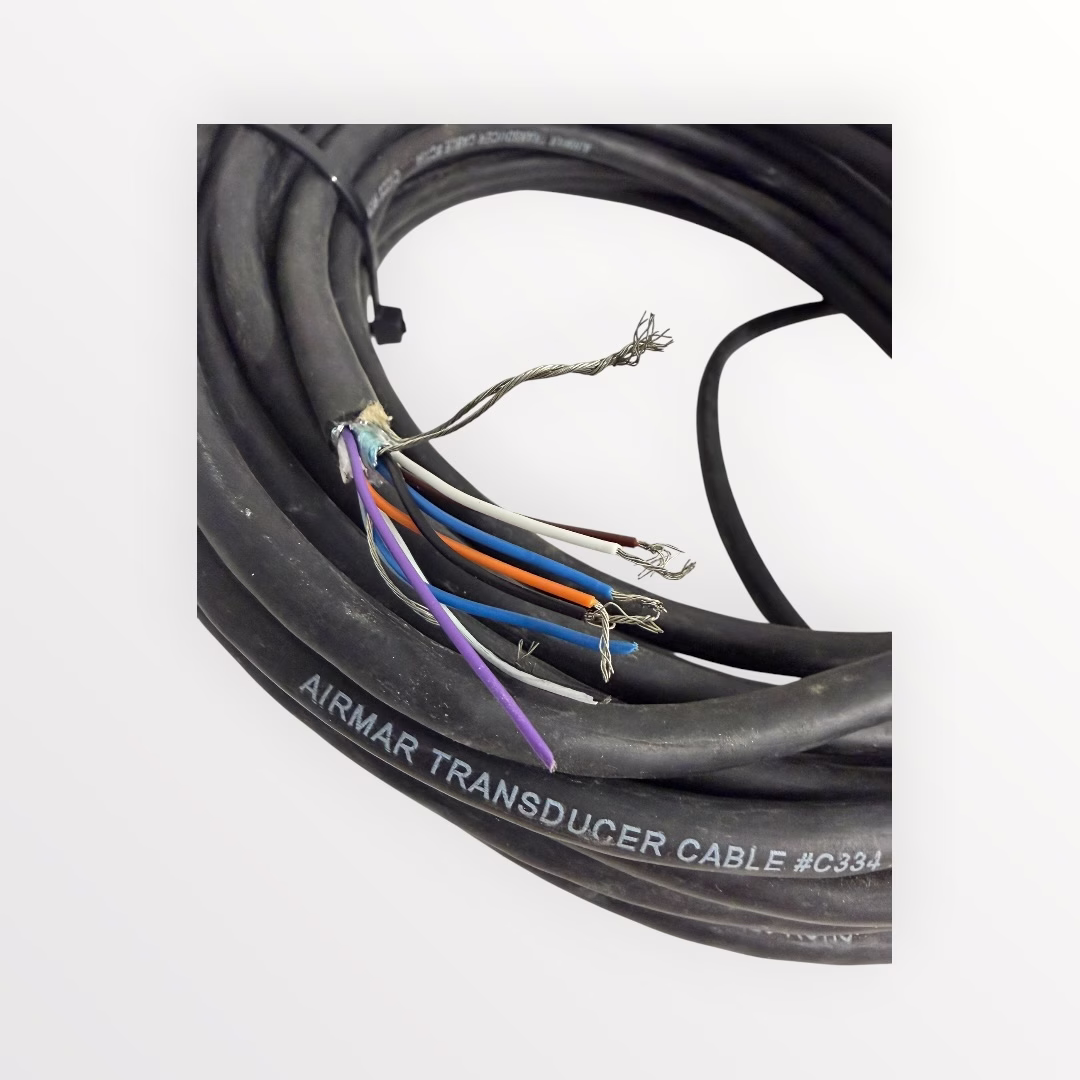

This transducer is a “loose wire” CHIRP transducer, medium band, you will need to splice to a connector or wire to a junction box – please see brand-specific instructions under “compatible parts”

If you have any questions about compatability, please ask.

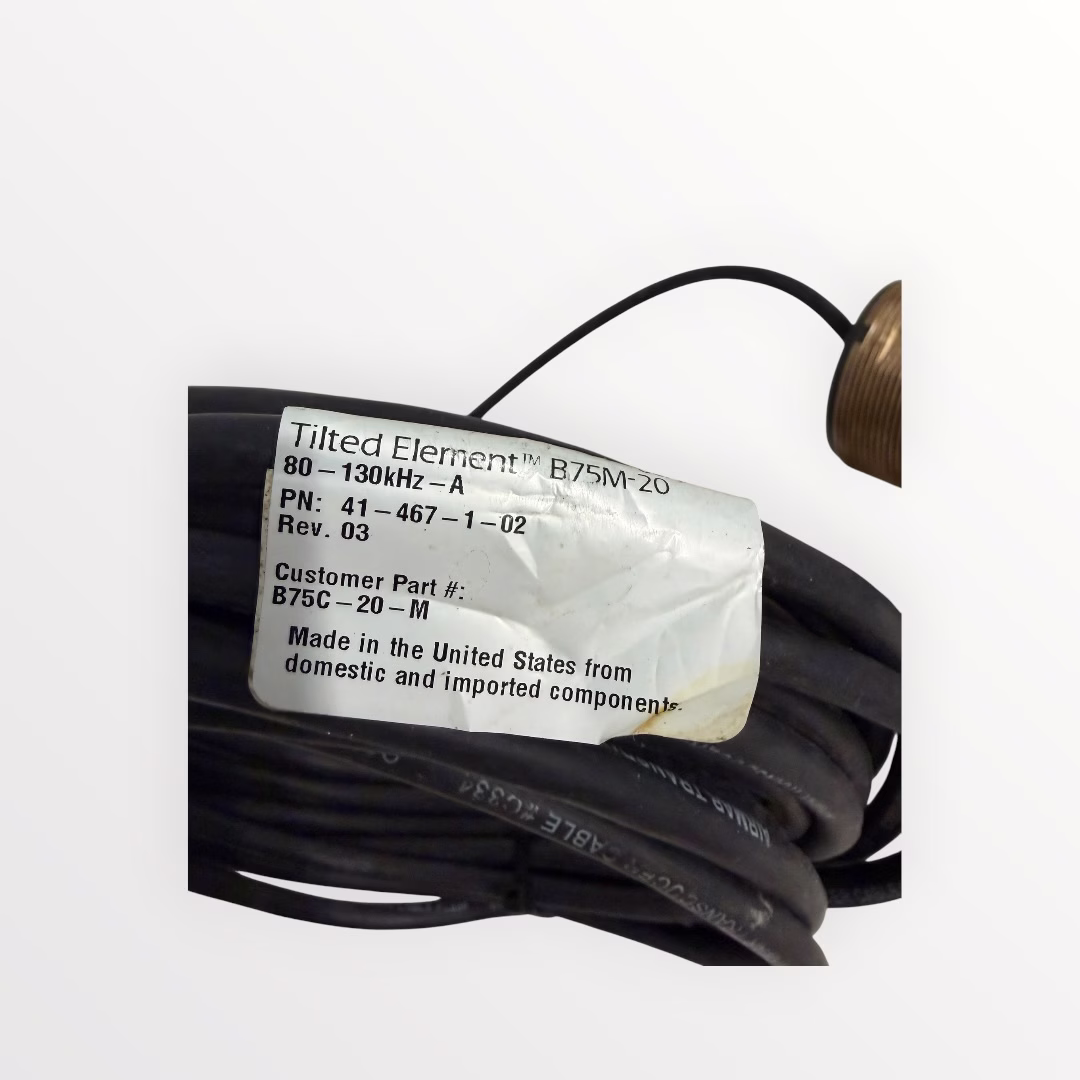

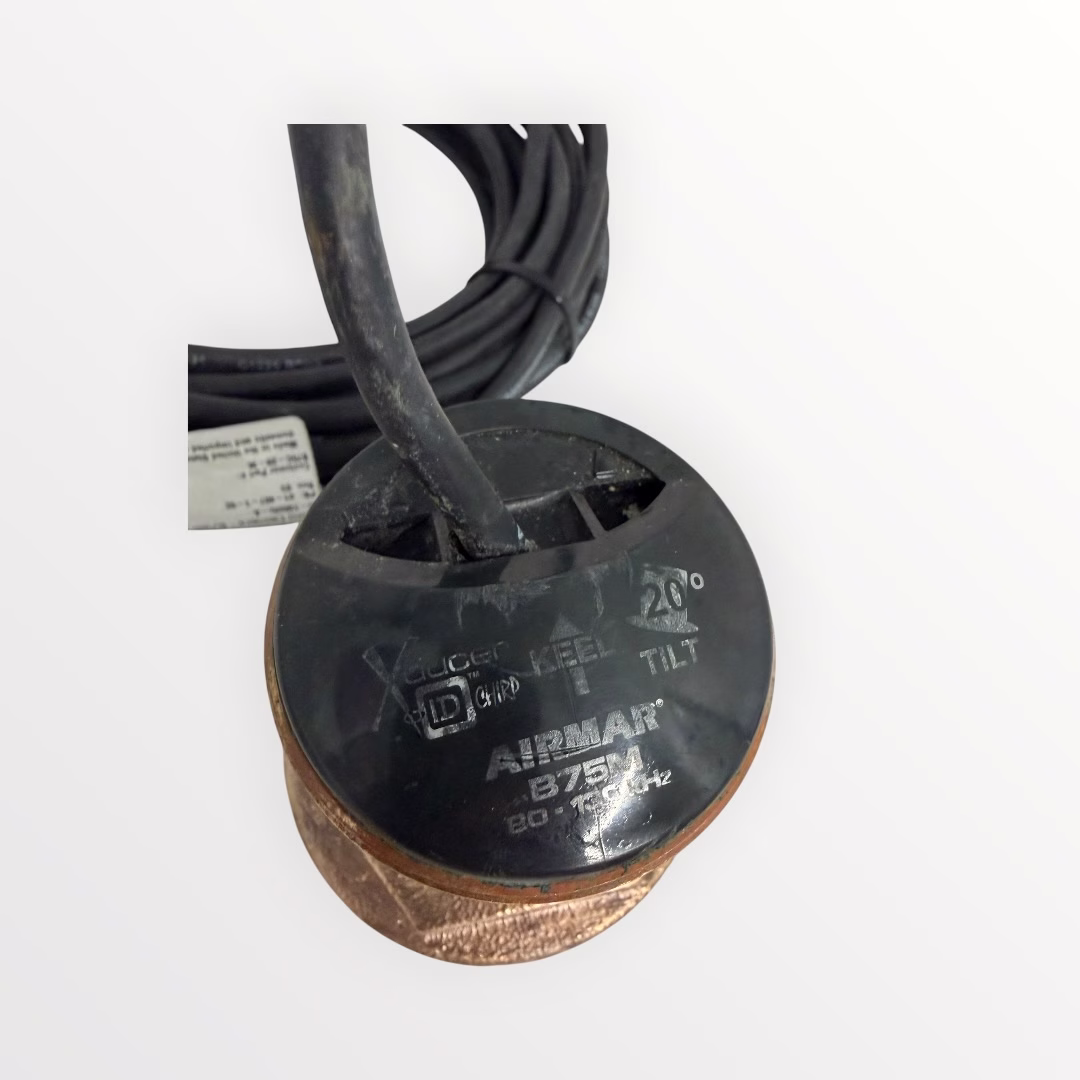

This is for installation on deadrises of 16 to 24 degrees only because it is what is known as a “tilted element” transducer.

What’s Included:

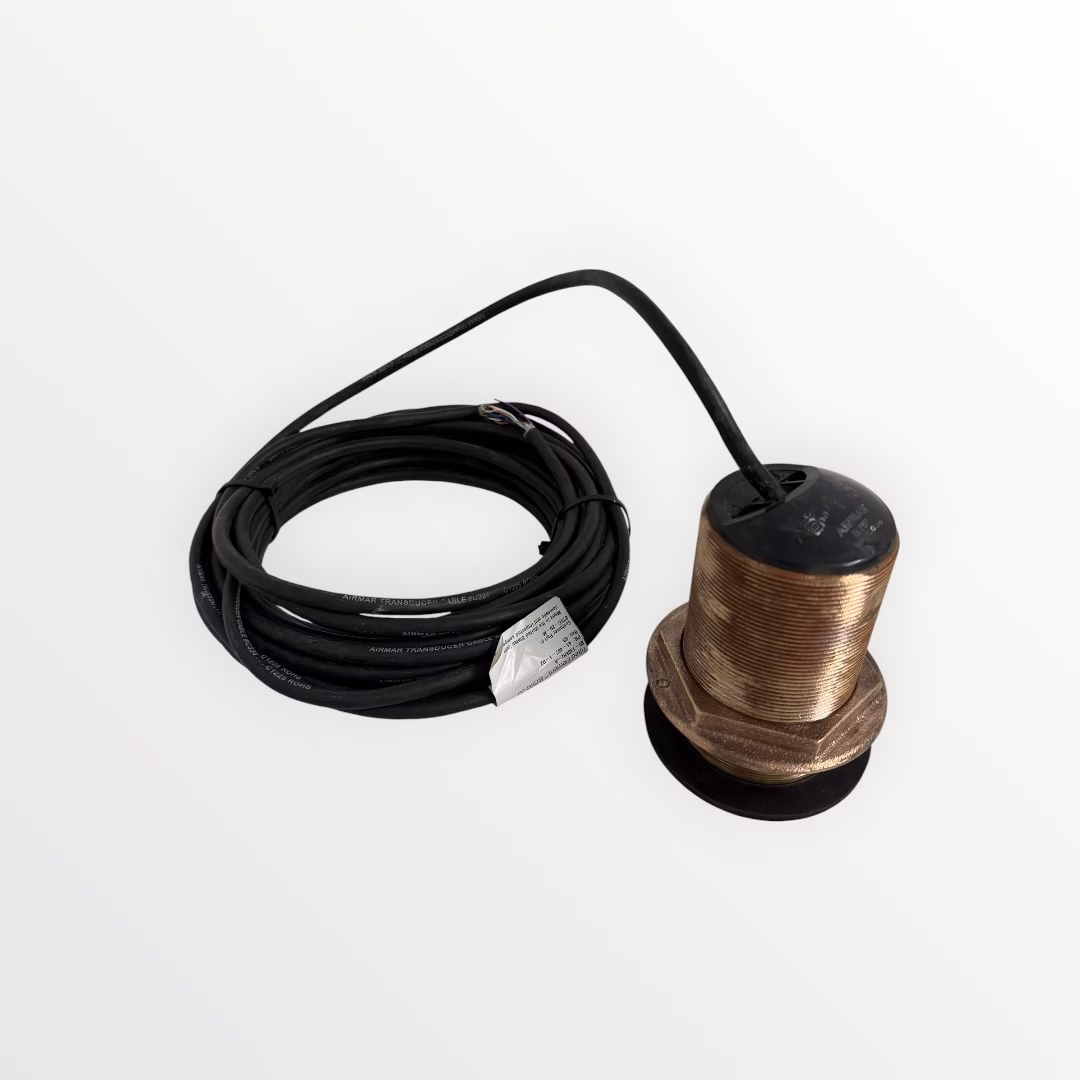

• B75C-M-20 Transducer w/Full Length Factory Cable (30’+)
• Hull Nut and Hull Washer

Compatible Parts: For Garmin – Use the 8pin blue or 12pin yellow pin wire block adapter for use on GSD25 and/or XSV units

For Raymarine – Use Airmar’s 33-969-01 adapter box

For Furuno – Requires the TZ3-12P-PGT splice kit for Furuno 12-pin CHIRP applications. For 10-Pin CHIRP applications, you can splice it to the AIR-033-333.

For Simrad – For connection to XSonic Units, use the Simrad 000-13262-001 adapter box.

Dimensions (L x W x H): 14 x 14 x 8 in, Weight: 12 lbs
